Used Kieselguhr DE Filter – Model NF-10, 10 m² Horizontal Disc Beer Filter

Manufacturer Information

• Manufacturer: Kieselguhr

• Model: NF-10

• Year Built: 2002

• Category: Diatomaceous Earth (DE) Horizontal Disc Filter

• Condition: Used – last in beer filtration

Description

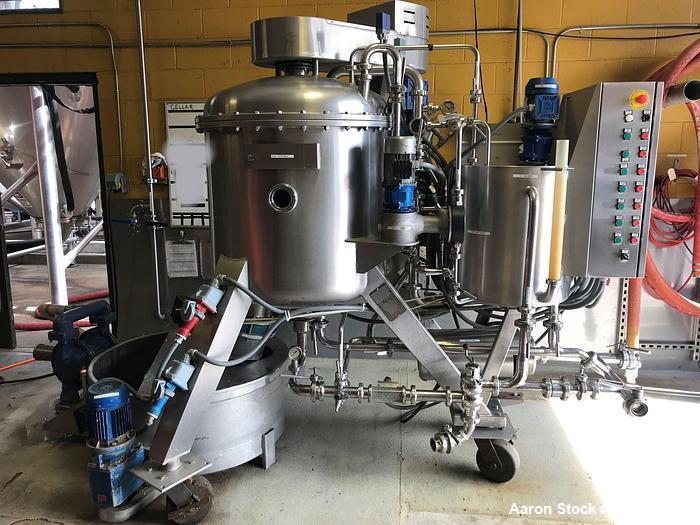

The Kieselguhr NF-10 DE Filter is a 10 m² horizontal disc filter designed for brewery and beverage clarification. Built with an AISI 304 stainless steel vessel and frame, this filter system is ideal for beer, wine, cider, and other beverage applications requiring high-quality clarification.

This unit includes filter discs, butterfly valve piping, centrifugal pump, piston dosing pump, filter pack turning device, and a final filtration disc for residual liquid recovery. The system also features sight glasses at product inlet/outlet, sample valves, pressure gauges, and flow meters for process monitoring.

A wheel-mounted AISI 304 cake collection tray with a 10” diaphragm pump is included for cake discharge. The system has a 630 L bell capacity rated at 7 bar and a 175 L dosing tub. Designed for efficiency, the NF-10 achieves a throughput of 30–50 bbl/hour (16.5–27.5 gpm).

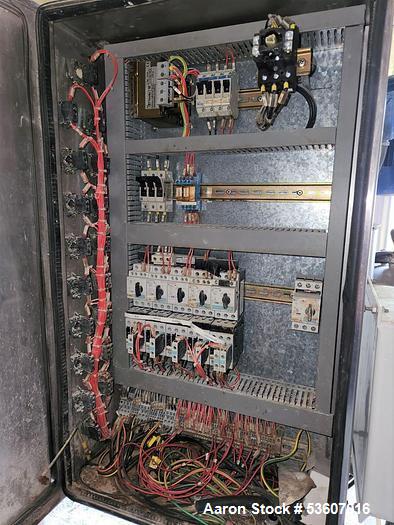

The unit is powered by 480V, 3 Ph, 60 Hz, 34 Amp electrics, weighs ~1,800 lbs, and measures 7’4” H x 7’10” W x 4’5” D.

Specifications

• Filter Type: Horizontal Disc DE Filter

• Model: NF-10

• Filter Area: 10 m²

• Bell Capacity: 630 liters (~5 bbl)

• Flow Rate: 30–50 bbl/hour (16.5–27.5 gpm)

• Operating Pressure: 7 bar

• Dosing Tub: 175 liters

• Construction: AISI 304 stainless steel vessel, discs, frame, and piping

• Pumps:

  • Centrifugal pump

  • Piston dosing pump

  • 10” diaphragm discharge pump

• Accessories:

  • Filter pack turning device

  • Lighted sight glasses (inlet/outlet)

  • Pressure gauges, flow meters, sample valves

  • Wheel-mounted cake collection tray

• Electricals: 480V, 3 Ph, 60 Hz, 34 A

• Dimensions: 7’4” H x 7’10” W x 4’5” D

• Weight: ~1,800 lbs

• Year Built: 2002

• Last Use: Beer filtration

Applications

What might this be used for?

• Brewery beer clarification and filtration

• Wine filtration

• Cider clarification

• Juice and beverage polishing filtration

• Nutraceutical and botanical extracts filtration

• Food-grade syrup clarification

• Pharmaceutical and biotech liquid clarification

• Edible oil polishing filtration

• Chemical solution clarification (non-corrosive)

• General beverage industry DE filtration

Example Products Processed

• Beer (last use)

• Wine and cider

• Fruit juices

• Botanical extracts

• Plant-based beverages

• Syrups and flavorings

• Cosmetic liquid bases

• Nutraceutical liquid extracts

• Non-corrosive food-grade oils

• Industrial beverage additives
