Stock No.: 50986002

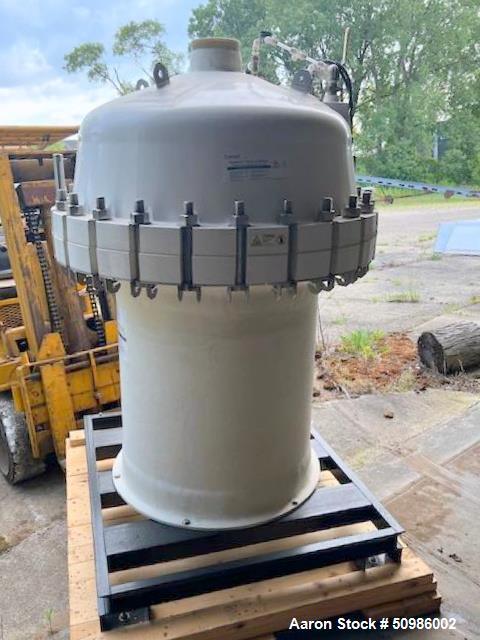

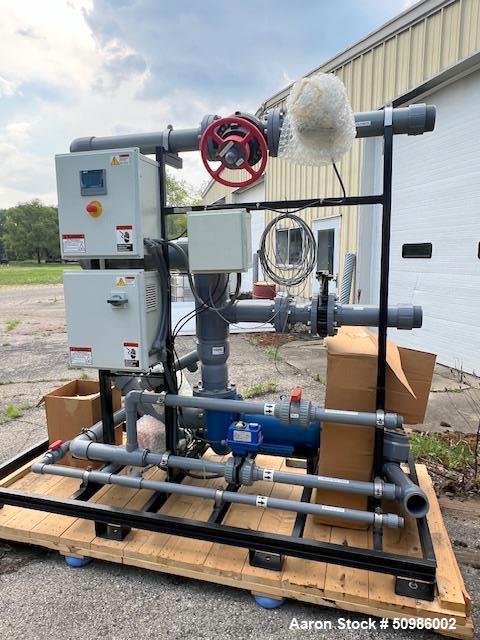

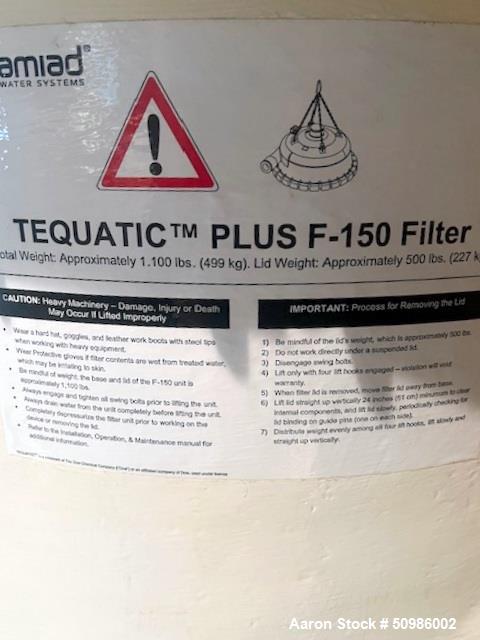

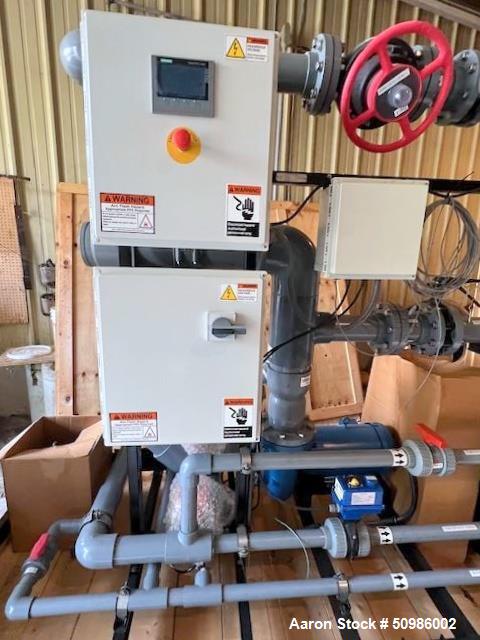

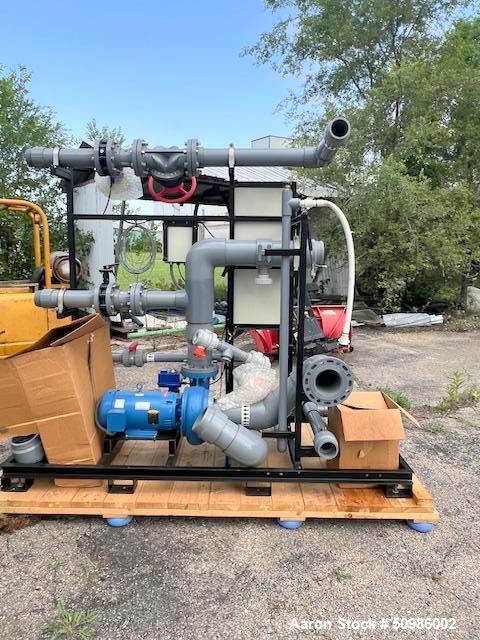

Unused Tequatic Plus F-150 Filter B-Series Skid – High Solids Filtration System
Unused- Tequatic Plus F-150 Filter, B-Series Skid. 80-240 GPM flow rate; 100 psi Maximum Inlet Pressure; 140 degrees F Maximum Temperature; 45 degrees F Minimum Temperature; pH 5-9 continuous; 1/16" Maximum Particle Size. Can handle high TSS from 10010,000 mg/L and greater, and filter down to 15 microns. 3/50-60/440V, 20 Amps. Approximately 2330 pounds dry, 3230 pounds wet.
-
ModelF-150
-
CategoryFilters
-
SubcategoryCartridge
-
CoverBolt-On
-
Internal Pressure100
-
Internal RatedPressure
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
-

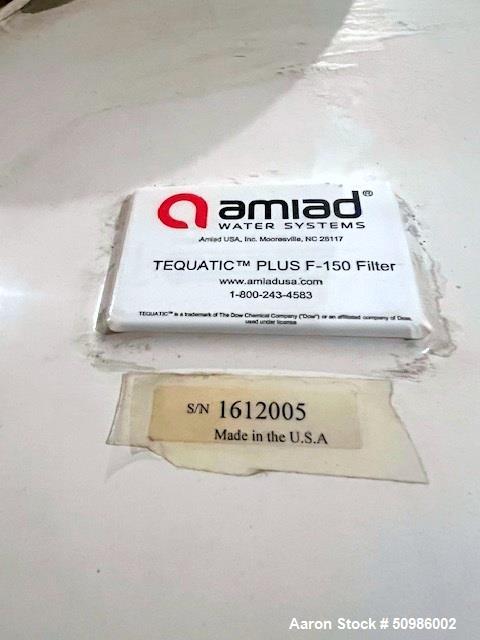

Manufacturer: Tequatic Plus
-
Model: F-150 B-Series Skid
-
Condition: Unused
-

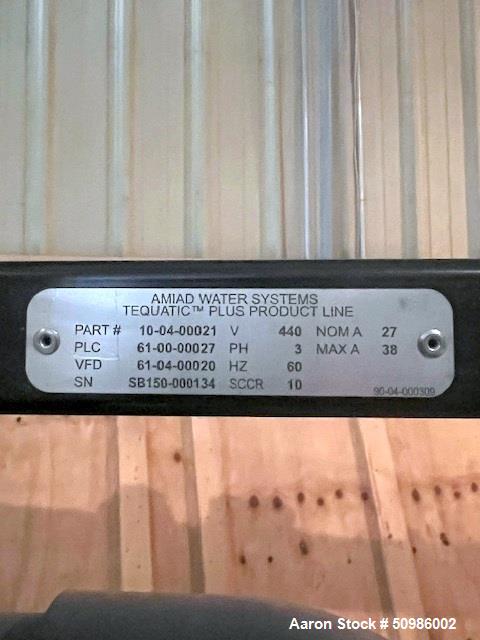

Power Requirements: 3-phase / 50-60 Hz / 440V, 20 Amps
Description:
The Tequatic Plus F-150 Filter B-Series Skid is an advanced self-cleaning filtration system designed to handle high total suspended solids (TSS) concentrations of 10,000 mg/L and greater, filtering down to 15 microns. With a flow rate range of 80-240 GPM, it is built for heavy-duty industrial applications, including wastewater management and process water filtration. The unit supports inlet pressures up to 100 psi, operates at temperatures between 45°F and 140°F, and has a continuous pH operating range of 5-9. This unused system weighs approximately 2330 pounds dry and 3230 pounds wet and can handle particles up to 1/16 inch in size.
Specifications:
-
Model: F-150 B-Series Skid
-
Flow Rate: 80–240 GPM
-
Maximum Inlet Pressure: 100 psi
-
Operating Temperature: 45°F minimum to 140°F maximum
-
pH Range: 5-9 continuous
-
Maximum Particle Size: 1/16 inch
-
Filtration Capability: Down to 15 microns
-
Total Suspended Solids (TSS) Capacity: Up to and beyond 10,000 mg/L
-
Electrical Requirements: 3/50-60/440V, 20 Amps
-
Dry Weight: 2,330 lbs
-
Wet Weight: 3,230 lbs
Applications:
-
Industrial wastewater treatment
-
Oil & gas produced water filtration
-
Mining water processing
-
Pulp & paper wastewater treatment
-
Power plant cooling water filtration
-
Food and beverage process water filtration
-
Metal finishing process filtration
-
Chemical plant water recycling
-
Municipal water pre-filtration systems
-
Agricultural water systems with high solids content
Compatible Products:
-
Wastewater with heavy suspended solids
-
Industrial slurry and high solids process water
-
Produced water in oil & gas industries
-
Industrial cooling tower water
-
Chemical process streams requiring fine filtration
-
Mining wastewater
-
Pulp & paper processing water
-
Agricultural irrigation water containing sediments
-
Food processing rinse water
-
Metalworking fluids and effluent streams
