Manufacturer Information

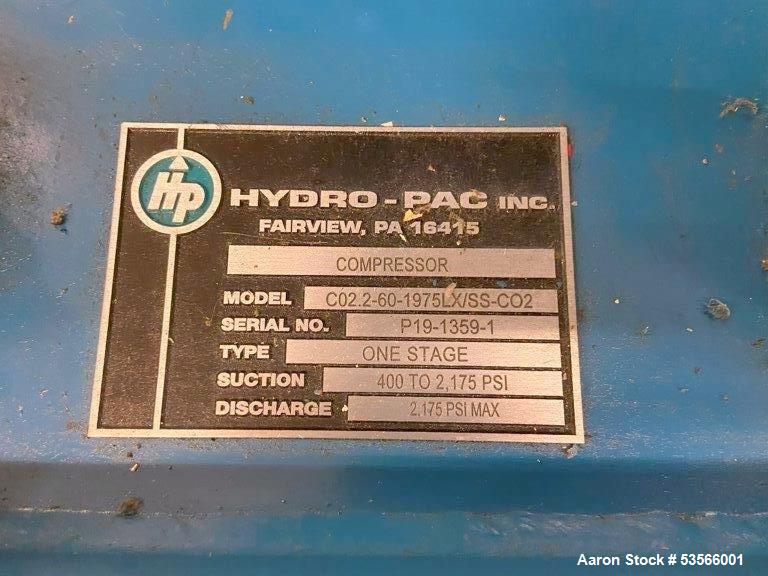

• Manufacturer: Hydro-Pac, Inc.

• Model: C02.2-60-1975LX-CO2

• Condition: Used

• Year Built: 2020

Description

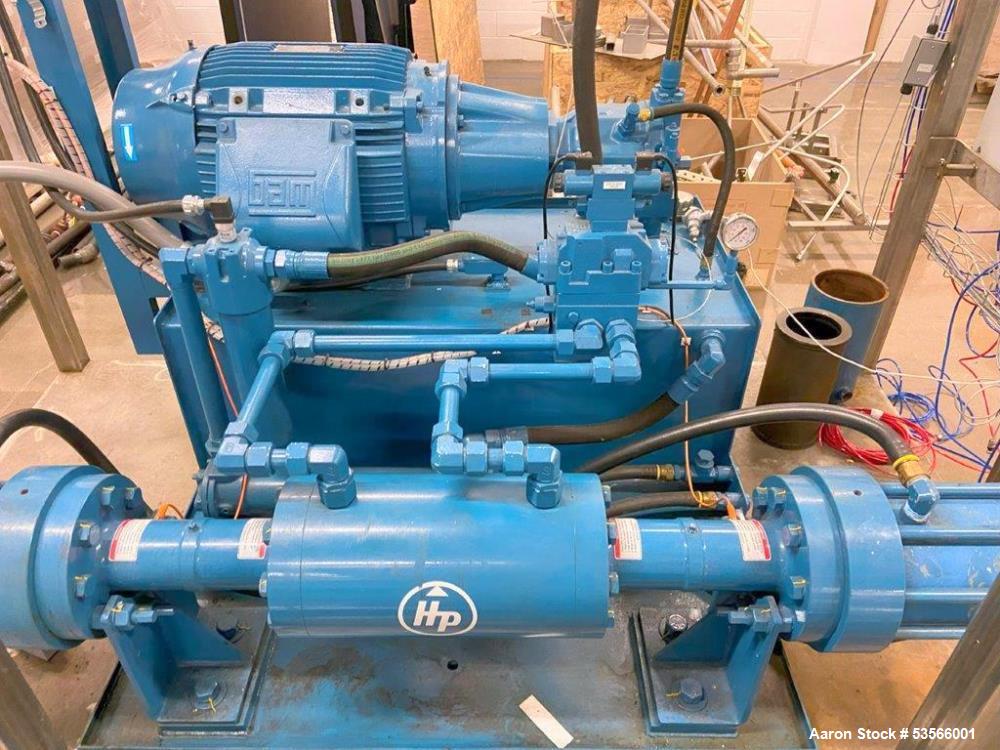

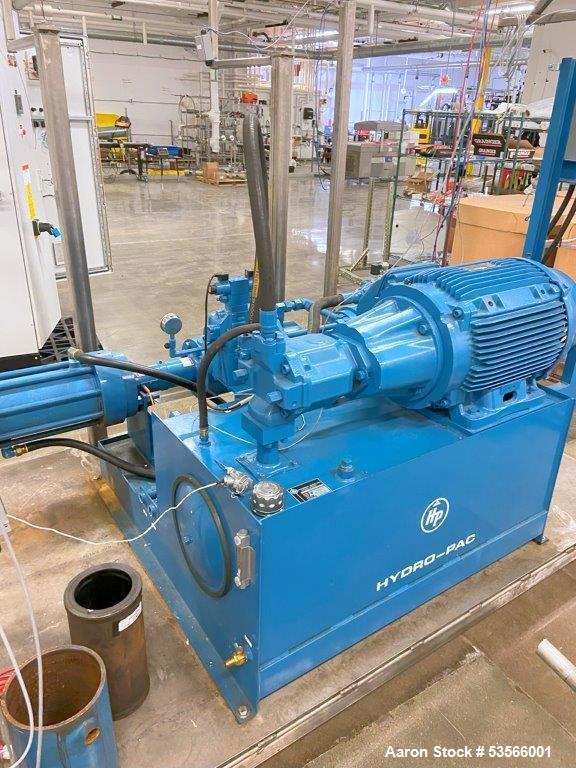

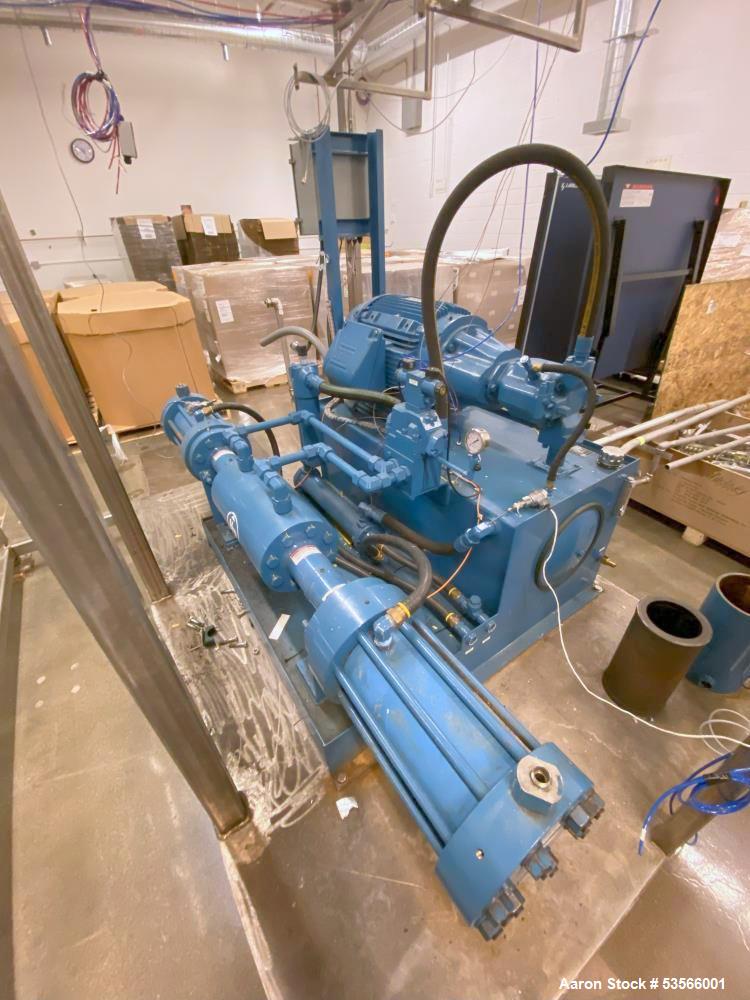

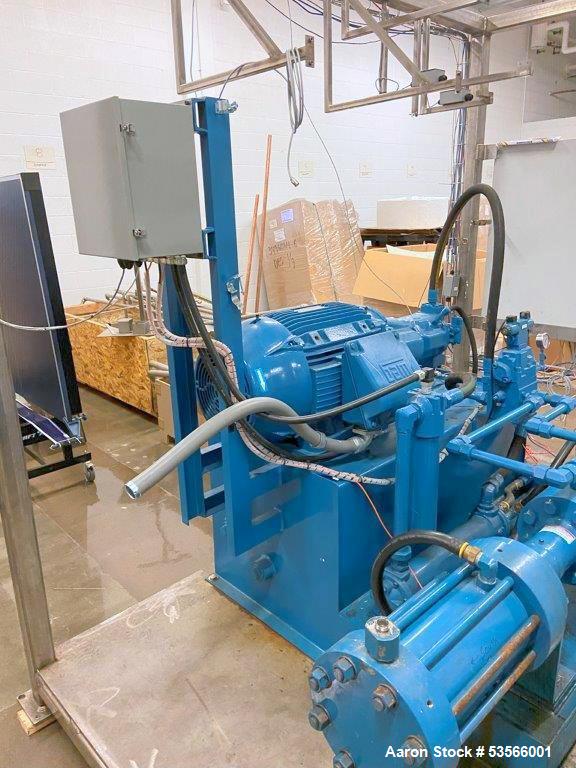

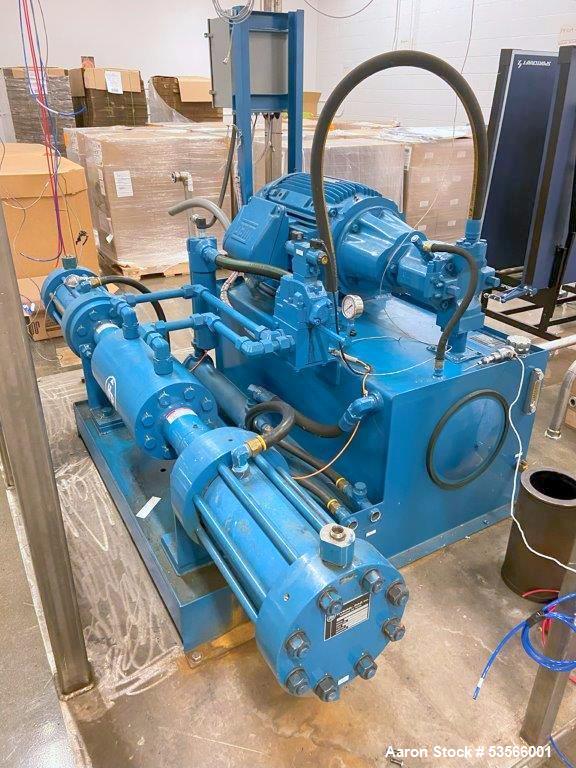

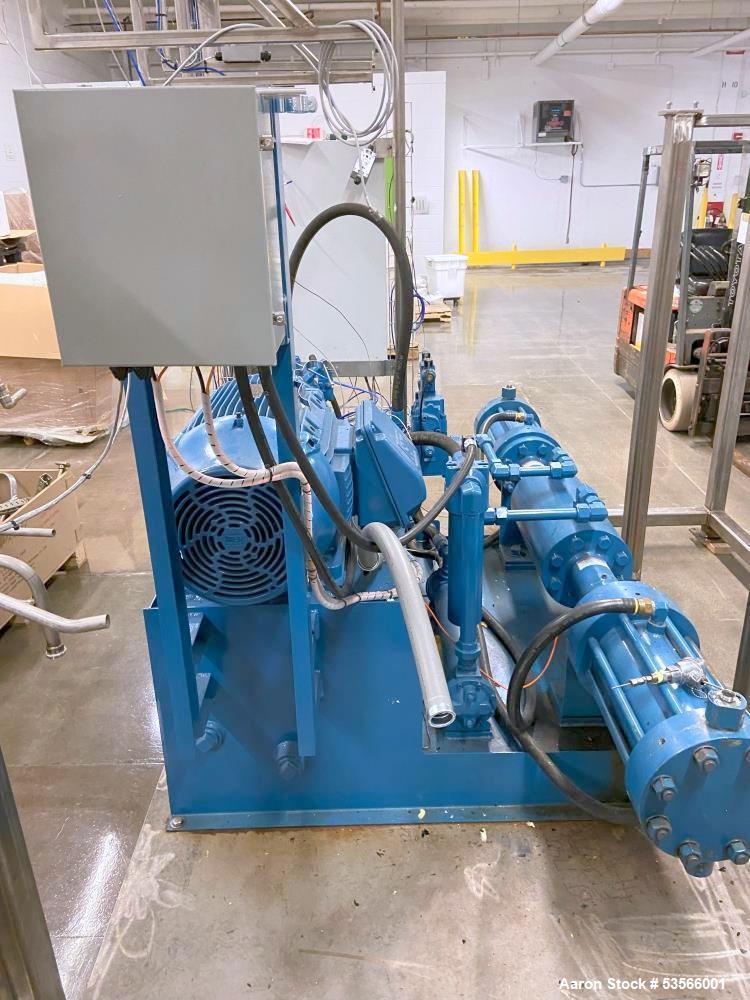

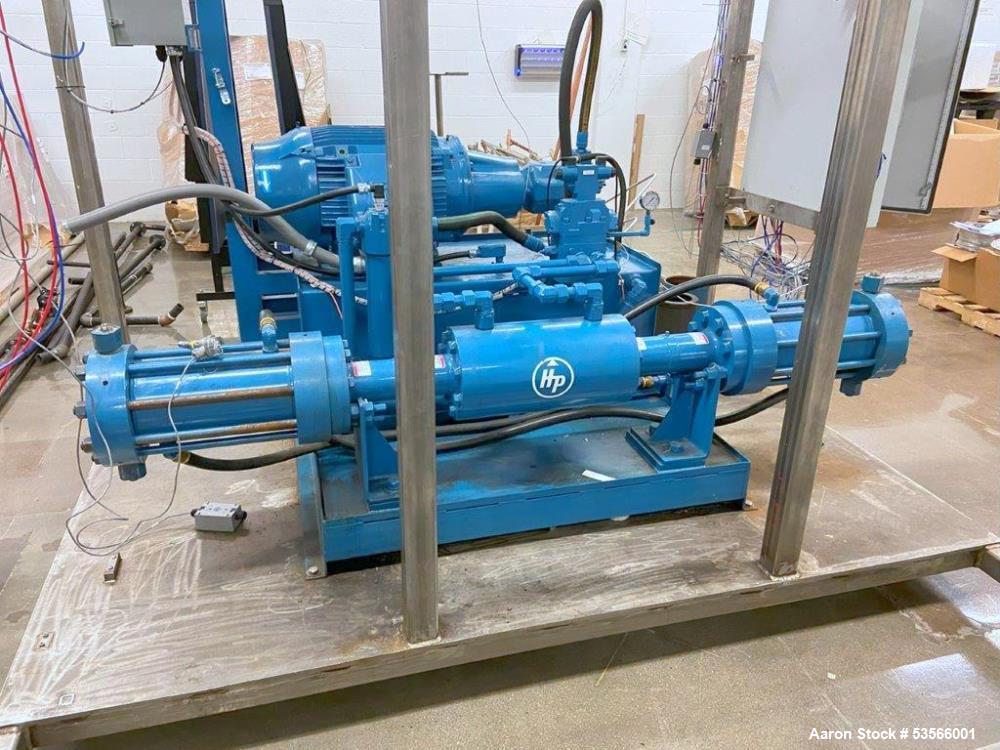

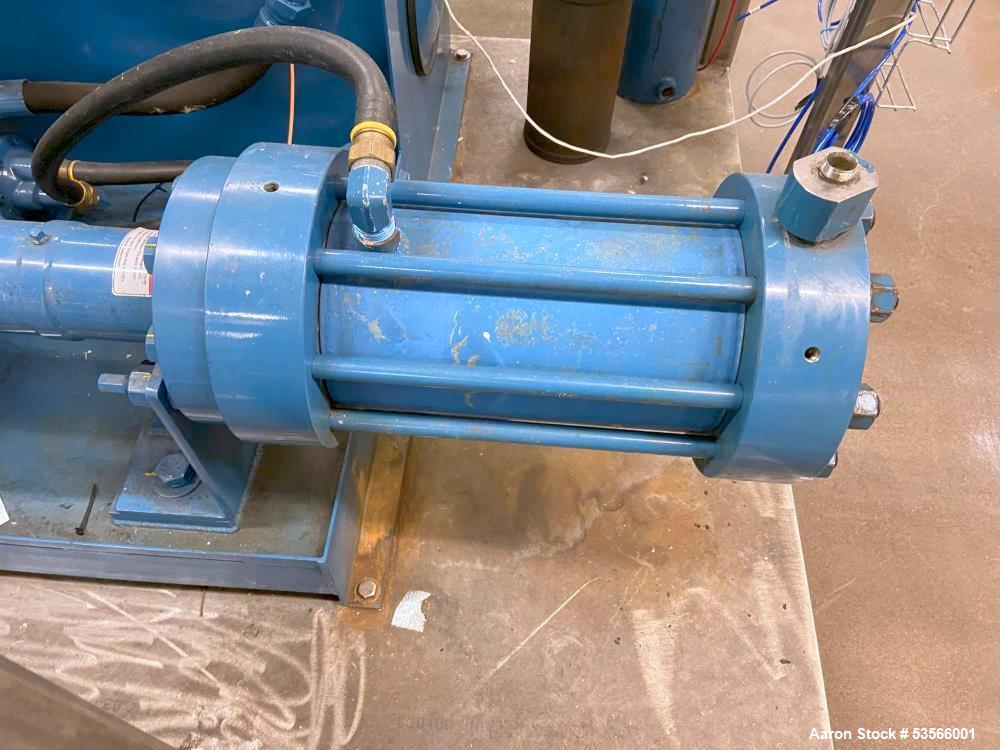

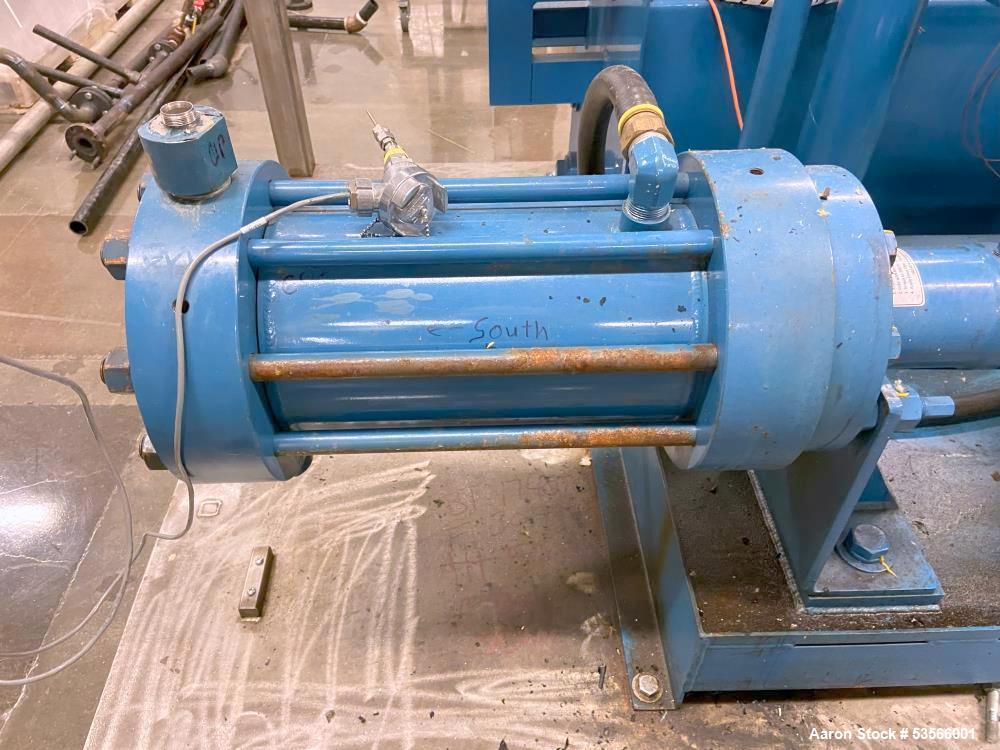

This Used Hydro-Pac LX Carbon Dioxide (CO₂) Compressor, Model C02.2-60-1975LX-CO2, is a single-stage high-pressure industrial compressor designed for CO₂ compression and transfer operations. Built in 2020, it offers advanced reliability and efficiency for modern gas handling applications.

The unit operates within a suction pressure range of 400 to 2176 PSI, with a maximum discharge pressure of 2176 PSI. Performance capacity varies with inlet pressure:

• 127 SCFM at 600 PSIG and 55°F inlet temperature

• 989 SCFM at 870 PSIG and 55°F inlet temperature

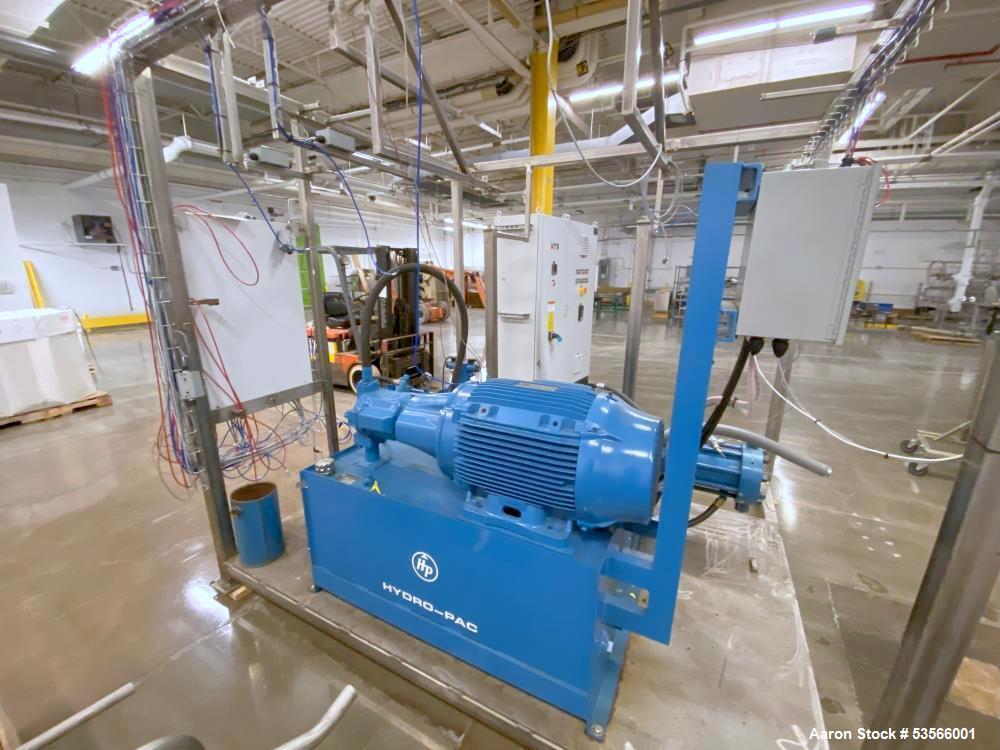

Driven by a 60 HP motor (3/60/230/460V) and a 120V control system, this compressor also requires 15 GPM of cooling water (at 60–80°F) to ensure stable operation during high-pressure applications. Hydro-Pac is renowned for engineering excellence in ultra-high-pressure gas compressors, making this unit an ideal choice for CO₂ recovery, gas filling stations, industrial processing, and specialty gas operations.

Specifications

• Compressor Type: Single Stage

• Suction Pressure Range: 400 to 2176 PSI

• Maximum Discharge Pressure: 2176 PSI

• Capacity:

  • 127 SCFM @ 600 PSIG inlet, 55°F

  • 989 SCFM @ 870 PSIG inlet, 55°F

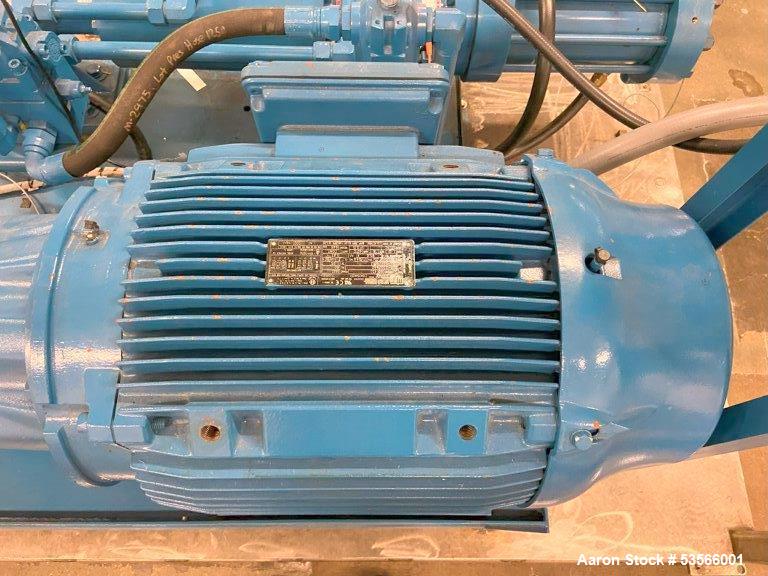

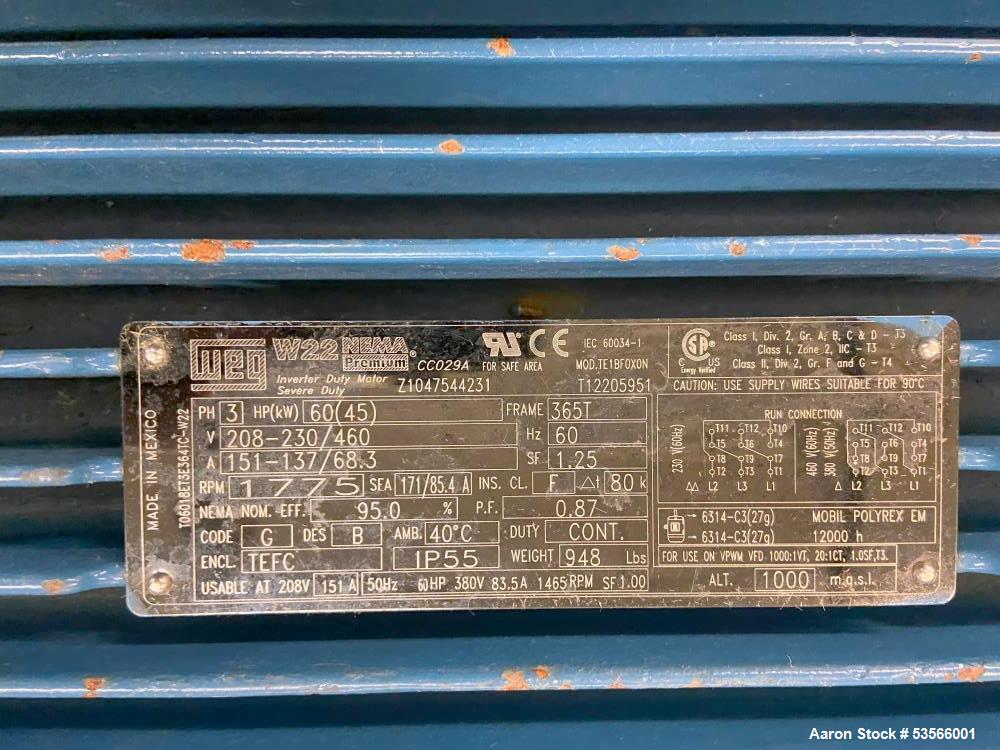

• Motor:

  • Power: 60 HP

  • Voltage: 230/460V

  • Phase/Frequency: 3 Phase, 60 Hz

  • Controls: 120V

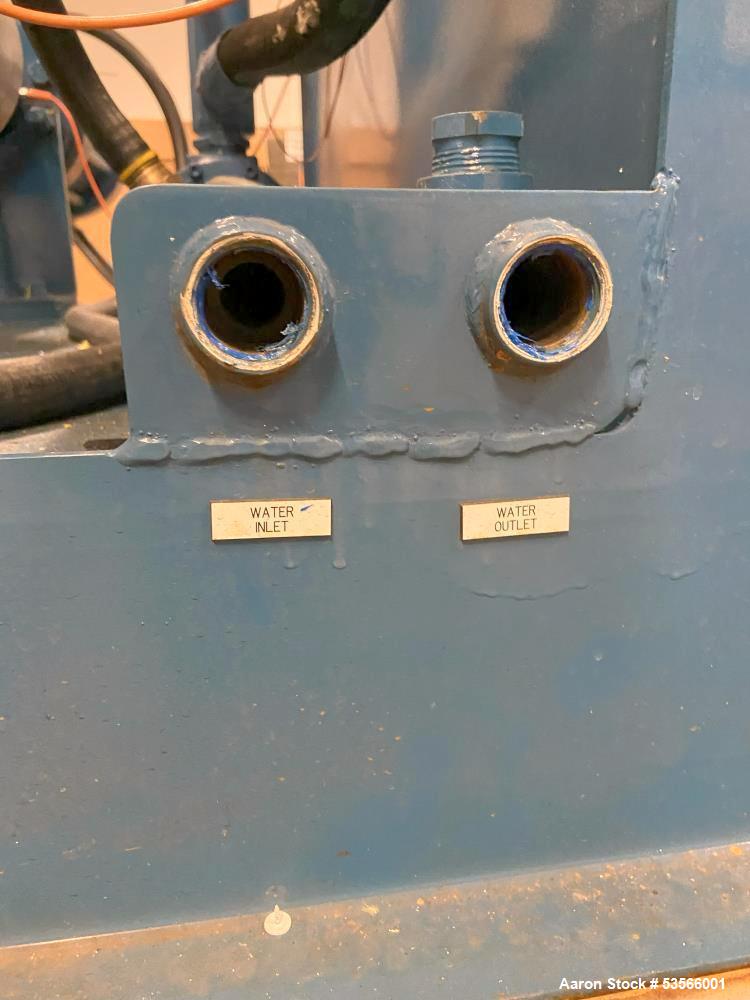

• Cooling Requirements:

  • 15 GPM minimum cooling water at 60–80°F

• Year of Manufacture: 2020

• Condition: Used (Excellent, near new operational state)

Applications

This compressor is ideal for:

• Carbon dioxide recovery systems

• Beverage-grade CO₂ gas compression

• Industrial and specialty gas processing

• High-pressure gas storage and distribution

• Supercritical CO₂ extraction processes

• Chemical plant CO₂ handling

• Gas cylinder filling operations

• CO₂ blanketing and inerting systems

• Food-grade CO₂ bottling and packaging

• Pharmaceutical and biotech gas systems

What Might This Be Used For?

• Compressing carbon dioxide for bottling, packaging, or transfer

• Supporting supercritical CO₂ extraction lines (e.g., botanical extracts)

• Filling high-pressure CO₂ cylinders for industrial or medical use

• Operating CO₂ recovery systems in beverage or brewery facilities

• Facilitating clean CO₂ handling in food and pharma production

• Supplying CO₂ for chemical reaction control or blanketing

• Creating CO₂ atmosphere environments for controlled storage

• Powering dry ice production facilities

• Backing up critical compressed CO₂ distribution systems

• Serving as part of industrial gas transportation and logistics systems
