Stock No.: 51582003

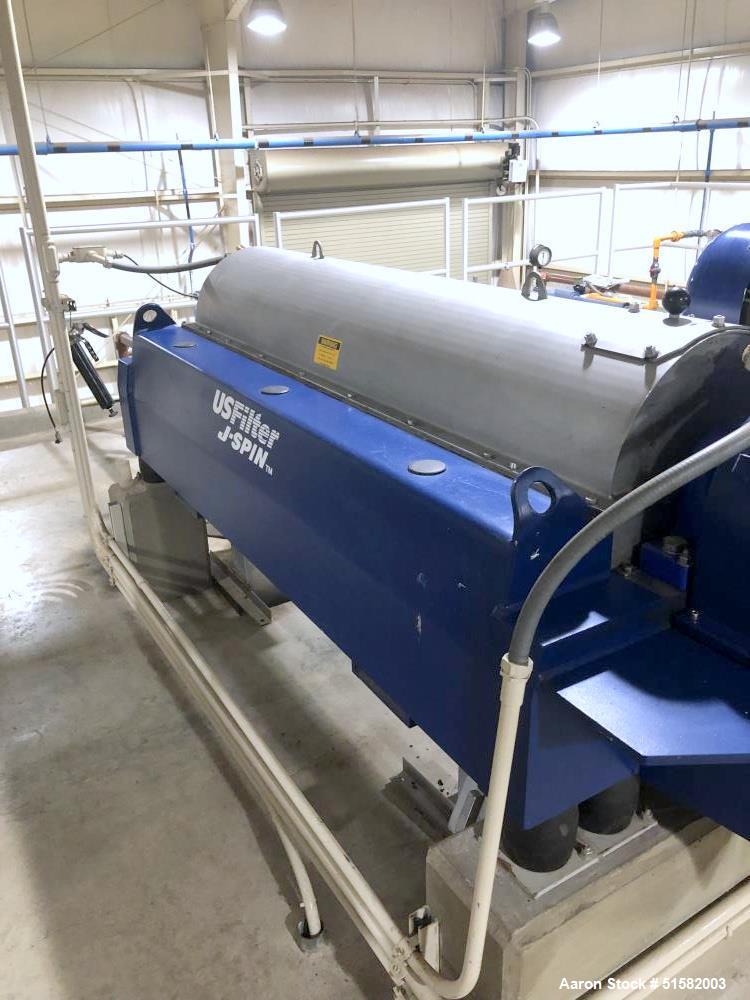

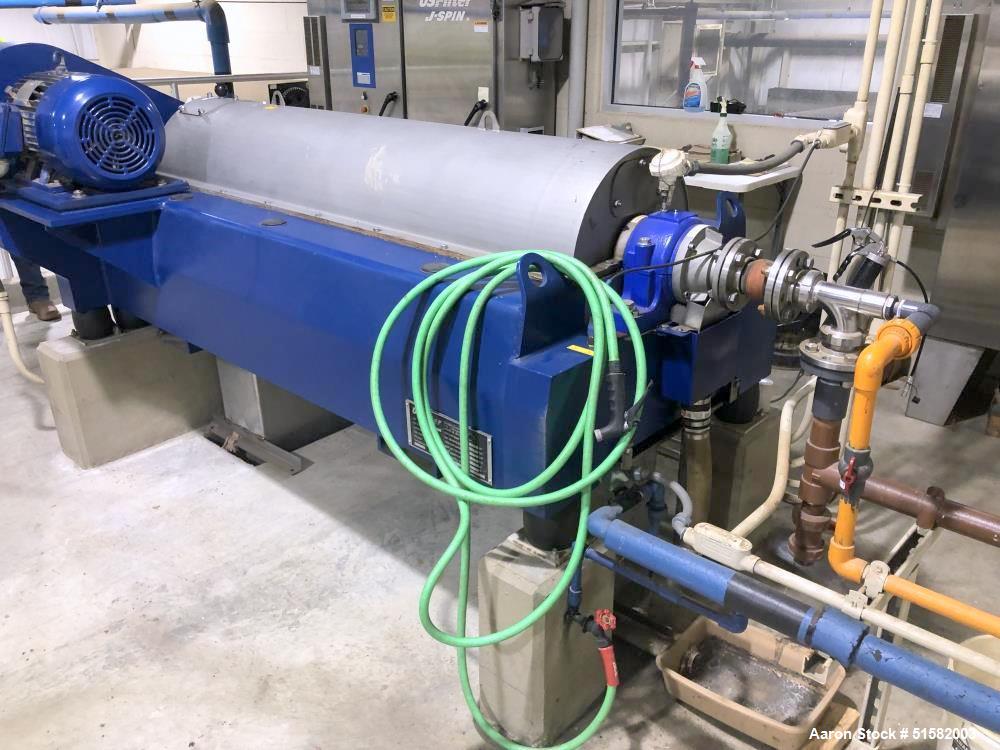

Hiller JS1500ED US Filter -Used Solid Bowl Decanter Centrifuge
Used- US Filter - Hiller JS1500ED Solid Bowl Decanter Centrifuge. Stainless steel product contact parts. 4200 RPM max. bowl speed; 4000 RPM max. operating speed; 122 degrees F max. operating temperature; 81 cu. ft. permissible density; 14.57" (370mm) inside bowl diameter; 64.33" (1634mm) bowl length; .39" bowl thickness; OAD: Approximately 111" L x 54" W x 43" H. Driven by a 25 HP, 3/60/408V, 3530 RPM motor. Built 2004. Previously used for wastewater treatment. (Reported recondition by US Filter).
-
ManufacturerUS Filter
-
ModelJS1500ED
-
Serial #JS0123
-
CategoryCentrifuges
-
SubcategoryDecanter
-
Main Drive Hp25
-
Bowl Speed4200
-
Overall Dimensions111" L x 54" W x 43" H
Used equipment facts about this machine
Manufacturer Information
🏭 Manufacturer Information
-
Brand: US Filter / Hiller
-
Model: JS1500ED
-
Type: Solid Bowl Decanter Centrifuge
-
Construction: Stainless Steel (product contact areas)
-
Built: 2004
-
Reported Condition: Reconditioned by US Filter
📃 Description
This Used Hiller JS1500ED Solid Bowl Decanter Centrifuge is a heavy-duty, high-performance unit designed for continuous solid-liquid separation in demanding environments such as wastewater treatment. Manufactured in 2004 and reconditioned by US Filter, this unit features stainless steel product contact surfaces, making it corrosion-resistant and suitable for extended use in sludge and slurry applications.
It operates at a maximum bowl speed of 4200 RPM and is driven by a 25 HP motor (3/60/408V) running at 3530 RPM. The centrifuge is designed to handle up to 122°F operating temperature and material densities up to 81 cu. ft. permissible density. The large 14.57" diameter x 64.33" length bowl offers efficient dewatering capabilities, while the robust construction and reconditioning ensure long-term reliability.
📏 Specifications
-
Model: JS1500ED
-
Construction: Stainless Steel (product contact areas)
-
Max Bowl Speed: 4200 RPM
-
Max Operating Speed: 4000 RPM
-
Operating Temp: Up to 122°F
-
Permissible Density: 81 cu. ft.
-
Bowl Diameter: 14.57" (370 mm)
-
Bowl Length: 64.33" (1634 mm)
-
Bowl Thickness: 0.39"
-
Motor: 25 HP, 3 Phase, 60 Hz, 408V, 3530 RPM
-
Overall Dimensions (OAD): Approx. 111" L x 54" W x 43" H
-
Year Built: 2004
-
Condition: Reconditioned by US Filter
-
Previous Use: Wastewater Treatment
🛠️ Applications
Ideal for:
-
Municipal wastewater treatment
-
Industrial sludge dewatering
-
Chemical slurry processing
-
Biological or anaerobic digestate separation
-
Pulp & paper effluent treatment
-
Food processing waste management
-
Oil and fuel industry solids handling
-
Mining and mineral separation
-
Biogas system waste stream treatment
-
General plant solids removal
📦 What Products Would This Be Used For?
-
Wastewater biosolids
-
Dewatered sludge cake
-
Industrial chemical waste
-
Anaerobic digester solids
-
Fermentation or biotech residues
-
Oil separation byproduct
-
Fruit or vegetable processing waste
-
Mining slurry
-
Paint or pigment sludge
-
Food or dairy production waste
Product Details
-
Hiller centrifuge
-
JS1500ED decanter
-
US Filter decanter
-
Used centrifuge
-
4200 RPM separator
-
25 HP centrifuge
-
Reconditioned decanter
-
Wastewater centrifuge
-
Stainless bowl centrifuge
-
Industrial centrifuge
-
Used Hiller JS1500ED centrifuge
-
Reconditioned solid bowl decanter
-
Wastewater treatment centrifuge
-
US Filter decanter with 25 HP motor
-
14.57" bowl decanter for sludge
-
Industrial separator 4200 RPM
-
Stainless steel contact centrifuge
-
Sludge dewatering equipment used
-
Decanter for municipal waste
-
2004 Hiller centrifuge reconditioned
-
Used Hiller JS1500ED solid bowl decanter centrifuge with 25 HP motor for wastewater treatment
-
Reconditioned US Filter decanter with 14.57" x 64.33" stainless steel bowl and 4200 RPM capacity
-
High-speed centrifuge with 122°F operating temperature and 81 cu. ft. density capability
-
Stainless steel industrial decanter for biosolids, sludge, and slurry dewatering applications
-
Wastewater separation centrifuge with 25 HP, 3-phase, 408V drive motor
-
Sludge processing decanter with robust stainless steel bowl and reconditioned system
-
Heavy-duty solid-liquid separator with vibration-resistant design and high throughput
-
Municipal and industrial sludge decanter with compact footprint and high reliability
-
Used centrifuge for continuous duty in chemical and food processing waste streams
-
Hiller JS1500ED reconditioned by US Filter for extended operational performance
-
Buy Hiller centrifuge
-
Purchase JS1500ED decanter
-
Used sludge separator for sale
-
Industrial wastewater centrifuge buy
-
Buy US Filter reconditioned decanter
-
25 HP centrifuge for sale
-
High-speed decanter purchase
-
Buy stainless steel decanter
-
Used biosolids separator
-
Sludge dewatering system buy
-
Sell Hiller JS1500ED centrifuge
-
List used wastewater centrifuge
-
Surplus US Filter decanter resale
-
Offer reconditioned decanter
-
Sell 25 HP centrifuge system
-
Reconditioned sludge separator listing
-
Resell Hiller solid bowl decanter
-
Decanter centrifuge for industrial resale
-
Trade-in sludge treatment centrifuge
-
Used wastewater equipment marketplace
