Used Alfa Laval Solid Bowl Decanter Centrifuge – Model Foodec-209

Description

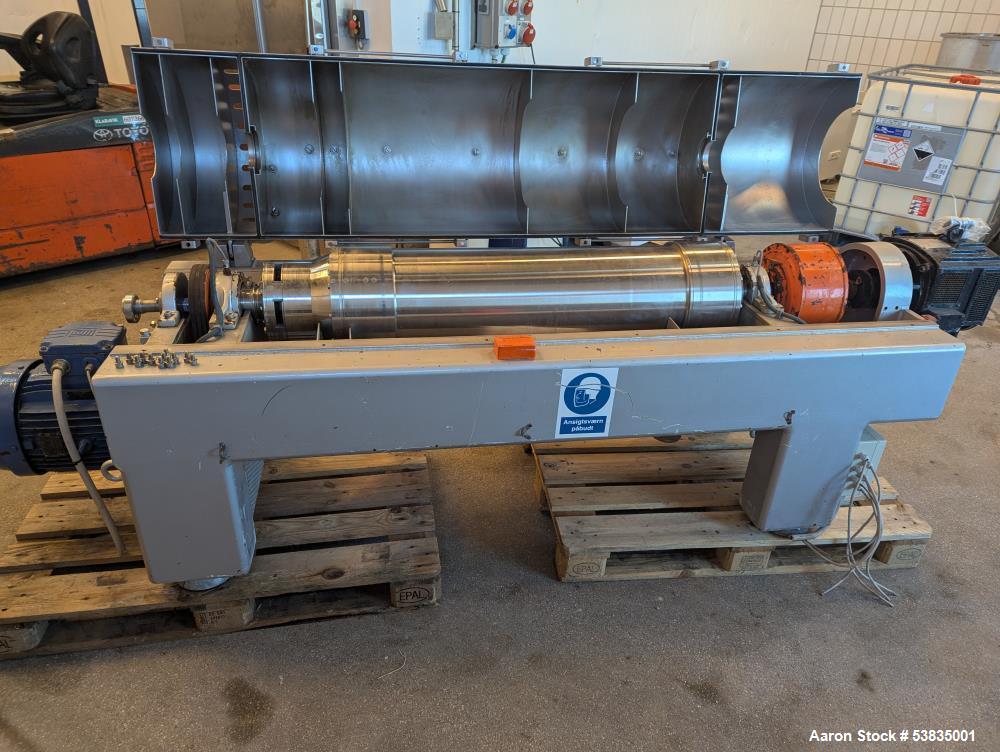

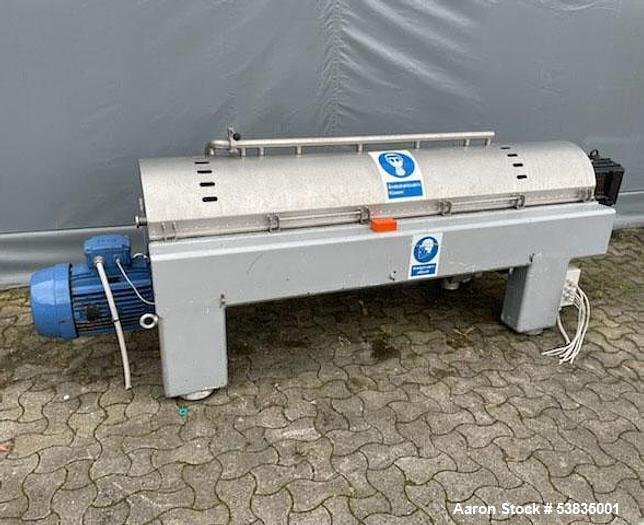

The Alfa Laval Foodec-209 Solid Bowl Decanter Centrifuge is a high-performance industrial separation system, designed for continuous liquid-solid separation in food, beverage, pharmaceutical, and industrial processing applications. Constructed with 316 stainless steel (product contact areas), this centrifuge ensures corrosion resistance and compliance with sanitary processing standards.

With a maximum bowl speed of 4,400 rpm and a maximum G-force of 3,030, this decanter centrifuge efficiently separates solids from liquids, providing high-quality product recovery. It features a single-lead conveyor and 360-degree solids discharge ports with wear inserts, ensuring durability and consistent performance in high-throughput operations.

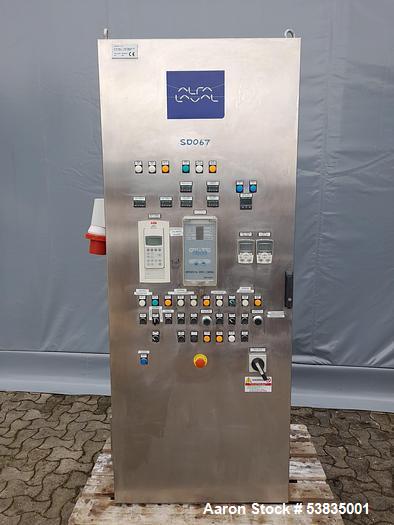

Equipped with an approx. 15 kW (20 HP) main drive motor, feed pipe, safety guards, and gearbox, this unit is mounted on four legs for stability. Additionally, the centrifuge includes a stainless steel control panel for easy operation and monitoring.

The CIP (Clean-in-Place) spray header allows for efficient internal cleaning, minimizing downtime and ensuring compliance with hygiene requirements.

Specifications

• Material: 316 Stainless Steel (product contact areas)
• Maximum Bowl Speed: 4,400 rpm
• Maximum G-Force: 3,030
• Conveyor Type: Single-lead conveyor
• Discharge Ports: 360-degree solids discharge with wear inserts
• Cleaning System: CIP spray header
• Main Drive Motor: Approx. 15 kW (20 HP)
• Mounting: On 4 legs for stability

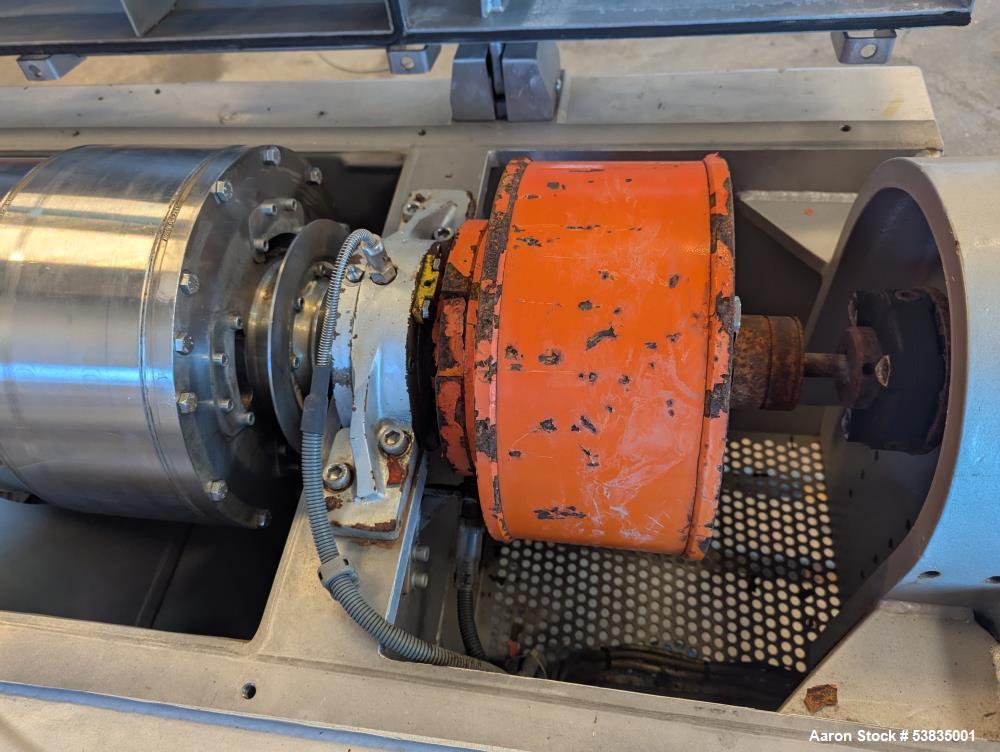

• Includes: Stainless steel control panel, feed pipe, safety guards, gearbox
• Condition: Used

Applications

• Food & Beverage Processing: Juice, dairy, beer, wine, edible oils
• Pharmaceutical & Nutraceuticals: Extraction, protein recovery, fermentation processes
• Chemical & Industrial Processing: Wastewater treatment, industrial sludge separation
• Oil & Fat Processing: Fish oil, palm oil, biofuels, vegetable oil refinement
• Biotechnology & Bioprocessing: Biomass separation, cell harvesting

Compatible Products & Uses

• Industrial Liquid-Solid Separation
• High-Speed Decanting for Food and Beverage Processing
• Wastewater Treatment and Sludge Dewatering
• Protein and Biomass Separation for Pharmaceutical Applications
• Biofuel and Edible Oil Purification
