Used 2018 Maratek SSB-48 45-Gallon Batch Solvent Recovery System – 304 Stainless Steel Vacuum Distillation Unit

Manufacturer Information

Maratek Environmental Inc.

Maratek manufactures solvent recovery and recycling equipment used to recover compatible solvents from industrial process streams. Batch solvent recovery systems use controlled distillation to separate reusable solvent from less-volatile contaminants or process residues.

This Maratek SSB-48 was built in 2018 and was previously used in a cannabis processing application.

Description

Available for sale is a used 2018 Maratek Batch Solvent Recovery System, Model SSB-48, constructed of 304 stainless steel.

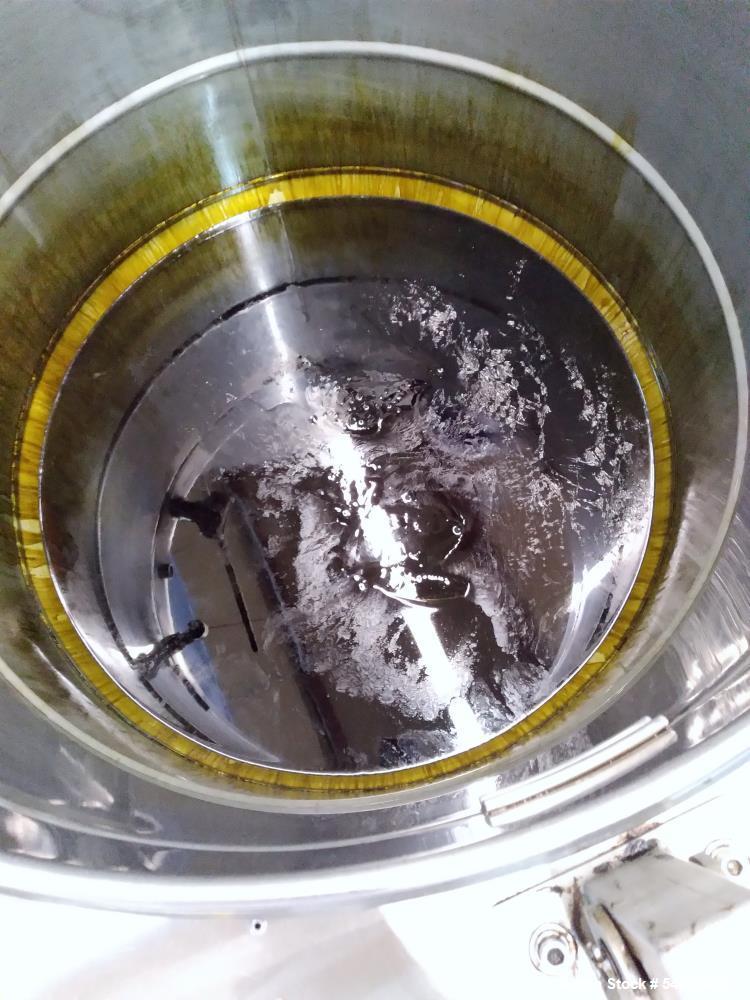

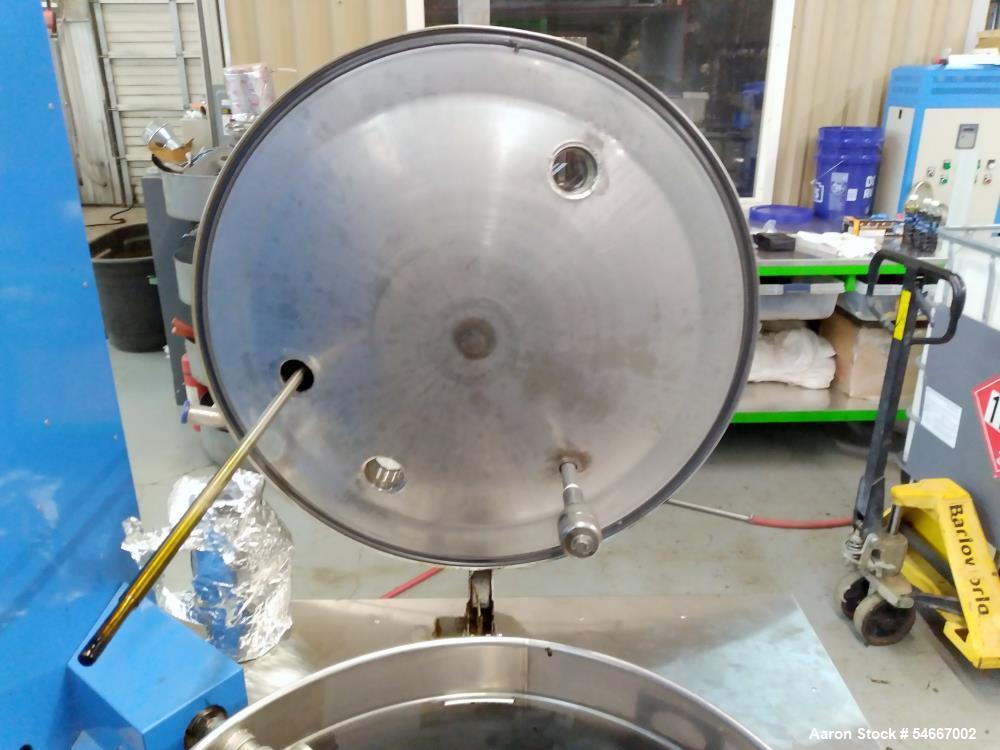

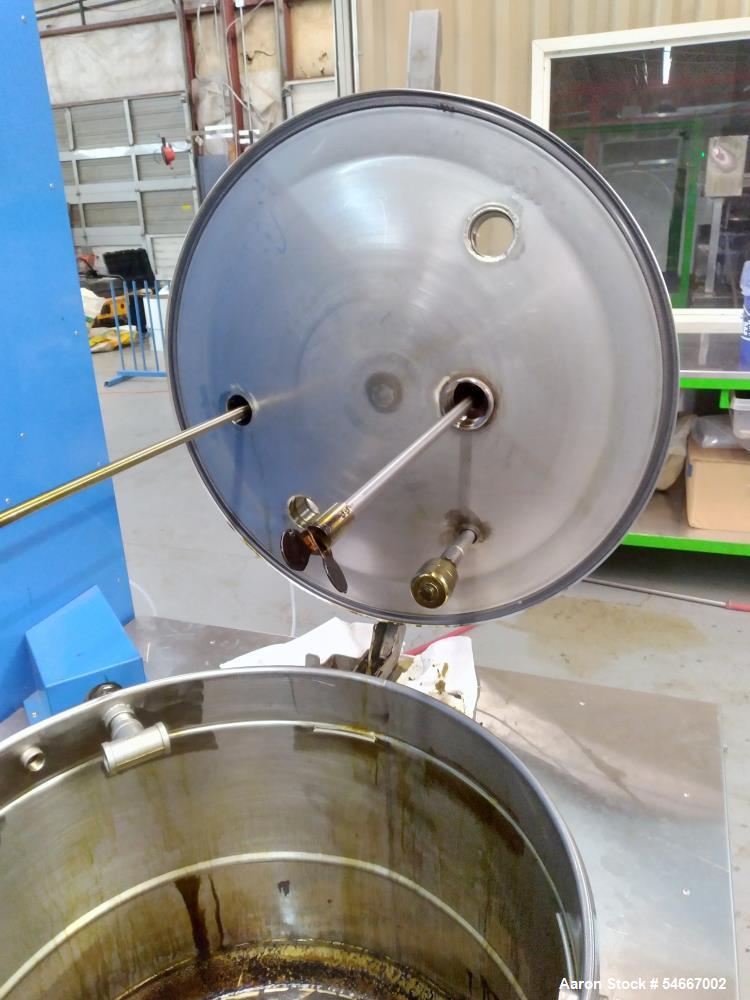

The system features a 55-gallon geometrical boiler capacity with approximately 45 gallons of useful boiler capacity. The supplied recovery yield range is 85–97%, with an approximate 3.5–4.5 hour distillation cycle time. Actual recovery and cycle time will vary with solvent type, contamination level, batch volume, operating conditions, and desired product purity.

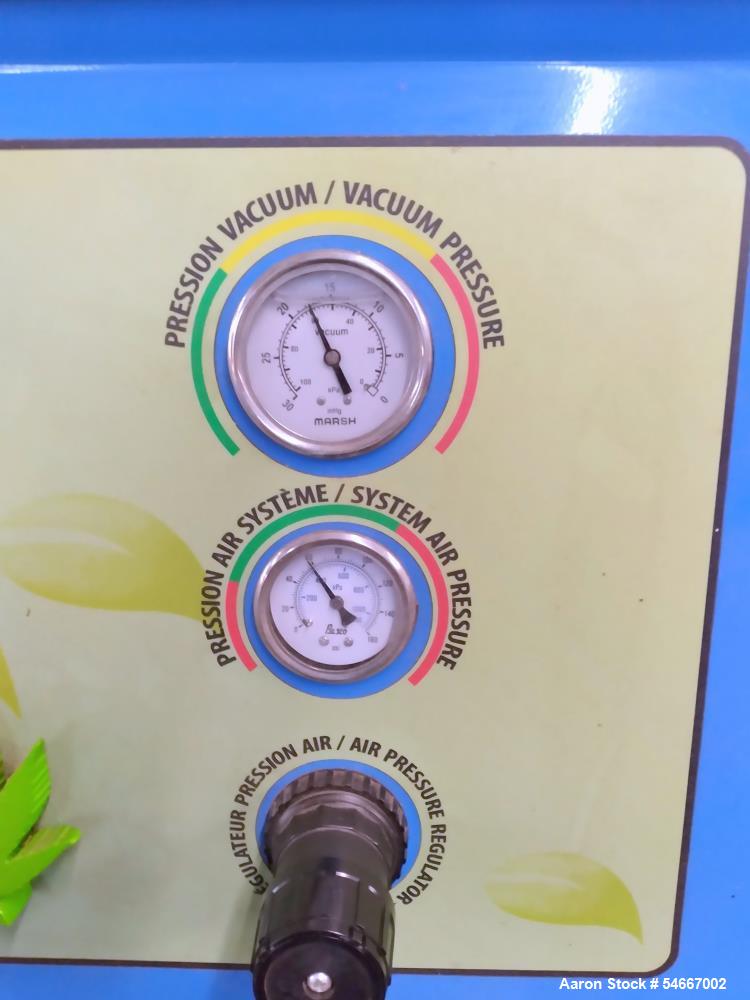

The SSB-48 has a stated operating temperature range of 104°F to 360°F, with a supplied maximum solvent temperature specification of 590°F. Operating pressure is stated at 0.223–1 bar absolute, corresponding to approximately -0.776–0 bar relative pressure, allowing operation under vacuum conditions.

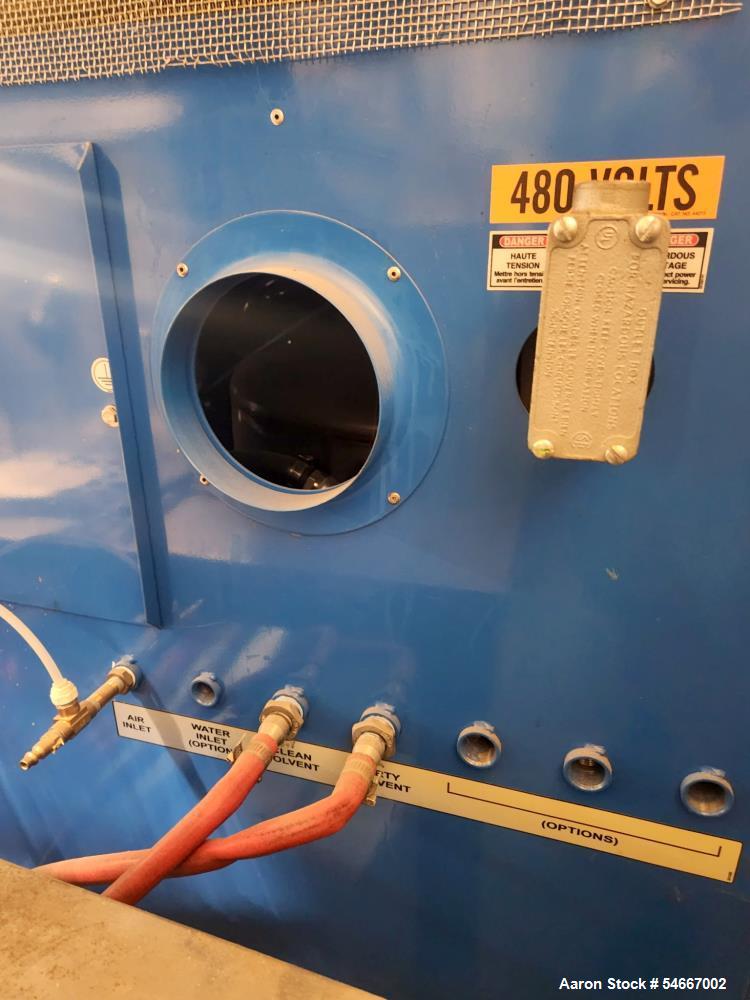

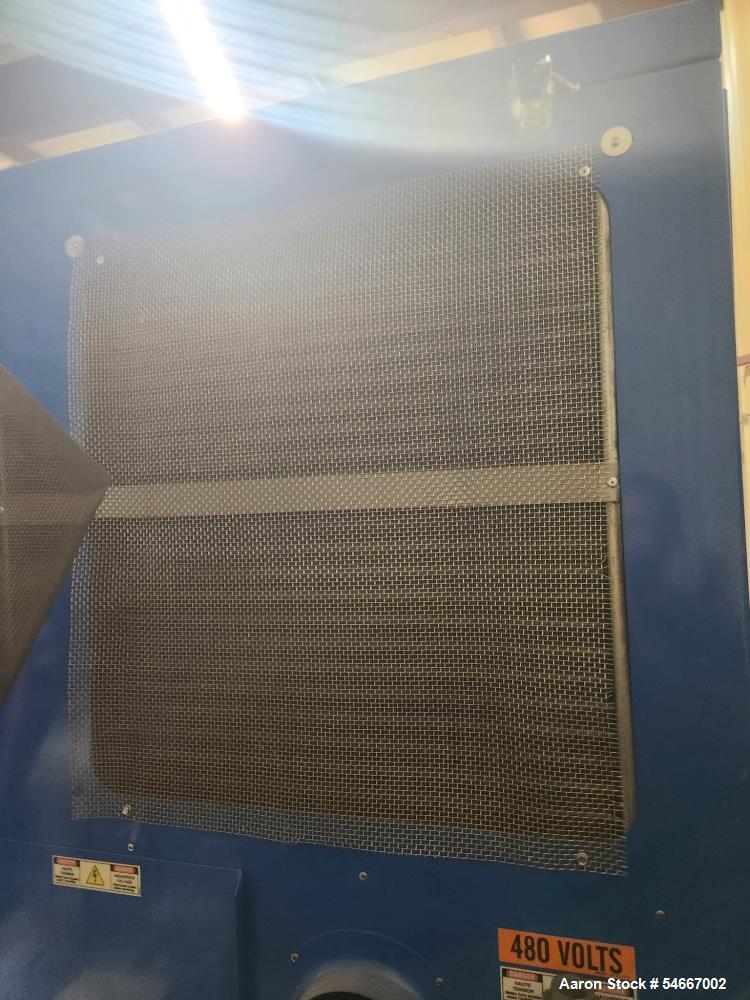

Cooling is supported by a 1 HP fan cooling system. Electrical requirements are stated as 480–600V, 60 Hz, 3-phase.

Previously used in a cannabis application, this solvent recovery unit may be considered for compatible solvent recycling, reclamation, purification, and waste-volume-reduction processes. Solvent compatibility and all applicable hazardous-location, ventilation, fire-protection, grounding/bonding, and operating requirements should be verified before installation.

Specifications

Typical Applications

• Batch solvent recovery
• Solvent recycling
• Solvent reclamation
• Vacuum distillation
• Process solvent purification
• Solvent reuse operations
• Waste solvent reduction
• Process liquid separation
• Extraction solvent recovery
• Manufacturing solvent recycling
• Batch distillation
• Compatible solvent processing

Products / Solvent Streams This System Could Be Used For

• Compatible extraction solvents
• Process solvents
• Cleaning solvents
• Solvent-containing process streams
• Compatible alcohol-based solvent streams
• Manufacturing solvent waste
• Laboratory and production solvent streams
• Solvent/residue mixtures
• Extraction-process solvent streams
• Reclaimable industrial solvents
• Contaminated compatible solvents
• Other mixtures suitable for batch distillation

Actual suitability depends on solvent chemistry, boiling point, flash point, contaminants, concentration, required recovery purity, materials compatibility, and the installed equipment configuration. Flammable-solvent service requires appropriate engineering review and verification of electrical classification, ventilation, grounding/bonding, fire protection, and applicable codes.

Frequently Asked Questions

• What is the usable batch capacity? The SSB-48 has a 55-gallon geometrical boiler capacity and approximately 45 gallons of useful boiler capacity.
• What recovery yield can the system achieve? The supplied specifications state an 85–97% recovery yield range. Actual recovery depends on the solvent and process conditions.
• How long is a typical distillation cycle? The stated cycle time is approximately 3.5–4.5 hours, although actual time will depend on batch composition, loading, operating pressure, and temperature.
• Can the system operate under vacuum? Yes. The supplied operating range is 0.223–1 bar absolute, or approximately -0.776–0 bar relative pressure.
• What was this Maratek SSB-48 previously used for? The system was previously used in a cannabis processing application. Suitability for a new solvent or process should be independently evaluated.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for this Maratek solvent recovery system.
