Stock No.: 52389003

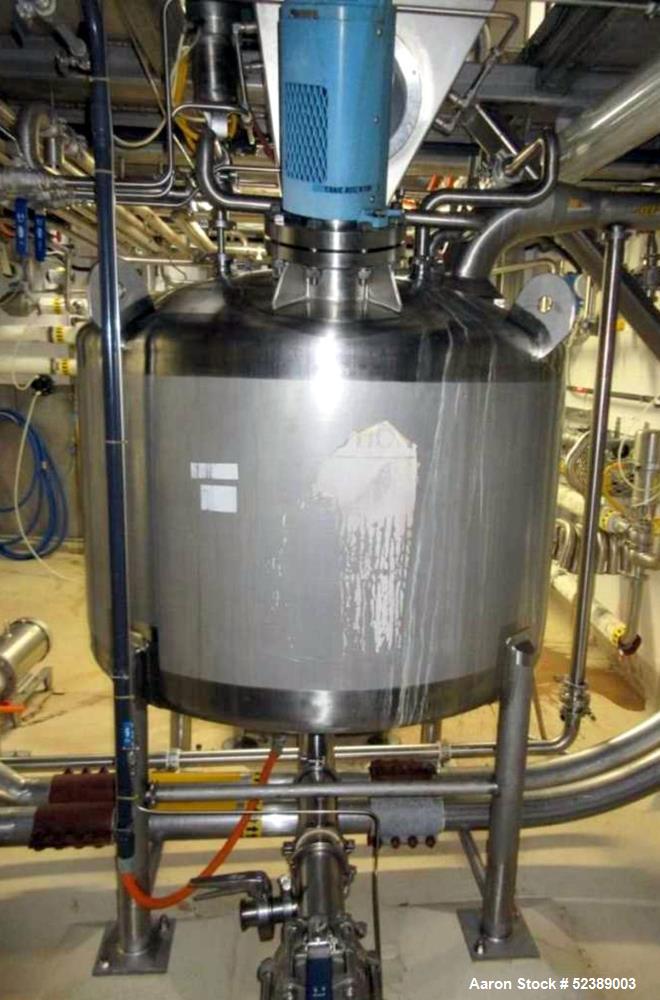

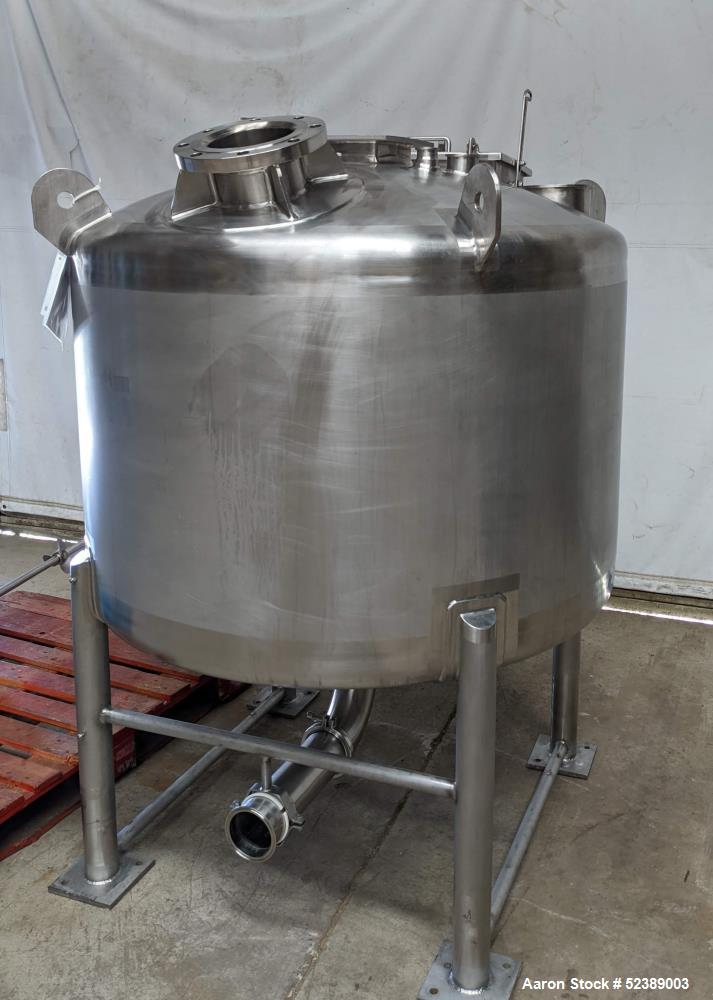

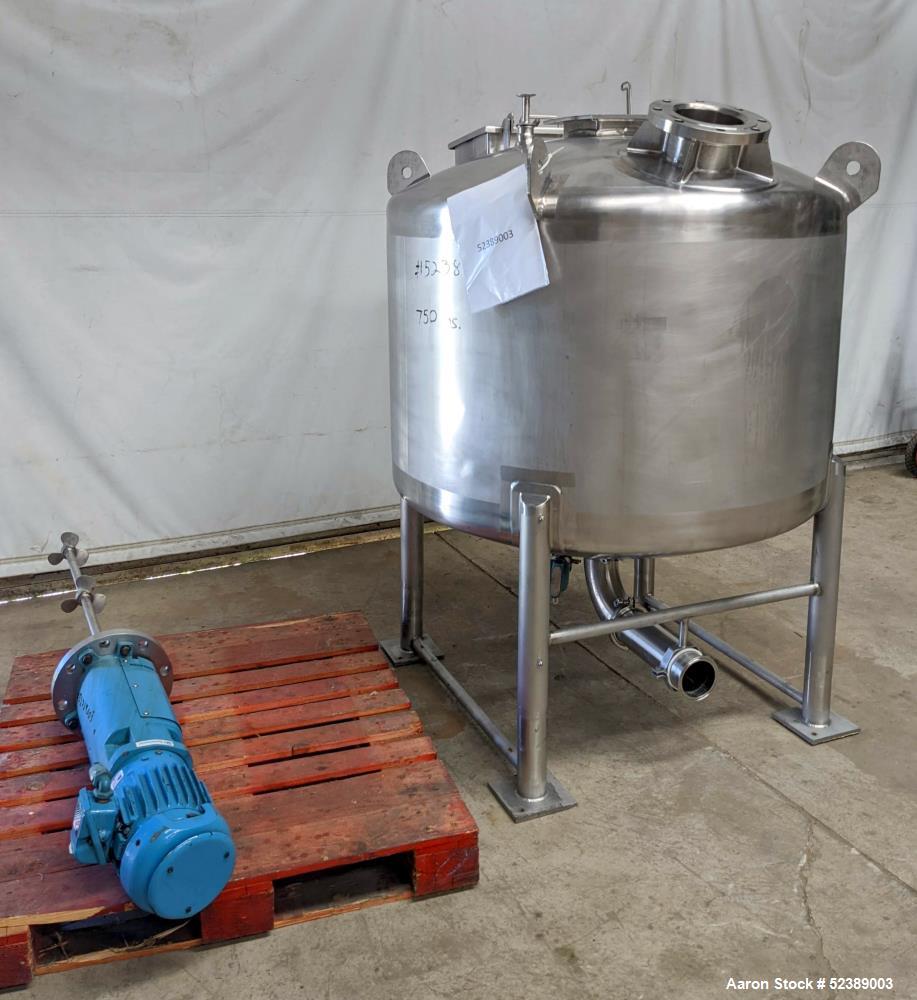

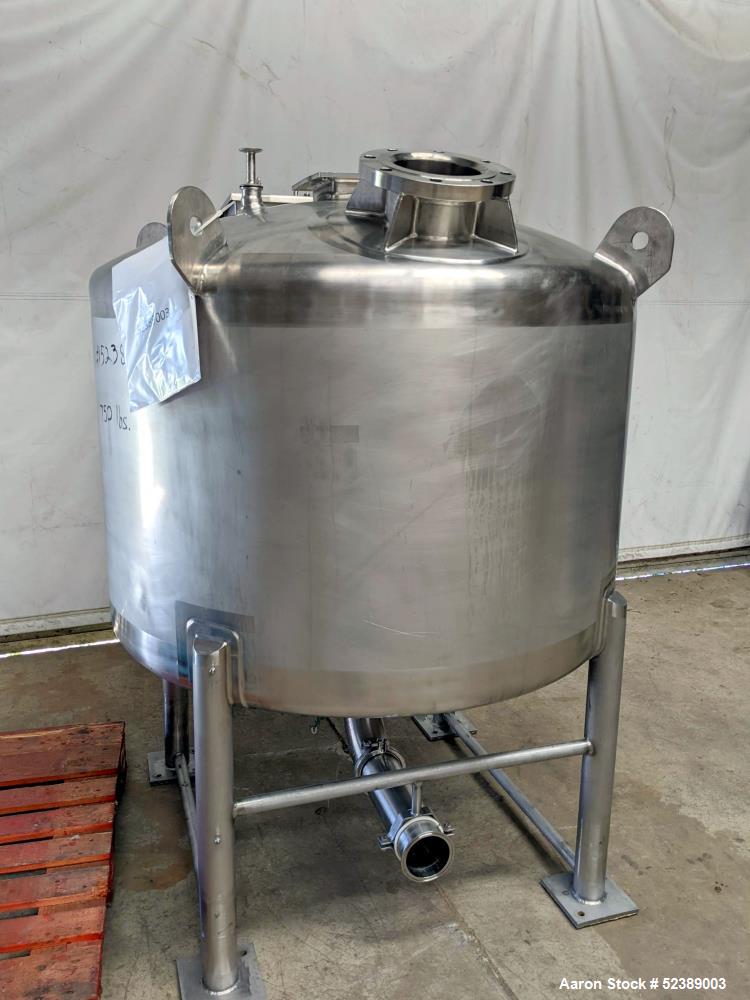

Stainless Steel 300 Gallon Agitated Tank

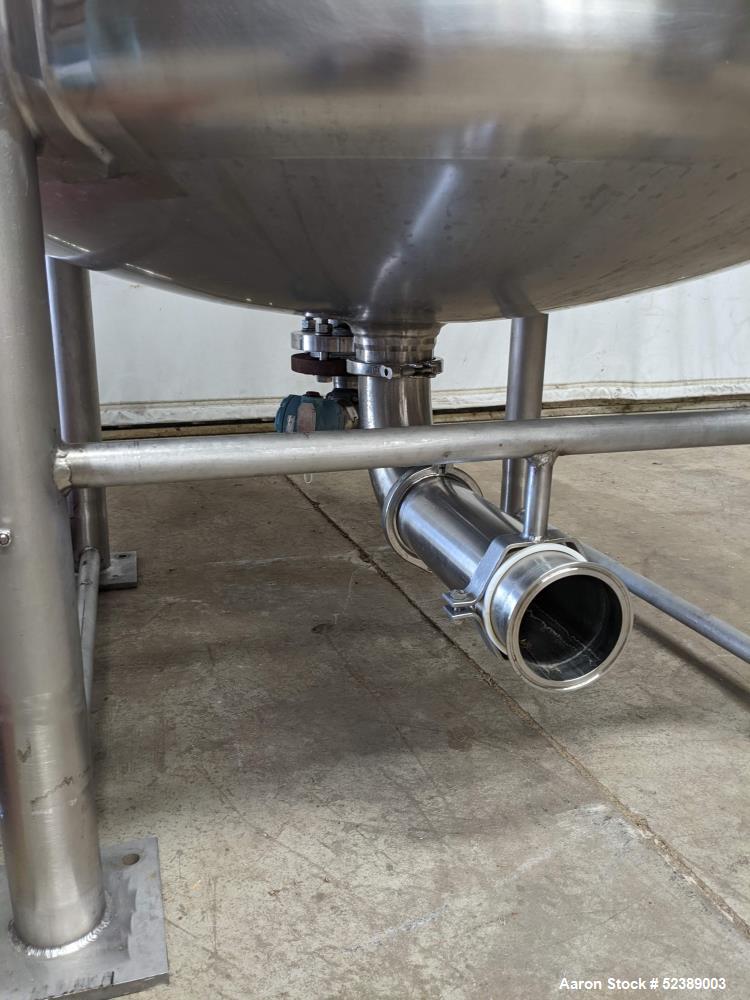

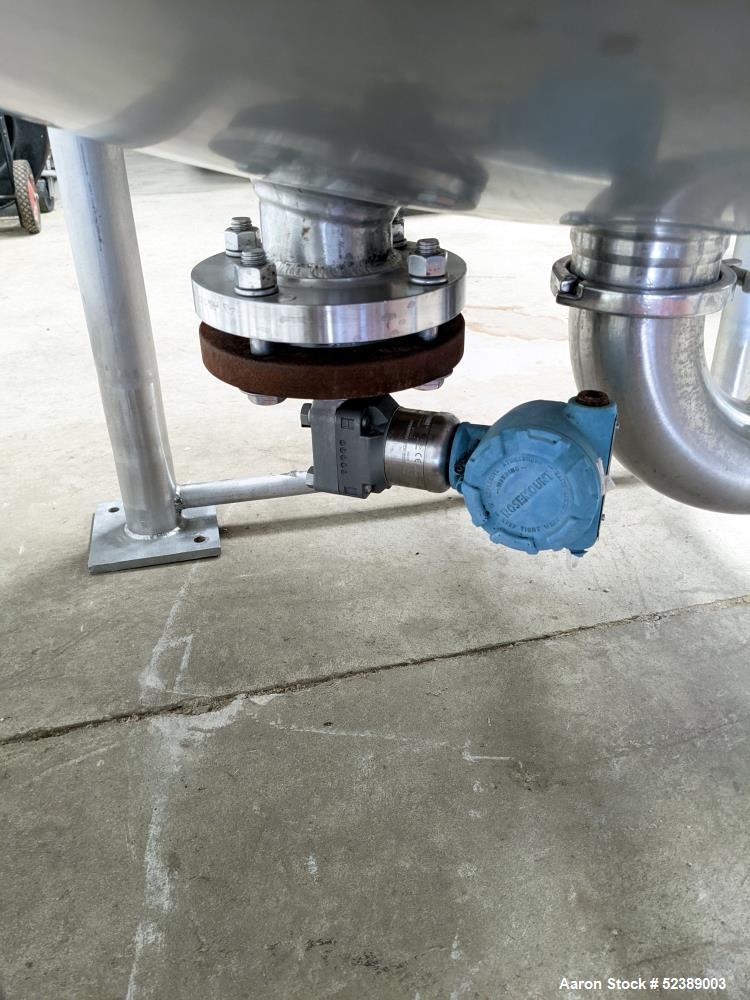

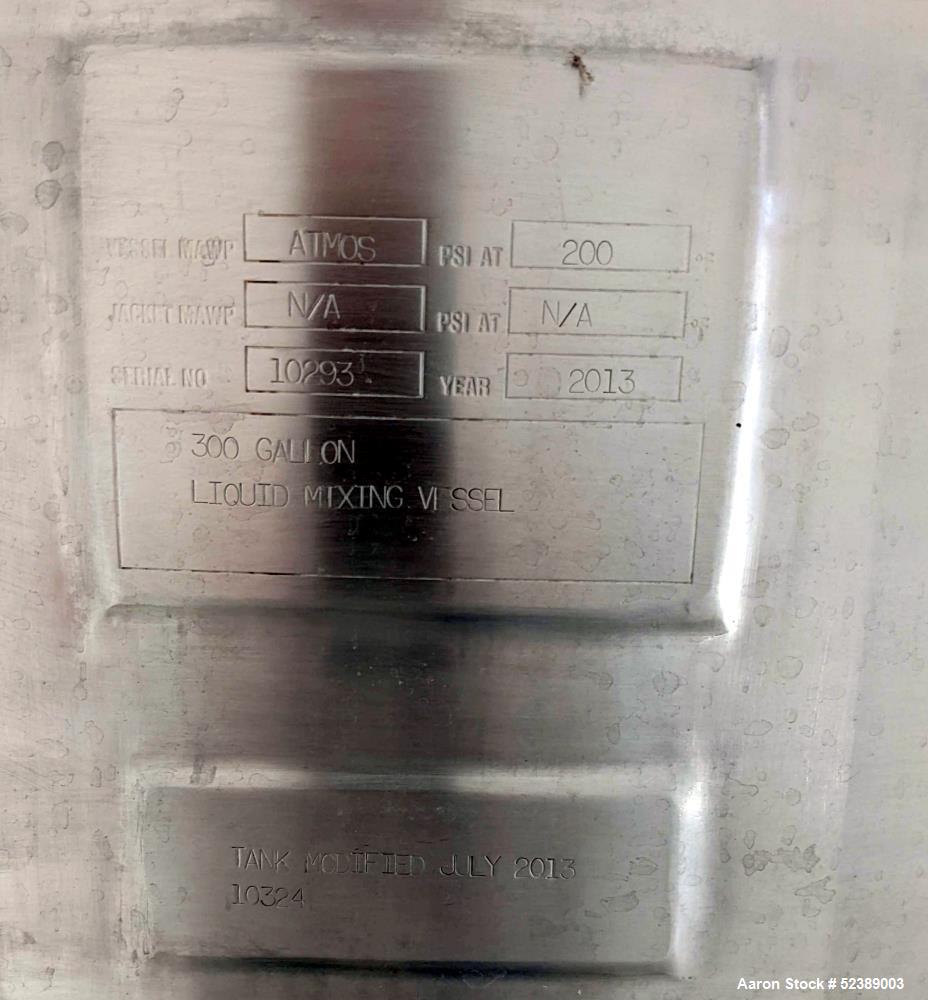

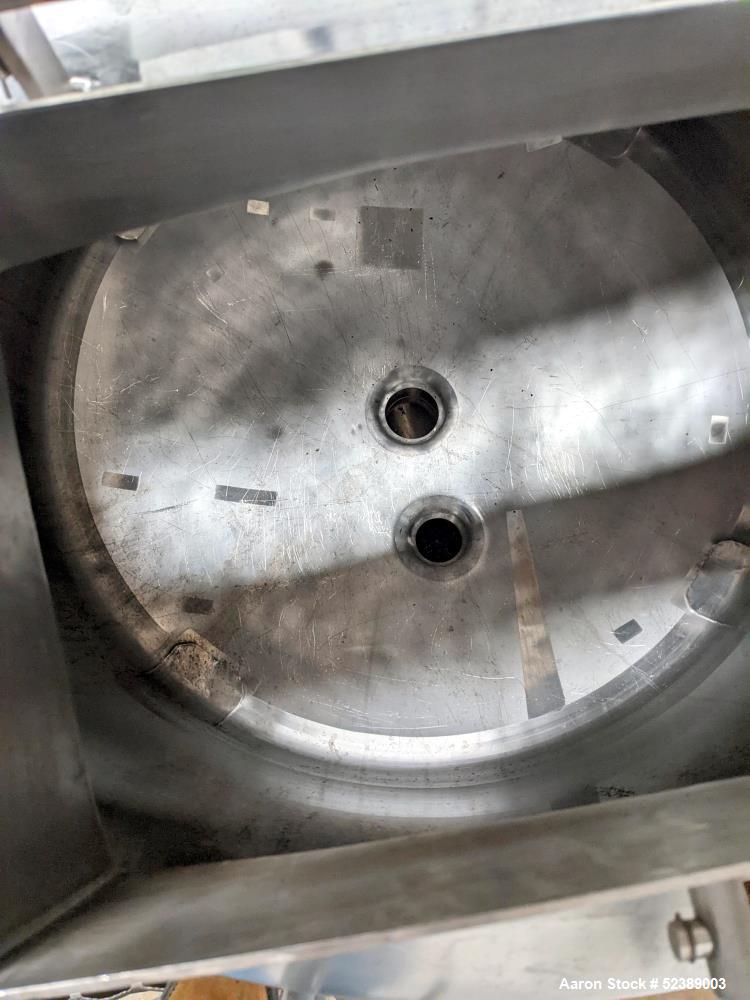

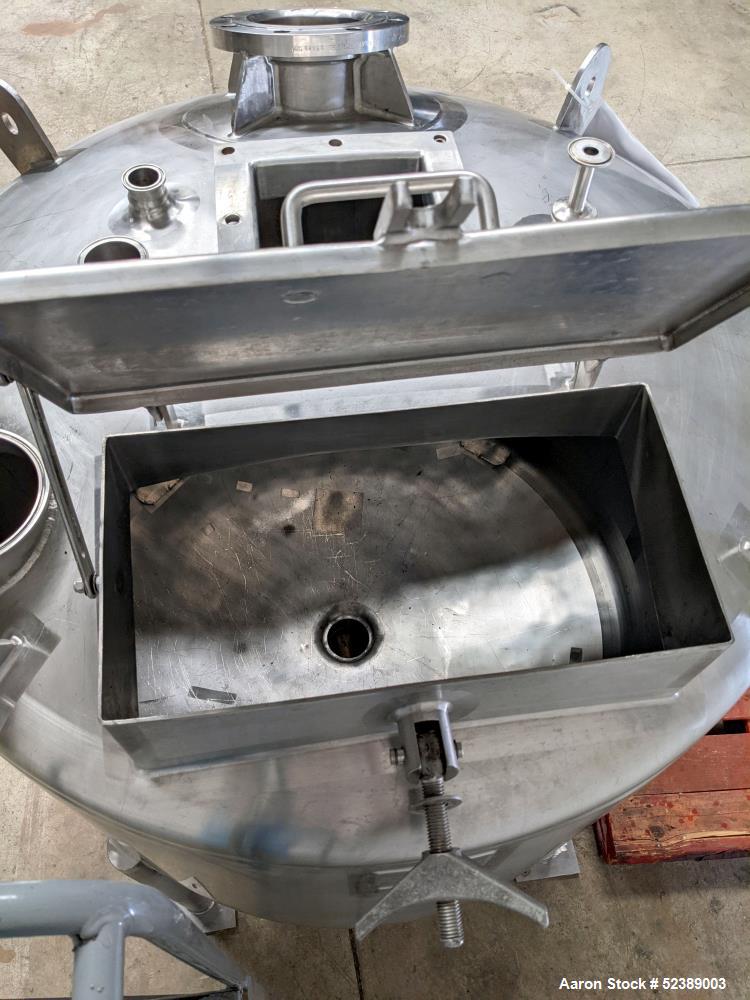

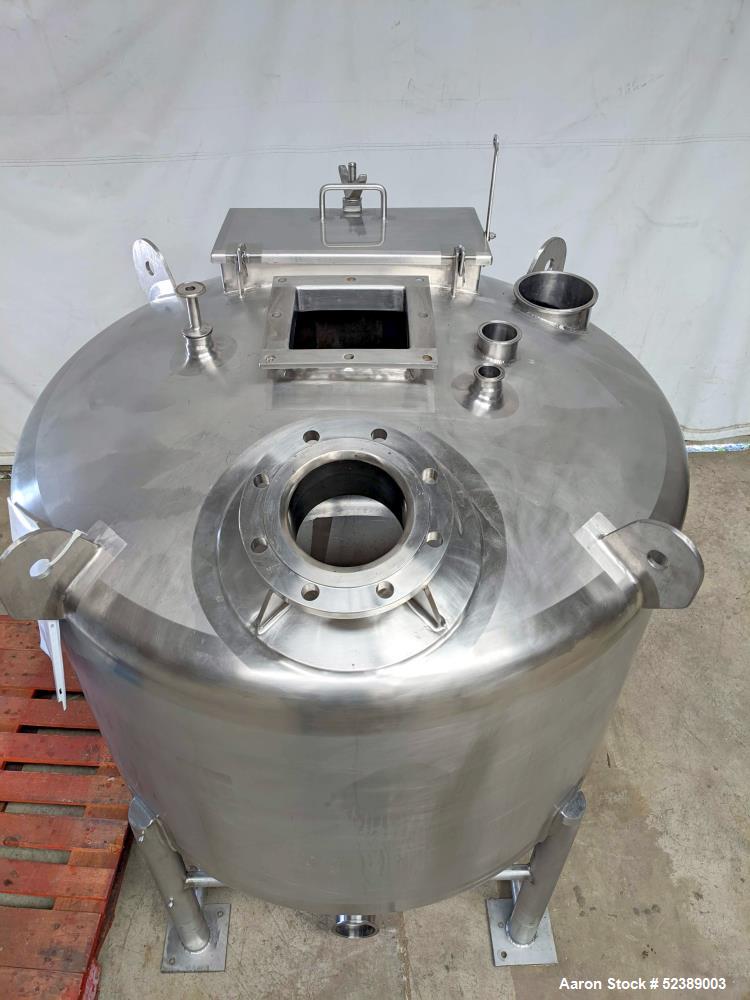

Used- 300 Gallon Stainless Steel Mix Tank, Vertical. Approximate 44" diameter x 45" straight side. Dished top & bottom heads. Internal rated Atmos @ 200 Degrees F. Opening top: (2) 1-1/2" tri-clamp, 2" tri-clamp, 6" tri-clamp, 11" diameter flange with 6" opening (agitator), 11" x 11" top center flange, 20" x 10" with cover. 4" Center bottom outlet with tri-clamp elbow, 7-1/2" discharge height. 4" Bottom offset outlet. Mounted on (4) stainless steel legs. Serial# 10293, Built 2013. Mfg not known.
-
ManufacturerUnknown
-
Serial #10293
-
CategoryTanks
-
SubcategoryStainless 0-499 Gal
-
Gallons300
-
Material Of ConstructionStainless Steel
-
Horizontal Or VerticalVertical
-
Diameter44"
-
Straight Side45"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal PressureAtmos
-
Internal Temperature200 degrees F
-
Agitator LocationTop Offset
-

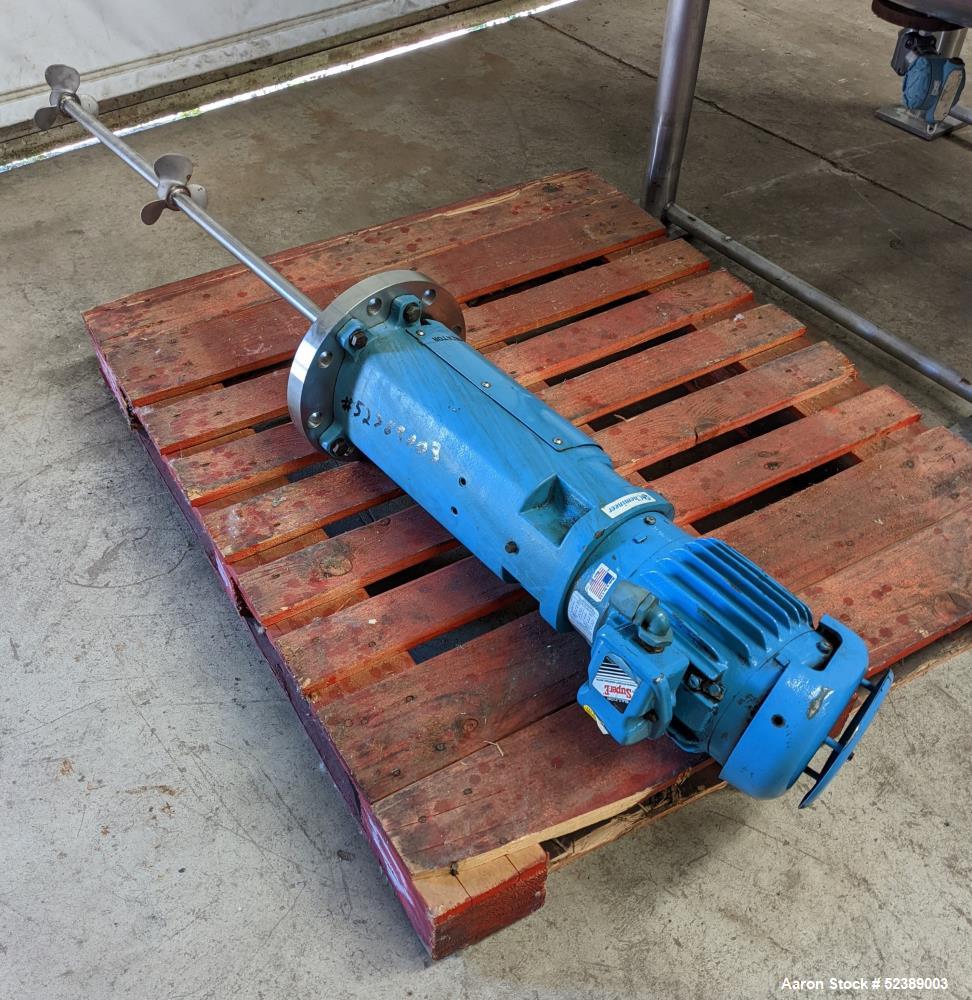

Agitator TypeTop Entering
-
Mixer Type3 Blade Prop
-

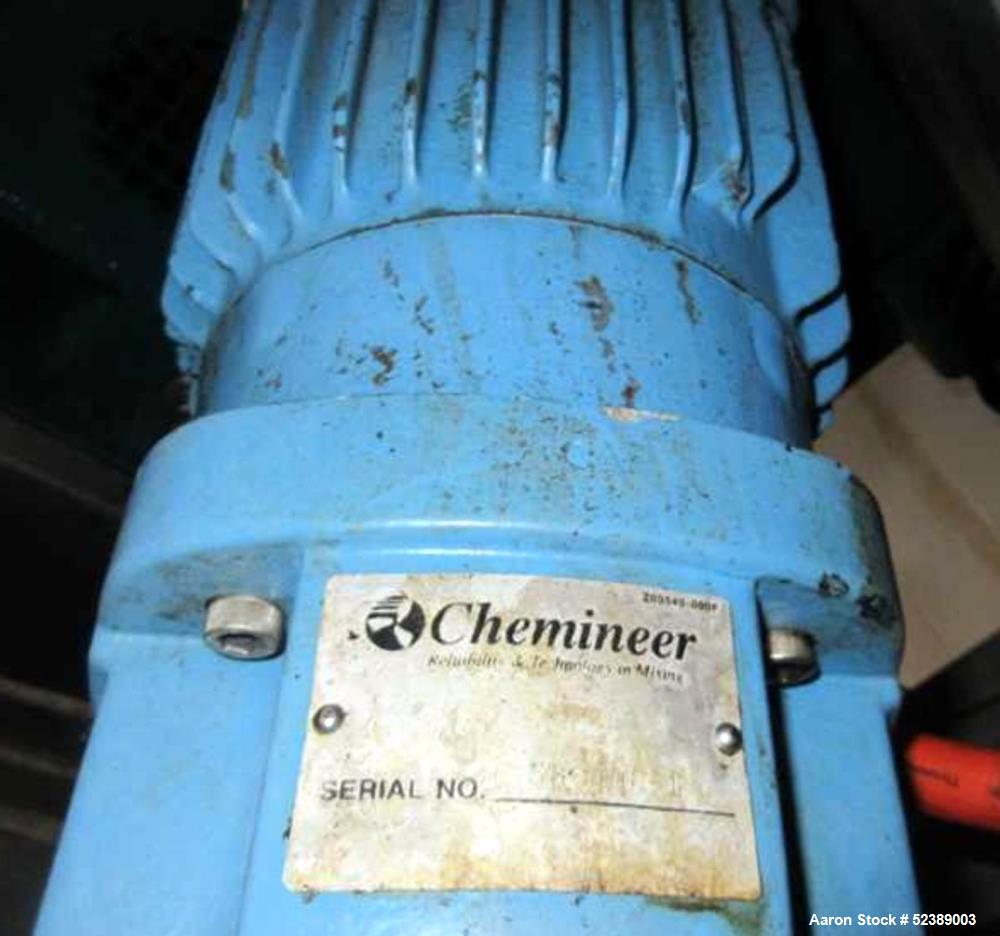

Agitator ManufacturerChemineer
-

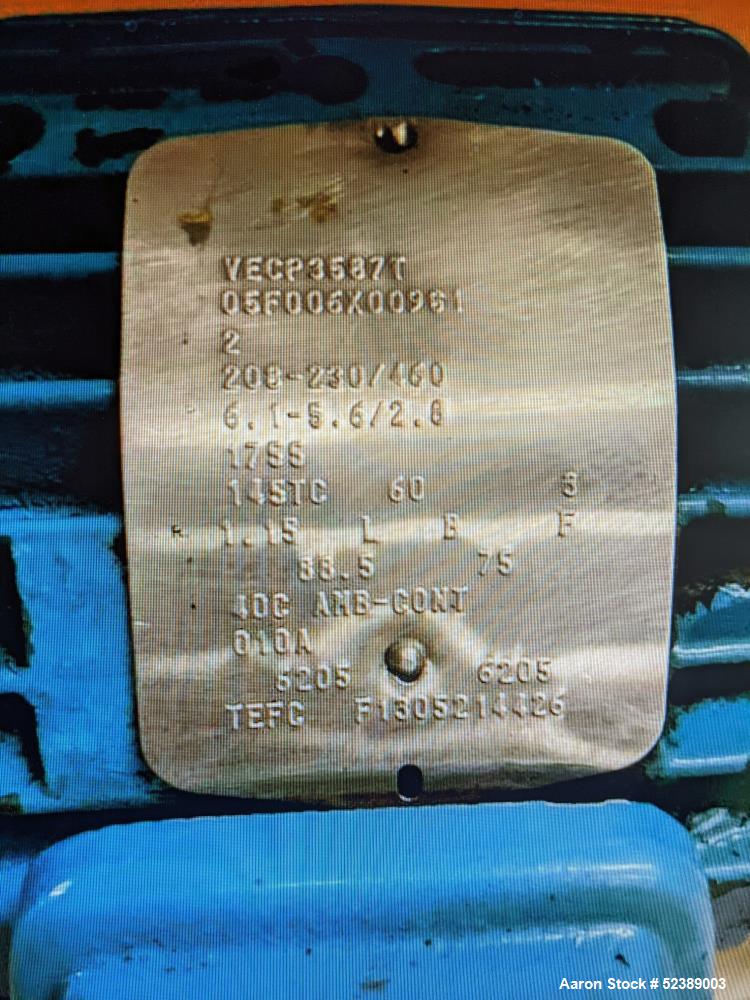

Agitator Hp2
-
Agitator Phase3
-
Agitator Cycle60
-
Agitator Voltage208-230/460 Volt
-
Agitator Rpm1755
-
Outlet Size4"
-
Outlet LocationBottom
-
MountedMounted on 4 Legs
-
Year Built2013
