Used Precision Stainless 5 Gallon (20 Liter) Pressure/Vacuum Freeze Tank – 316L SS, Jacketed, Portable, 50 PSI

Manufacturer Information:

• Manufacturer: Precision Stainless, Inc.

• Model: Pressure/Vacuum Freeze Tank

• Serial Number: 4235

• Year Built: 1997

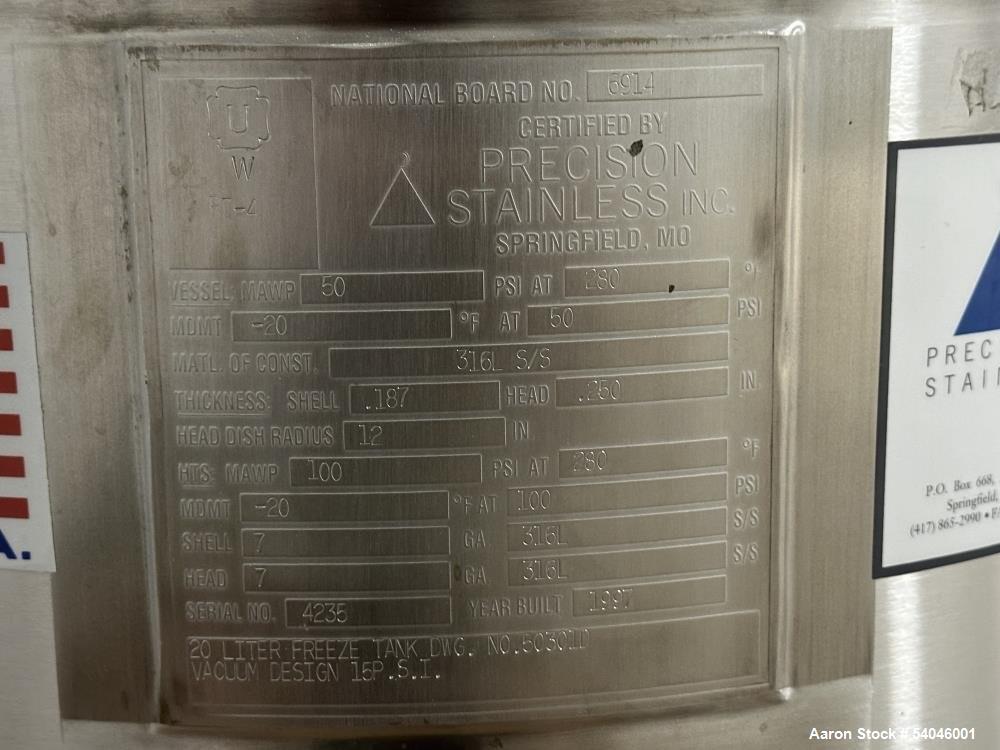

• National Board #: NB 6914

• Condition: Used

• Construction: 316L Stainless Steel

• Mounting: Portable on casters

Description:

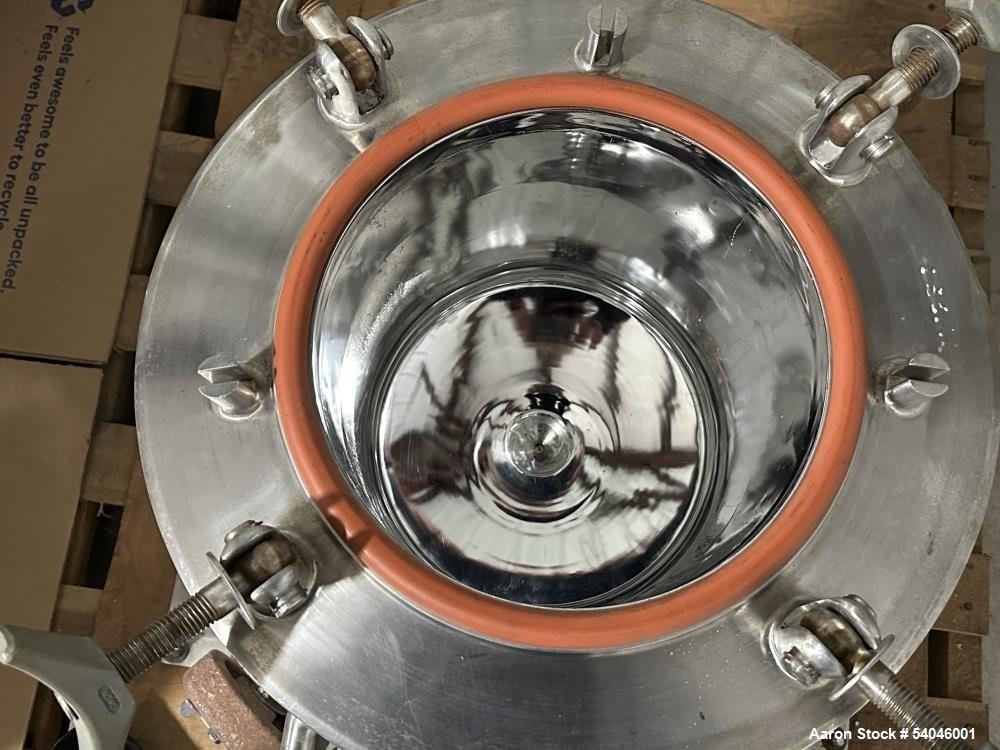

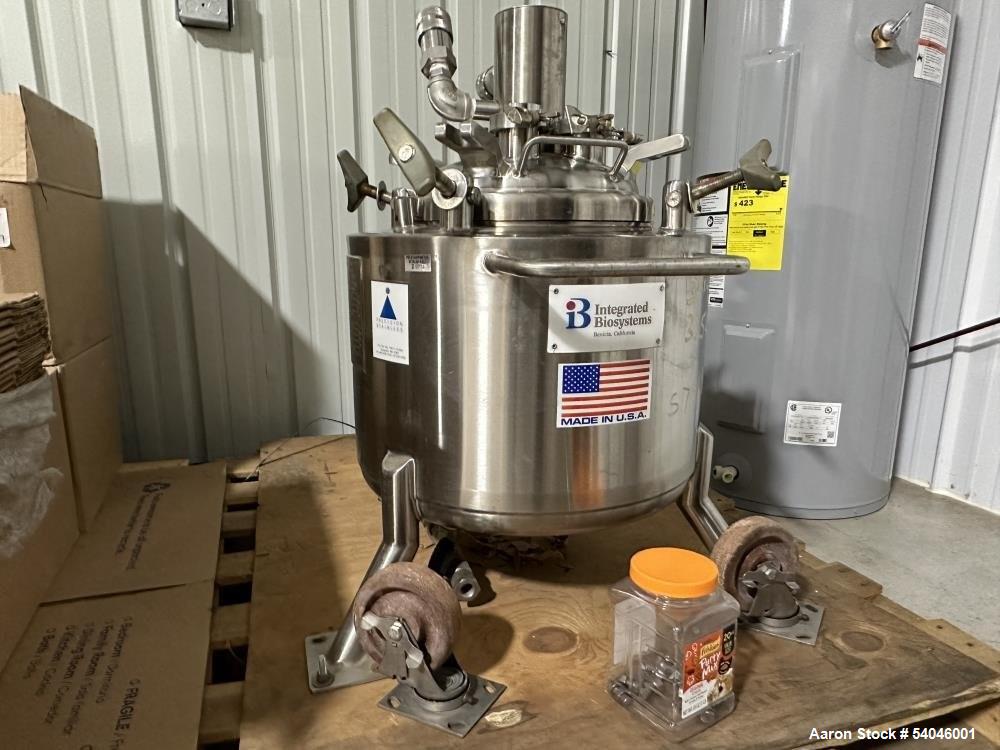

This used 5 Gallon / 20 Liter Pressure/Vacuum Freeze Tank from Precision Stainless Inc. is a compact, high-spec vessel ideal for lab and small-batch pharmaceutical, chemical, and biotech applications. Constructed from 316L stainless steel, the tank measures 12" diameter x 12" straight side with dish top and bottom, and a removable hinged top secured with a dog-lock closure. The unit is jacketed on the vessel, top head, and internal baffles, offering precise thermal control. The vessel is rated for 50 PSI @ 280°F and full vacuum, while the jacket is rated for 100 PSI @ 280°F. Includes four (4) 2" top fittings, 1/2" center bottom discharge, and internal 4" x 8" baffles. Fully portable on casters, this tank is excellent for freeze drying prep, reaction sampling, or precision thermal control applications.

Specifications:

• Capacity: 5 Gallon / 20 Liter

• Material of Construction: 316L Stainless Steel

• Vessel Dimensions: 12" diameter x 12" straight side

• Top/Btm Configuration: Dished top and bottom

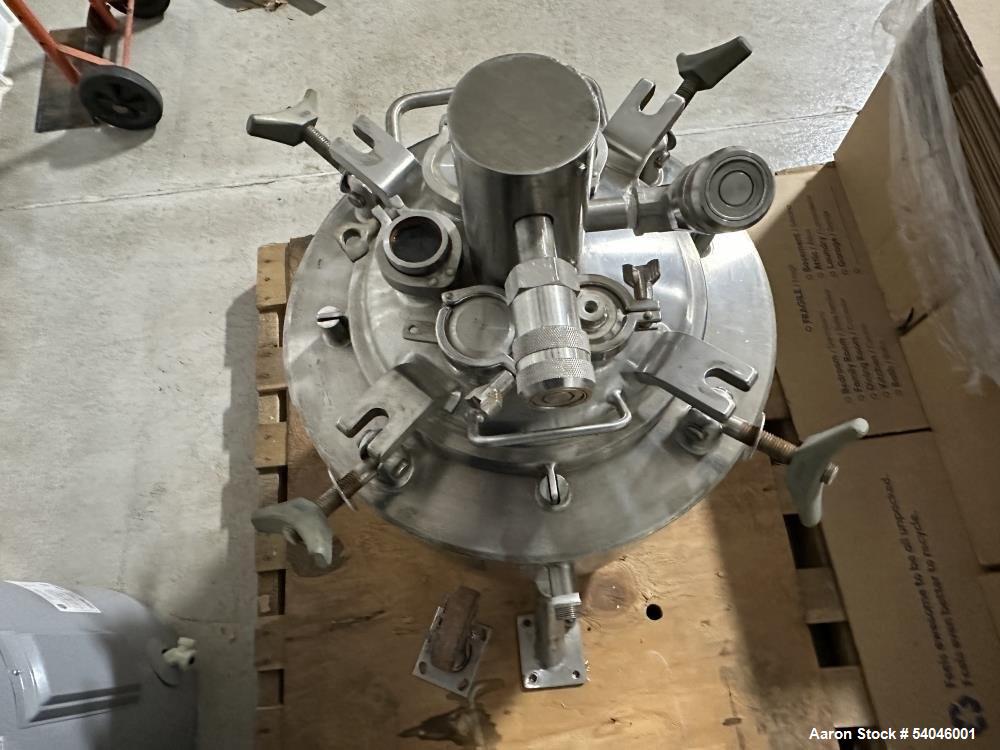

• Top Cover: Removable, hinged, dog-lock style

• Jacket Coverage: Vessel, top head, and internal baffles

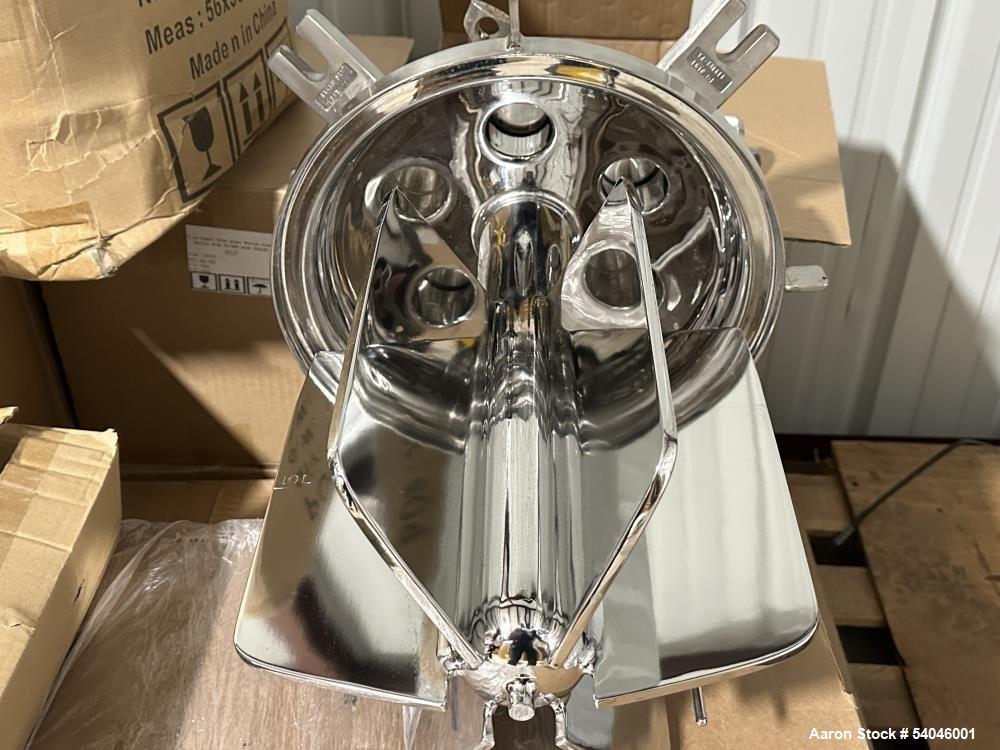

• Internal Baffles: (1) 4" x 8"

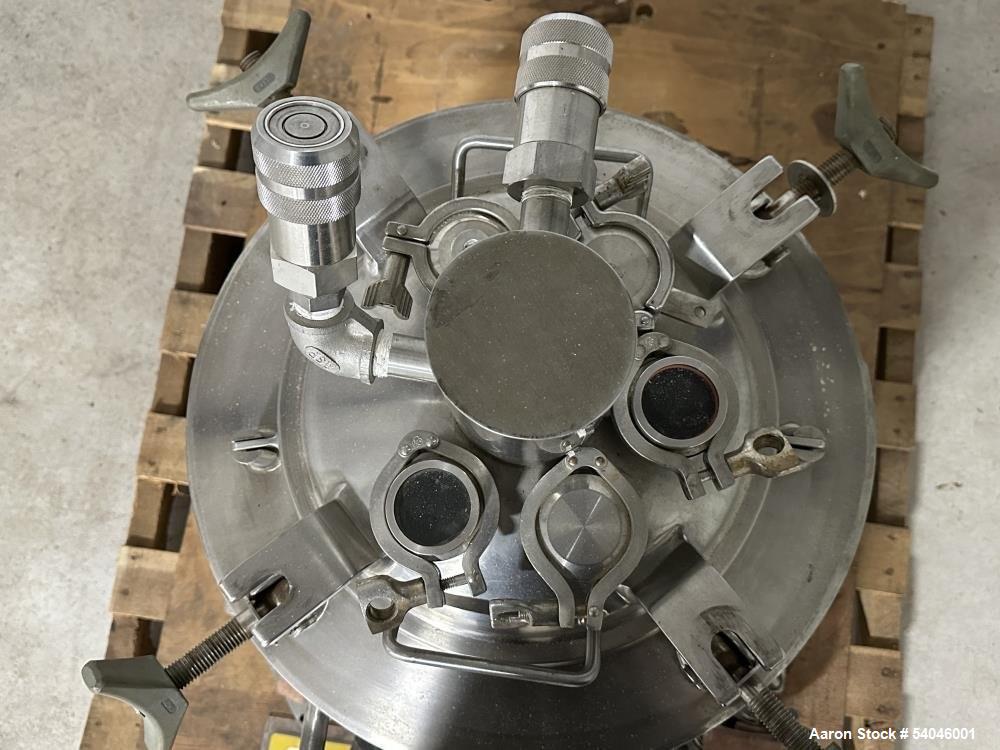

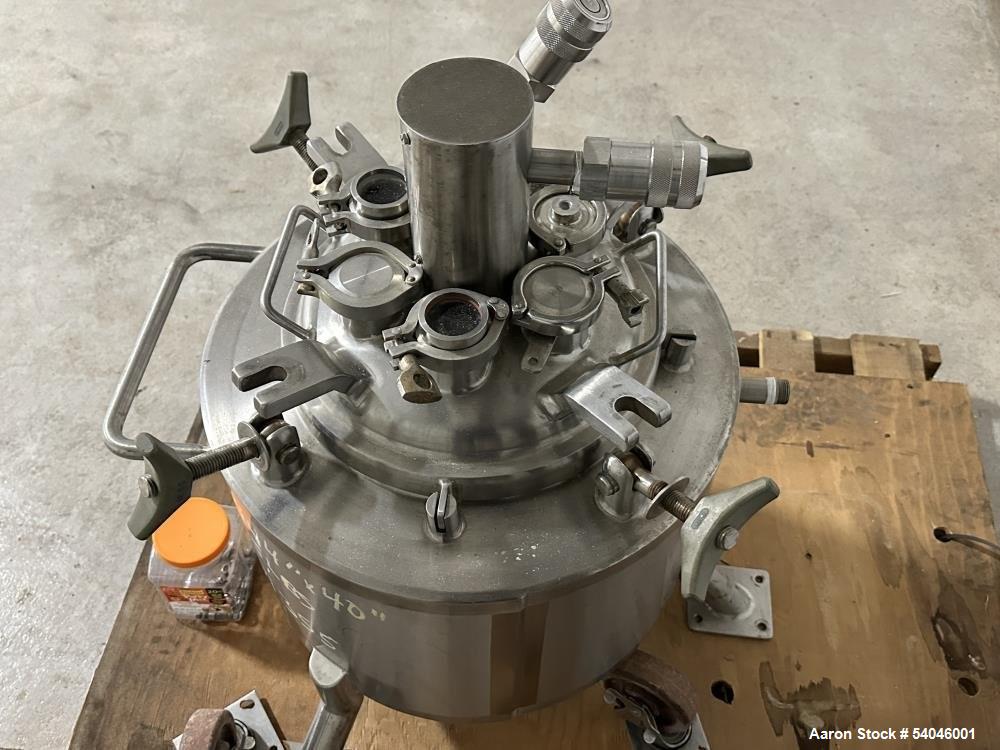

• Top Ports: (4) 2" fittings

• Bottom Outlet: 1/2" center bottom discharge

• Vessel Rating: 50 PSI @ 280°F, full vacuum (15 PSI)

• Jacket Rating: 100 PSI @ 280°F

• Mobility: Mounted on casters

• Year: 1997

• Serial Number: 4235

Applications:

• Freeze Drying Preparation

• Pharmaceutical or Biotech Pilot Processes

• Small-Scale Chemical Reactions

• Sampling and Testing in Lab Settings

• Precision Thermal Conditioning

• High-Purity Media Storage

• Vaccine or Biologic Development

• Laboratory-Scale Fermentation

• Cosmetic or Nutraceutical Testing

• Research & Development Mixing

What Might This Be Used For:

• Vacuum and pressure-based sample preparation

• Controlled cooling or heating of sensitive formulations

• Performing small-batch test reactions

• Prepping media or solutions for freeze drying

• Testing thermal profiles of chemicals or biologics

• Transporting and handling small volumes in sterile environments

• Creating low-temperature storage in lab-scale production

• Mixing under pressure/vacuum for micro-compounding

• Pilot-scale development of liquid formulations

• Portable processing in lab cleanrooms or pharmaceutical environments
