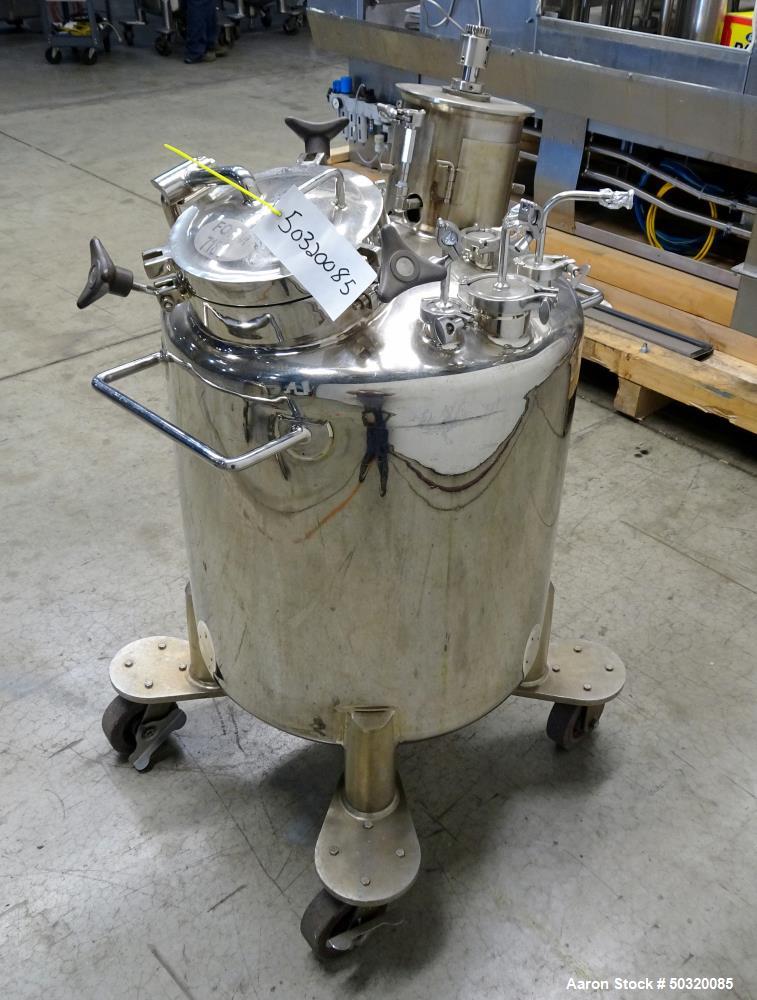

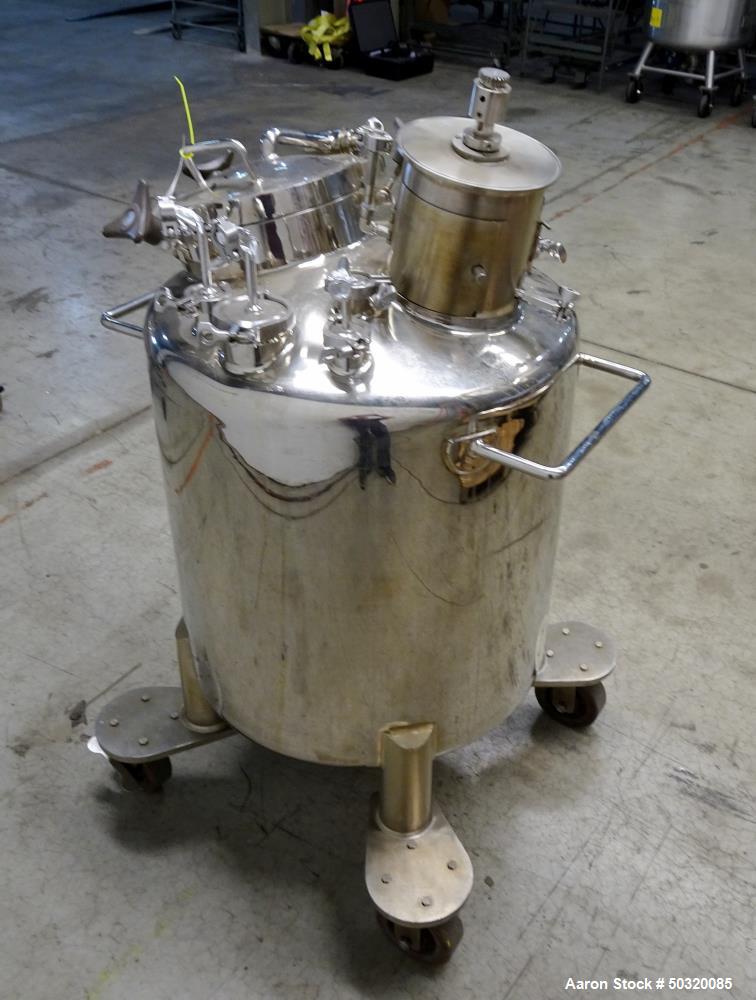

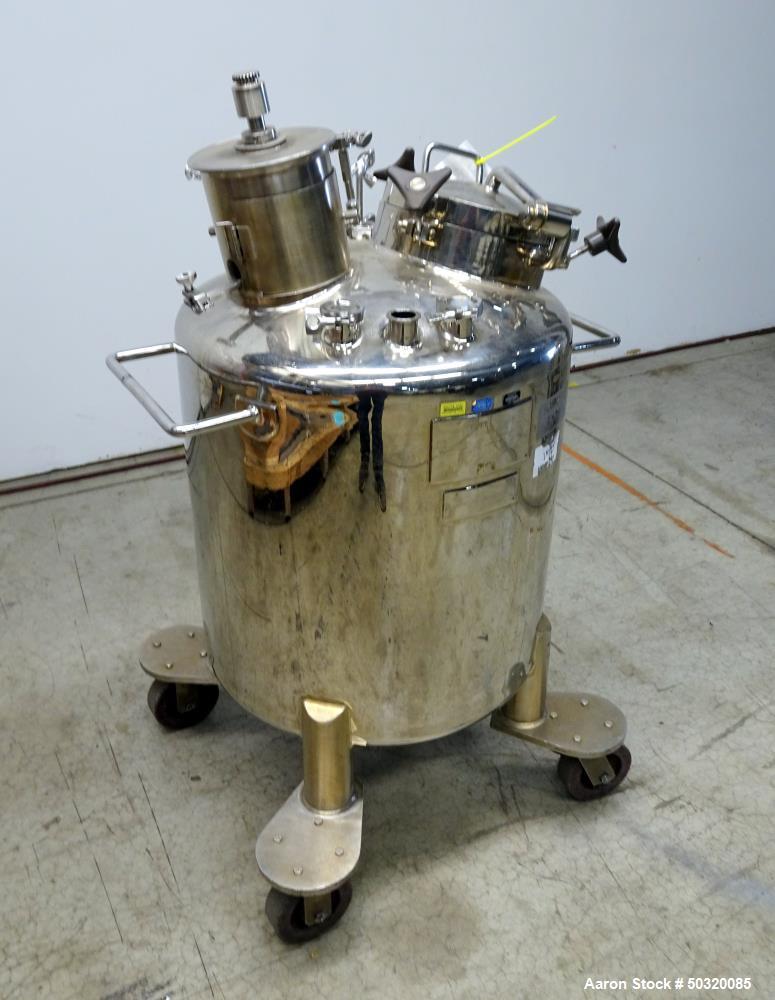

Used Lee Industries 316L Stainless Steel, Vertical Mix Tank, 200 Liter, Model 200 LDBT. Approximate 26" diameter x 24" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual 3-blade turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mounted on (4) legs with casters. National Board# 8577, Serial# 17570-1-7, Built 2001.
Manufacturer | Lee IndLee Ind |
Model | 200LDBT |
Serial # | 17570-1-7 |
Category | TanksTanks |
Subcategory | Stainless 0-499 GalStainless 0-499 Gal |
Gallons | 53 |
Material of Construction | 316L Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 26" |
Straight Side | 24" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 30 psi |
Internal Temperature | -20 to 300 degrees F. |
Agitator Location | Top Offset |
Agitator Type | Top Entering |
Mixer Type | Dual 3 Blade Turbine |
Outlet Size | 1-1/2" |
Outlet Location | Bottom |
Discharge Height | 5-1/2" |
Mounted | Mounted on Casters |

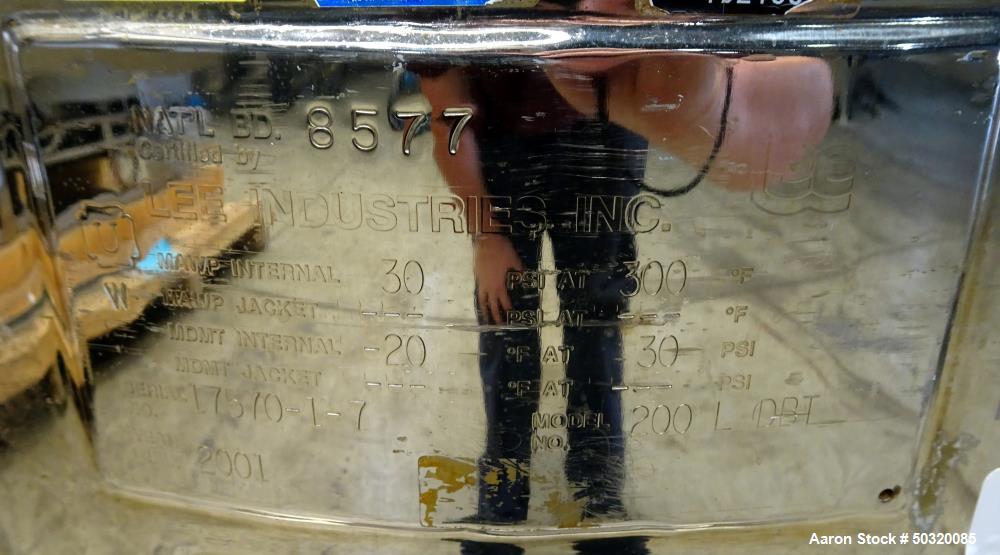

National Board No. | 8577 |
Overall Dimensions | 36"L X 32"W X 56"T |
Year Built | 2001 |
This used Lee Industries 200-liter vertical mix tank is constructed from 316L stainless steel, ensuring durability, corrosion resistance, and compliance with sanitary processing requirements. It features a dished top and bottom for optimal fluid dynamics and ease of cleaning.

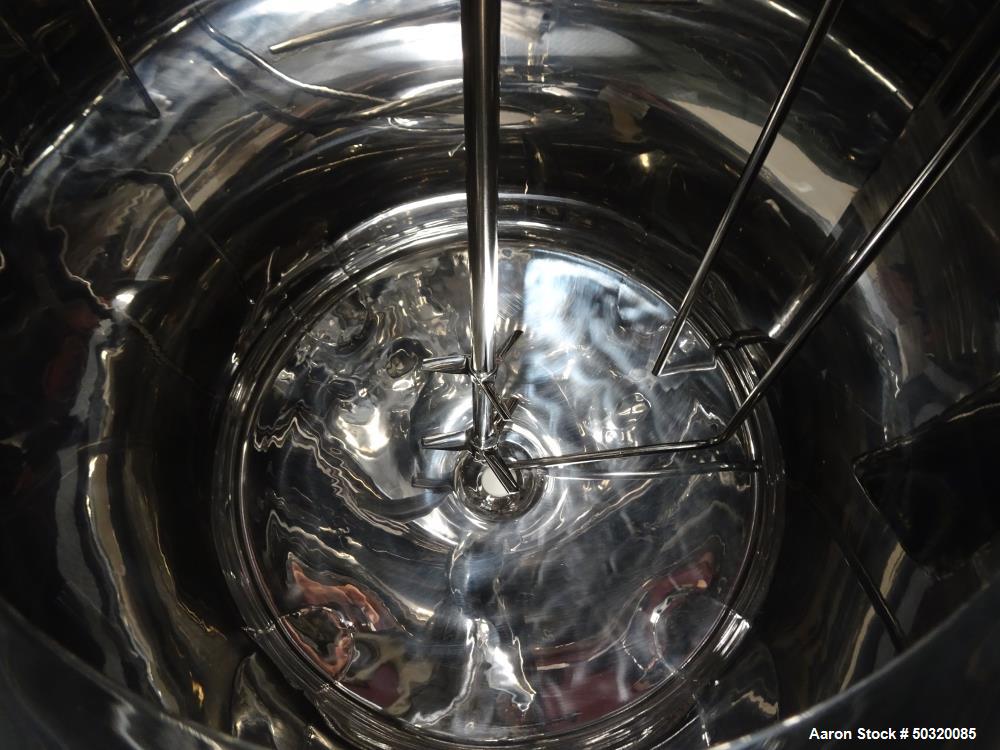

The tank is internally rated for 30 psi and vacuum-rated, allowing it to operate under a temperature range of -20°F to 300°F. A top-entering dual 3-blade turbine agitator provides efficient mixing, though a motor and drive are required for full operation.

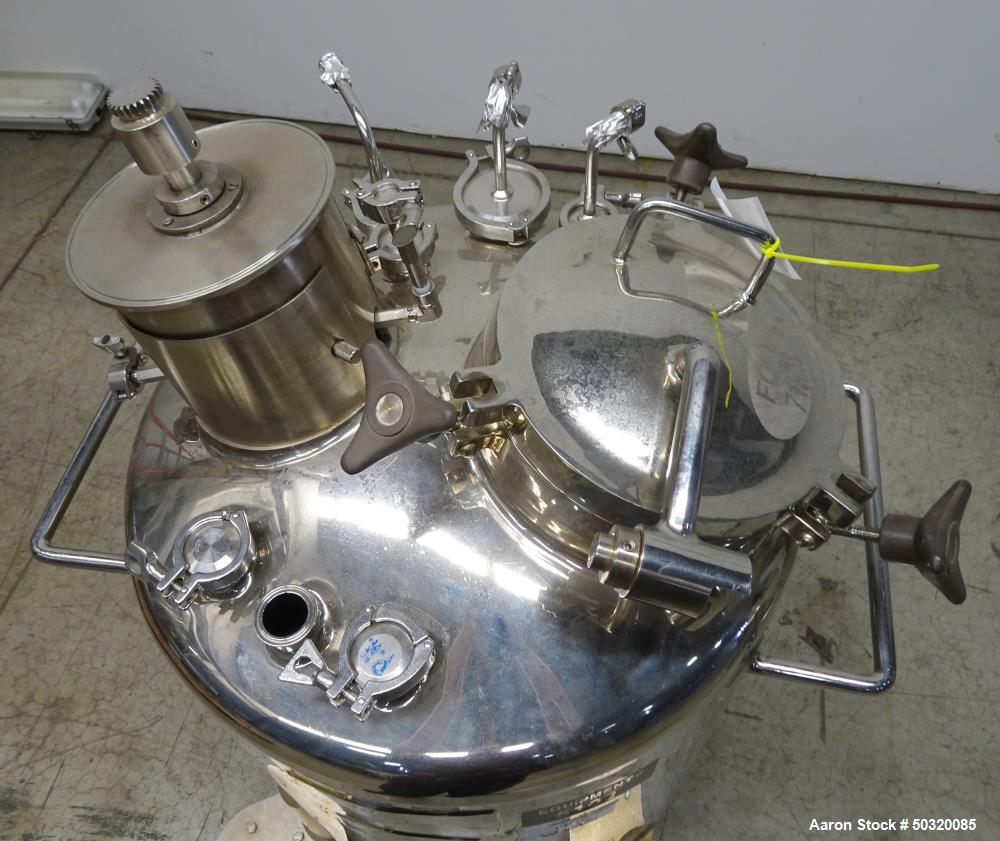

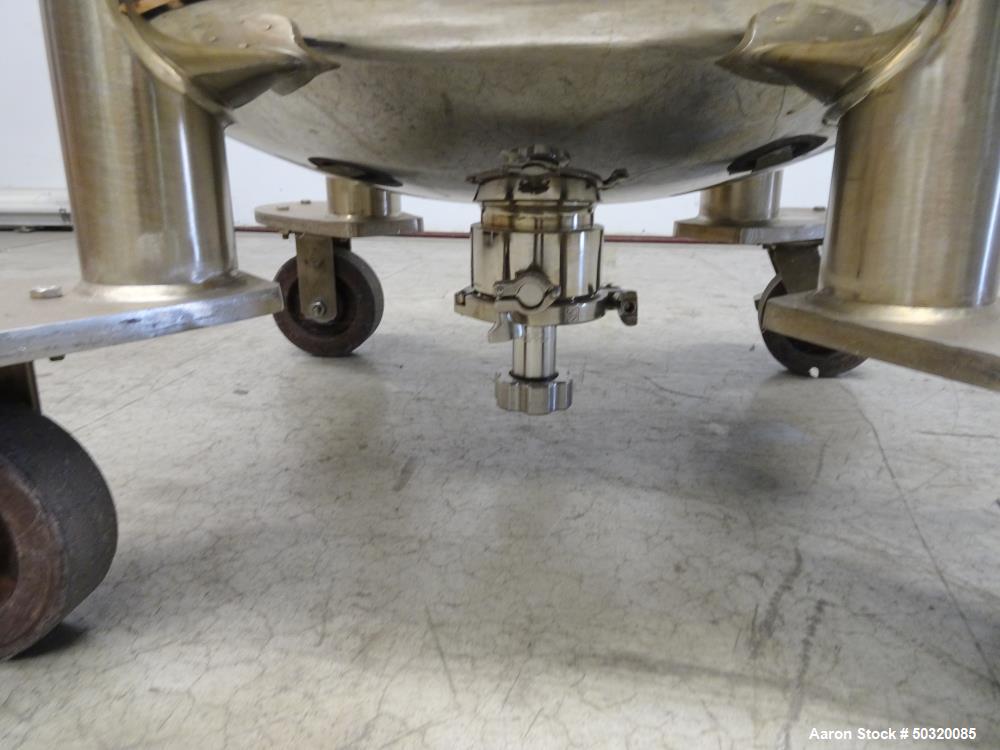

Designed for flexibility in industrial applications, this tank has multiple top openings, including a 10-inch cover, one 3-inch opening, and six 1-1/2-inch openings, allowing for seamless ingredient addition, venting, and process integration. The 1-1/2-inch center bottom outlet ensures smooth product discharge, positioned at an approximate 5-1/2-inch height. Mounted on four legs with casters, this unit is highly mobile and easy to integrate into various production environments.
This industrial-grade stainless steel mix tank is ideal for:
Used Lee Industries 316L Stainless Steel, Vertical Mix Tank, 200 Liter, Model 200 LDBT. Approximate 26" diameter x 24" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual 3-blade turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mounted on (4) legs with casters. National Board# 8577, Serial# 17570-1-7, Built 2001.
This used Lee Industries 200-liter vertical mix tank is constructed from 316L stainless steel, ensuring durability, corrosion resistance, and compliance with sanitary processing requirements. It features a dished top and bottom for optimal fluid dynamics and ease of cleaning.
The tank is internally rated for 30 psi and vacuum-rated, allowing it to operate under a temperature range of -20°F to 300°F. A top-entering dual 3-blade turbine agitator provides efficient mixing, though a motor and drive are required for full operation.
Designed for flexibility in industrial applications, this tank has multiple top openings, including a 10-inch cover, one 3-inch opening, and six 1-1/2-inch openings, allowing for seamless ingredient addition, venting, and process integration. The 1-1/2-inch center bottom outlet ensures smooth product discharge, positioned at an approximate 5-1/2-inch height. Mounted on four legs with casters, this unit is highly mobile and easy to integrate into various production environments.
This industrial-grade stainless steel mix tank is ideal for:
Manufacturer | Lee Ind |
Model | 200LDBT |
Serial # | 17570-1-7 |
Category | Tanks |
Subcategory | Stainless 0-499 Gal |
Gallons | 53 |
Material of Construction | 316L Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 26" |
Straight Side | 24" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 30 psi |
Internal Temperature | -20 to 300 degrees F. |
Agitator Location | Top Offset |
Agitator Type | Top Entering |
Mixer Type | Dual 3 Blade Turbine |
Outlet Size | 1-1/2" |
Outlet Location | Bottom |
Discharge Height | 5-1/2" |
Mounted | Mounted on Casters |
National Board No. | 8577 |
Overall Dimensions | 36"L X 32"W X 56"T |
Year Built | 2001 |
