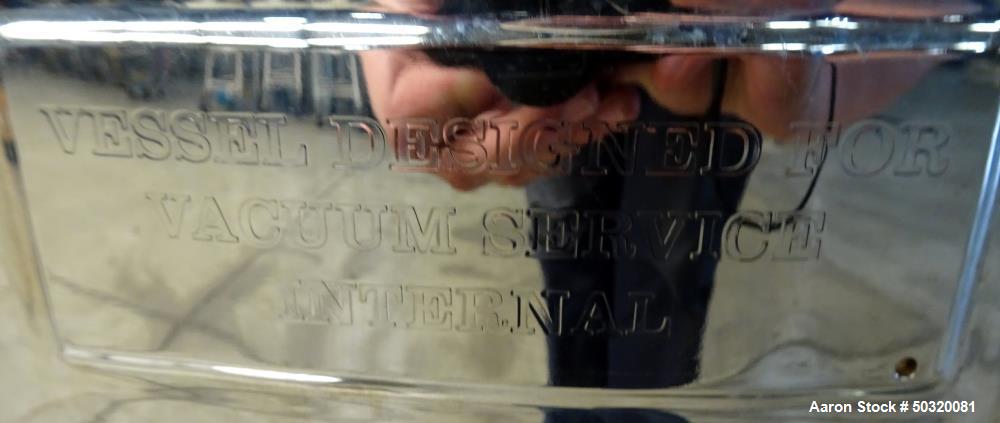

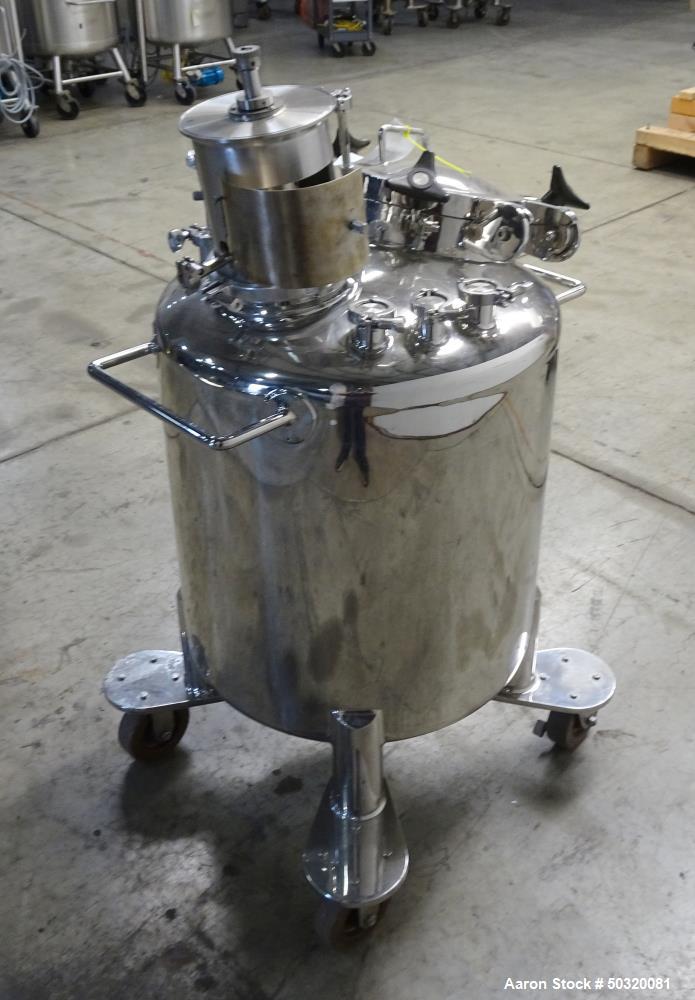

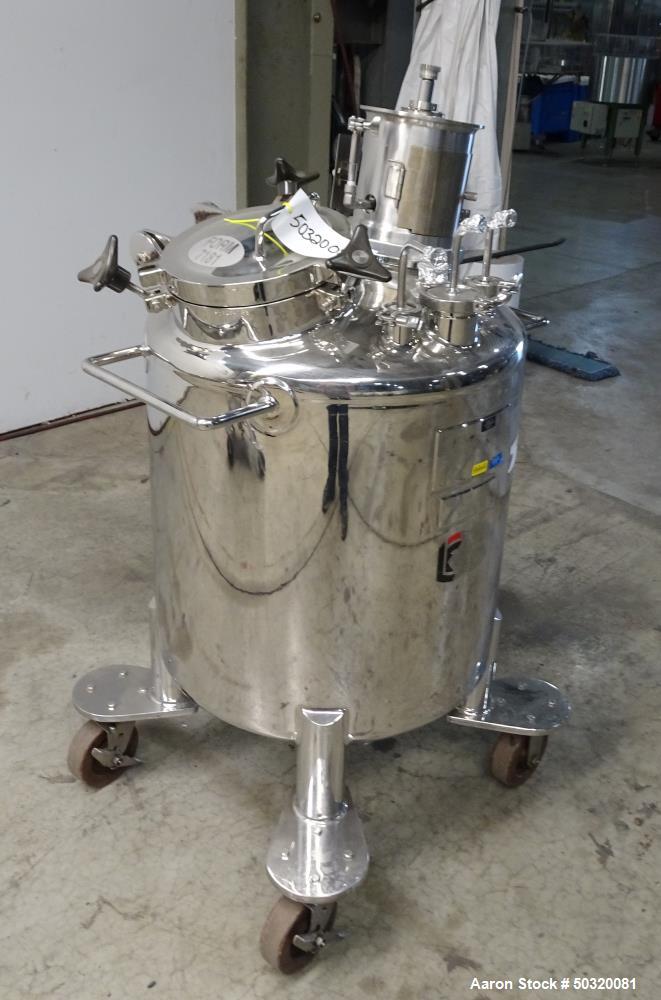

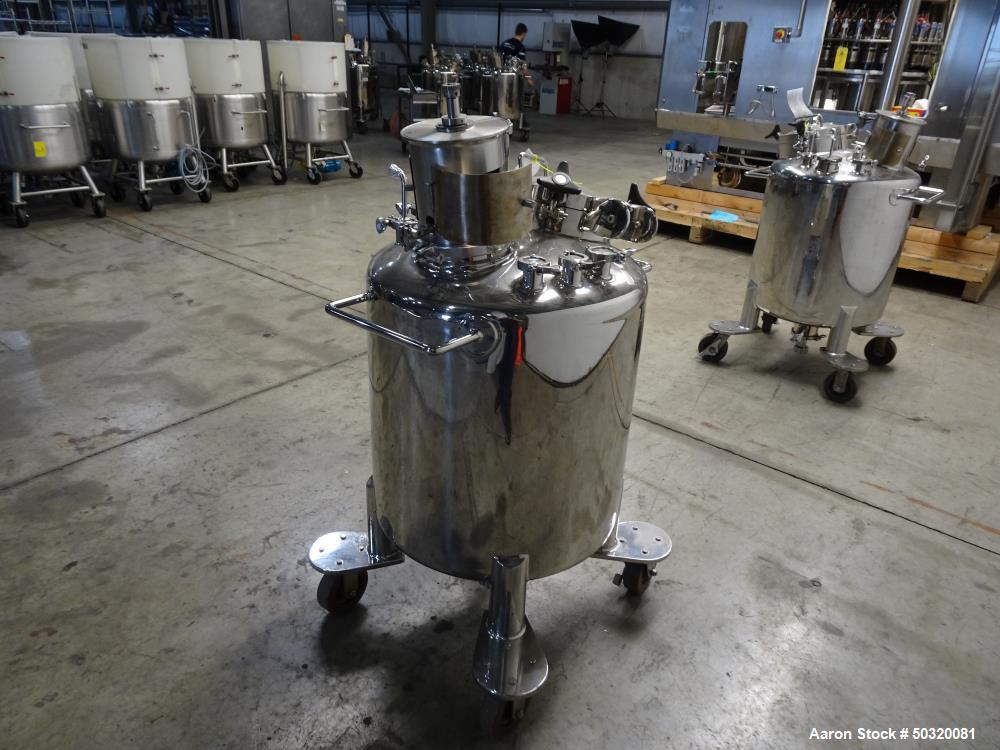

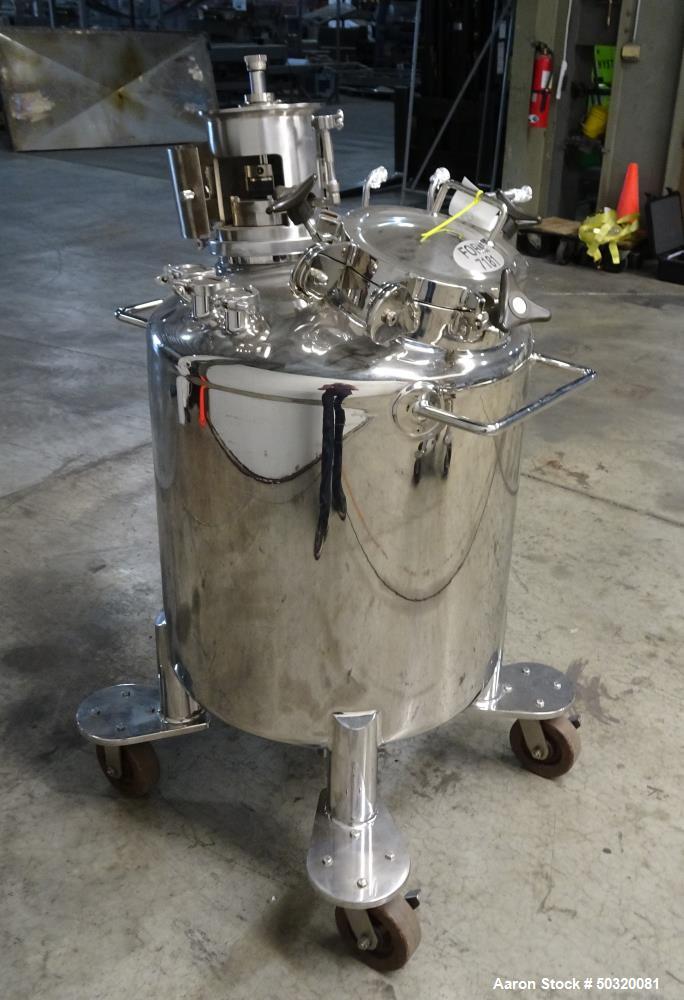

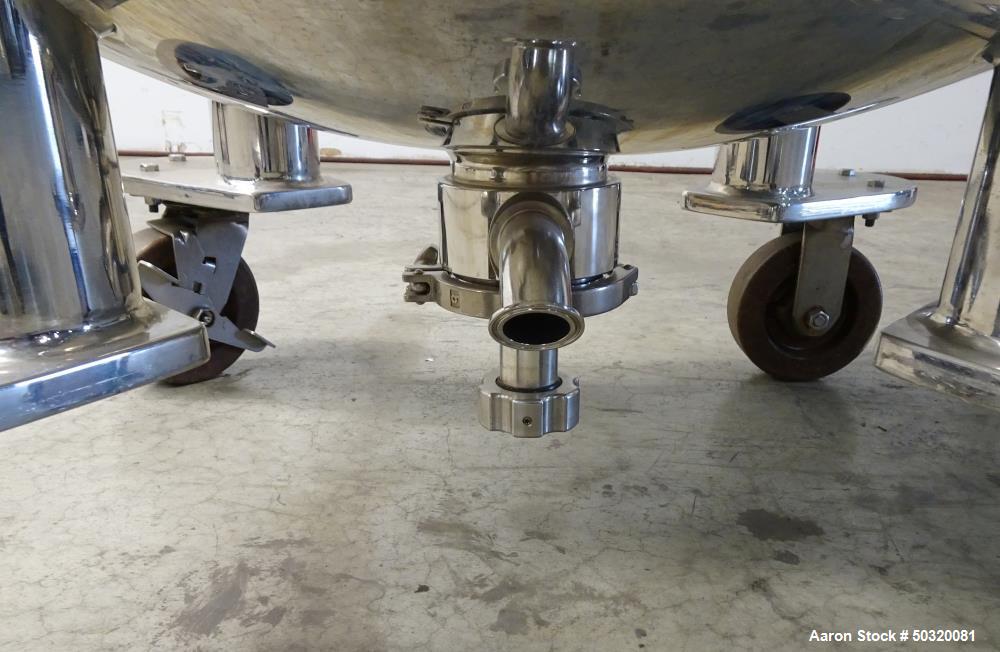

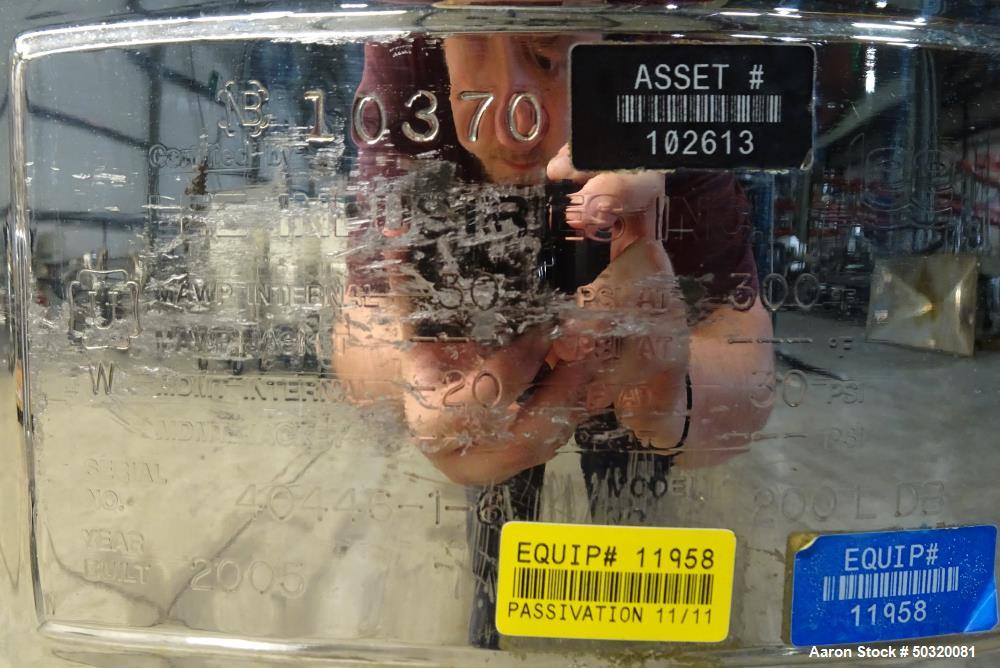

Used Vertical, Industrial Pressure Mix Tank, 200 Liter, Manufactured by Lee Industries Model 200 LDBT. Approximate 26" diameter x 24" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual 3-blade turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mounted on (4) legs with casters. National Board# 10370, Serial# 40446-1-6, Built 2005.
Manufacturer | Lee IndLee Ind |
Model | 200LDBT |
Serial # | 40446-1-6 |
Category | TanksTanks |
Subcategory | Stainless 0-499 GalStainless 0-499 Gal |
Gallons | 53 |
Material of Construction | 316L Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 26" |
Straight Side | 24" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 30 psi |
Internal Temperature | -20 to 300 degrees F. |
Agitator Location | Top Offset |
Agitator Type | Top Entering |
Mixer Type | Dual 3 Blade Turbine |
Outlet Size | 1-1/2" |
Outlet Location | Bottom |
Discharge Height | 5-1/2" |
Mounted | Mounted on Casters |
National Board No. | 10370 |
Overall Dimensions | 36"L X 32"W X 56"T |
Year Built | 2005 |
This used Lee Industries 200-liter industrial pressure mix tank is designed for high-performance mixing and processing in demanding industrial applications. Constructed from 316L stainless steel, this vertical mixing vessel ensures corrosion resistance, durability, and compliance with sanitary processing standards.
The tank features a dished top and bottom for optimized fluid flow and easy cleaning. It is internally rated for 30 psi at temperatures from -20°F to 300°F, with vacuum capability, making it suitable for a wide range of mixing, blending, and reaction processes.

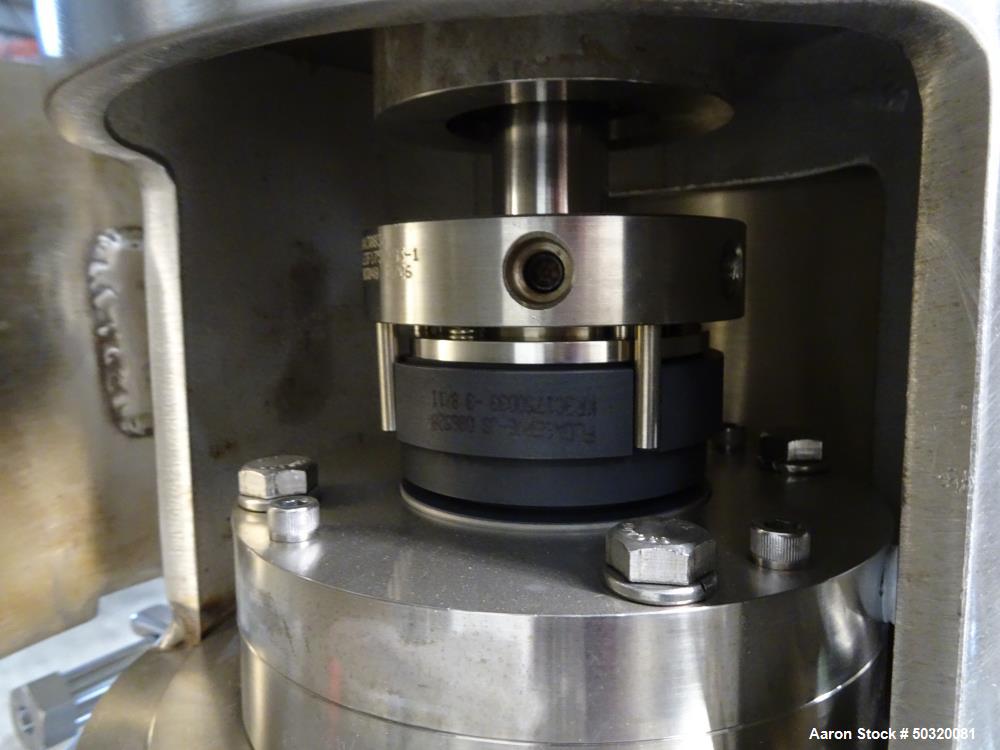

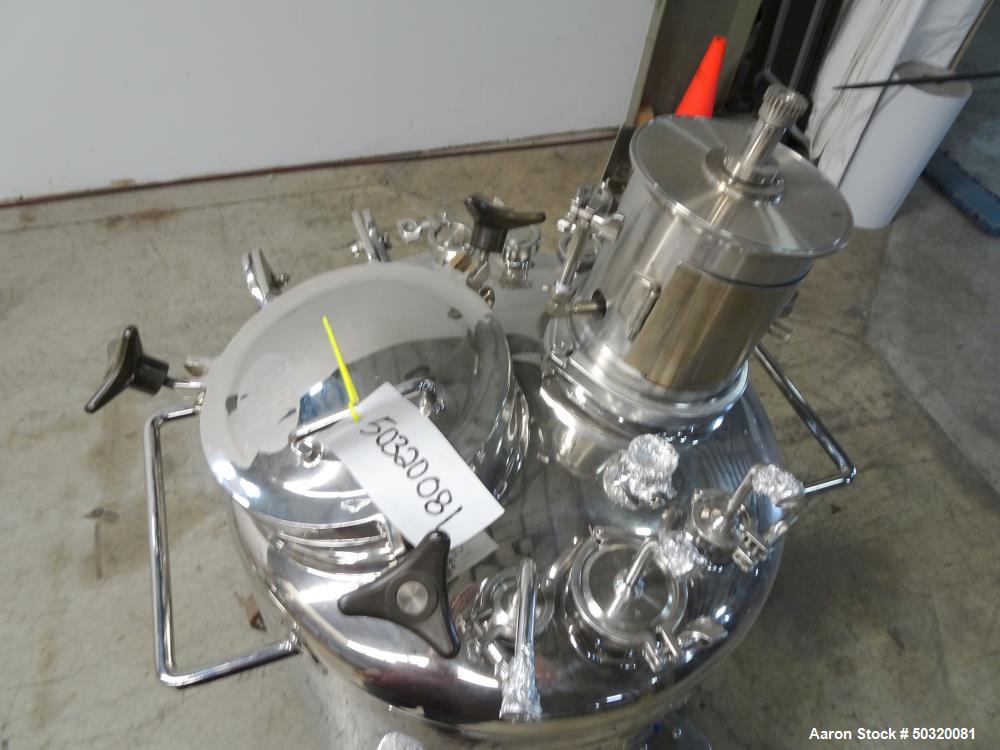

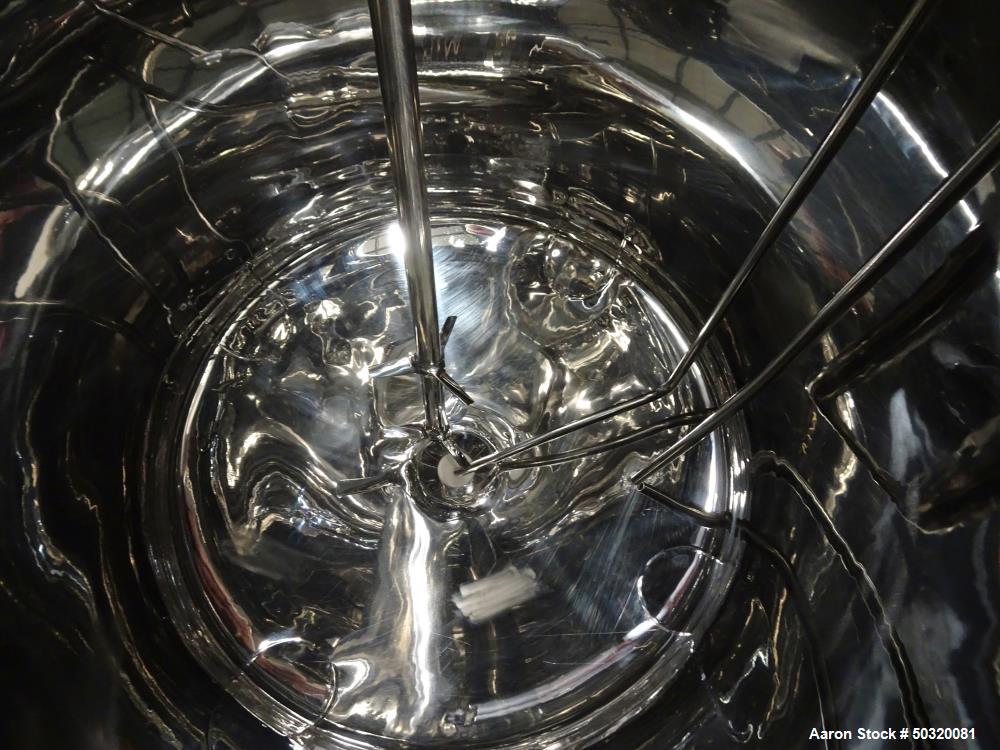

Equipped with a top-entering dual 3-blade turbine agitator, this tank enables efficient material dispersion and uniform mixing. The agitator requires a separate motor and drive for full functionality. Multiple top openings, including a 10-inch cover, one 3-inch port, and six 1-1/2-inch ports, allow for seamless ingredient addition and process integration. The 1-1/2-inch center bottom outlet is positioned at 5-1/2 inches discharge height for smooth product flow.
For operational flexibility, the tank is mounted on four legs with casters, ensuring easy mobility and reconfiguration within production environments.
This industrial-grade stainless steel pressure mix tank is ideal for use in food processing, pharmaceuticals, chemicals, and cosmetics. Typical applications include:
"Dealing with Aaron is an easy and enjoyable process"
"Aaron Equipment is always my first call for used process equipment. Their inventory and customer service has ensured successful project results every time. Thanks y’all!"
"I have purchased all different types of equipment from Aaron Equipment over the last 10 years and have always been 100% happy with not only the equipment but with their customer service!"
"Working with Aaron Equipment Company was as easy as it gets."
"It is a pleasure to work with AEK and I would recommend them as an equipment supplier."
"The partnership we enjoy with Aaron has helped our business to be what it is today – thank you guys!”
"I will definitely use Aaron Equipment in the future."
"Aaron’s customer service indicates that they want long term partnerships and that is something we especially appreciate."
"I really value shopping for used equipment from Aaron Equipment Company because the information they present is accurate, their prices fair and their customer service is the best…Highly recommend."
"This is my first time using Aaron Equipment to purchase equipment. They were easy to work with and things were done quickly and efficiently. I will be a repeat customer when the need arises. This is a trustworthy company that delivers what they advertise."
"I have purchased multiple pieces of equipment through Aaron equipment over the past 15 years. The staff has been very knowledgeable on every request & have spent countless hours ensuring that the equipment I was purchasing met my expectations."
"I have been doing business with Aaron equipment for many years. This year I had the need for some used equipment in a new business Venture. I got in touch with Ryan Davies. I could not be happier with the response and honesty exhibited by him. Dealing with them was a pleasure and everything was as represented. Fair an Honest is how I would describe them."
“Aaron Equipment was very easy to get into contact with and get a price on a un-used chiller they were selling. The process was seamless and very easy on our end and we had the equipment much faster than going out for bid on it to multiple vendors and we able to come in under budget on the project.”
Used Vertical, Industrial Pressure Mix Tank, 200 Liter, Manufactured by Lee Industries Model 200 LDBT. Approximate 26" diameter x 24" straight side, dished top and bottom. Internal rated 30 psi at -20 to 300 degrees F, vacuum internal. Top entering dual 3-blade turbine agitator, requires motor/drive. Openings top: 10" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 5-1/2" discharge height. Mounted on (4) legs with casters. National Board# 10370, Serial# 40446-1-6, Built 2005.
This used Lee Industries 200-liter industrial pressure mix tank is designed for high-performance mixing and processing in demanding industrial applications. Constructed from 316L stainless steel, this vertical mixing vessel ensures corrosion resistance, durability, and compliance with sanitary processing standards.
The tank features a dished top and bottom for optimized fluid flow and easy cleaning. It is internally rated for 30 psi at temperatures from -20°F to 300°F, with vacuum capability, making it suitable for a wide range of mixing, blending, and reaction processes.
Equipped with a top-entering dual 3-blade turbine agitator, this tank enables efficient material dispersion and uniform mixing. The agitator requires a separate motor and drive for full functionality. Multiple top openings, including a 10-inch cover, one 3-inch port, and six 1-1/2-inch ports, allow for seamless ingredient addition and process integration. The 1-1/2-inch center bottom outlet is positioned at 5-1/2 inches discharge height for smooth product flow.
For operational flexibility, the tank is mounted on four legs with casters, ensuring easy mobility and reconfiguration within production environments.
This industrial-grade stainless steel pressure mix tank is ideal for use in food processing, pharmaceuticals, chemicals, and cosmetics. Typical applications include:
