Stock No.: 50320096

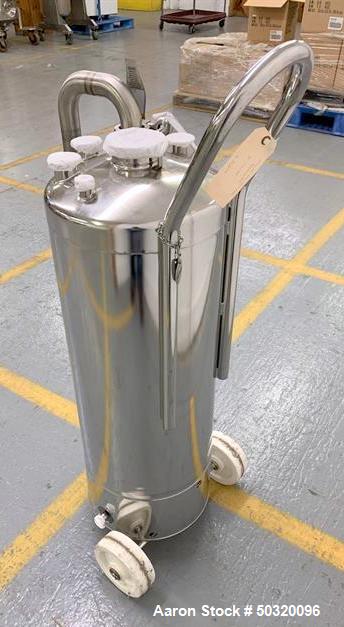

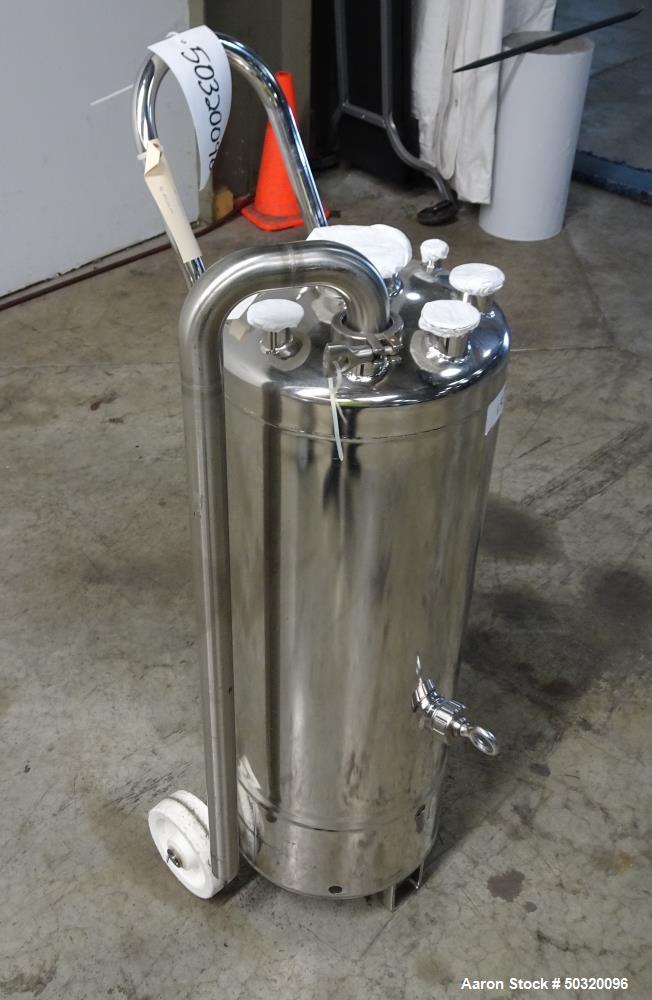

Used Alloy Products Pressure Tank, Approximate 42 Liter, 316L Stainless Steel
Used- Alloy Products Pressure Tank, Approximate 42 Liter, 316L Stainless Steel, Vertical. Approximate 12" diameter x 23" straight side. Internal rated 120 psi at -20 to 300 degrees F. Openings top: (1) 3", (4) 1-1/2", (1) ", side: (1) 1-1/2" NPT. 3/4" Side bottom outlet(No valve, approximate 5" diameter discharge height. Mounted on (2) wheels. Serial# 121438-004, Built 2005.
-
ManufacturerAlloy
-

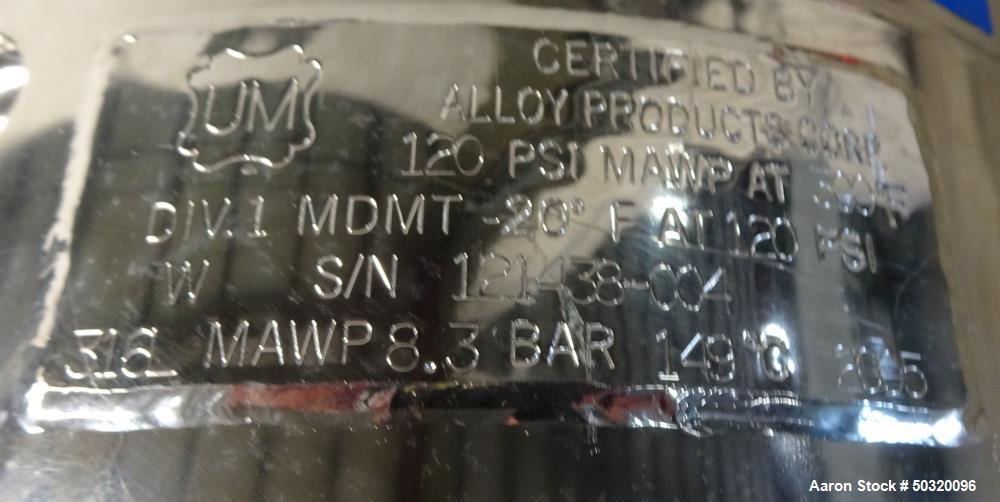

Serial #121438-004
-
CategoryTanks
-
SubcategoryStainless 0-499 Gal
-
Gallons10
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter12"
-
Straight Side23"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure120 PSI
-
Internal Temperature-20 to 300 degrees F.
-
Outlet Size3/4"
-
Outlet LocationSide bottom
-
Discharge Height5"
-
Overall Dimensions21"L X 18"W X 45"T
-
Year Built2005
Used equipment facts about this machine
Manufacturer Information
Description
This used 42-liter Alloy Products pressure tank is constructed from 316L stainless steel, providing high corrosion resistance, durability, and compliance with sanitary processing standards. Designed for industrial and laboratory applications, the vertical tank is internally rated for 120 psi and can operate within a temperature range of -20°F to 300°F.

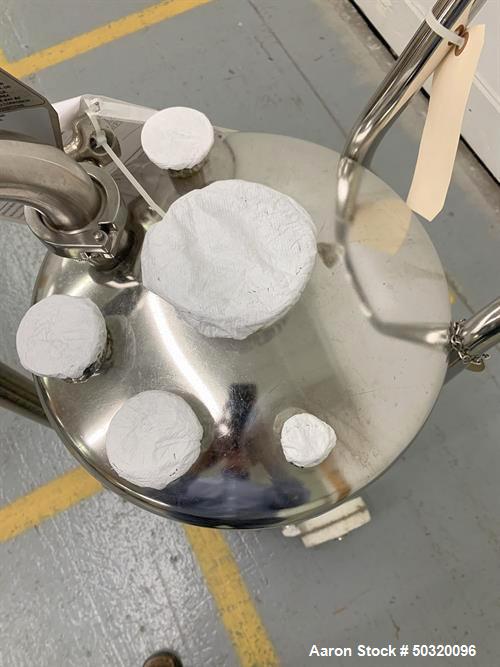

The tank features multiple top openings, including one 3-inch opening, four 1-1/2-inch openings, and an additional opening for process integration. It also has a 1-1/2-inch NPT side opening for added versatility. The 3/4-inch bottom side outlet is designed for smooth product discharge, positioned at an approximate 5-inch height.

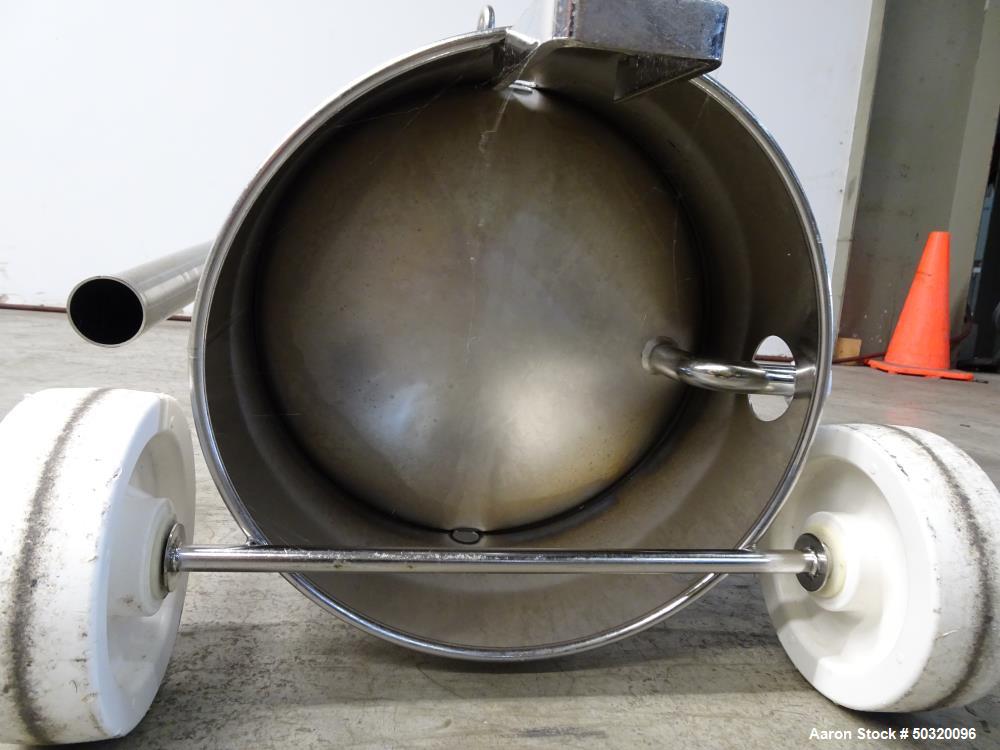

For easy mobility and handling, this unit is mounted on two wheels, making it ideal for operations that require frequent repositioning.
Specifications
- Capacity: Approx. 42 liters
- Material: 316L Stainless Steel
- Orientation: Vertical
- Tank Dimensions:
- Diameter: 12 inches
- Straight Side Height: 23 inches
- Pressure Rating:
- Internal: 120 psi (-20°F to 300°F)
- Openings:
- Top:
- (1) 3” opening
- (4) 1-1/2” openings
- (1) additional opening
- Side:
- (1) 1-1/2” NPT opening
- Top:
- Bottom Outlet:
- 3/4” side bottom outlet (no valve)
- Discharge height: Approx. 5 inches
- Mobility:
- Mounted on two wheels for easy transport
Applications
This stainless steel pressure tank is suitable for pharmaceutical, food & beverage, chemical, and industrial applications, including:
- Pressurized storage and handling of liquids
- Mixing and blending of chemicals and pharmaceutical solutions
- Controlled dispensing and transfer of sensitive materials
- Portable process tank for laboratory and industrial settings
Compatible Products
- Liquid chemicals and solutions requiring pressurized storage
- Pharmaceutical ingredients and formulations
- Food and beverage products with sanitary handling requirements
- Industrial coatings, adhesives, and specialty chemicals
Product Details
- Used Alloy Products Pressure Tank
- 42 Liter Stainless Steel Pressure Vessel
- 316L Stainless Steel Pressurized Storage Tank
- Industrial Pressure Tank for Sale
- Small Stainless Steel Process Tank
- Used 42L stainless steel pressure tank for sale
- Alloy Products portable pressure vessel
- 316L stainless steel industrial tank with wheels
- Where to buy used stainless steel pressure tanks for laboratory and industrial applications
- Best small stainless steel pressure vessel for pharmaceutical and chemical processing
- High-quality used Alloy Products 42L pressure tank with 120 psi rating
