Used Viatec Tank, 11,190 US Gallon, Model CV-144-11190-E

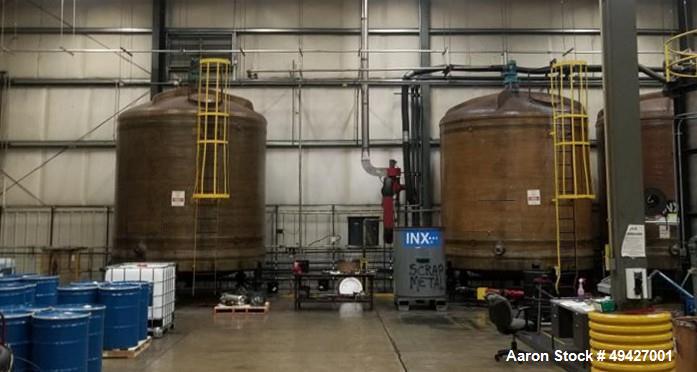

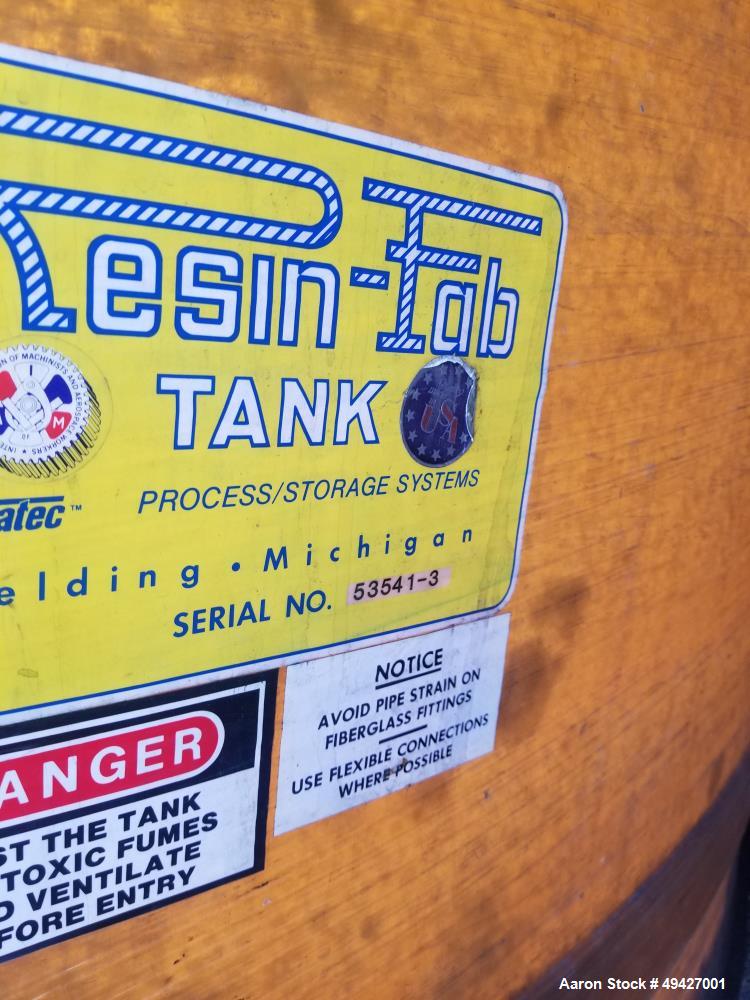

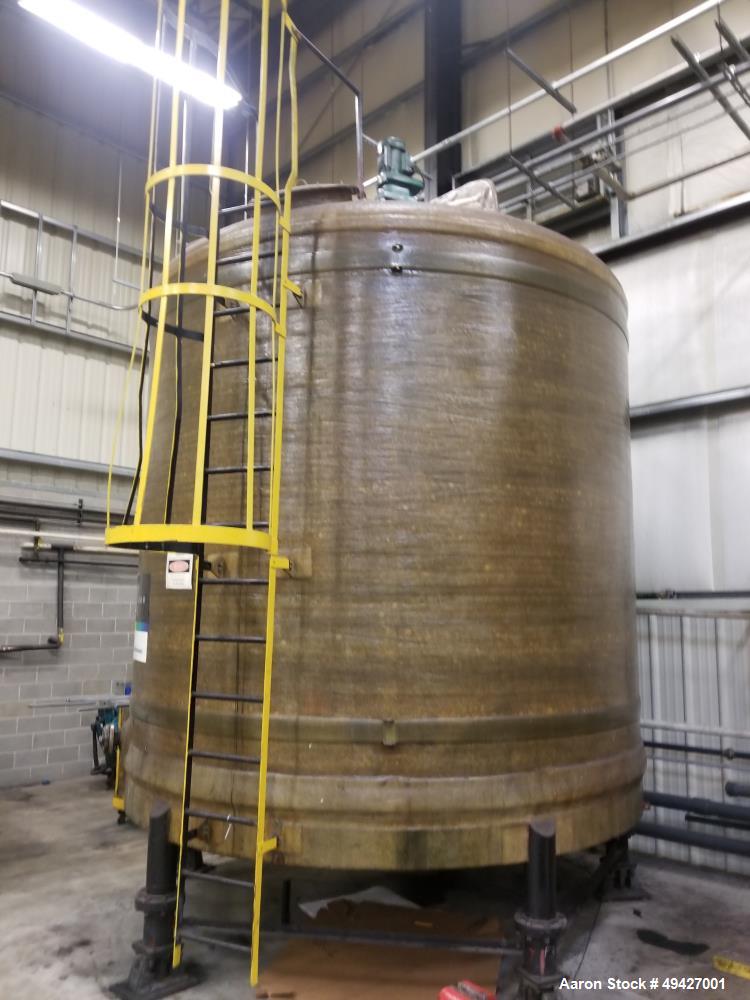

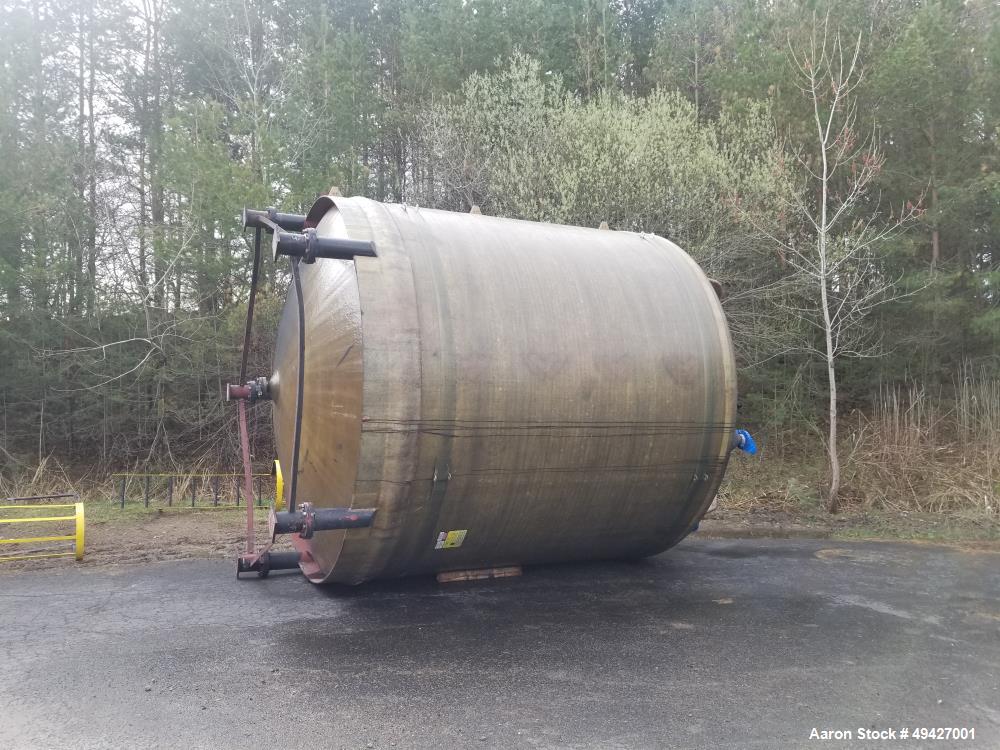

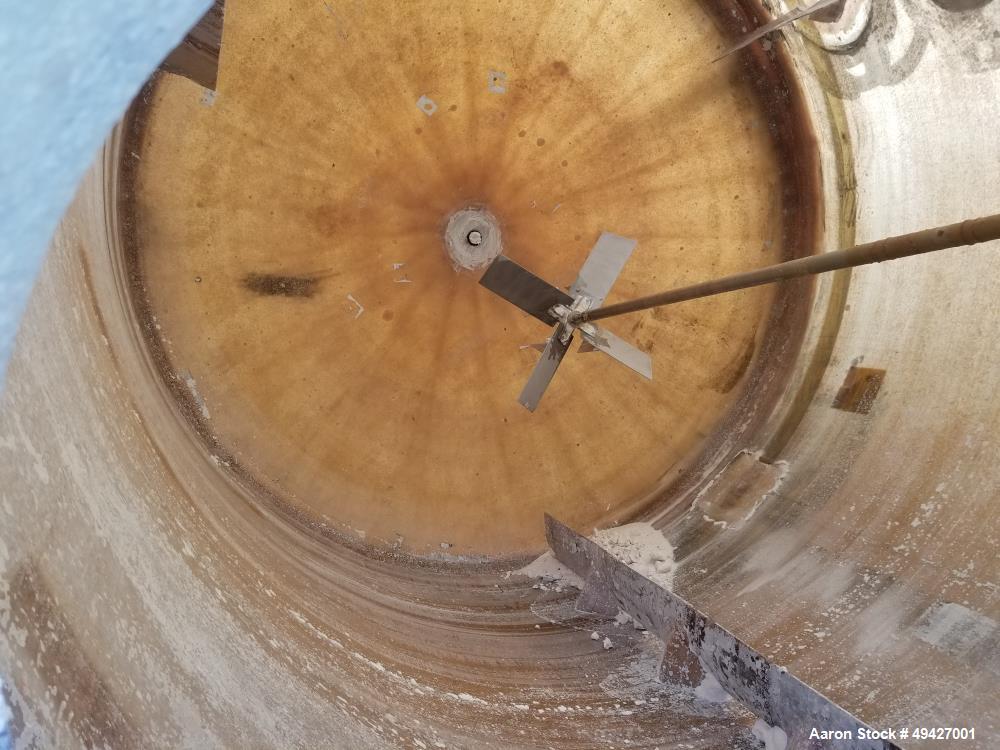

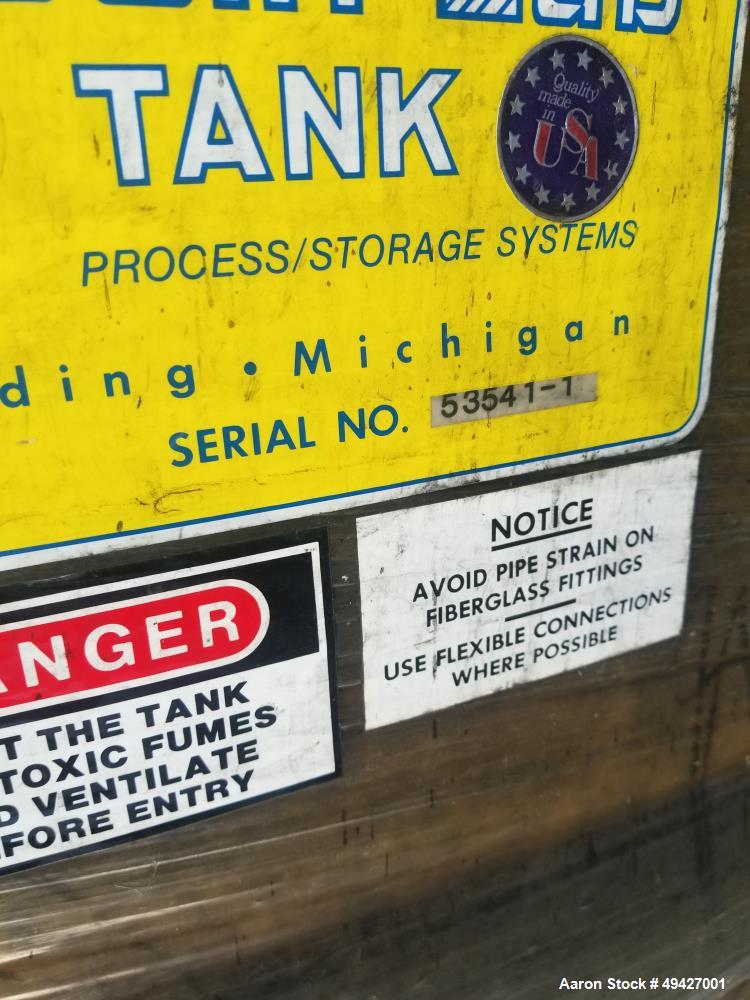

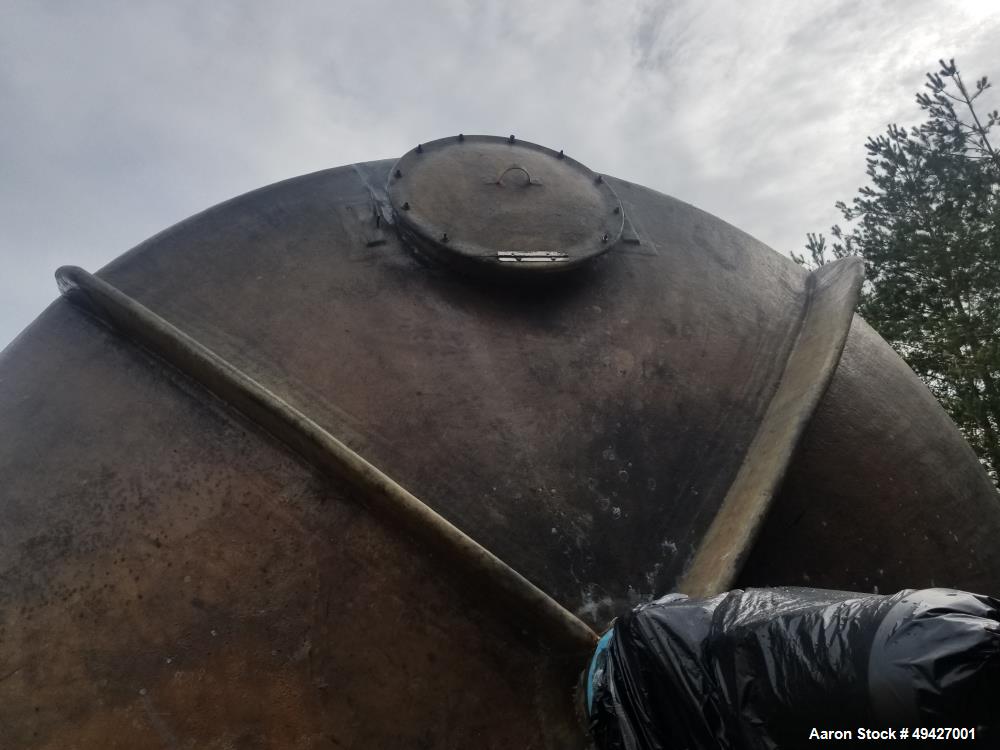

Used- Viatec Tank, 11,190 US Gallon, Model CV-144-11190-E, Resin Fab reinforced Plastic Tank. 144" diameter x 129" straight side, 188" overall height. Filament wound fiberglass with smooth resin rich inner surface. 1.2 Specific gravity. Seismic zone 0, 0 mph wind load. (5) 6" IPS schedule 40 pipe legs. 11" clearance under tanks. 24" top manway. (3) Internal baffles: 11" wide x 132" long. 2" off wall. Dish top, flat bottom. Last used in a water based black ink and water based ink resin (non-hazardous materials). NOW INCLUDES: AGITATOR DRIVE AND SHAFT
