5,100 Gallon Pfaudler Glass Lined Vertical Chemstore Receiver

Manufacturer Information

• Manufacturer: Pfaudler
• Model: CV96-5100-90

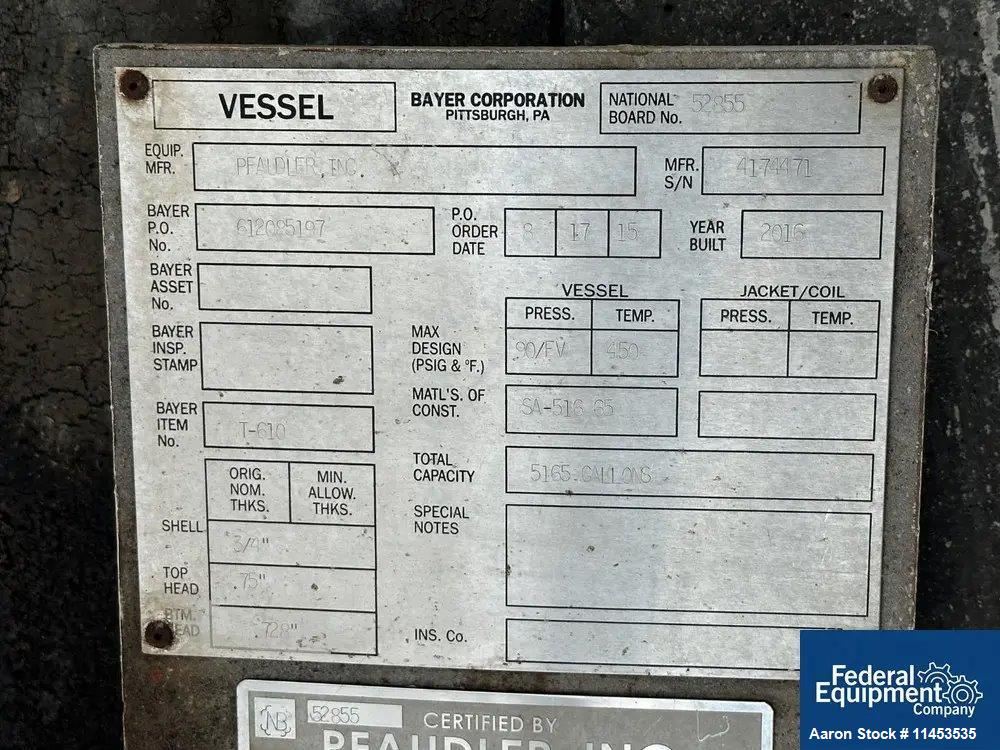

• Serial Number: 4174471
• National Board Number: 32855
• Year Built: 2016
• Country of Origin: USA
• Condition: Used / Excellent Condition

Description

This Used 5,100 Gallon Pfaudler Glass-Lined Vertical Chemstore Receiver, model CV96-5100-90, is designed for high-purity chemical storage and processing applications. Built in 2016, it features a 9119 glass lining for superior corrosion resistance, making it ideal for aggressive chemical environments.

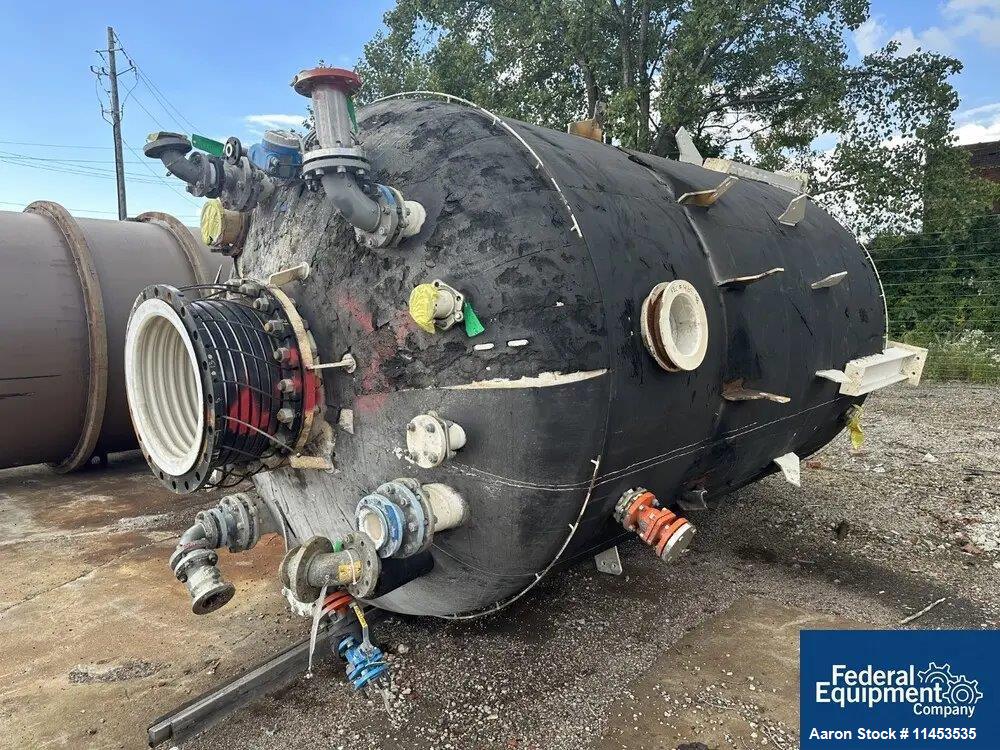

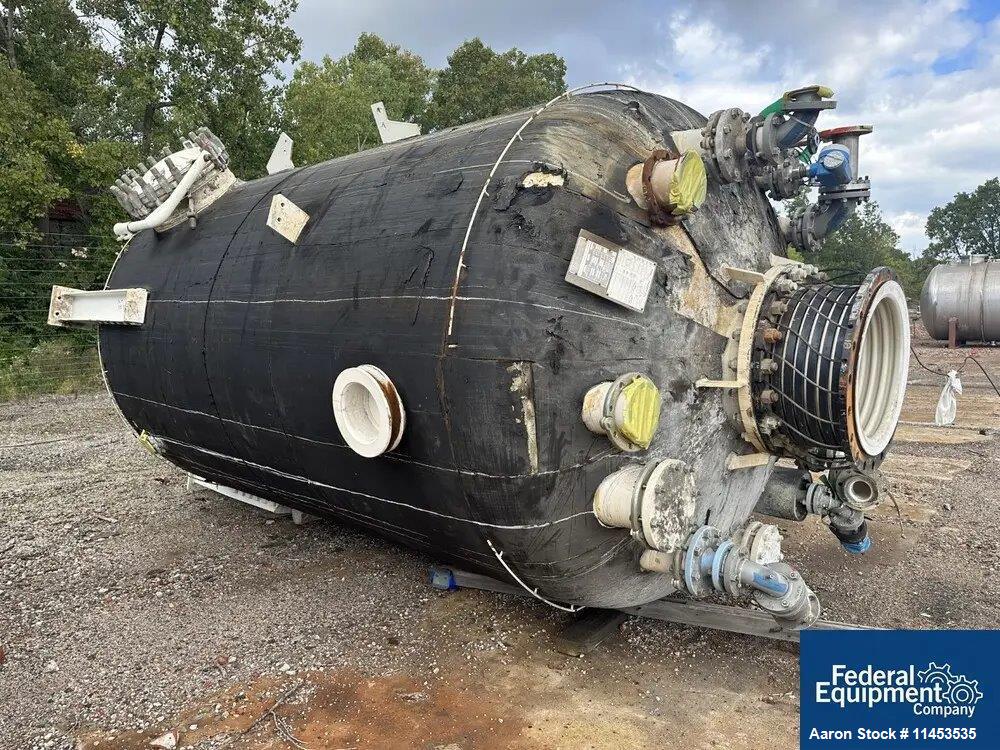

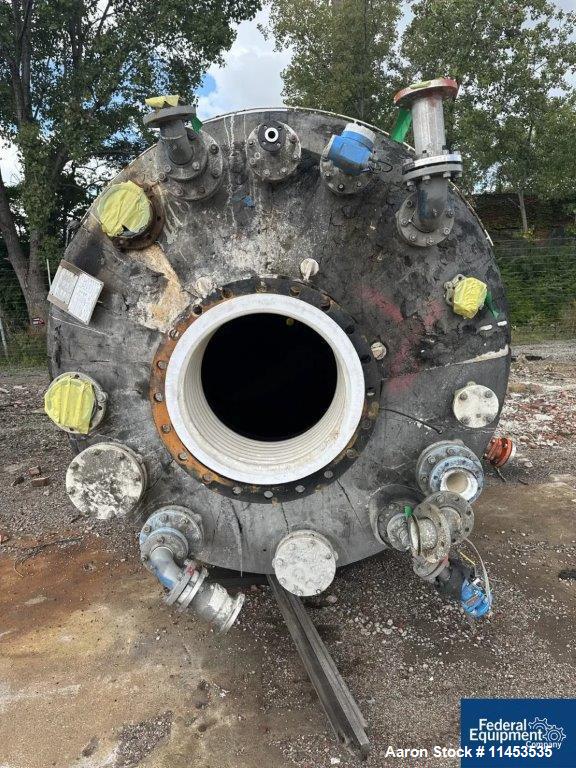

The receiver has an internal diameter of 96" and a straight side height of 143", with a 2:1 elliptical dish top and bottom for optimal strength and pressure distribution. It is rated for 90 PSI and full vacuum at 450°F internal pressure, offering versatility in both vacuum and pressure applications. Equipped with a 24" center top opening and a 24" side bottom manway, it allows for easy access and maintenance. The unit stands on 4 sturdy legs for stability in an industrial setting.

Specifications

• Capacity: 5,100 Gallons
• Model: CV96-5100-90
• Manufacturer: Pfaudler
• Serial Number: 4174471
• National Board Number: 32855
• Year Built: 2016
• Internal Diameter: 96"
• Straight Side Height: 143"
• Head Type: 2:1 Elliptical Dish Top and Bottom

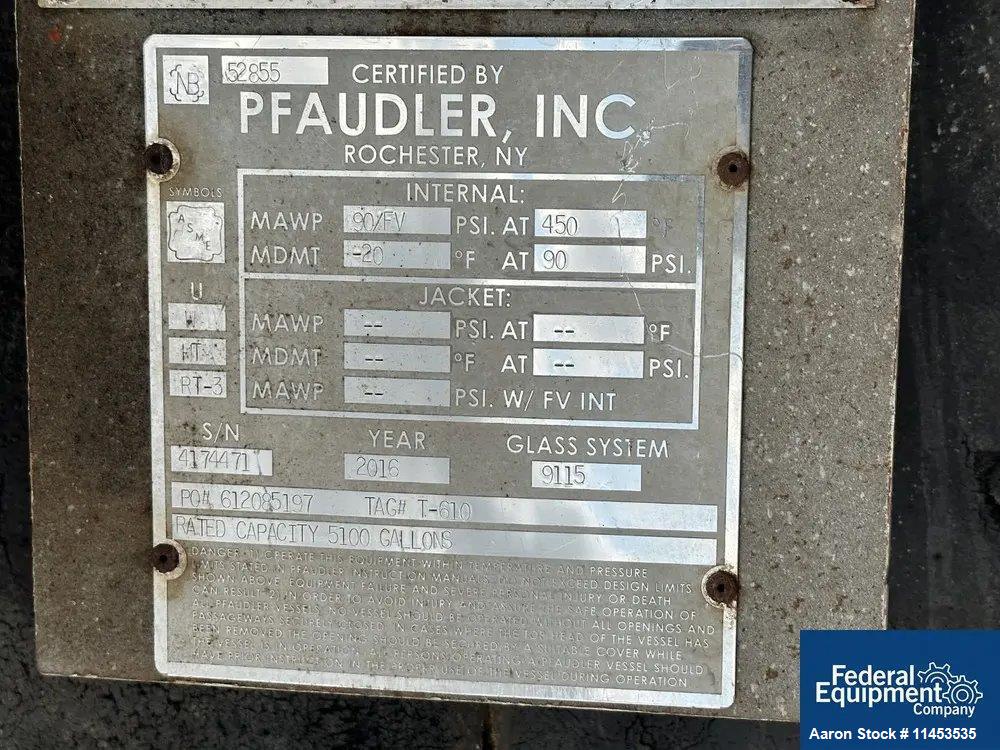

• Pressure Rating: 90 PSI and Full Vacuum
• Temperature Rating: 450°F Internal
• Lining: 9119 Glass Lined

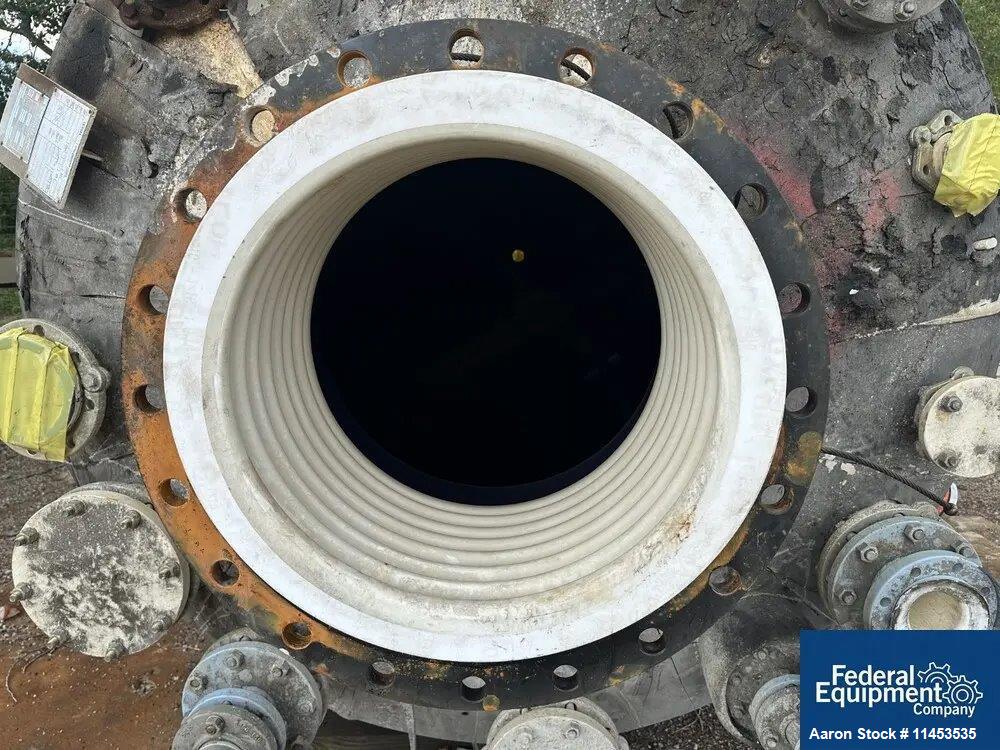

• Top Opening: 24" Center

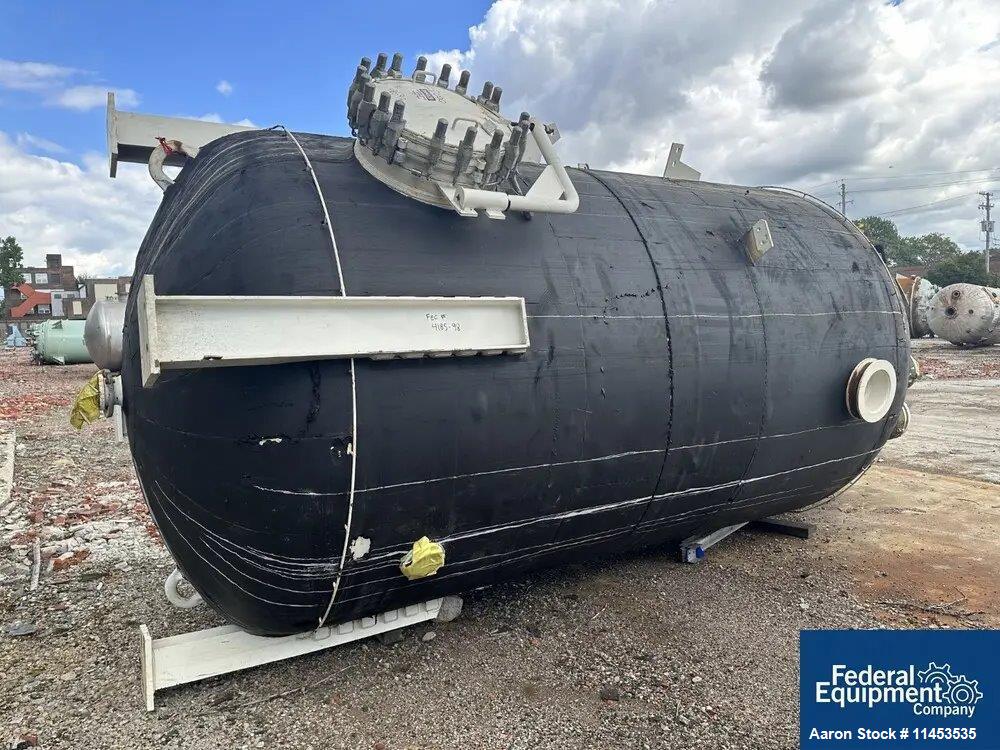

• Manway: 24" Side Bottom

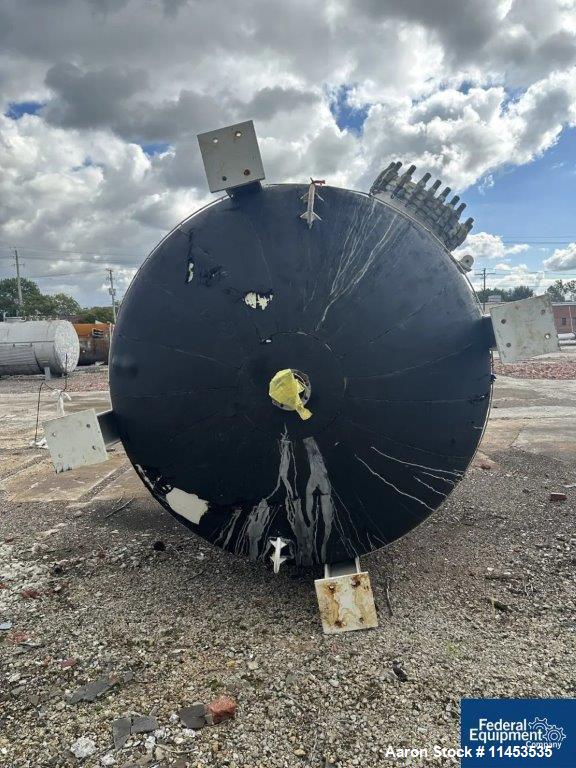

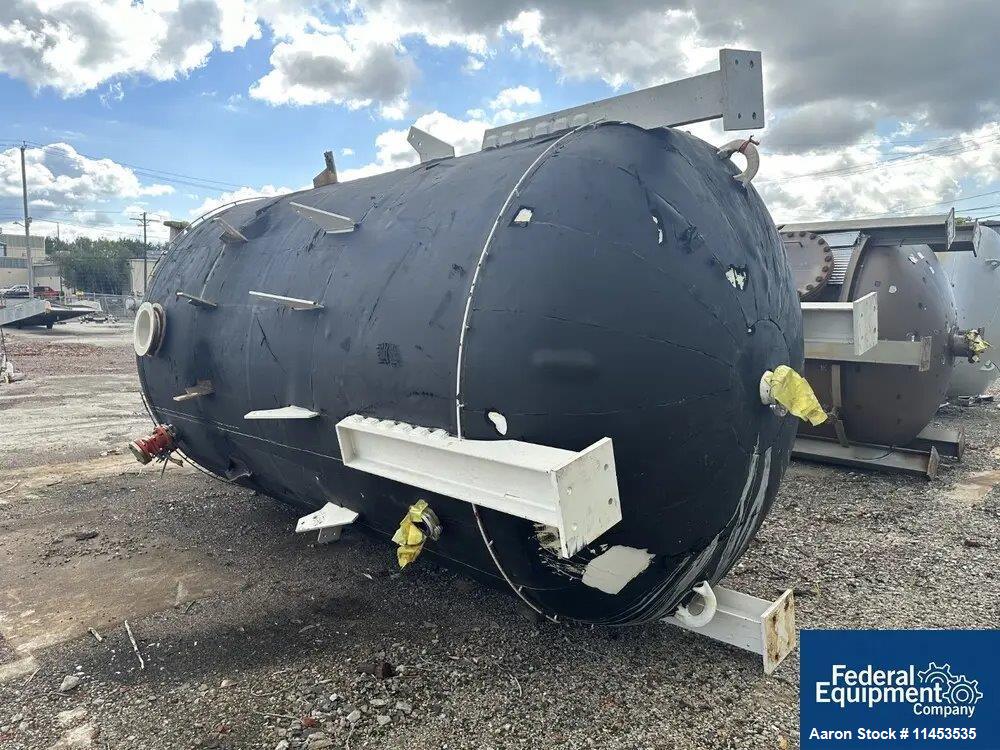

• Support: 4-Legged Design
• Condition: Used / Excellent Condition

Applications

• Chemical storage
• Pharmaceutical ingredient storage
• Corrosive chemical containment
• Acid storage and processing
• High-purity chemical handling
• Industrial mixing and reaction processes
• Solvent recovery
• API (Active Pharmaceutical Ingredient) manufacturing
• Petrochemical processing
• Specialty chemical production

Products This Tank Can Be Used For

• Corrosive acids (e.g., sulfuric acid, hydrochloric acid)
• Solvents and reagents
• Pharmaceutical intermediates
• Bulk chemical storage
• Petrochemical compounds
• Industrial waste liquids
• Specialty chemicals
• Resin and polymer storage
• Liquid fertilizers
• Food-grade processing (when specified)
