Used Rotary Die Cutters

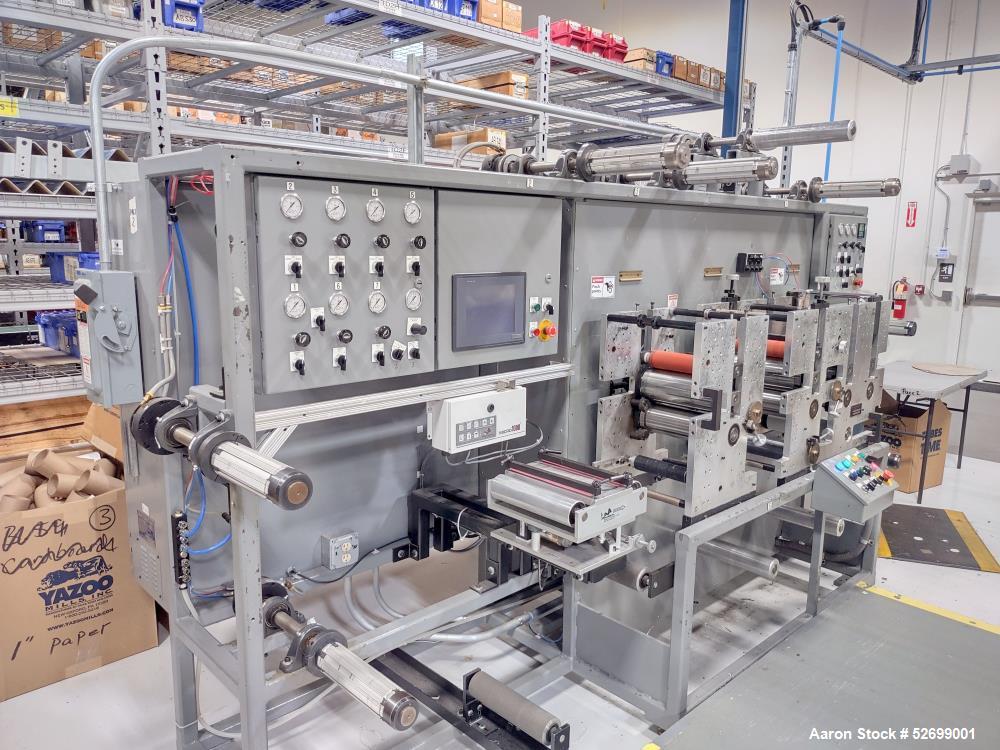

Stock# 52699001

Used-Pace Converting Equipment Converting Die Cutter, Model Pacer. 10" Web Width, 1/8" Gearing, Edge Guide, (4) Die Stations, (2) Product Rewinds, (3) Waste Rewinds, 24" Max Rewind Diameter, 40" Max Unwind Diameter. (2) Main unwinds with pneumatic mandrel and brake: max capacity of 40? OD and 200#, Main module: (4 ) die stations with through-hardened anvil rolls, Easy-to-remove anvils with heavy-duty driven support rolls, Dual, reversible rewinds with pneumatic mandrel and clutch, Electronic & switch controlled, Mandrel capacity: 21? OD, 200# finished roll, Pneumatic draw nip assembly, with roller, gauge, regulator and up / down switch, Four overhead, powered rewind / unwind assemblies with 3? OD air mandrel & combination pneumatic brakes / clutches, Two underneath; (1) powered unwind / rewind and (1) unpowered unwind assemblies with 3? OD air mandrel & combination pneumatic brakes / clutches, 1/8" CP gearing, 60 durometer laminating nip, Run speeds up to 240 FPM, Pre-determining, programmable counter, Heavy duty truck assist assembly, Hold-down hardware for die stations, (3) swing register assemblies, One razor slitting assembly with blade holders, 1" thickness machined aluminum side frames, Welded and painted tubular steel subframe. Power and air requirements: 230 Volt/3 Phase/60Hz/60 Amps, Air required: 2 to 3 CFM at 80 PSI.

Stock# 52699002

Used-Pace Converting Equipment Converting Die Cutter, Model DX / Pacer, Hybrid Machine. For laminating, die cutting, and converting of tapes and adhesives. 24" Web Width, 1/8" Gearing, Edge Guide, (3) Die Stations, (2) Product Rewinds, (2) Waste Rewinds, (1) main unwind, 24" Max Rewind Diameter, 40" Max Unwind Diameter. (1) Main unwinds with pneumatic mandrel and brake: max capacity of 40? OD and 200#, Main module: (3) die stations with through-hardened anvil rolls, Easy-to-remove anvils with heavy-duty driven support rolls, Dual, reversible rewinds with pneumatic mandrel and clutch: Electronic & switch controlled, Mandrel capacity: 21? OD, 200# finished roll, Pneumatic draw nip assembly, with roller, gauge, regulator and up / down switch, (2) overhead, powered rewind / unwind assemblies with 3? OD air mandrel & combination pneumatic brakes / clutches, 1/8" CP gearing, 60 durometer laminating nip, Run speeds up to 400 FPM, Pre-determining, programmable counter, Heavy duty truck assist assembly, Hold-down hardware for die stations, One razor slitting assembly with blade holders, 1" thickness machined aluminum side frames, Welded and painted tubular steel subframe. Power and air requirements; 460 Volt/3 Phase/60Hz/30 Amps, Air required: 2 to 3 CFM at 80 PSI. .
