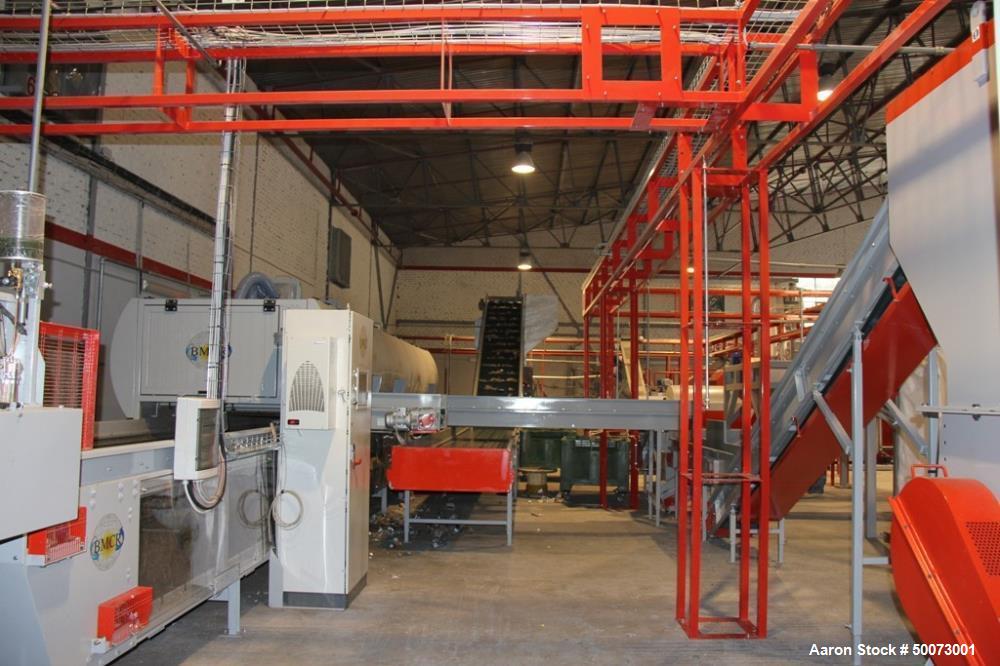

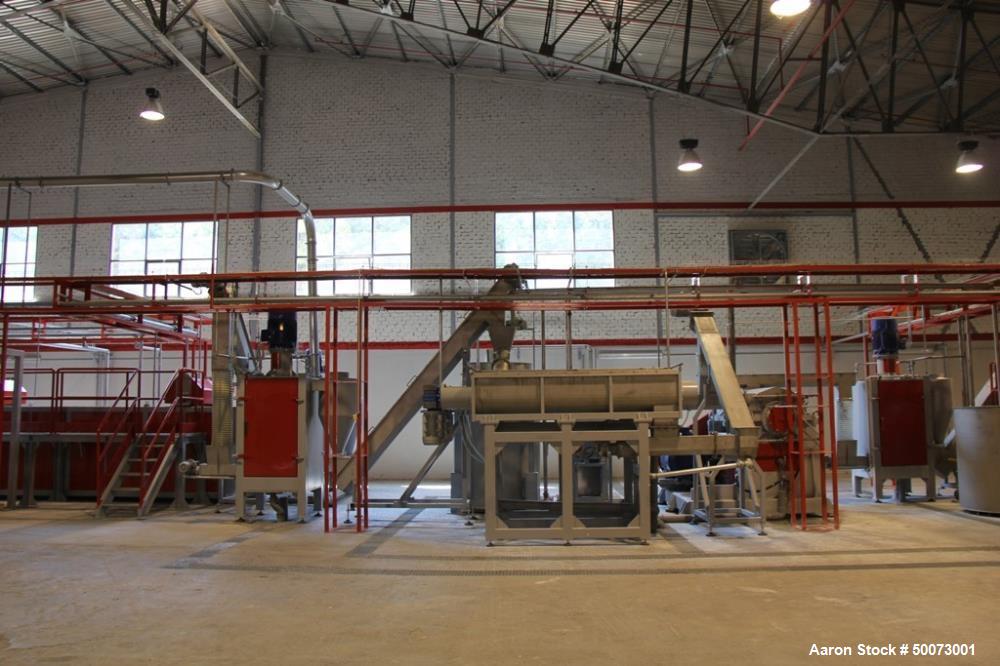

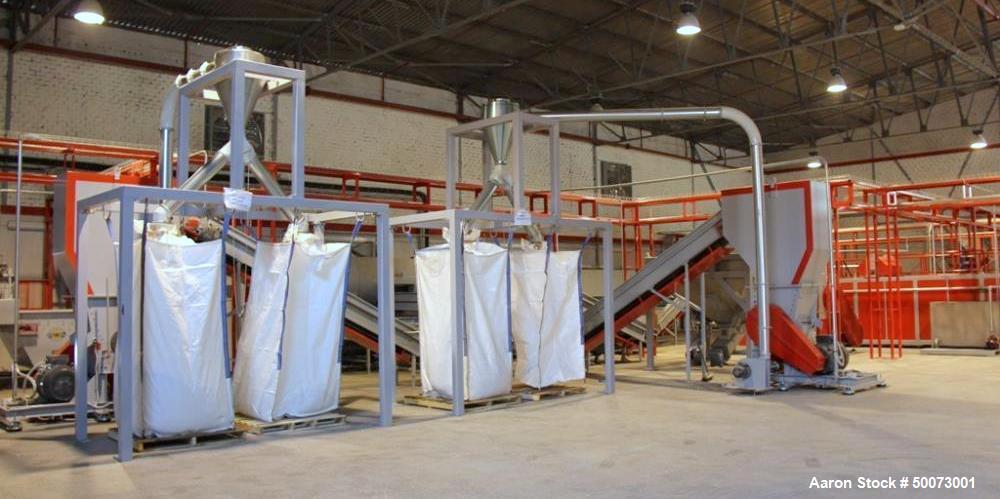

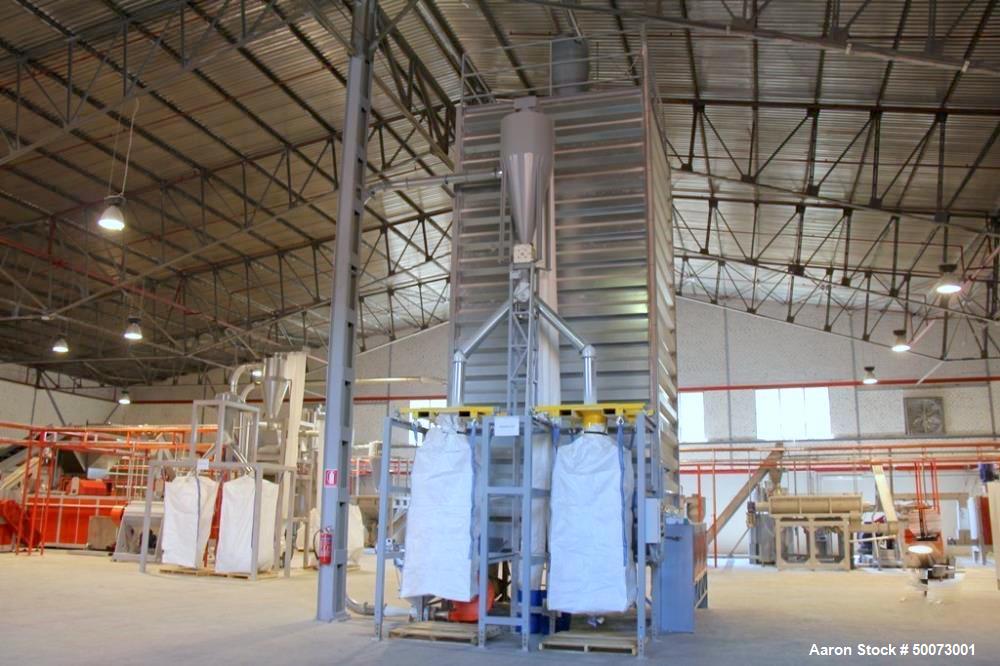

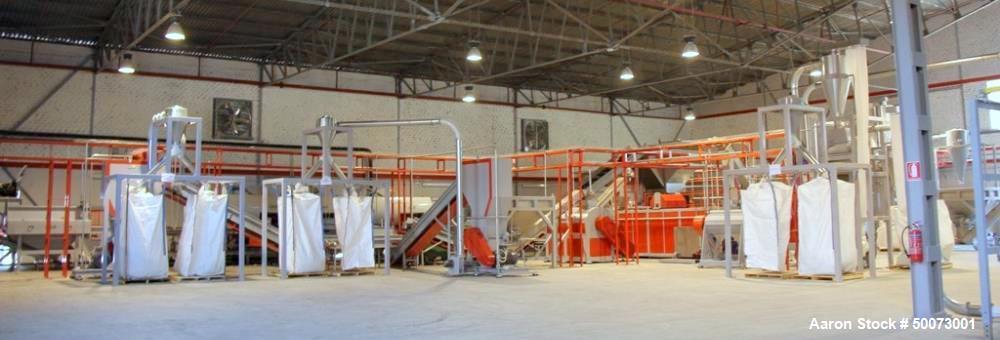

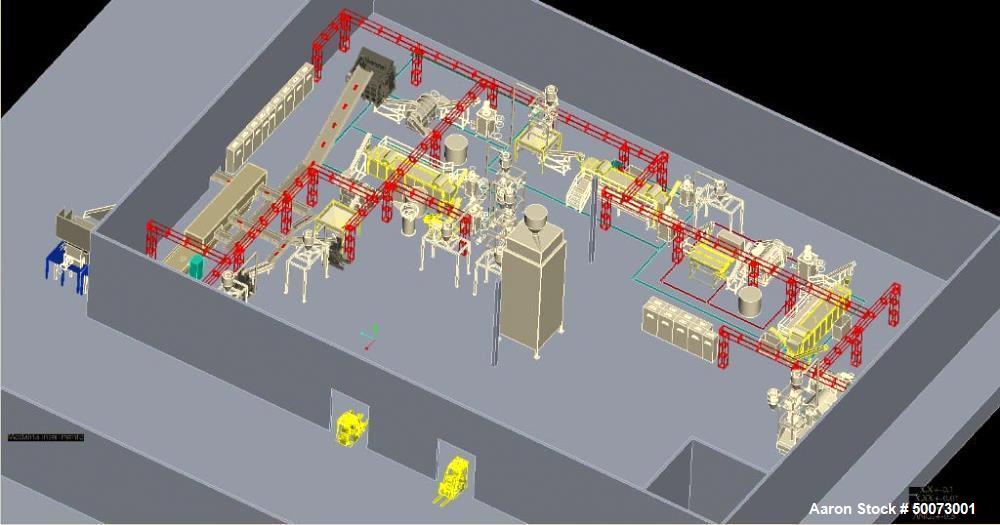

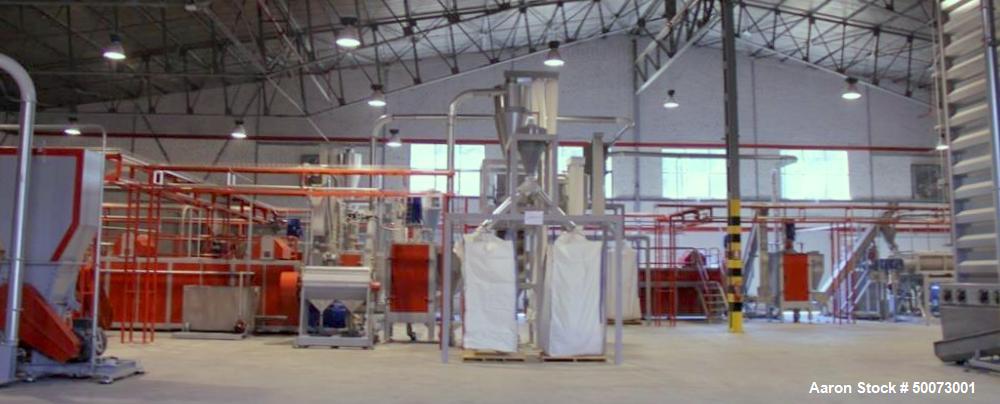

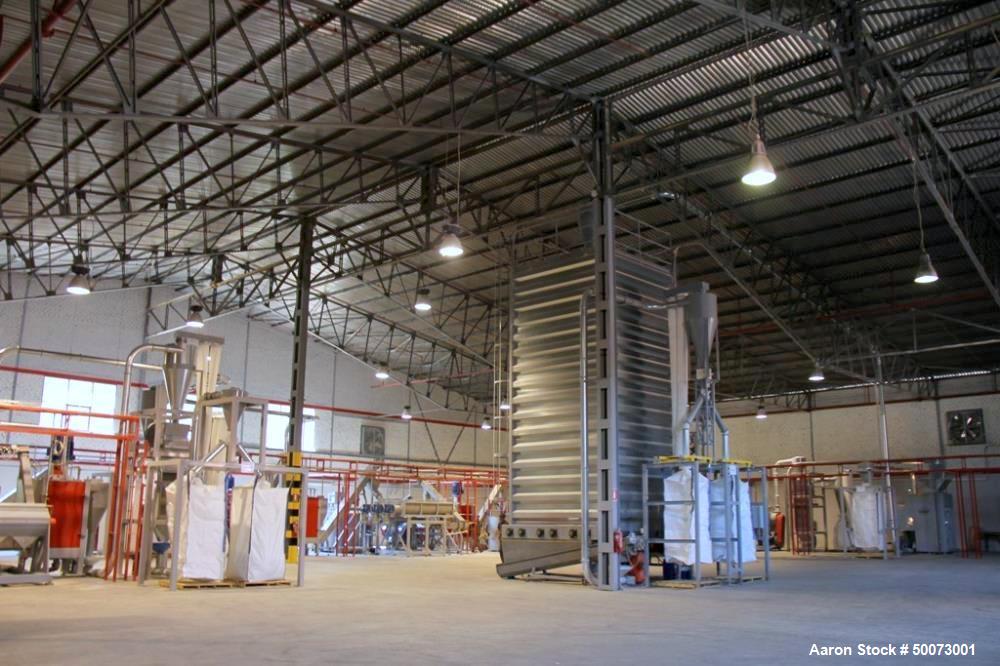

Used- Recy Technologies Wash Plant. Includes Recy Technologies clear PET bottles wash line with a capacity of 2640-3300 lbs (1200-1500 kg) per hour and Recy Technology mix color wash line for PET bottles with a capacity of 1540-2200 lbs (700-1000 kg) per hour. Recy Technologies clear PET bottle wash line consisting of: (1) Recy Technology feeding conveyer includes motor, (1) Recy Technology bale breaker includes hopper with a working length of 39" - 49" (1200-1500 mm). Includes motor and gearbox. On 6 legs. (1) Recy Technology horizontal belt conveyer. (1) Recy Technology disc. Separator for flakes. (1) Recy Technology automatic sorting unit/system, 65" (2000 mm) width x 244" (7500 mm) long main belt. Belt speed 98" (3000 mm) per second by a 7.5 hp motor. Includes 3 sorting belts 600 mm width x 4000 mm long, driven by a 2 hp motor. Minimum sorting size 2.34 (60 mm) / Maximum sorting size 15.6" x 11.7" (400 mm x 300 mm) at a maximum weight of ounce (300 gram). Includes NIR detection reflection spectroscopy system. (4) Recy Technologies conveyer belts for final manual sorting. (1) Recy Technologies horizontal belt conveyer for clear bottle collection. (1) Recy Technologies granulator, type Ø2000, includes rotor knives, bed knives and screens, Driven by a 165 hp / 110 Kw AC motor. Includes feed hopper and feed ram. (2) Recy Technologies mechanical filters, 300-micron, 304 stainless steel. 46.8" (1200 mm) diameter closed loop for water circulation. Includes vibrating screen and re-circulation pumps. (1) Recy Technologies sink-float tank incl. Two open ring impeller pump. (1) Recy Technologies dosing system, (1) Recy Technologies pre-washing machine, working length 65" (2000 mm), Driven by 60 hp / 40 Kw AC. motor, includes continues paddles, 3 mm hole screen, feeder, (1) Recy Technologies water filtering centrifuge, (1) Recy Technologies mixing tank, (1) Recy Technologies 58.5" (1500 mm) vibrating screen, (1) Recy Technologies dirty water collecting tank includes pump. (1) Recy Technologies clean water collecting tank includes levering control. (1) Recy Technologies screw conveyer, (1) Recy Technologies spin dryer, stainless steel, 2 mm diameter screen holes. Includes motor, open ring impeller pump. (1) Recy Technologies air blower, 2500 cu. meter / hour. 4.5 hp / 3 Kw motor. Includes stainless steel cyclone, (1) Recy Technologies label separator, (2) Recy Technologies Buffer dosing screw conveyer, (1) Recy Technologies sink/float tank, stainless steel includes dewatering auger and drive, (1) Recy Technologies sink / float tank includes two open ring impeller pumps, (1) Recy Technologies spin dryer, stainless steel, 2 mm diameter screen holes. Includes motor, open ring impeller pump. (1) Recy Technologies pneumatic air blower, 2500 cu. meter / hour. 4.5 hp / 3 Kw motor. Includes stainless steel cyclone, (1) Recy Technologies double big bag filling station for caps, incl. feeding system and piping, 1) Recy Technologies spin dryer, stainless steel, 2 mm diameter screen holes. Includes motor, open ring impeller pump, (1) Recy Technologies screw conveyer, (1) Recy Technologies continuous mixer for hot caustic pre-washing of flakes includes screw conveyer for discharge, (1) Recy Technologies hat washing machine includes feeding hopper, extraction auger, (1) Recy Technologies spin dryer, stainless steel, 2 mm diameter screen holes. Includes motor, open ring impeller pump, (1) Recy Technologies glue filtration system, (1) Recy Technologies water collecting tank, stainless steel, (1) Recy Technologies level control tank includes pump, (1) Recy Technologies caustic control tank includes stainless steel piping, (1) Recy Technologies sifter, type Ø1200, stainless steel, 300-micron, 46.8" (1200 mm) diameter includes re-circulation pump, (1) Recy Technologies screw conveyer, (1) Recy Technologies sink float tank 39" (1000 mm) diameter x 234" (6000 mm) straight side, includes auger, (1) Recy Technologies service tank, (1) Recy Technologies rinsing machine, (1) Recy Technologies horizontal mechanical centrifugal dryer includes drive. Frame mounted, (1) Recy Technologies fines separator, Recy Technologies optical separator, (1) Recy Technologies pneumatic conveying system, 2500 cubic meter / hour. 16.5 hp / 11 Kw motor. Includes stainless steel cyclone, (1) Recy Technologies service tank includes pump, (1) Recy Technologies silo for flakes, 9260 gallons (35m2/35000 liter). Incl. double conveying system. Complete with ladder and platform, (3) Recy Technologies control panels. New 2018. Recy Technology mix color wash line consisting of: (1) Recy Technologies conveyer, (1) Recy Technologies belt conveyer, (2) Recy Technologies inclined belt conveyers (for granulator feeding), (2) Recy Technologies granulators, type Ø450, 17.6" (450 mm) diameter x 23.4" (600 mm) Straight side rotor. Includes rotor knives, bed knives and screens with 12 mm diameter holes. Includes 55.5 hp / 37 Kw AC motor. Includes feed hopper and hydraulic feed ram, (2) Recy Technologies pneumatic air blowers, 2500 cubic meter/hour. 4.5 hp / 3 Kw motor. Includes stainless steel cyclone, (2) Recy Technologies double big bag filling system, (1) Recy Technologies buffer and dosing tank, (1) Recy Technologies screw conveyer (manual feeding), (1) Recy Technologies pre-washing machine includes pump, (1) Recy Technologies screw conveyer, (1) Recy Technologies sink and float tank includes extraction screws and pumps, (2) Recy Technologies service tanks includes pumps, (1) Recy Technologies vertical centrifuge includes feed hopper and pump, (1) Recy Technologies label separator, includes star value and blower, (2) Recy Technologies pneumatic conveying systems includes blowers and cyclones, (1) Recy Technologies service tank includes pump, (1) Recy Technologies hot water washing machine includes pump, feed hopper and extraction screw conveyer, (1) Recy Technologies vertical centrifuge includes feed hopper and pumps, (1) Recy Technologies pneumatic conveying system includes blower and cyclone, (1) Recy Technologies label separator includes star valve and blower, (1) Recy Technologies pneumatic conveying system includes blower and cyclone, (2) Recy Technologies big bag filling stations. New 2018.
