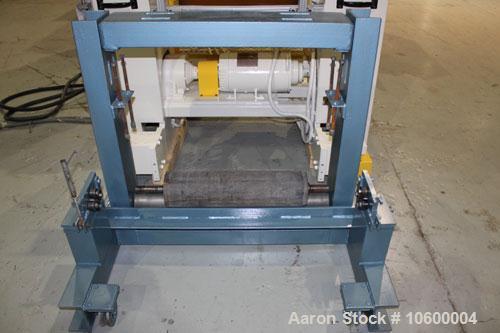

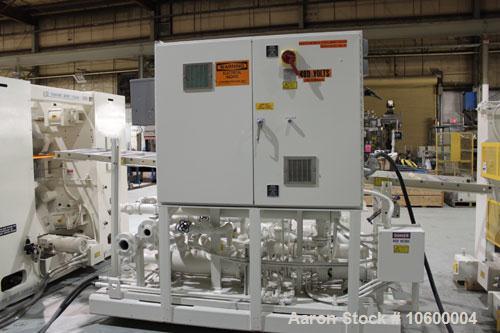

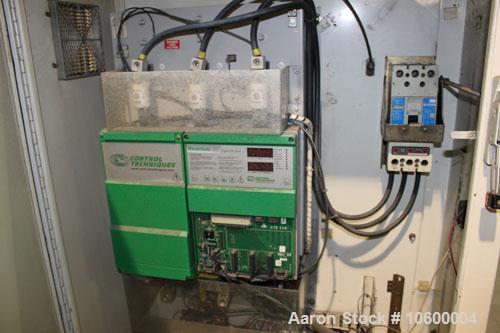

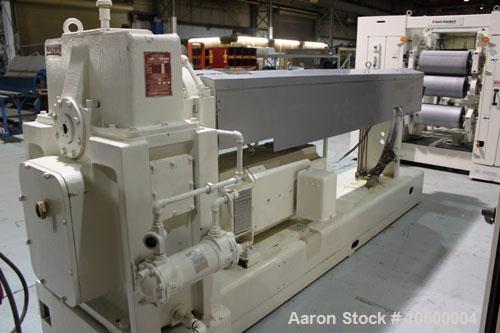

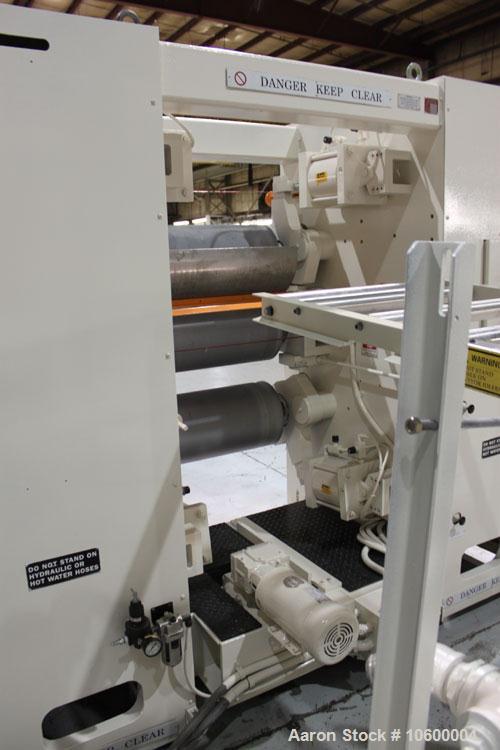

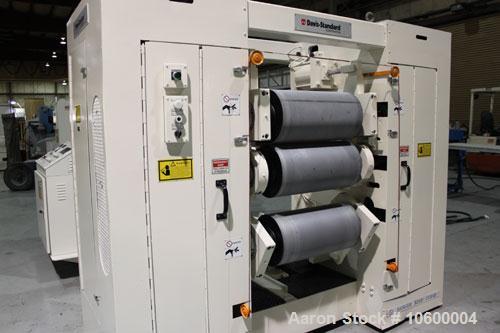

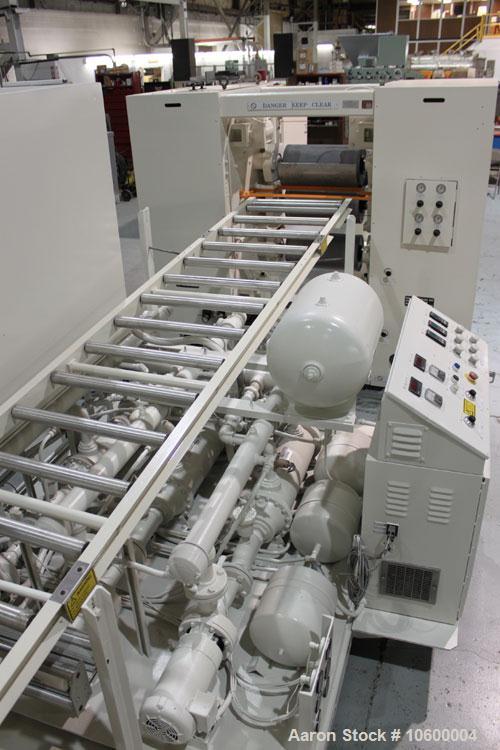

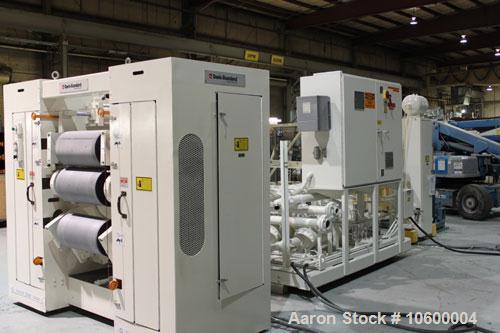

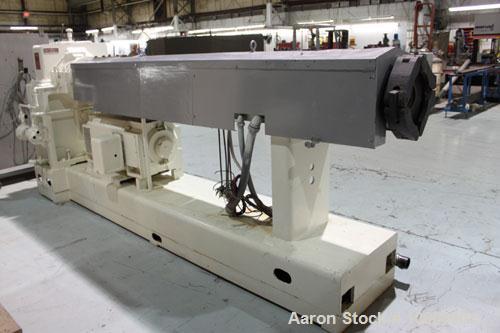

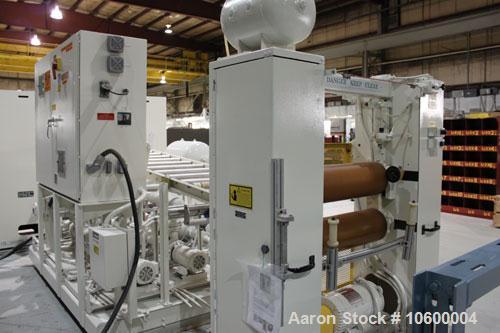

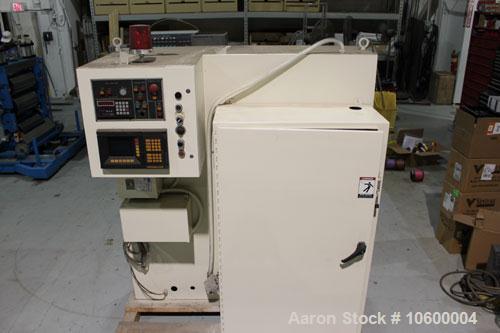

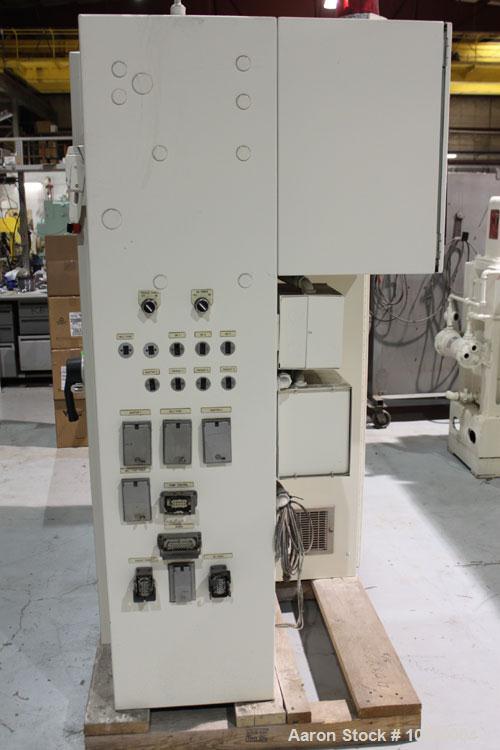

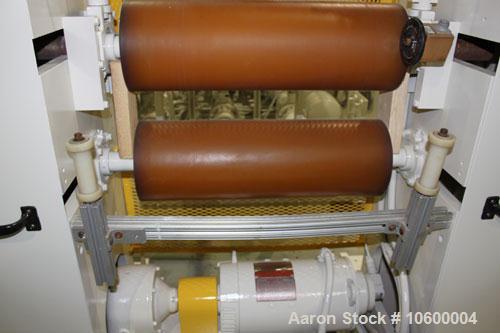

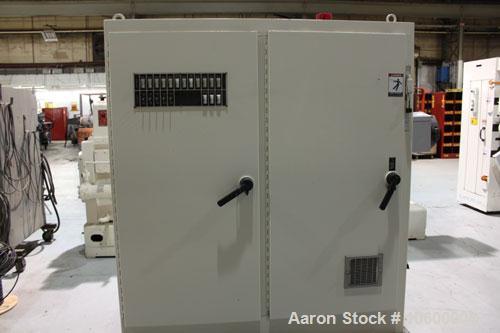

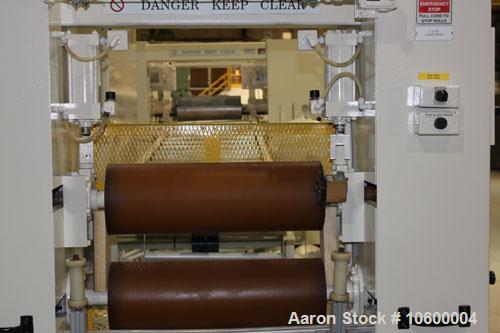

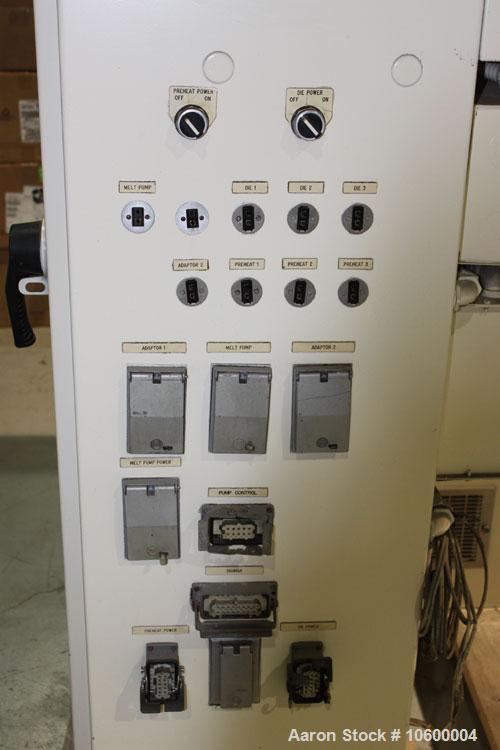

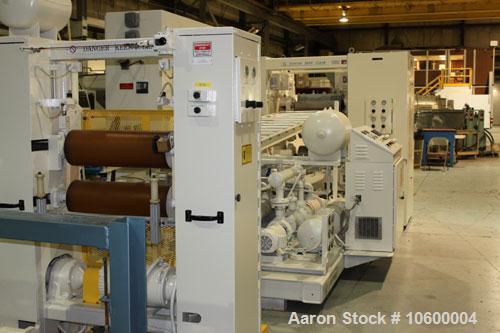

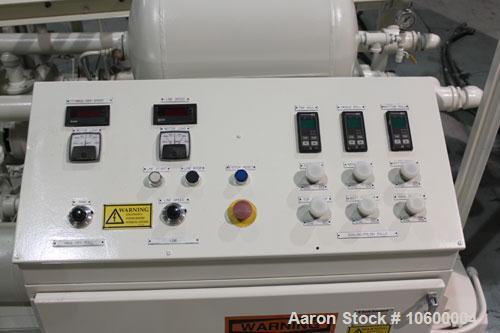

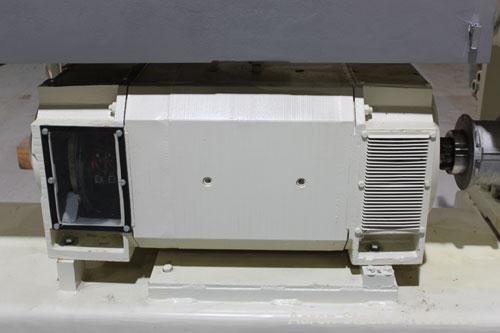

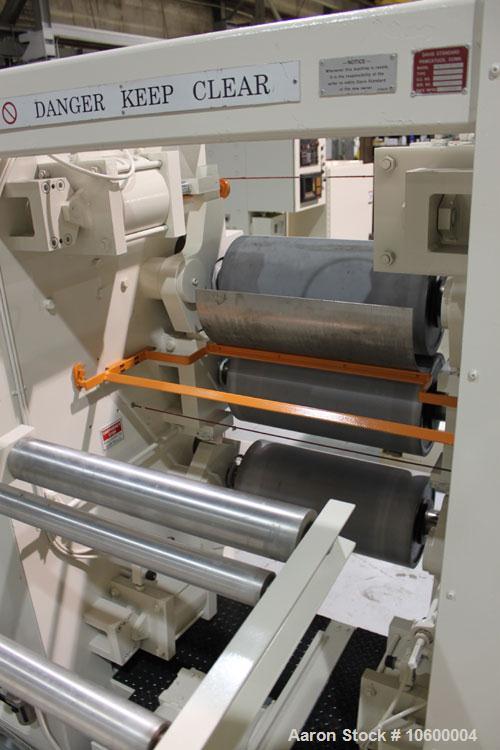

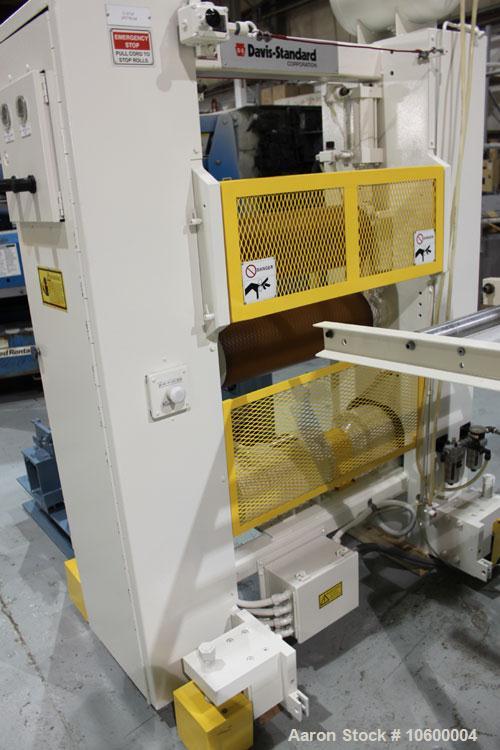

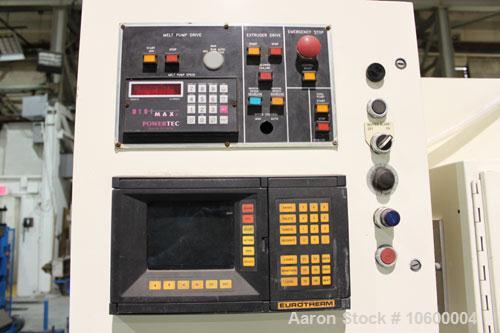

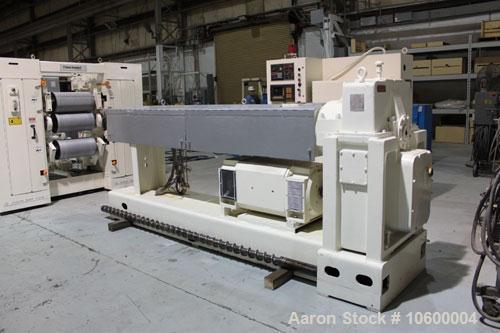

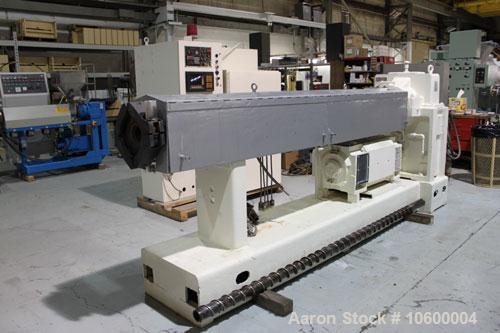

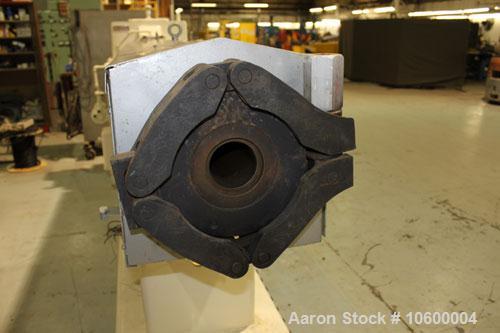

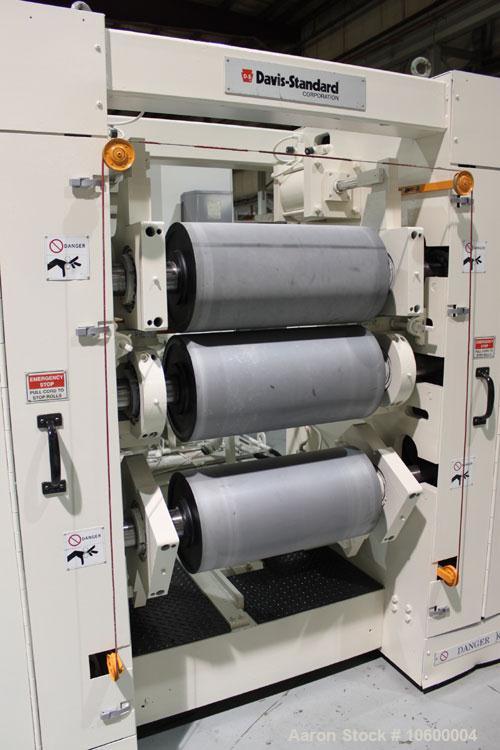

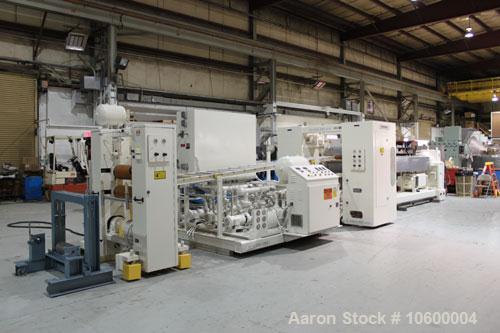

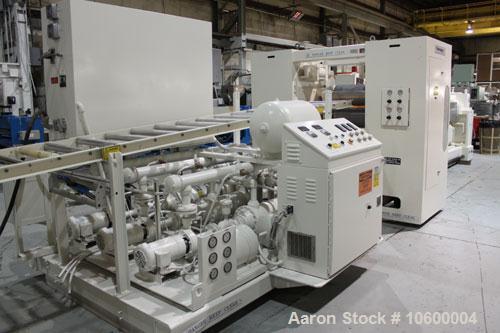

Used Plastic Sheet Extrusion Line consisting of: Used Welex 3-1/2" single screw extruder, model 35VA. Approximate 30:1 L/D ratio, 5 zone non-vented barrel, electrically heated, water cooled with closed loop system with pump, tank and heat exchanger (missing). Approximate 48" centerline height. Driven by an approximate 15hp hp DC motor thru a gearbox, ratio 17.59:1. (1) Die clamp with adapter. (2) Control panels with a Eurotherm temperature panel and a Quantum III drive. Used Davis Standard 3 roll stack. (3) 12" diameter x 24" wide chrome matte cored rolls, driven by a 3 hp, 500 volt, 1750/2300 DC motor thru a reducer. Includes approximate 24" wide x 150" long cooling conveyor section with (3) pumps and (3) heat exchangers, (1) control panel, and (1) operator panel with HES 808 temperature controllers. (1) Davis Standard pull roll stand with 8" diameter x 24" wide pneumatically adjustable rolls, driven by a 3 hp, 500 volt, 1750/2300 rpm DC motor with reducer, and (1) haul-off stand.
Used Plastic Sheet Extrusion Line consisting of: Used Welex 3-1/2" single screw extruder, model 35VA. Approximate 30:1 L/D ratio, 5 zone non-vented barrel, electrically heated, water cooled with closed loop system with pump, tank and heat exchanger (missing). Approximate 48" centerline height. Driven by an approximate 15hp hp DC motor thru a gearbox, ratio 17.59:1. (1) Die clamp with adapter. (2) Control panels with a Eurotherm temperature panel and a Quantum III drive. Used Davis Standard 3 roll stack. (3) 12" diameter x 24" wide chrome matte cored rolls, driven by a 3 hp, 500 volt, 1750/2300 DC motor thru a reducer. Includes approximate 24" wide x 150" long cooling conveyor section with (3) pumps and (3) heat exchangers, (1) control panel, and (1) operator panel with HES 808 temperature controllers. (1) Davis Standard pull roll stand with 8" diameter x 24" wide pneumatically adjustable rolls, driven by a 3 hp, 500 volt, 1750/2300 rpm DC motor with reducer, and (1) haul-off stand.
