Used OMV Sheet Extrusion Line, Model M08

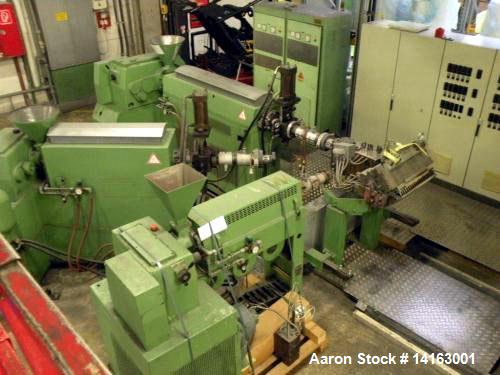

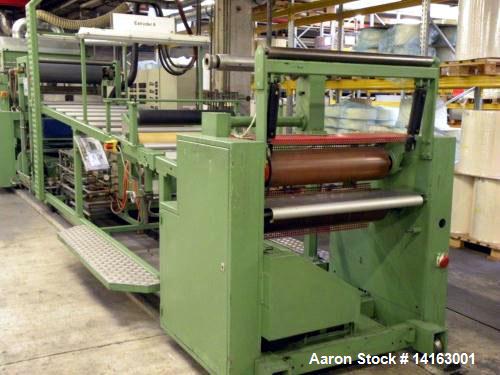

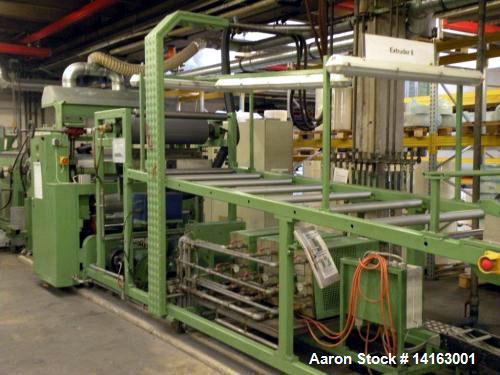

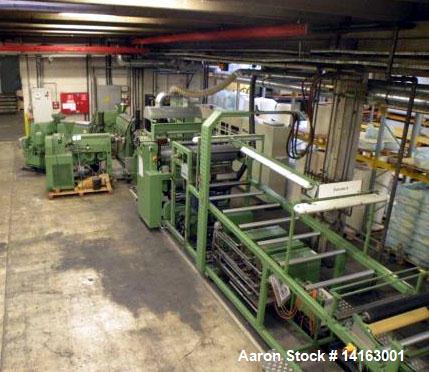

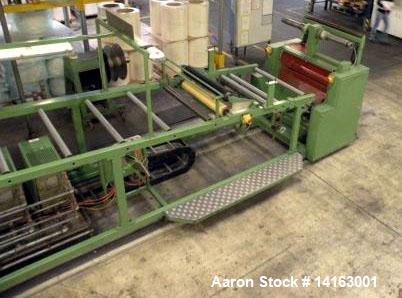

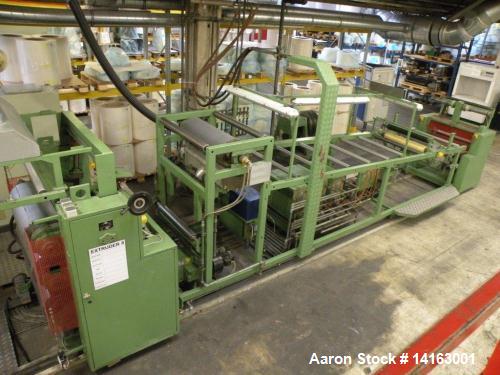

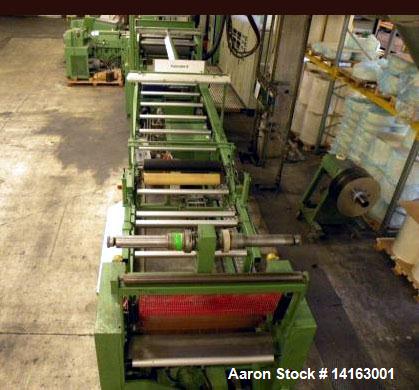

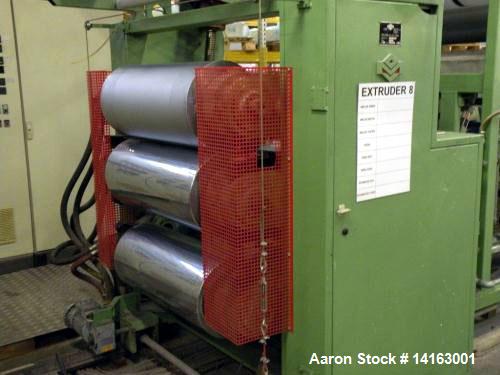

Used- OMV Sheet Extrusion Line, Model M08. Consisting of: (1) Single Screw Extruder, 2.36" (60 mm) diameter, 32 L/D. Max. 180 rpm. 65 HP (48.5 kW), 50 Hz drive. (2) Co-extruders. 1.77" (45 mm) diameter, 25 L/D. Max 180 rpm. 2 x 15 HP (11.1 kW) drive. Water-cooled cylinders on all extruders. Hydraulic screen changer. (1) sheet extrusion die. Width 23.6" (600 mm). Lip width range 0 - 0.0393" (0 - 0.1 mm). Co-extrusion version. (1) calendar equipped with (3) rolls. Roll diameter 13.8" (350 mm). Surface hard chrome-plated. Temperature range 59 - 194 F (15 - 90C). (1) roll conveyor. Length 16.4' (5,000 mm). (1) Haul-off unit. (1) Winder. Max foil width 31.5" (800 mm), max winding diameter 27.6" (700 mm), max line speed 0 - 39.4' / min (0 - 12 m/min).
