Stock #
10665016

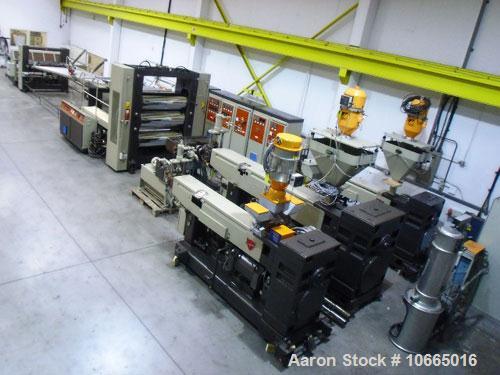

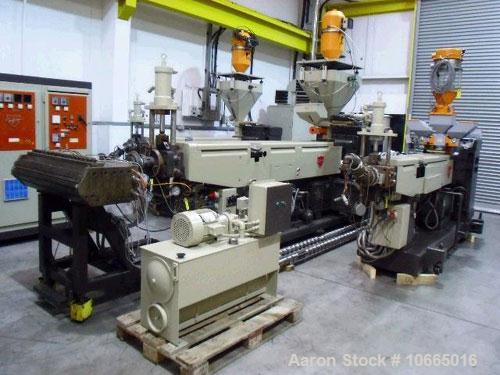

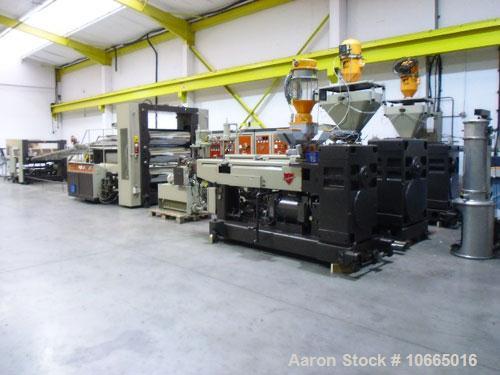

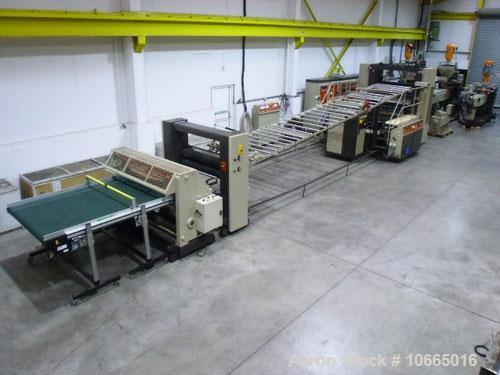

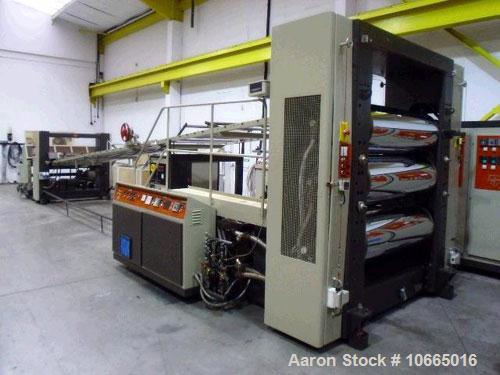

Used 49.2" (1250 mm) Kaufman Coextrusion Sheet Line. (1) 3.54" (90 mm) Kaufmann model 90-33d extruder, vented, vacuum pump, 150 hp DC motor, bolt throttle device; 3.54" (90 mm) lantern slide screen pack changer with hopper and loader, thyristor drive, high quality temperature control panel; (2) spare screws PS/ABS, PP/HDPE type. (2) 2.55" (65 mm) Kaufmann model 65-33d coextruders, vented, vacuum pump, bolt throttle device. 2.55" (65 mm) lantern slide screen pack changer, hopper loaders (one with Motan model ME00V-G2, 3 component feeder for masterbatch and additive), Asea thyristor drive and high quality temperature control panel. (1) Central hydraulic power pack with nitrogen filled accumulator. (1) Kaufmann coextrusion adaptor ABA. (1) 41.34" (1050 mm) Kaufmann FBE sheet die, coker bar, flexilip, removable bottom lip with shimmable gap, die lip range approximately 0.012" - 0.16" (0.3-4 mm) with 0.079" (2 mm) shim. (1) 49" x 17.7" x 17.7" x 17.7" (1250 x 450 x 450 x 450 mm) Kaufmann extra heavy duty 3 roll polishing stack, hydraulically operated nips with power pack and accumulator, large diameter heavy duty roll bearings in robust double support frame, hardened face heavy duty nip gap roll adjusters with digital readout of input nip gap via linear transducers, 4 hp/3 kW DC motor, mirror chrome plated and polished rolls, heavy duty rotary joints, 3 off spare embossing rolls - light leather, 0.079" (2 mm) antislip, etc. (3) Zone pump group each with pump, heat exchanger and heater. (1) 16' (5 m) cooling conveyor with heated 4 head knife station for edge trim and center cut. (1) 49" (1250 mm) Kaufman hauloff with rubber covered nip rolls, pneumatic rams, 4 hp/3 kW DC motor. (1) 53" (1350 mm) Kaufman guillotine with Martiplast discharge conveyor.
