Used- 54" Wide Sheet Line

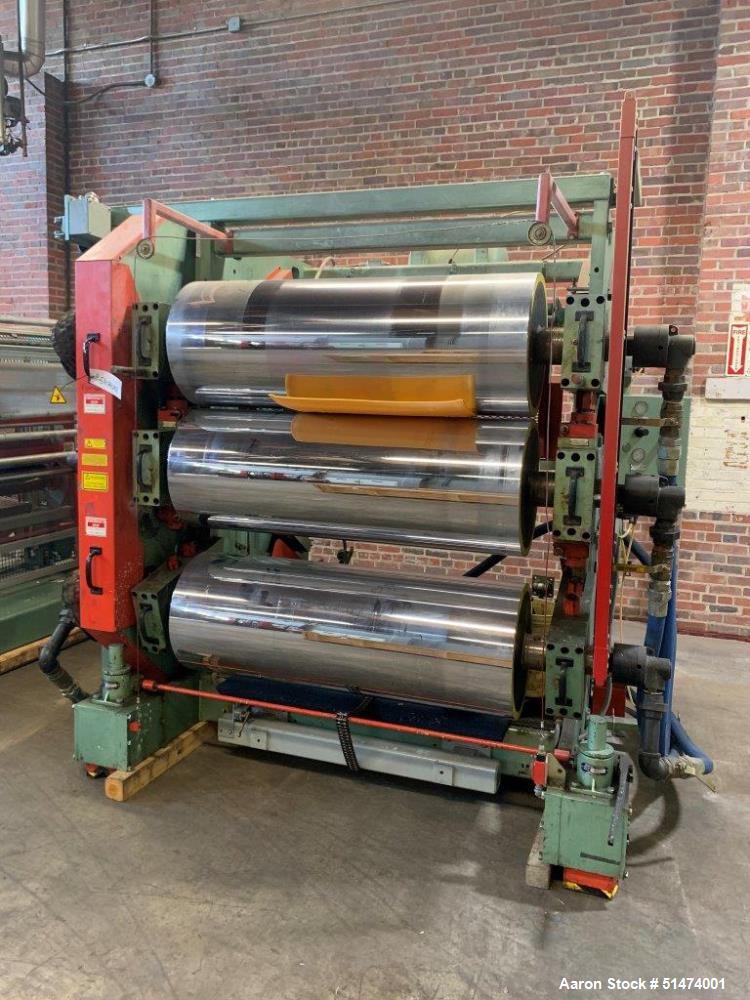

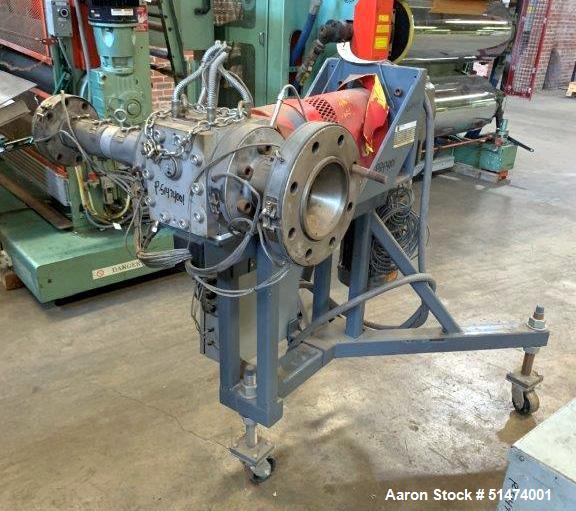

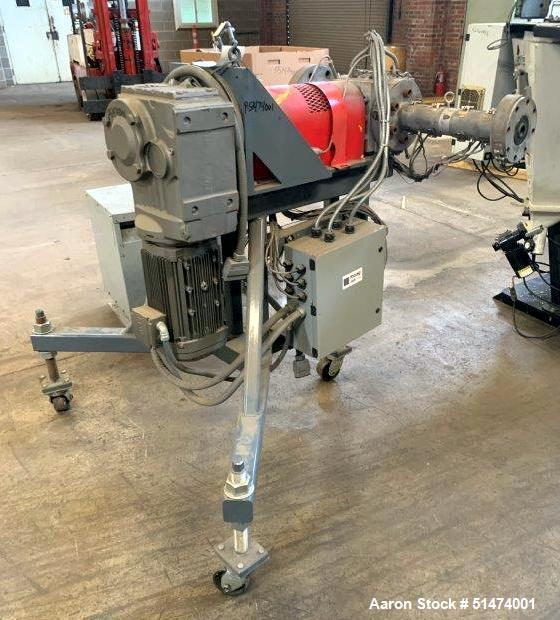

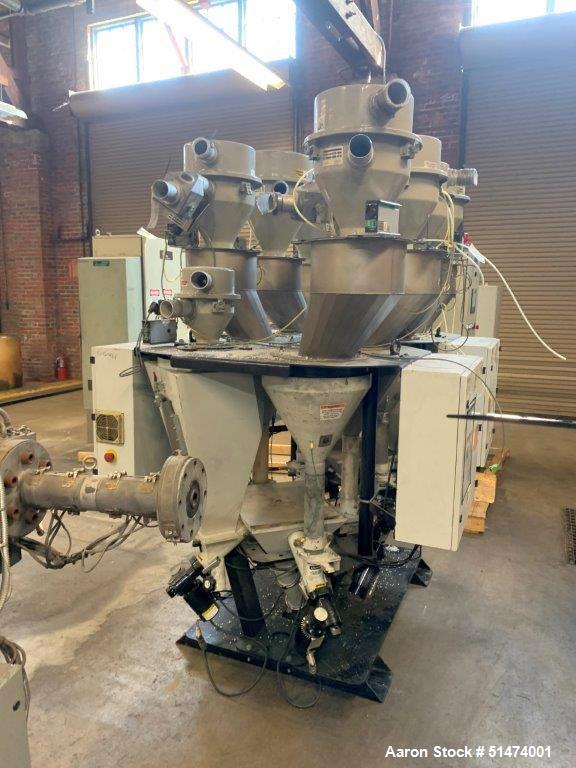

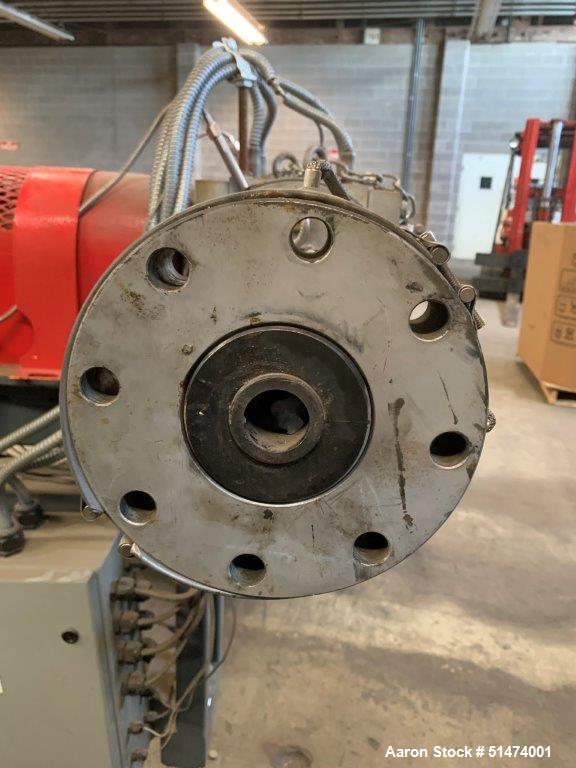

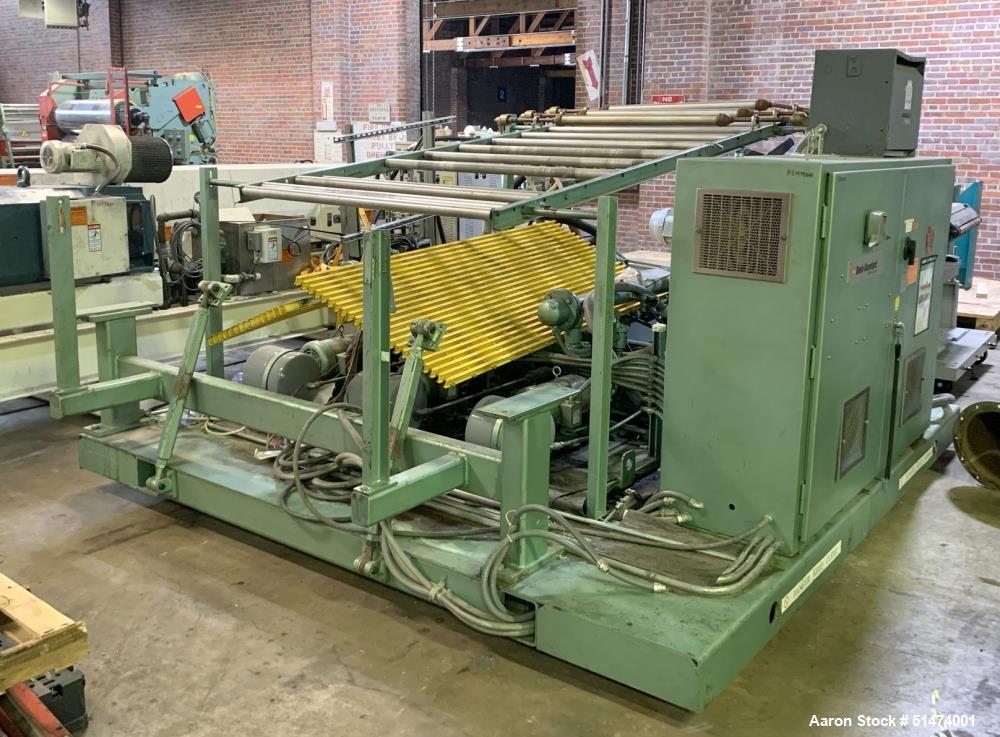

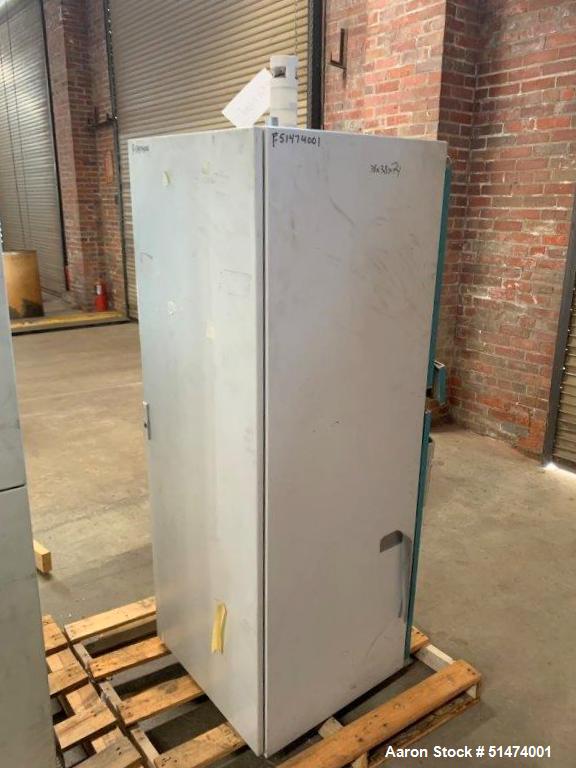

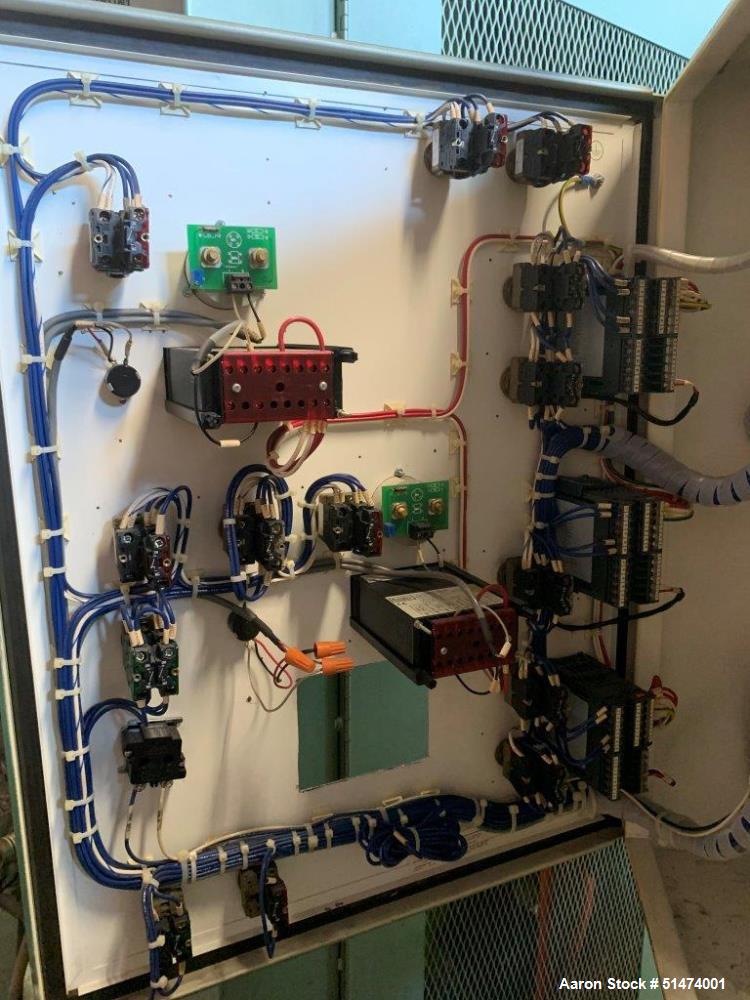

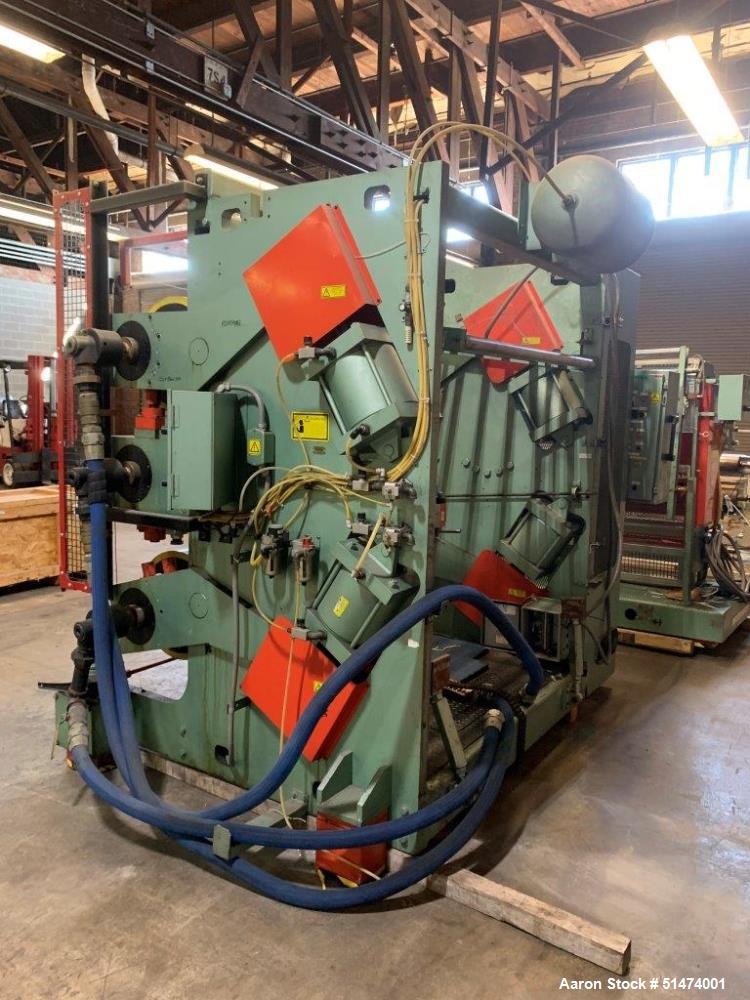

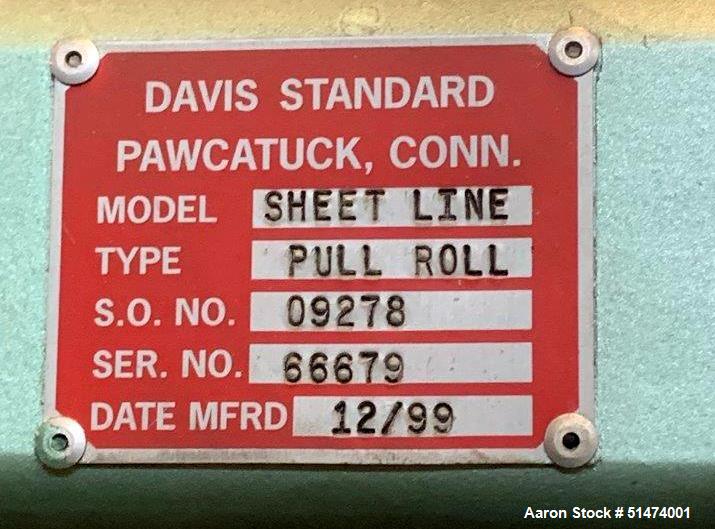

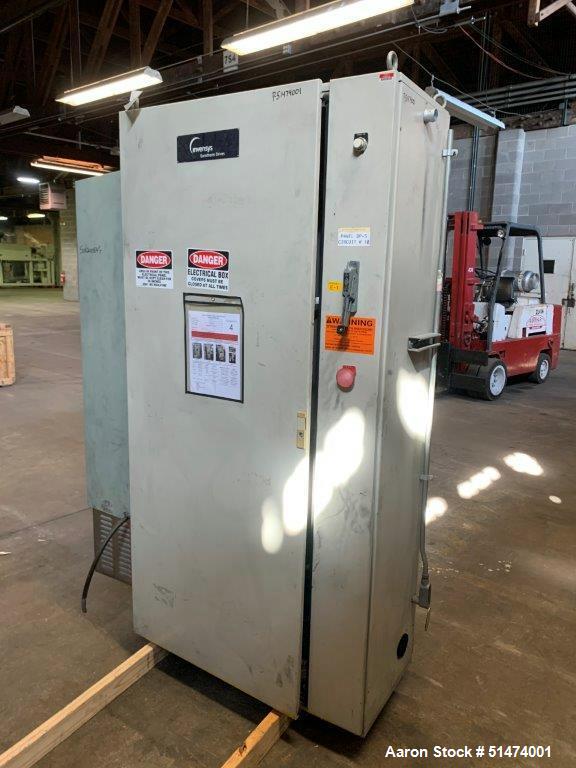

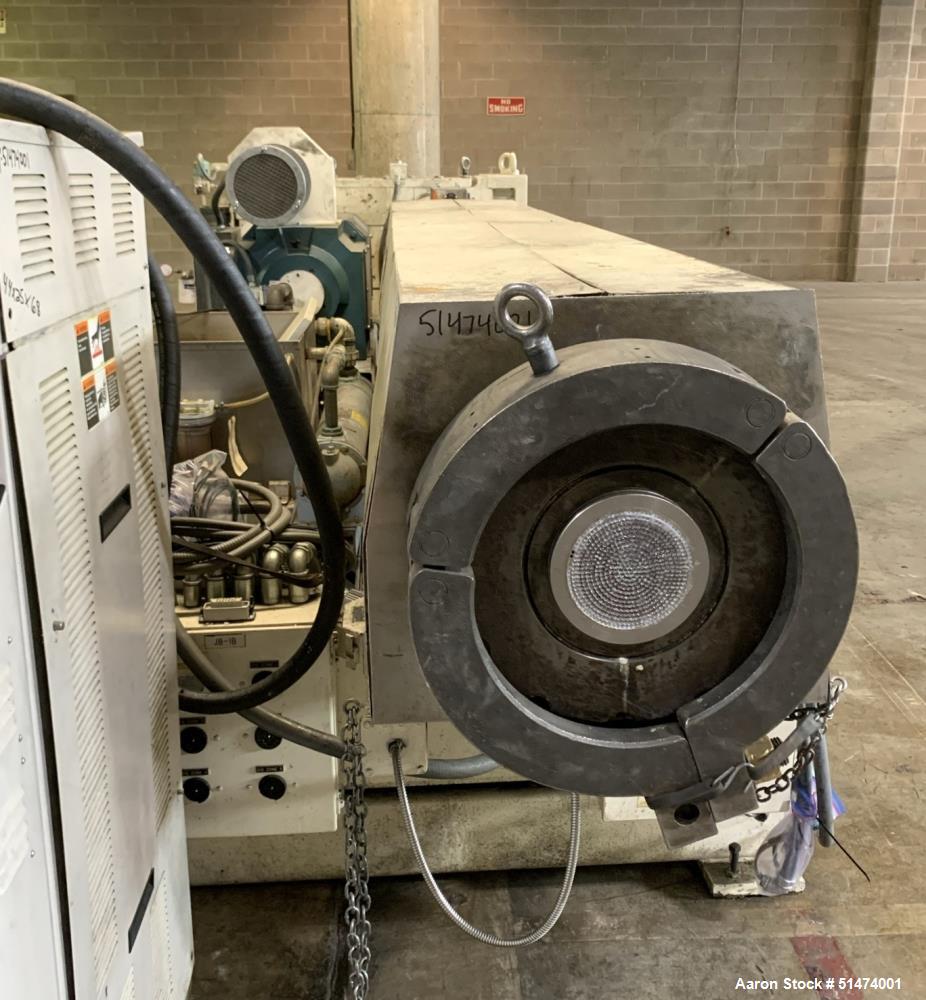

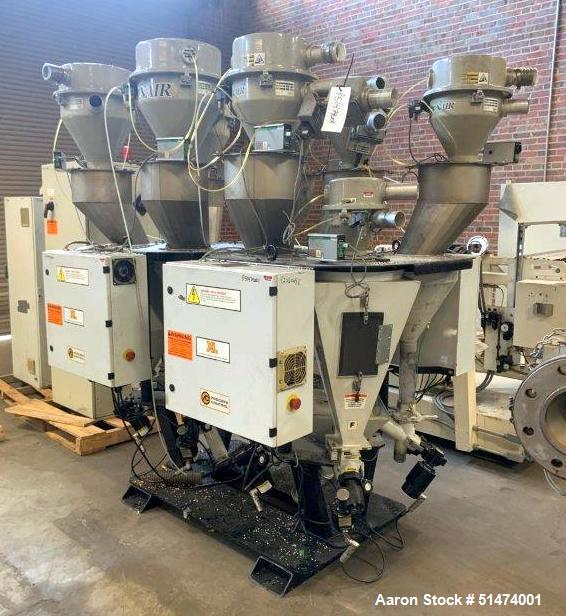

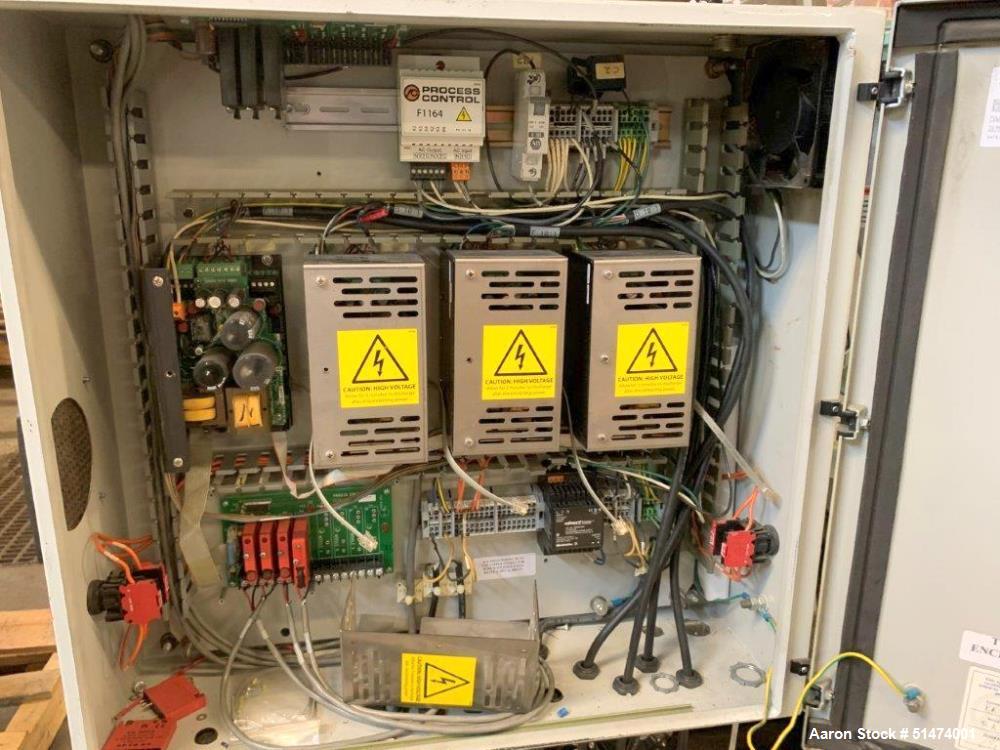

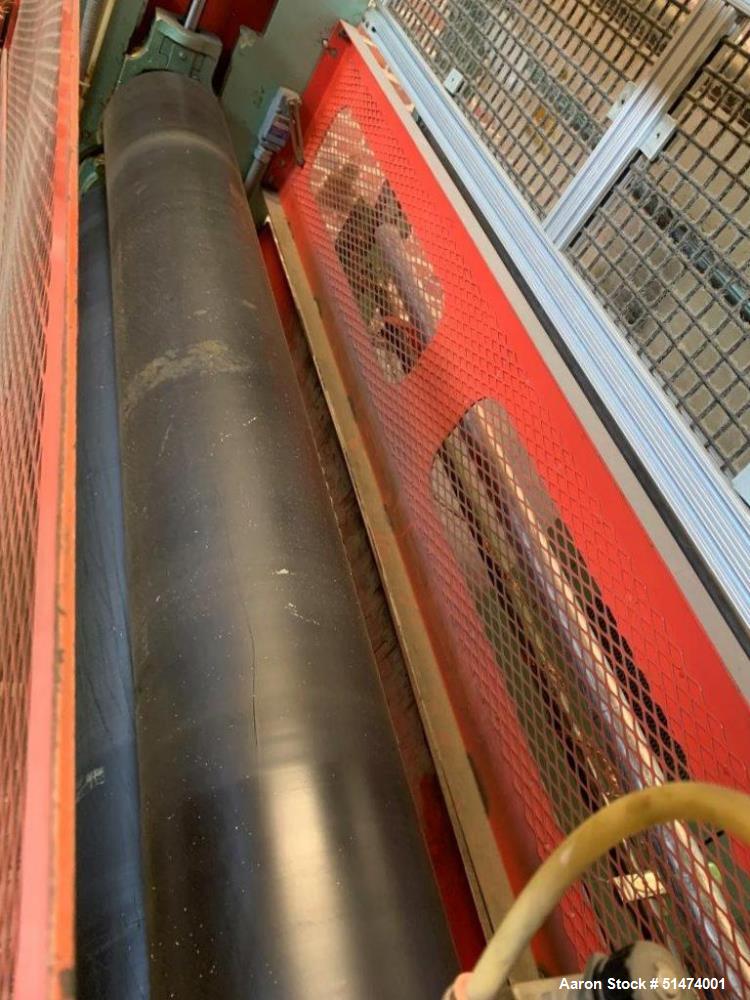

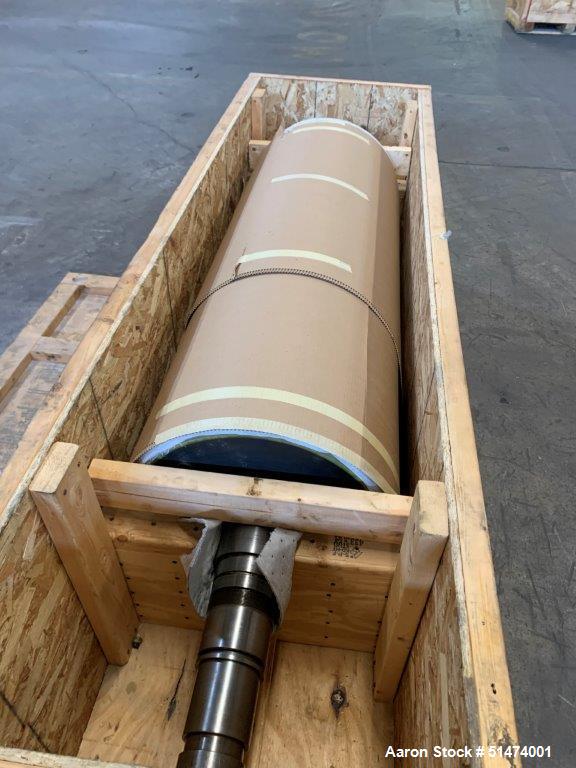

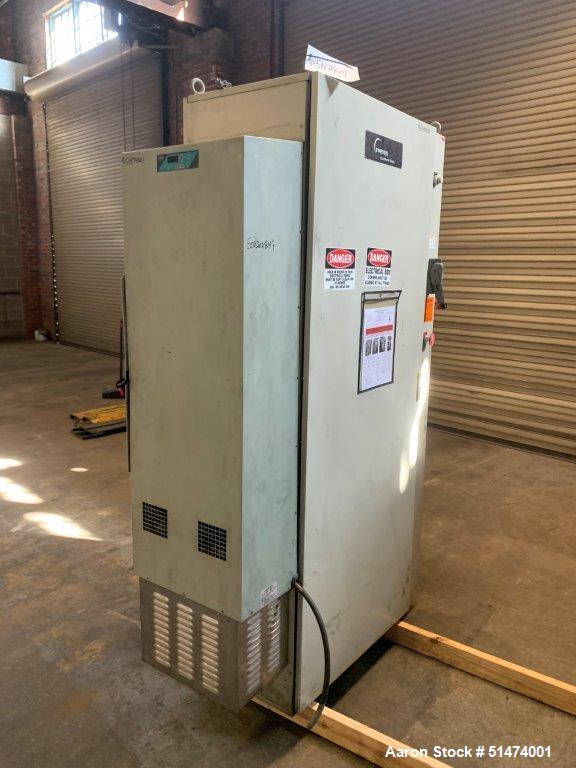

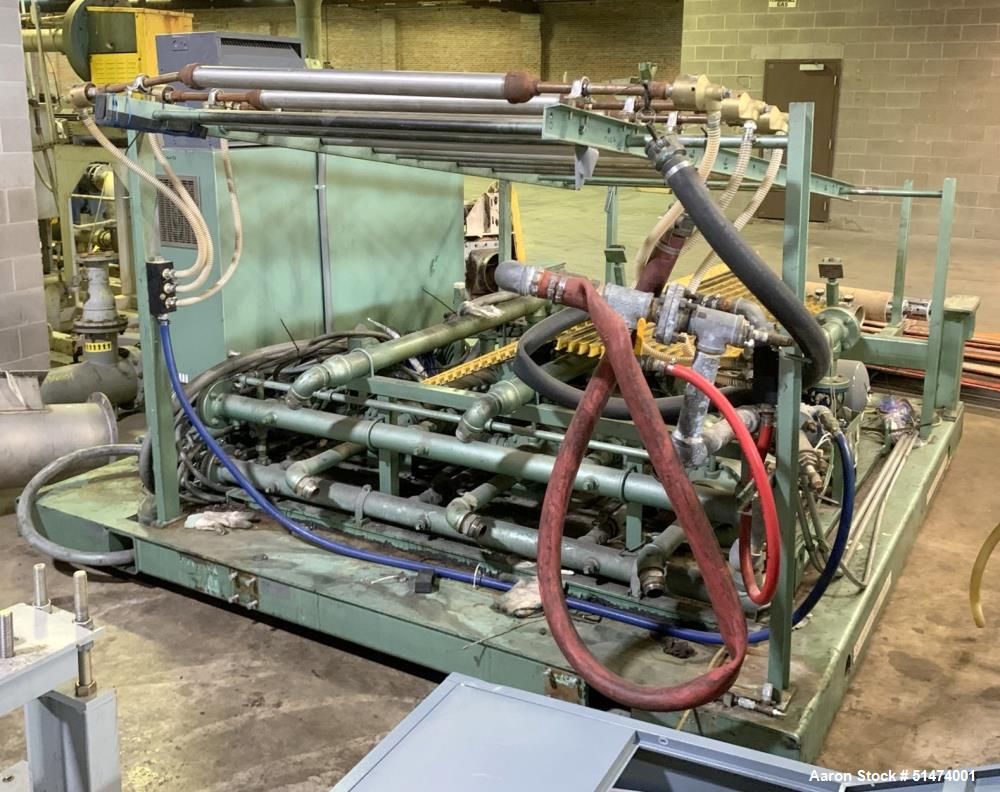

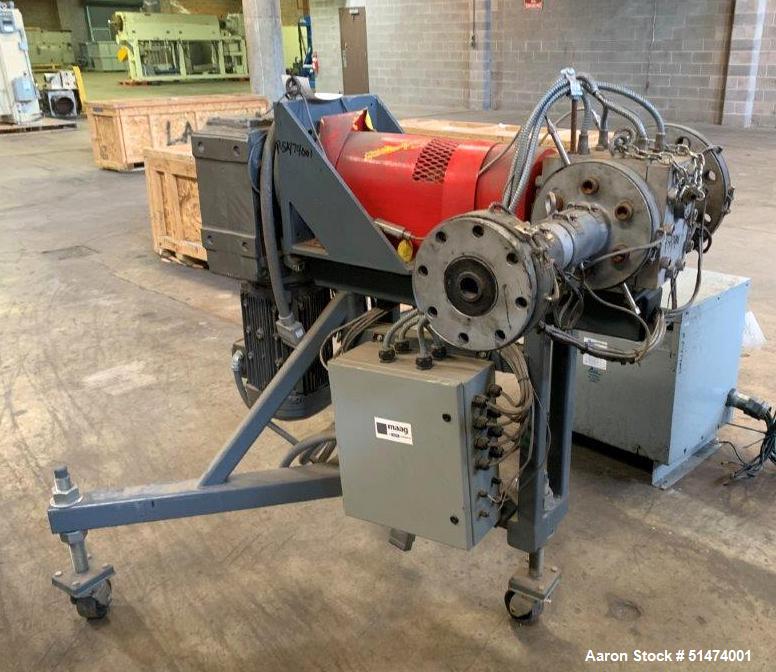

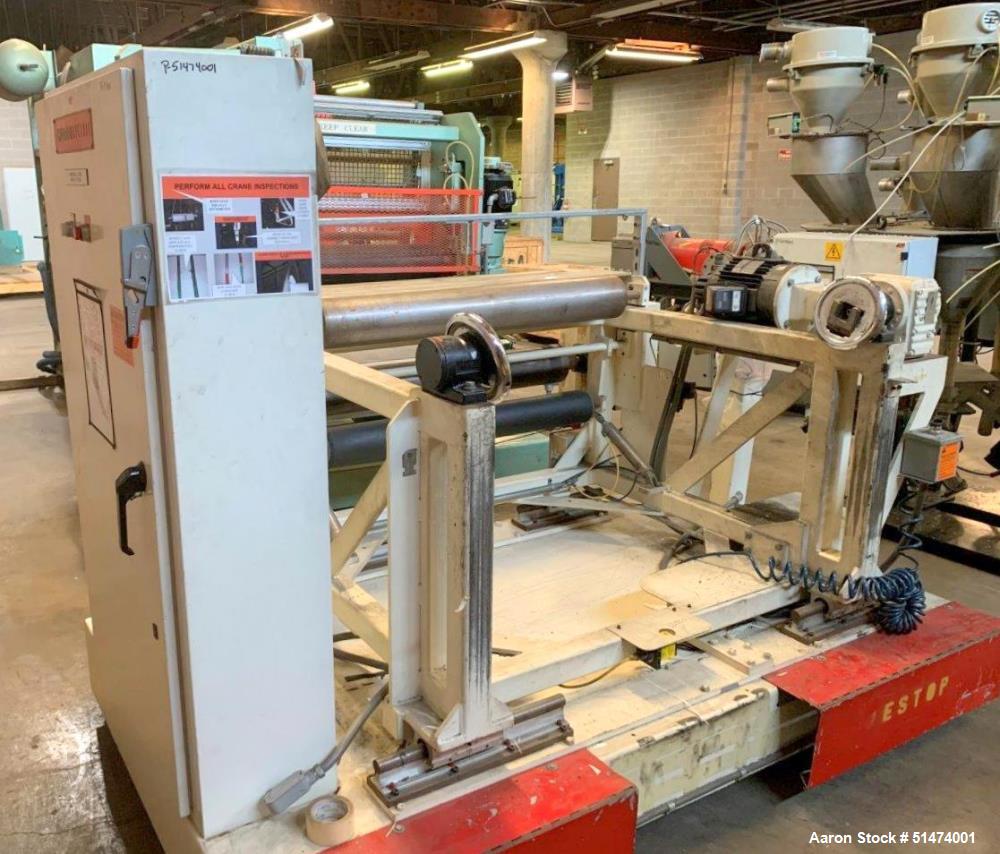

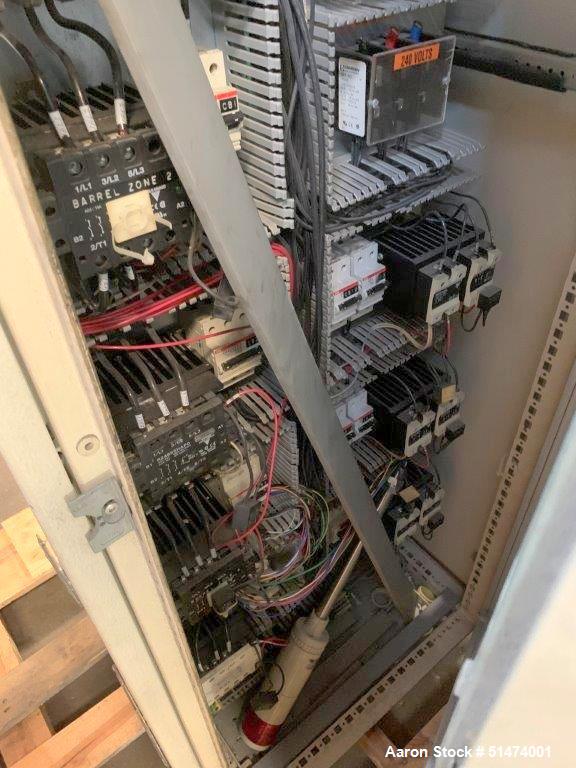

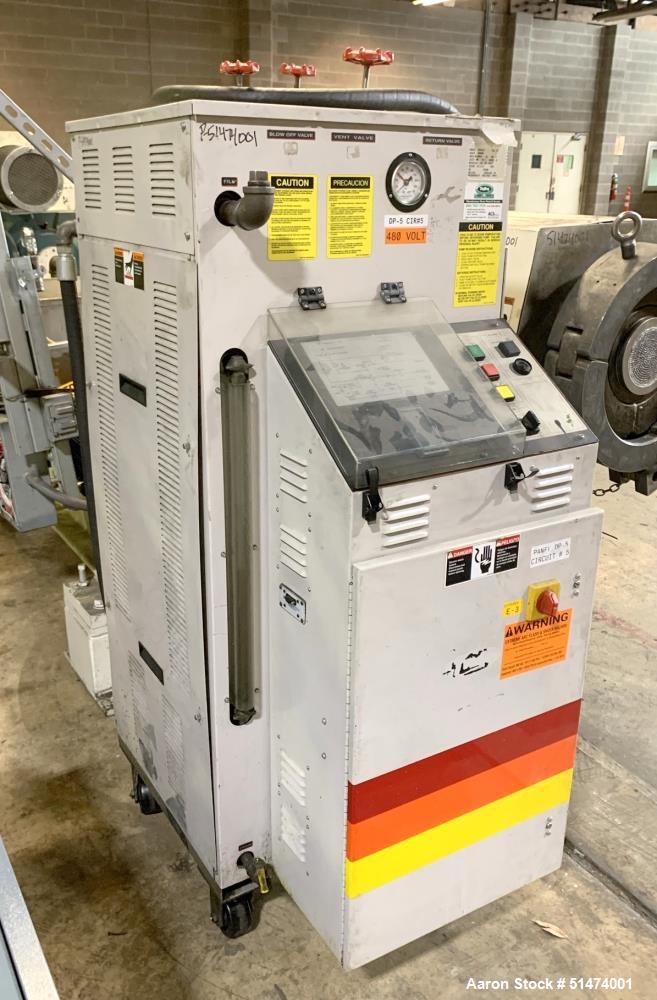

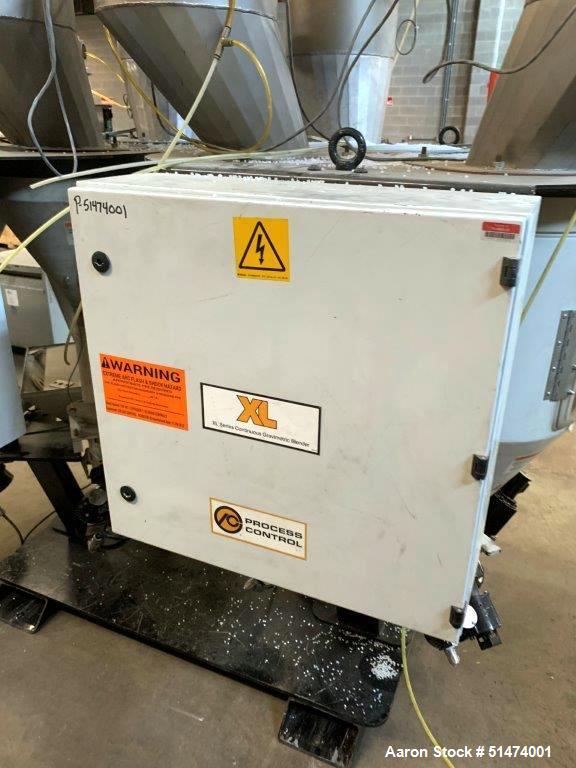

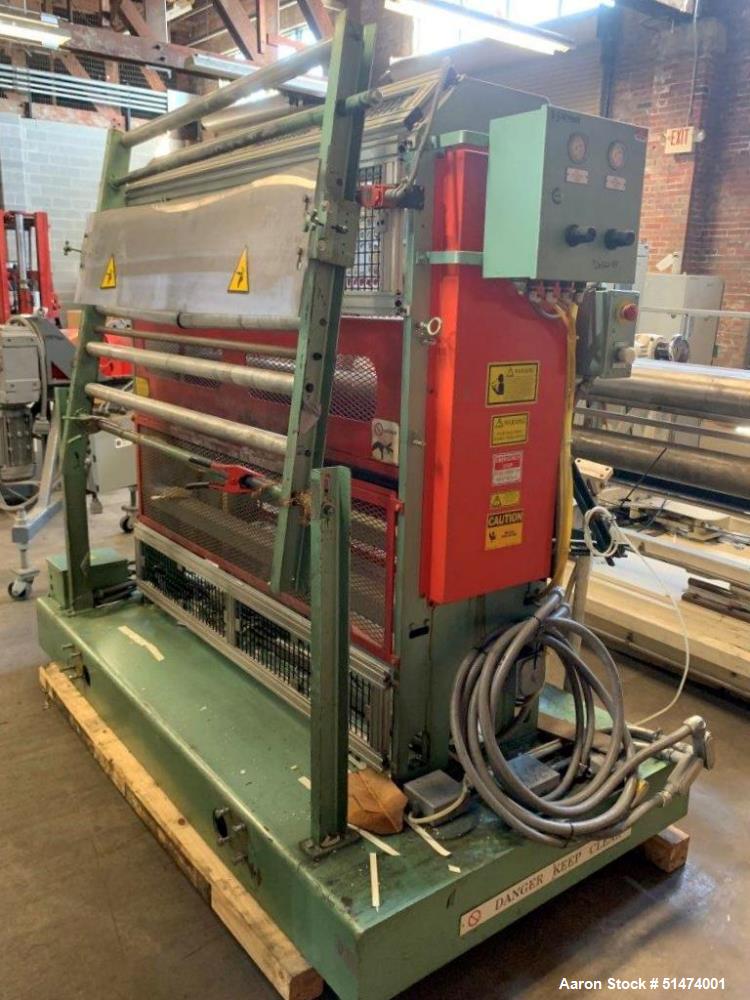

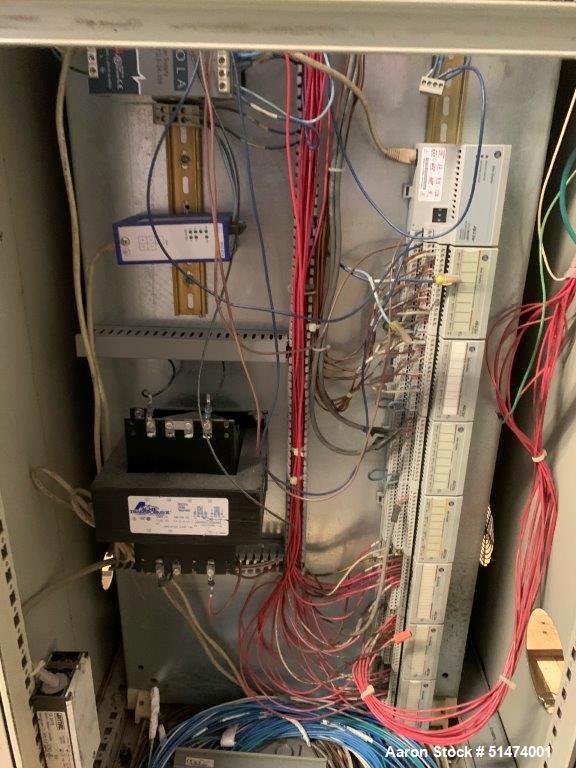

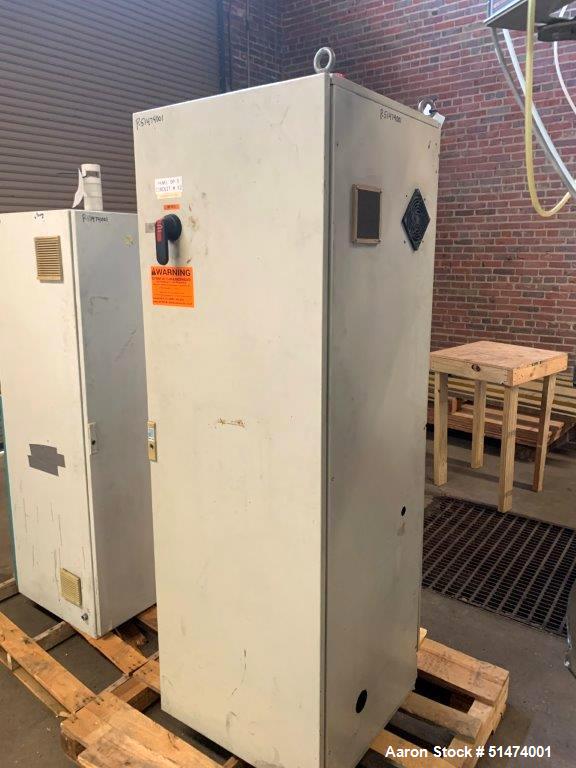

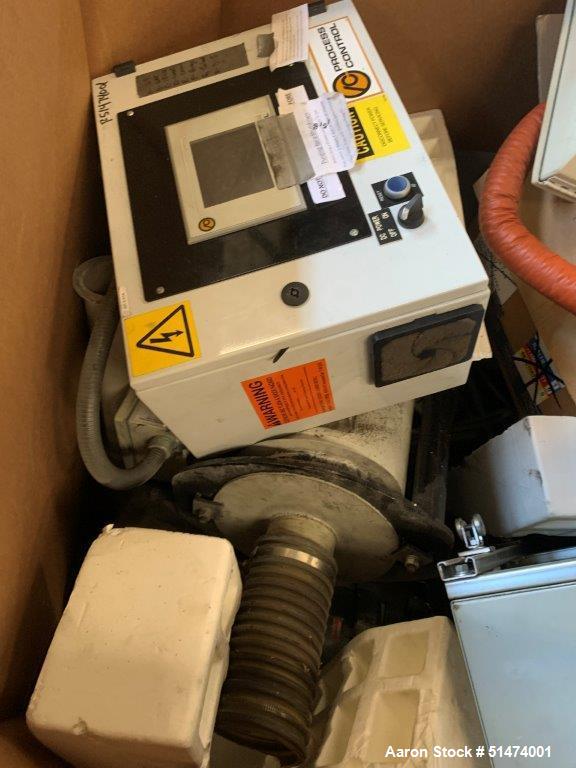

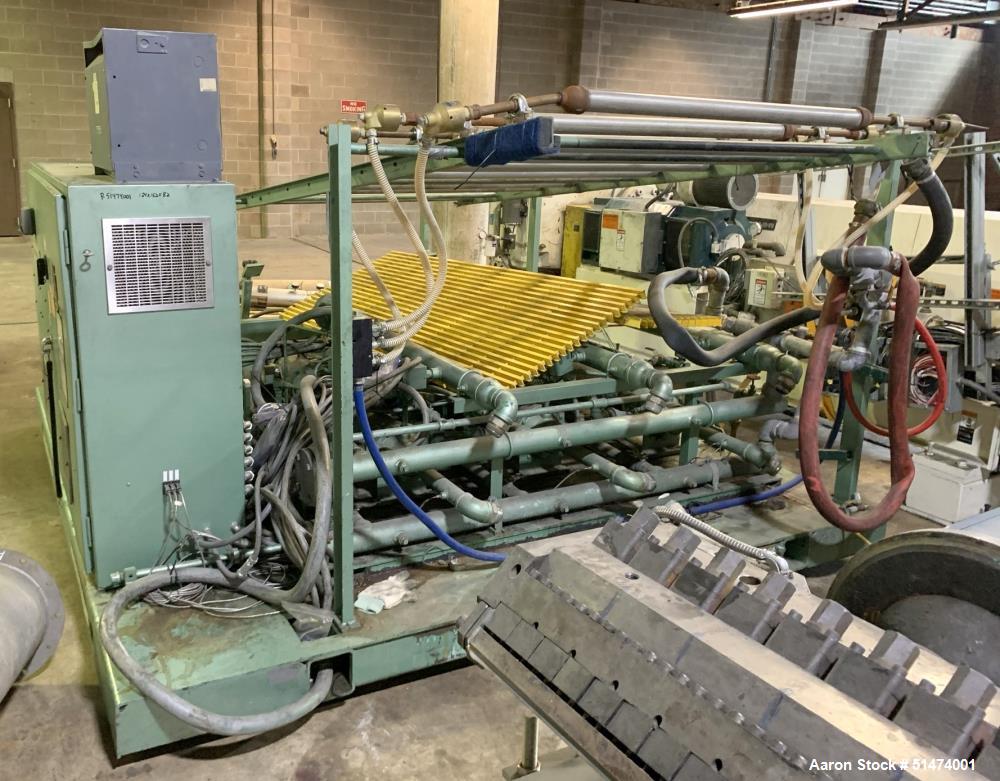

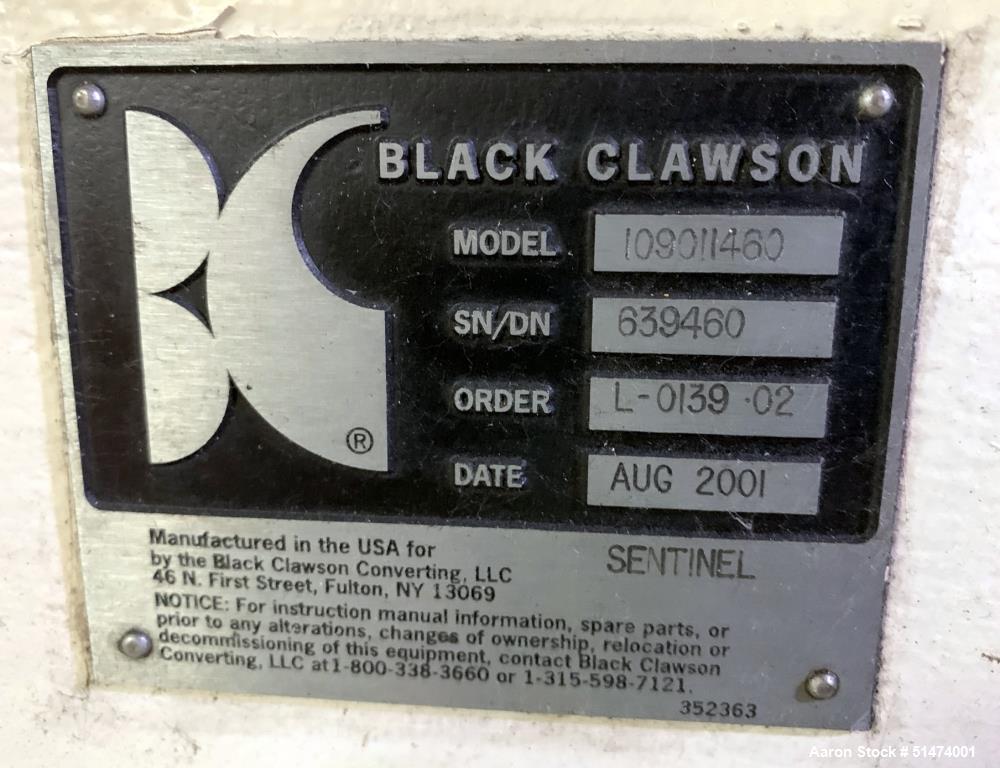

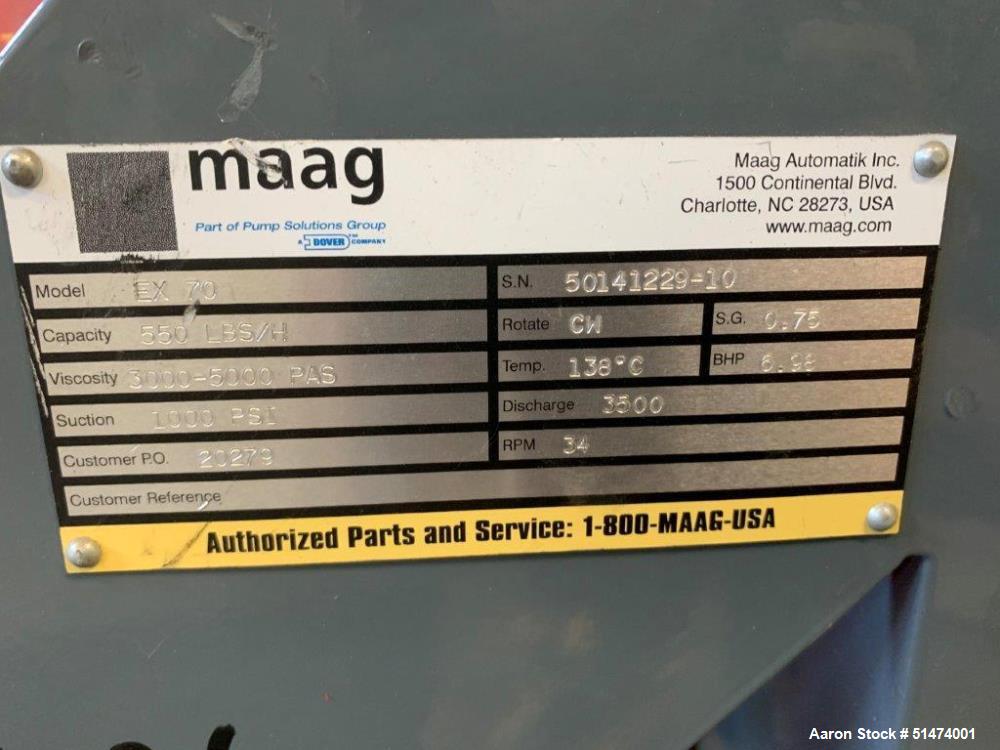

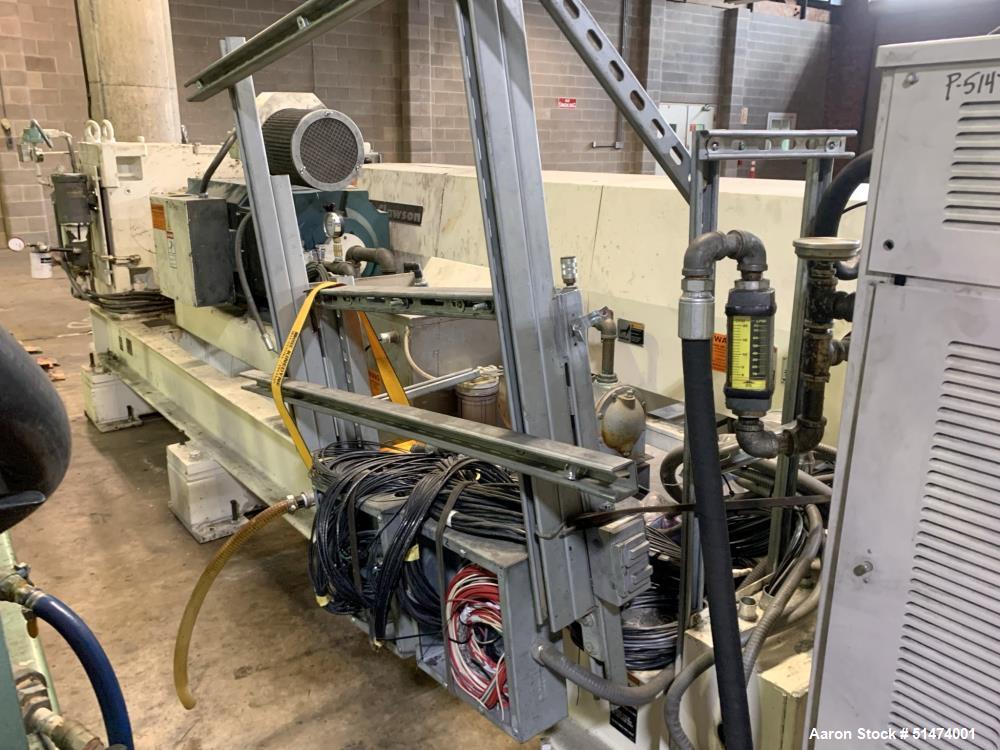

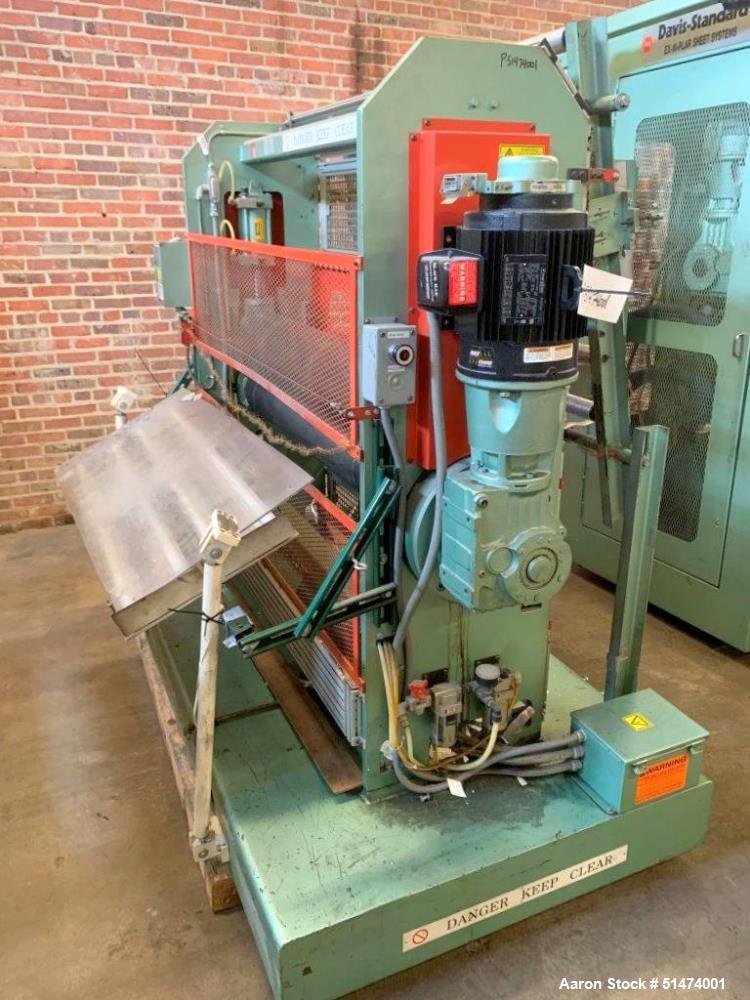

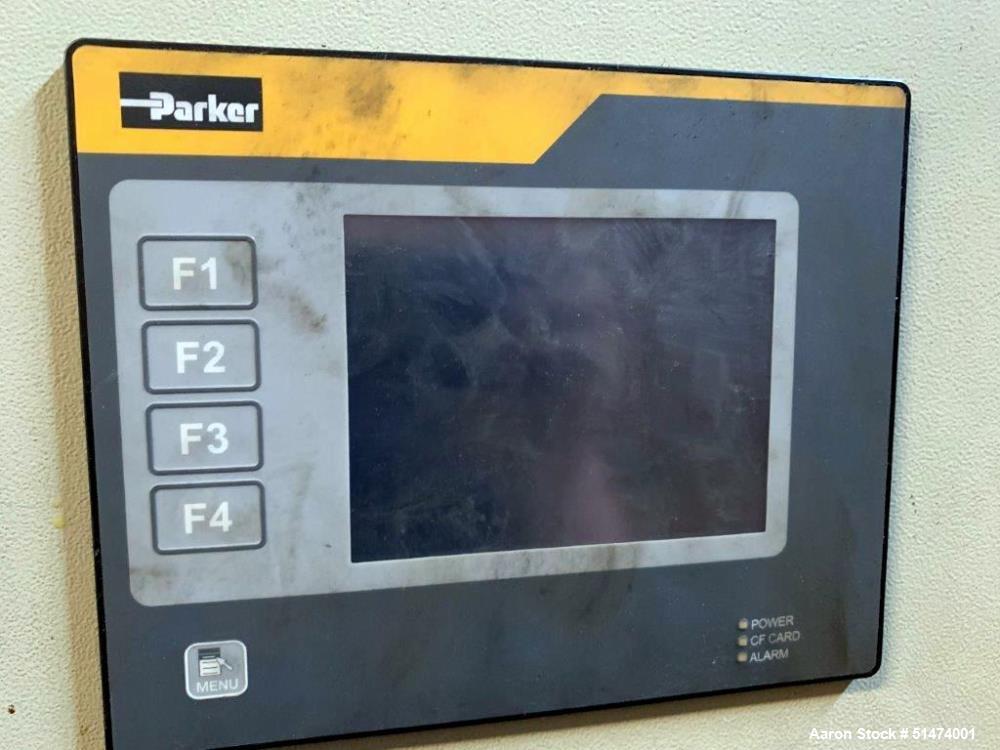

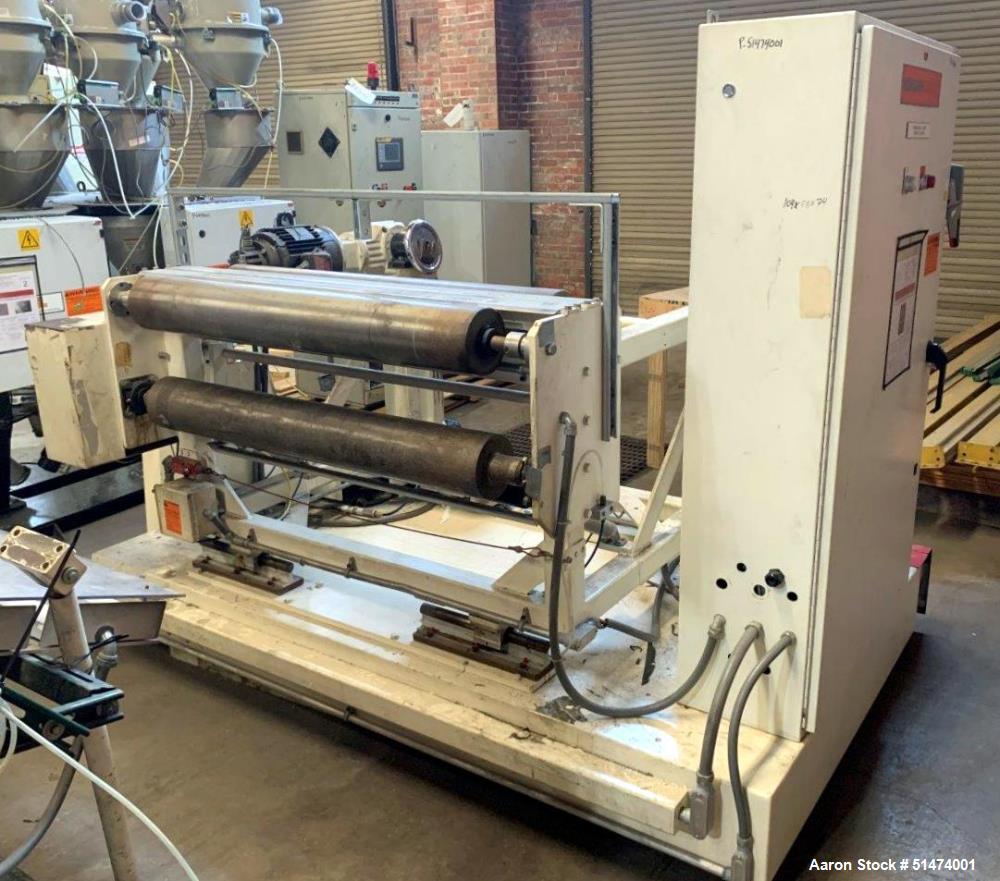

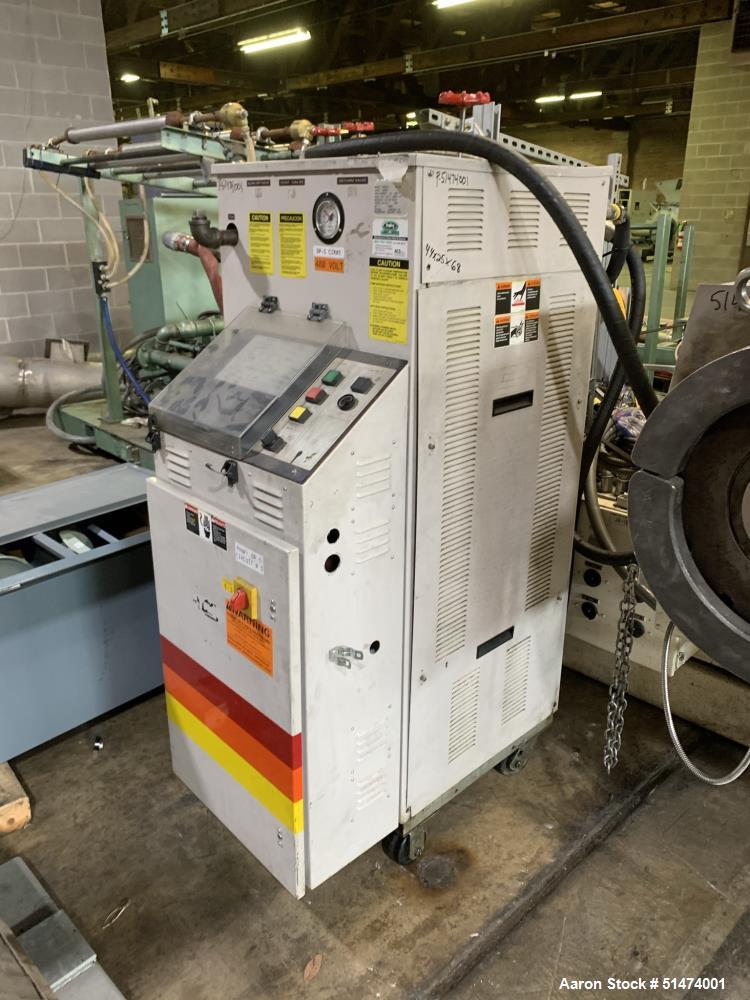

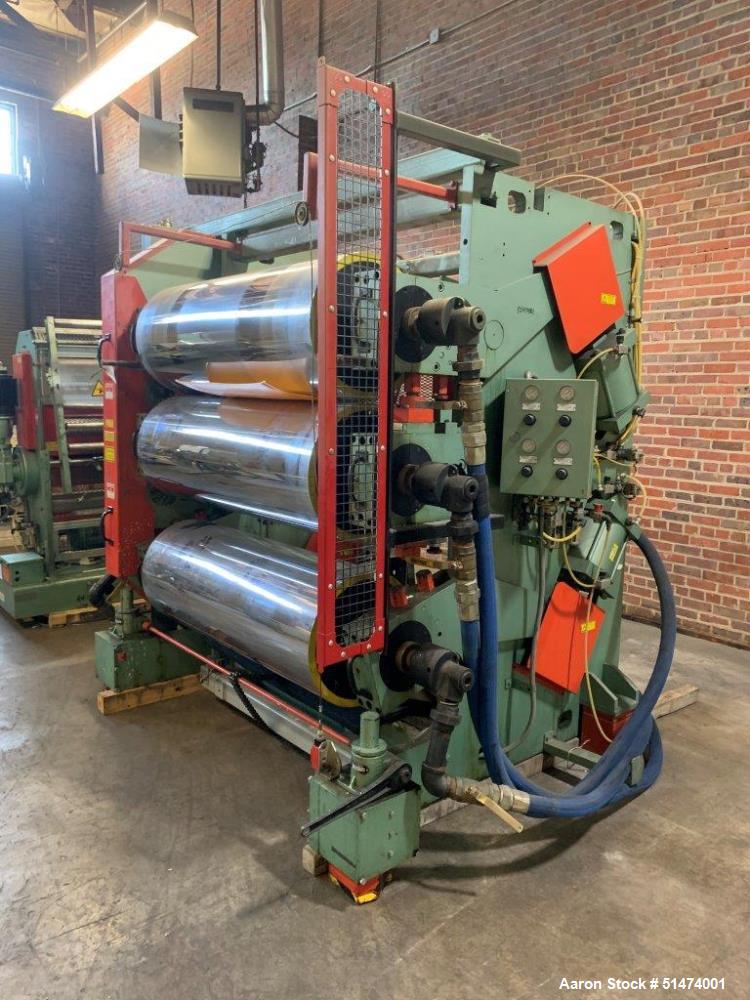

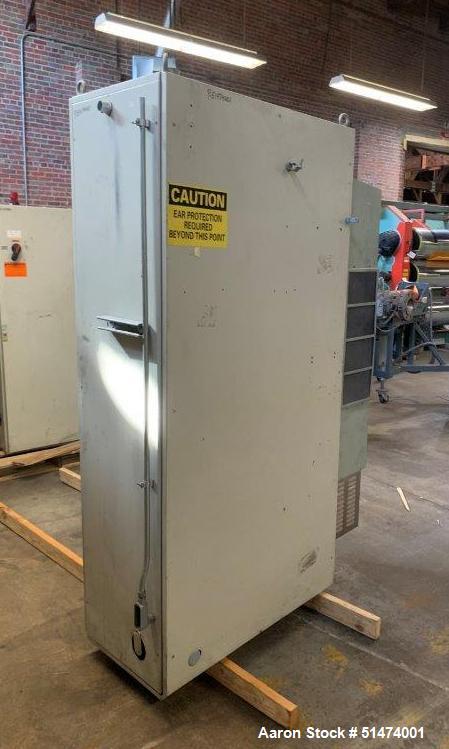

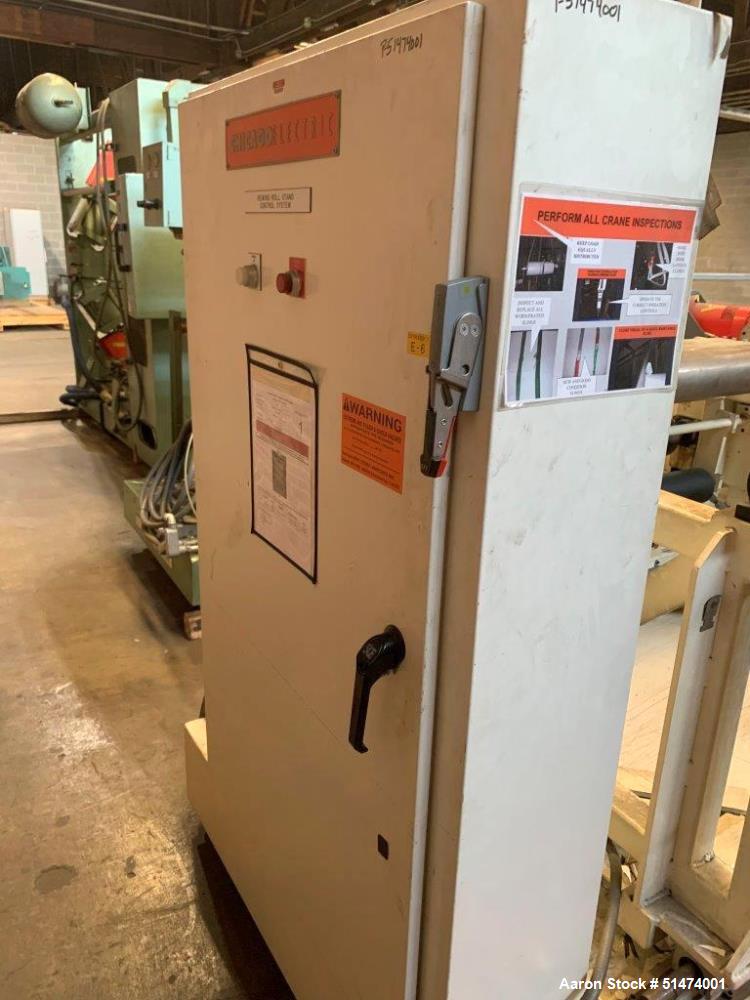

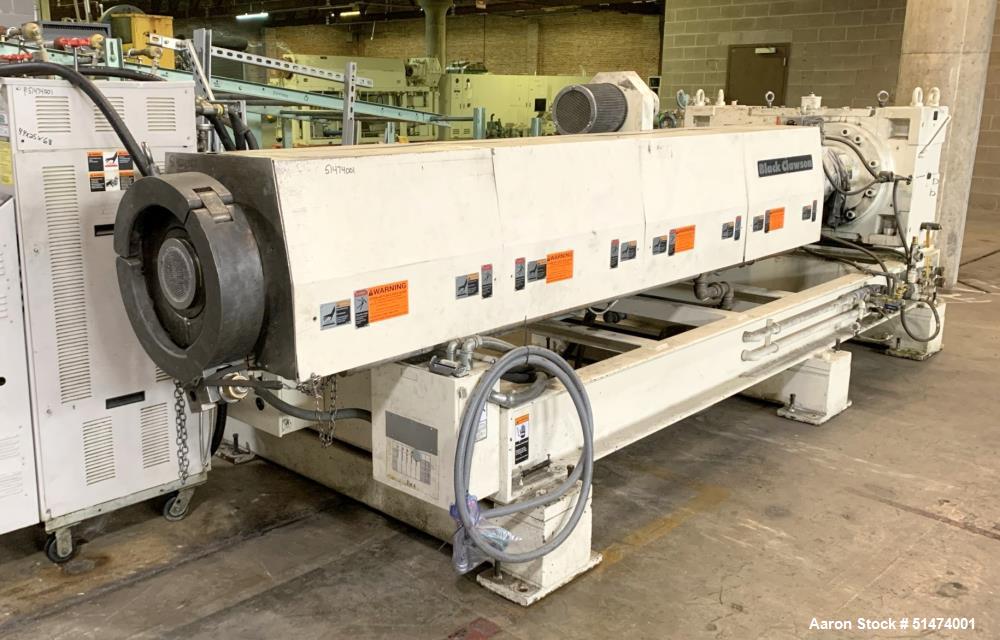

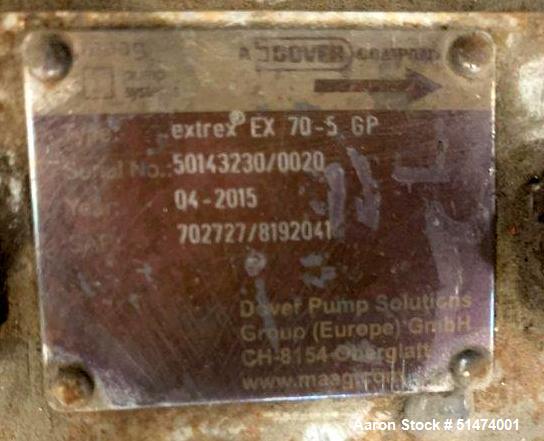

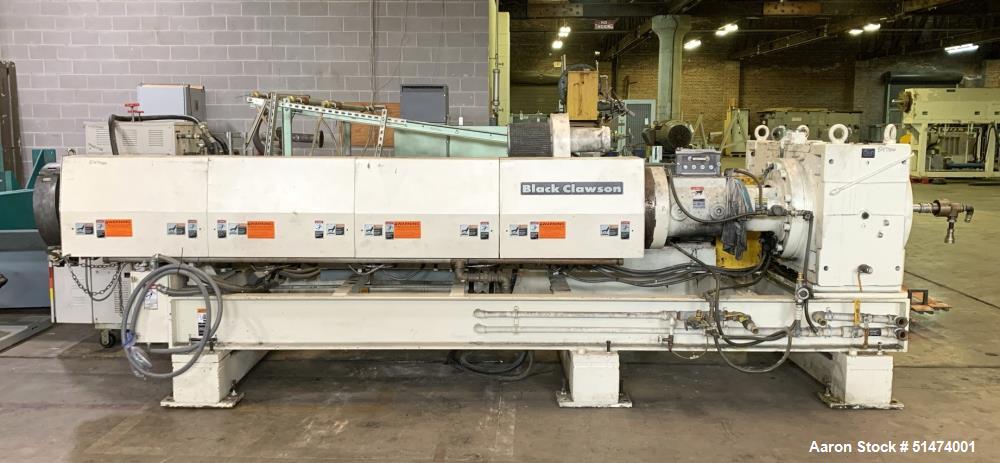

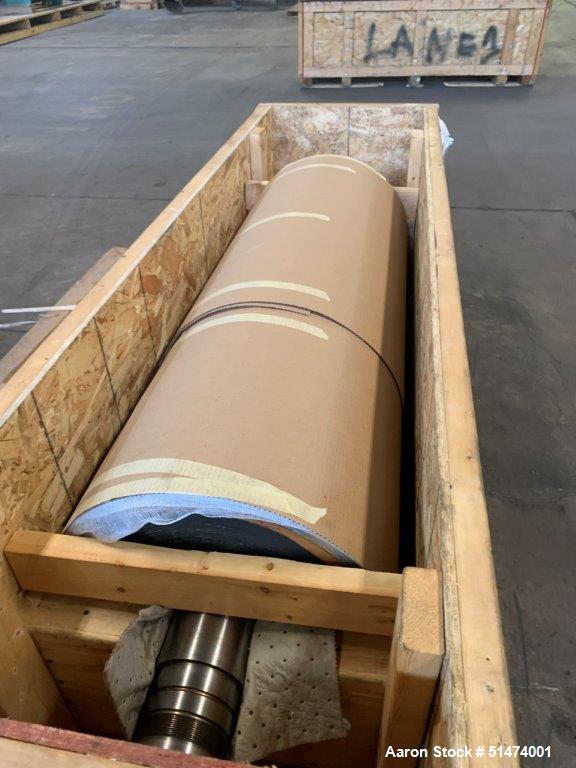

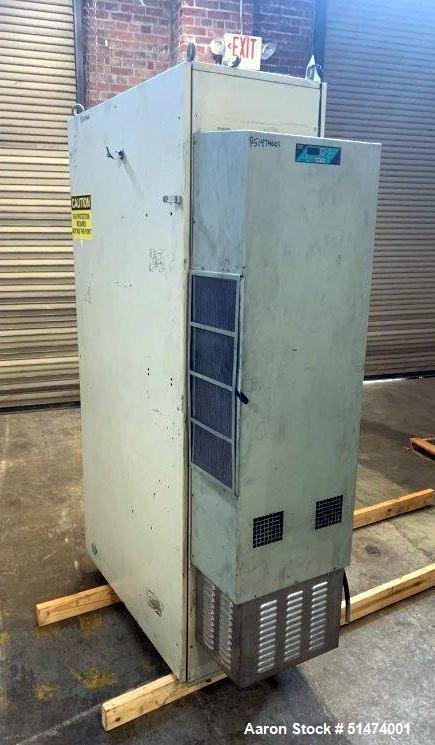

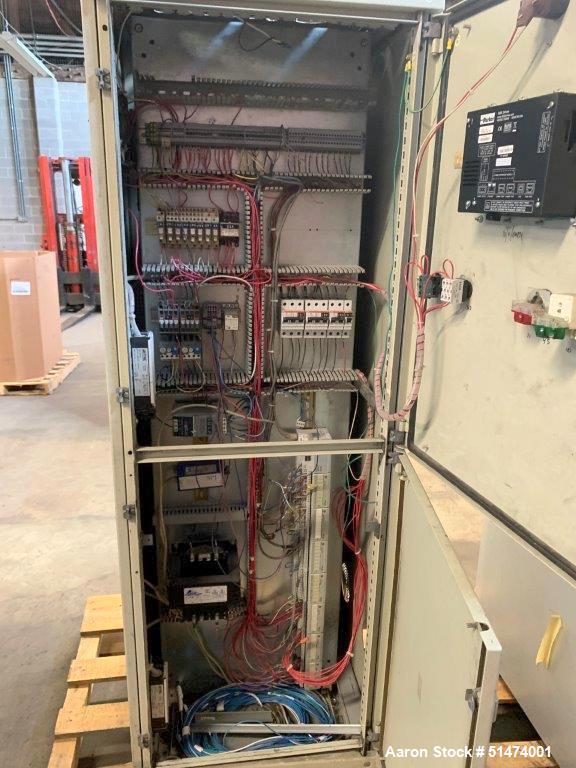

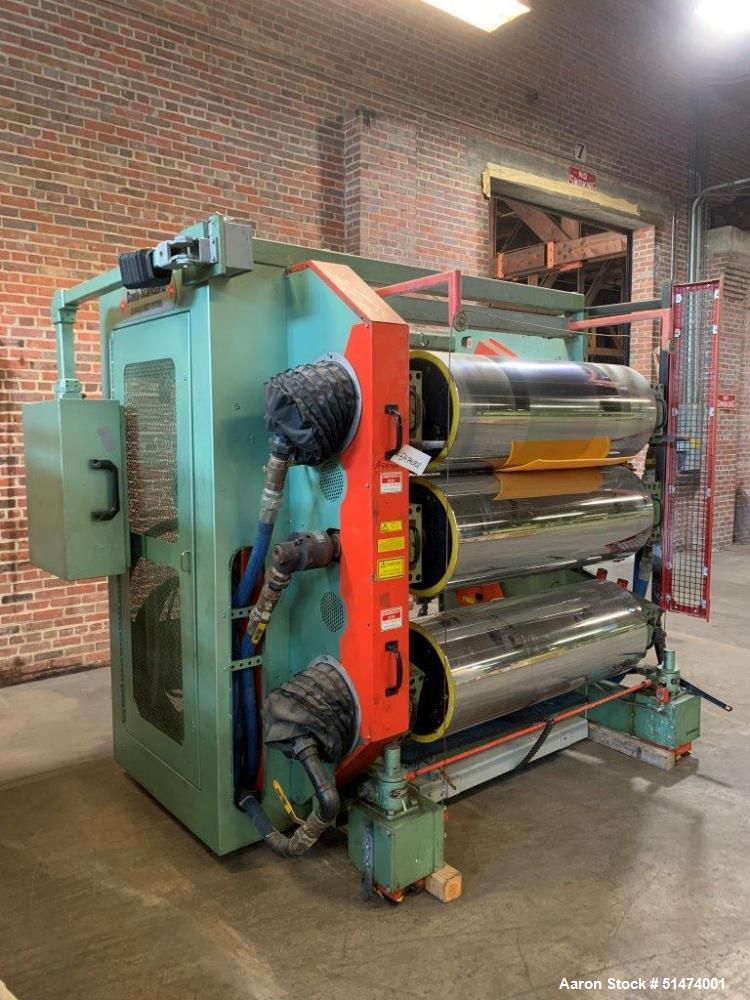

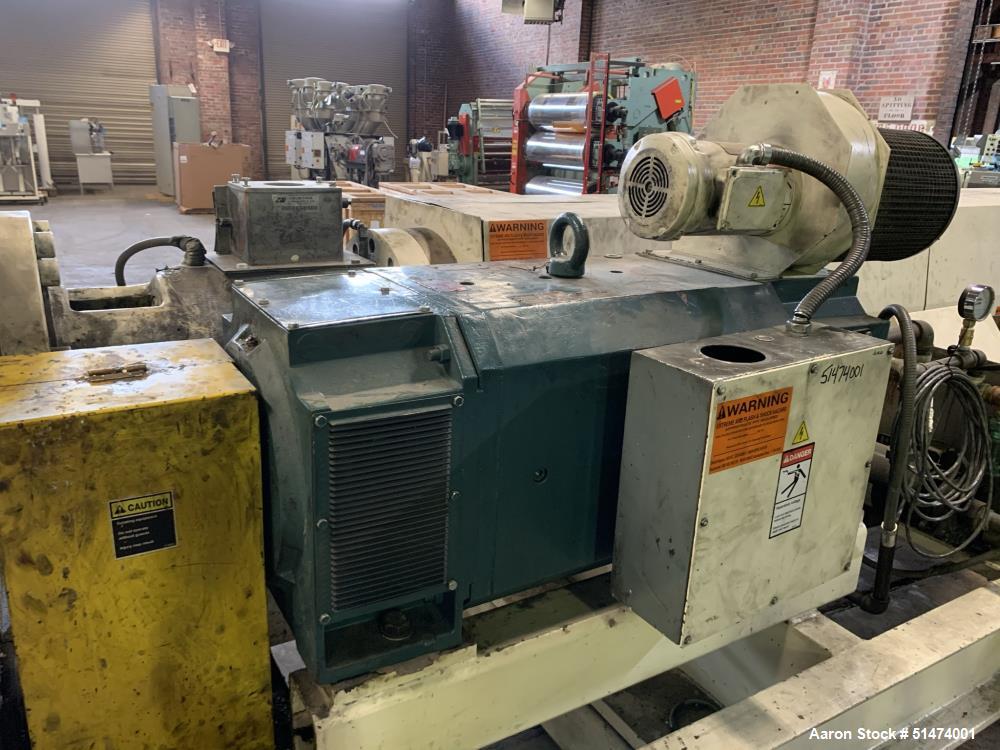

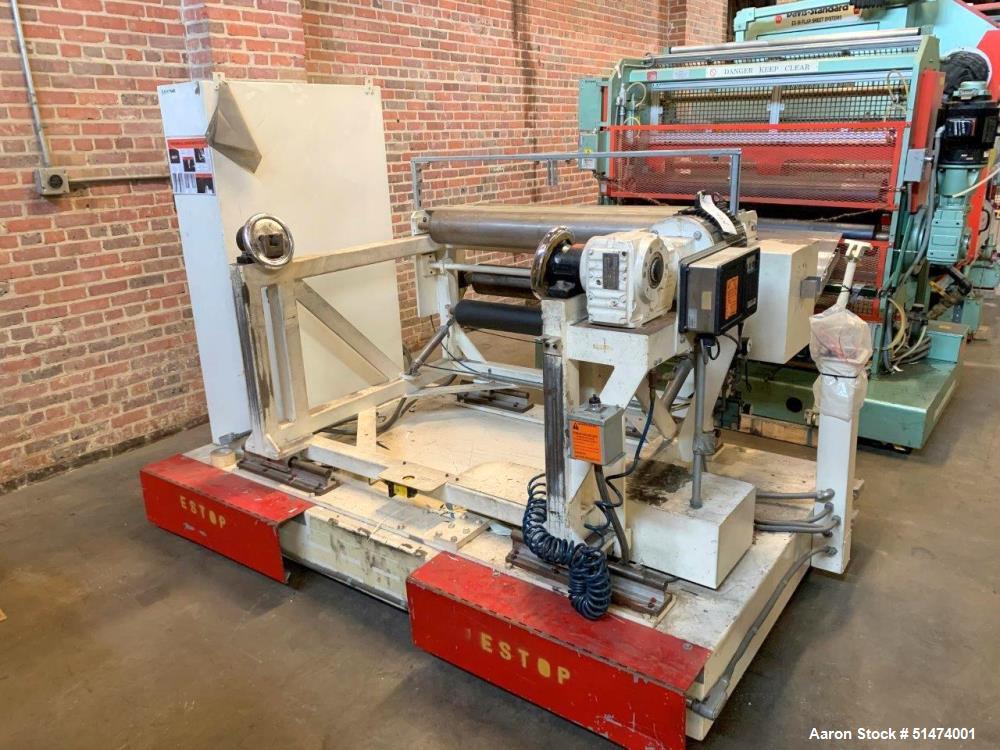

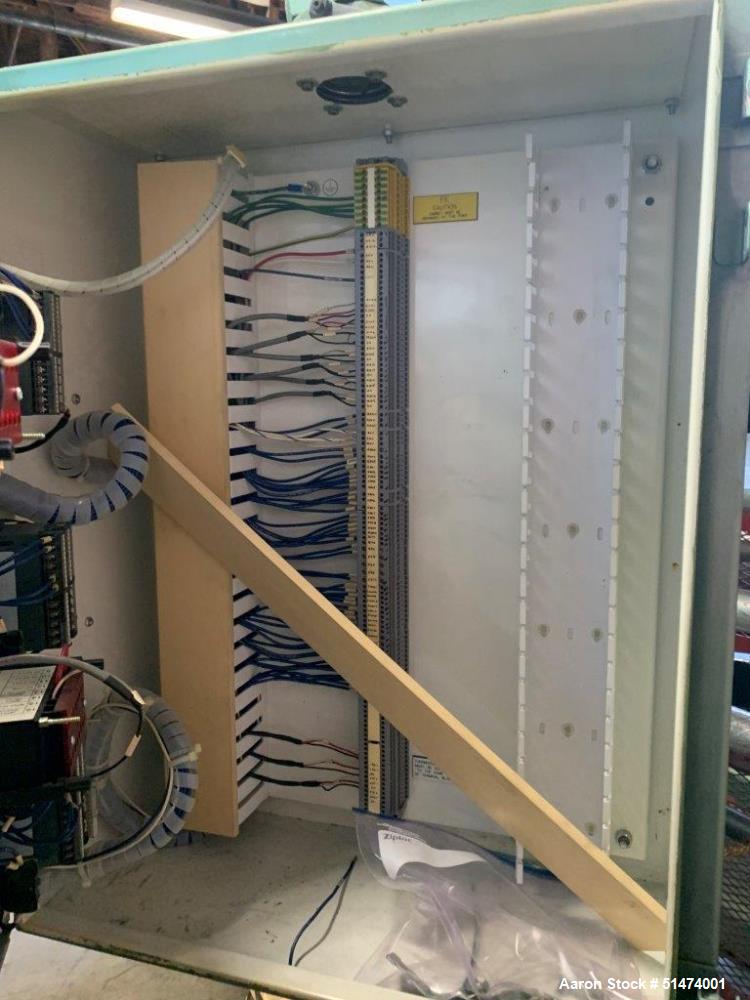

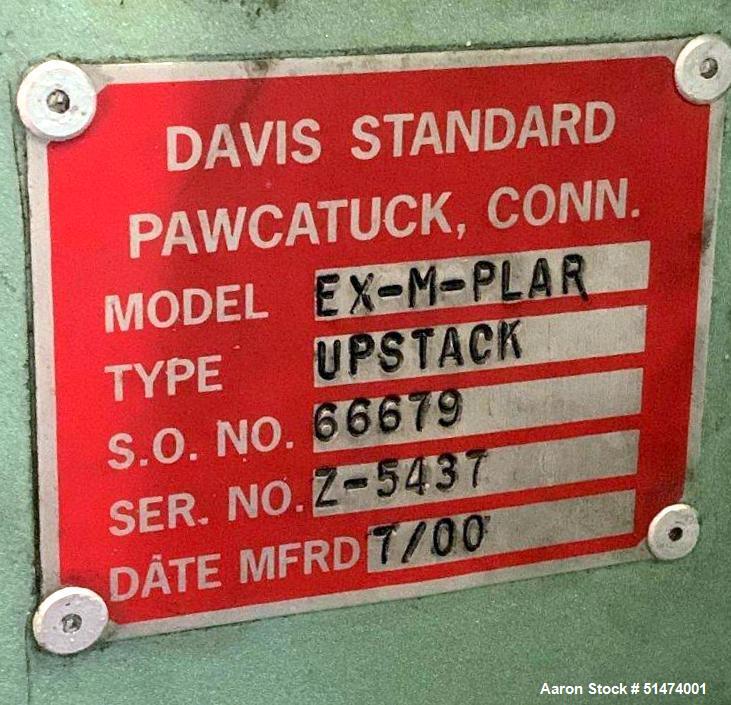

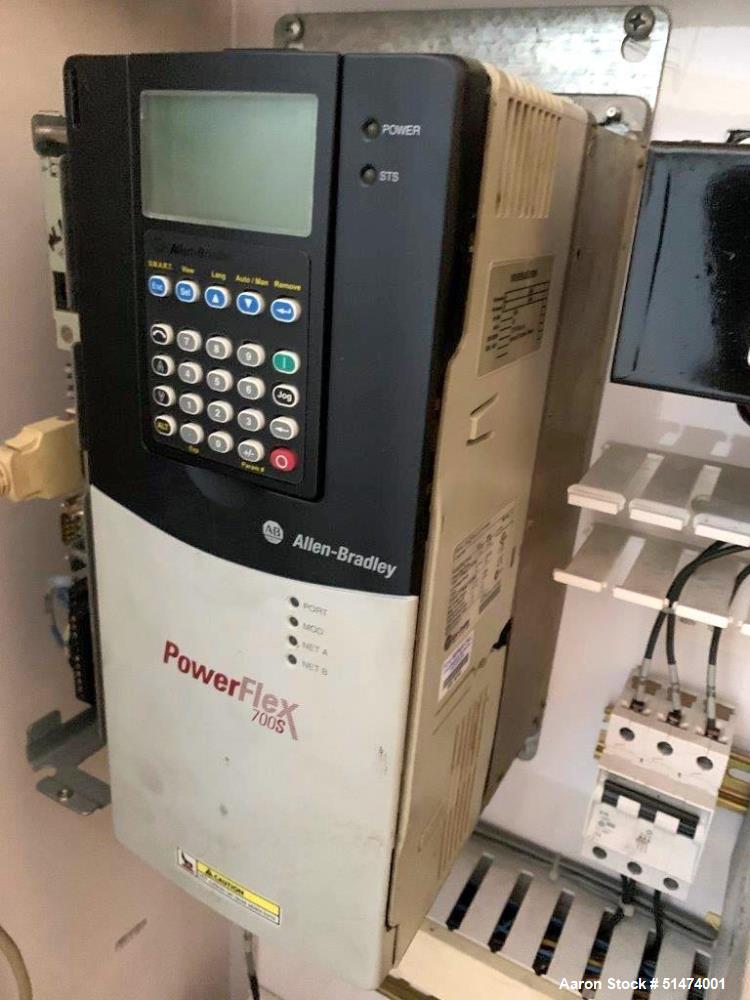

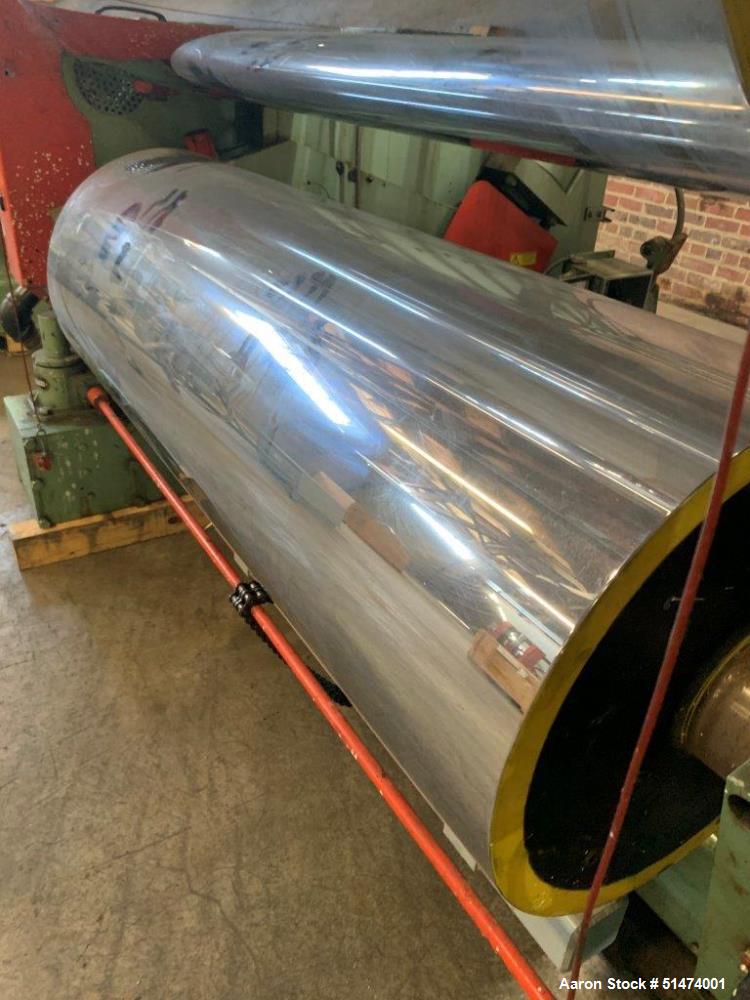

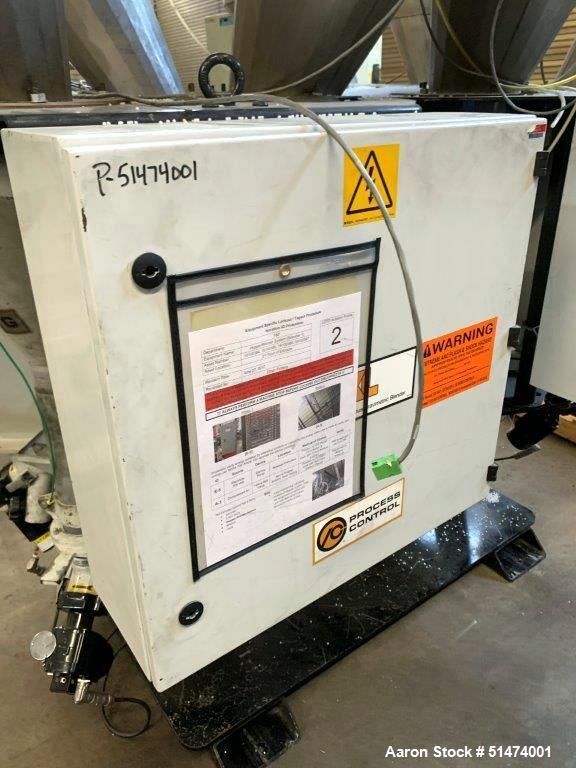

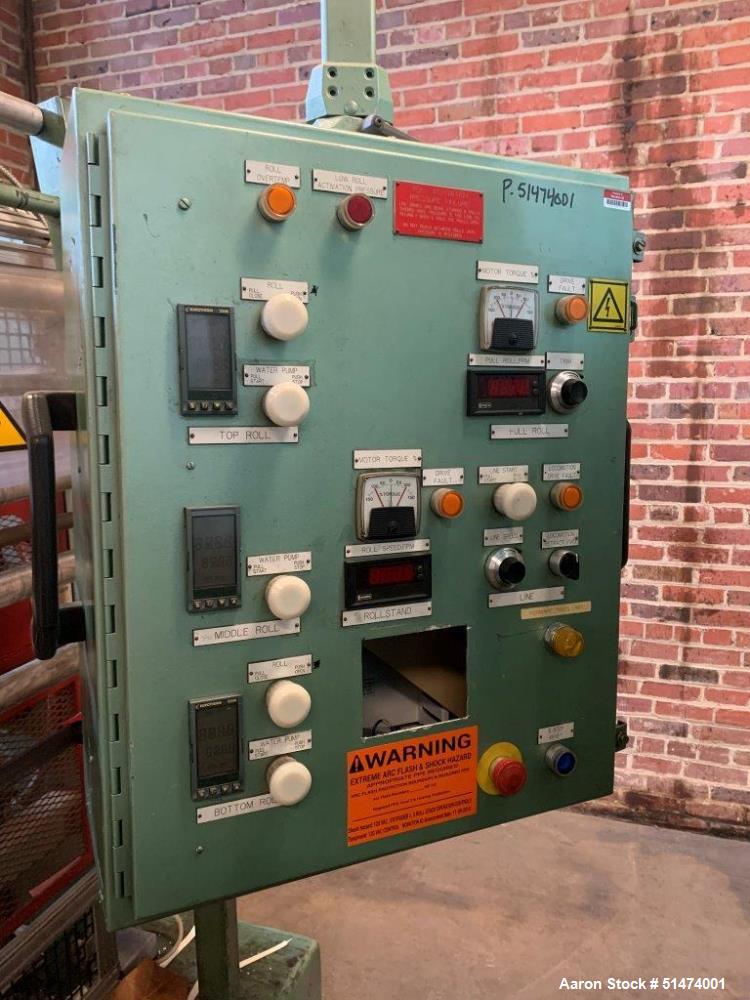

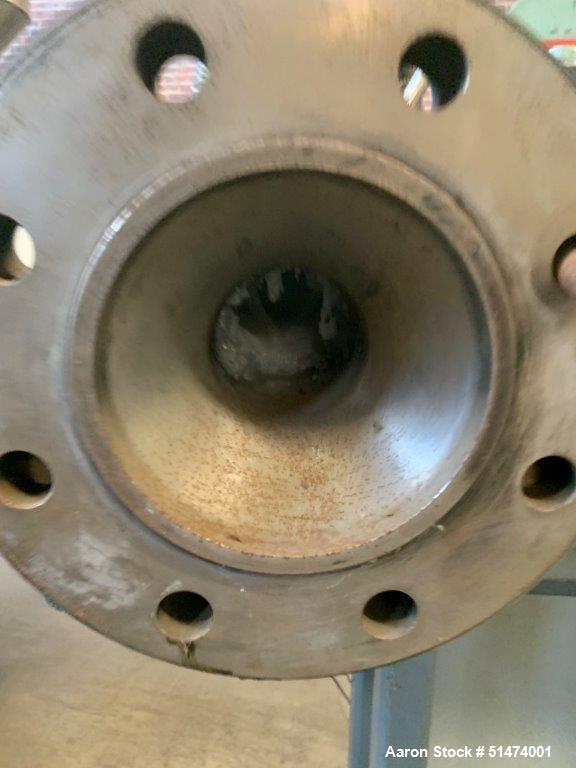

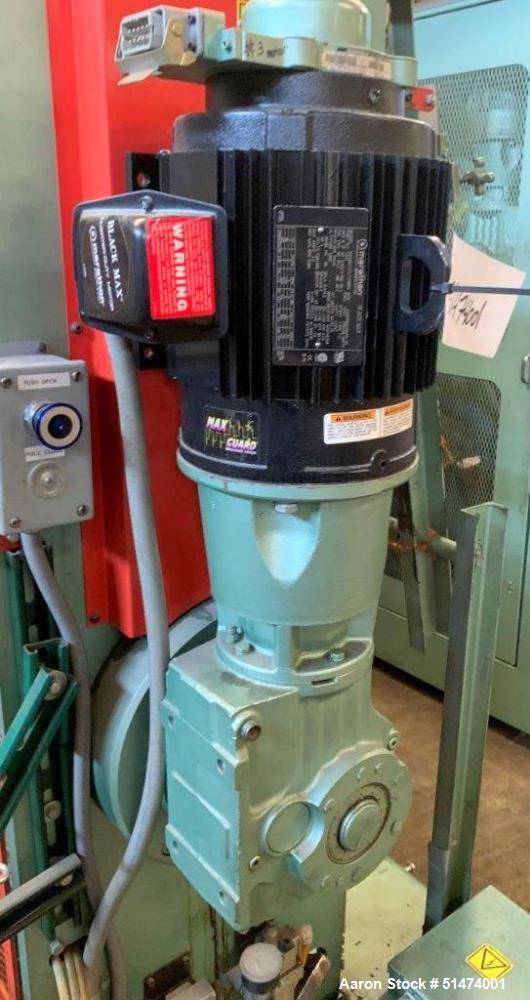

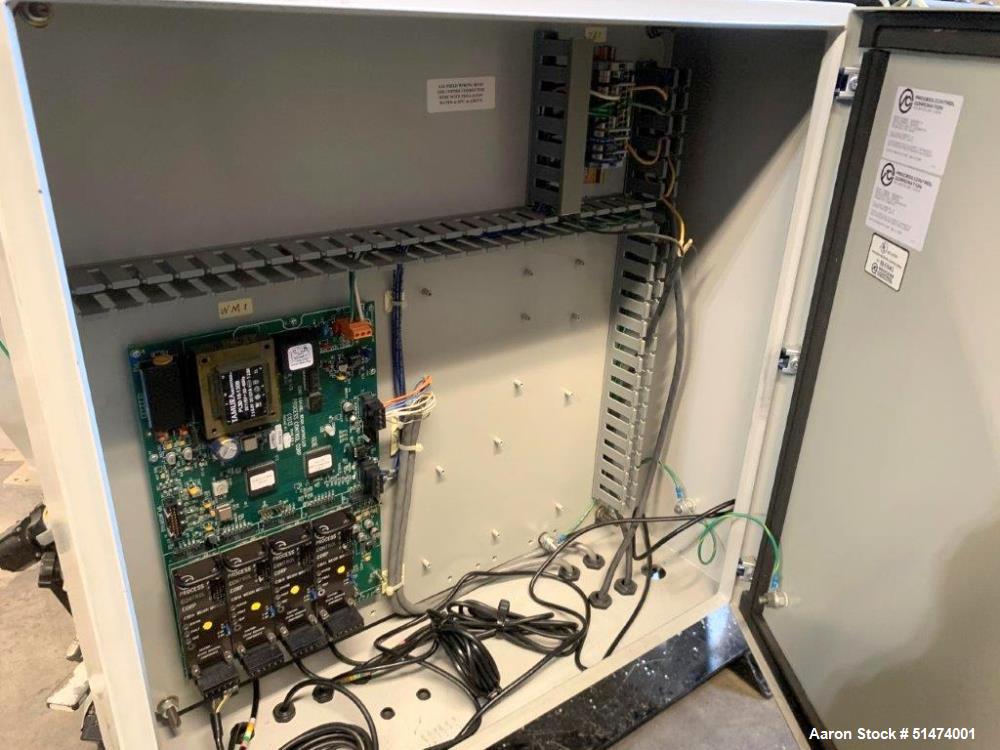

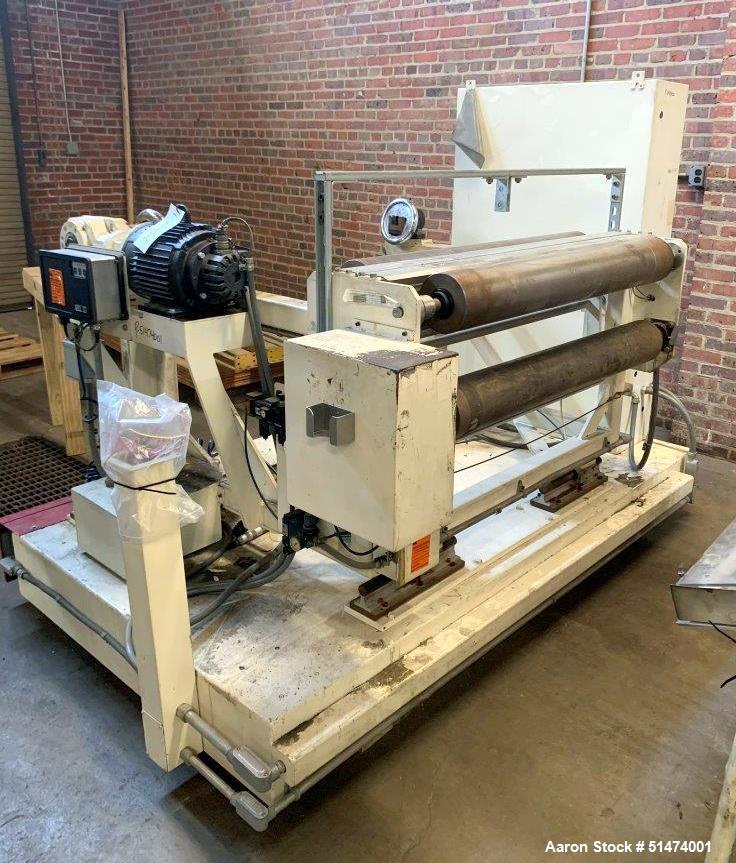

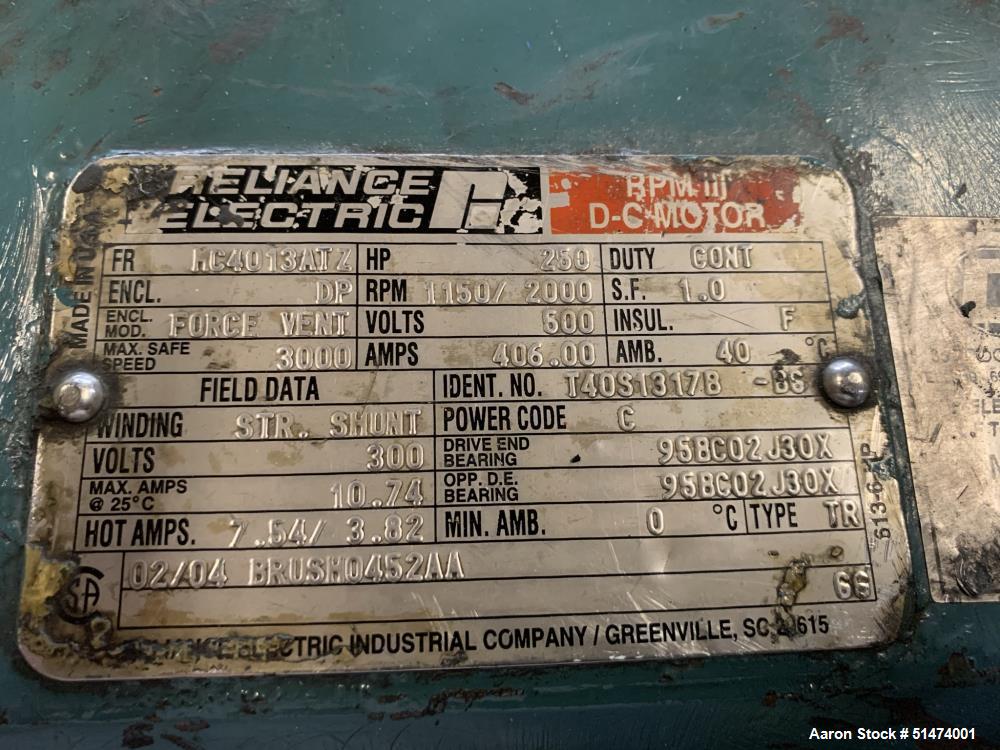

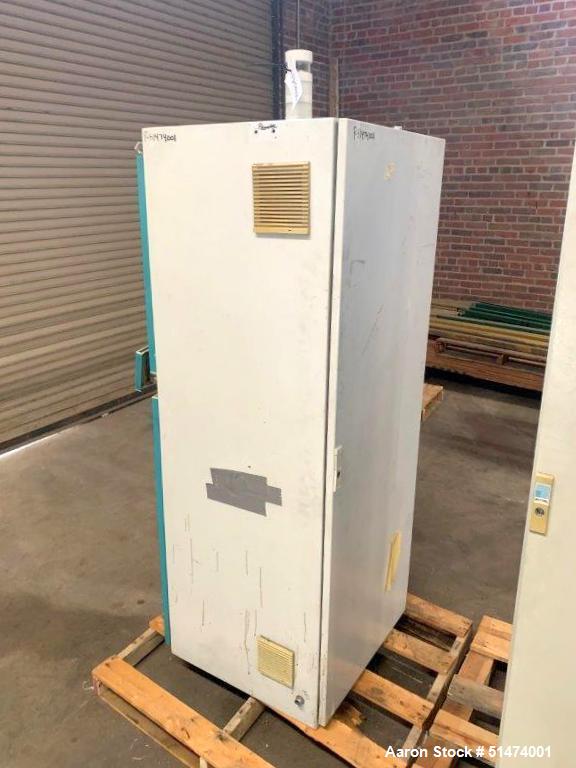

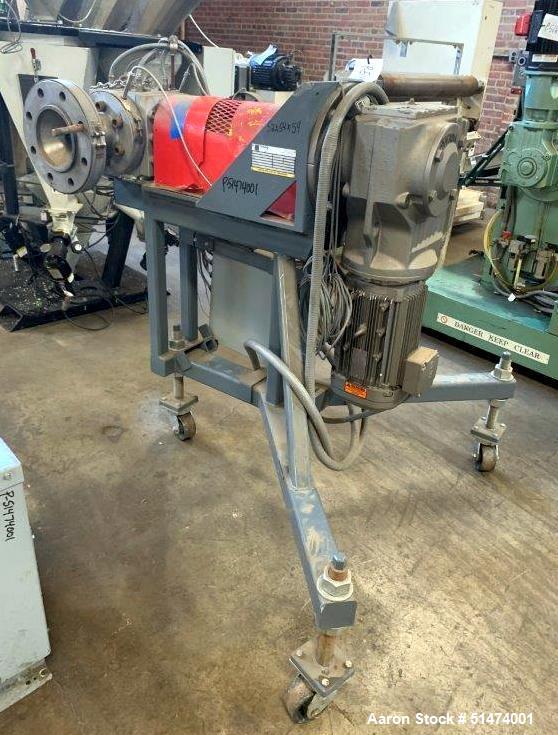

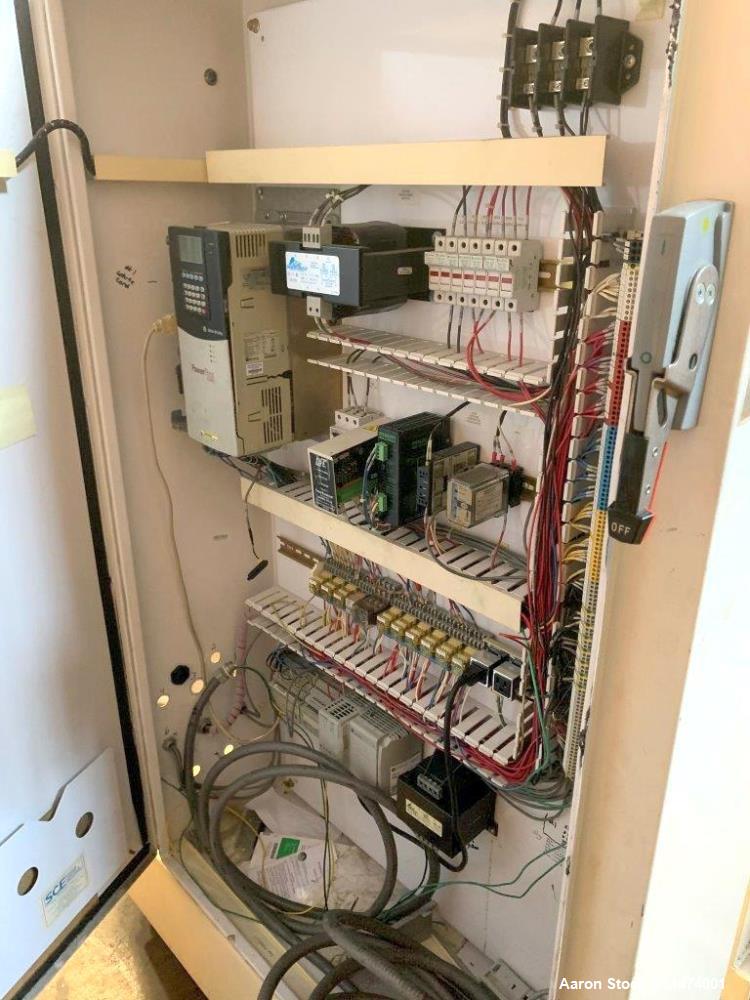

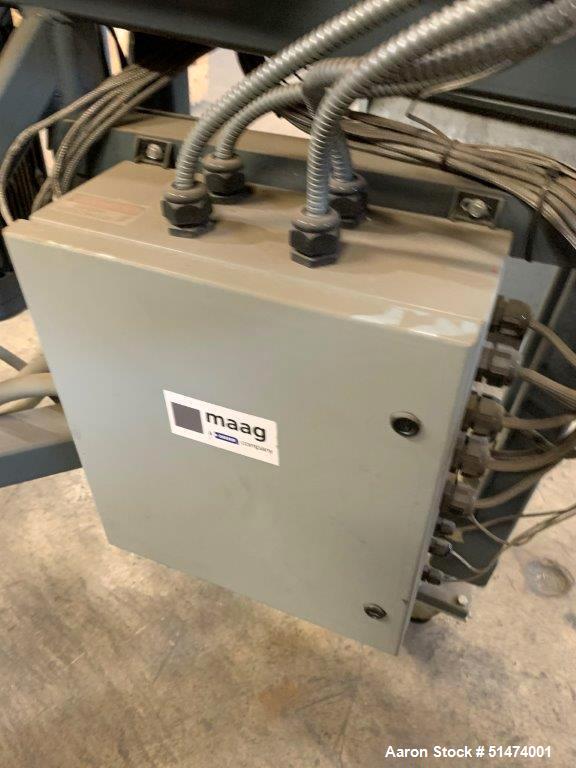

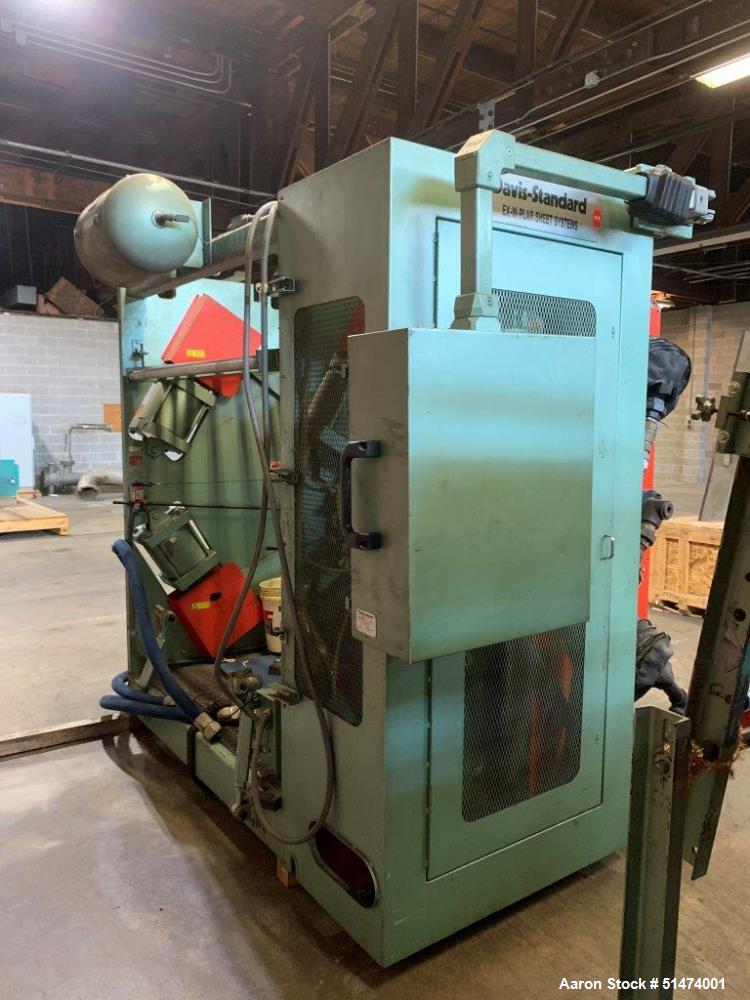

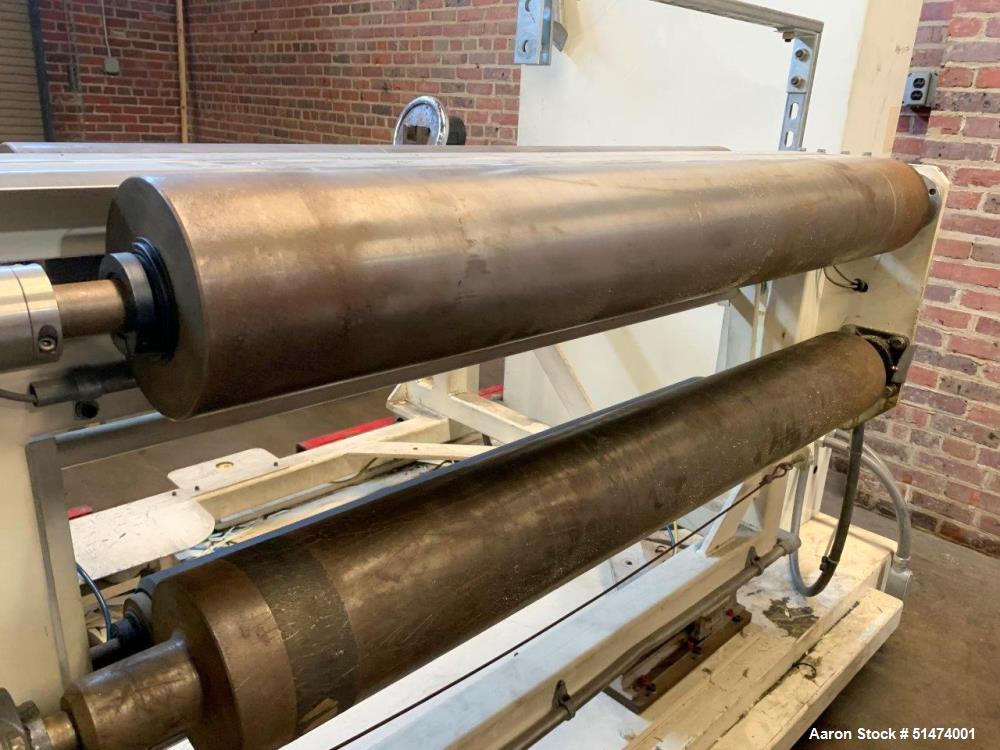

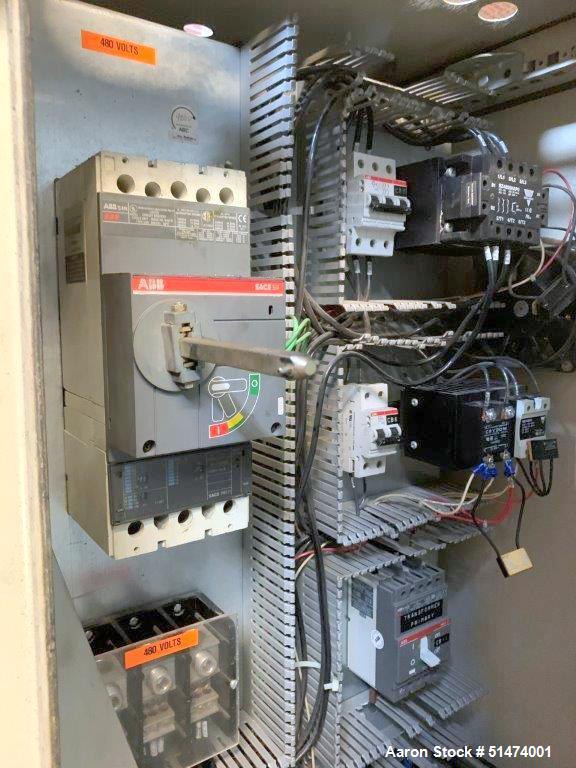

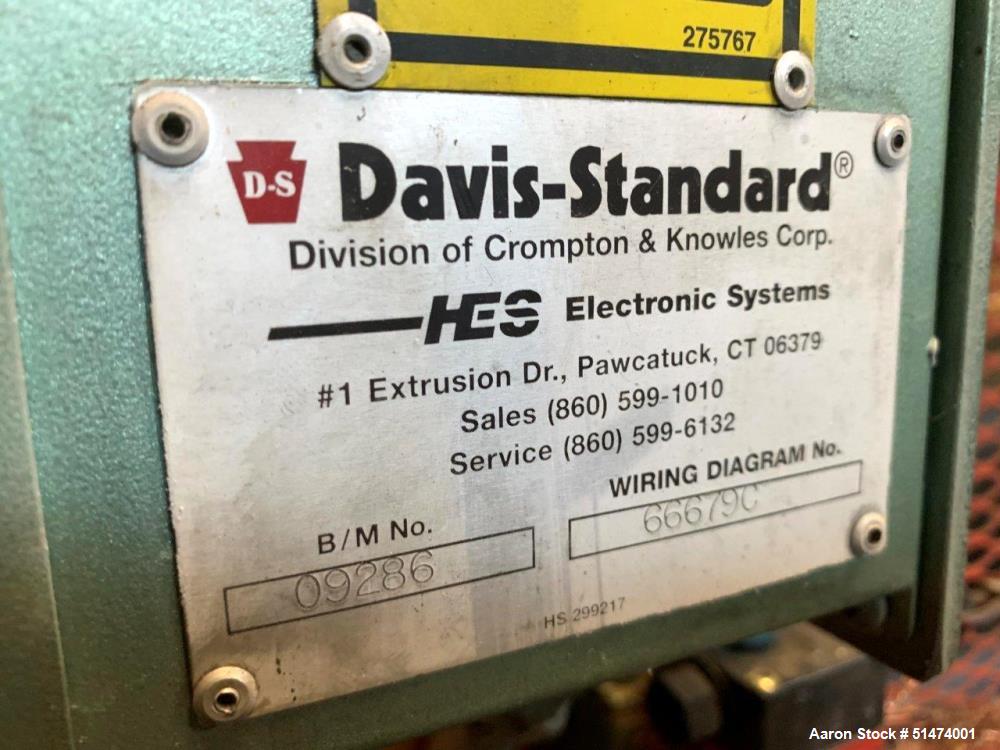

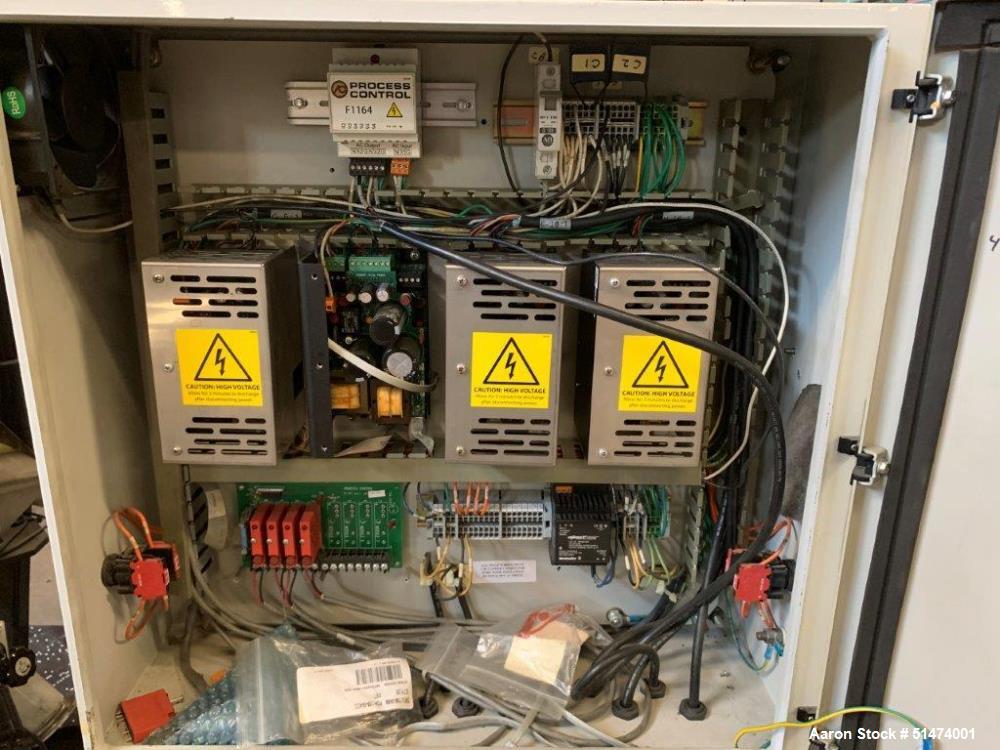

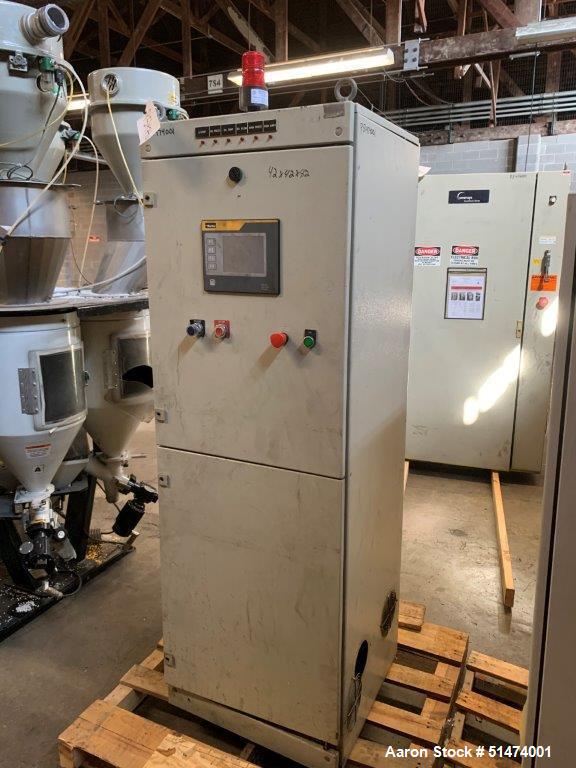

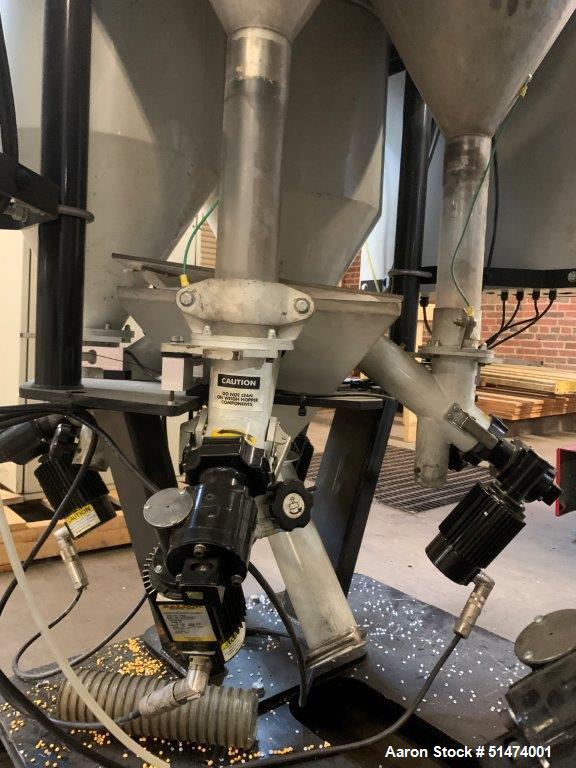

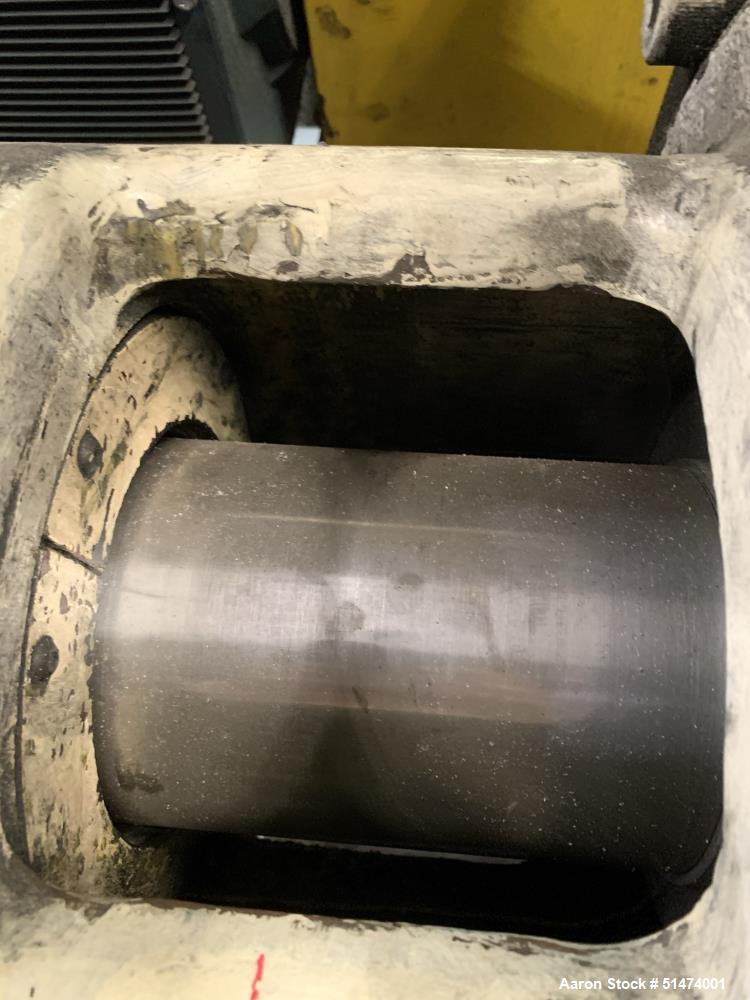

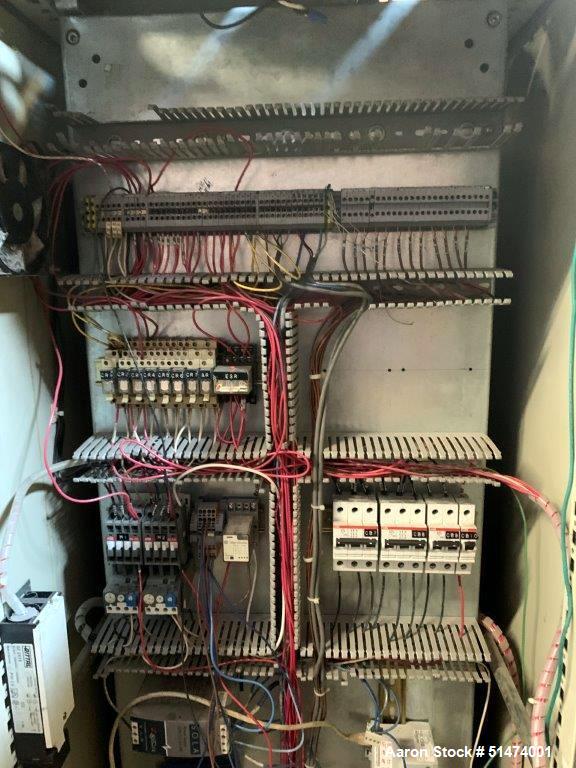

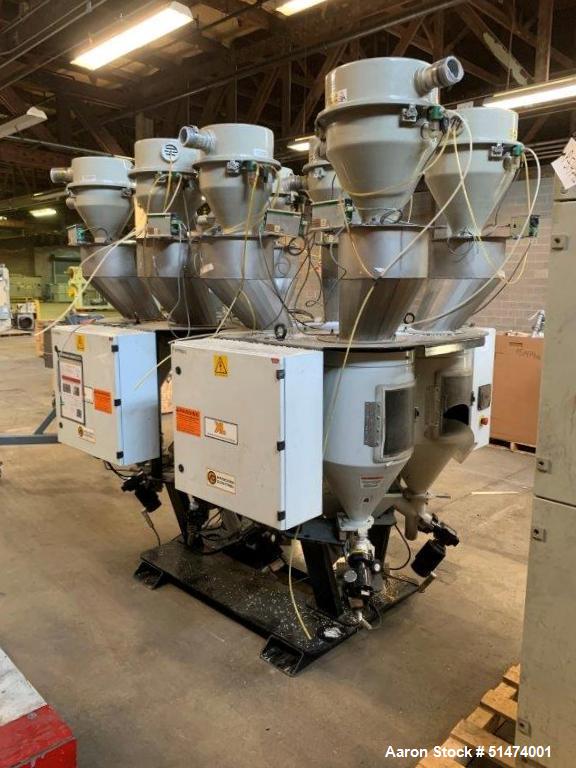

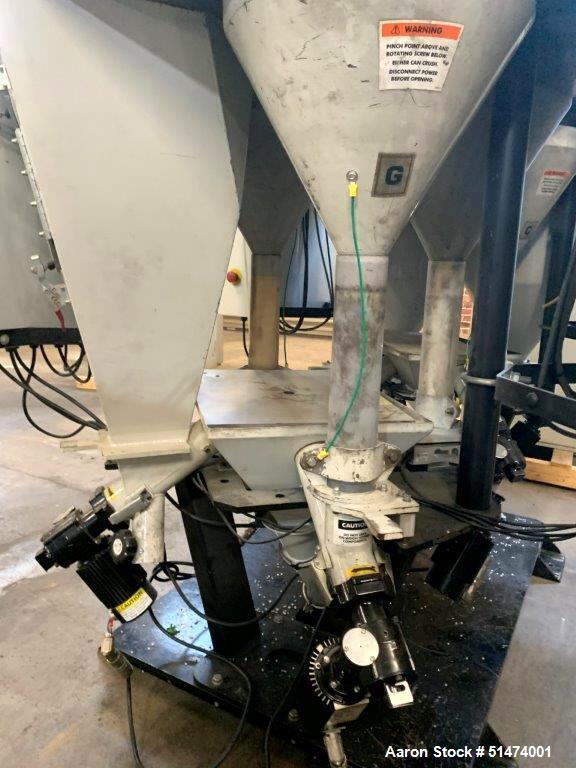

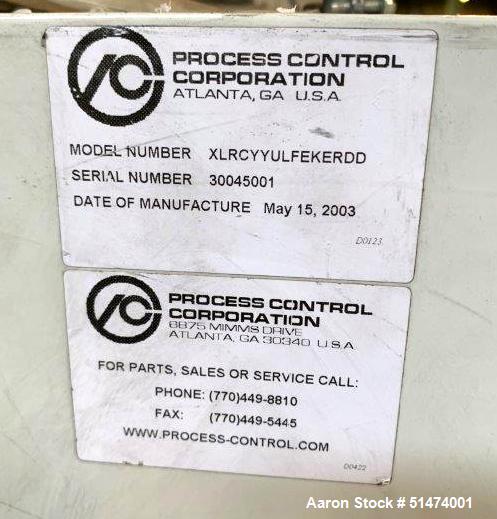

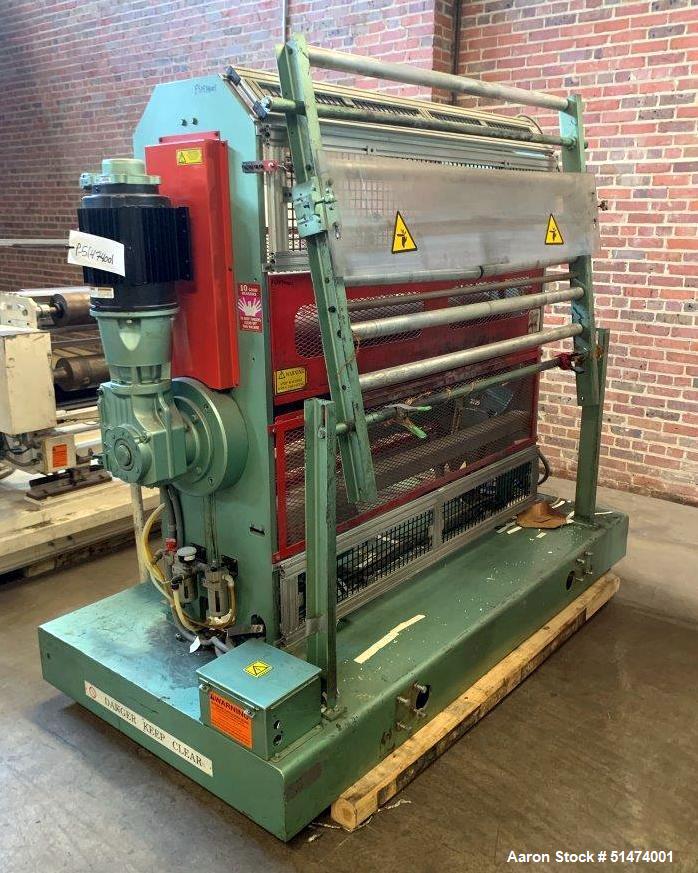

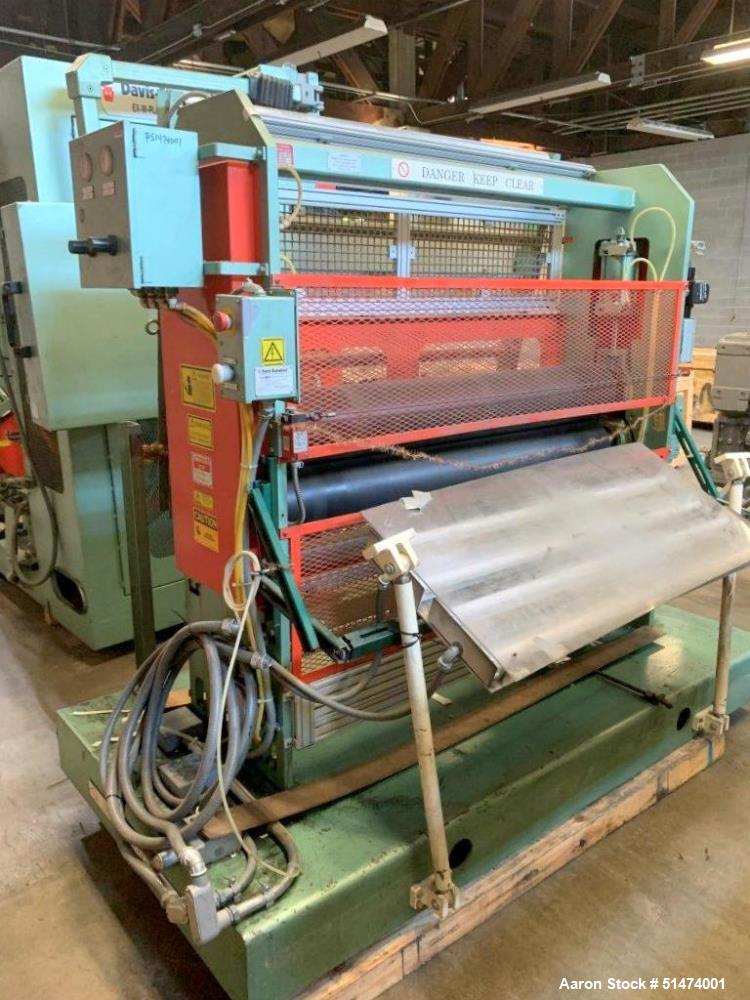

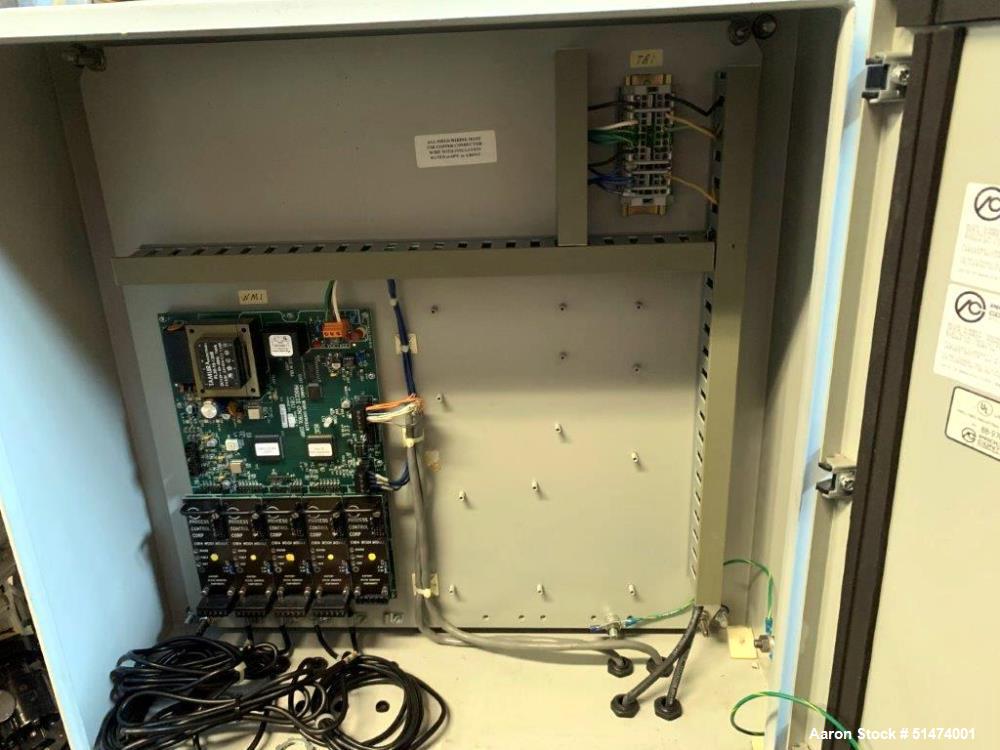

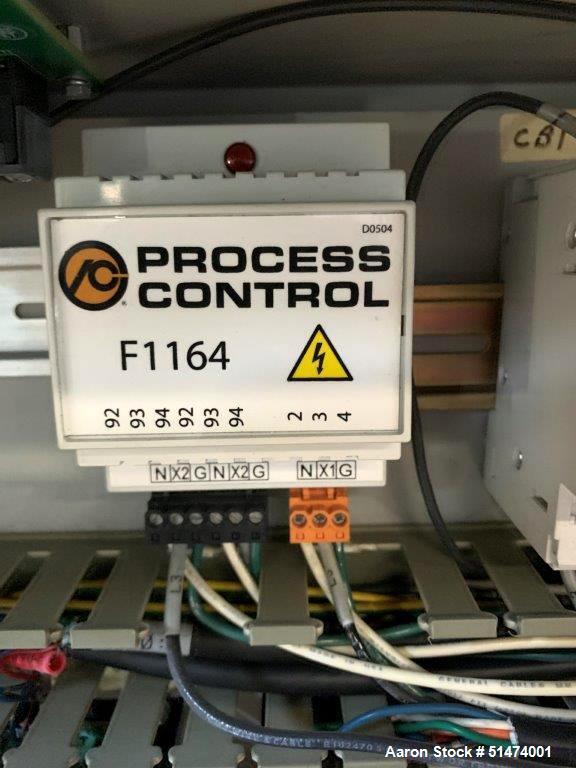

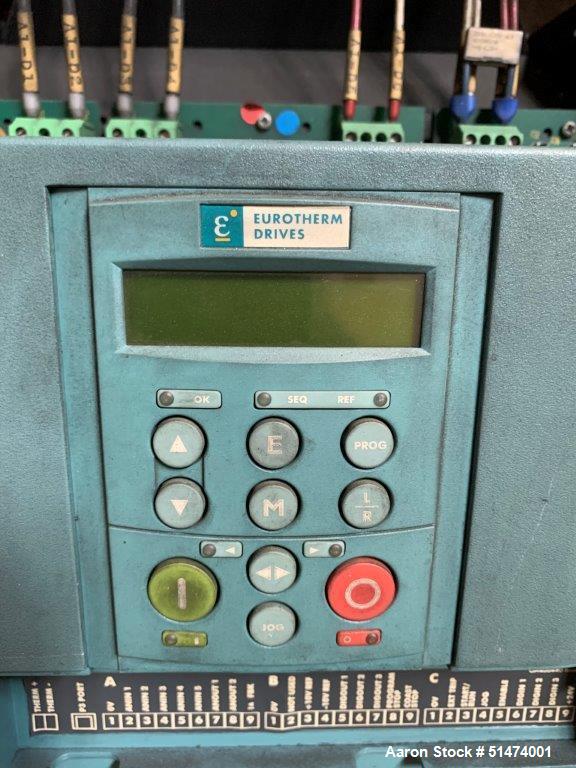

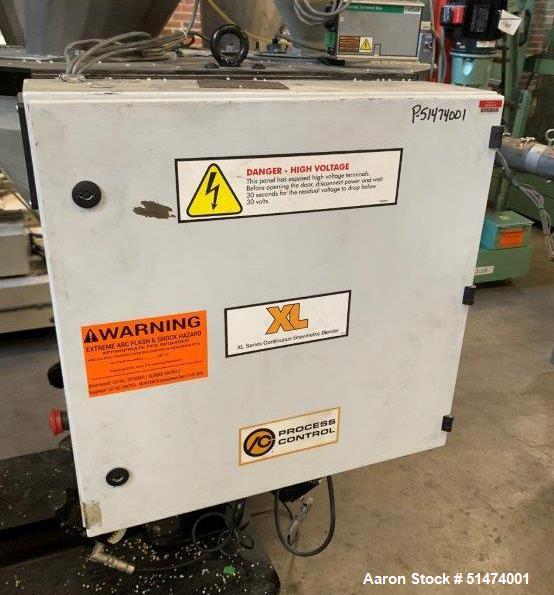

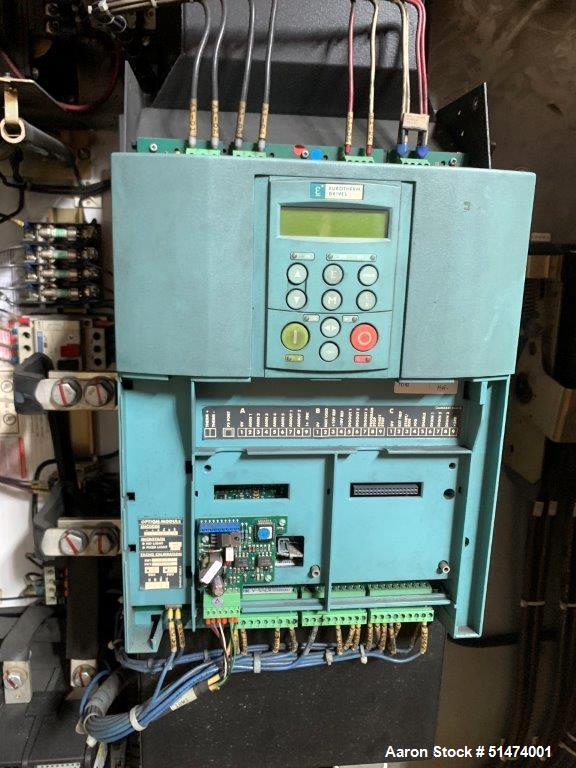

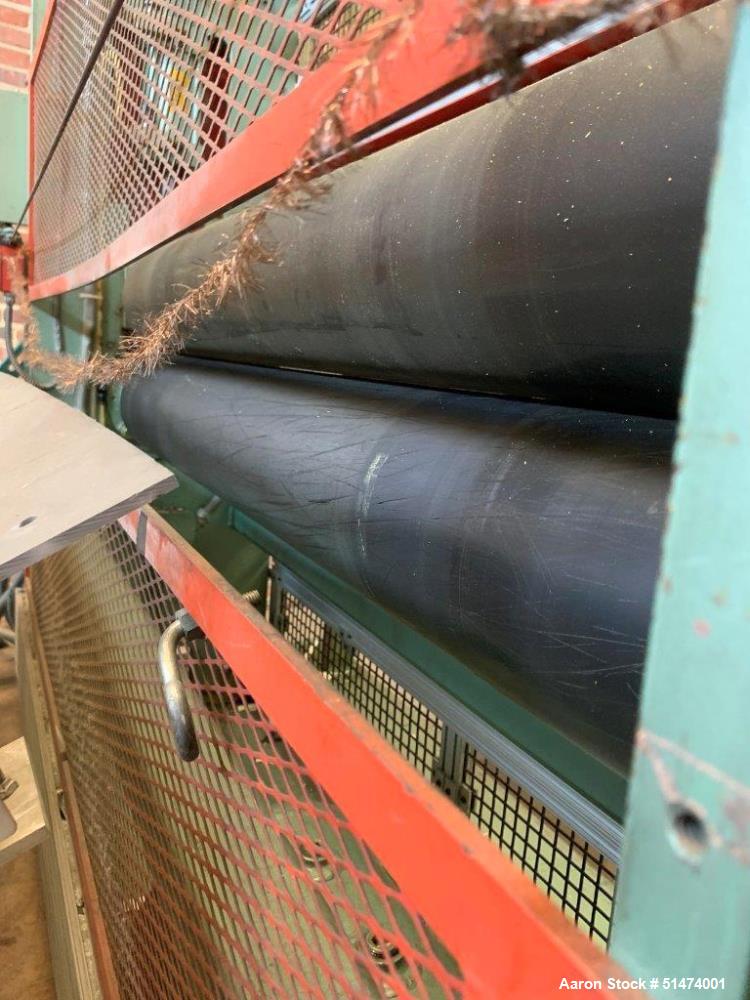

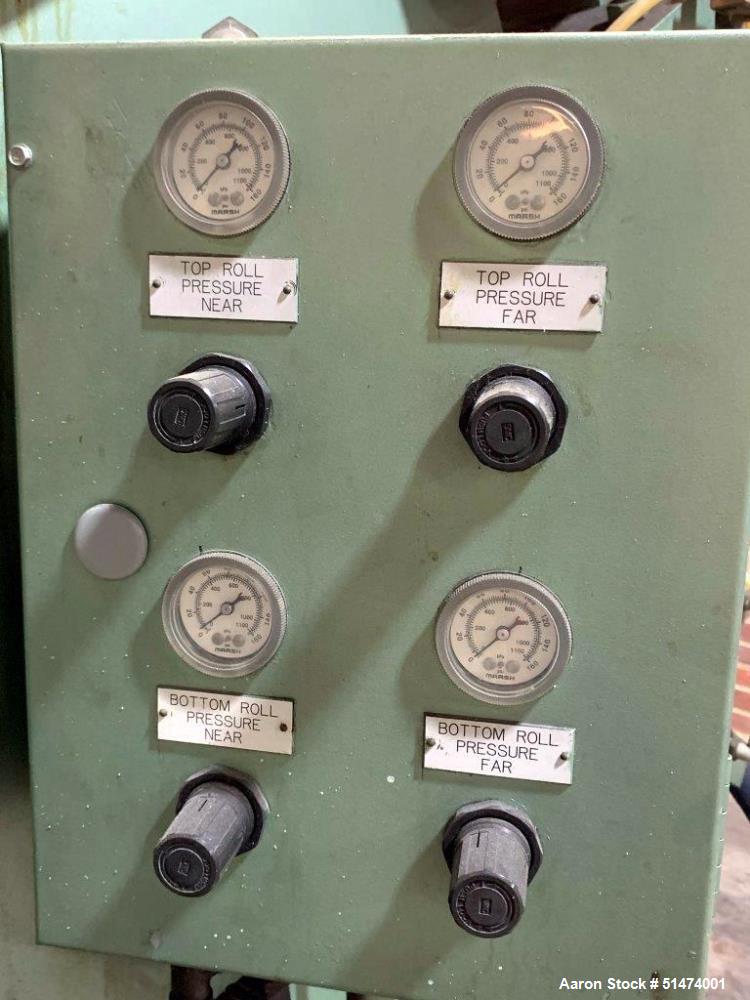

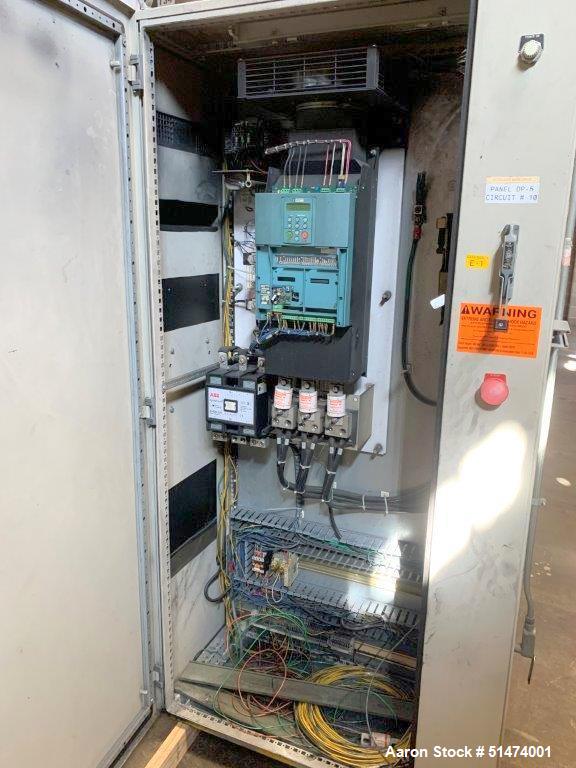

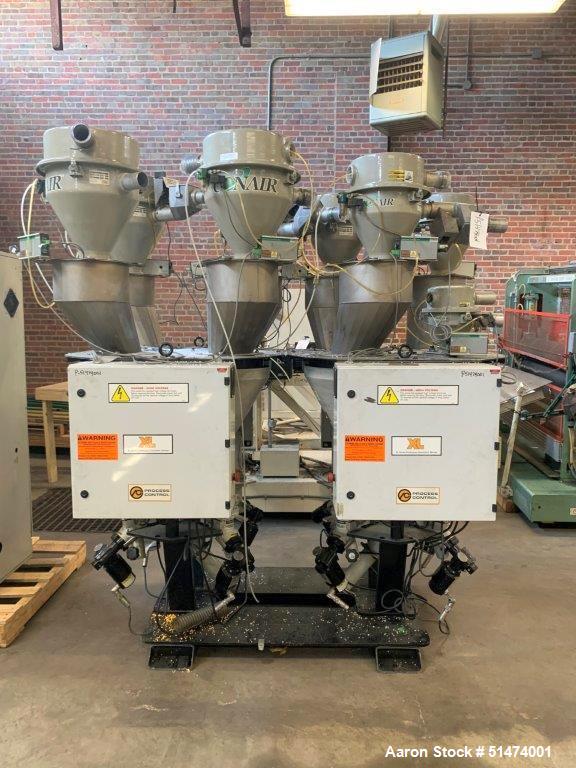

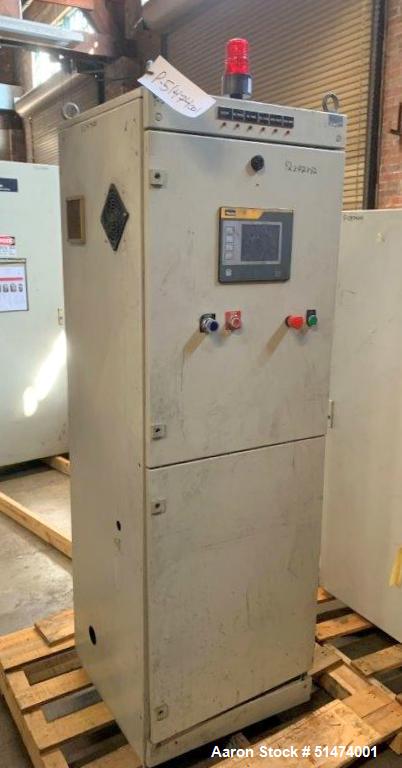

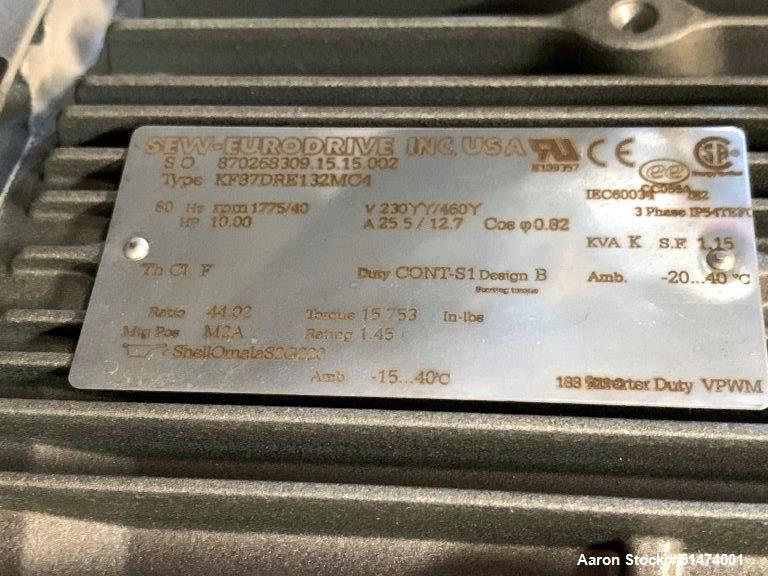

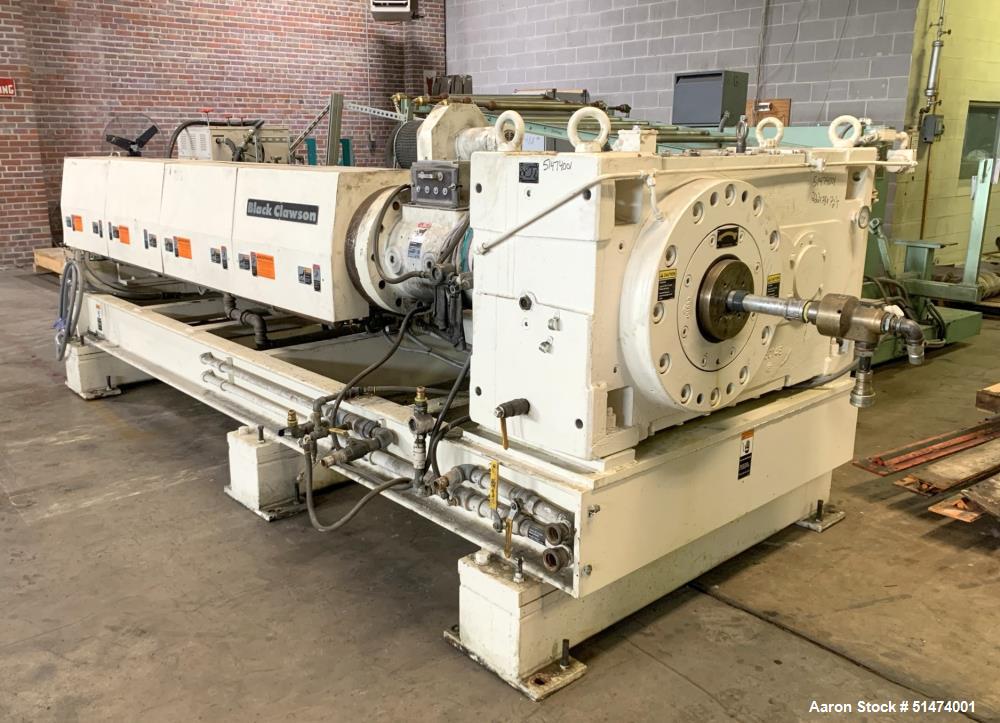

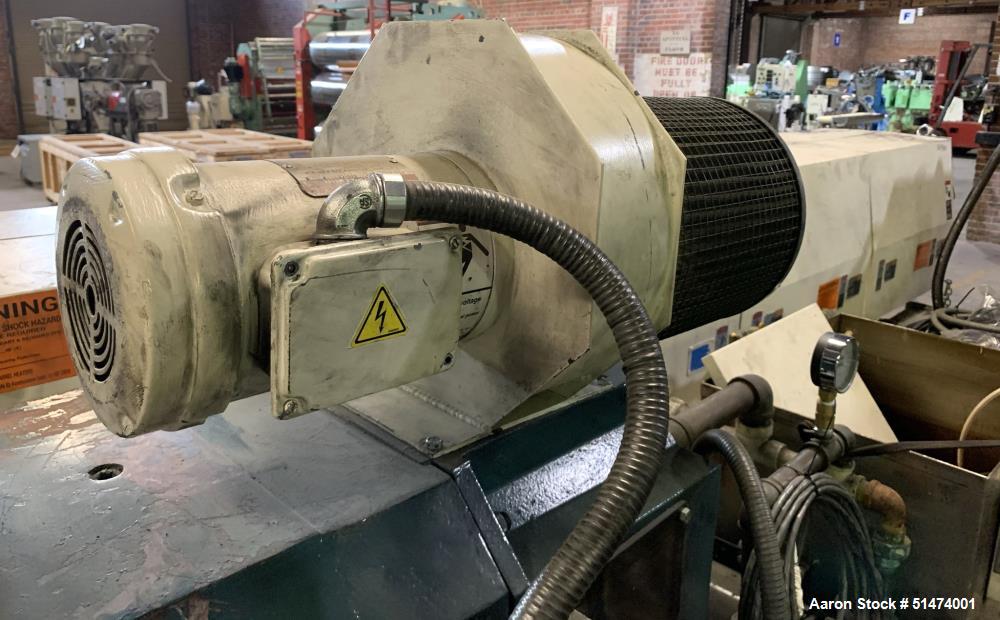

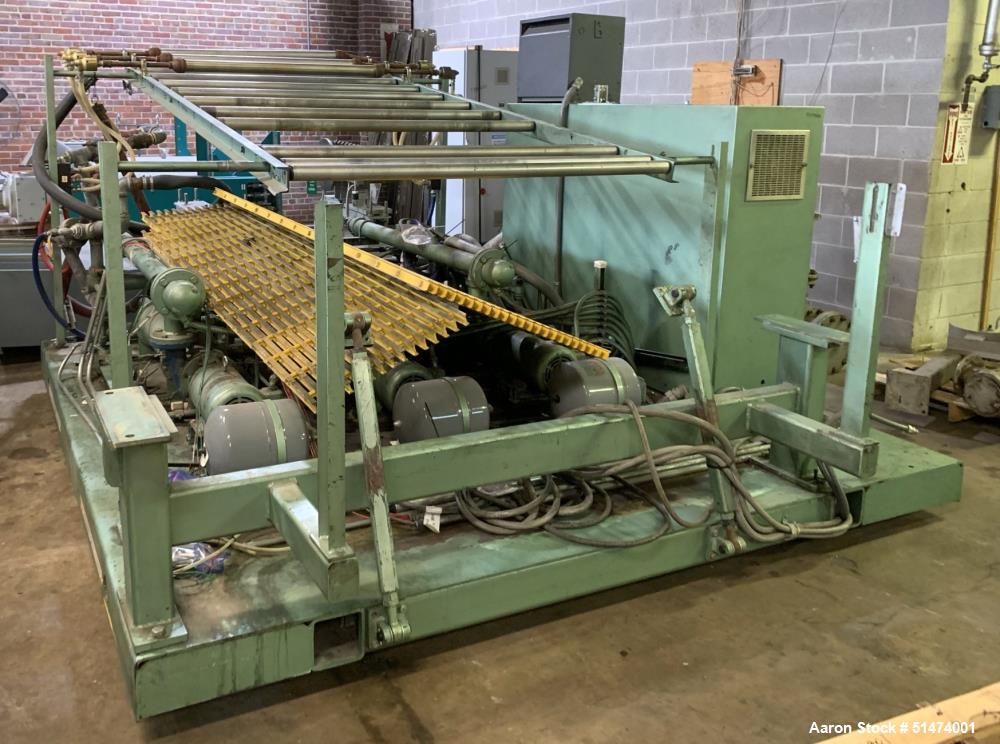

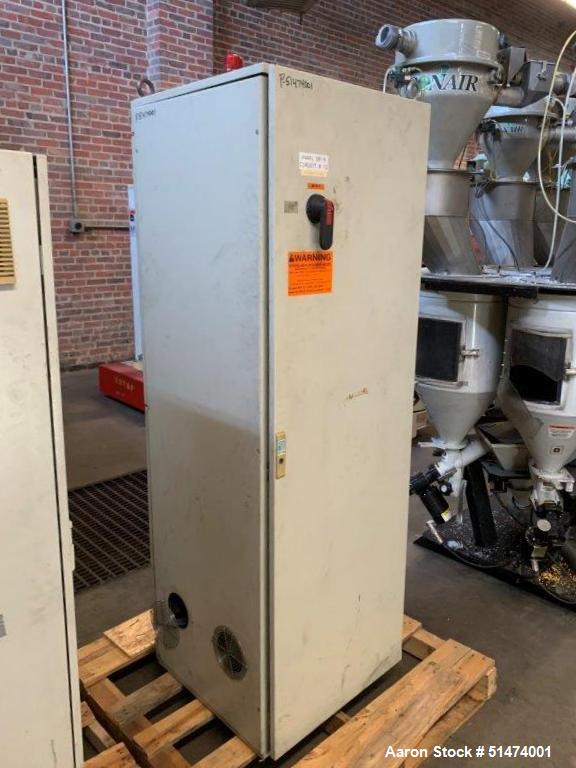

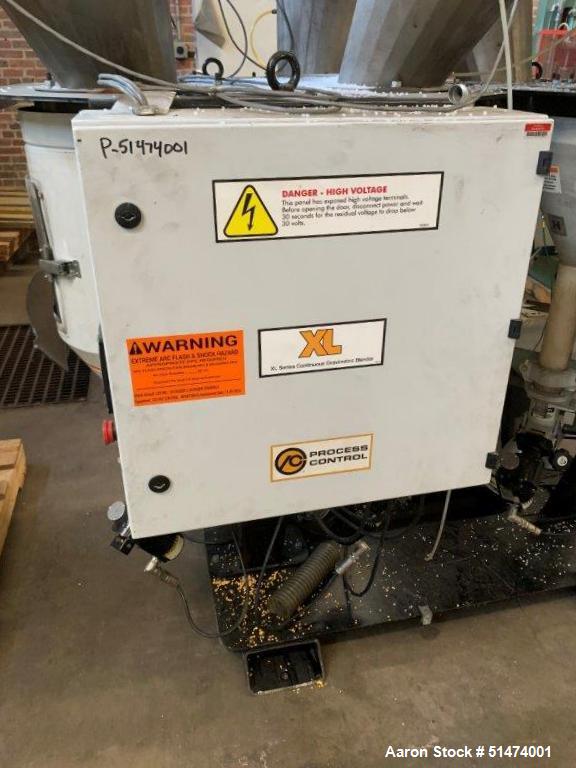

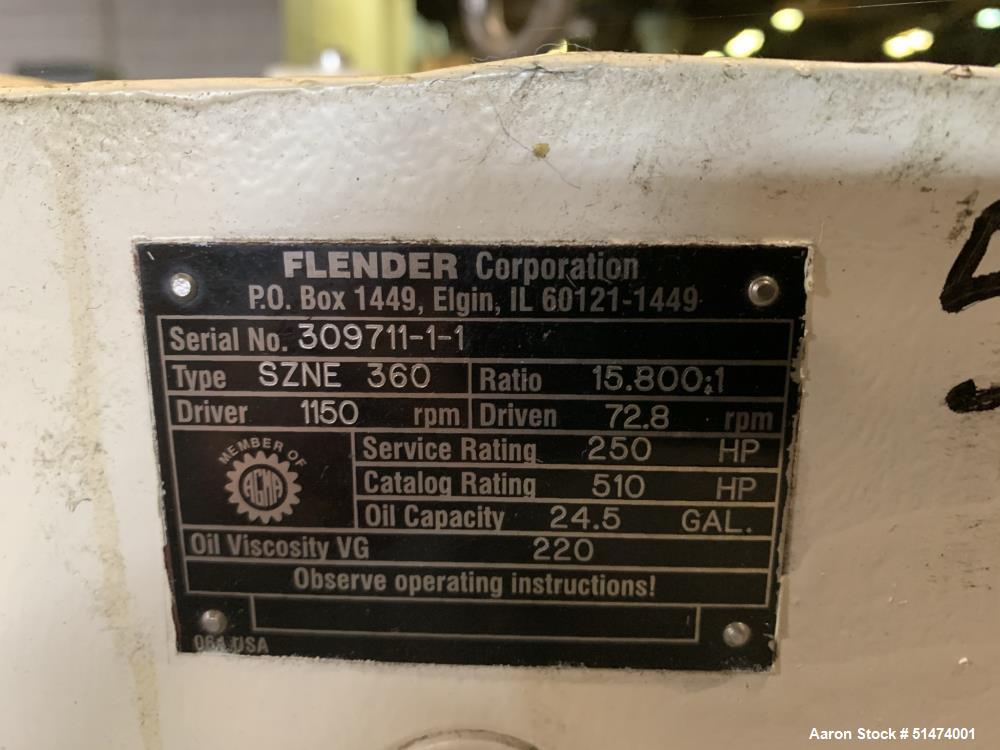

Used- 54" Wide Sheet Line Consisting Of: (1) Black Clawson 6" diameter single screw extruder, model 109011460, approximate 24:1 L/D ratio, electrically heated, water cooled non-vented approximate 5 zone barrel with pump, tank and heat exchanger. Water cooled feed. Driven by a 250hp, 500 volt, 1150/2000 rpm motor thru a Flender gearbox, ratio 15.800 to 1. Approximate 44" centerline height. Serial # 639460, order # L-0139-02. Built 2001. (1) Control panel with Eurotherm drive and PLC panel. Process Control XL Series gravimetric continuous blender feed system with controller. (1) Maag Extrex gear pump, model EX70, serial# 50143230/0020, built 2015. Driven by a 10hp gearmotor, mounted on a stand. (1) Sterling 24KW temperature control unit, model G9016-J1, serial # 33E5597. (1) Davis Standard 3-Roll Stack, model EX-M-PLAR, type upstack, S.O.# 66679, serial# Z-5437, built 2000. (3) Approximate 20 Diameter x 54" wide pneumatically adjustable chrome plated cored rolls. Rolls chain driven by a 2hp gear motor. Includes an operator panel. (1) Cooling skid with approximate 10 long roller cooling conveyor, pumps and heat exchangers, and a control panel. (1) Davis Standard pull roll stand with (2) approximate 8 diameter x 54" wide pneumatically adjustable rubber rolls, driven by a 3hp gear motor, S.O.# 09278, serial # 66679, built 1999. (1) Chicago Electric rewind roll stand, approximate 46" wide with tensioning rolls, operator panel and control panel.
