Used-Battenfeld Co-Extrusion Sheet Line, capacity PP 260 kg/h, PS 290 kg/h, overhauled in 2010. Comprised of (1) Battenfeld ...

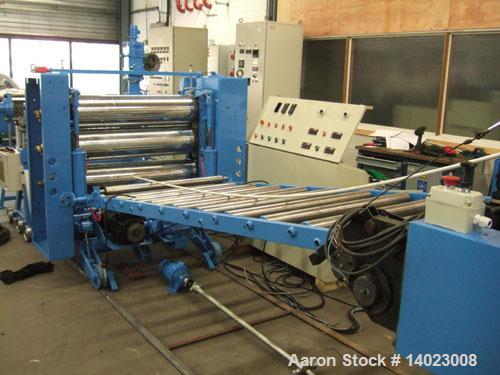

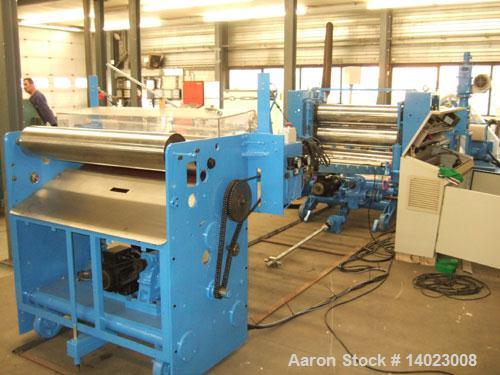

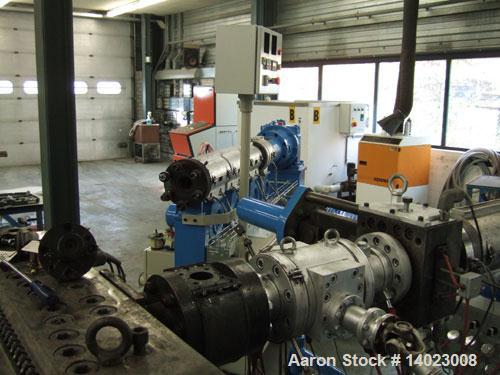

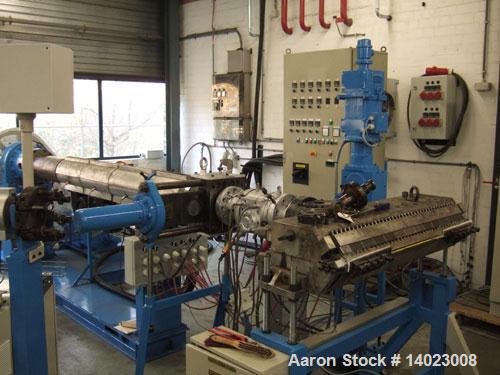

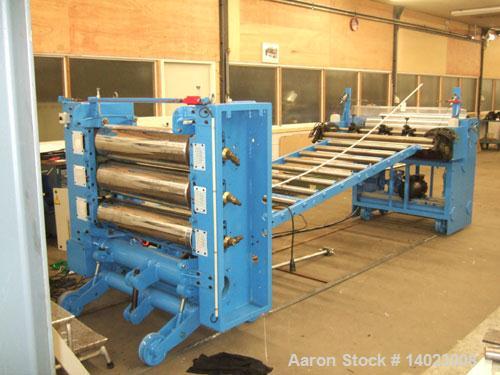

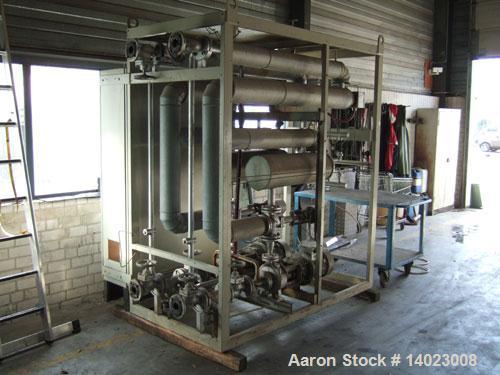

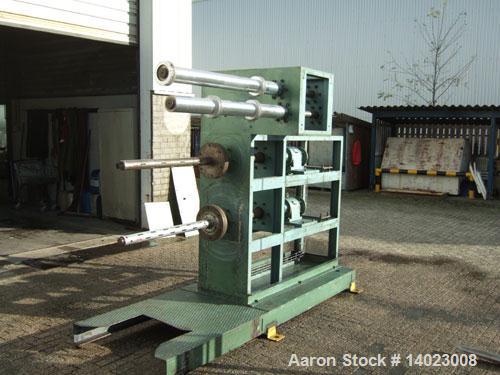

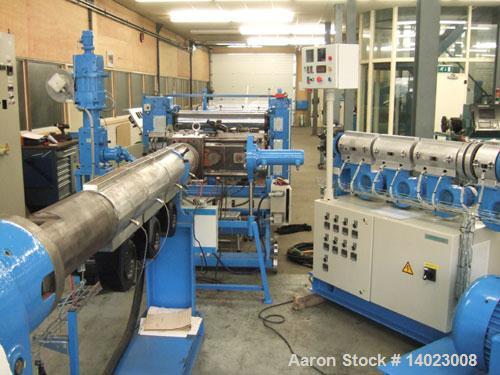

Used-Battenfeld Co-Extrusion Sheet Line, capacity PP 260 kg/h, PS 290 kg/h, overhauled in 2010. Comprised of (1) Battenfeld 1-75-30B single screw extruder, screw diameter 2.95 (75 mm), L/D 30, 6 heating zones, 89 hp/67 kW DC drive, 50 hz. Overhauled with new control panel. (1) Hydraulic screen changer with Maag melt pump. (1) Battenfeld 1-60-24 co-extruder, screw diameter 2.36" (60 mm), L/D 24, 40 hp/30 kW DC drive, 4 heating zones. (1) Hydraulic screen changer. (1) Samafor die with co-extrusion block width 39" (990 mm), with side blocks, opening 0-0.079" (0-2 mm). (1) Calander, 2 rolls with 10.2" (260 mm) diameter and 40.2" (1020 mm) length, 9.85' (3000 mm) cooling track. (1) Haul off and edge cutter, width 42.5" (1080 mm). (1) Double winder, max width 31.5" (800 mm), max diameter 31.5" (800 mm). (1) Htt CPS 09-1998 thermo regulator.
