Stock #
42314001

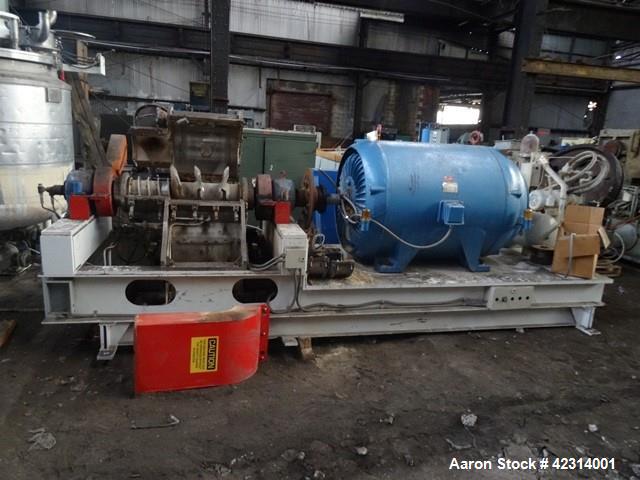

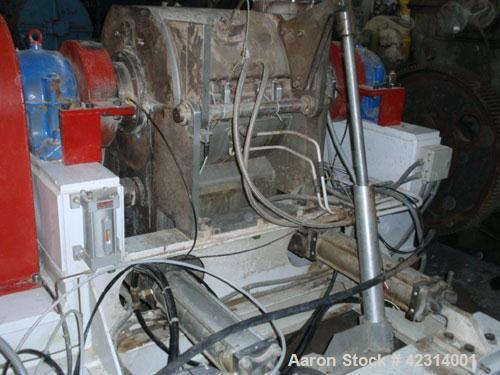

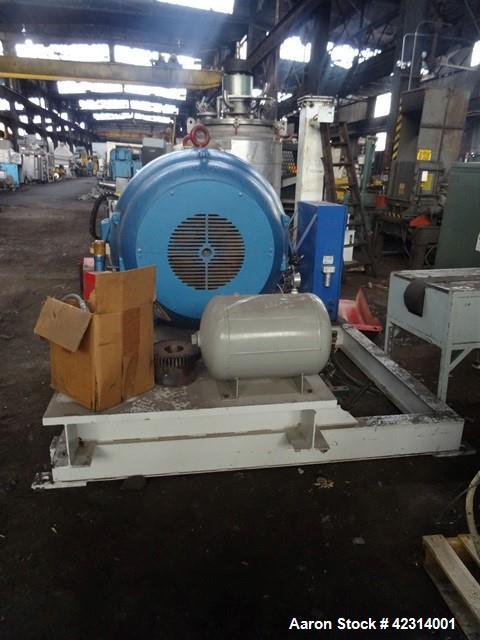

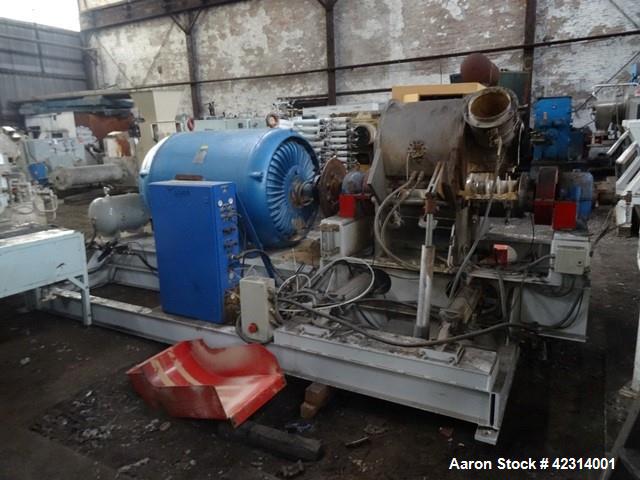

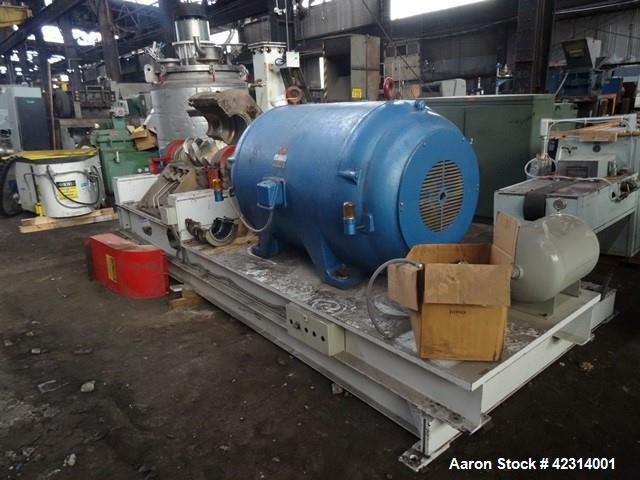

Used Draiswerke Inc Gelimat Thermokinetic Mixing/Compounding Machine, Model G-100S, 316 Stainless Steel. Nominal volume 100 liter, batch size 70 pounds. Jacketed clamshell design chamber, cored mixing paddle. Top feed, bottom discharge with door. Includes 1000 hp, 4160 volt, 1195 rpm, XP motor, control panel with safetronics. Base mounted.
Used Equipment Facts About This Machine
Manufacturer Information:
- Brand: Draiswerke Inc.
- Model: G-100S
- Type: Thermokinetic Mixing / Compounding Machine
Description:
This used Draiswerke Gelimat G-100S Thermokinetic Mixing/Compounding Machine is a high-performance, rapid mixing system, designed for efficient compounding and homogenization of polymers, powders, and industrial materials.
With a nominal volume of 100 liters and batch size capacity of 70 pounds, this system utilizes thermokinetic energy for fast, uniform mixing and dispersion.

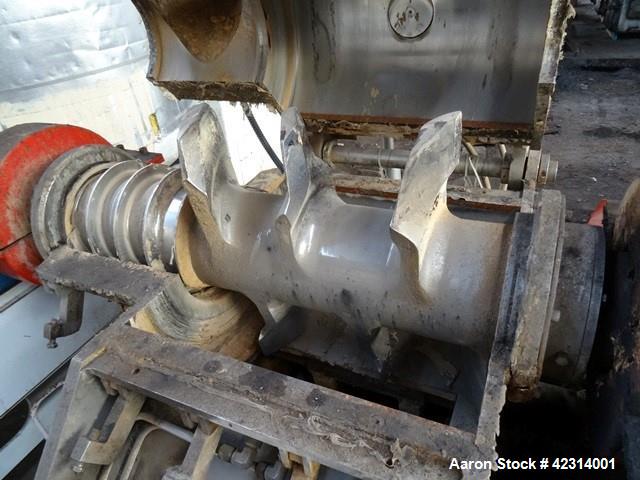

The jacketed clamshell chamber ensures precise temperature control, while the cored mixing paddle provides efficient material movement and blending.
The system features:

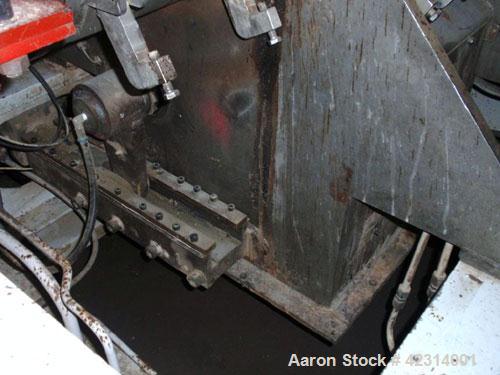

- Top Feed & Bottom Discharge with Door for easy loading and unloading

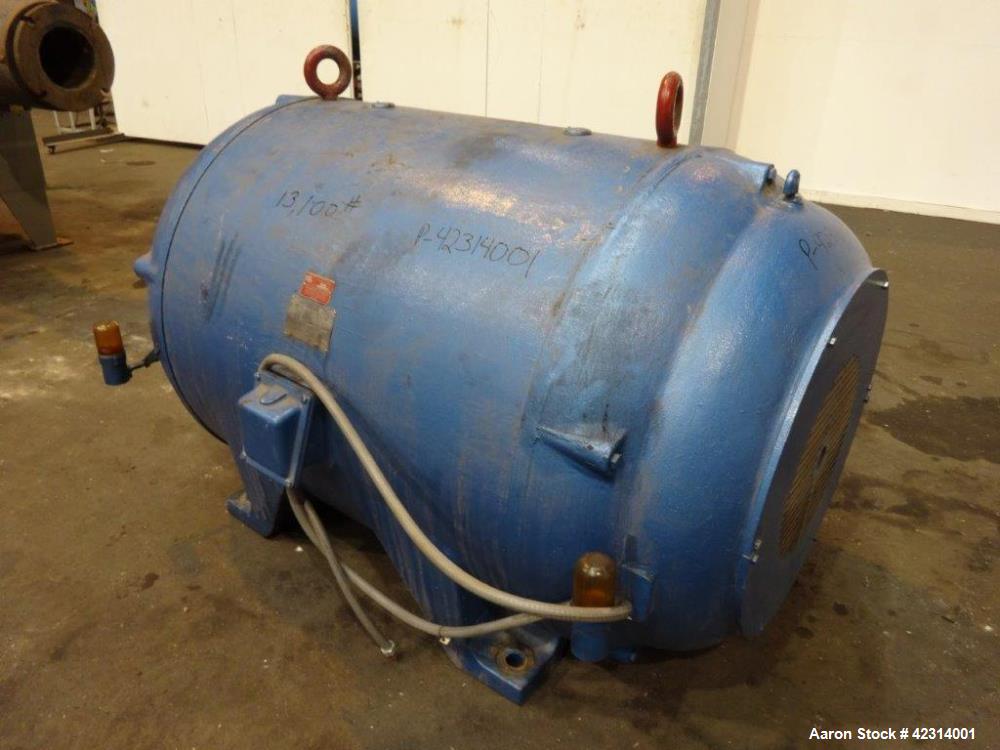

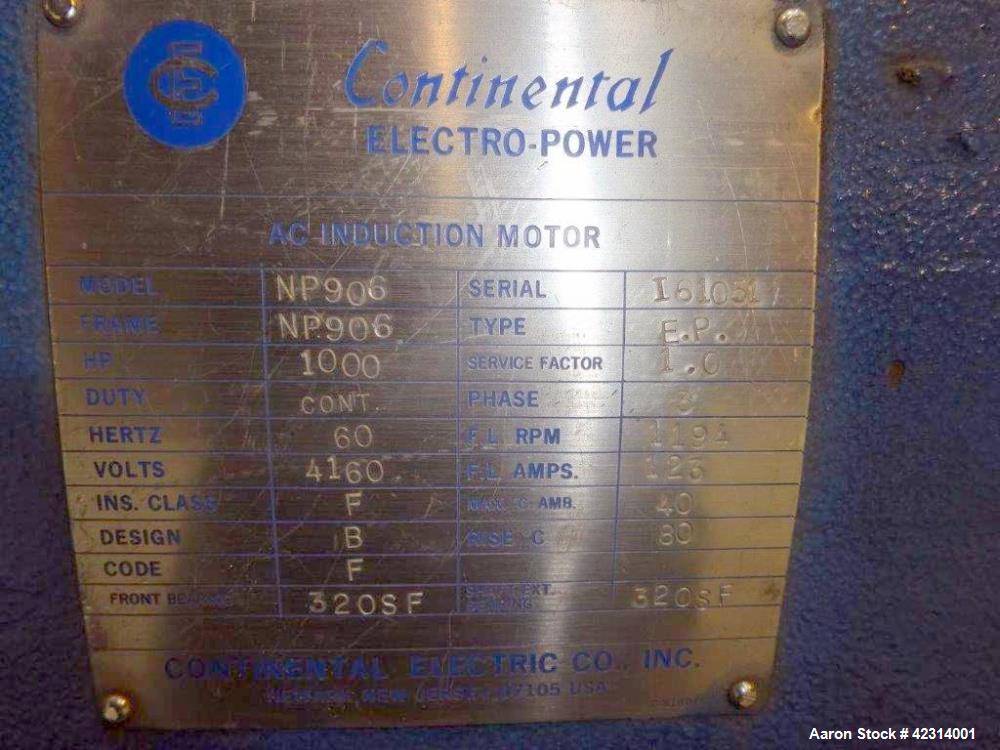

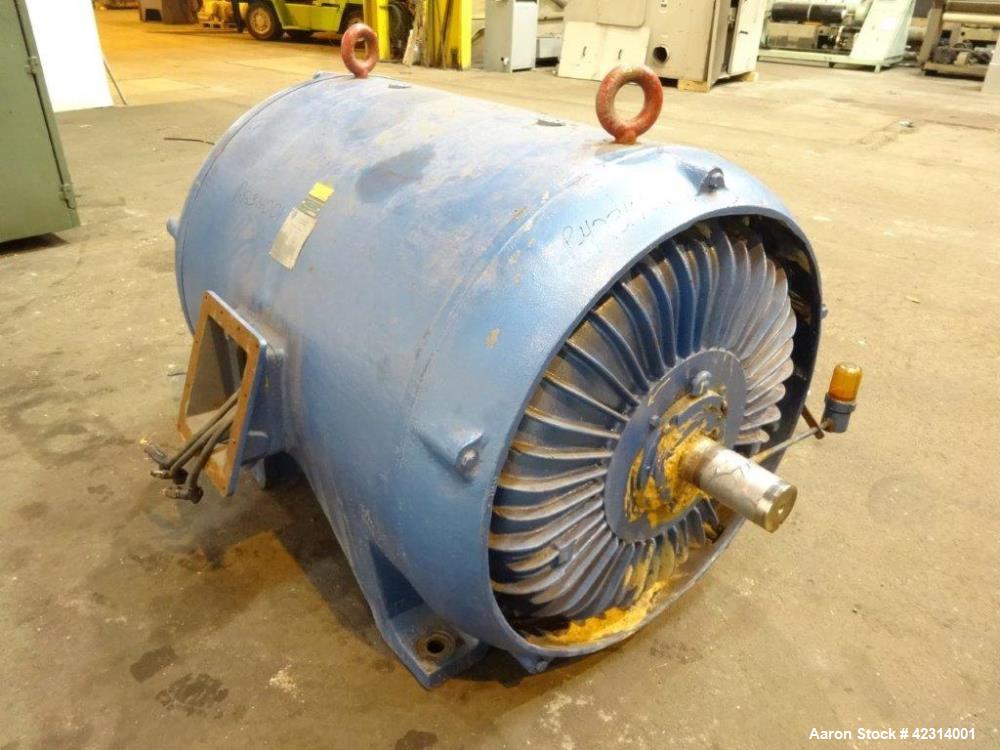

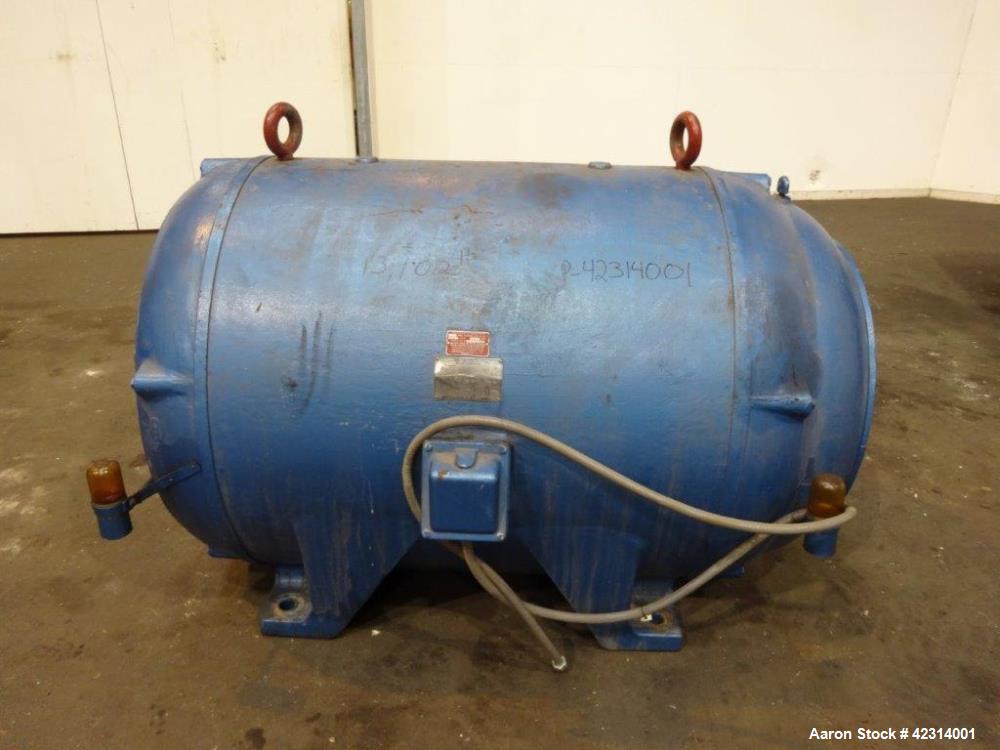

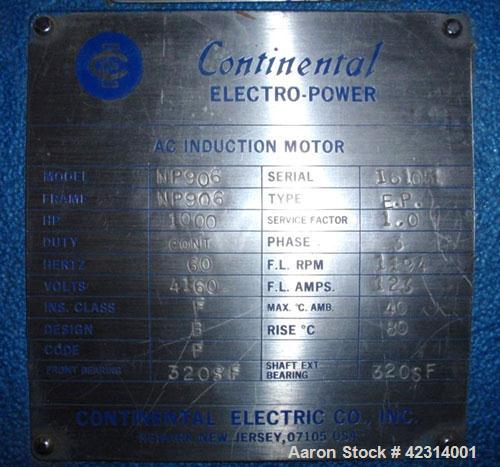

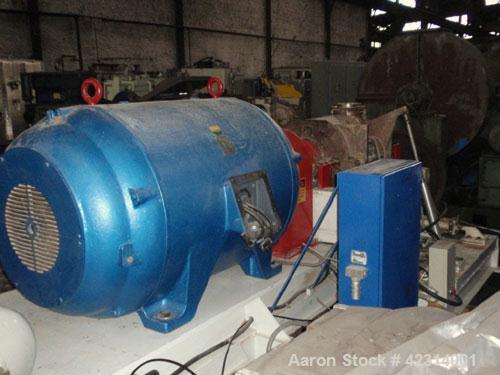

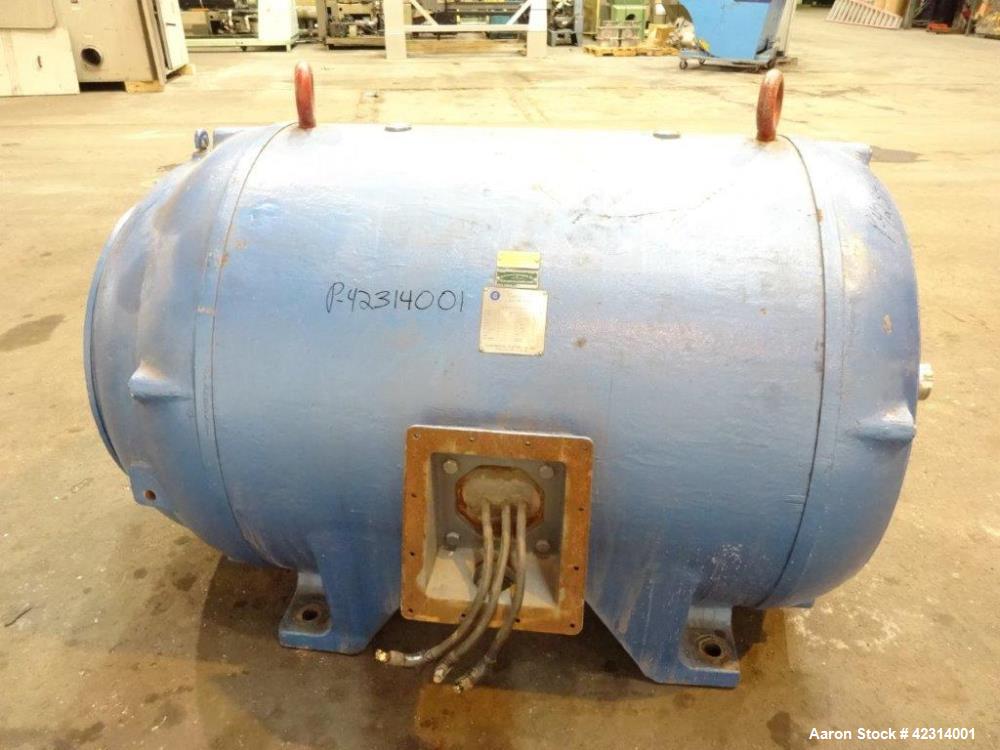

- 1000 HP, 4160V, 1195 RPM Explosion-Proof (XP) Motor for high-speed, intensive mixing

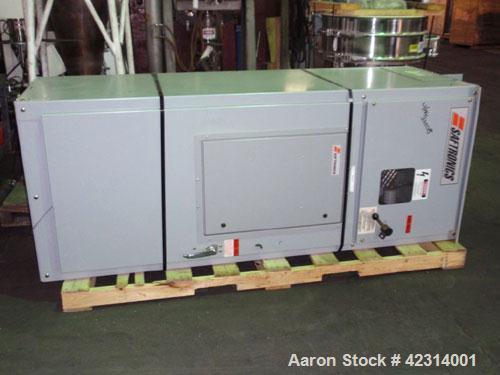

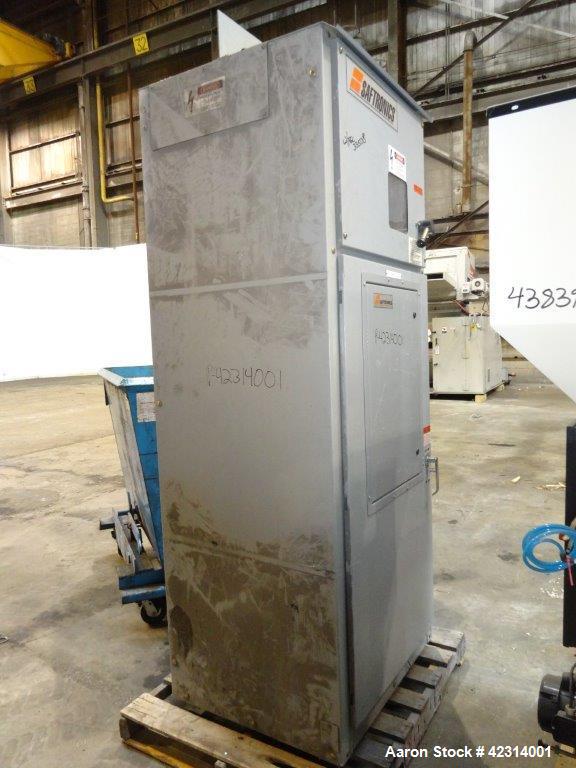

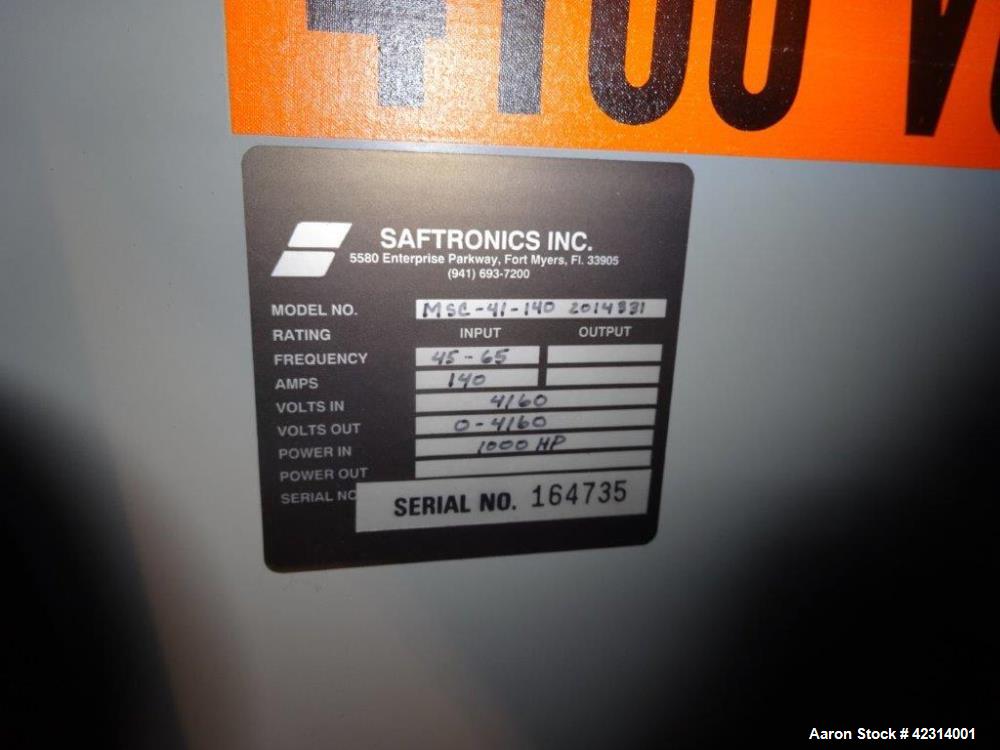

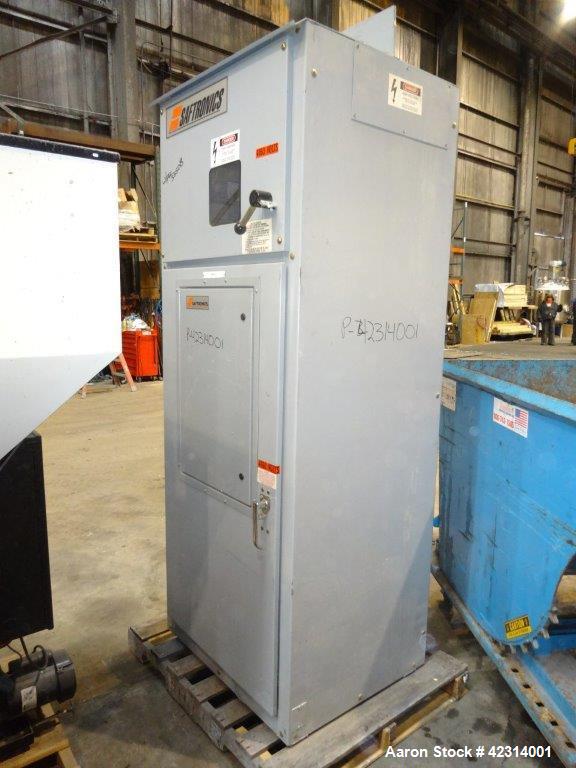

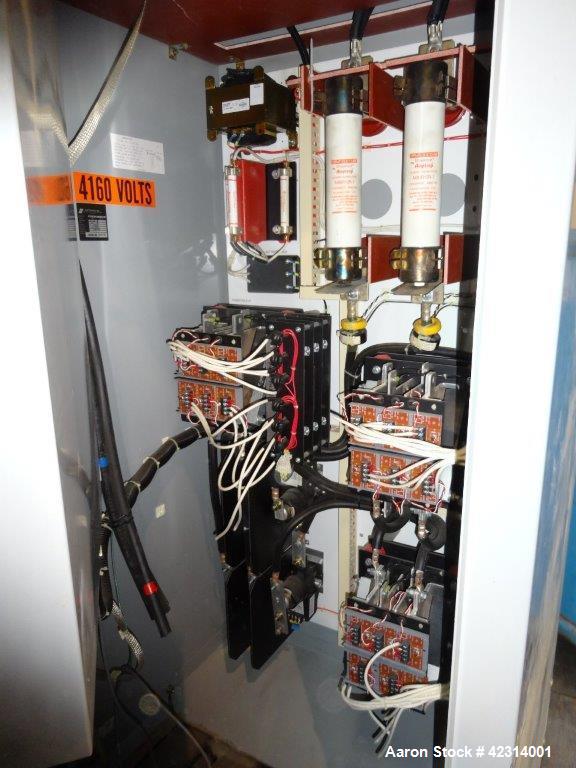

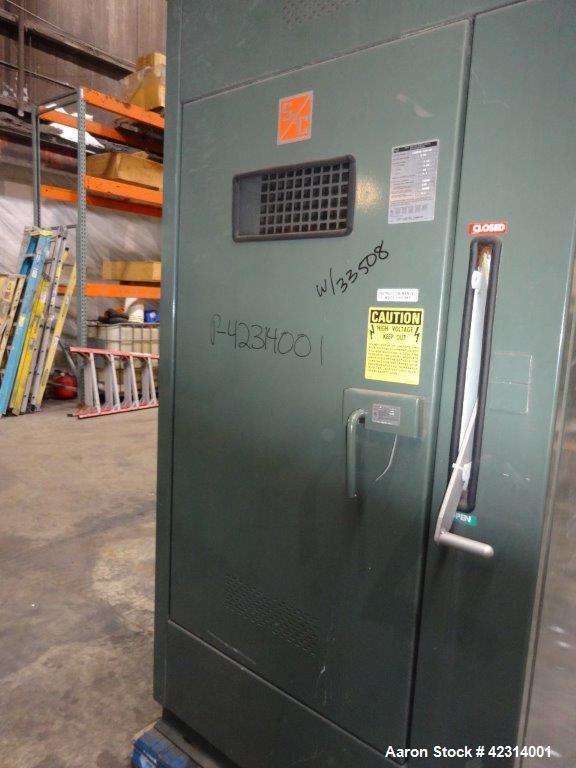

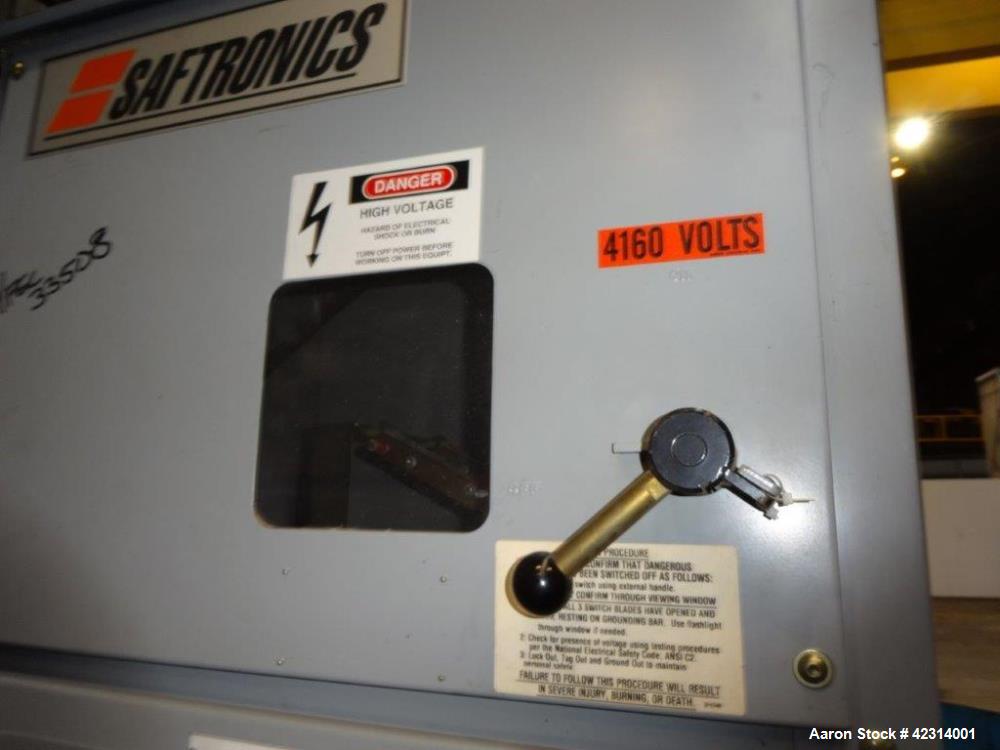

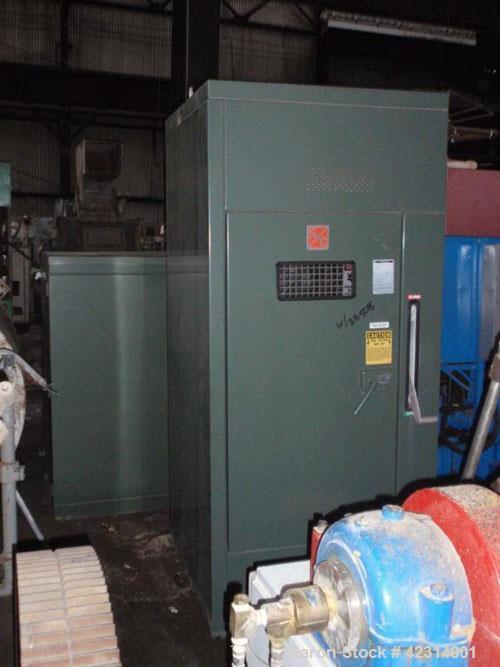

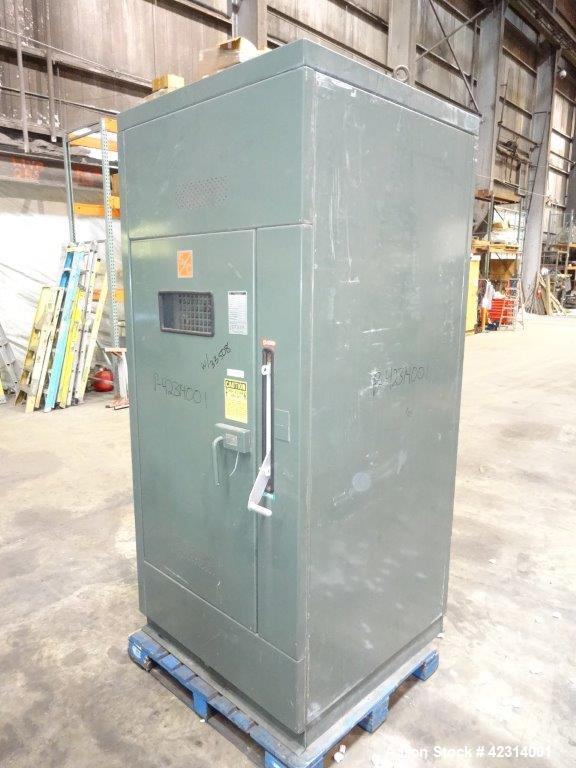

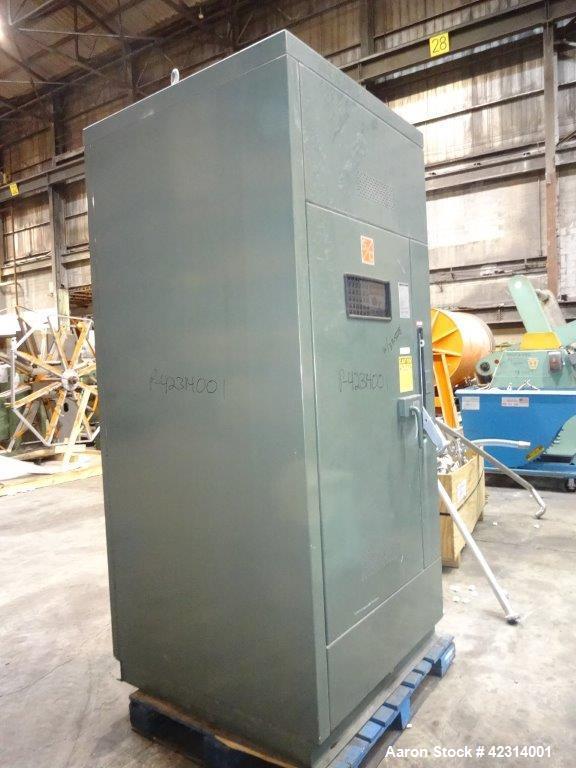

- Control Panel with Safetronics for precise operation and safety monitoring
- Base Mounted Design for stability and durability
Specifications:
- Machine Type: Thermokinetic Mixer / Compounding Machine
- Nominal Volume: 100 Liters
- Batch Size: 70 Pounds
- Mixing Chamber: Jacketed Clamshell Design

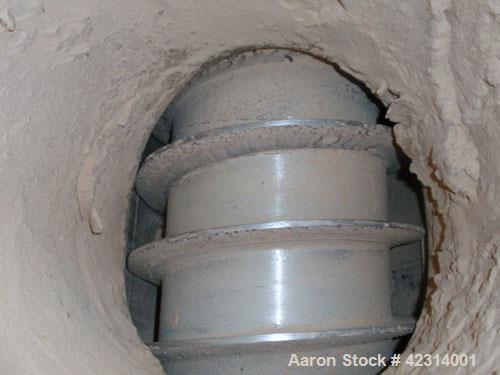

- Mixing Paddle: Cored for Efficient Blending
- Feed System: Top Feed
- Discharge System: Bottom Discharge with Door
- Motor: 1000 HP, 4160V, 1195 RPM, Explosion-Proof (XP)
- Control Panel: Safetronics-Controlled
- Mounting: Base Mounted
Applications:
- Plastic & Polymer Processing – Compounding of thermoplastics, masterbatches, and additives
- Chemical Processing – Homogenization of industrial powders, resins, and adhesives
- Pharmaceutical & Biotech – Precision mixing of powdered formulations and excipients
- Food & Nutraceuticals – High-speed blending of food-grade powders and supplements
- Composites & Specialty Materials – Uniform dispersion of fillers, fibers, and chemical additives
What Products Would This Be Used For?
- Plastic compounding and resin formulations
- Polymer and masterbatch processing
- High-intensity powder mixing for industrial applications
- Food and pharmaceutical powder processing
- High-shear blending of specialty materials
