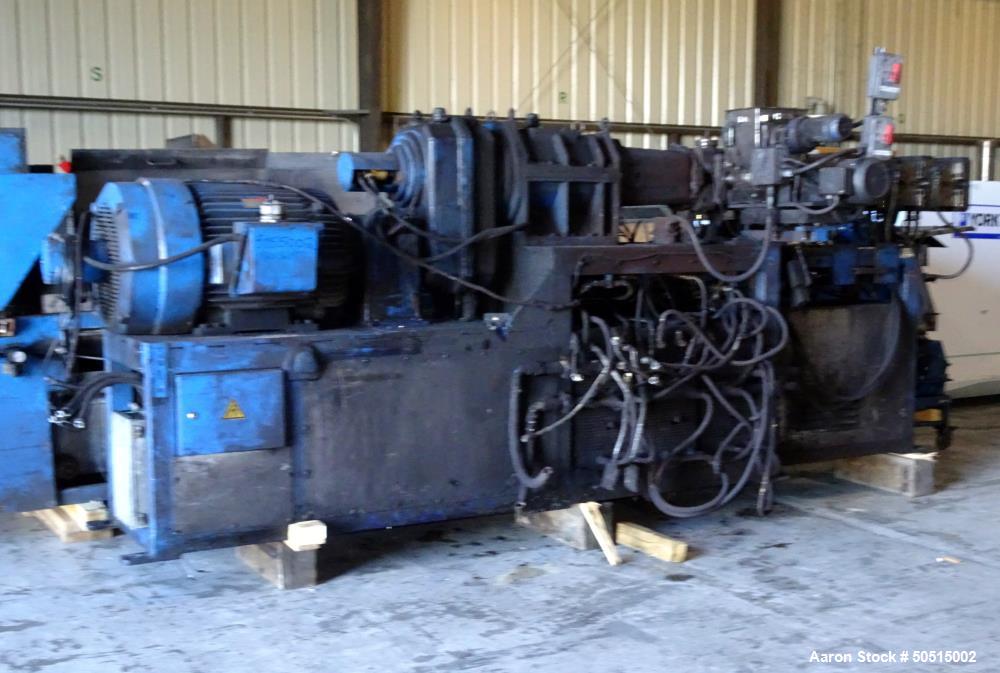

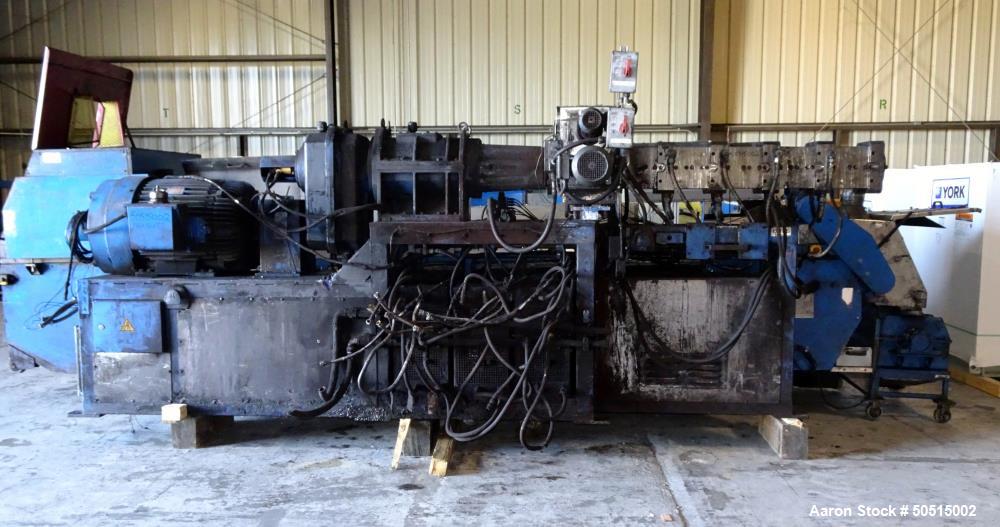

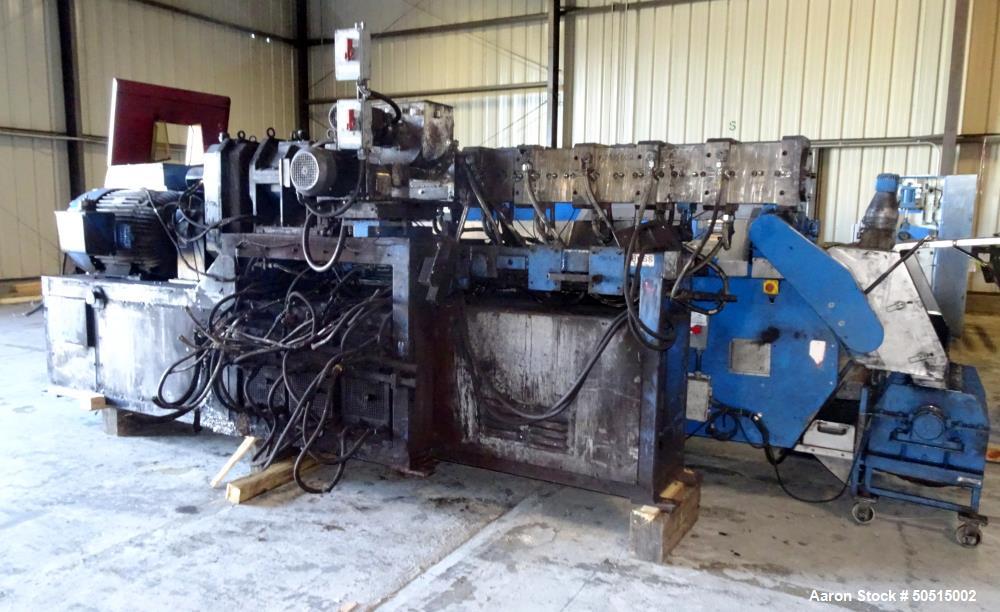

Used- Buss Ko-Kneader Extruder, Model TCS 100-16 D

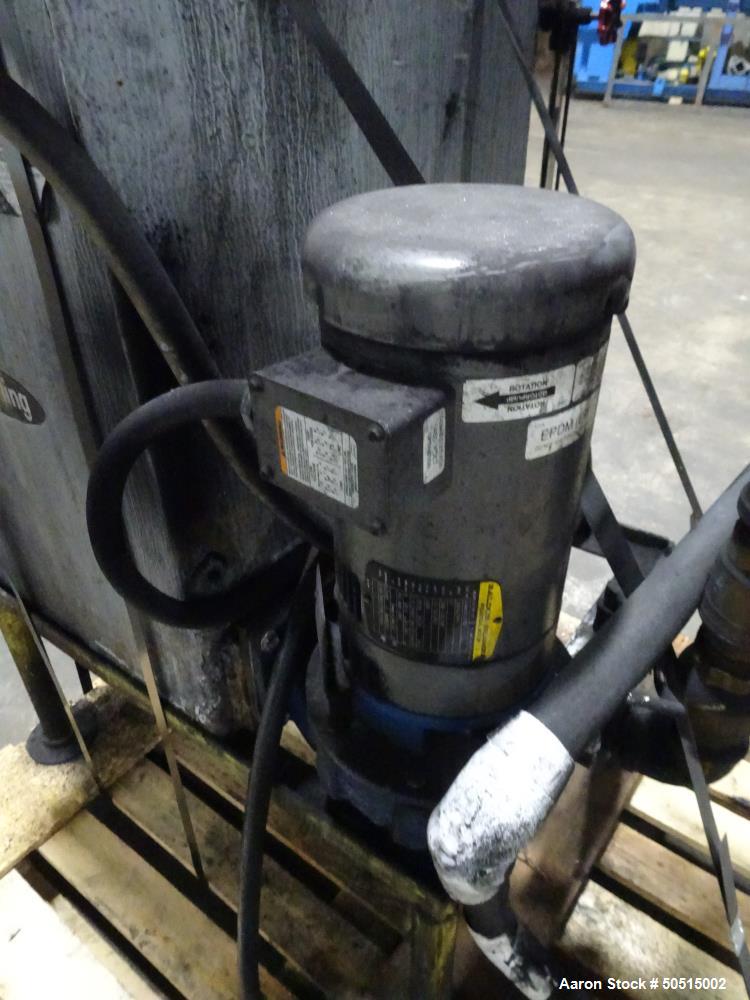

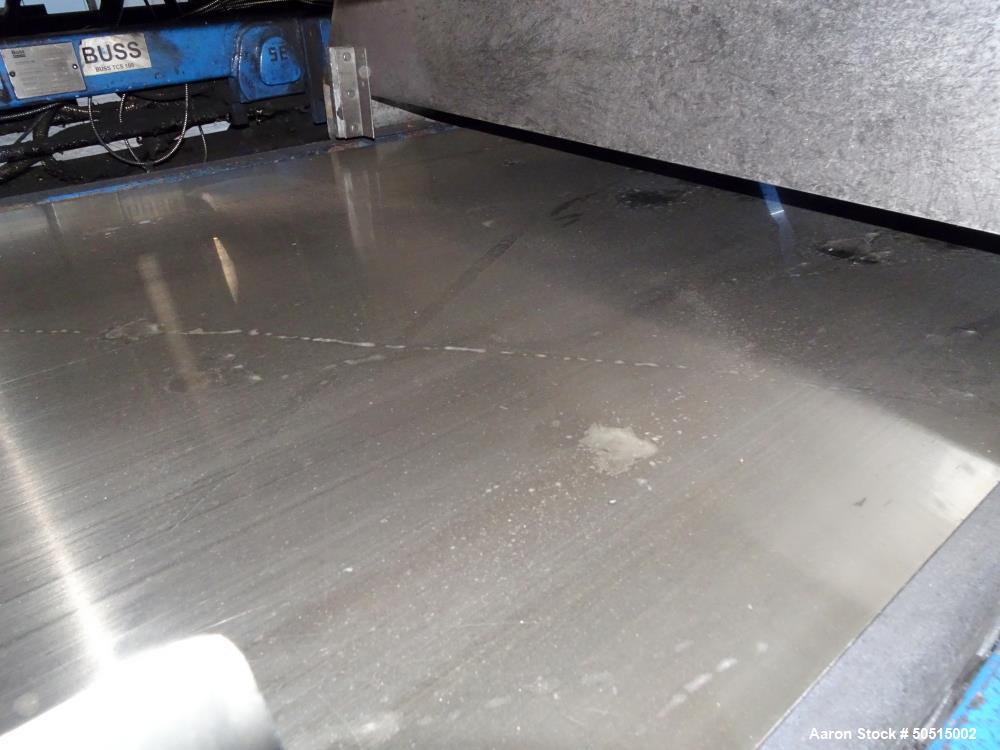

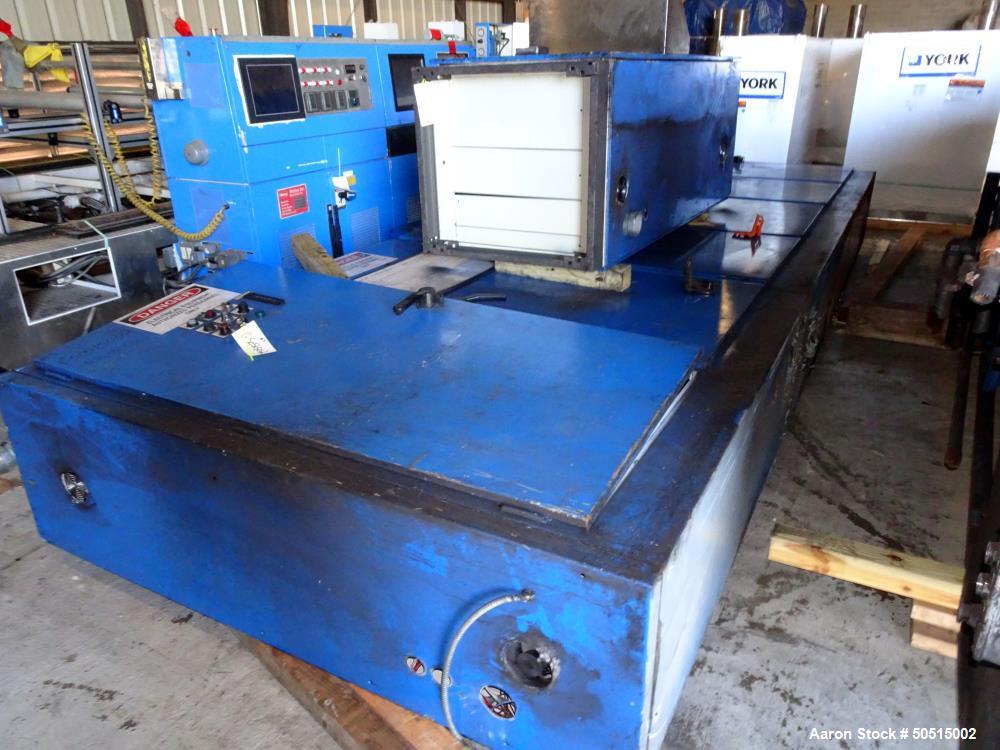

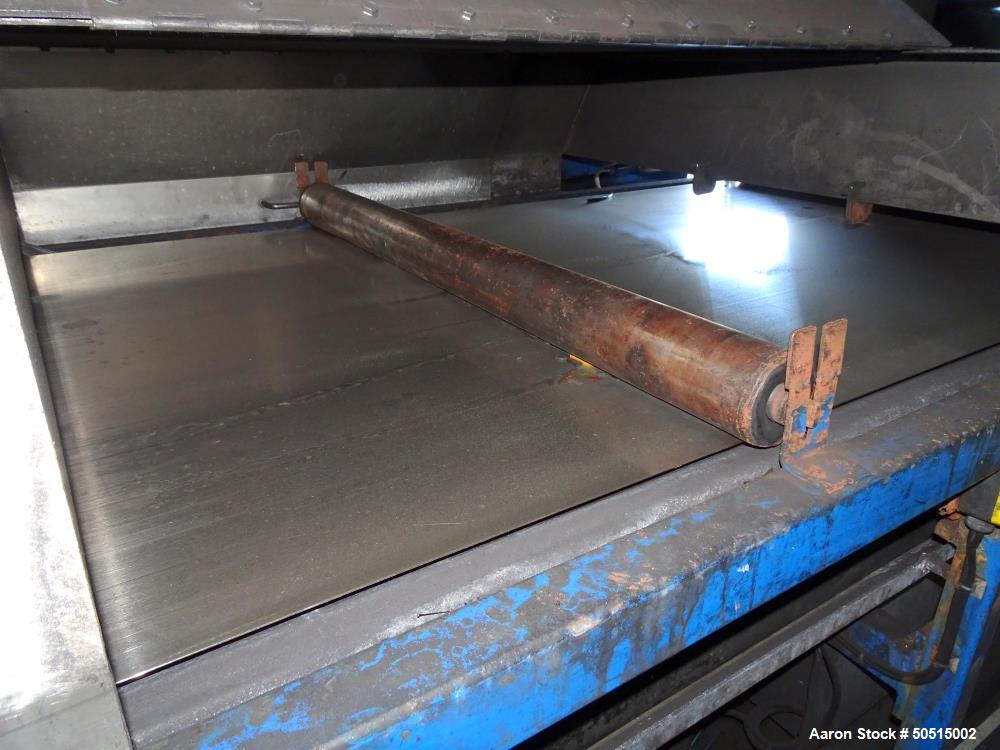

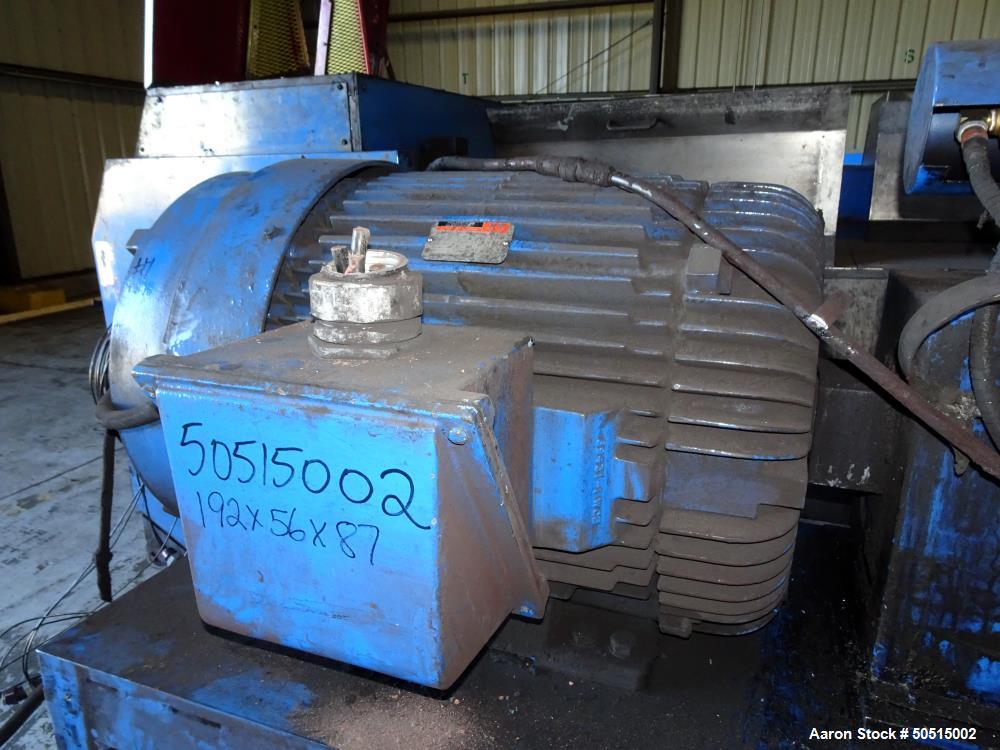

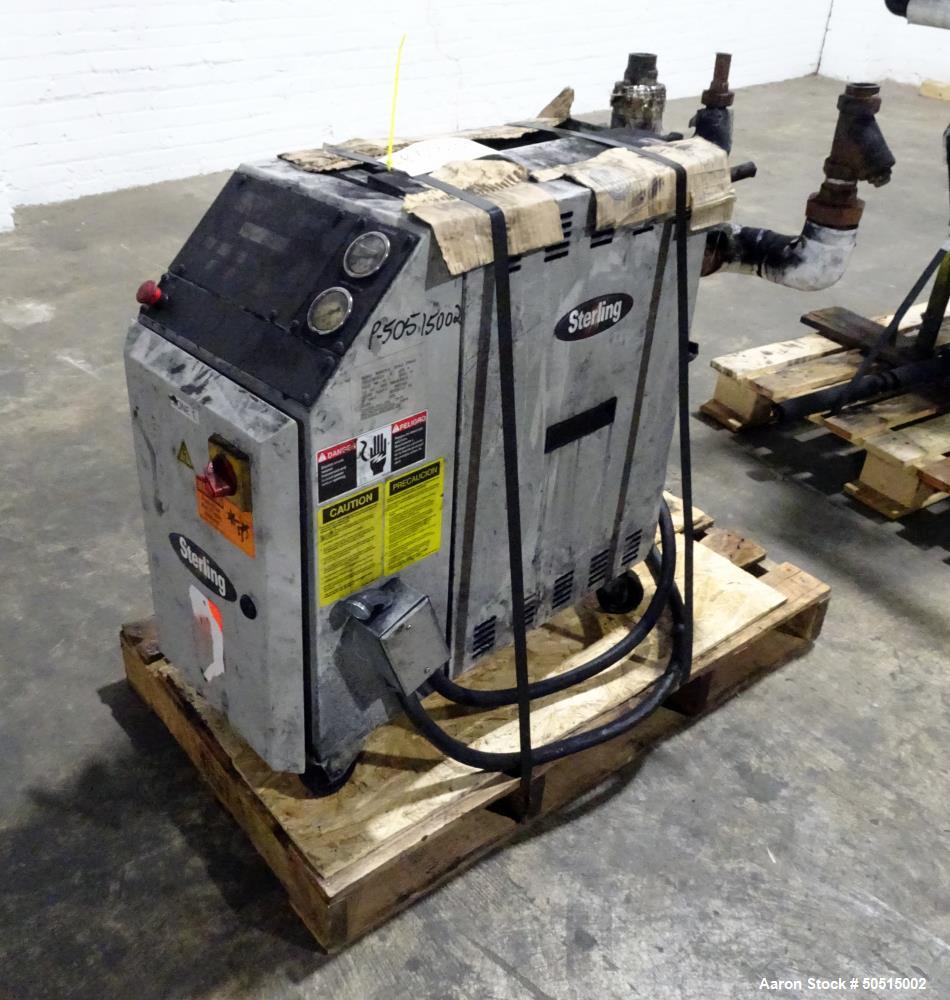

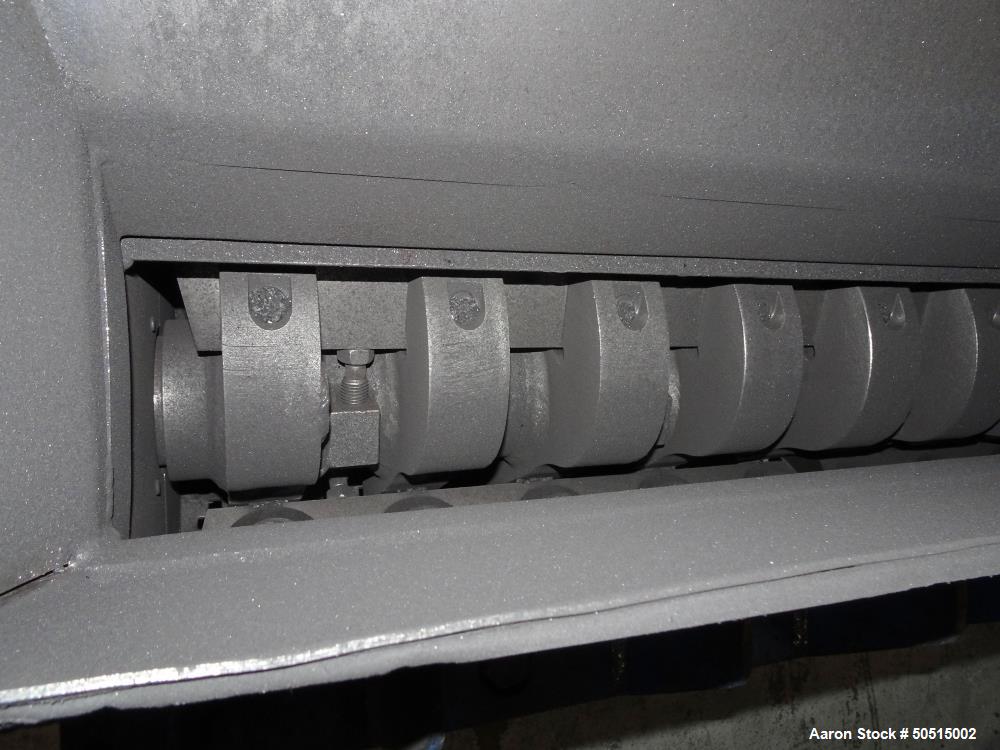

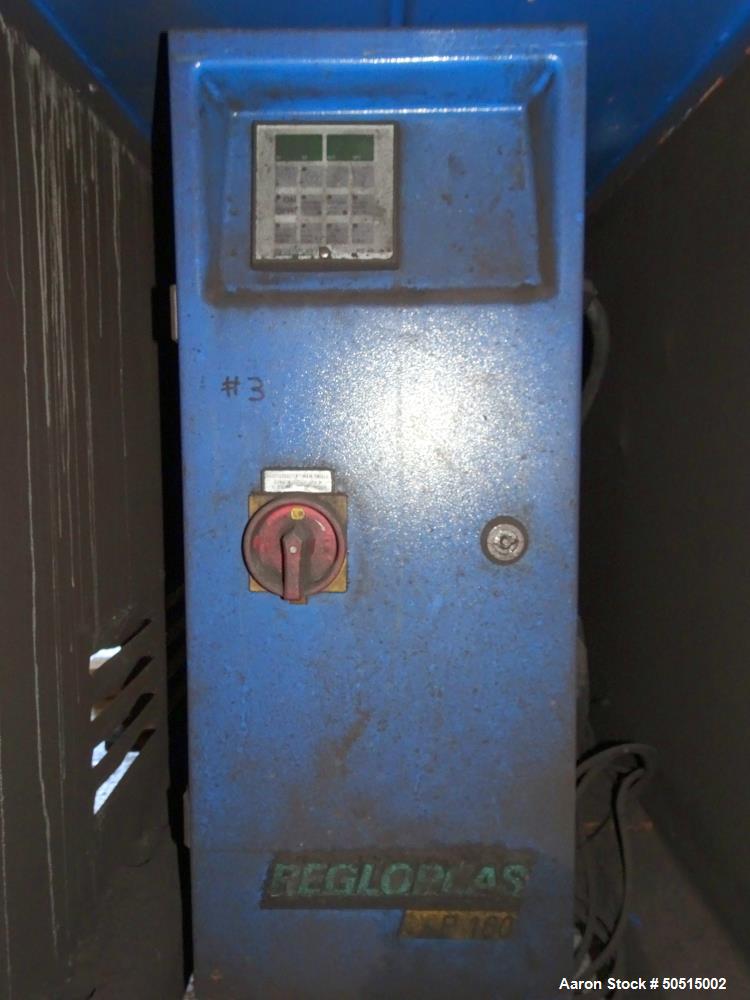

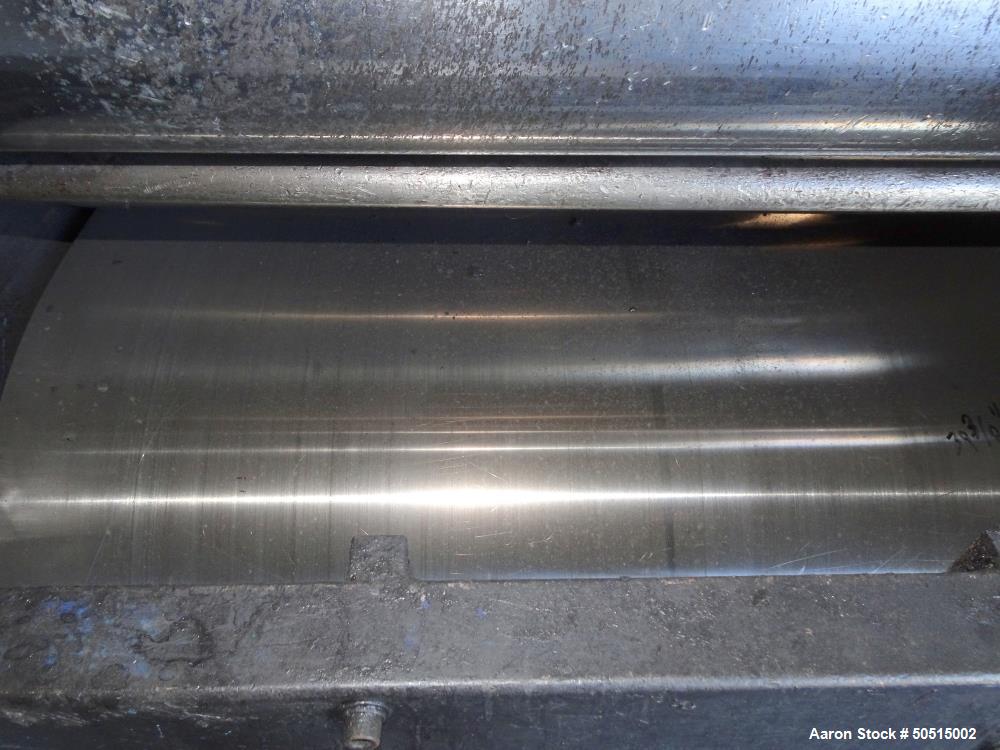

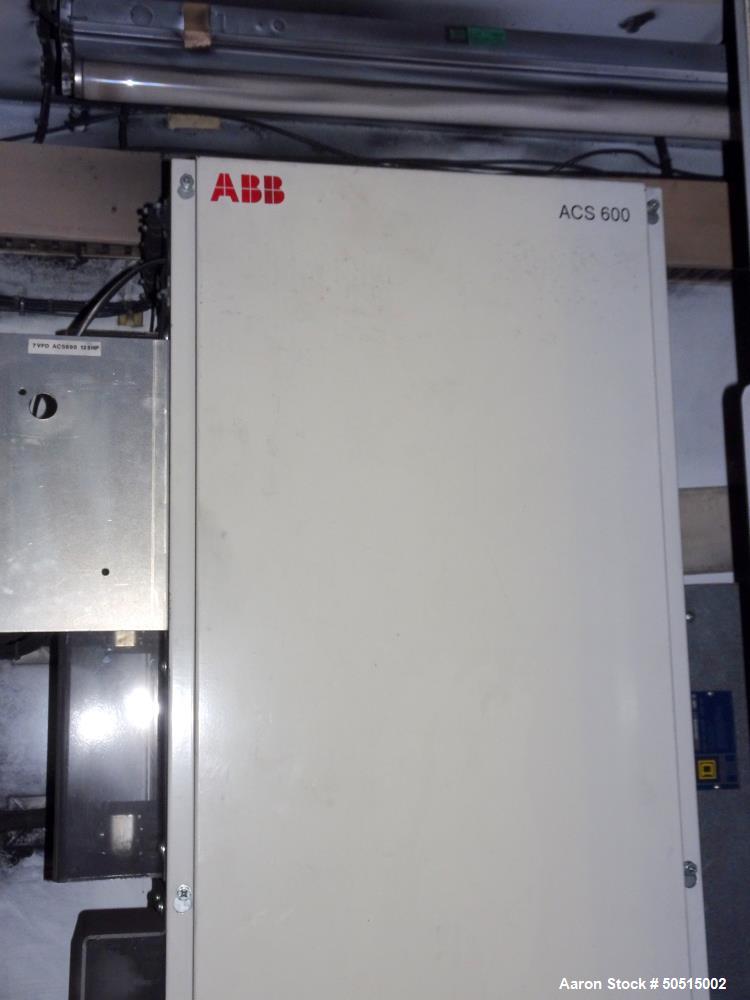

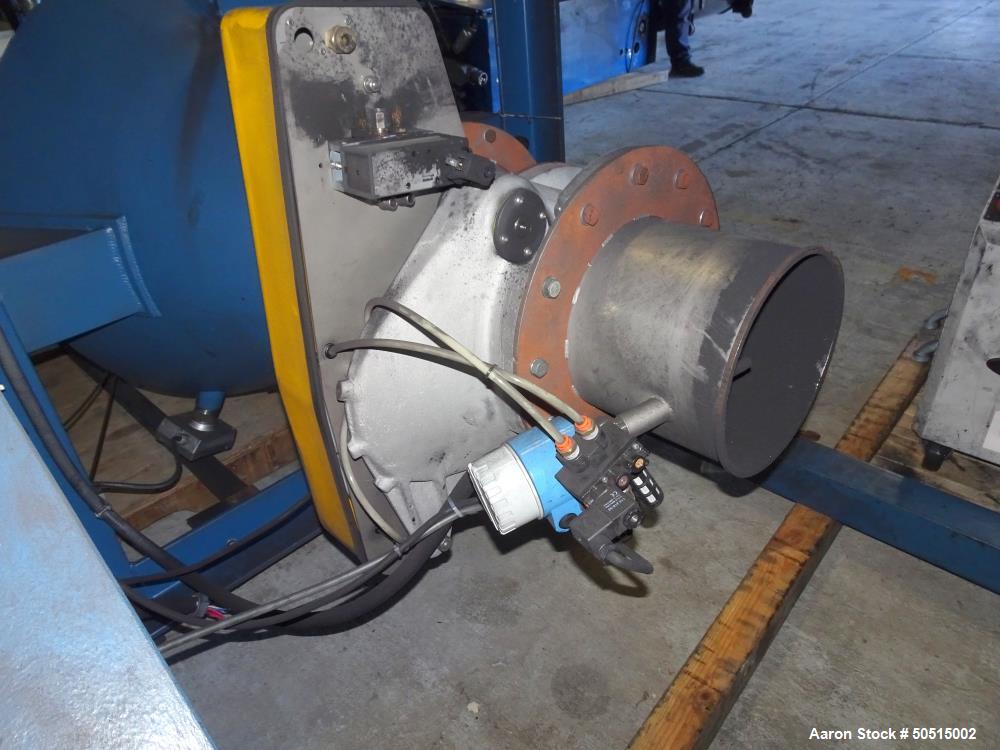

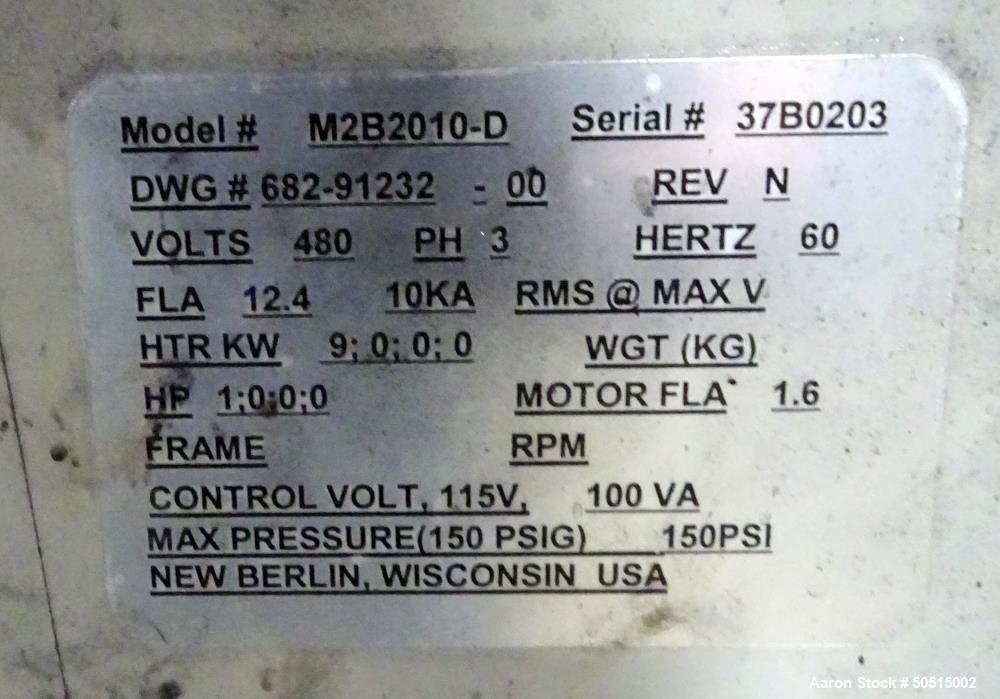

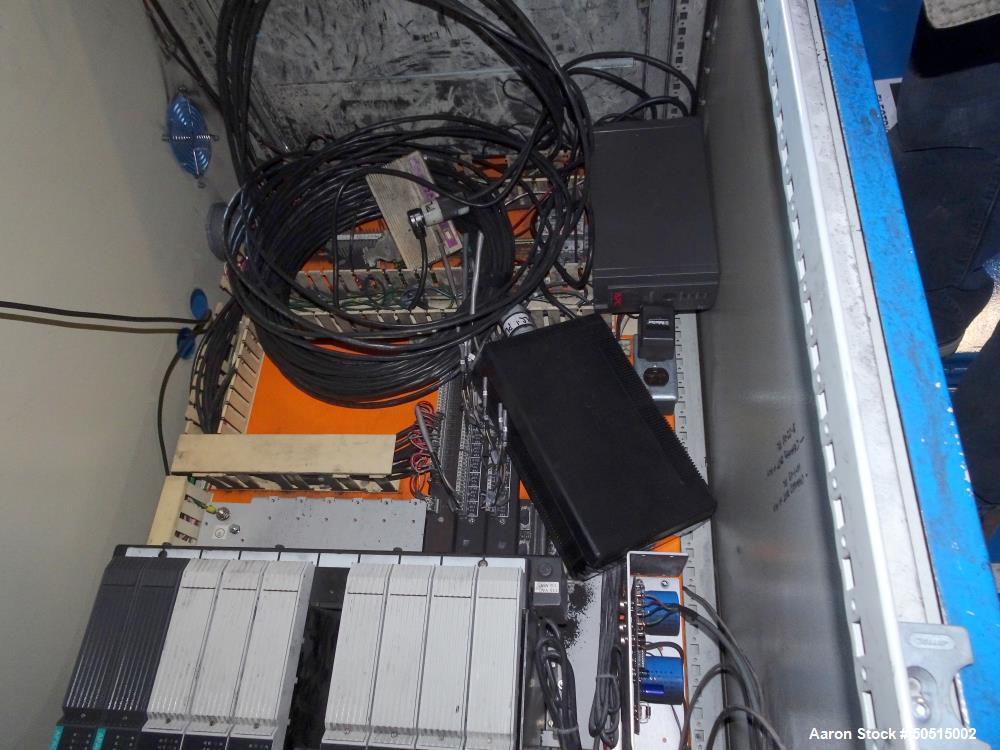

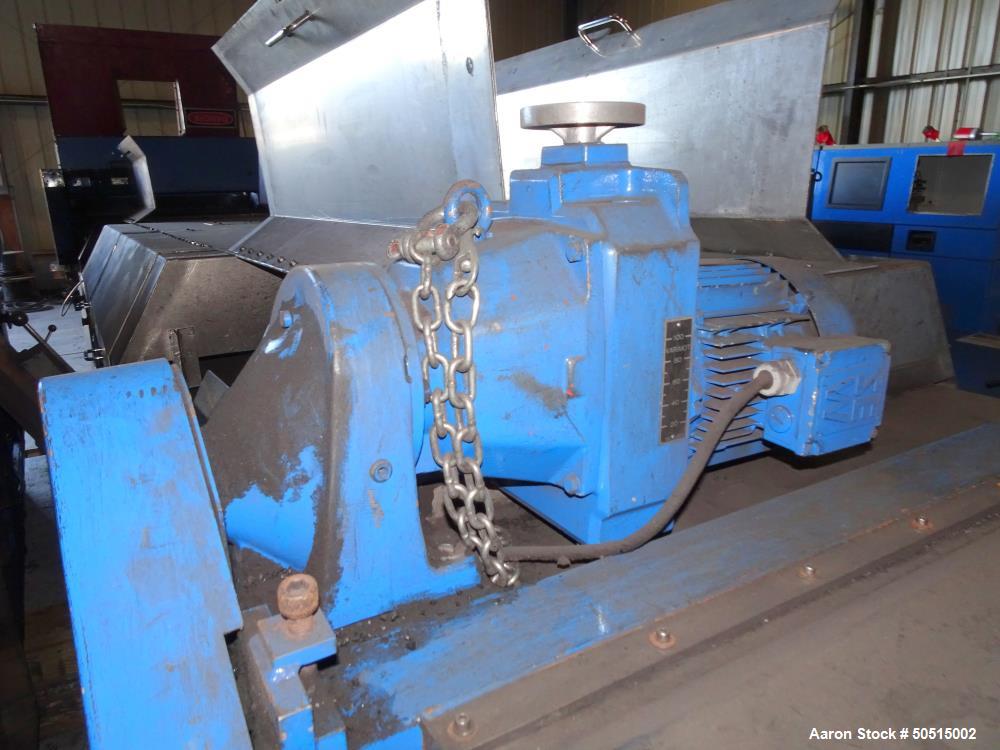

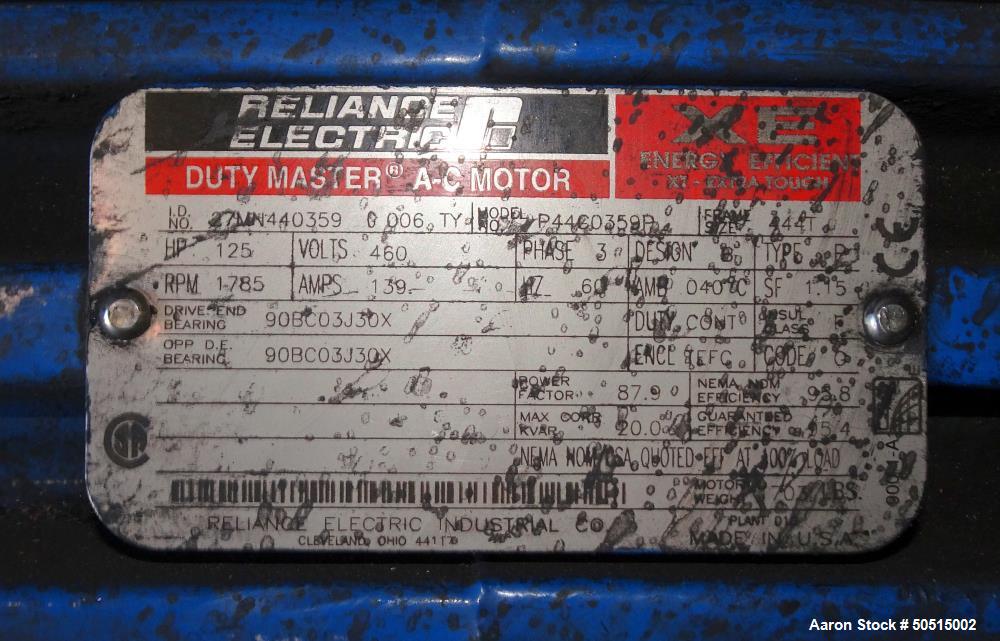

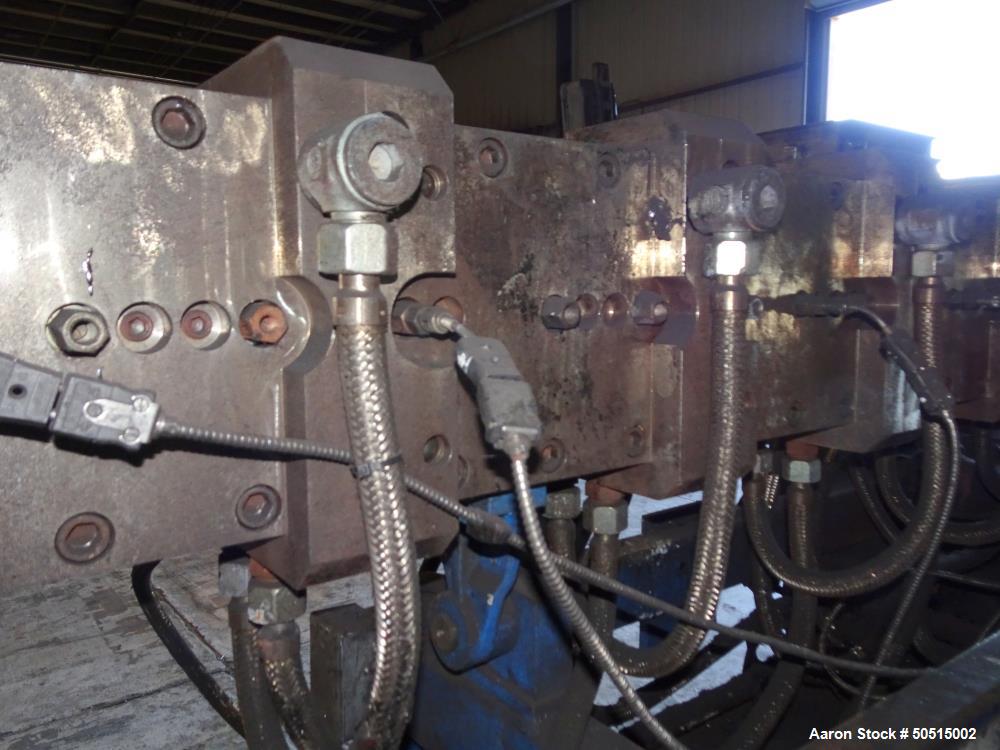

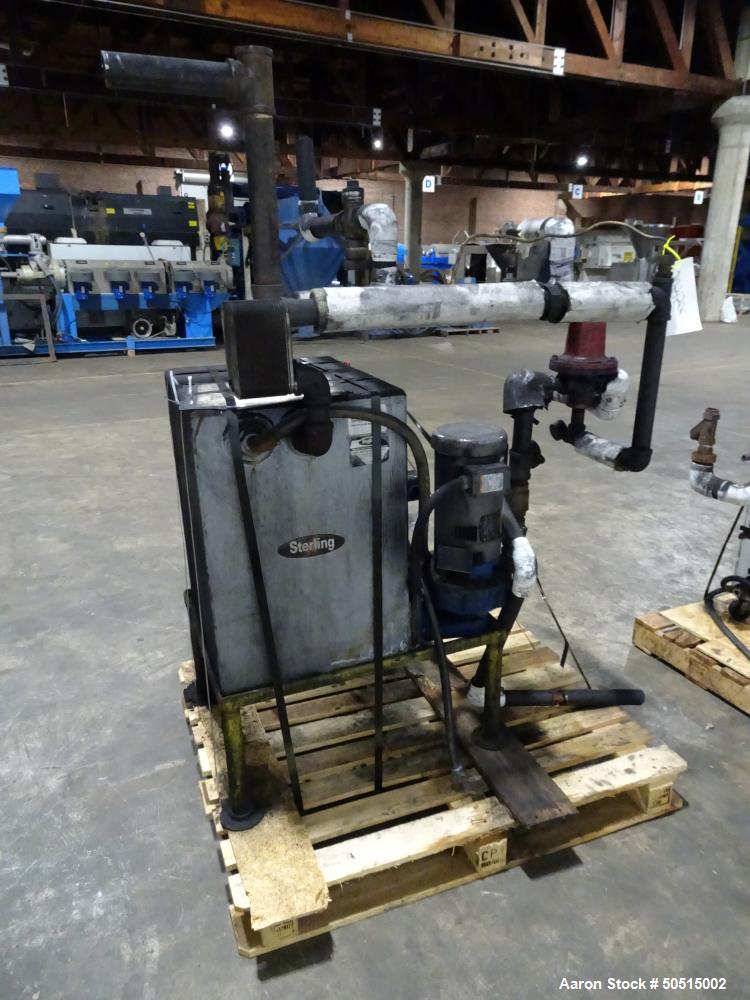

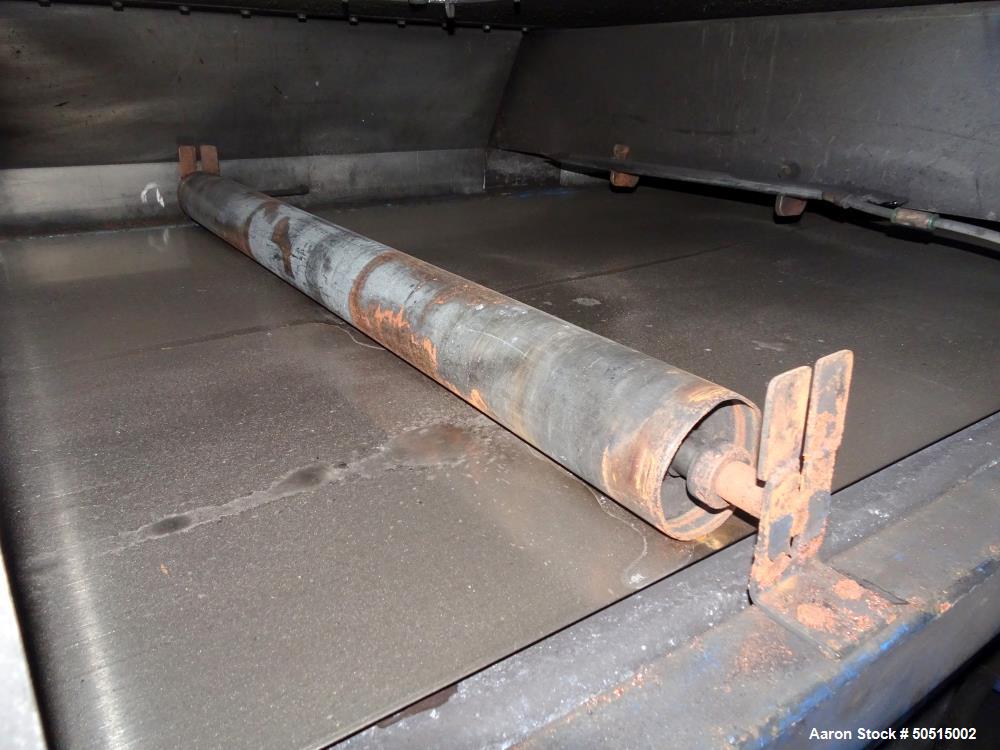

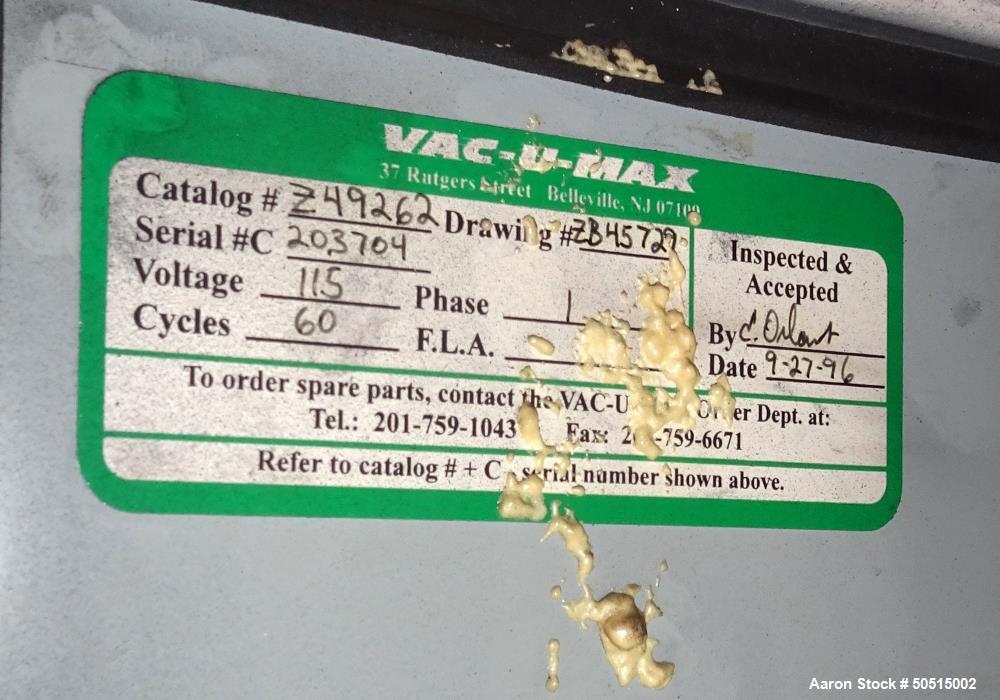

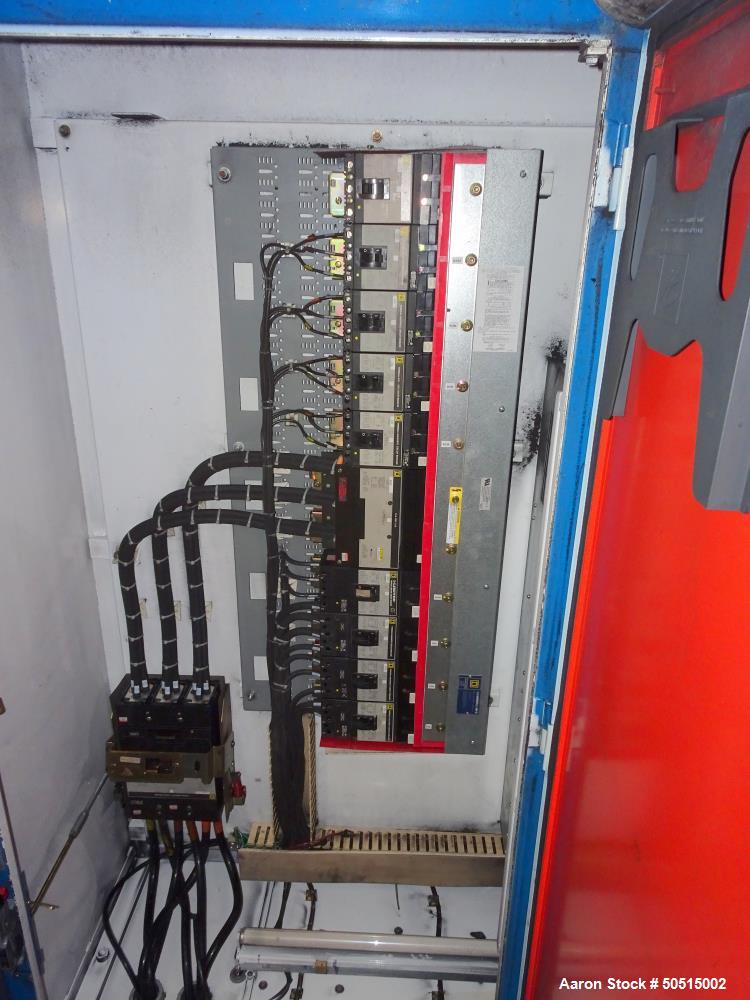

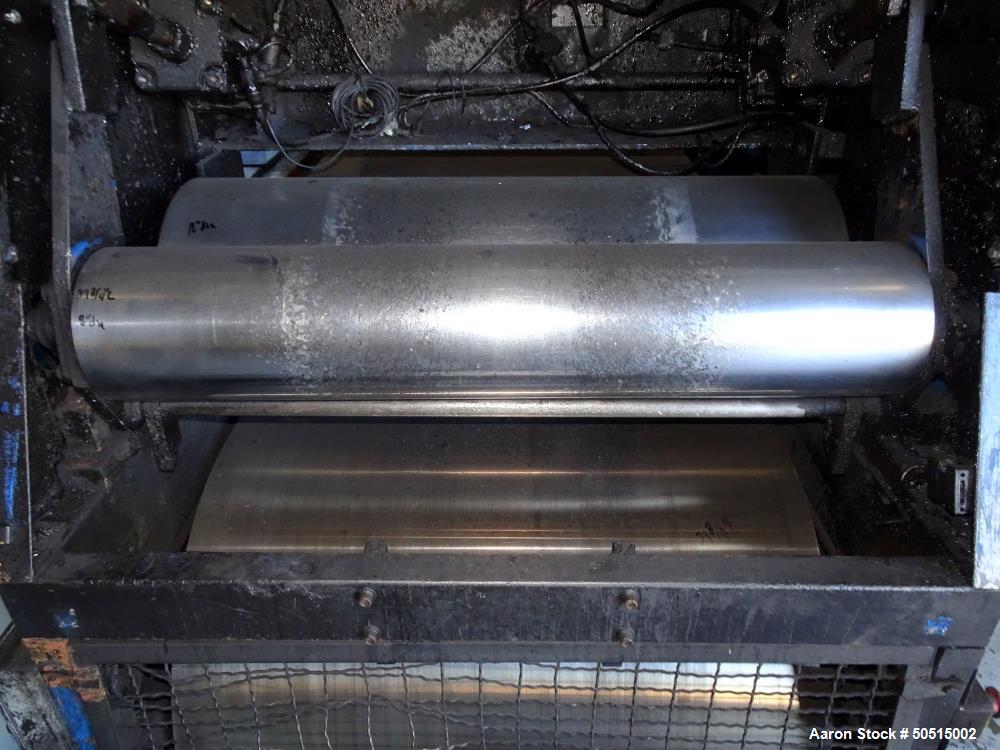

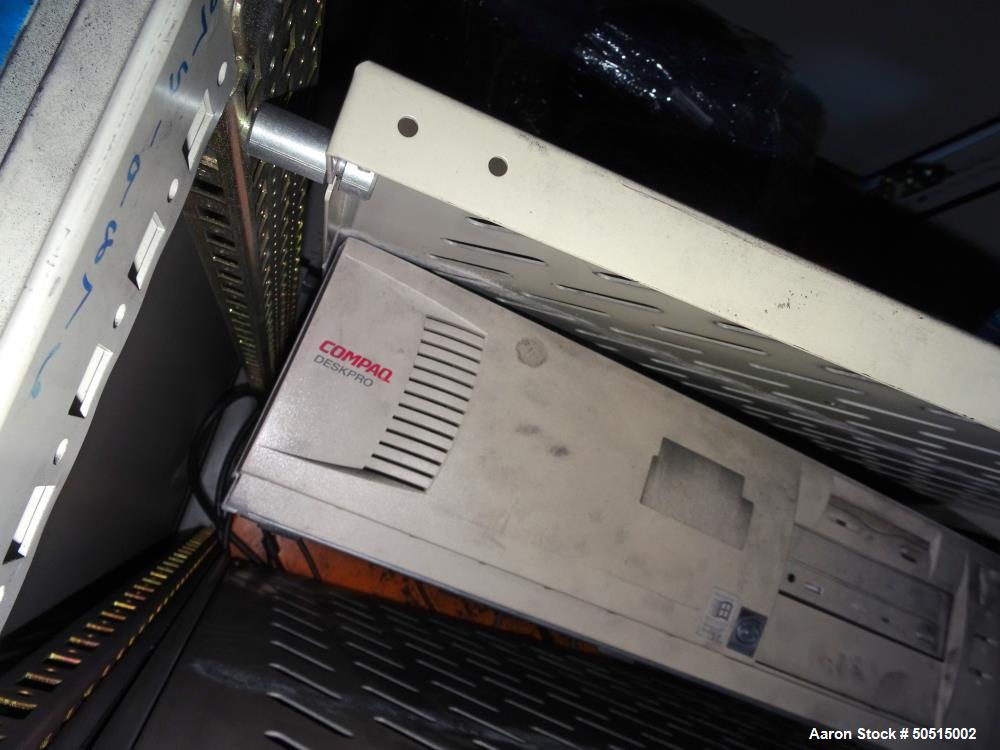

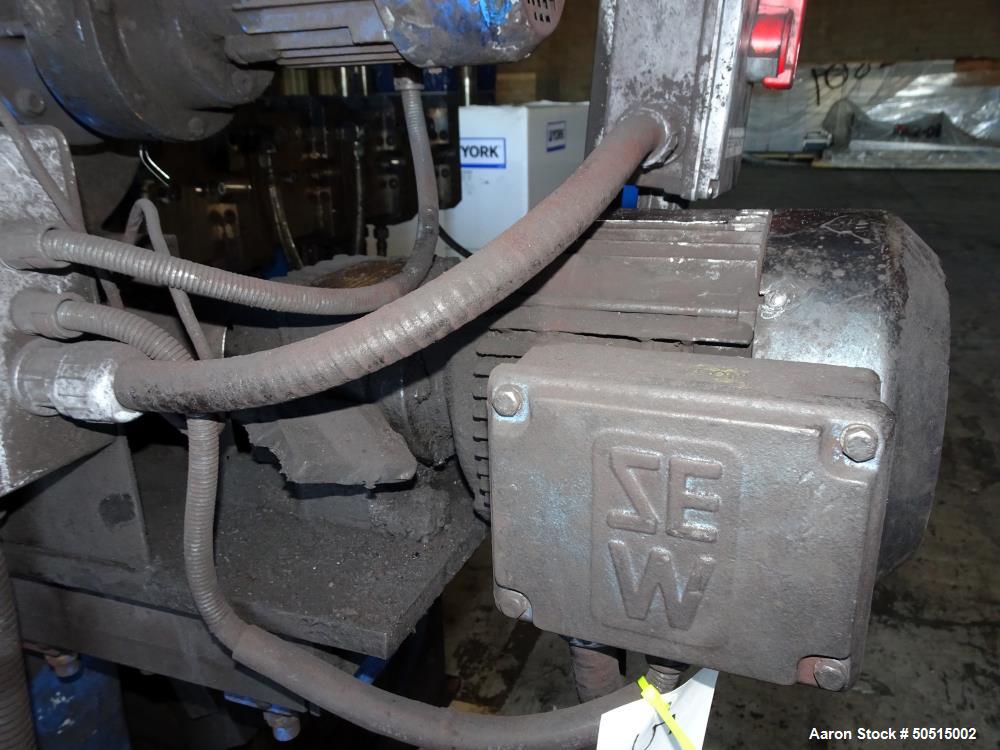

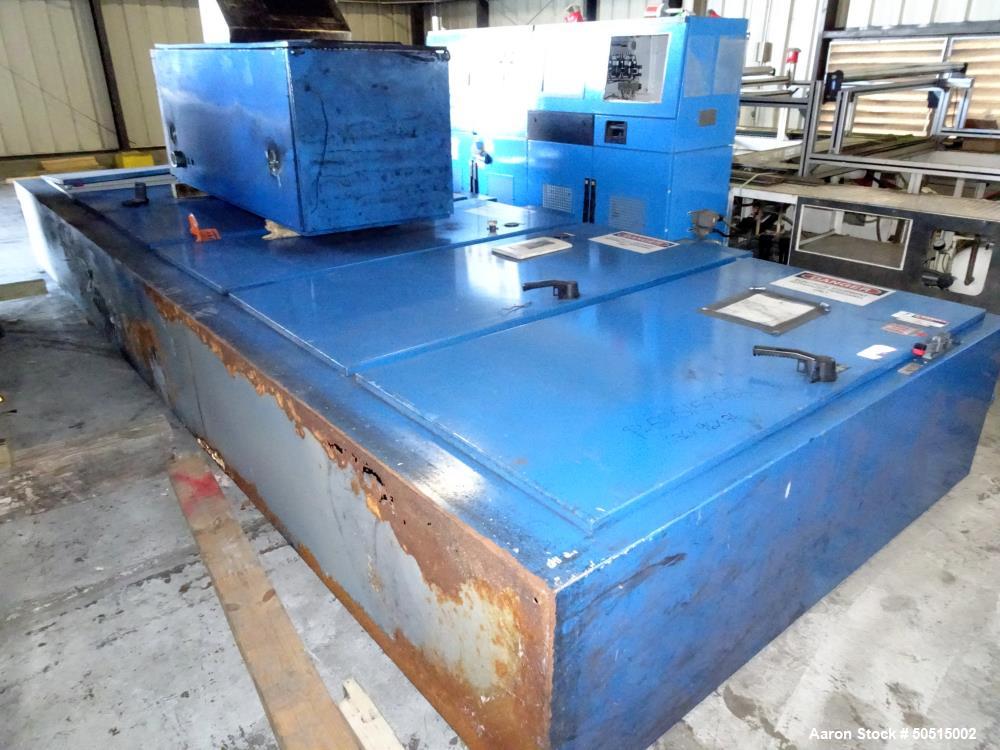

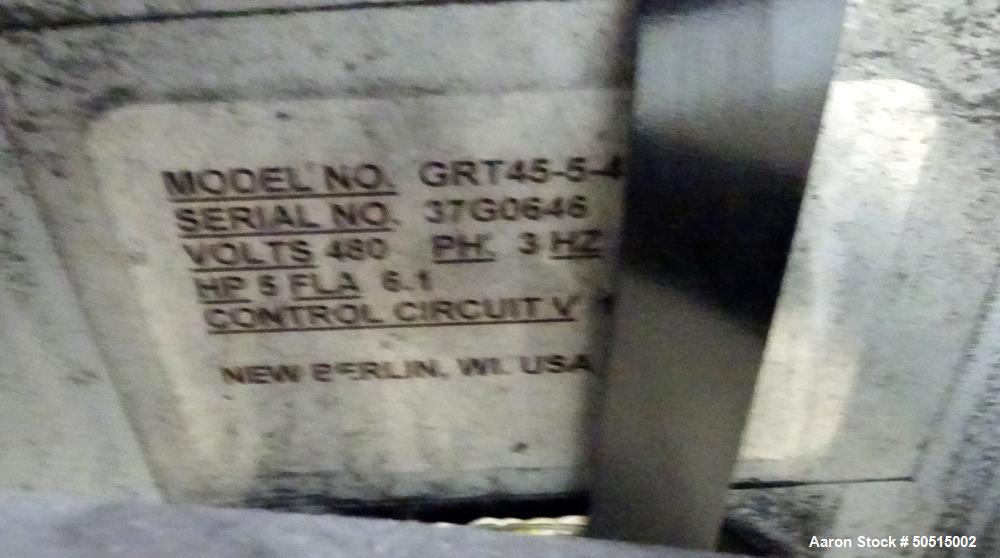

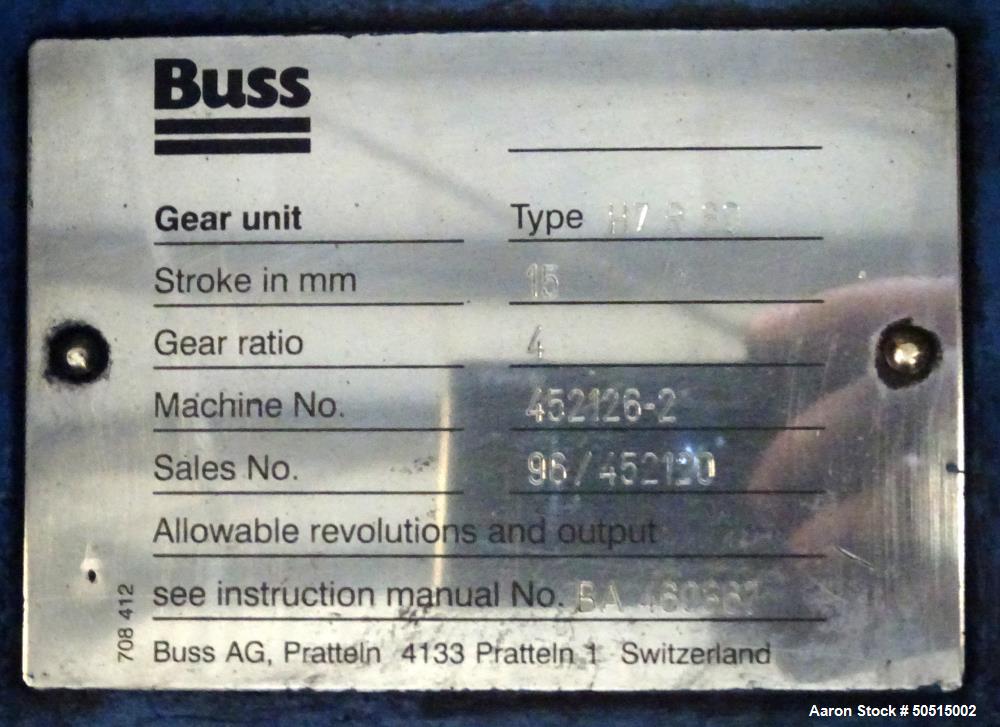

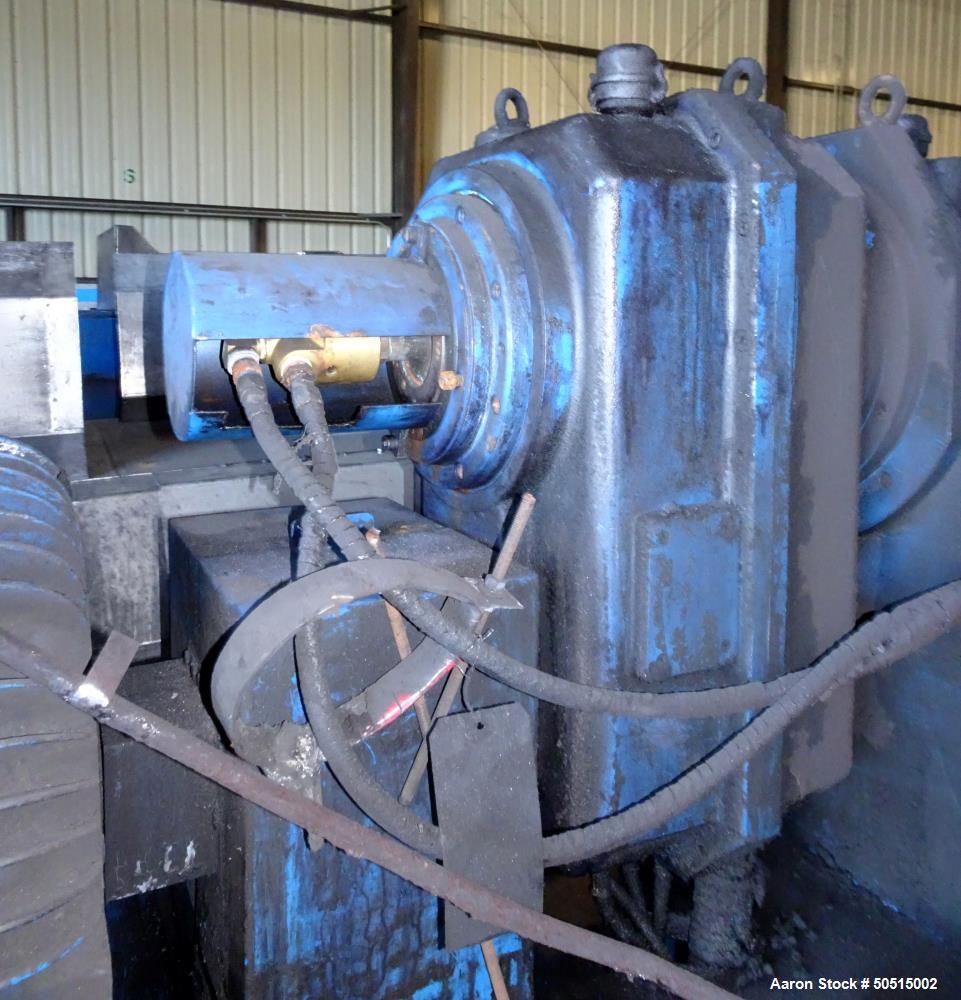

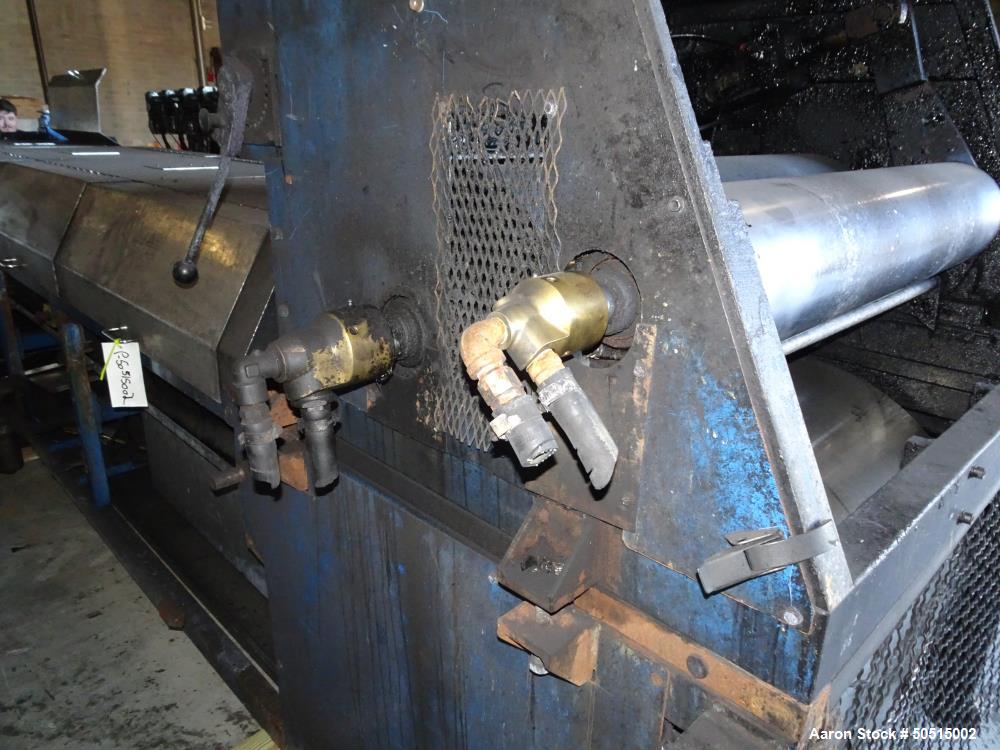

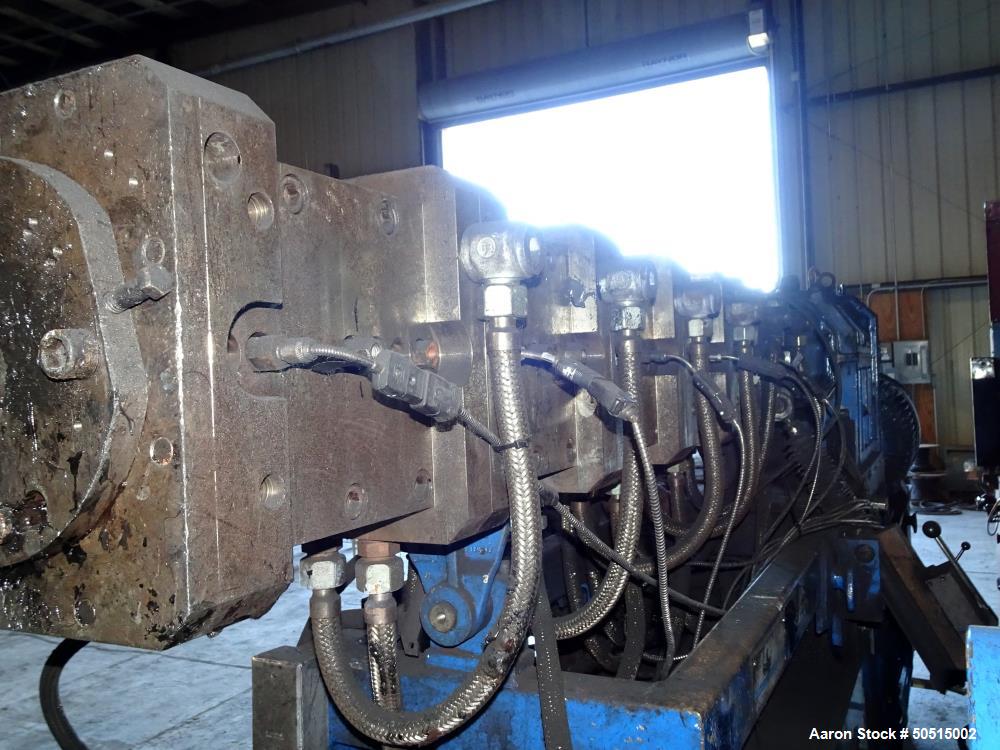

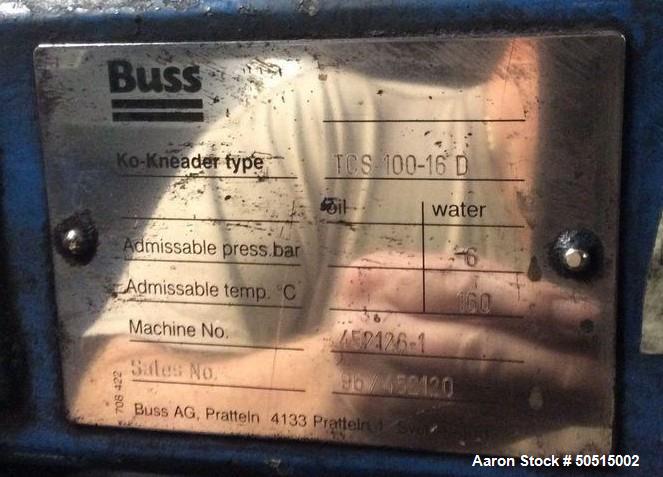

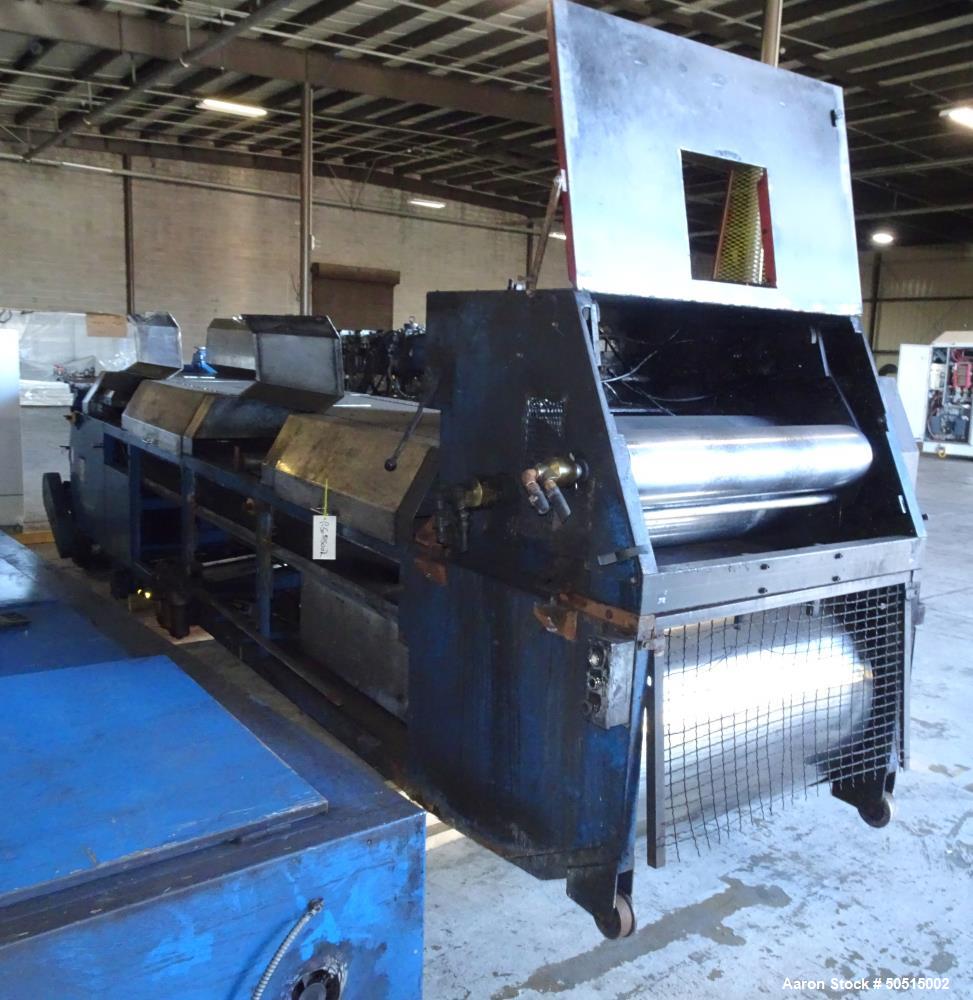

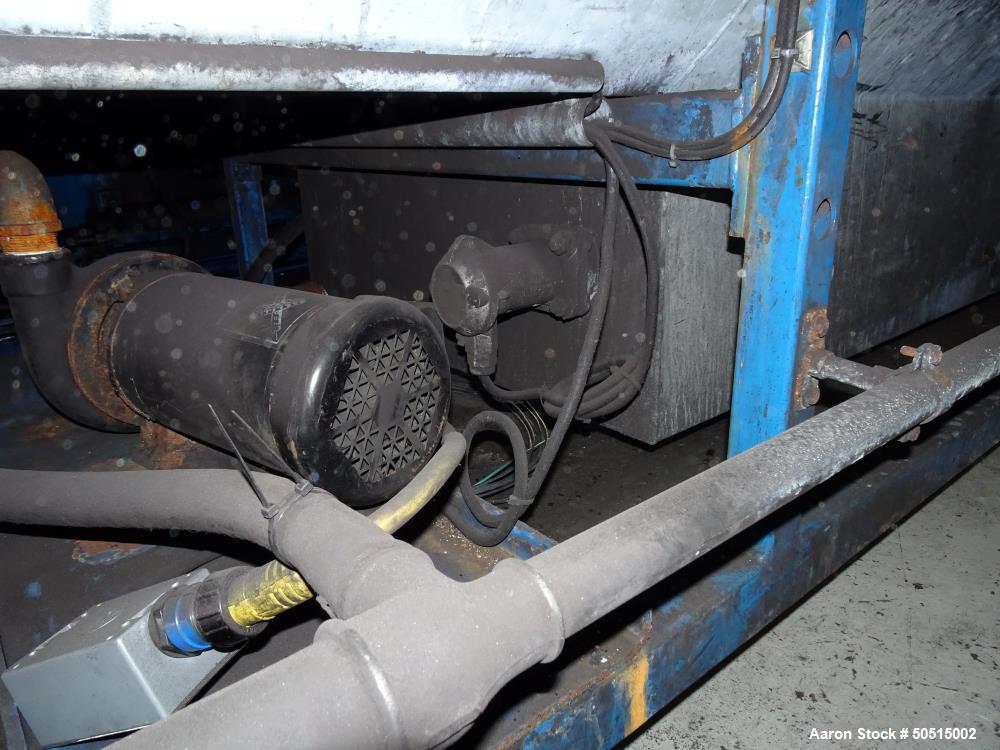

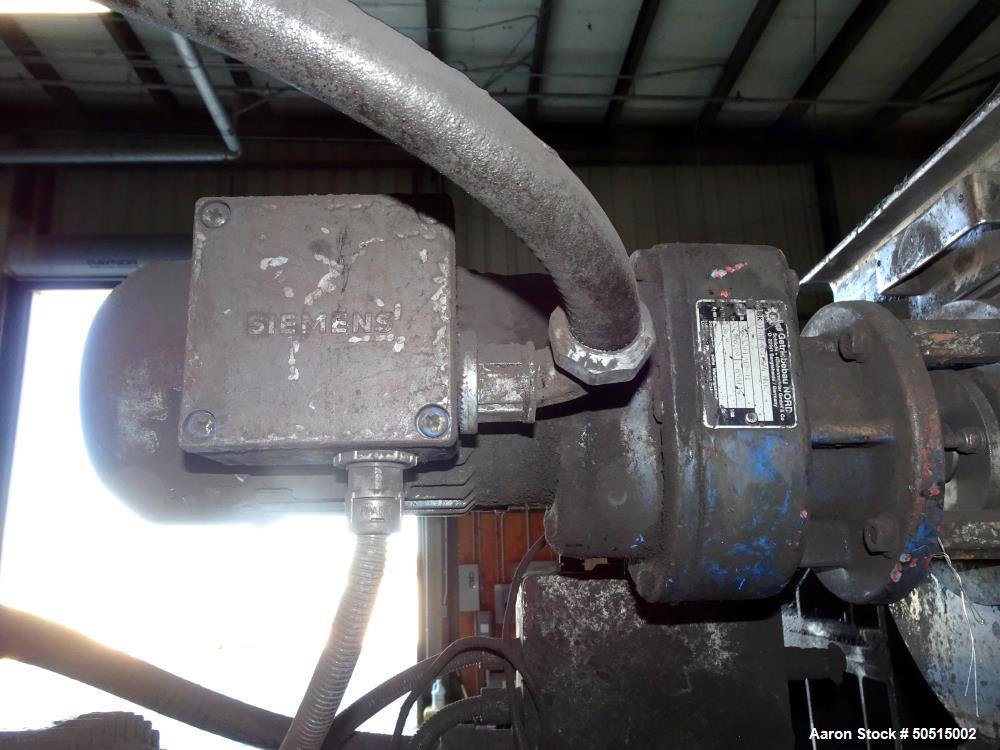

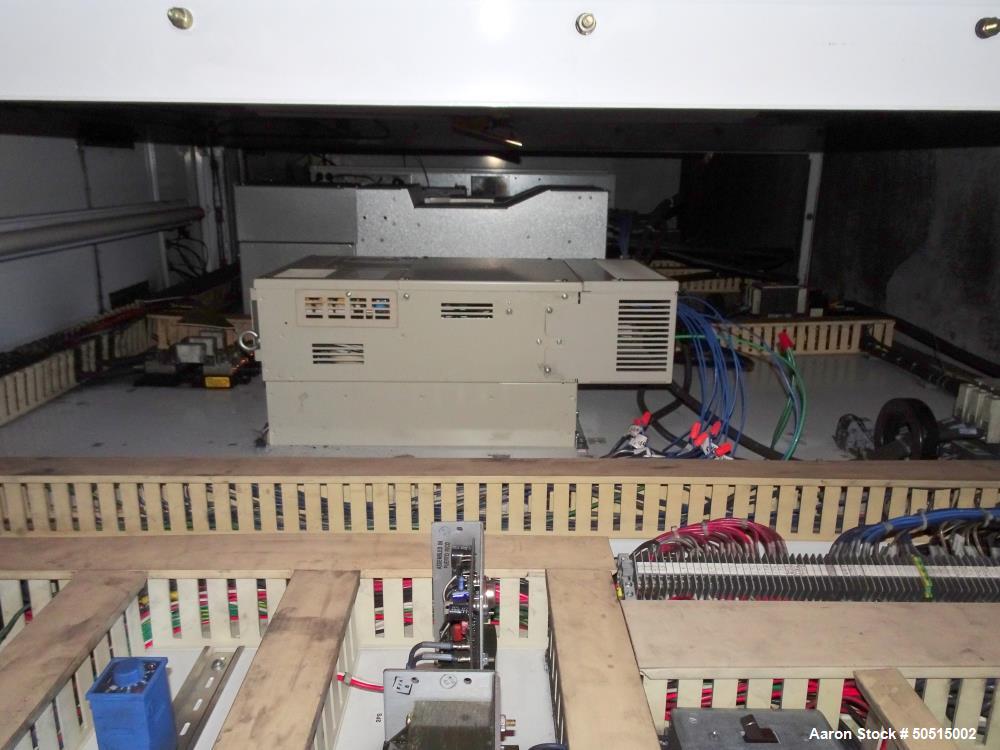

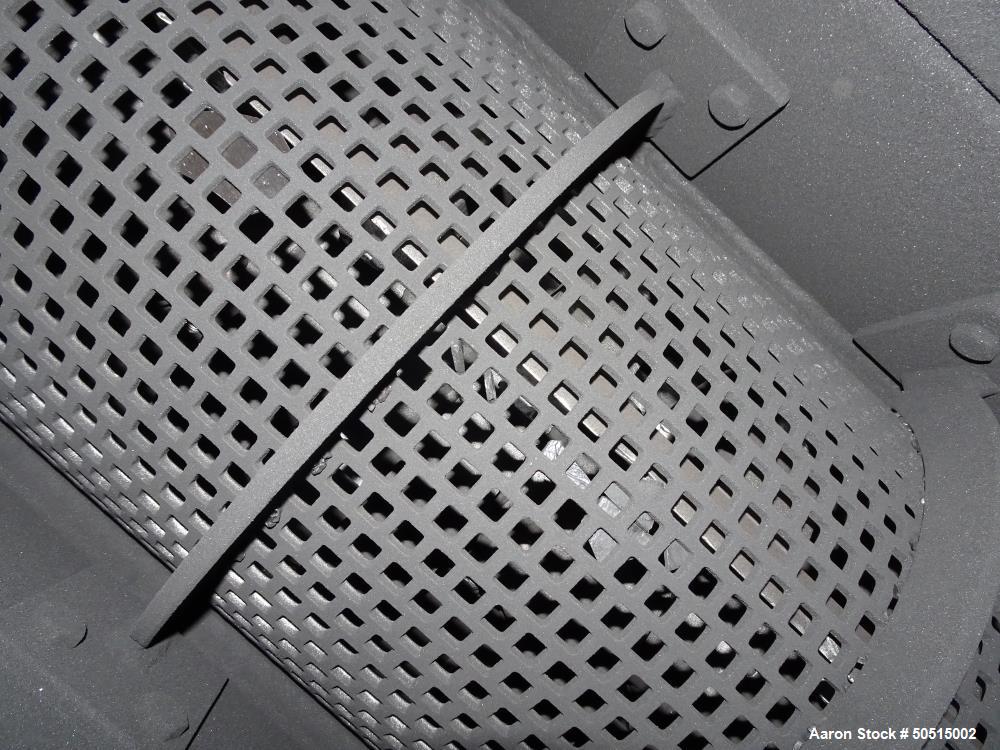

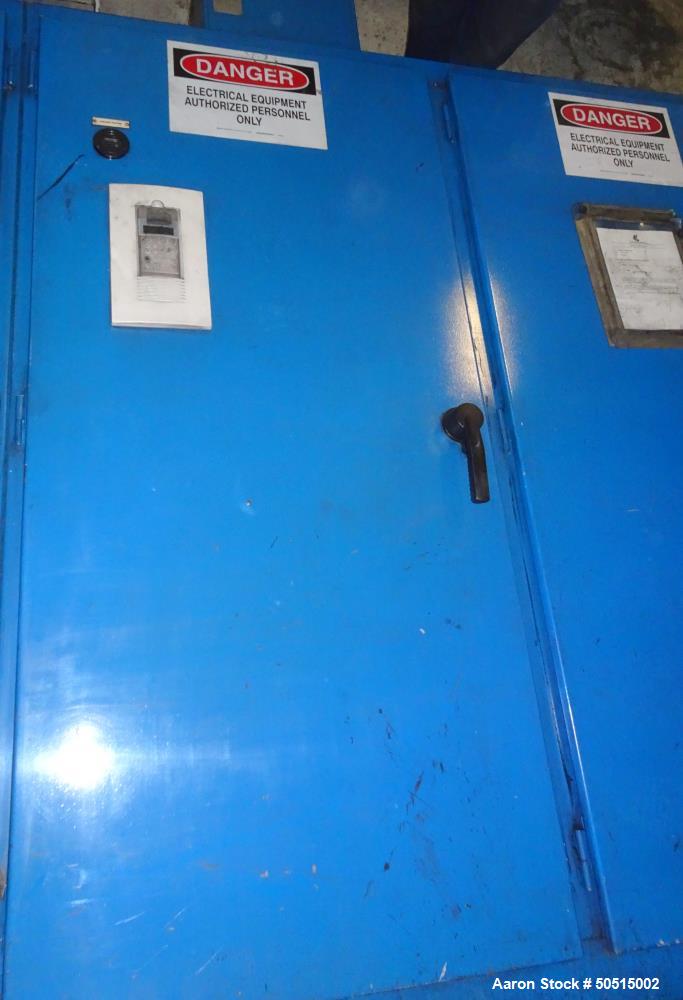

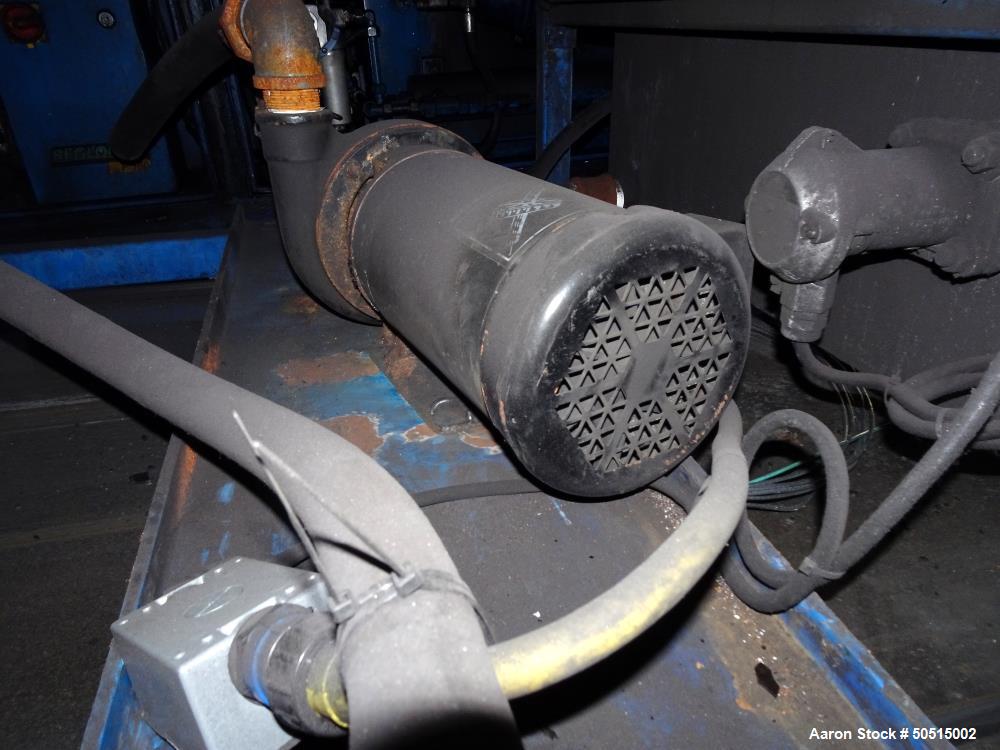

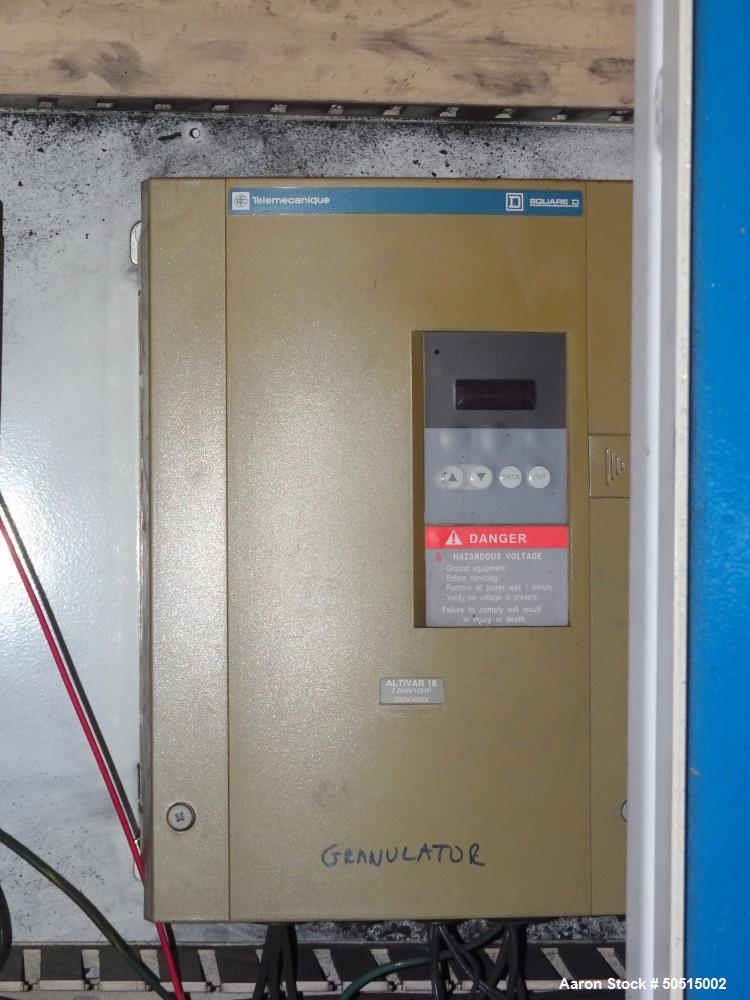

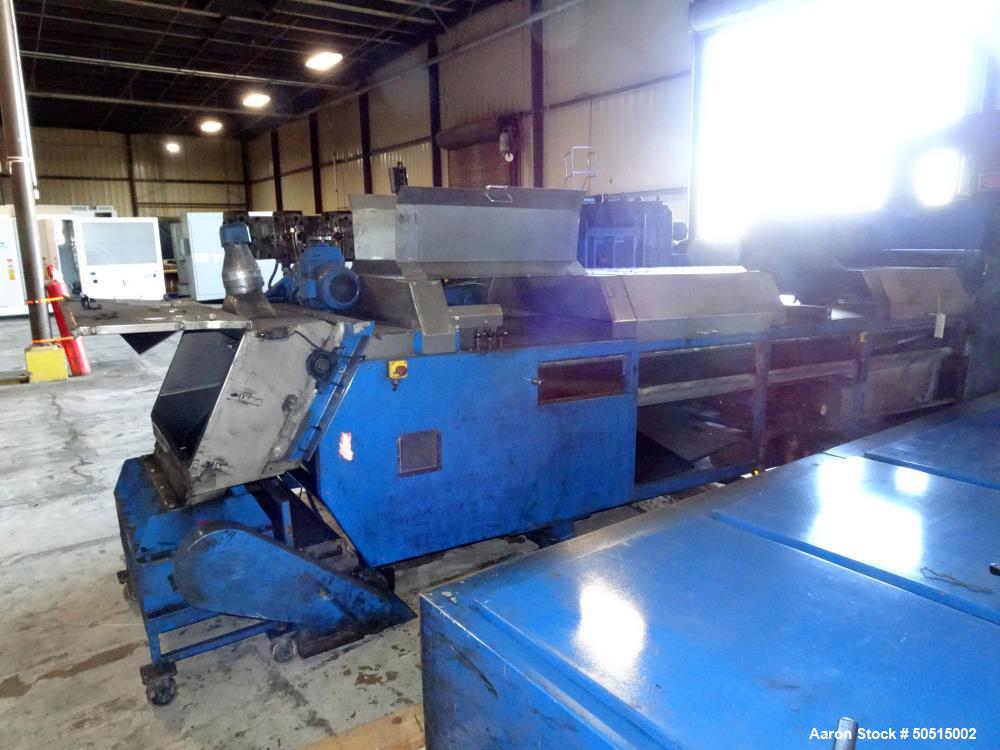

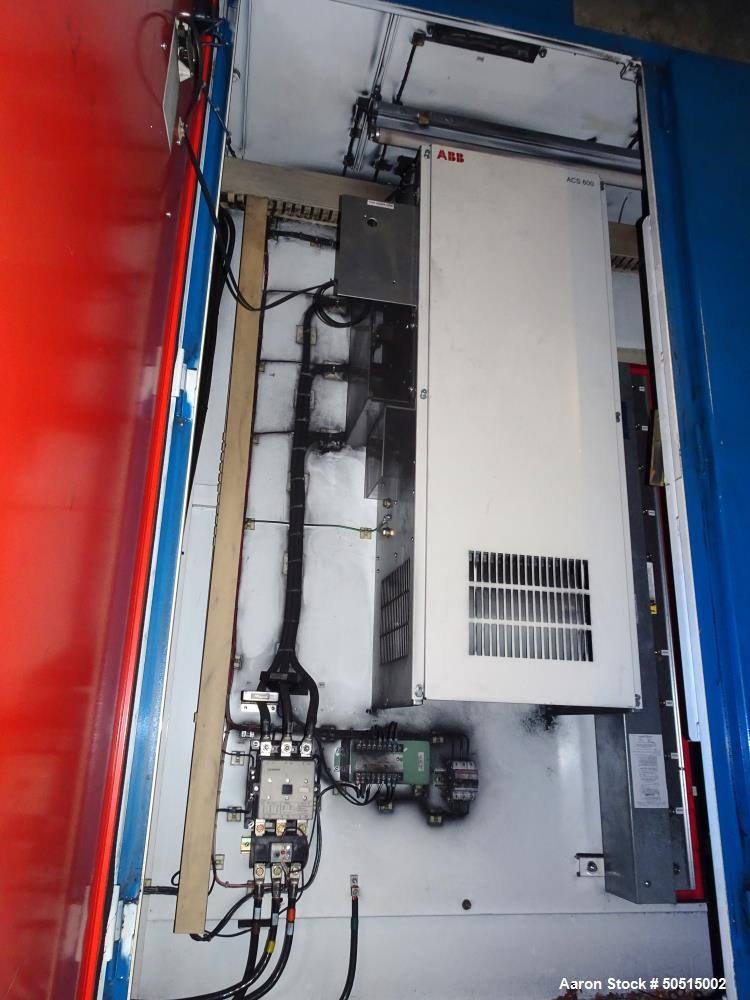

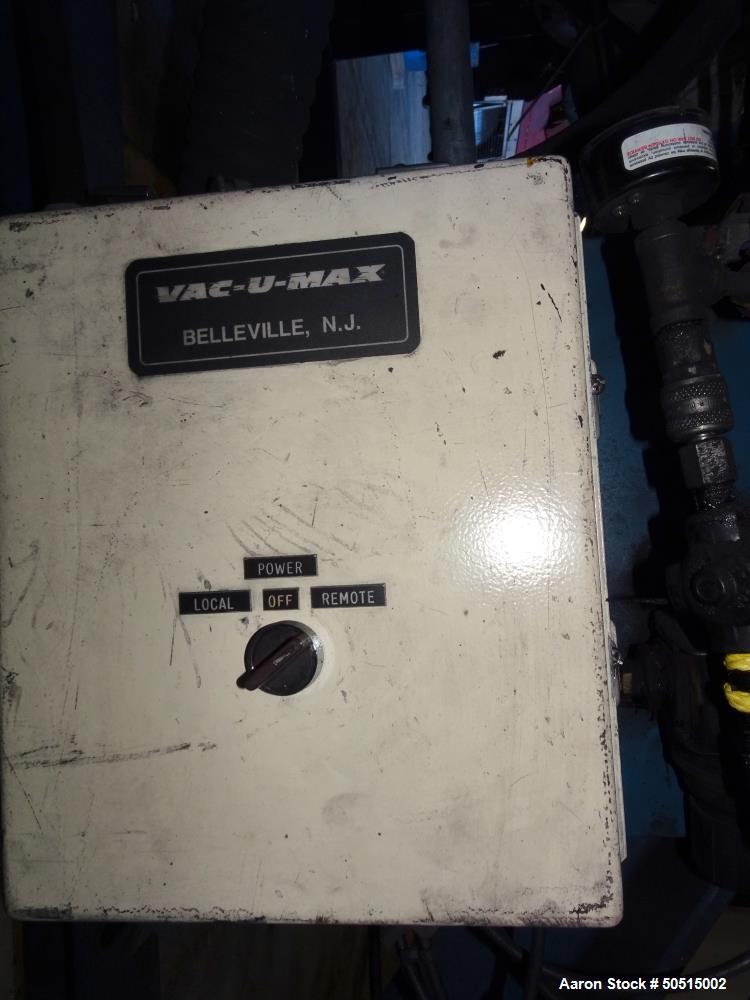

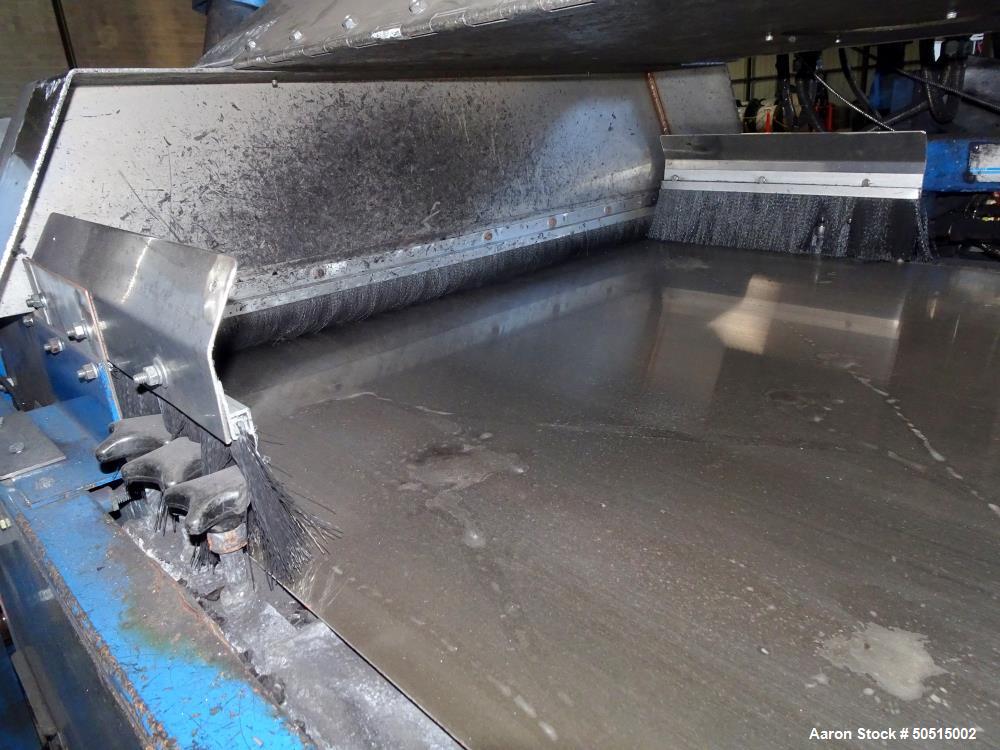

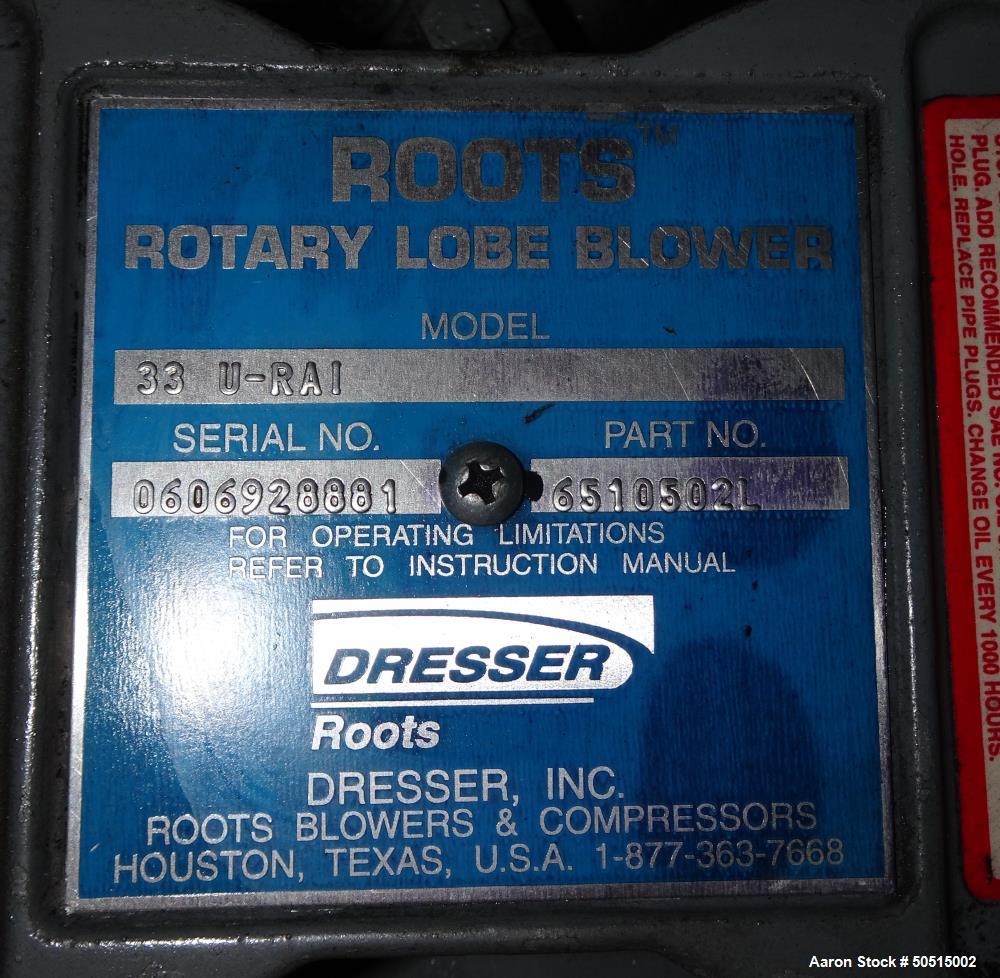

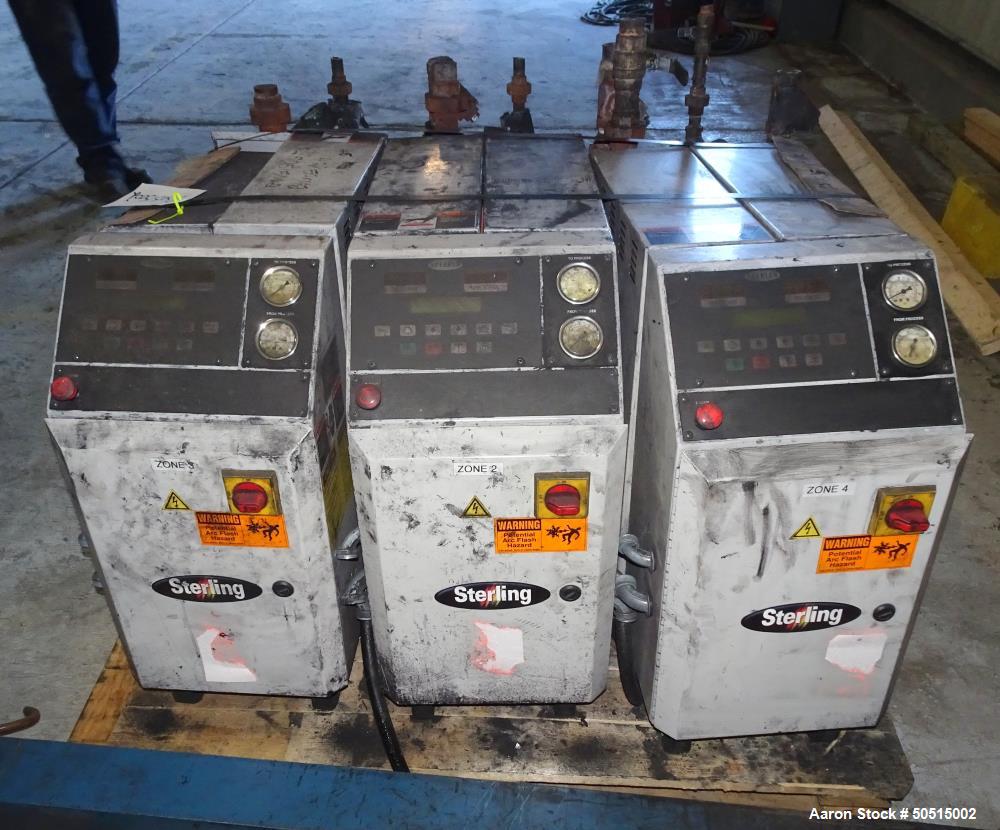

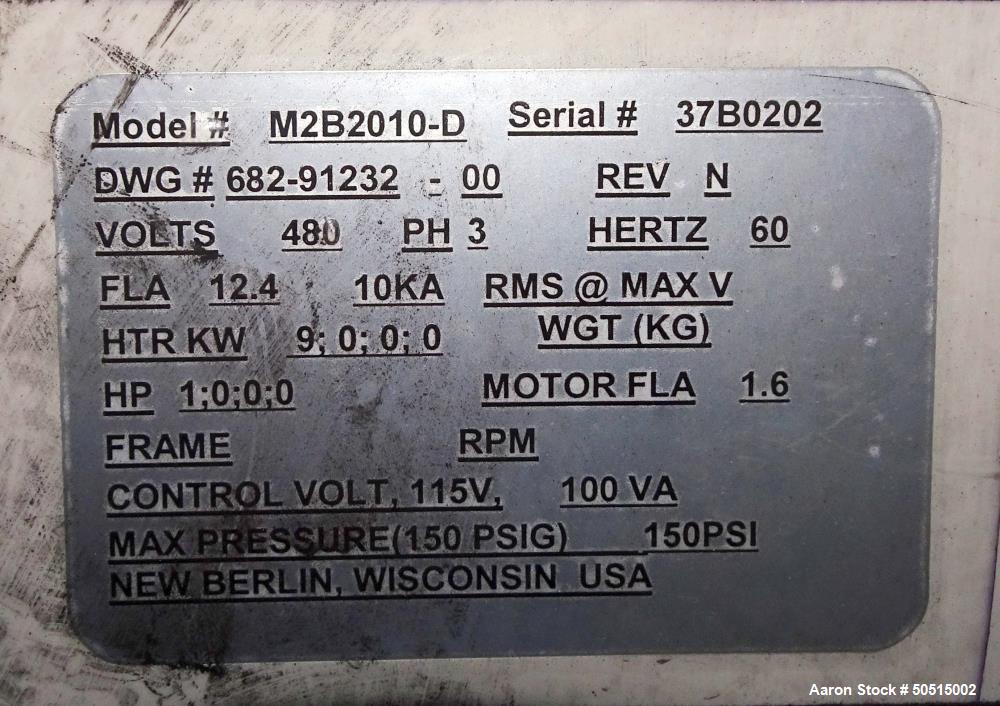

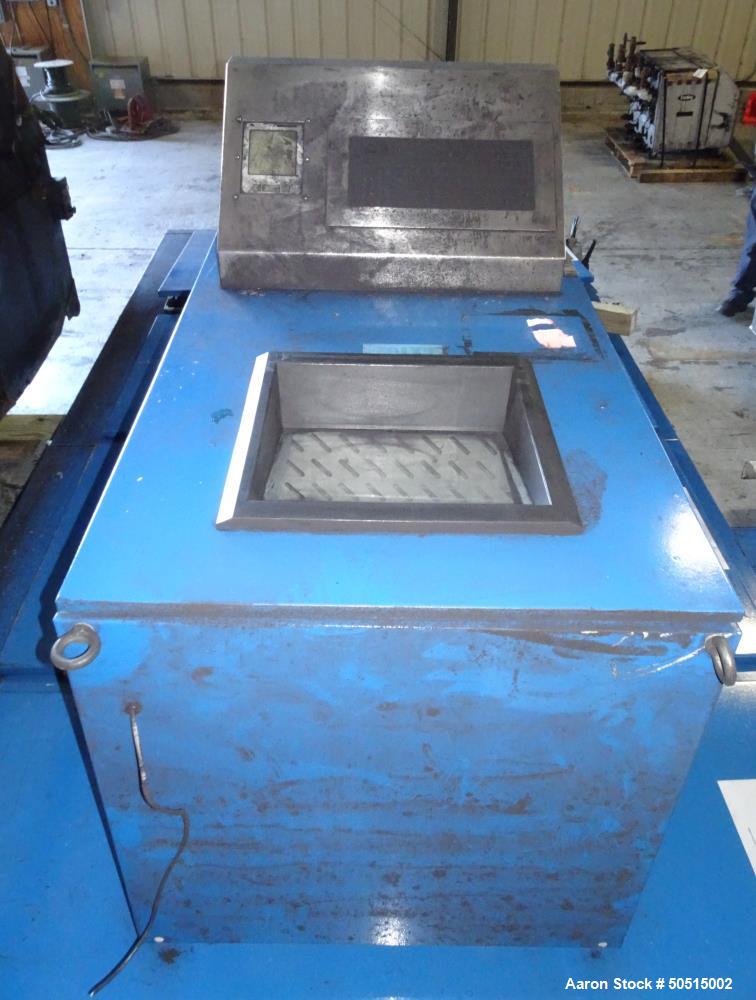

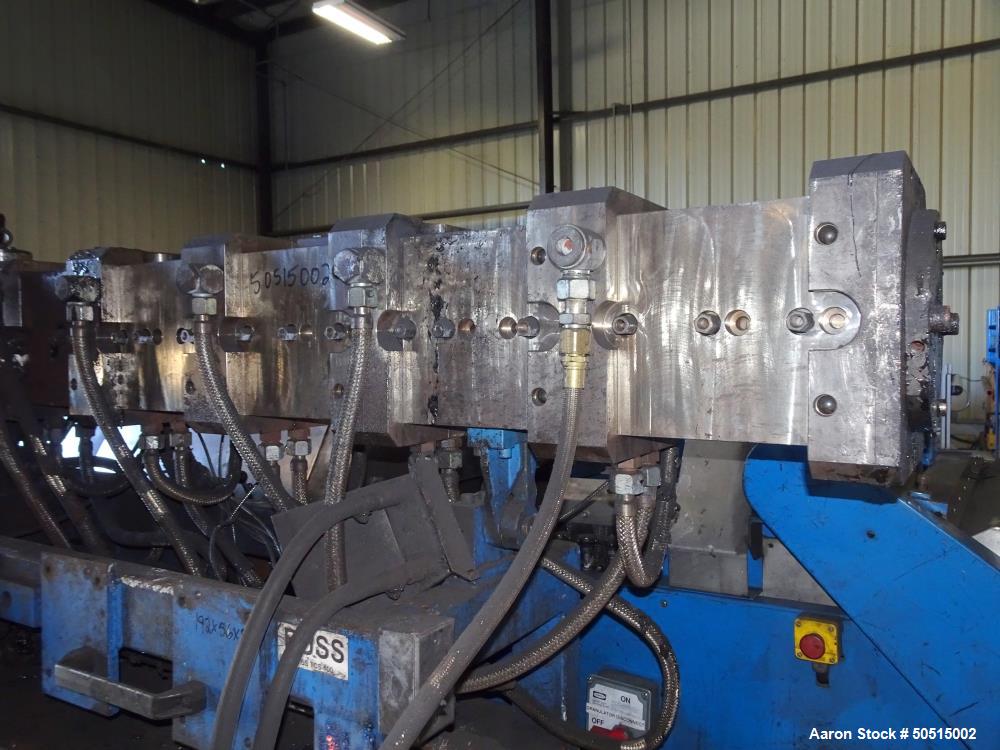

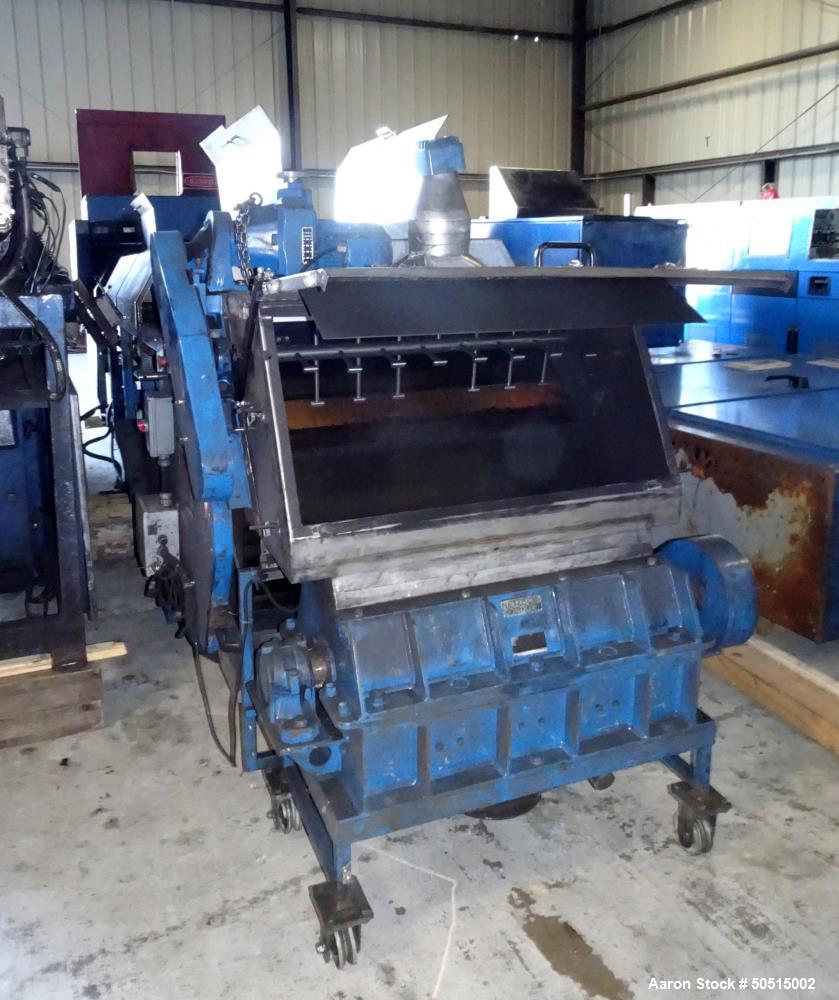

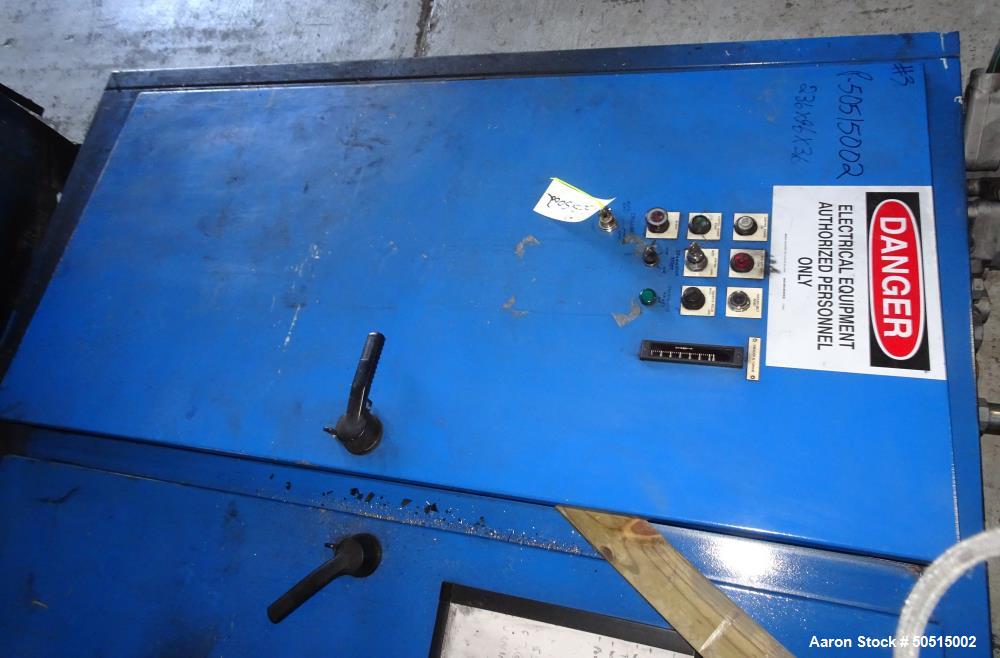

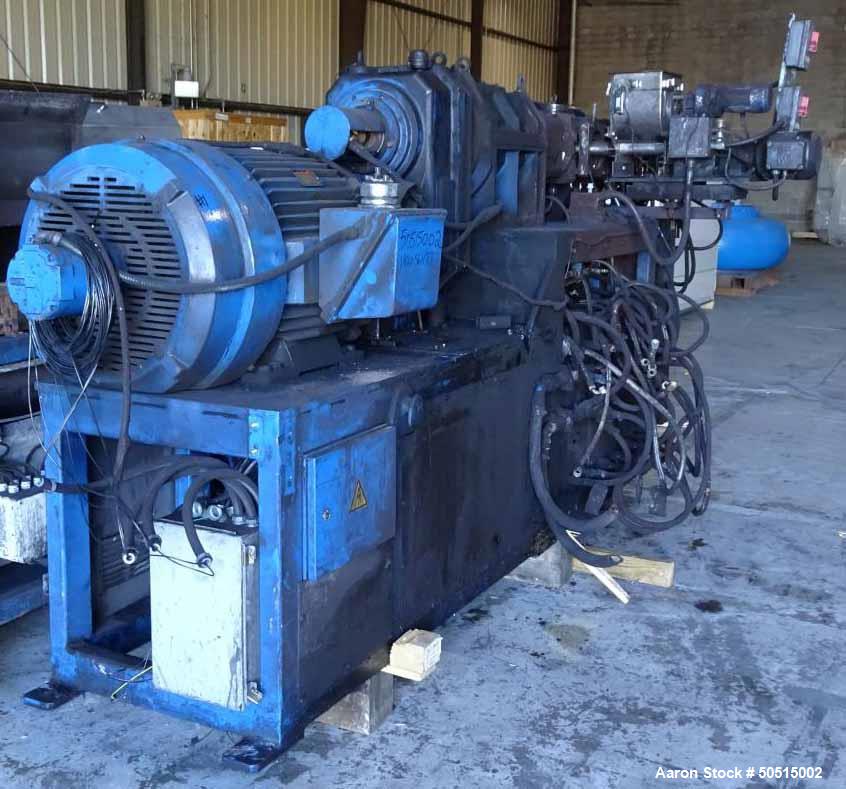

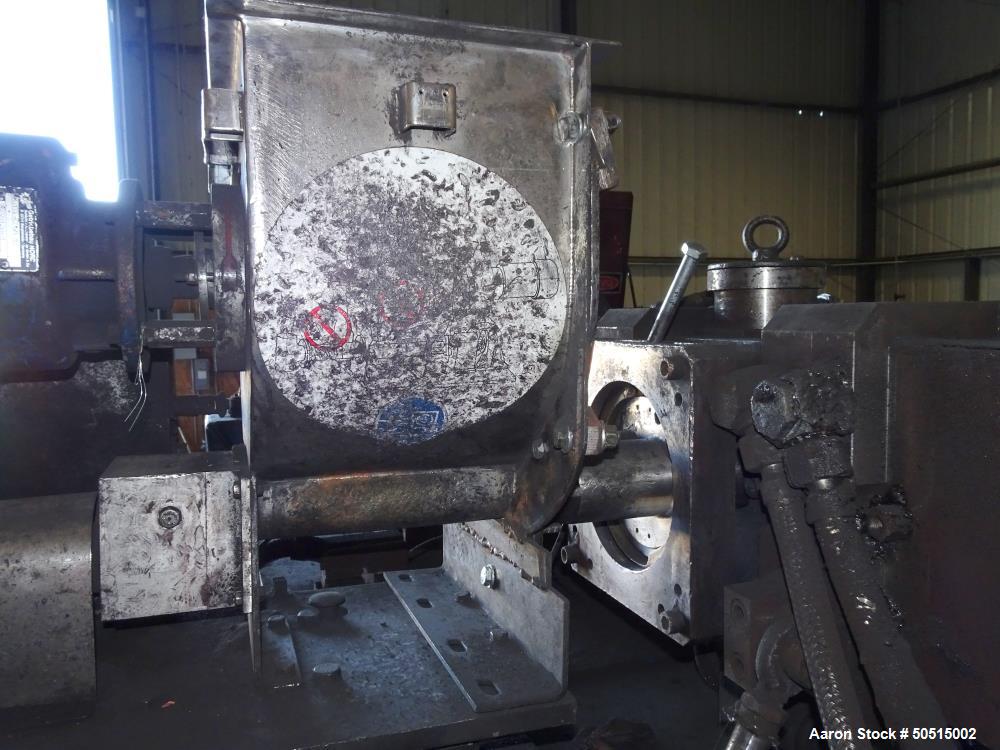

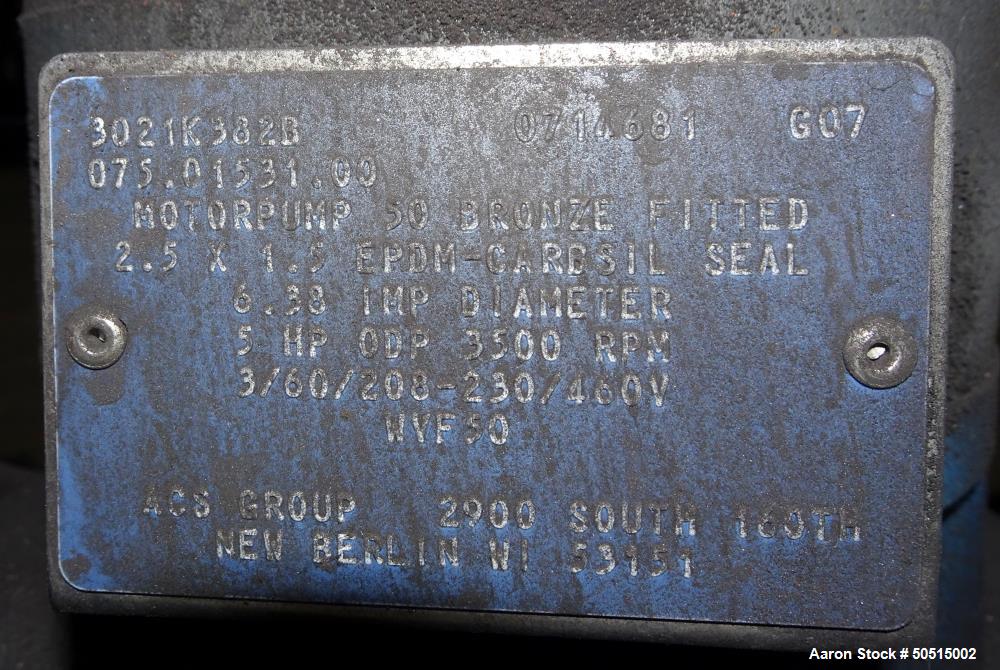

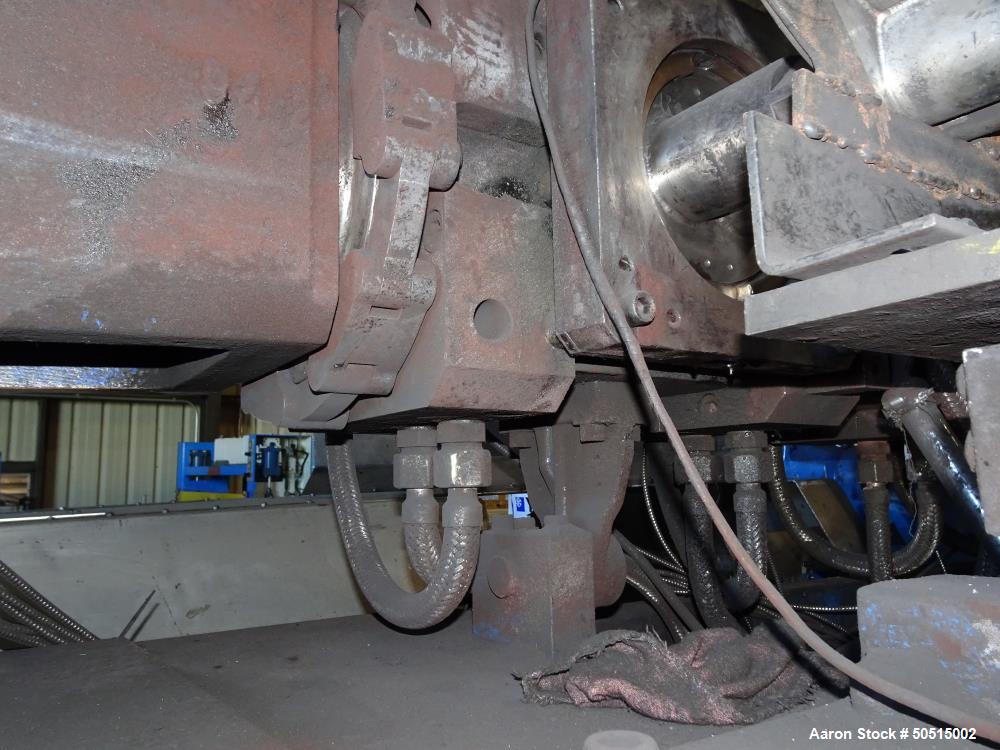

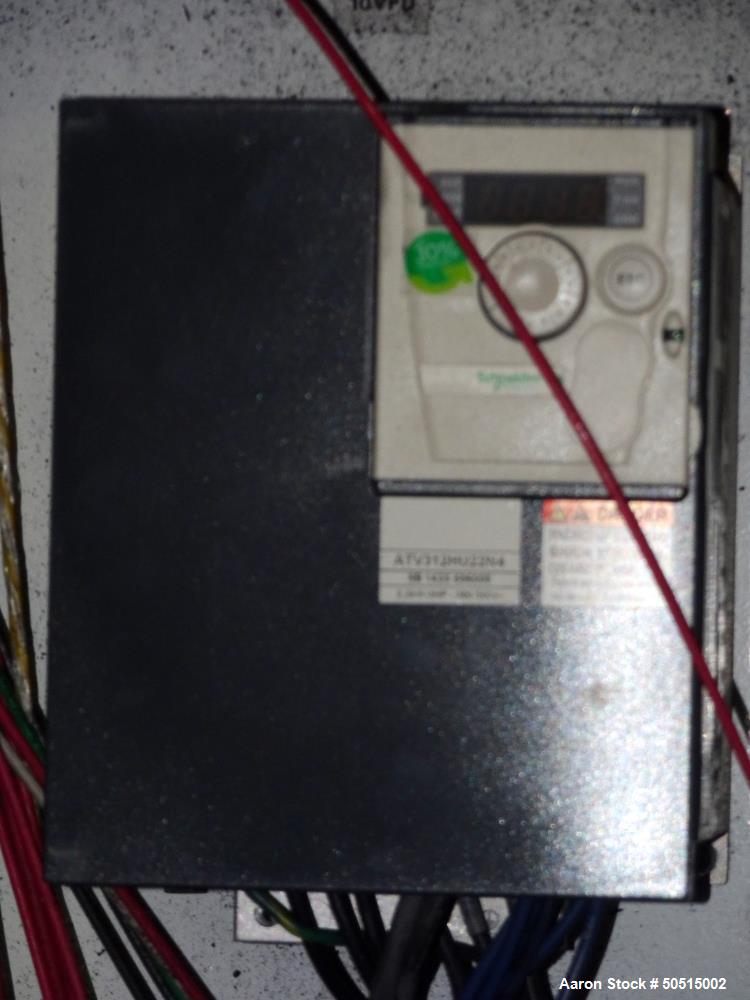

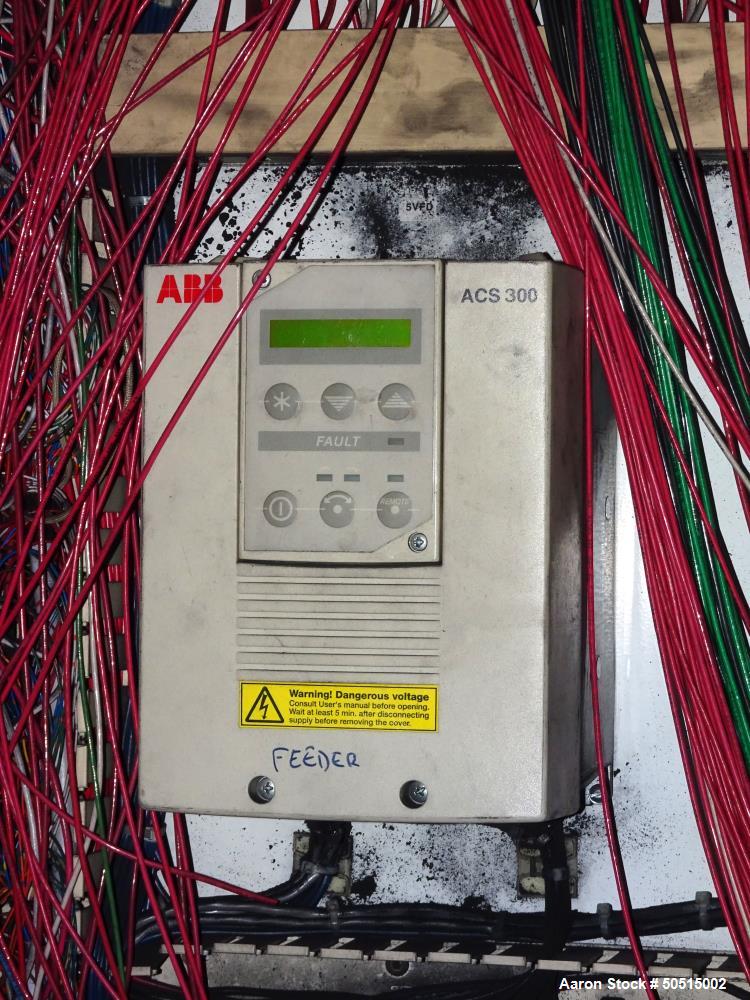

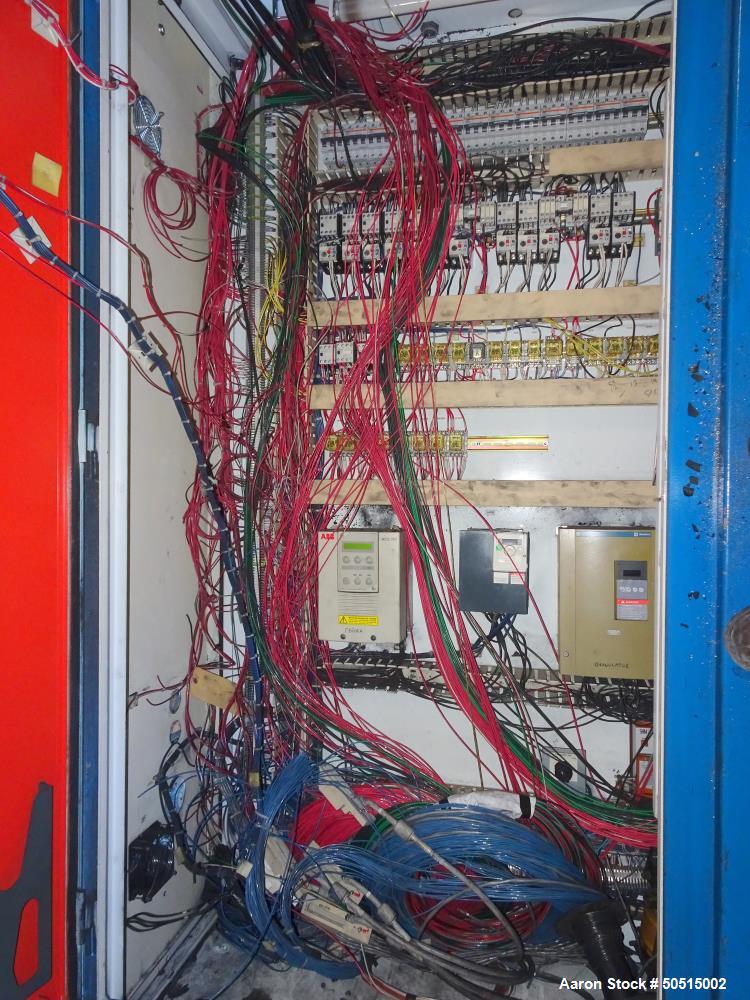

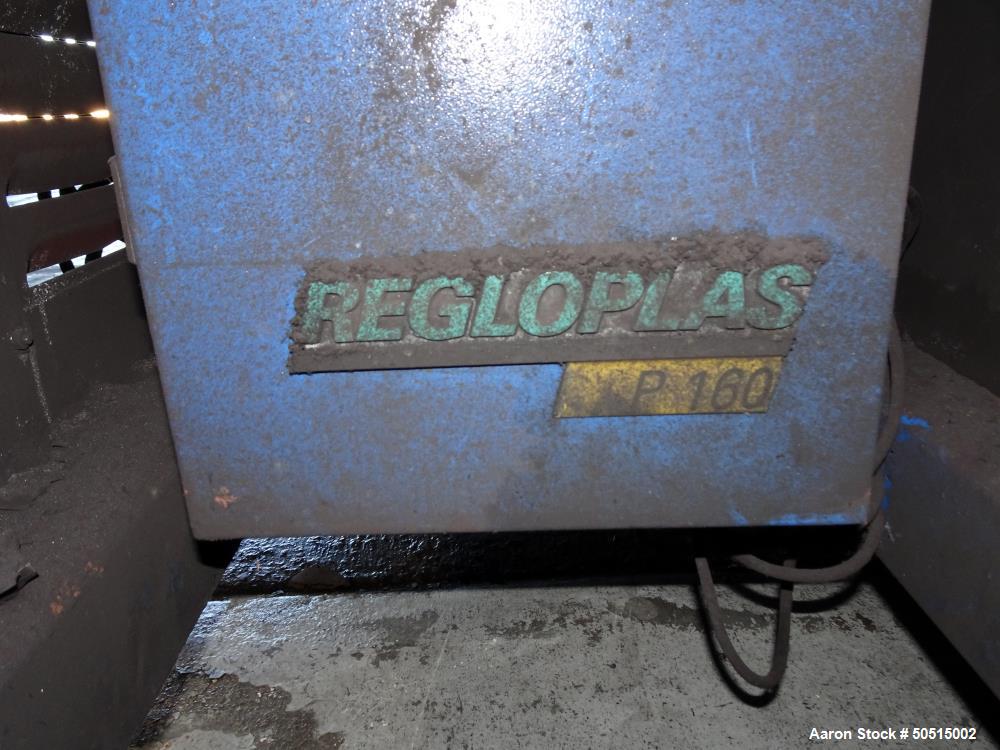

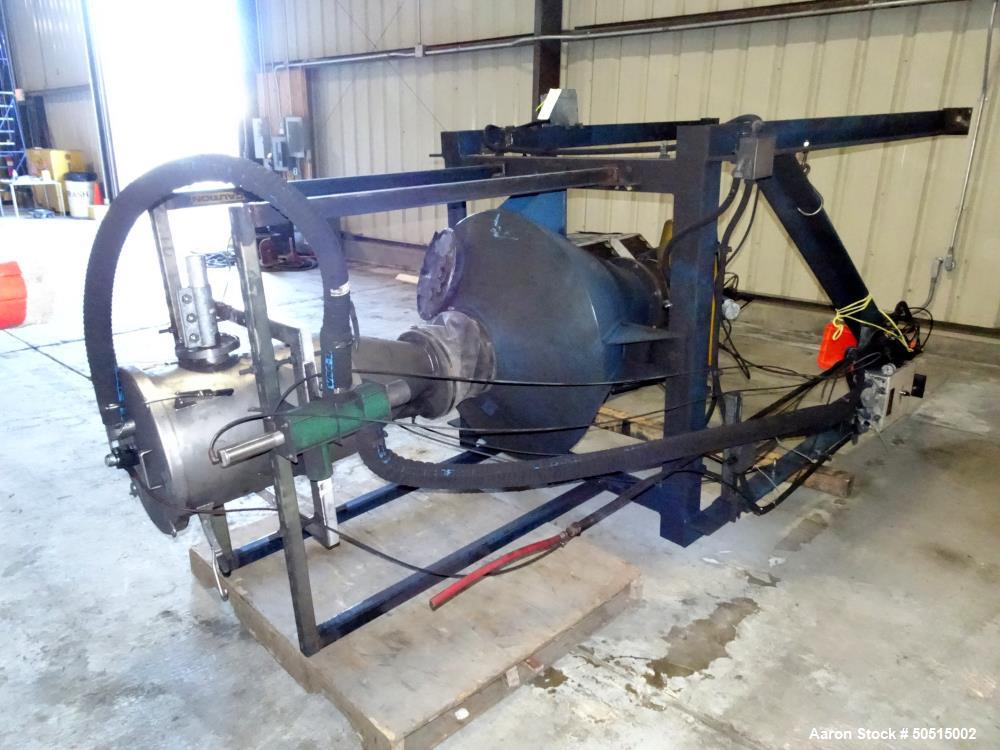

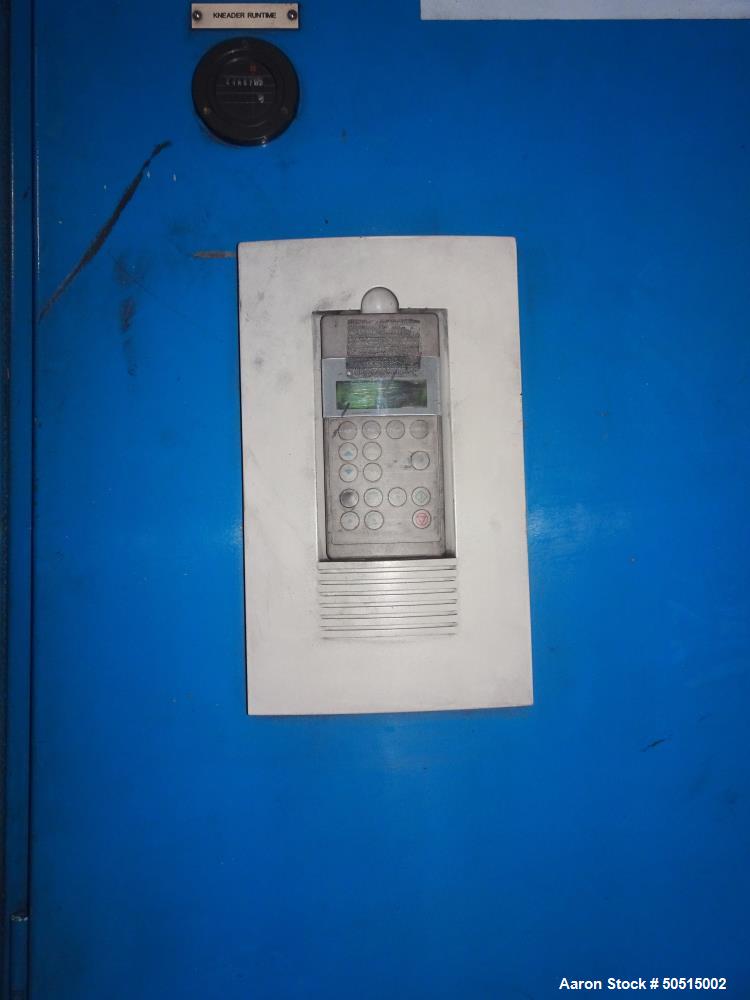

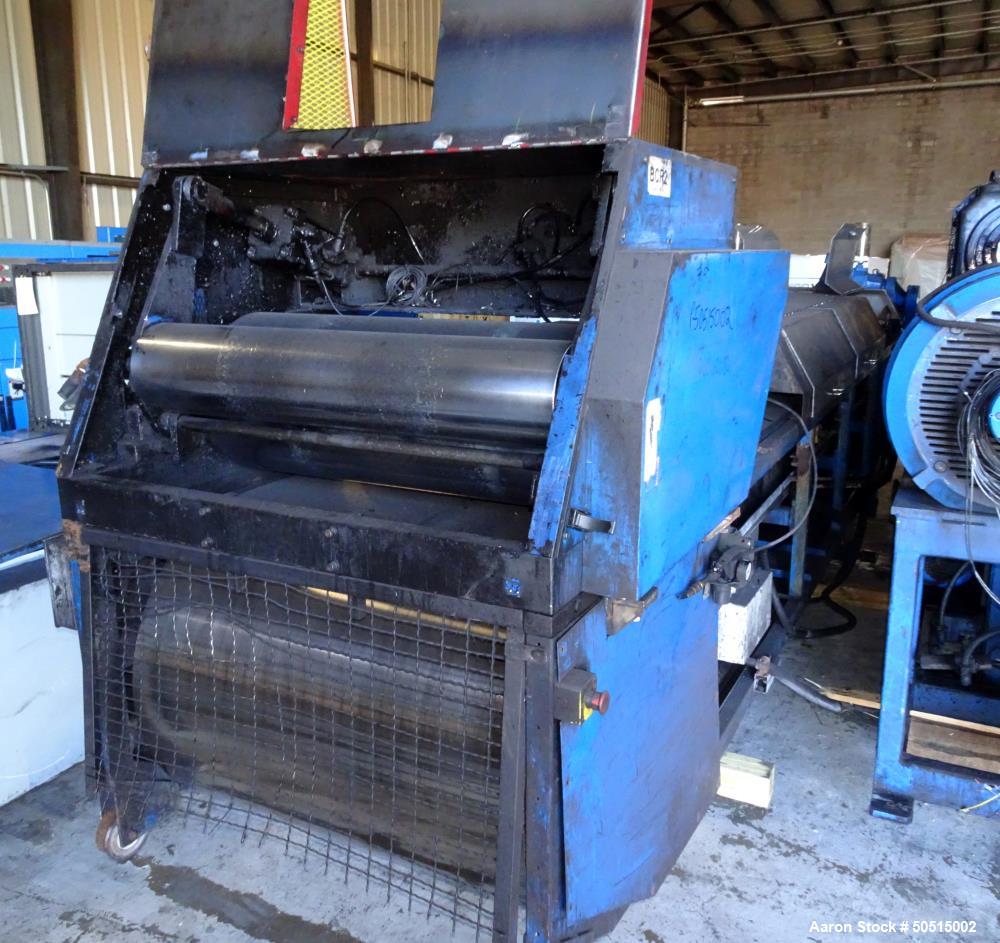

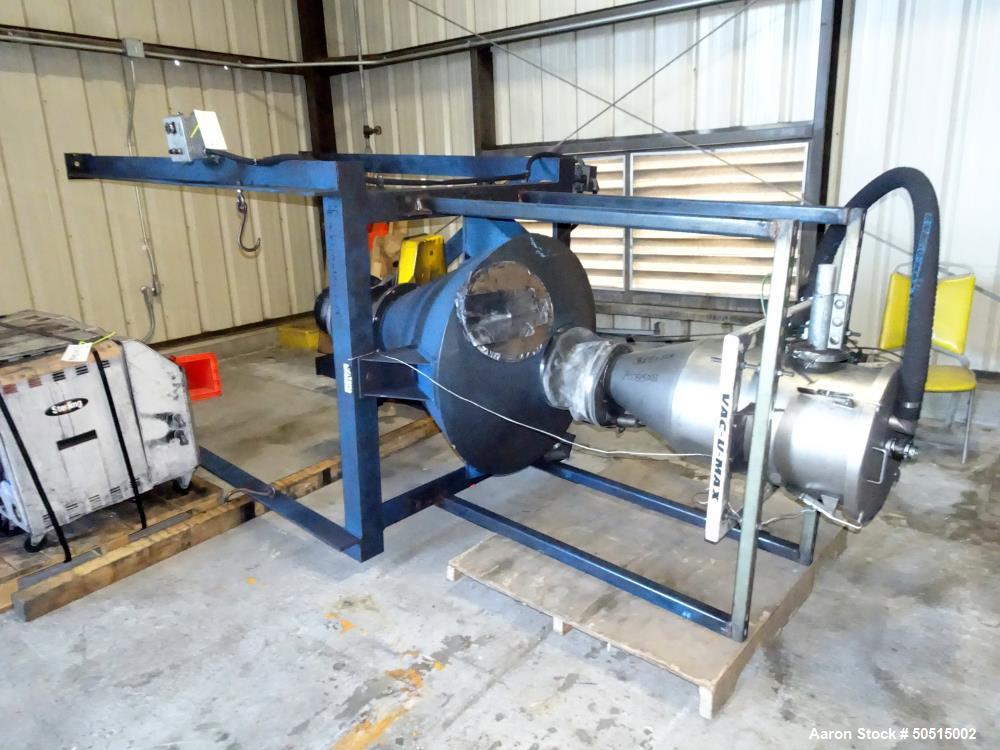

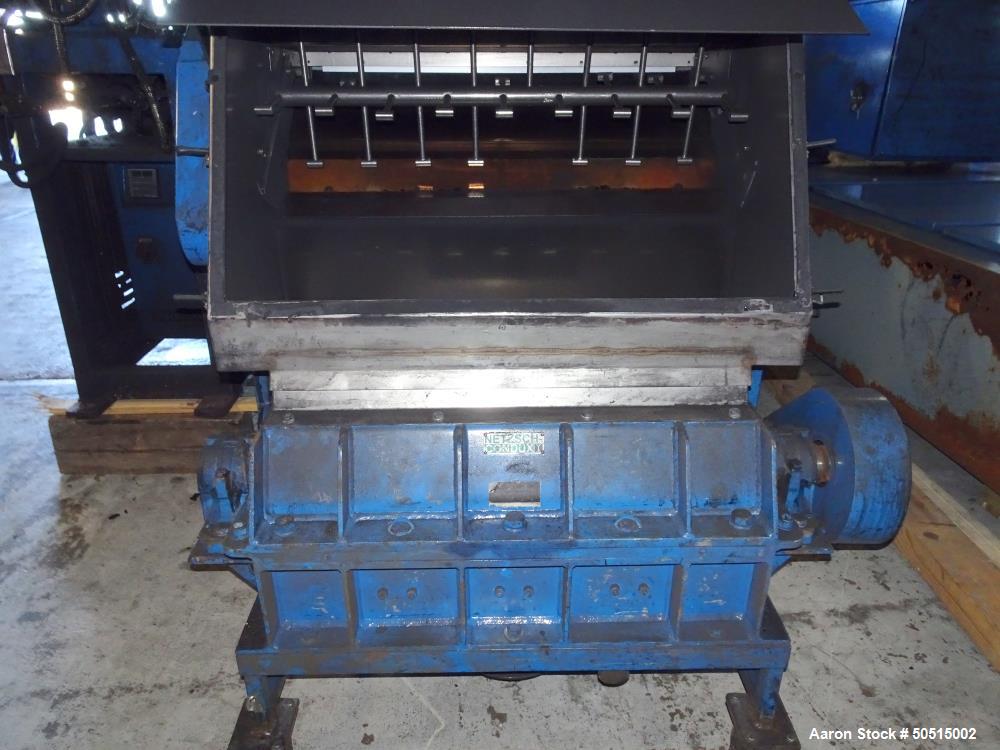

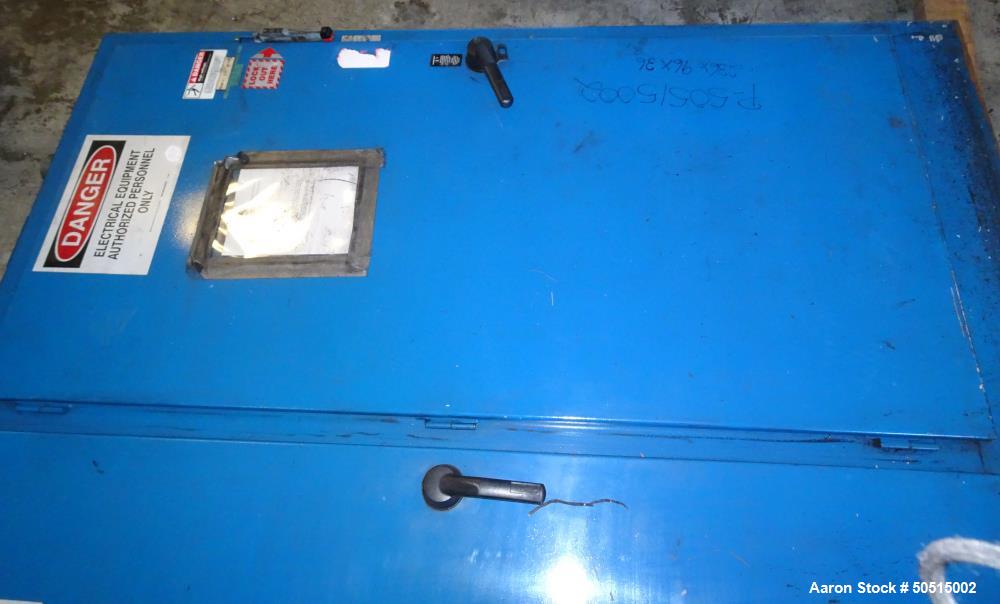

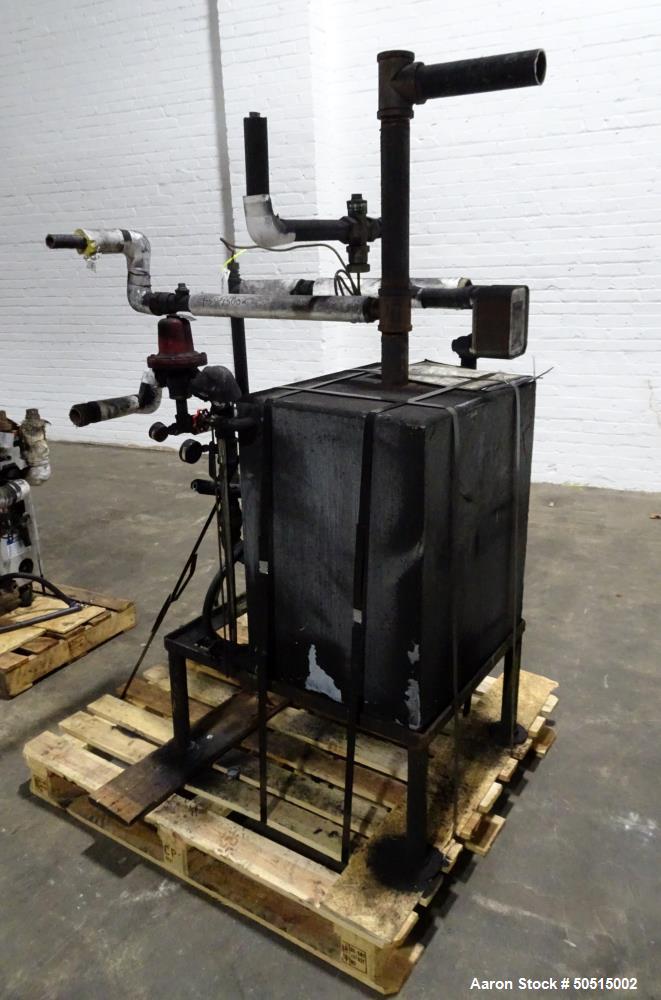

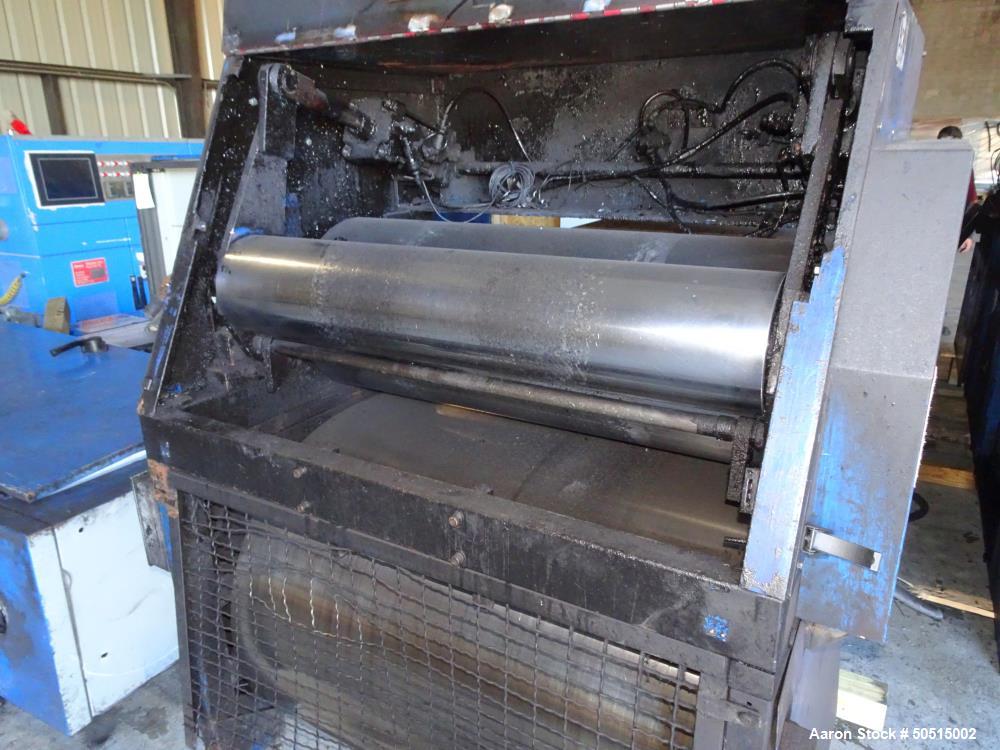

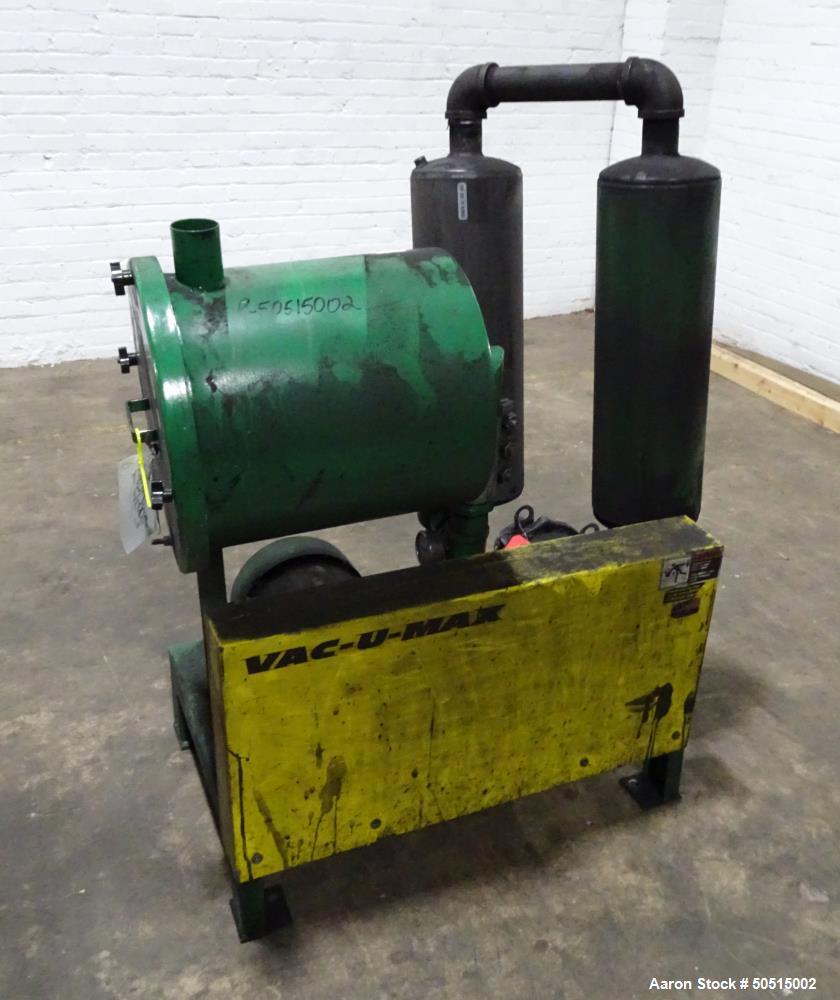

Used- Buss Ko-Kneader Extruder, Model TCS 100-16 D. 100mm (3.93") Diameter heated screw, 16 to 1 L/D ratio. Approximate 57-1/4" centerline height. (6) Jacketed barrel sections, side feeder, also has top center port. Screw driven by a 125 hp, 3/60/460 volt, 1785 rpm AC motor. Has (4) Regloplas P160 temperature controllers. Serial # 452126-1, Sales Order # 96/4521. Includes cooling conveyor, belt approximate 39-3/8" wide x 18 long, (2) cored rolls 8" diameter & 16" diameter, Netzsch-Condux small granulator at the end of the cooling conveyor. Has Vac-U-Max Bulk collection system with Roots Model 33 U-RAI rotary lobe blower, (4) Sterling Model M2B2010-D temperature controllers, Sterling Model GRT45-5-4 pump tank. Operators panel with Siemens/Moore PLC, (6) Door control panel with ABB ACS 600 main drive, ABB ACS 300 feeder drive, Square D Telemecanique Altivar 18 drive granulator drive.
