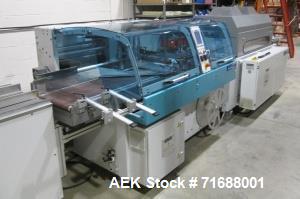

Used- Hugo Beck Full Shrink System; Includes: Infeed finger conveyor, tunnel SL 5015/23, exit flat belt conveyor. Dimensions...

Used- Hugo Beck Full Shrink System; Includes: Infeed finger conveyor, tunnel SL 5015/23, exit flat belt conveyor. Dimensions: Width: 2 17 Length: 3", Height: up to 7". Packing Film: PE, 1,25 2,25 mil Polyolefin, 60 75 gauge. Centerfolded Product infeeding, Capacity: up to 80 packs per minute. System is as follows: 1. Infeeding product infeeding by separate finger chain conveyor, regular driven, including side guides. Usable length of conveyor: 2.000 mm (78") Working height: 850 +/- 50 mm (33.5" +/- 2"); Total length of conveyor: 2.400 mm (94.5"); Table width: approx. 400 mm (8") 2; Usable Width: 25 - 450 mm (1" 17.75"); Usable Height: max. 200 mm (7.875"); Length of product: min. 80 mm (3.250"), maximum is unlimited Width of film roll: max. 550 mm (21.500"), centre folded film max. roll diameter is 350 mm (13.75"); Waste rewinder strip: max. 100 mm (4"); 480/220 Volt, 3 Ph, GND, 60 Hz; Rockwell/Allen Bradley Controls; Working height: adjustable from 800 900 mm (31.5" 35.5"); Operator controls: left to right; 2.140 mm (84.25"), W = 1.450 mm (57").
