Stock No.: 72163002

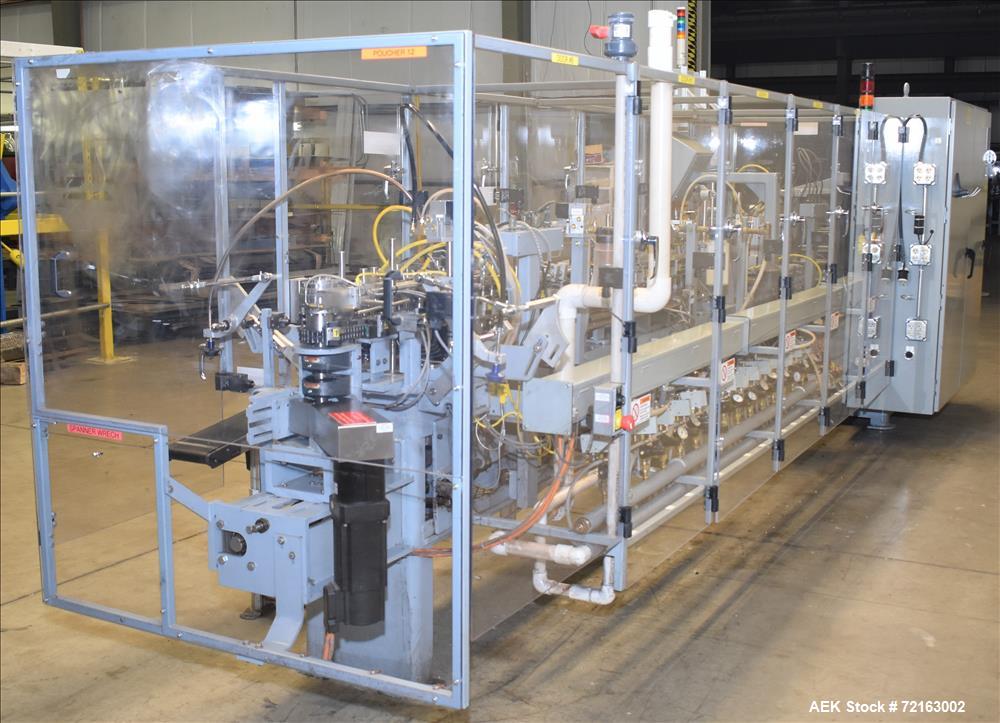

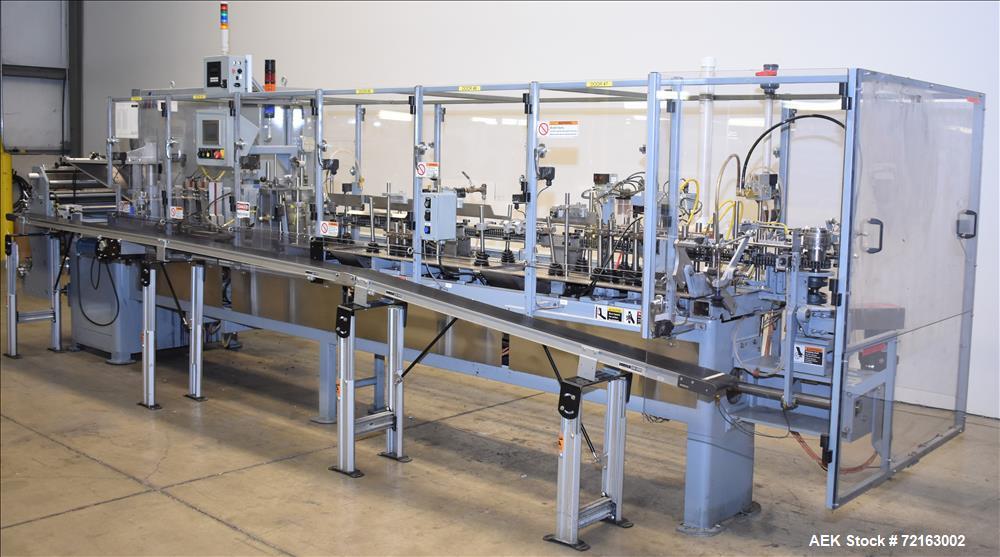

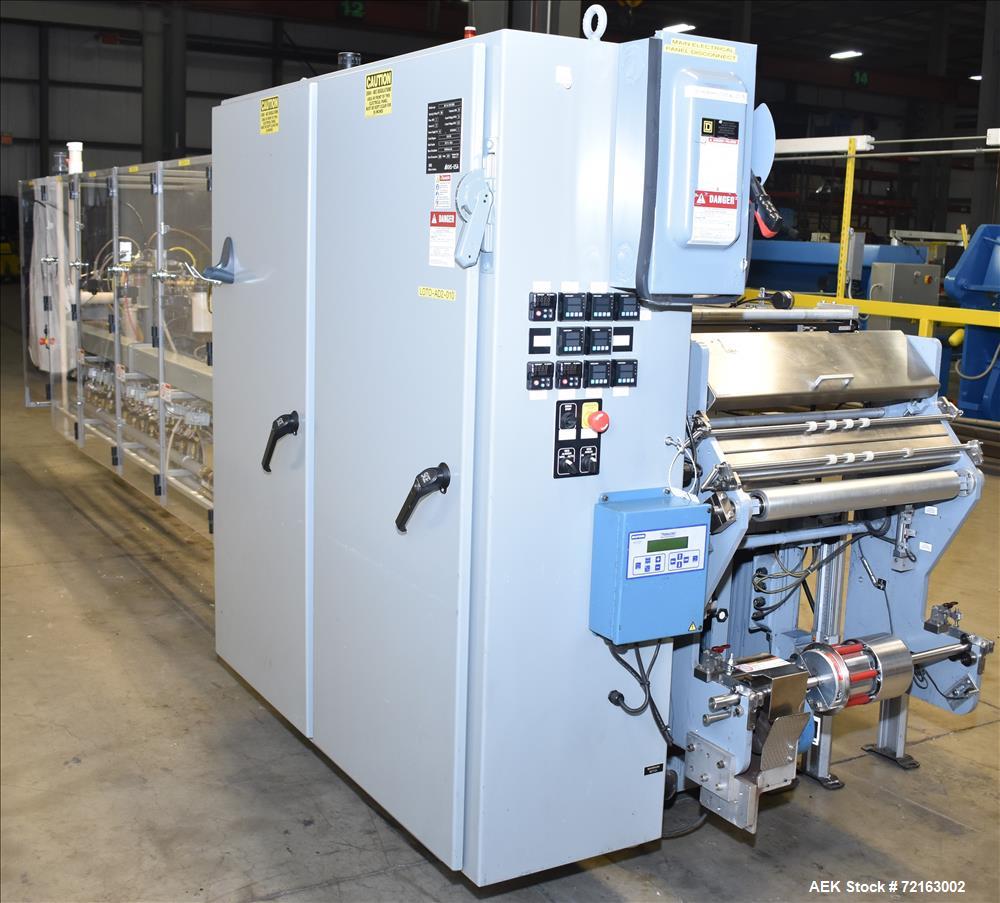

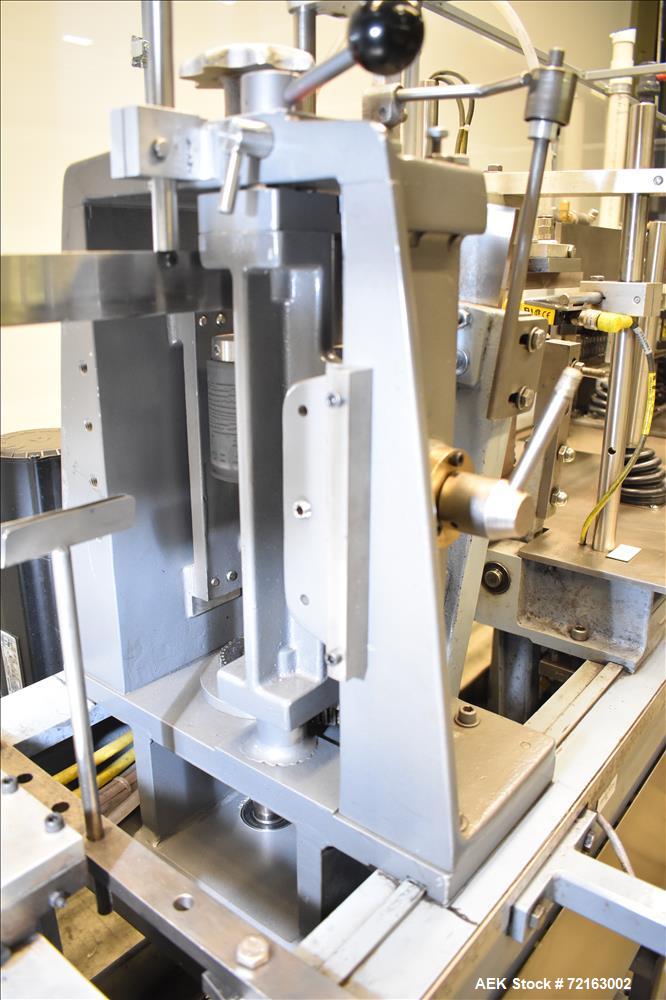

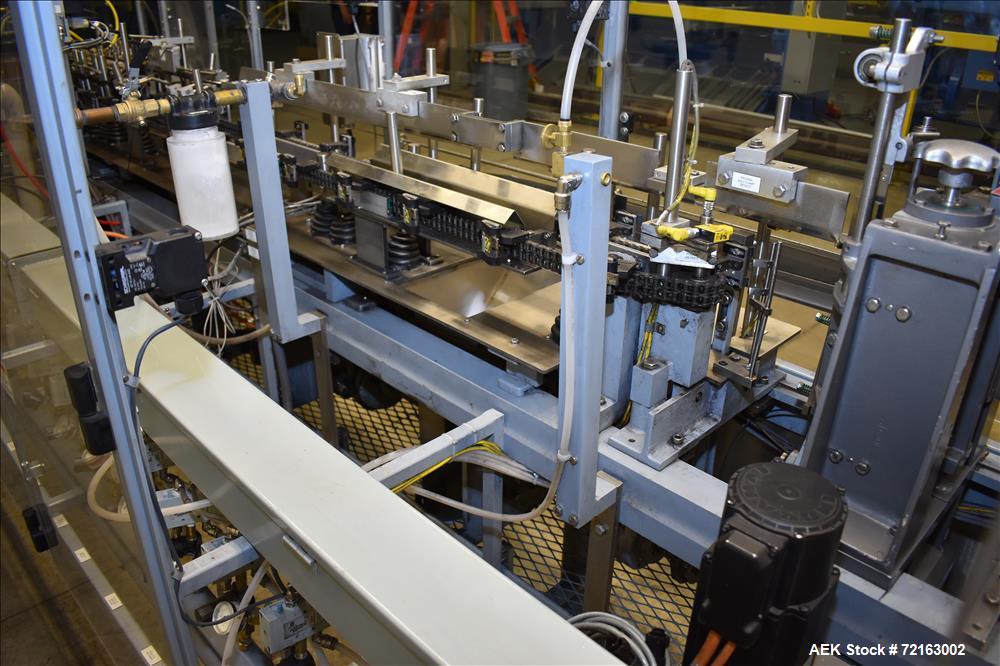

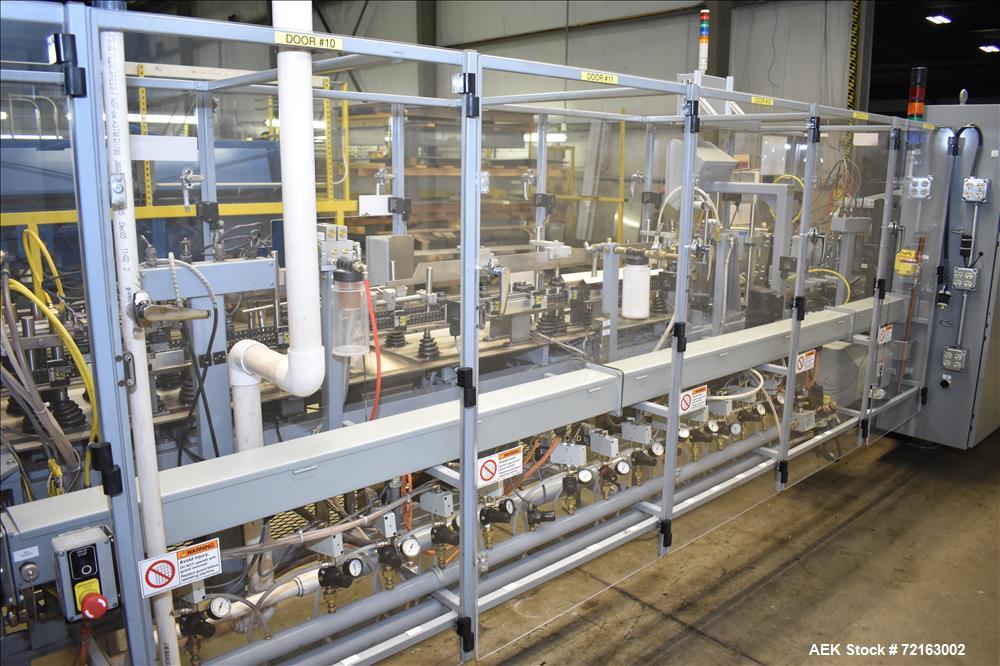

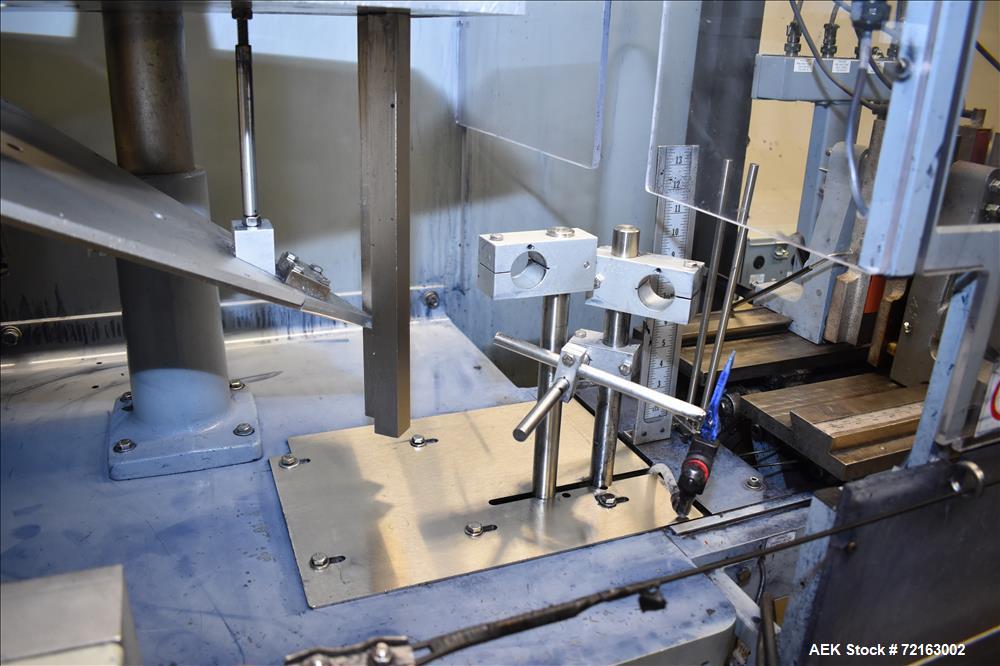

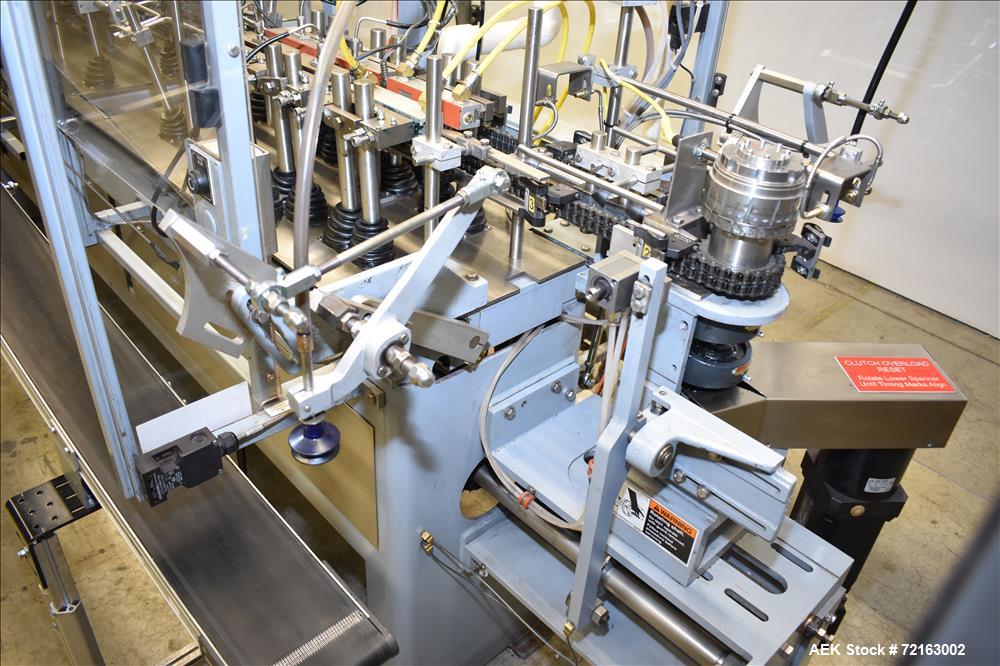

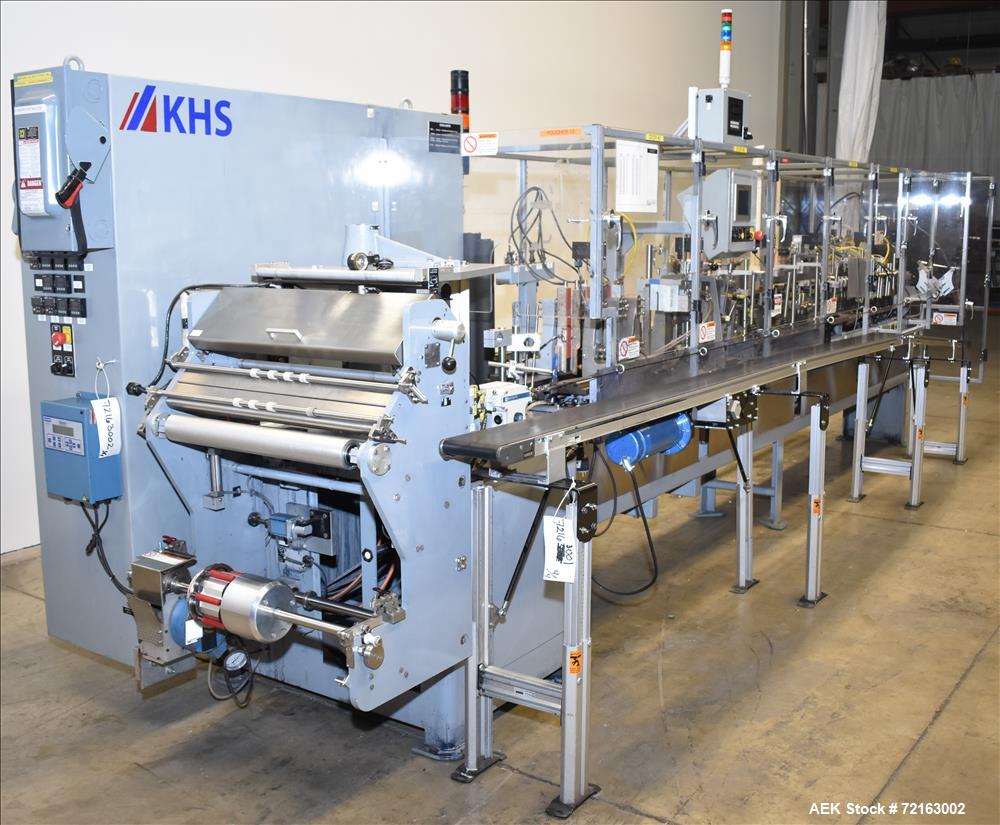

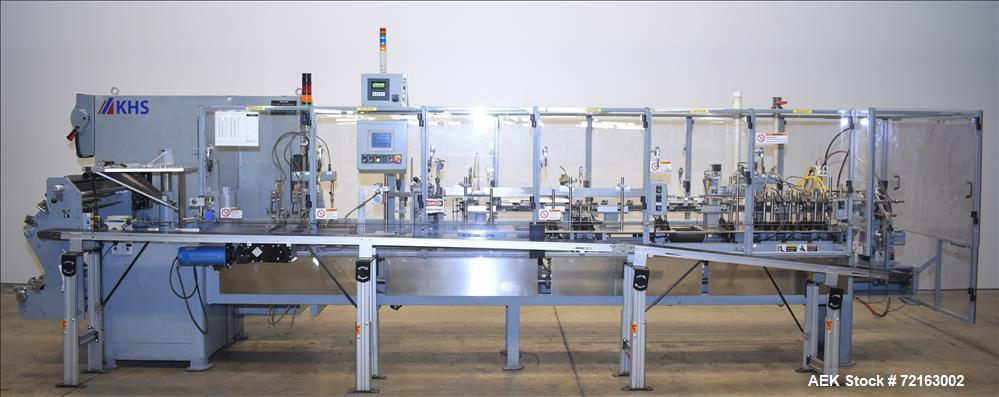

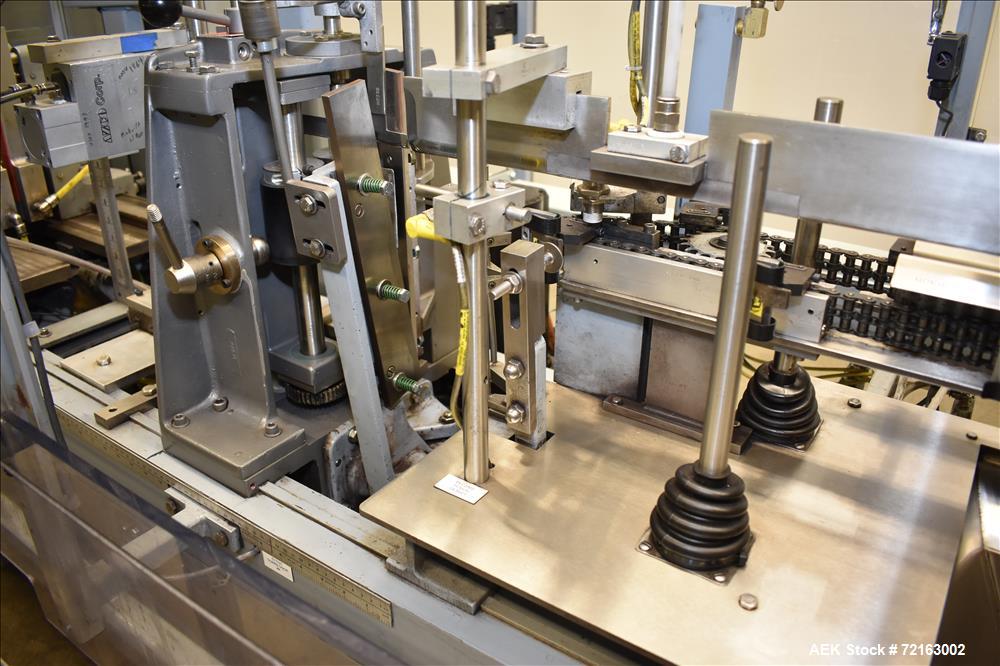

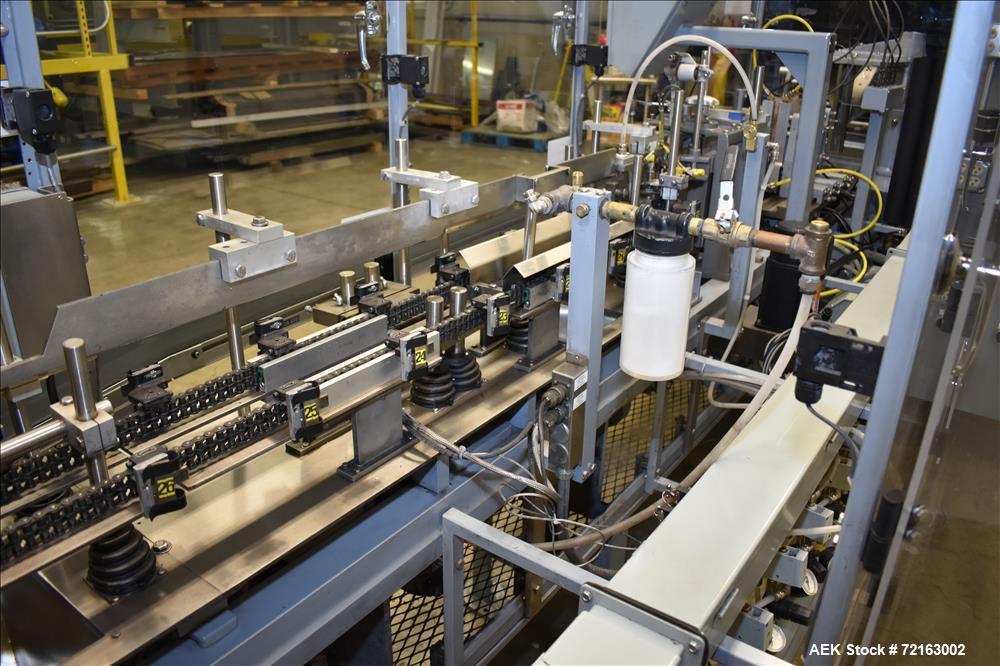

Used Bartelt Model IM7-16 Servo Horizontal Form Fill and Seal Machine.

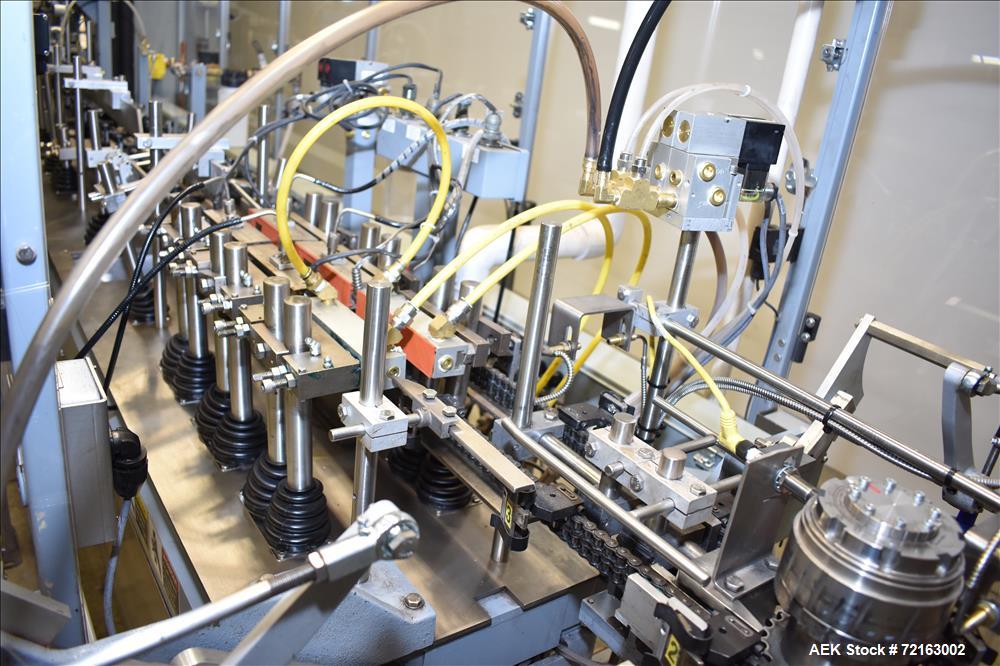

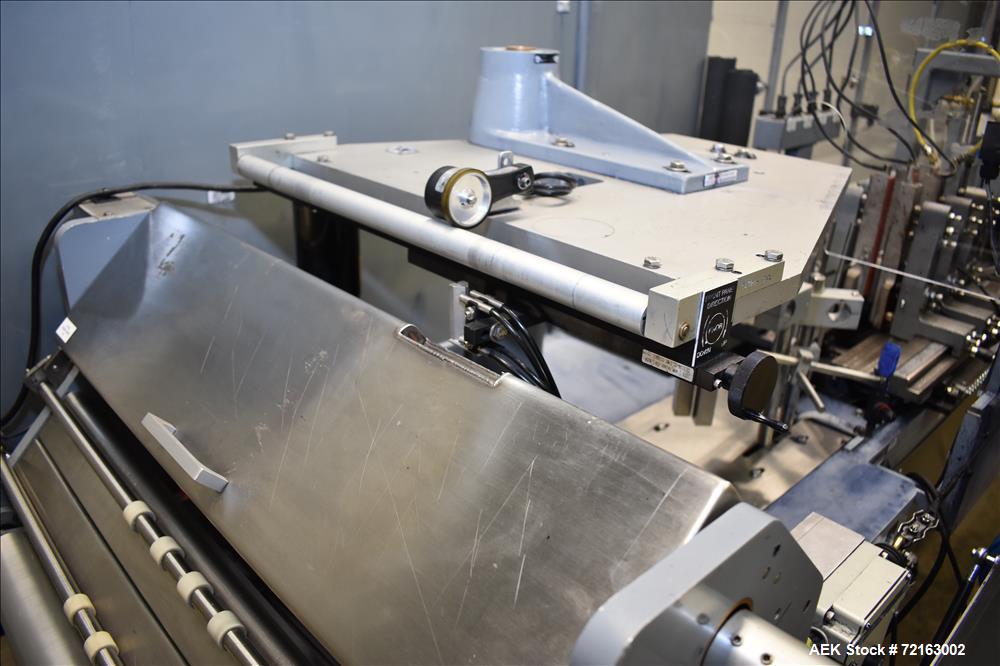

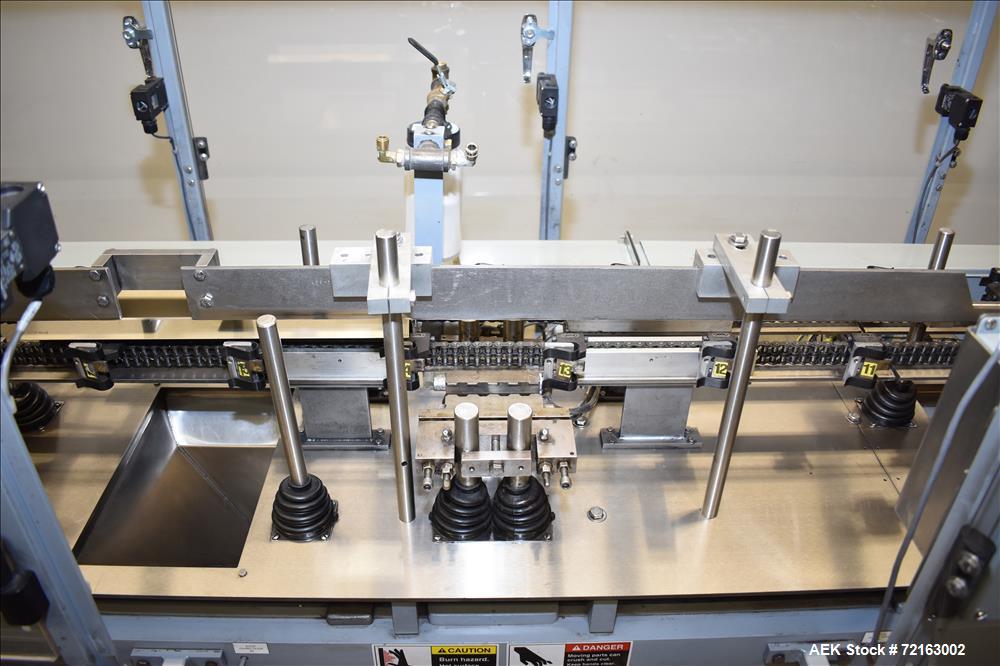

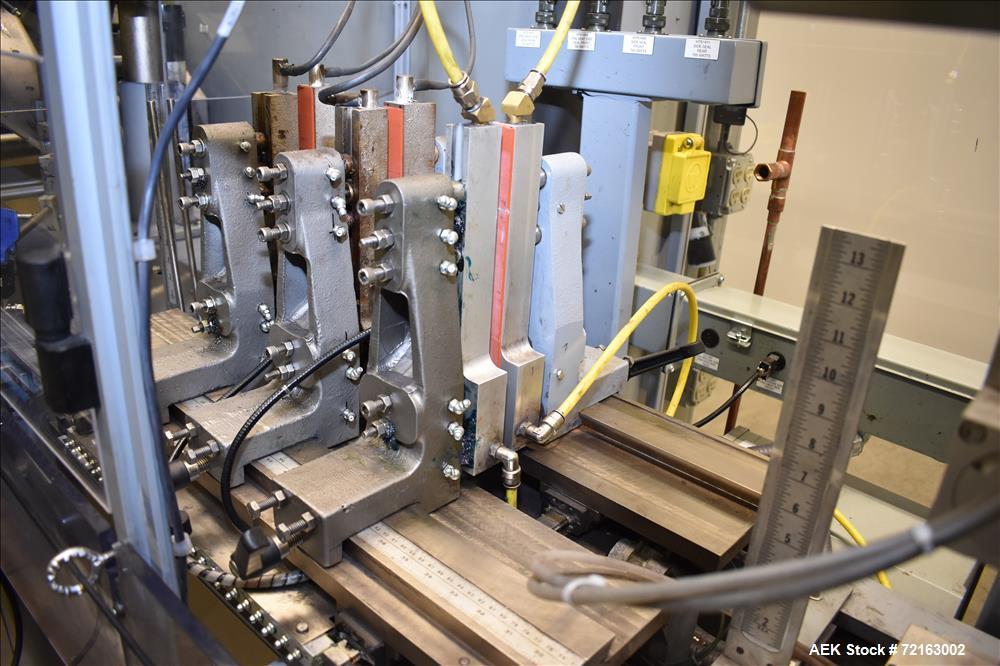

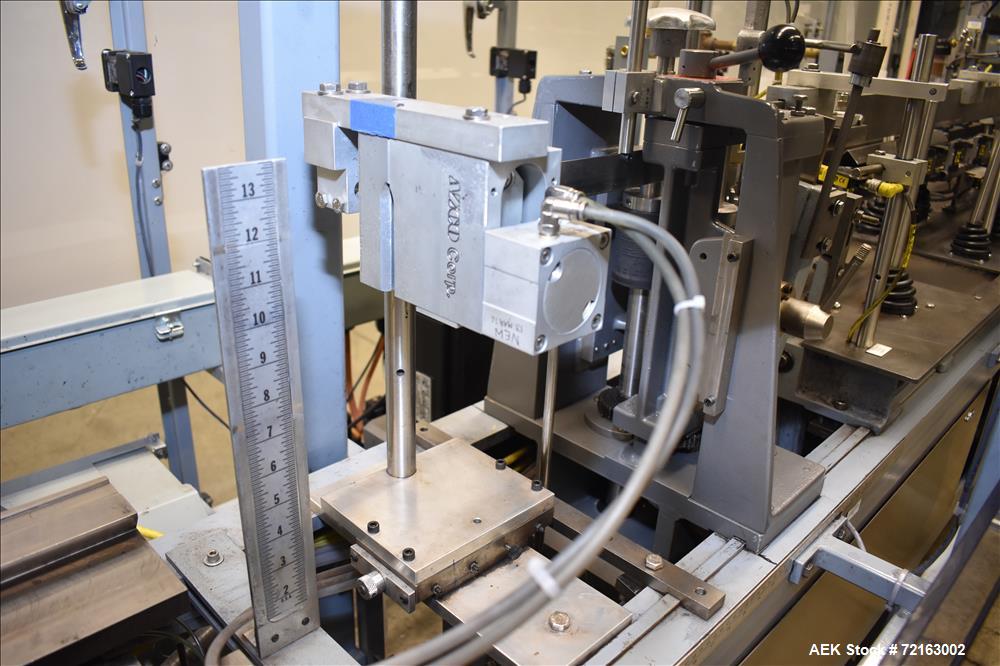

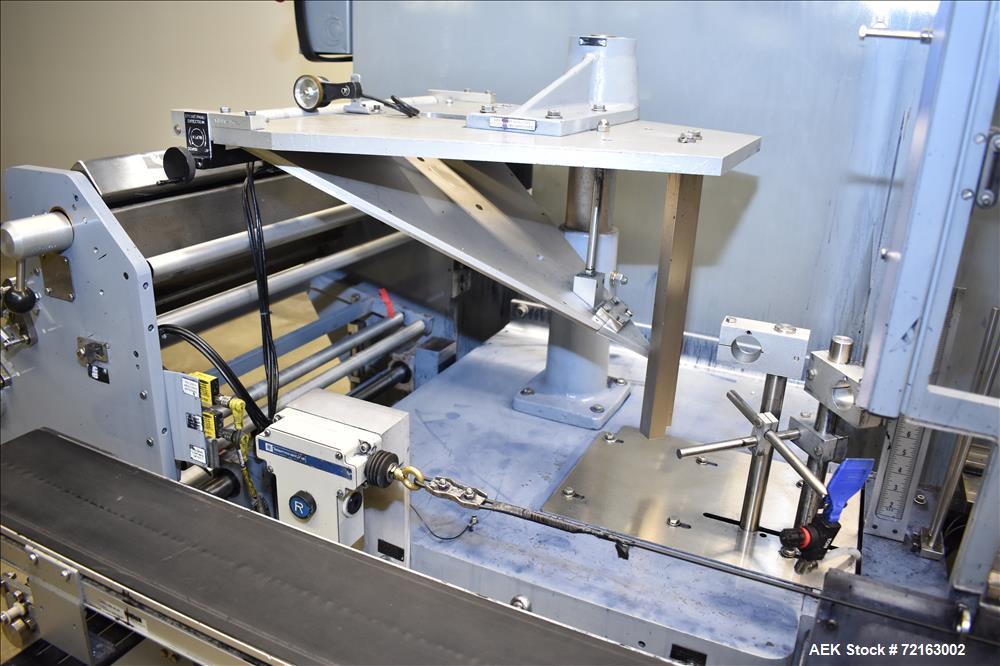

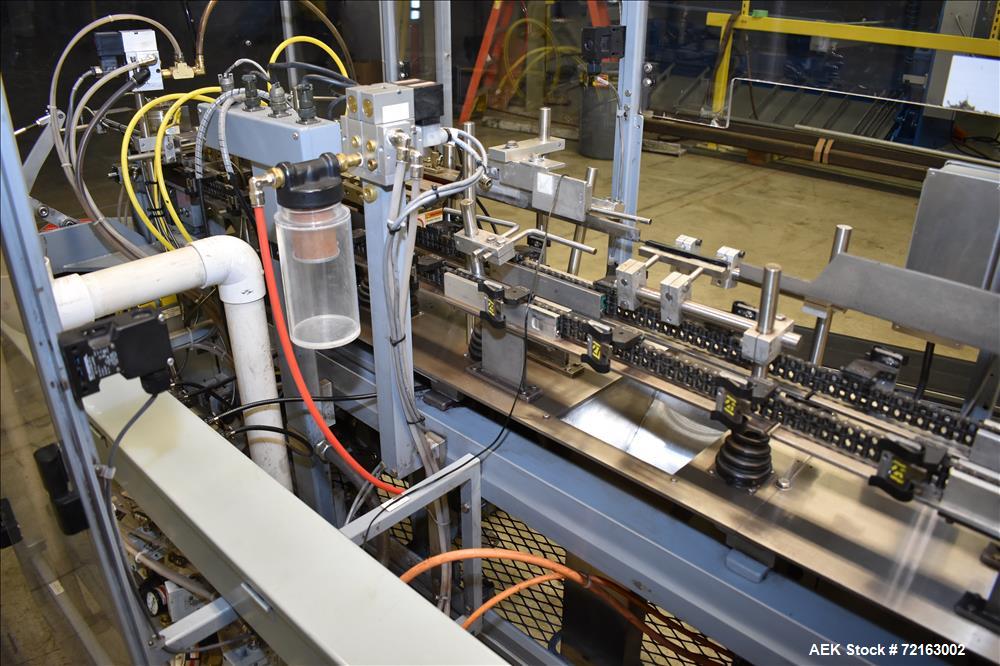

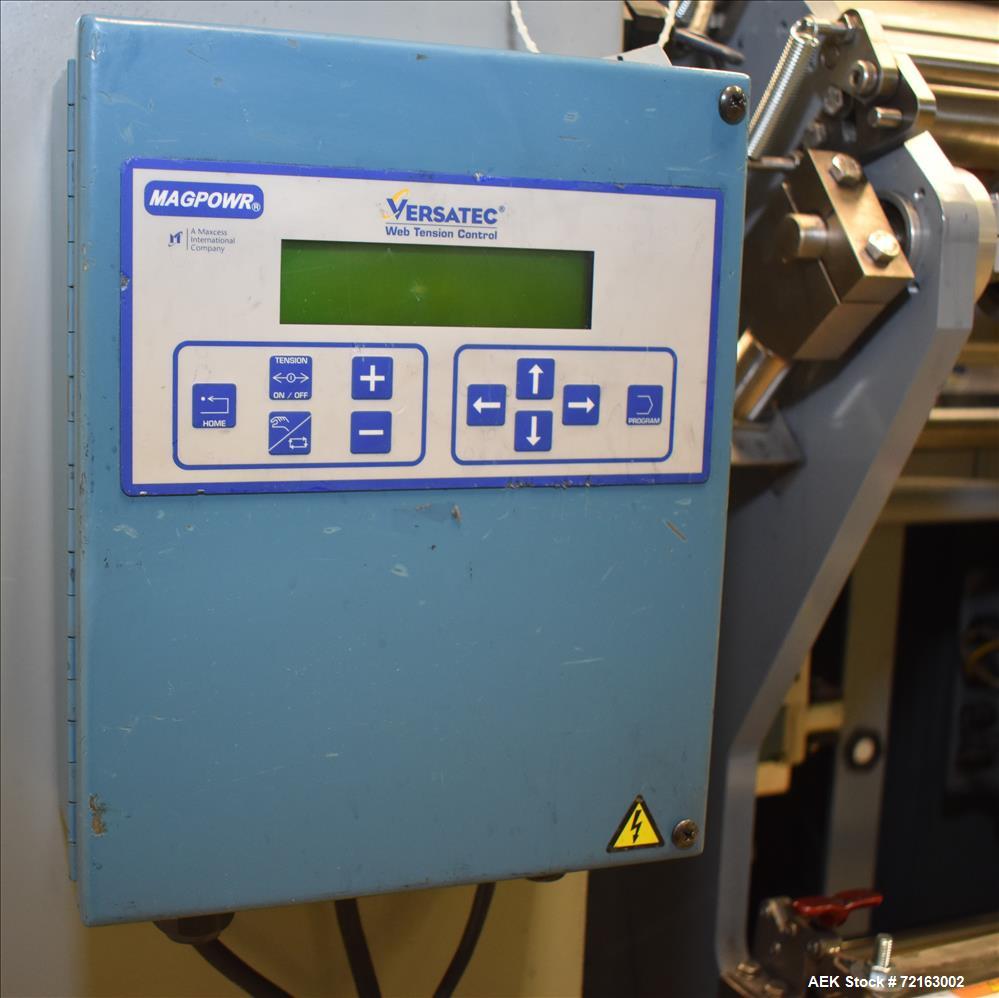

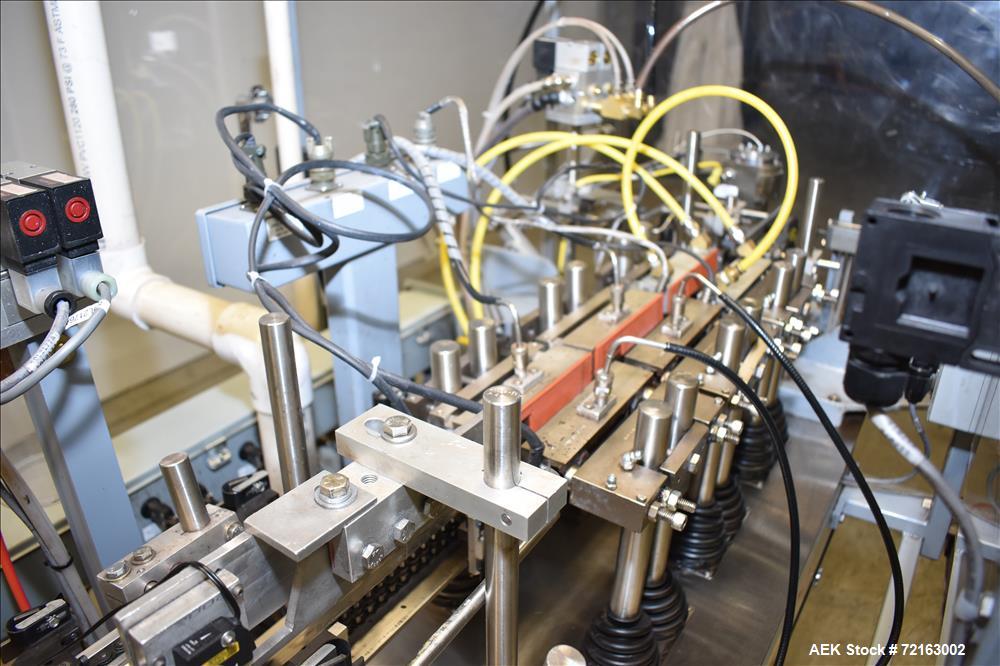

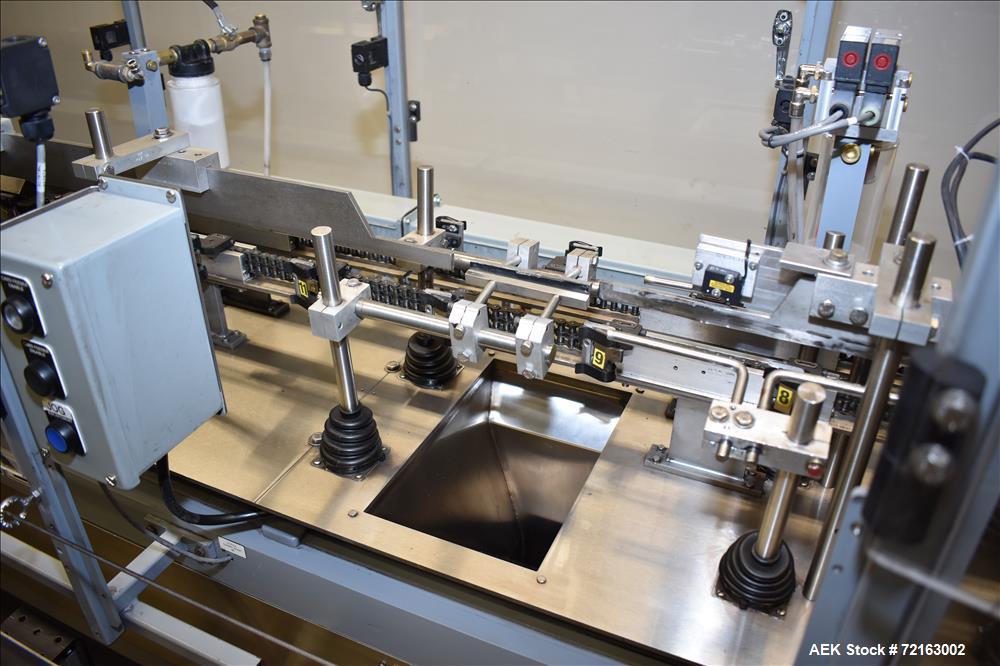

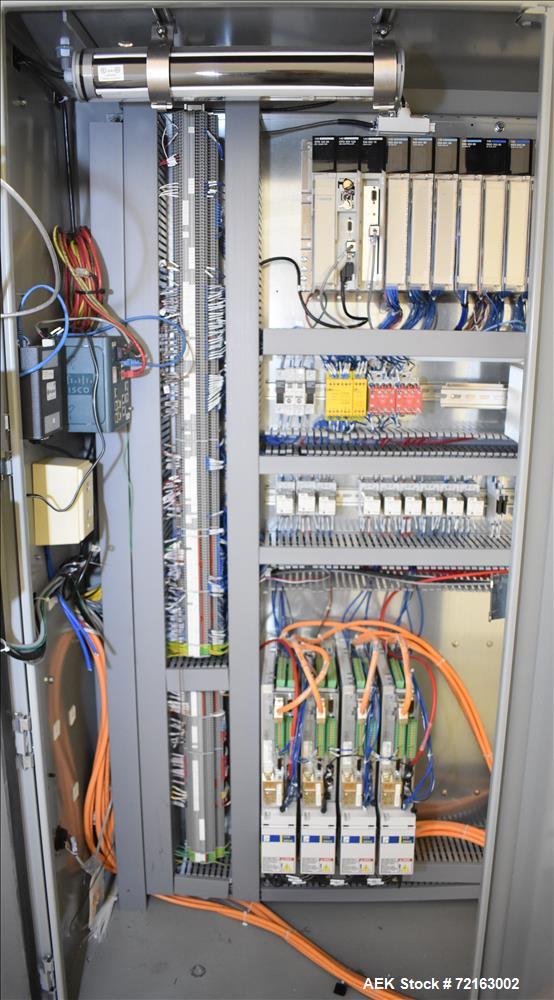

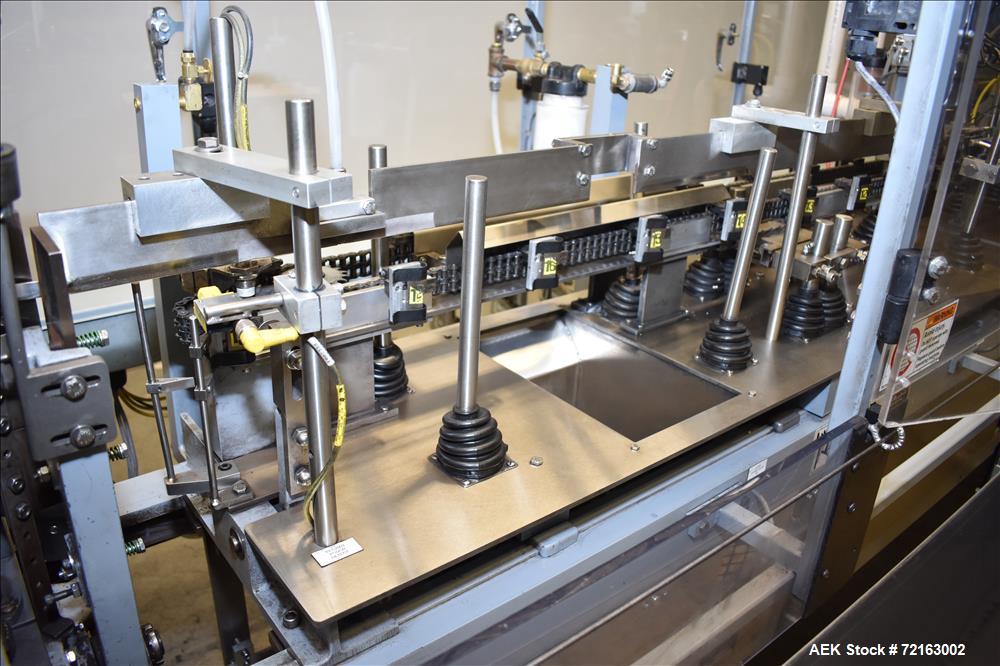

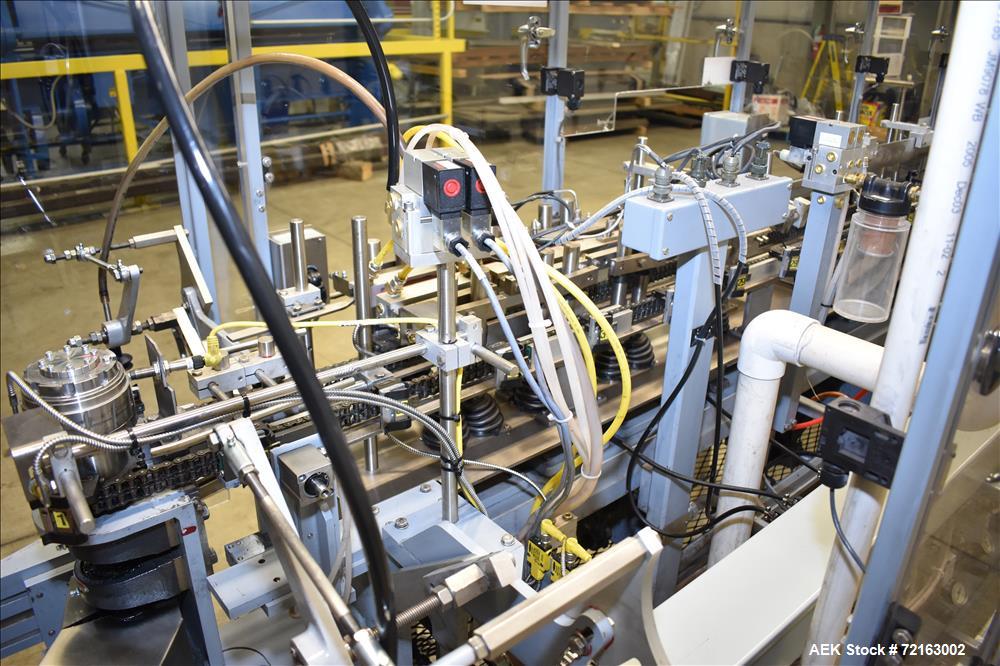

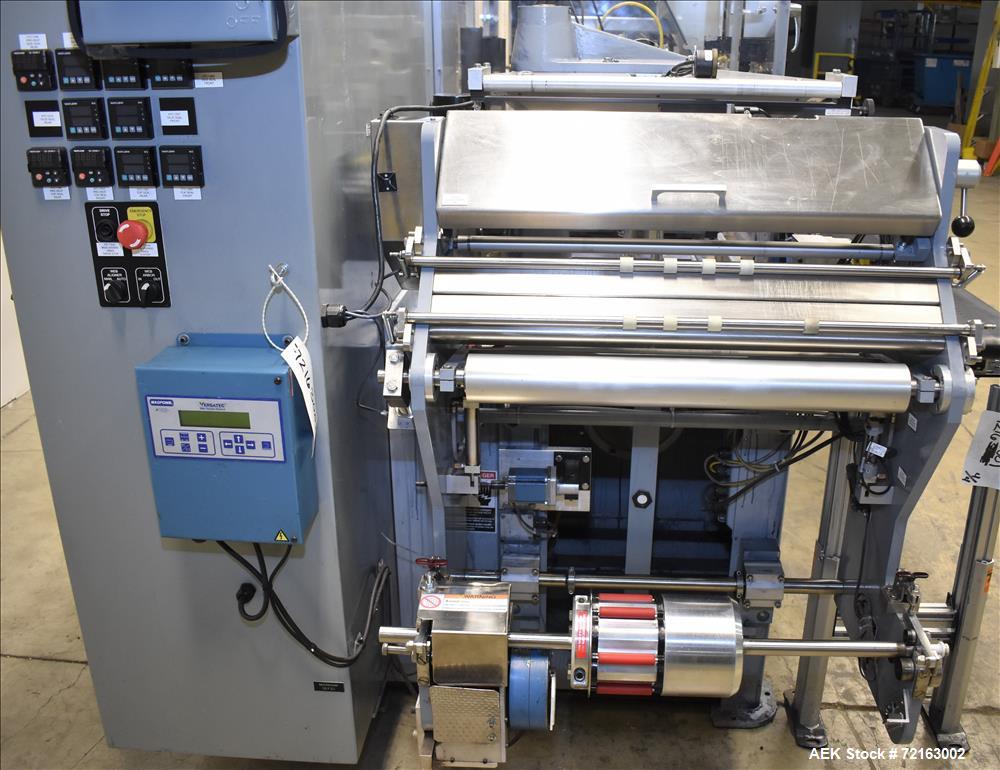

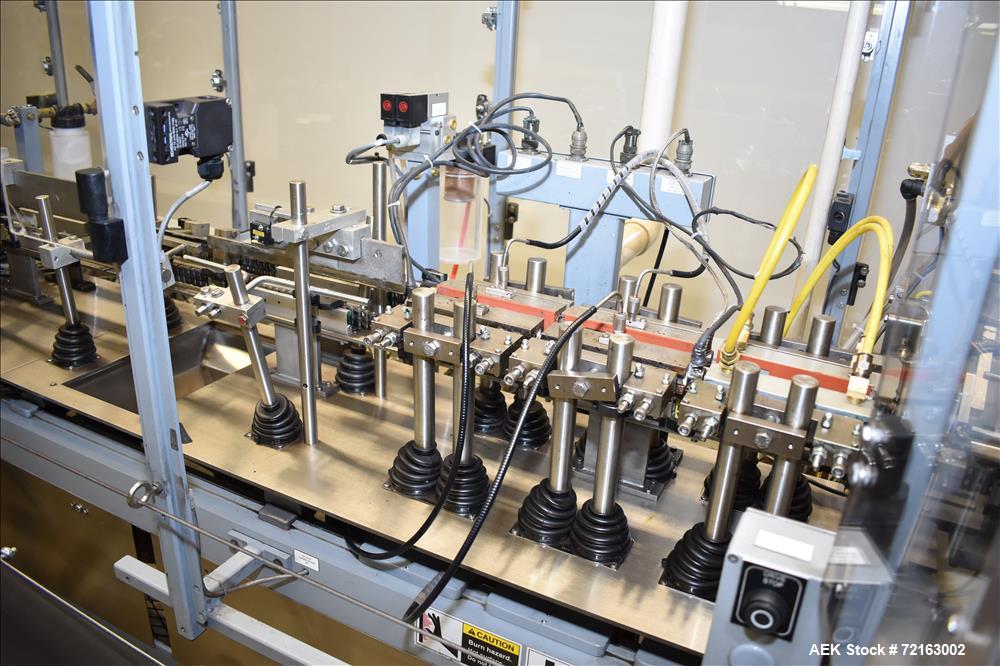

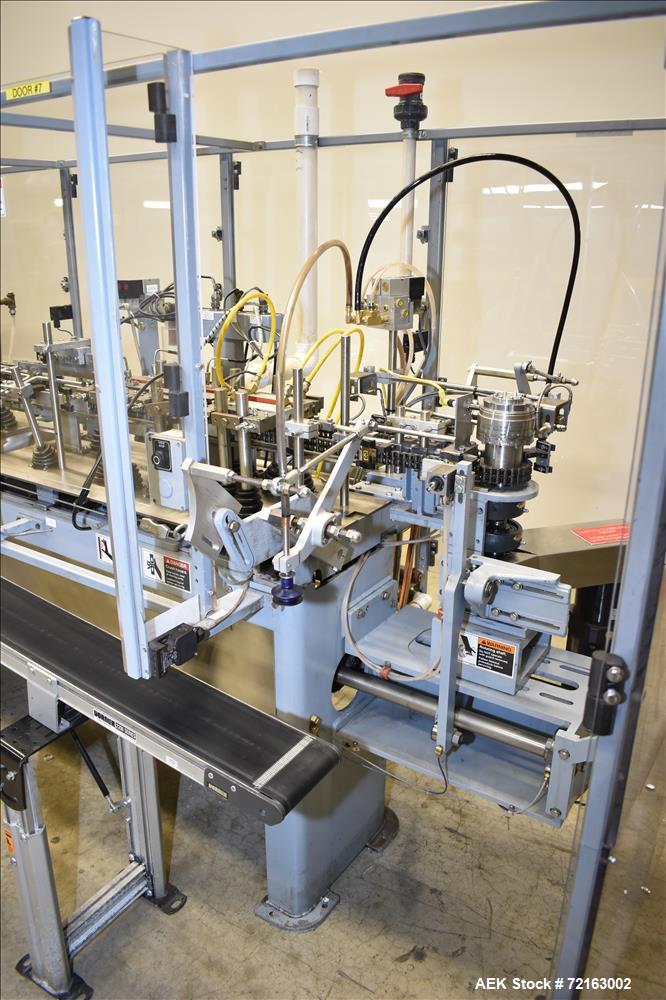

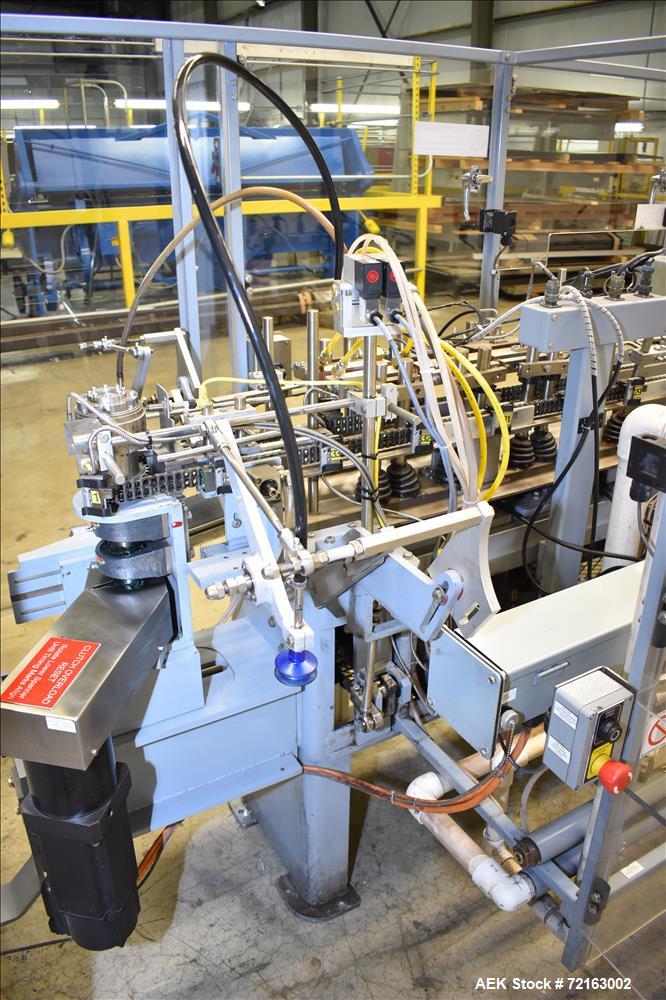

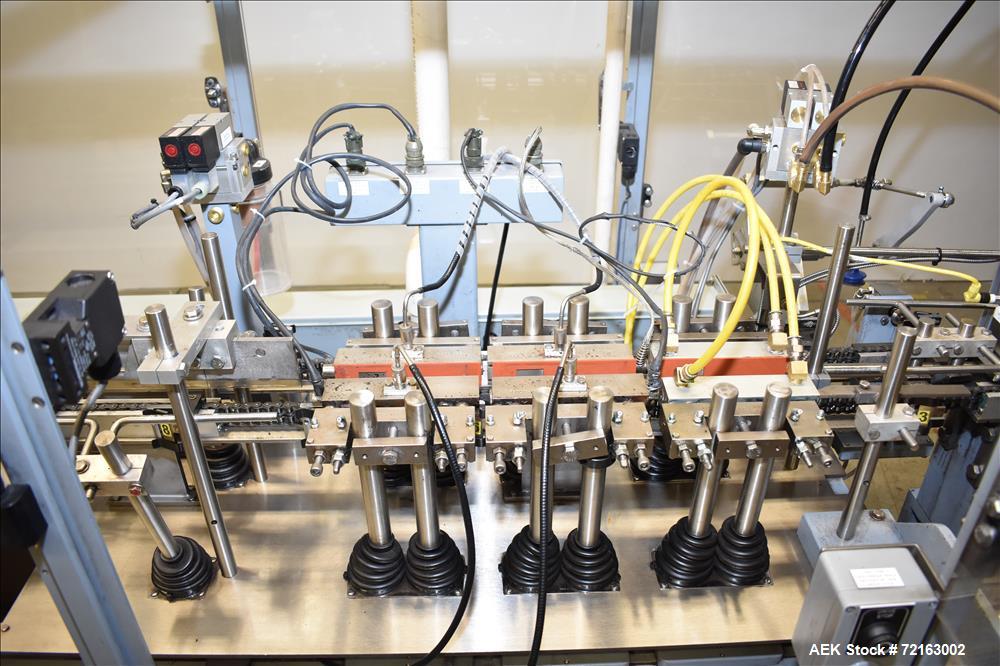

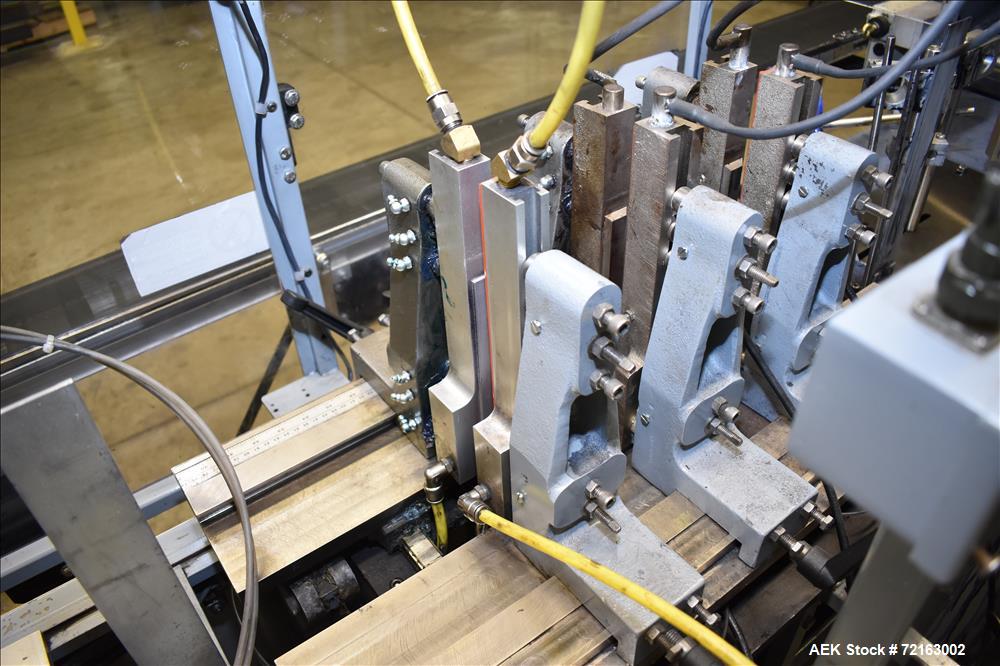

Used- Bartelt Klockner) Model IM7-16 Servo Horizontal Form Fill and Seal Machine. Machine is capable of speeds up to 100 ppm. Pouch size range: width 1" - 5-3/4"; height 2" - 9" (change parts may be required). Has 2 fill stations with vacuum openers. Equipped with auto web tracking, film registration, servo film feed, 16 stations. 7" centers, water circulated side and top cooling jaws, auto clutch jam detection and release, and vacuum pick-off. Accepts structured film roll dimensions: Core diameter 6", 22" OD, 22" maximum width. Utilizes Rexroth servo film feed, Schneider Telemecanique PLC with Quick Panel Maple Sys HMI. Last used in medical device. 3/60/460V 45a power feed with required 90psi compressed air, vacuum and chilled water. Serial Number 3654, mfg 2009
-
ManufacturerBartelt
-
ModelIM7-16
-
Serial #3654
-
CategoryPackaging Equipment
-
SubcategoryForm & Fill Horizontal - Horizontal Pouch
-
MakeKHS
-
Model NumberIM 7-16
-
Serial #3654
-
Package Size Range (Width)2" - 5-3/4"
-
Package Size Range (Height)2" - 9"
-
Fill TypeNone
-

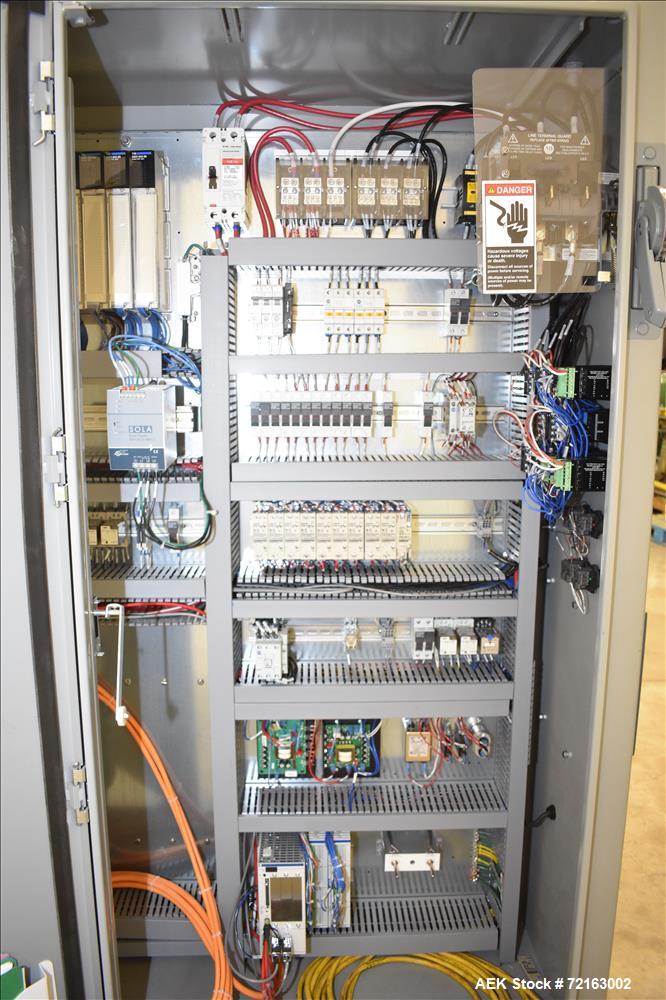

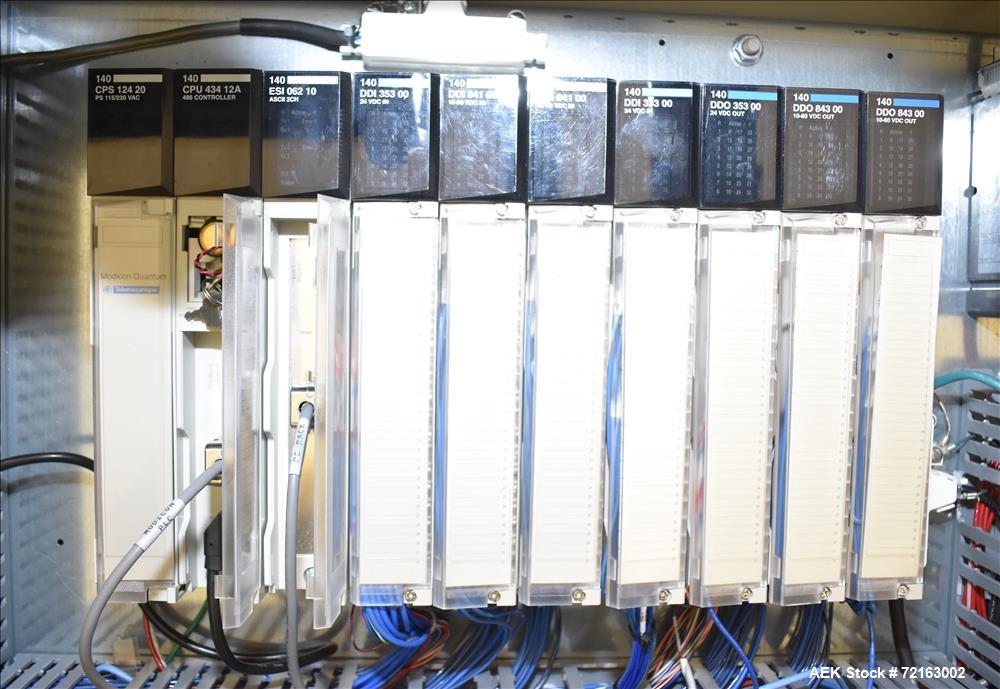

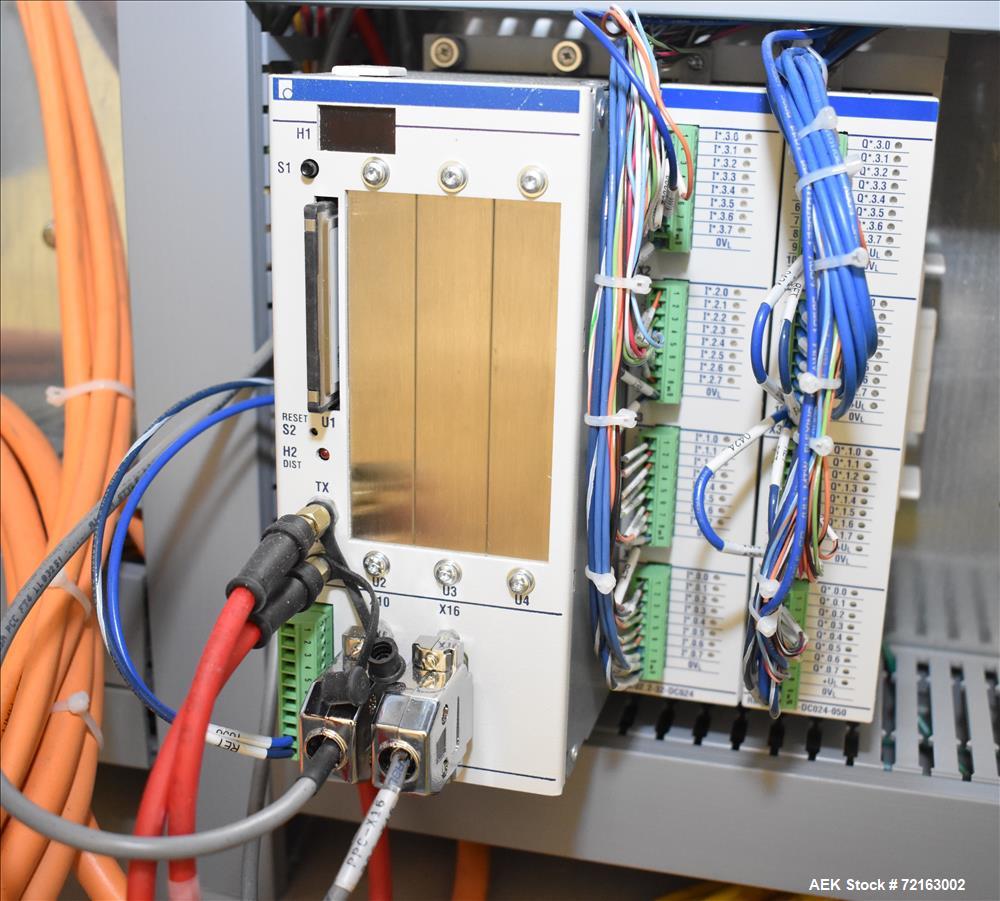

Make And Model Of PlcTelemecanique CPU-434-12A
-

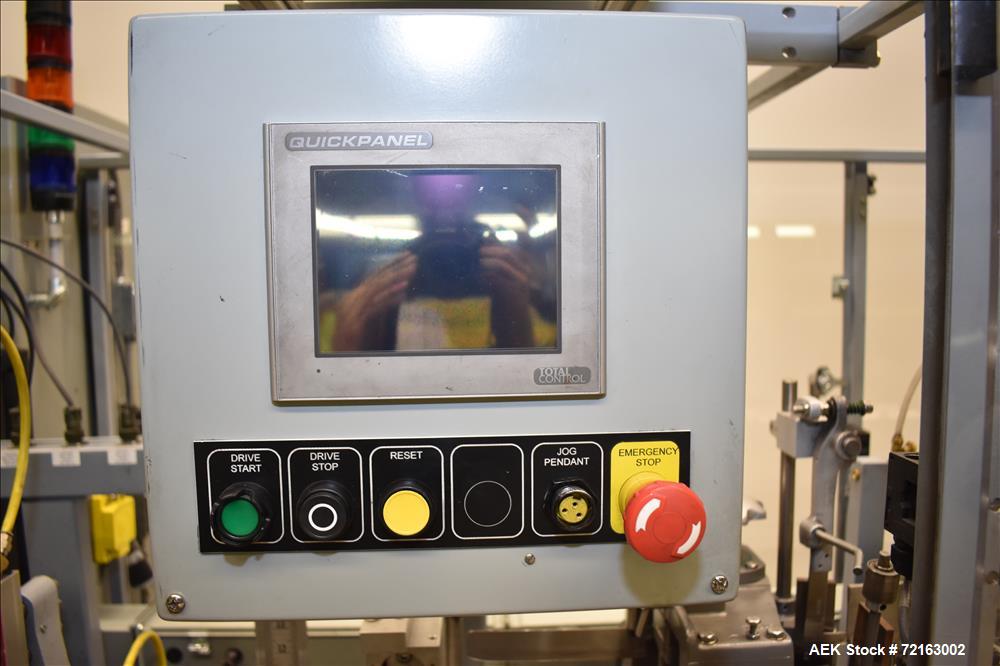

Make And Model Of HmiQuickPanel (Total control)
-

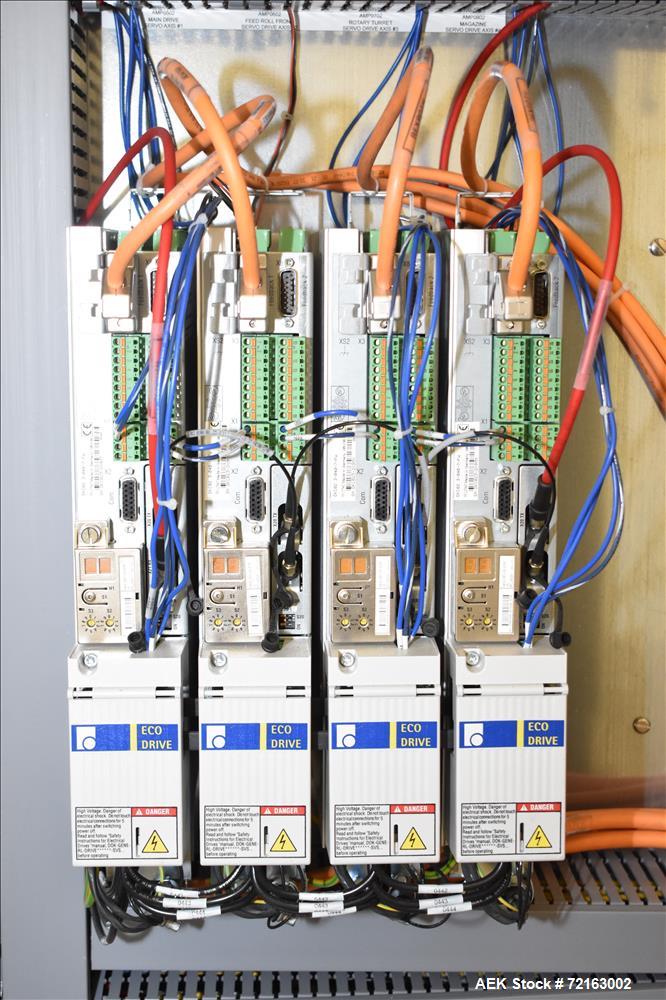

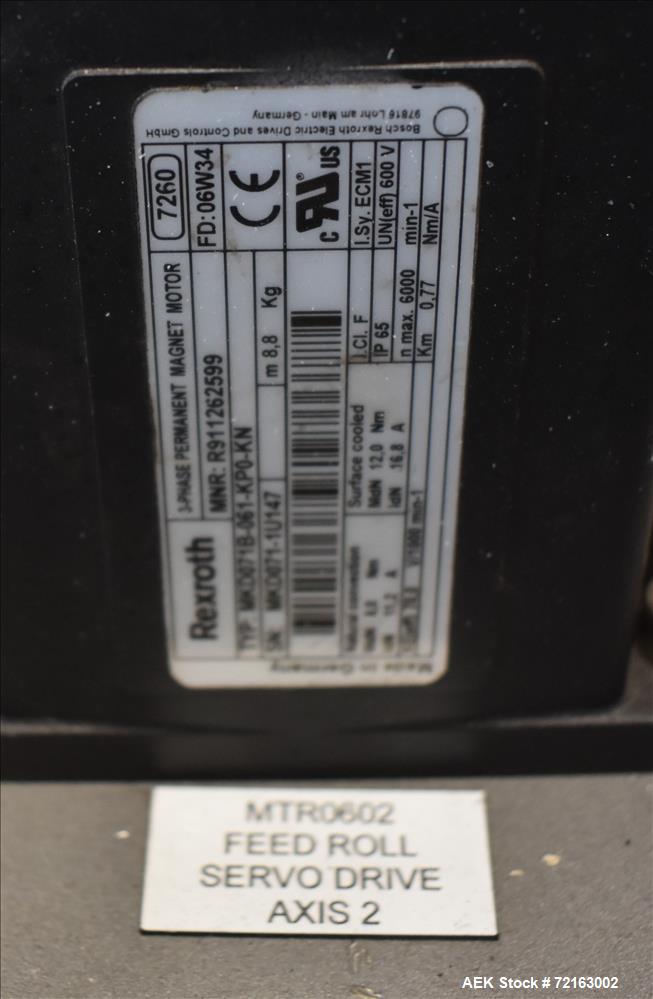

Make And Model Of ServoRexroth
-

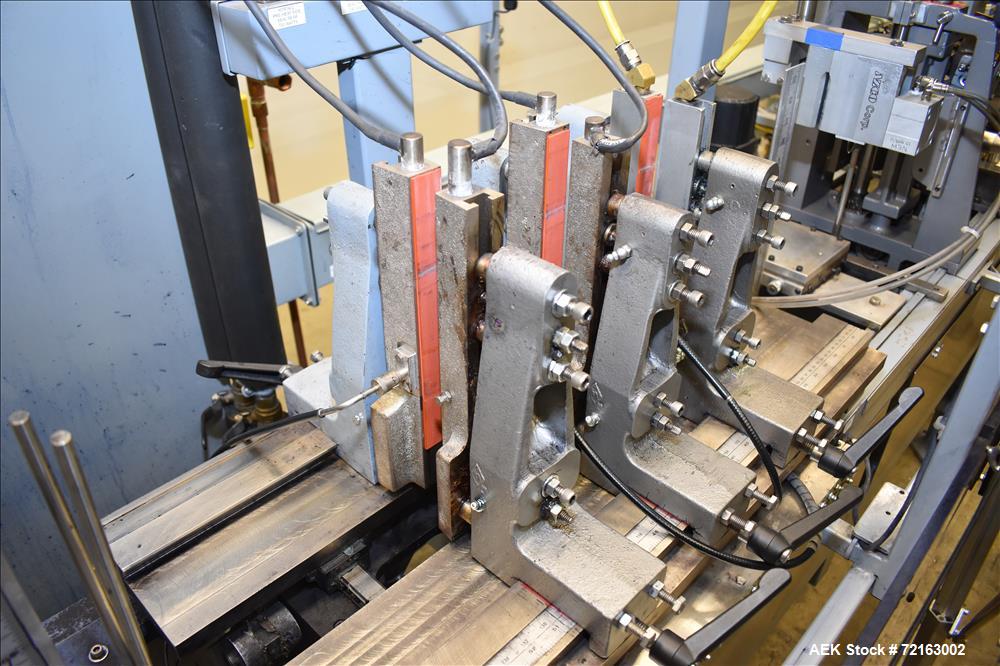

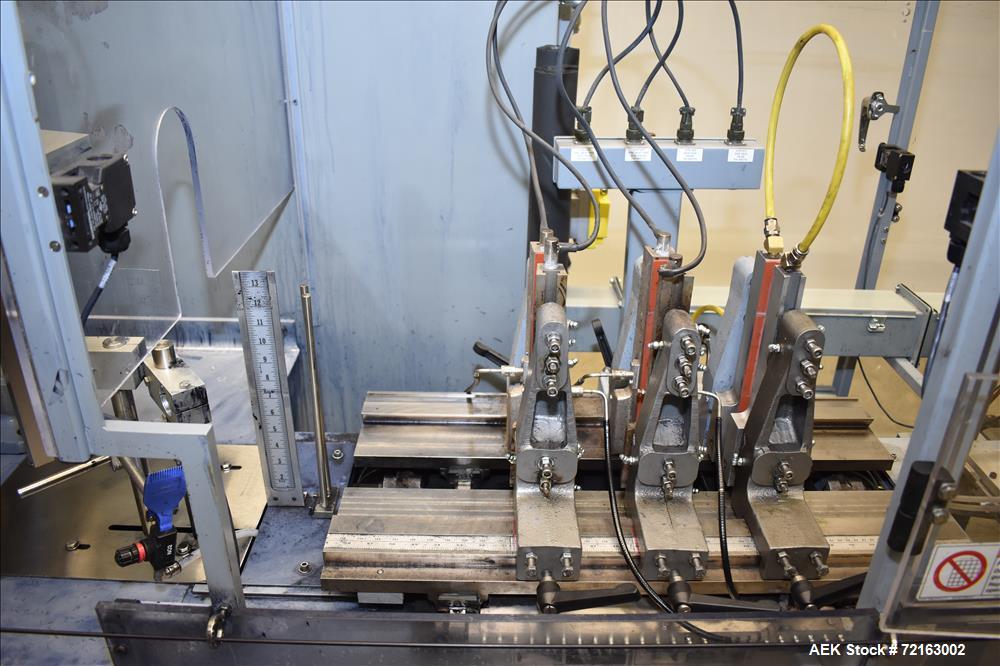

End Seal Jaw LinesHorizontal
-
End Seal Jaw Width1 1/2"
-

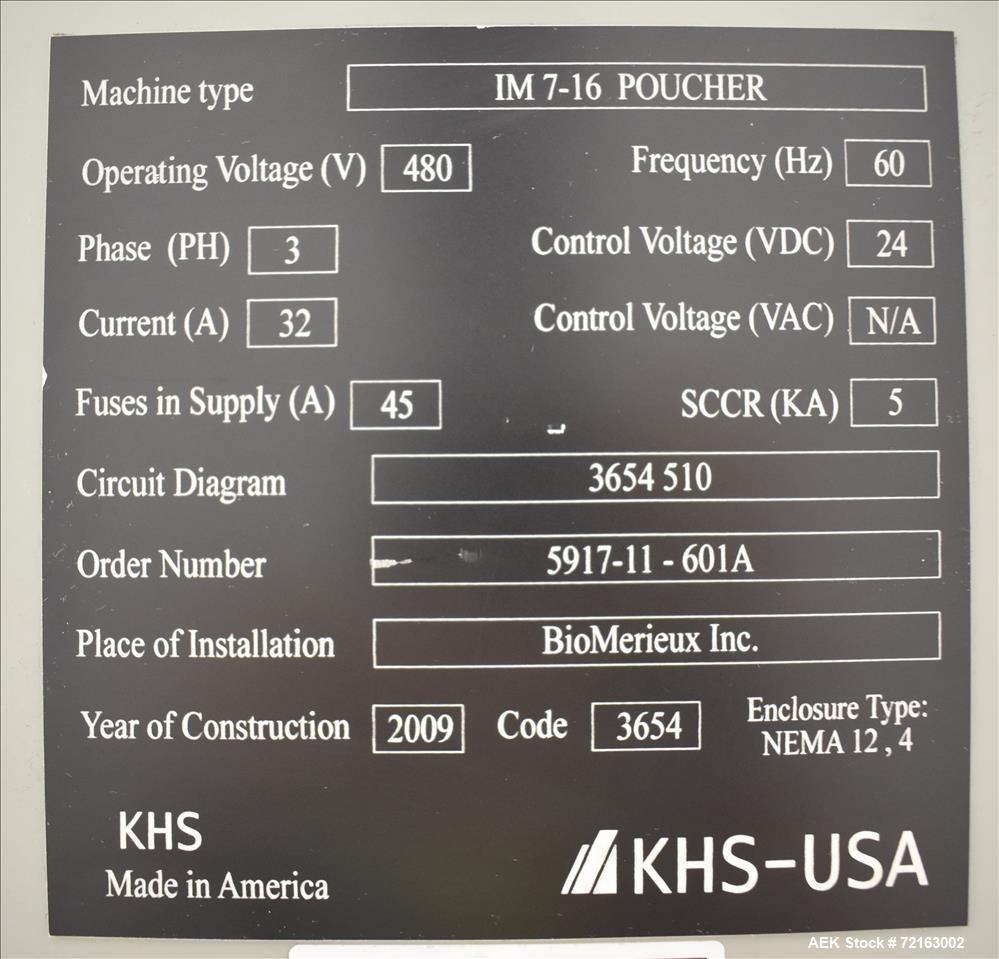

Current Voltage480 volts
-
Oad (Height)90"
-
Oad (Length)250"
-
Oad (Width)70"
-
ManualYes
-
Low Film SensorYes
-
Hole PunchYes
-
Year Built2009
