Used ELF Model TG8 10-Head Inline Pressure Gravity Filler

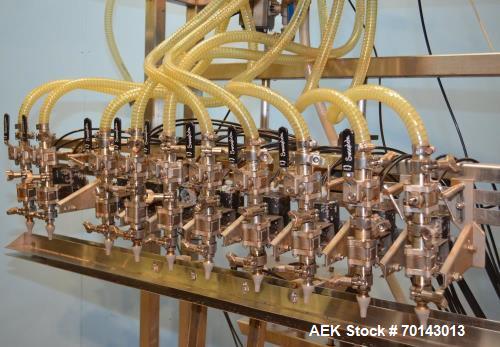

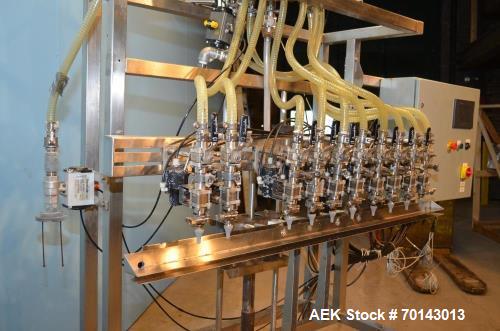

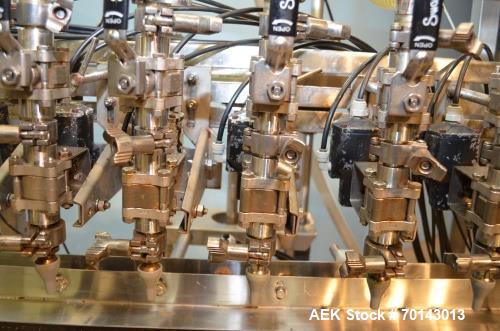

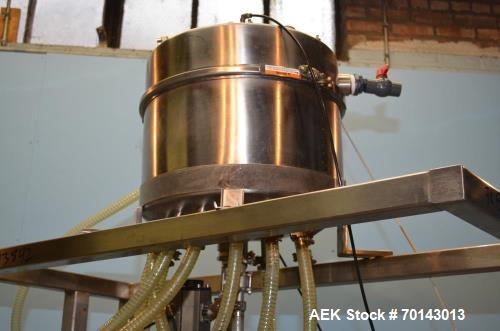

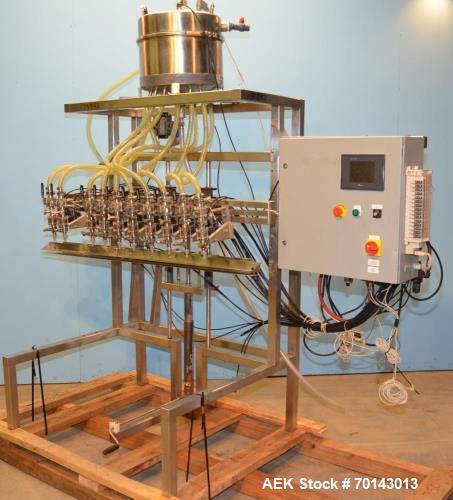

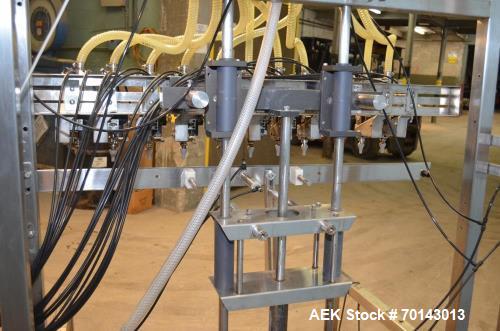

Used- ELF Model TG8 10-Head Inline Pressure Gravity Filler. Provides an Accurate and Versatile Method For Filling Water-Thin to Low, Constant Viscosity, Liquids Into a Wide Range of Containers. 60" Long Nozzle Bar with Manually Adjustable Nozzle Positions. Manual Height Adjustment, Approximate 10 Gallon Stainless Steel Product Tank with Float Control System, Spray Ball Mounted Inside Product Reservoir. (10) Stainless Steel Sanitary Fill Head Assemblies with 1/4" Diameter Nozzles, 3/4" Fill Port. Includes PVC Product Tubing, Allen Bradley Micro Logix1200 Control System with Maple Systems Touch Screen HMI. Heavy Duty Stainless Steel Frame. 120 V, 1 Ph, 60 Hz.

ManufacturerELF
ModelTG8
Serial #10224
CategoryPackaging Equipment
SubcategoryFillers Liquid - Gravity - Pressure - Overflow
MakeELF
Model NumberTG8
Number Of Heads10
Make And Model Of PlcAllen Bradley MicroLogix 1200 PLC

We offer a variety of finance programs. Please contact your sales person for more information.
