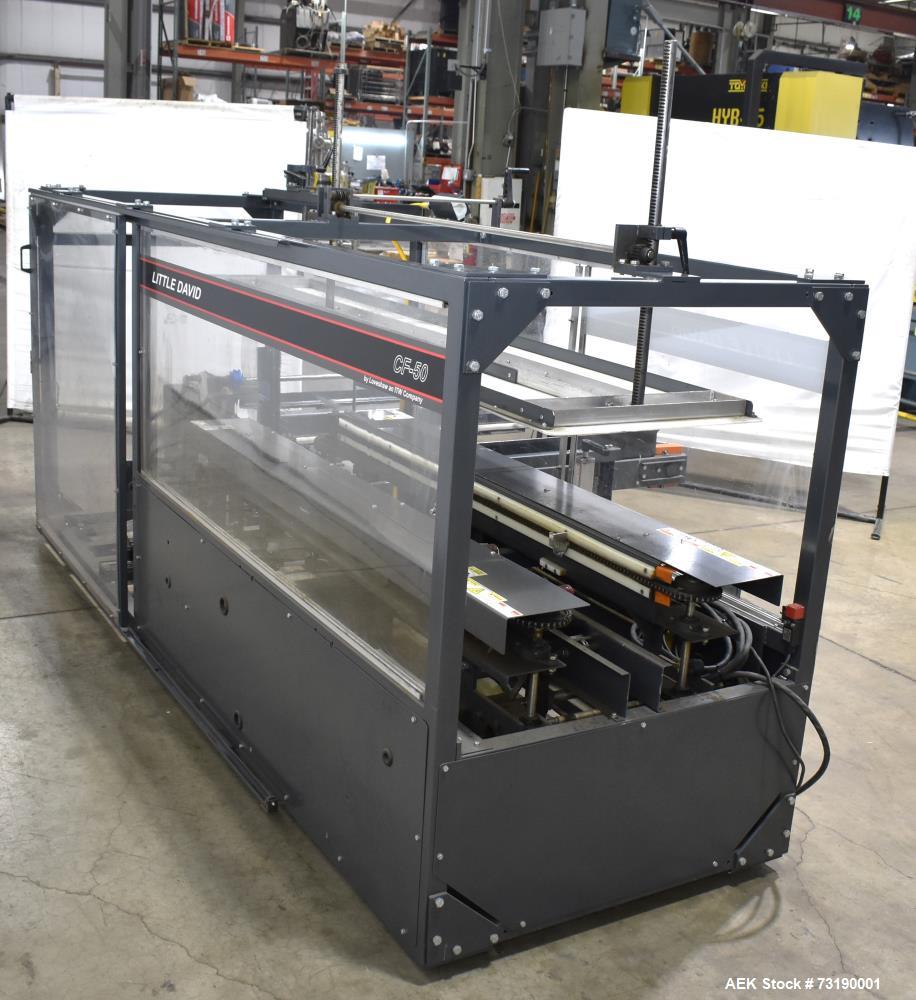

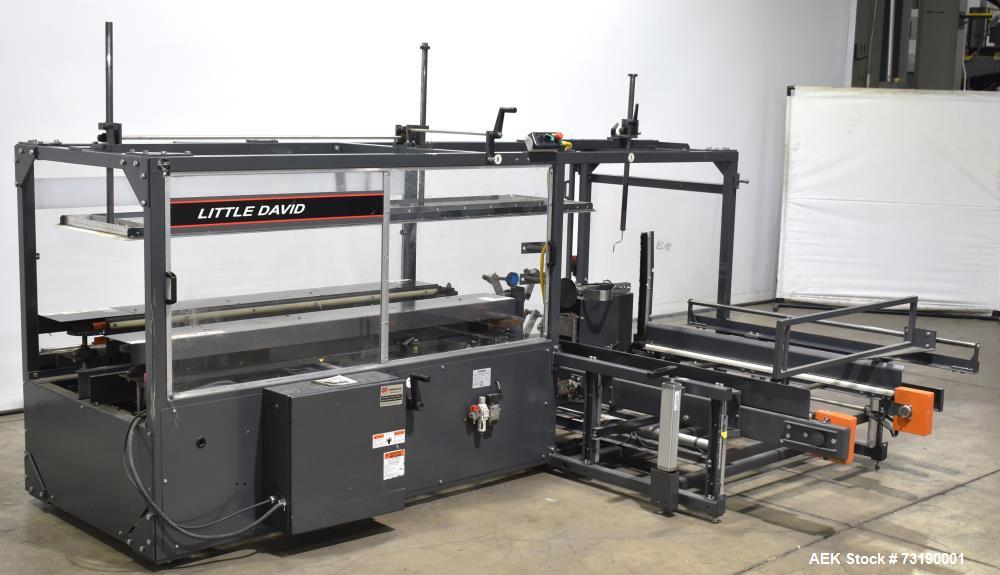

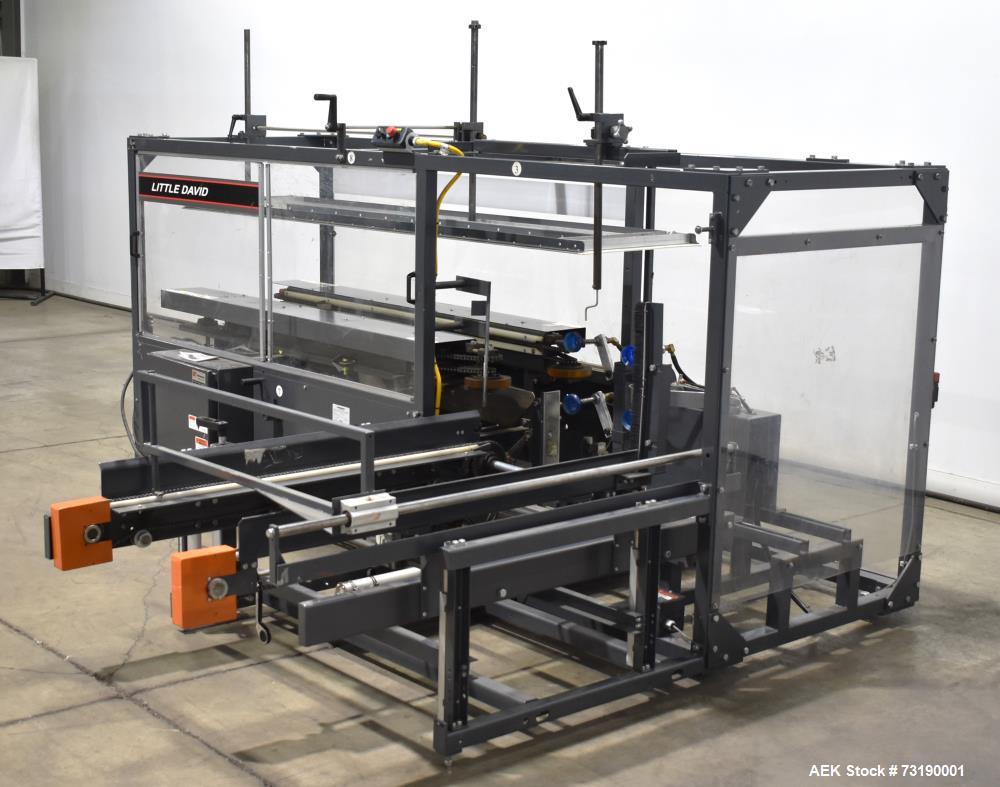

Used Little David CF50T Case Erector & Bottom Sealer – 20 CPM, 3” Tape Head
Used Little David Case Erector, Bottom Sealer, Model CF50T. Suitable for case dimensions of: 7" to 24" in length, 6" to 16" in width, and 4" to 20" in height. Rated for speeds up to 20 cases per minute, depending on size and application. Includes Little David 3" bottom-mounted tape head. Vacuum-style opening. Control panel with Allen Bradley Micrologix 1000 PLC. Req. 11 SCFM @ 80 psi. 1/60/110V, 10Amp.
| Manufacturer | Little DavidLittle David |
| Model | CF50T |
| Serial # | 32157450T |
| Category | Packaging EquipmentPackaging Equipment |
| Subcategory | Case Erectors - Tape Bottom SealCase Erectors - Tape Bottom Seal |
| Make | Little David |
| Model Number | CF-50T |
| Cases Per Minute | up to 20 |
| Case Size Range (Length) | 7" to 24" |
| Case Size Range (Width) | 6" to 16" |
| Case Size Range (Depth) | 4" to 20" |
| Tape Bottom Seal | Yes |
| Tape Head Width | 3" |
| Make and Model of PLC | Allen Bradley Micrologix 1000 |
| Voltage | 115 |
| OAD (Height) | 54" |
| OAD (Length) | 128" |
| OAD (Width) | 95" |
Manufacturers Info:
- Manufacturer: Little David
- Model: CF50T Case Erector & Bottom Sealer
- Condition: Used
- Max Speed: Up to 20 Cases Per Minute (CPM) (Depending on Case Size & Application)
- Case Size Range:
- Length: 7” to 24”
- Width: 6” to 16”
- Height: 4” to 20”

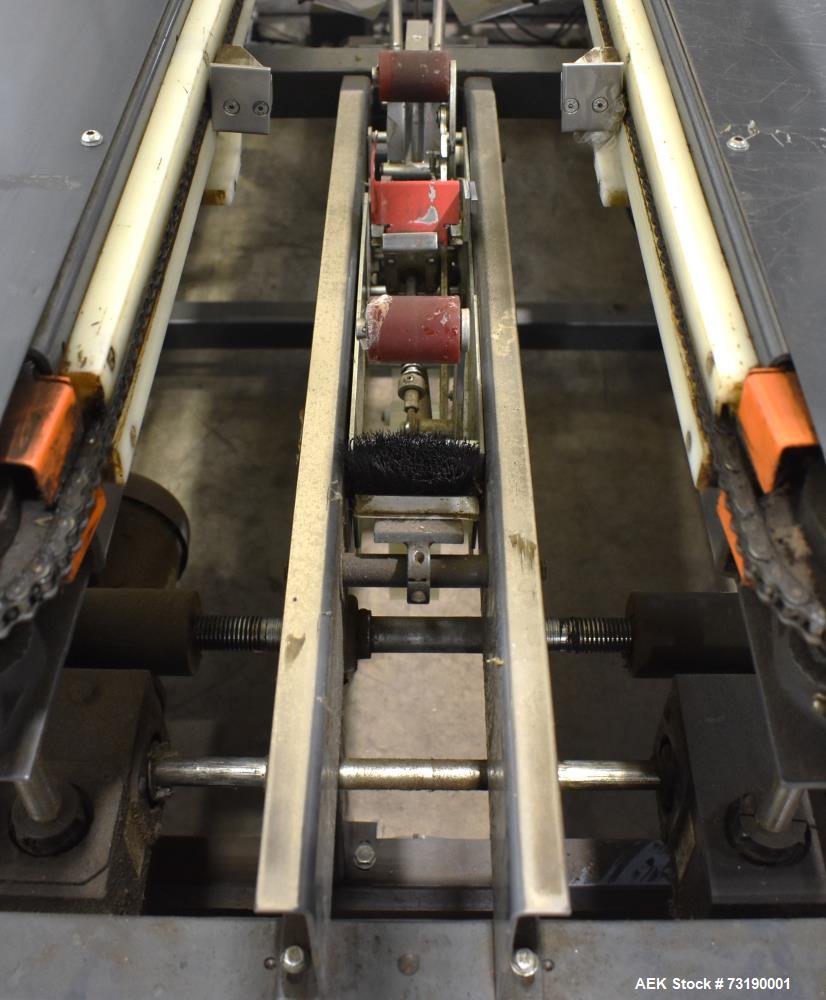

- Sealing Type: Bottom Tape Sealing with 3” Tape Head

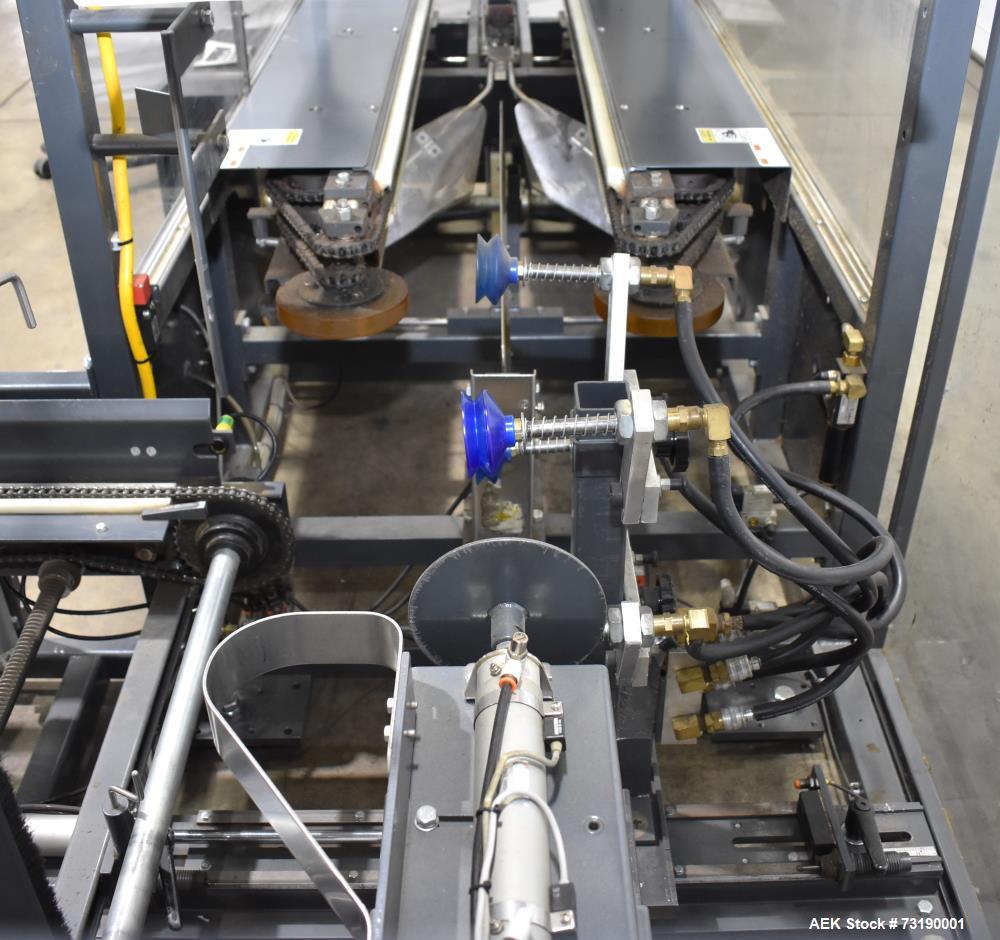

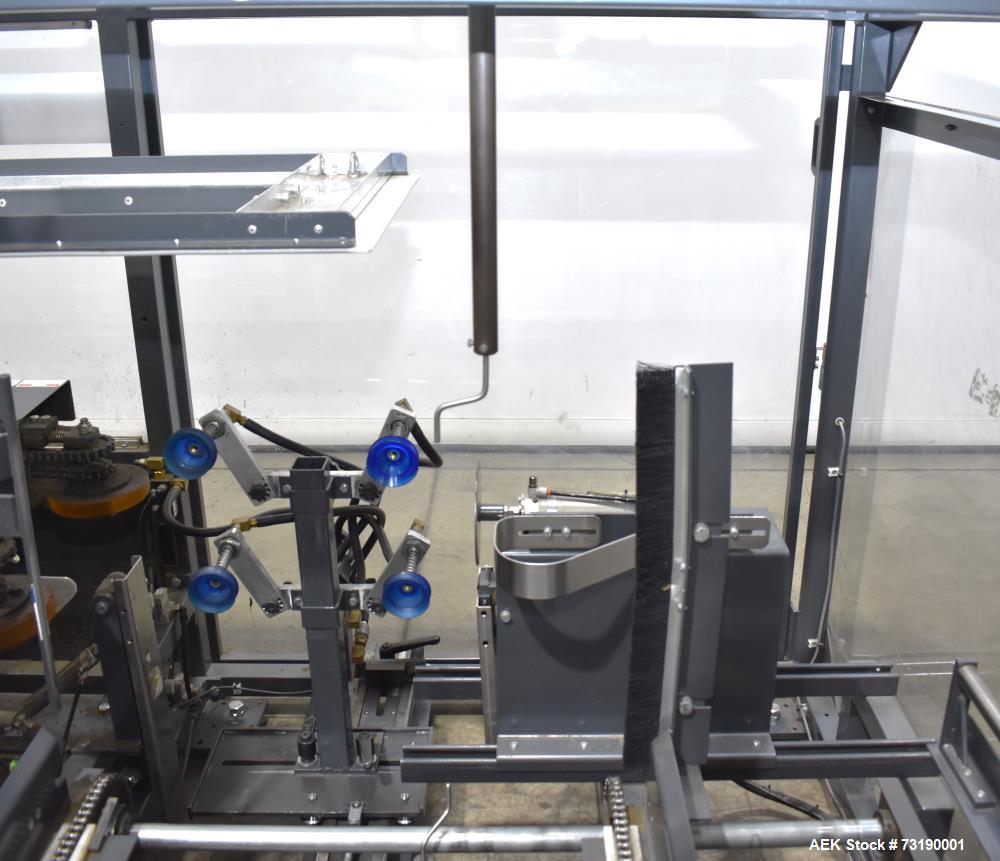

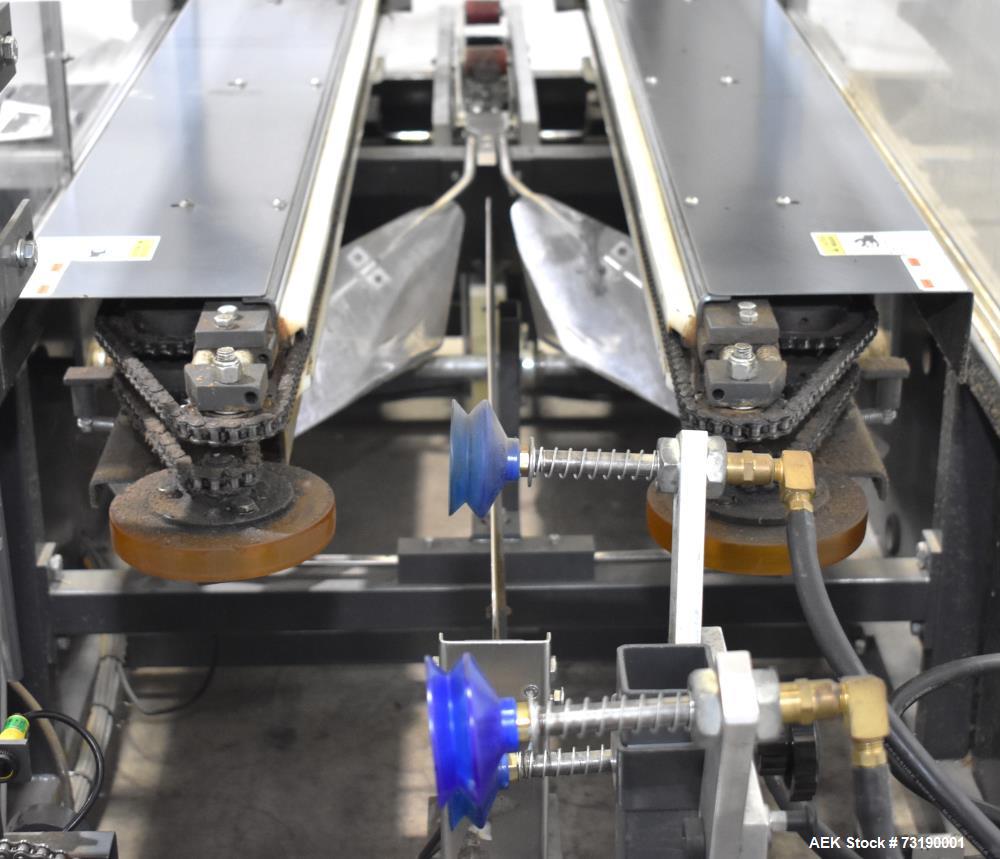

- Opening Mechanism: Vacuum-Style Case Opening System

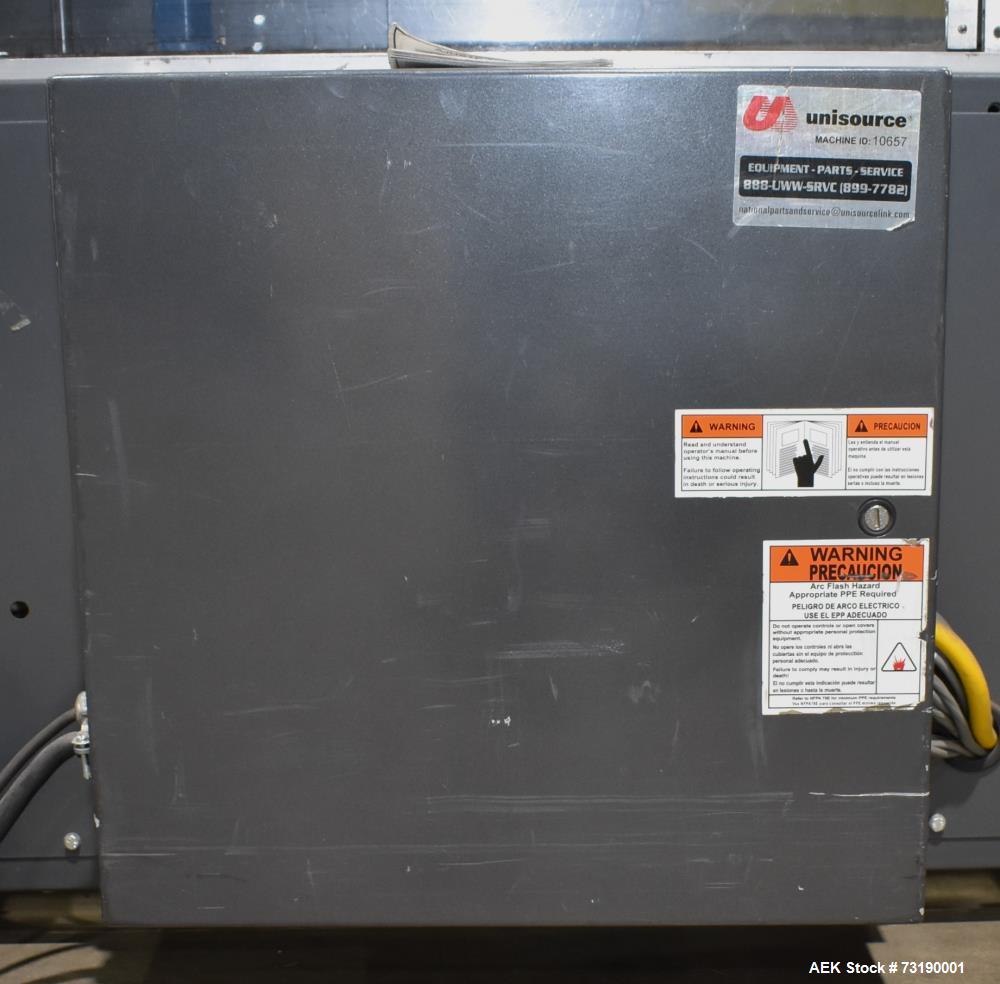

- Control Panel:

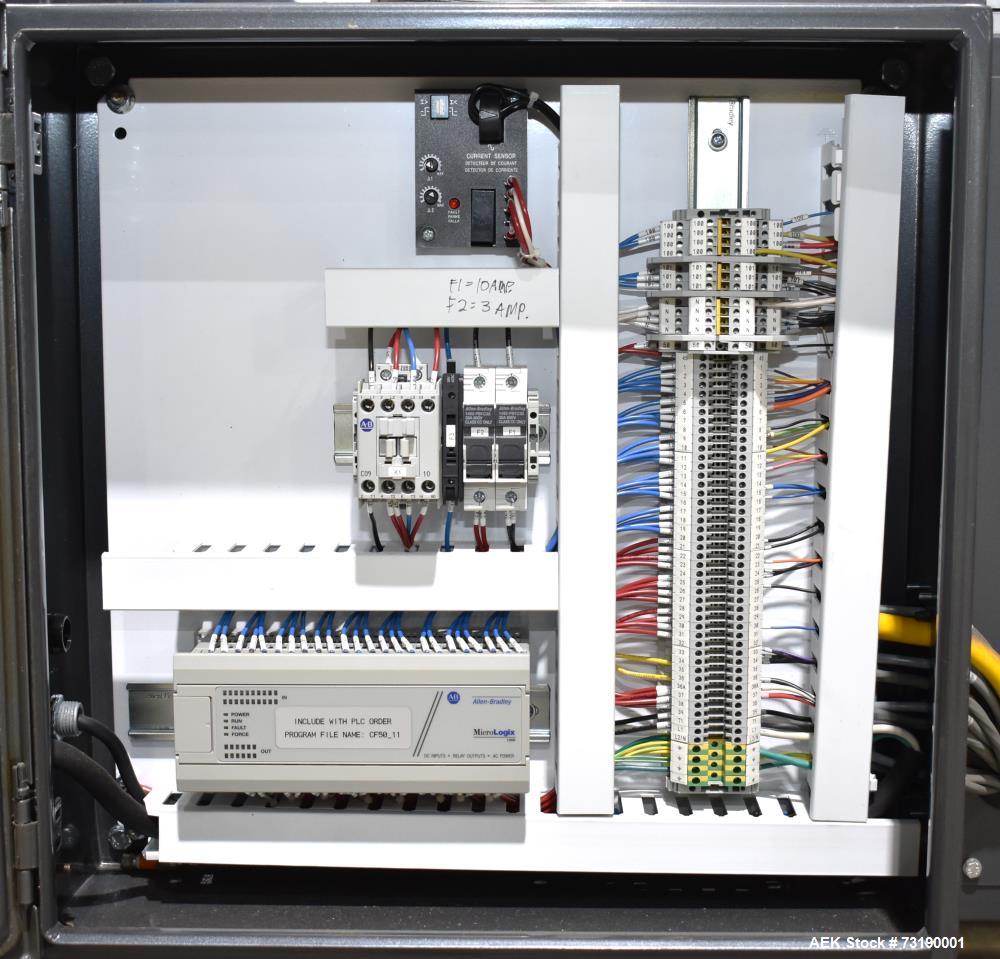

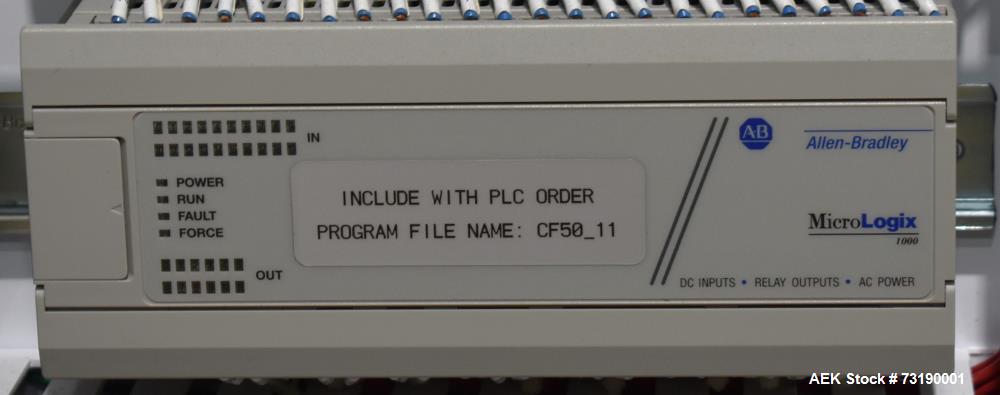

- Allen Bradley Micrologix 1000 PLC
- Air Requirements: 11 SCFM @ 80 psi

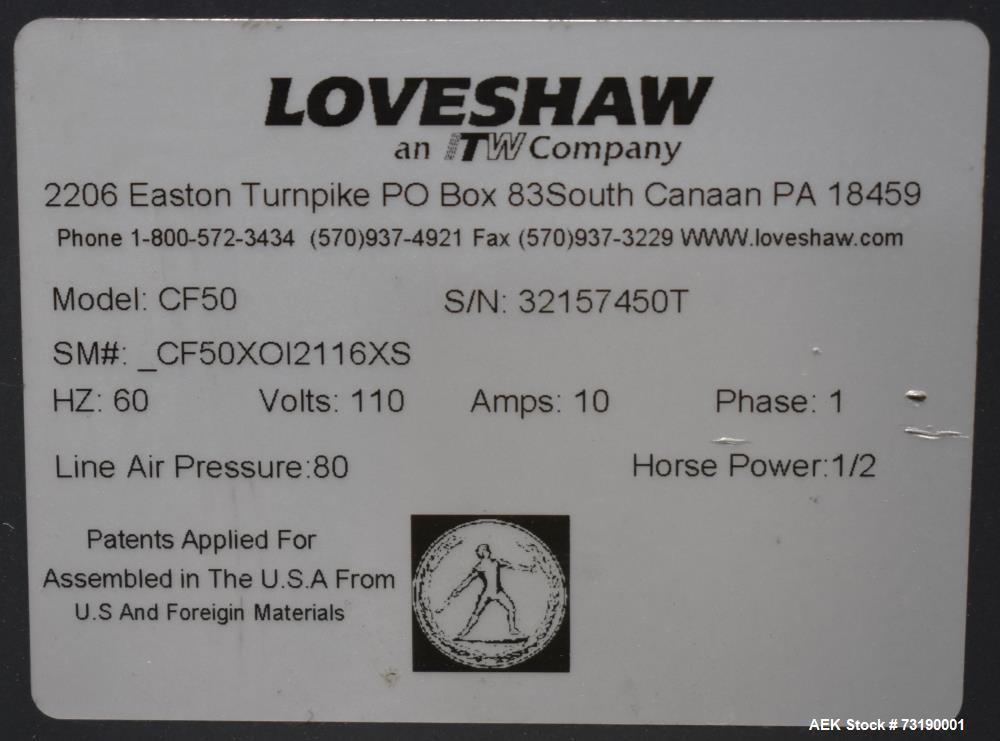

- Power Requirements: 1/60/110V, 10 Amp
System Components & Features:
Case Erecting & Sealing System
- Automatic Case Erector with Bottom Sealing – Efficiently erects and seals corrugated cases

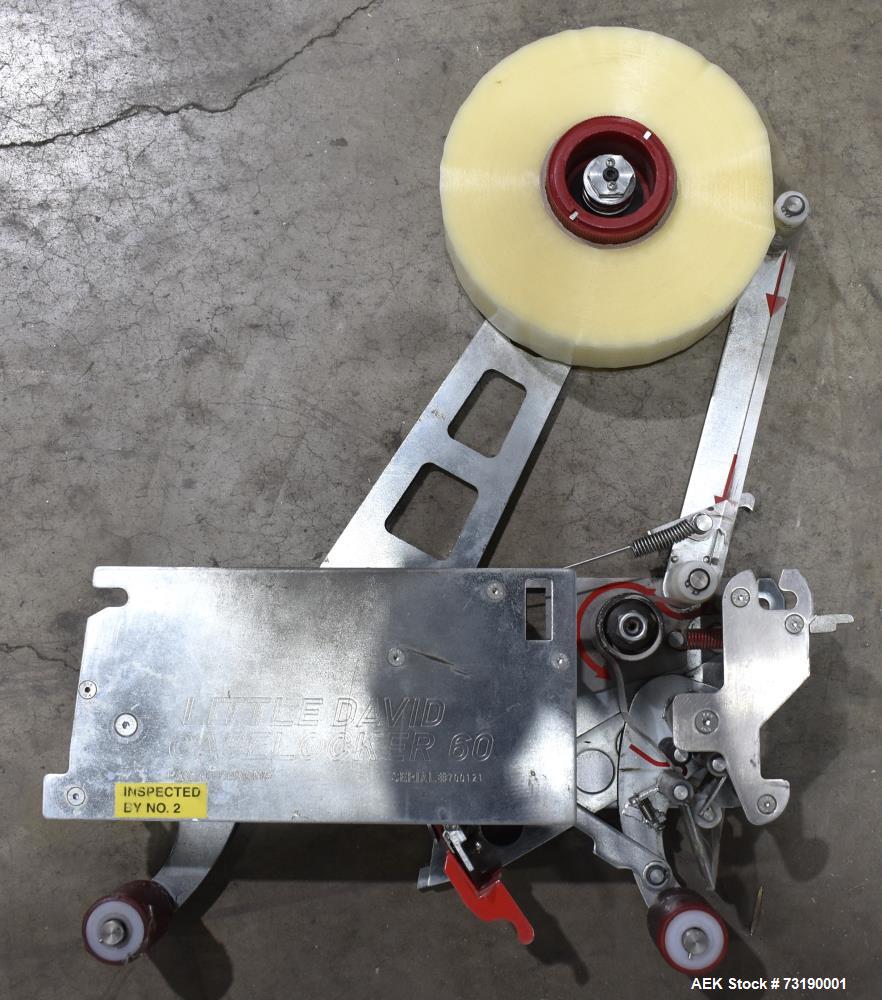

- 3” Bottom Tape Head (Little David) – Ensures secure and uniform case sealing

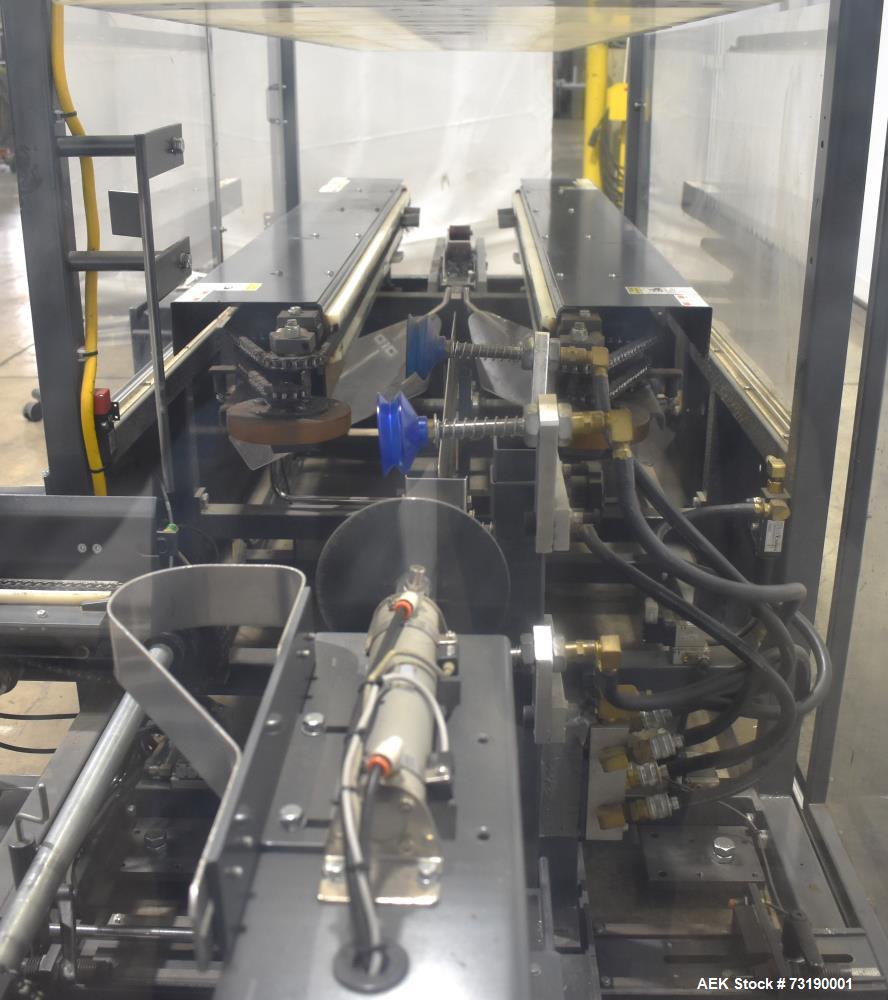

- Vacuum-Style Opening System – Precise and reliable case forming
- Handles a Wide Range of Case Sizes – Accommodates cases from 7” to 24” in length, 6” to 16” in width, and 4” to 20” in height
- Capable of Up to 20 CPM – Ideal for medium-speed packaging lines
Automation & Control Features
- Allen Bradley Micrologix 1000 PLC – Reliable control system for consistent operation
- Compact Footprint – Space-saving design for seamless integration into packaging lines
Facts About the Little David CF50T Case Erector & Bottom Sealer:
- Designed for small to medium production lines, offering automatic case forming and bottom sealing.
- Handles a wide range of case sizes, making it suitable for various industries.
- Vacuum-style case opening system ensures precision and stability during case forming.
- Compact and efficient, with a user-friendly control system.
- Durable construction, designed for continuous operation in industrial packaging environments.
Description:
This used Little David CF50T Case Erector & Bottom Sealer is an automatic case forming solution, designed to efficiently erect and bottom-seal corrugated boxes at speeds of up to 20 cases per minute (CPM).
With a vacuum-style opening mechanism, the CF50T ensures reliable case handling and accurate forming. It accommodates a wide range of case sizes (7” to 24” L, 6” to 16” W, and 4” to 20” H), making it suitable for a variety of packaging applications in food, beverage, e-commerce, pharmaceutical, and industrial sectors.
This system includes a Little David 3” bottom-mounted tape head for secure and consistent case sealing. The Allen Bradley Micrologix 1000 PLC offers automated control and reliability, while its compact footprint allows for seamless integration into existing production lines.
Specifications:
- Machine Type: Automatic Case Erector & Bottom Sealer
- Manufacturer: Little David
- Model: CF50T
- Max Speed: Up to 20 CPM
- Case Size Compatibility:
- Length: 7” to 24”
- Width: 6” to 16”
- Height: 4” to 20”
- Sealing Type: Bottom Tape Sealing (3” Tape Head)
- Opening Mechanism: Vacuum-Style Opening
- Control System: Allen Bradley Micrologix 1000 PLC
- Air Requirements: 11 SCFM @ 80 psi
- Power Requirements: 1/60/110V, 10 Amp
Applications:
- Food & Beverage Packaging (Cartons, Canned Goods, Packaged Snacks, Bottled Products)
- E-commerce & Order Fulfillment (Shipping Boxes, Subscription Boxes, Distribution Packaging)
- Pharmaceutical & Healthcare Packaging (Medicine Boxes, Medical Supplies, Nutritional Supplements)
- Consumer Goods & Retail Packaging (Personal Care, Beauty, Household Items)
- Industrial & Electronics Packaging (Hardware, Tools, Components, Small Appliances)
What Products Would This Be Used For?
- Corrugated shipping boxes for e-commerce and retail
- Food and beverage case packaging (bottled drinks, canned goods, packaged snacks)
- Personal care and cosmetic products (beauty & skincare items, packaged soaps, creams)
- Pharmaceutical & medical supplies (supplement boxes, over-the-counter medicine, health kits)
- Industrial products, electronics, and small hardware packaging
Automotive Parts, Beauty, Beauty Products, beer, brewery, Beverage, Beverage / Brewing Industry, Bottled water, Bottling Companies, Boxed Product, Boxes, Candy, Candy Packaging Machine, Cases, Consumer Goods, Consumer Products, Cosmetics, Food Packaging, Food Plants, Food Products, Packaging, Packaging Equipment, Pharmaceutical Products, Snack Foods, Snacks
- Automatic Case Erector
- Used Little David Case Erector
- Bottom Tape Sealer
- Industrial Case Forming Machine
- High-Speed Case Erector
- Used Little David CF50T Automatic Case Erector for Sale
- High-Speed Case Forming & Bottom Sealing Machine
- Industrial Tape Sealing Equipment for Corrugated Cases
- Fully Automated Case Erector with Vacuum-Style Opening
- Case Packing System with PLC Controls for Medium-Volume Production
- Used Little David CF50T Automatic Case Erector & Bottom Tape Sealer – 20 CPM, 110V
- Industrial Case Packing & Sealing System with Allen Bradley Micrologix 1000 PLC
- Automated Case Erector with Vacuum-Style Opening & 3” Tape Sealing for High-Speed Packaging
- Efficient Case Forming & Sealing Machine for Food, Beverage, E-commerce, & Pharmaceutical Packaging
- Used Little David CF50T Case Erector – Corrugated Box Handling, 80 psi Air Supply, Compact Footprint
