Stock #
72890001

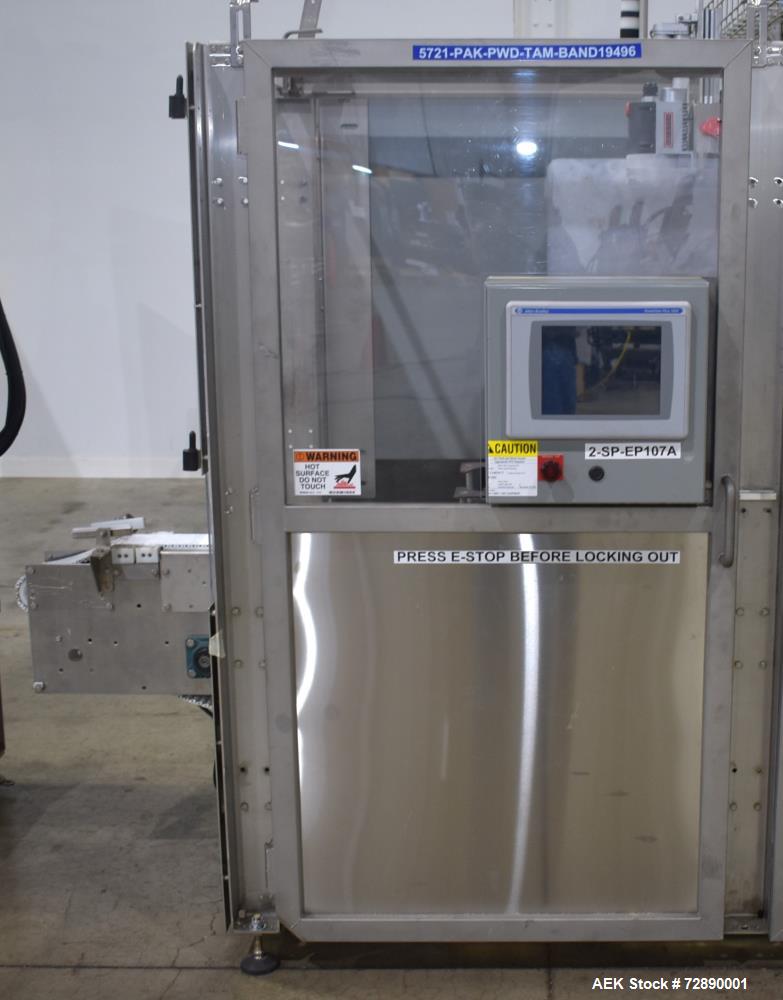

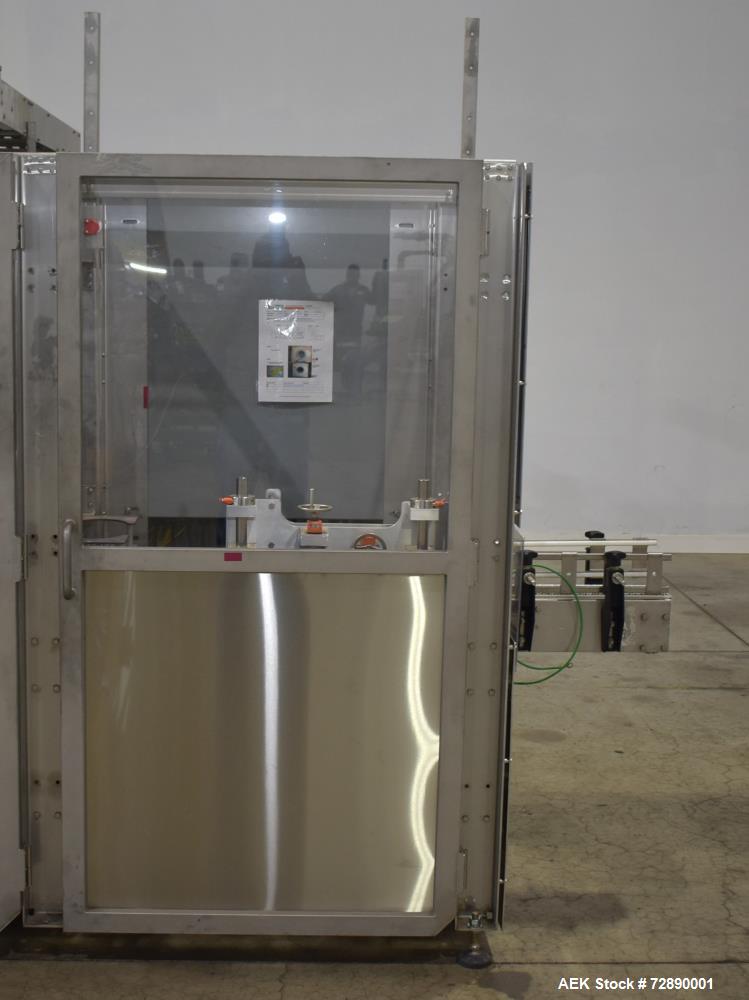

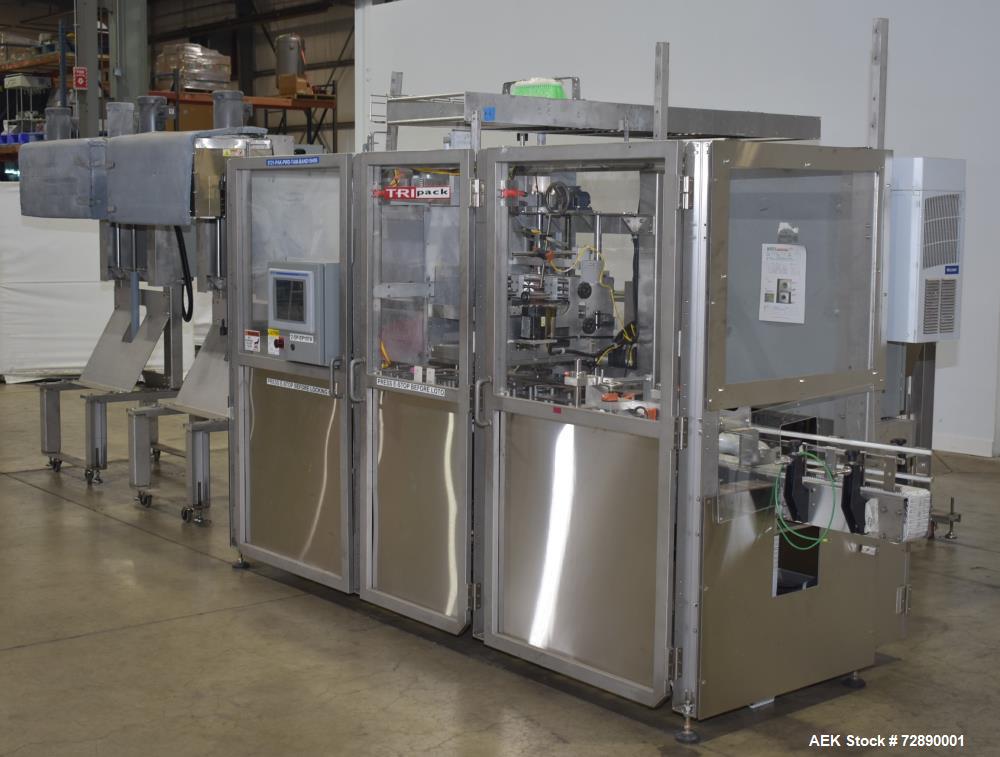

Used Tri-Pack Model SPC Large Format Tamper Evident Bander and Sleeve Labeler. Capable of speeds up to 250 CPM. Current max speed (TE band) 300ppm. Product size range: 1" - 7" (diameter). Layflat range: 75mm - 280mm. Cut length: 40mm - 60mm. Max film feed wheel opening 270mm. Allen Bradley logix5572 PLC controls, A/B panelview plus 1000 HMI, A/B stratix 8000 drive, (3) A/B kinetix 350 drives. Perforation, registration and side gripper container handling. Includes (2) Tri-Pack Model HT-1C Shrink Tunnels, approximate 6-1/2" wide x 5-1/2" tall. Conveyor belt 4" wide x 152" long. 3/60/480 Volt.
Used Equipment Facts About This Machine
🏭 Manufacturer Information
-
Brand / Manufacturer: Tri-Pack
-

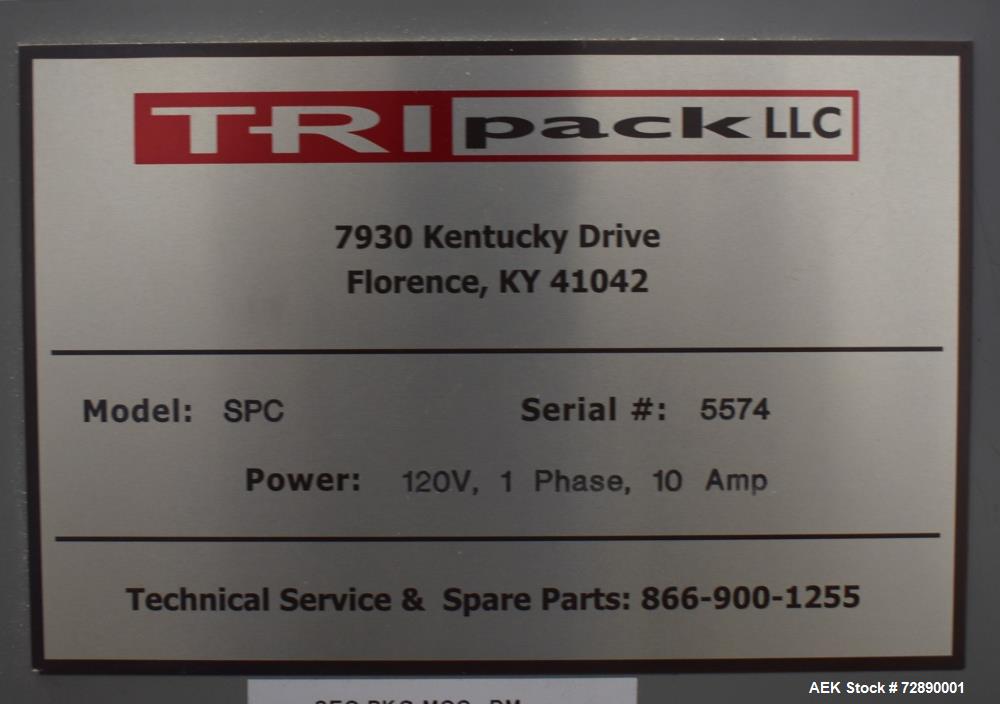

Model: SPC (Sleeve Packaging Center)
-

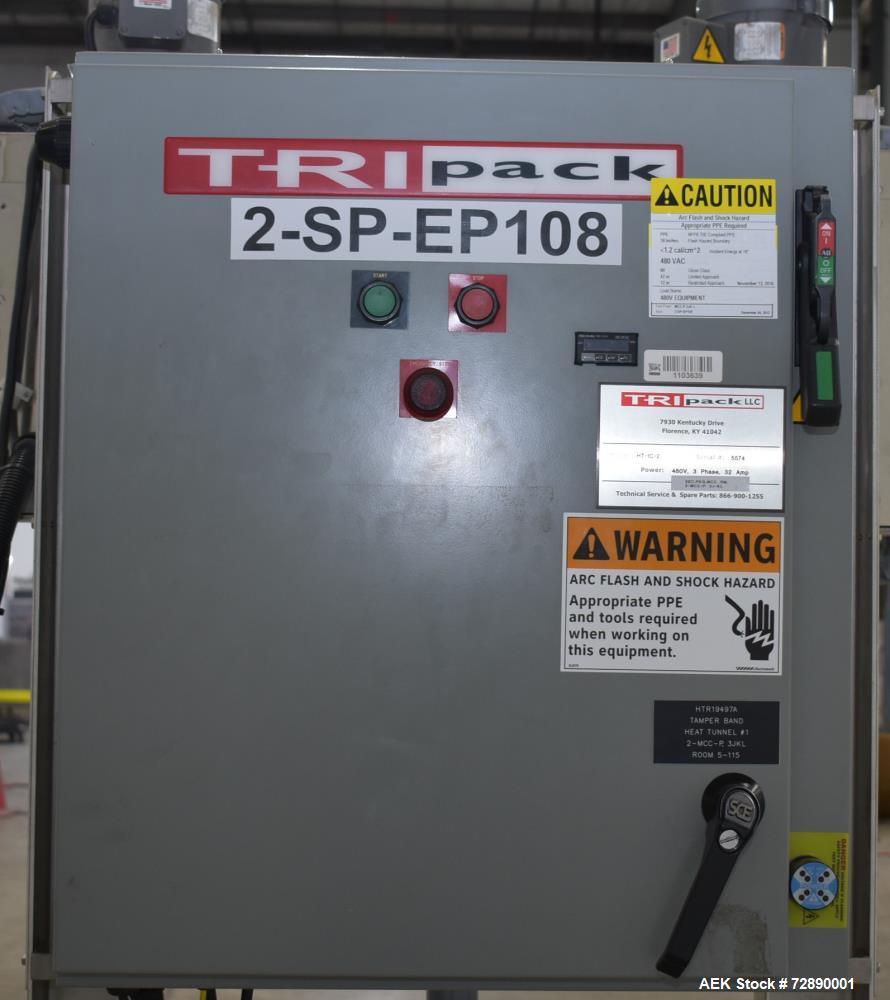

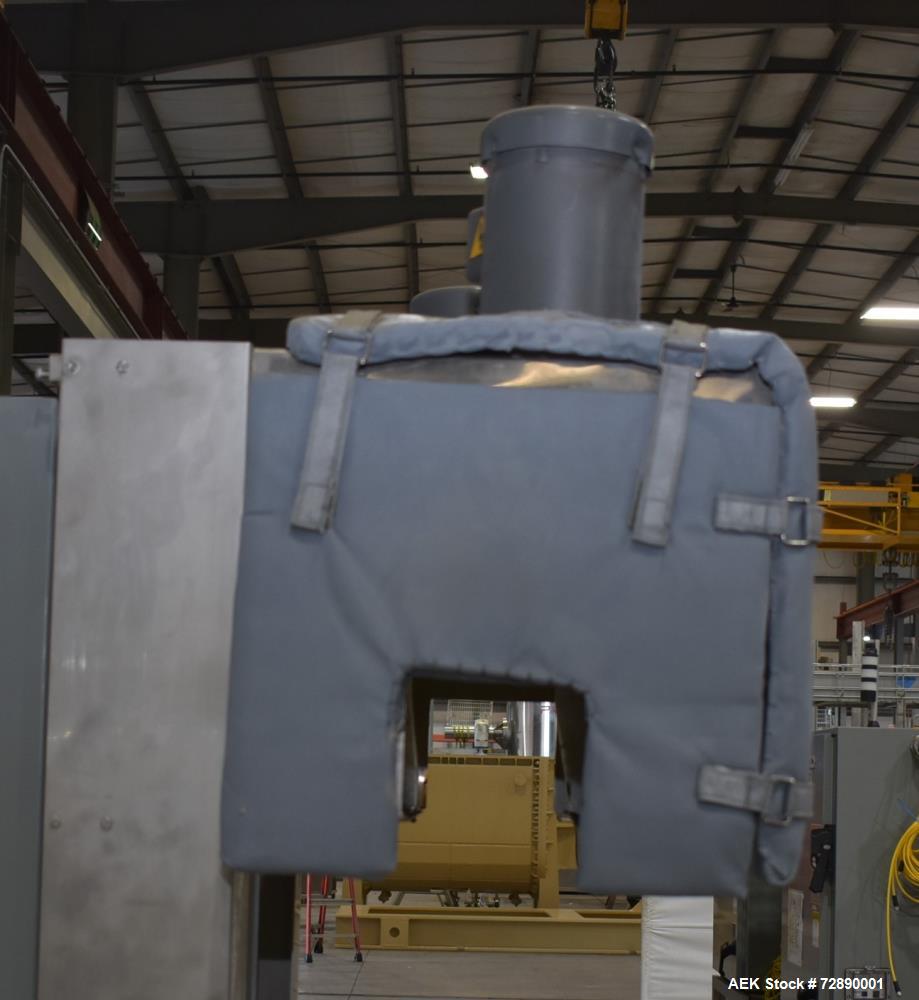

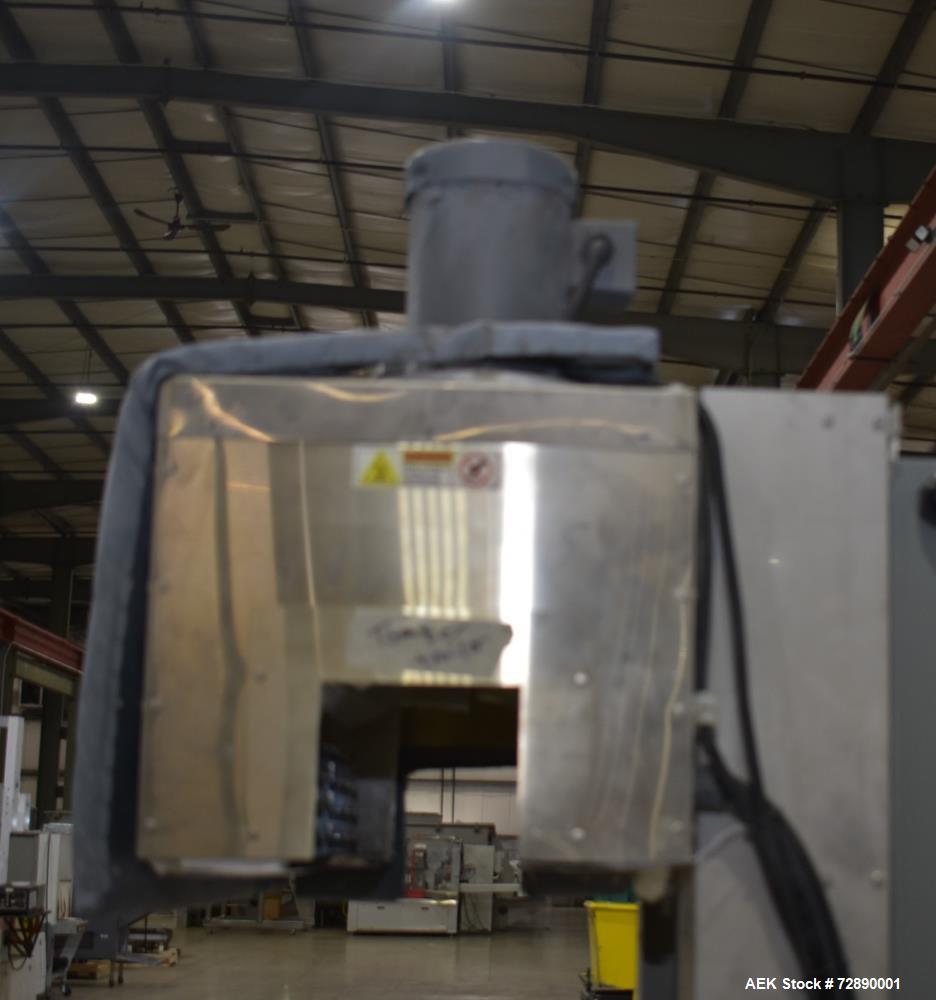

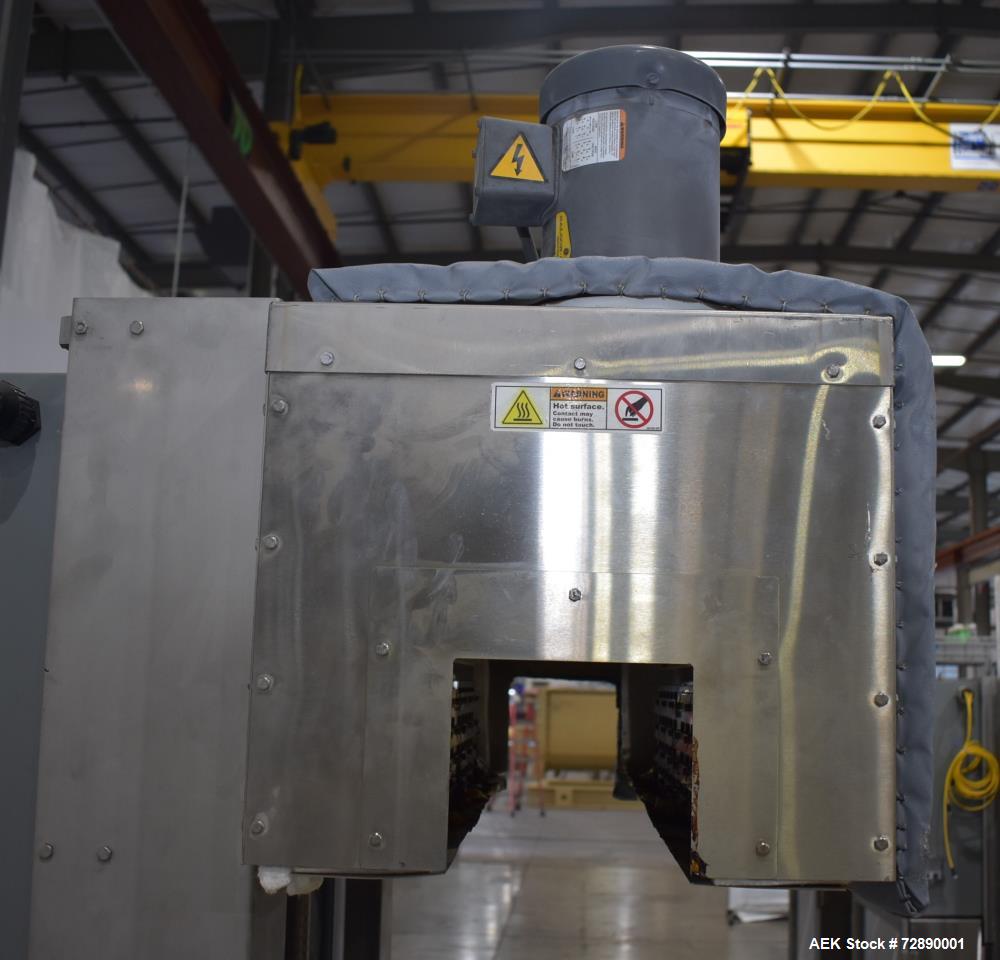

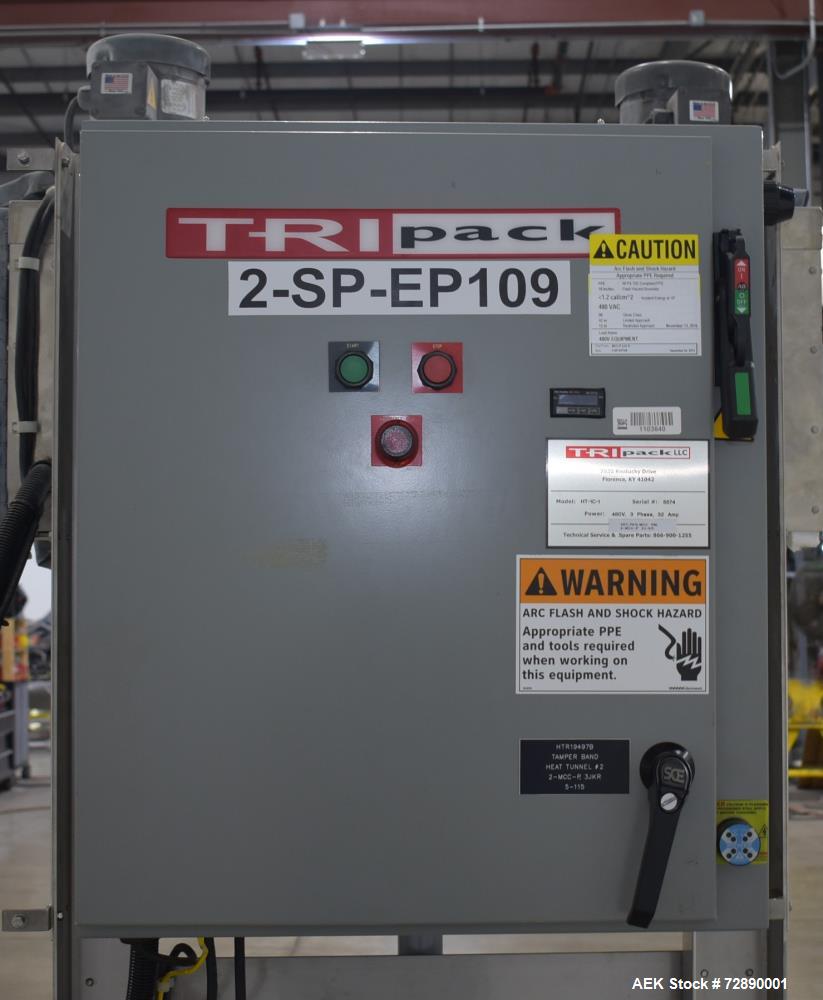

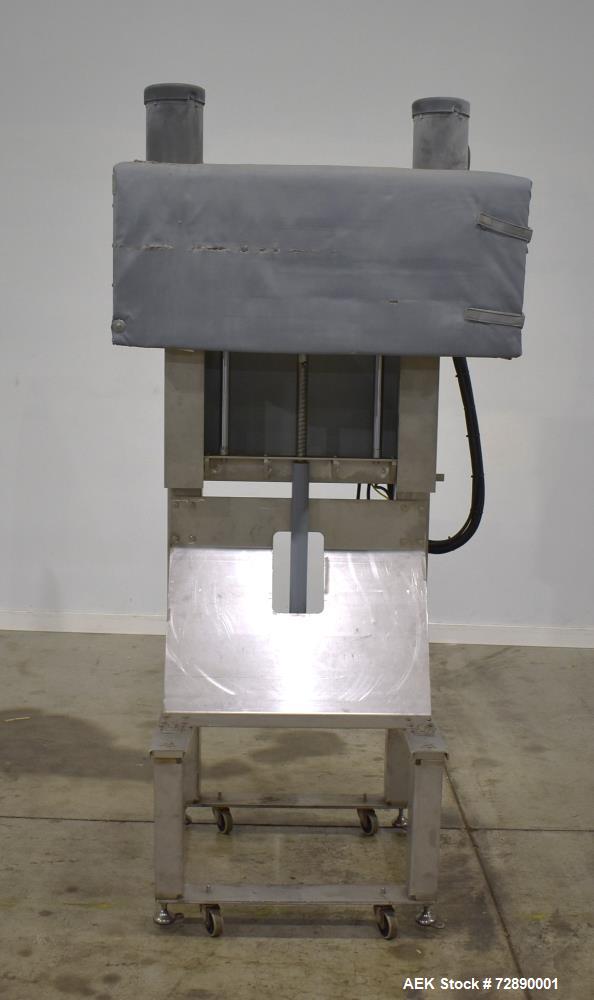

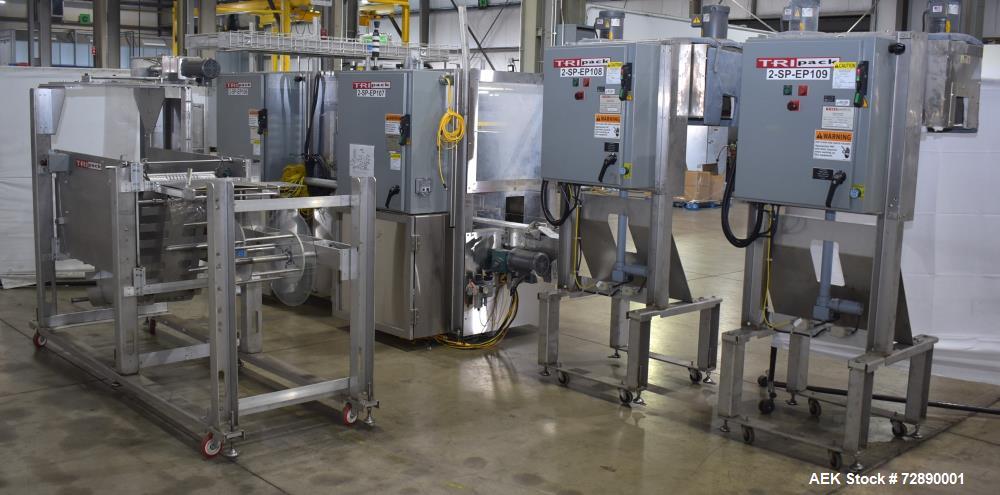

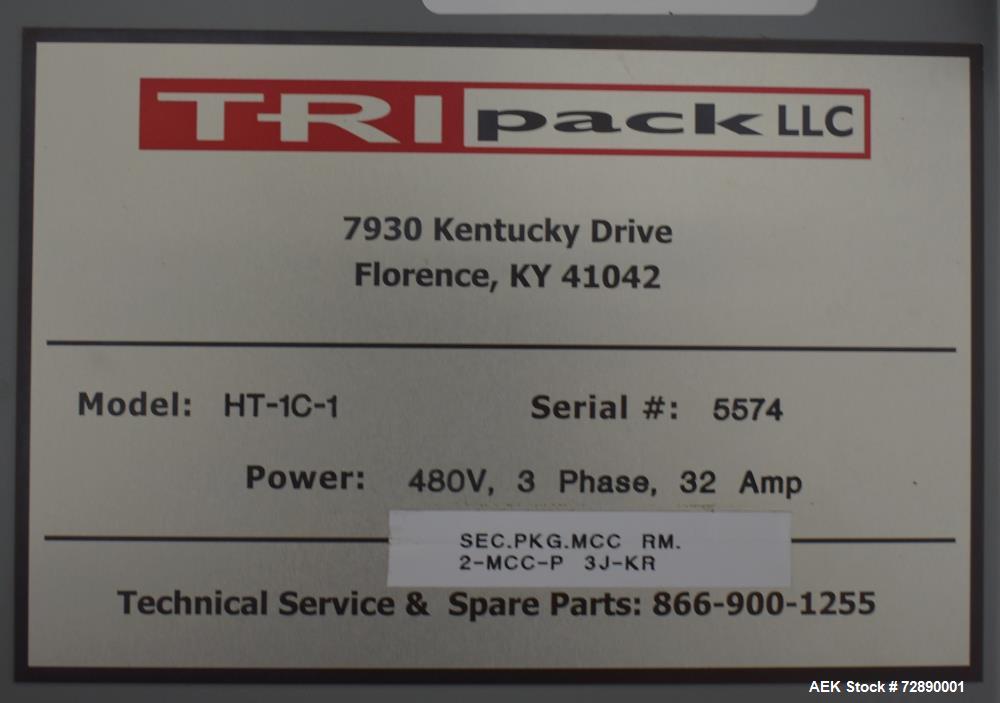

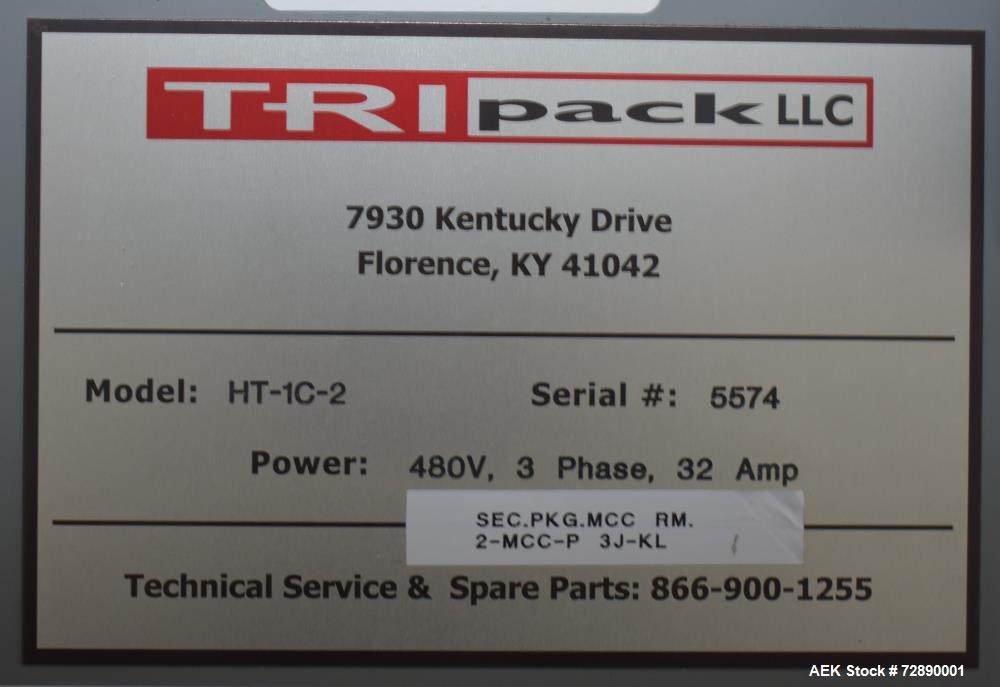

Included Accessories: (2) Tri-Pack HT-1C Shrink Tunnels
-
Country of Origin: USA
-
Specialization: Shrink sleeve labeling, tamper evident banding, and heat tunnel solutions for food, beverage, pharma, personal care, and industrial products
📄 Description

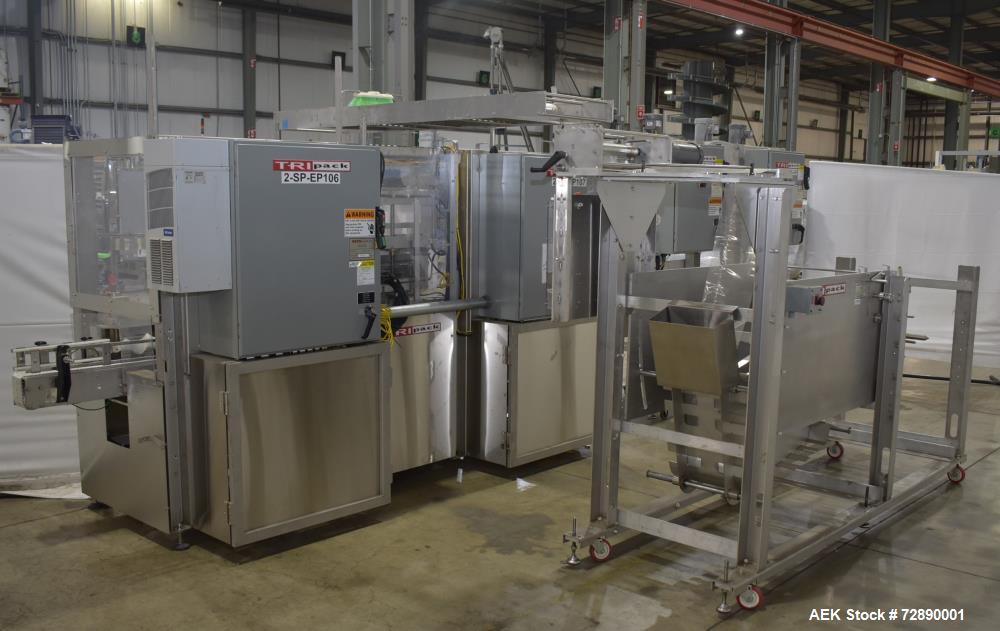

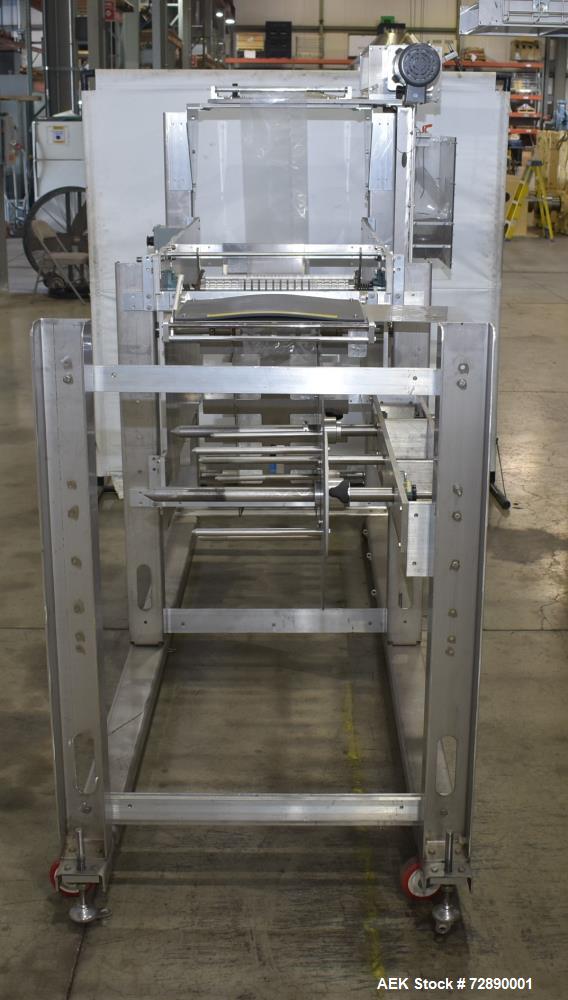

This Used Tri-Pack Model SPC Large Format Tamper Evident Bander and Sleeve Labeler is a high-speed, automated sleeve application system engineered for tamper evident banding and shrink sleeve labeling. Capable of speeds up to 250 containers per minute (300 ppm with TE band), it’s built to handle a wide product size range with diameters from 1" to 7", and a layflat range of 75mm to 280mm.

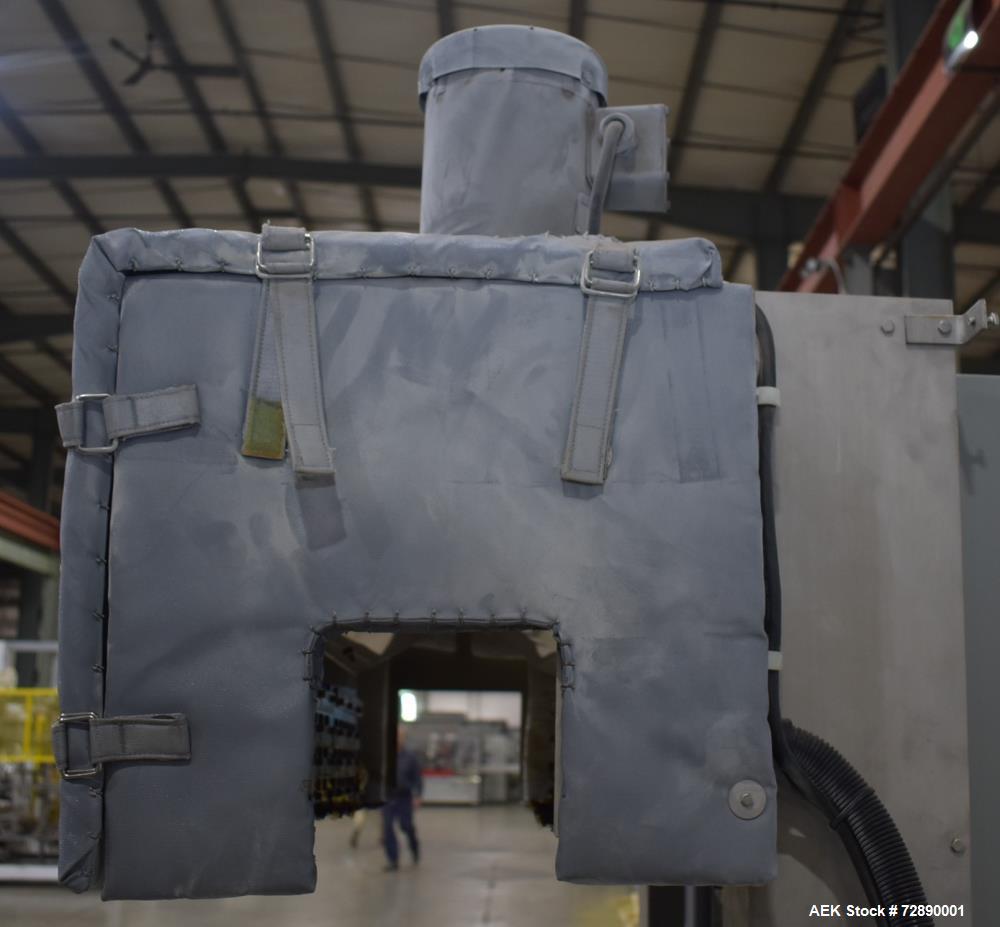

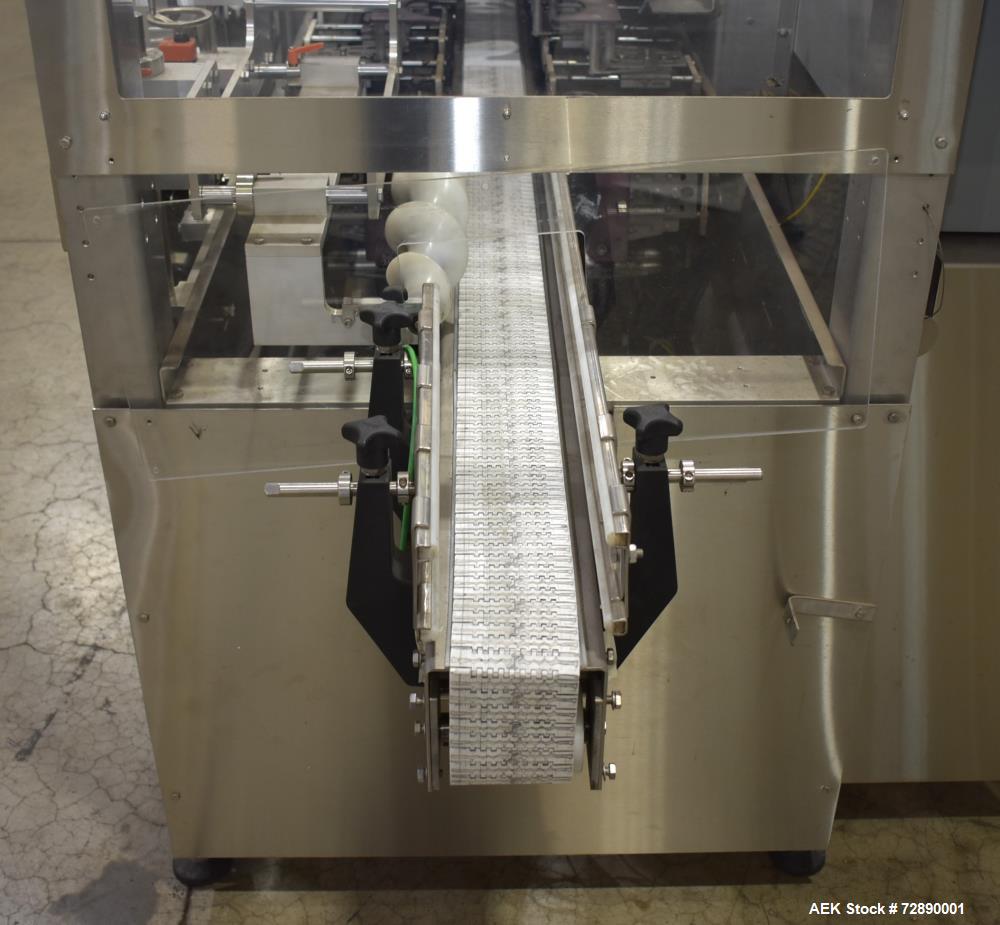

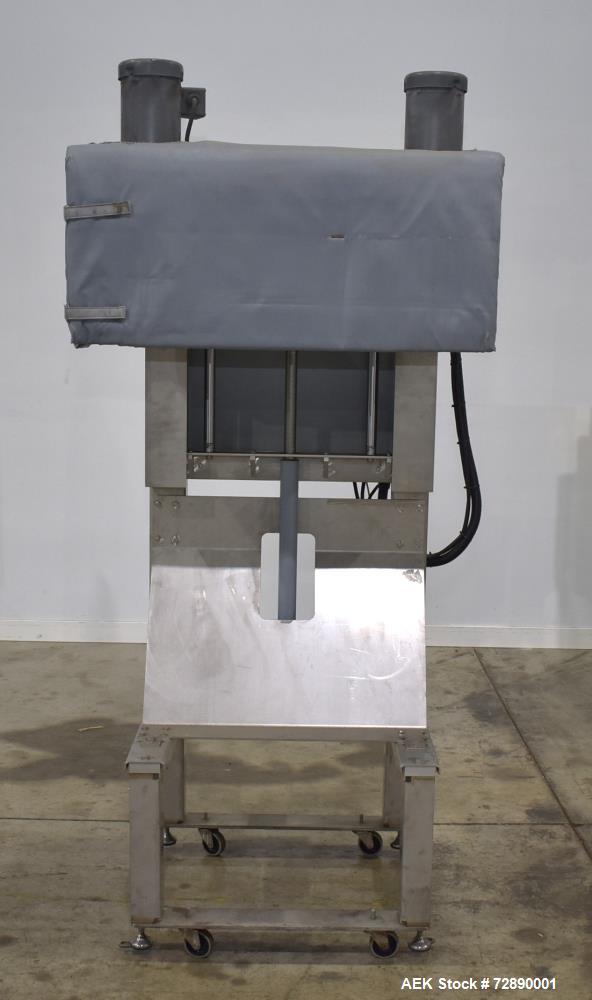

Powered by Allen Bradley Logix5572 PLC, PanelView Plus 1000 HMI, and Kinetix 350 drives, this system is fully integrated for precision control and performance. The machine features perforation, registration, side gripper container handling, and includes a 4" wide x 152" long conveyor. It comes with two Tri-Pack HT-1C shrink tunnels, each with an approximate 6.5” wide x 5.5” tall opening.
Operates on 480V, 3-phase, 60Hz, and designed for demanding production environments.
📊 Specifications
-
Model: Tri-Pack SPC
-
Speed:
-
Product Diameter Range: 1" – 7"
-
Layflat Range: 75mm – 280mm
-
Cut Length Range: 40mm – 60mm
-

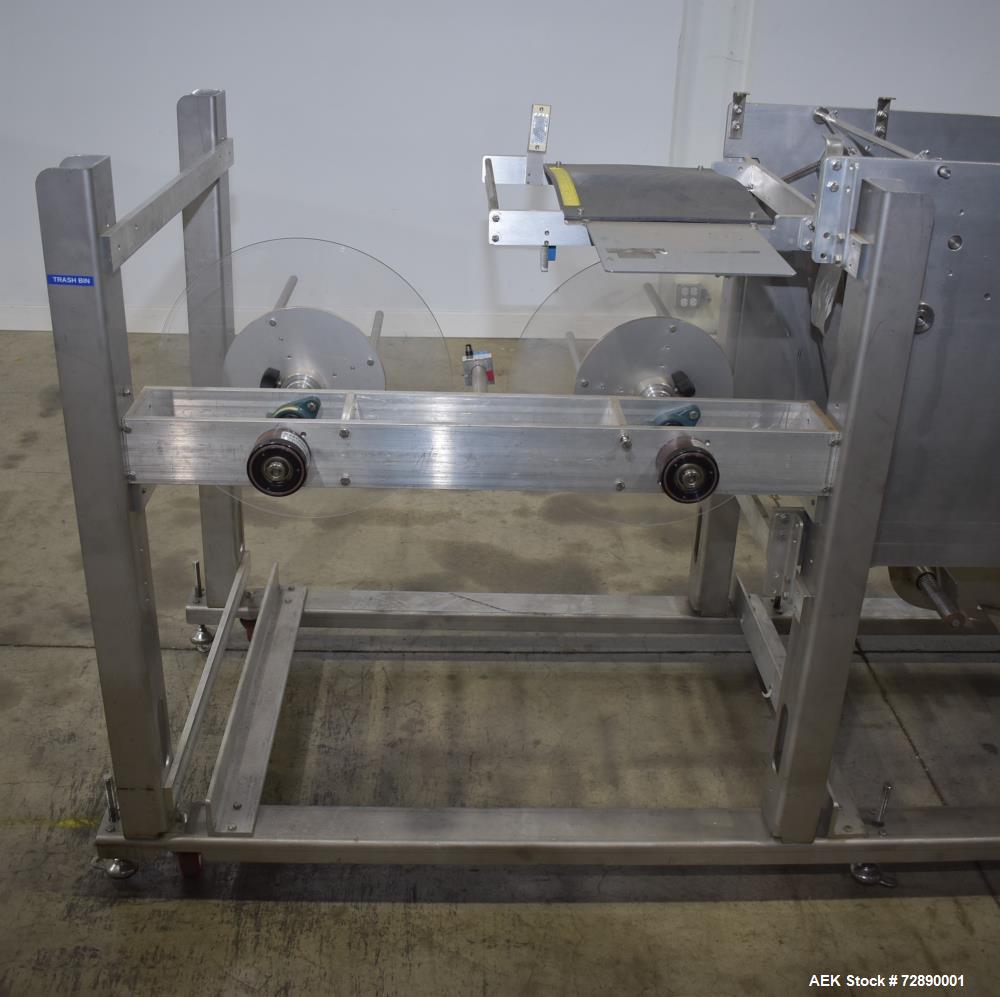

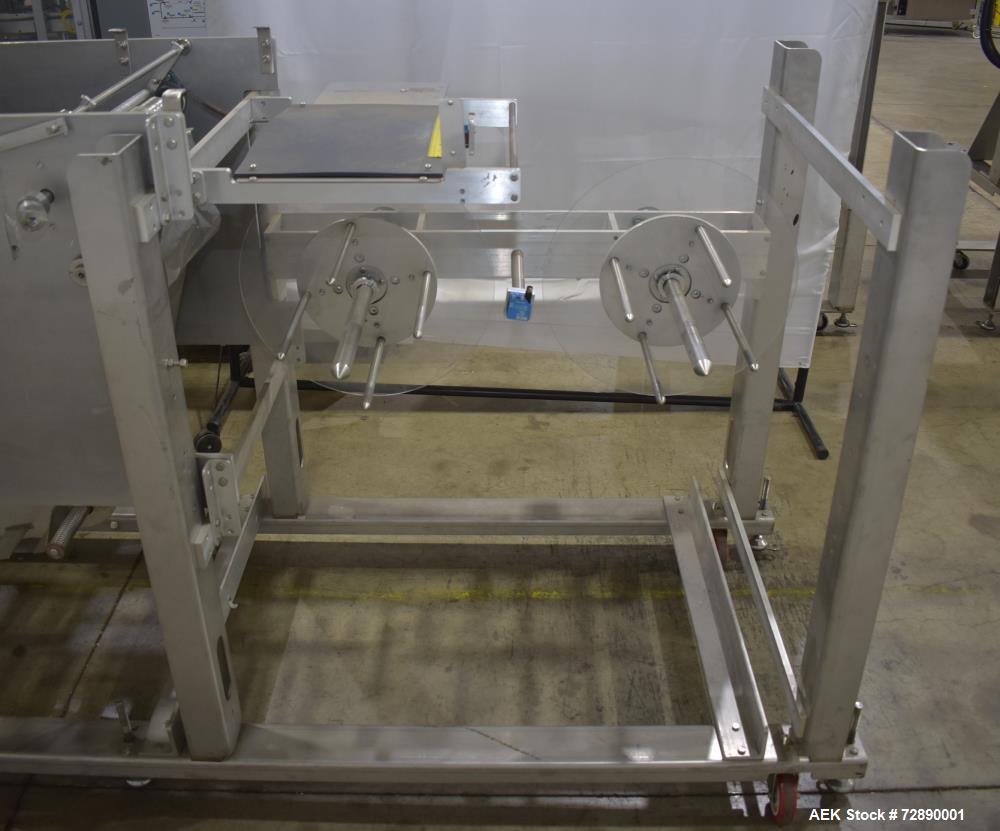

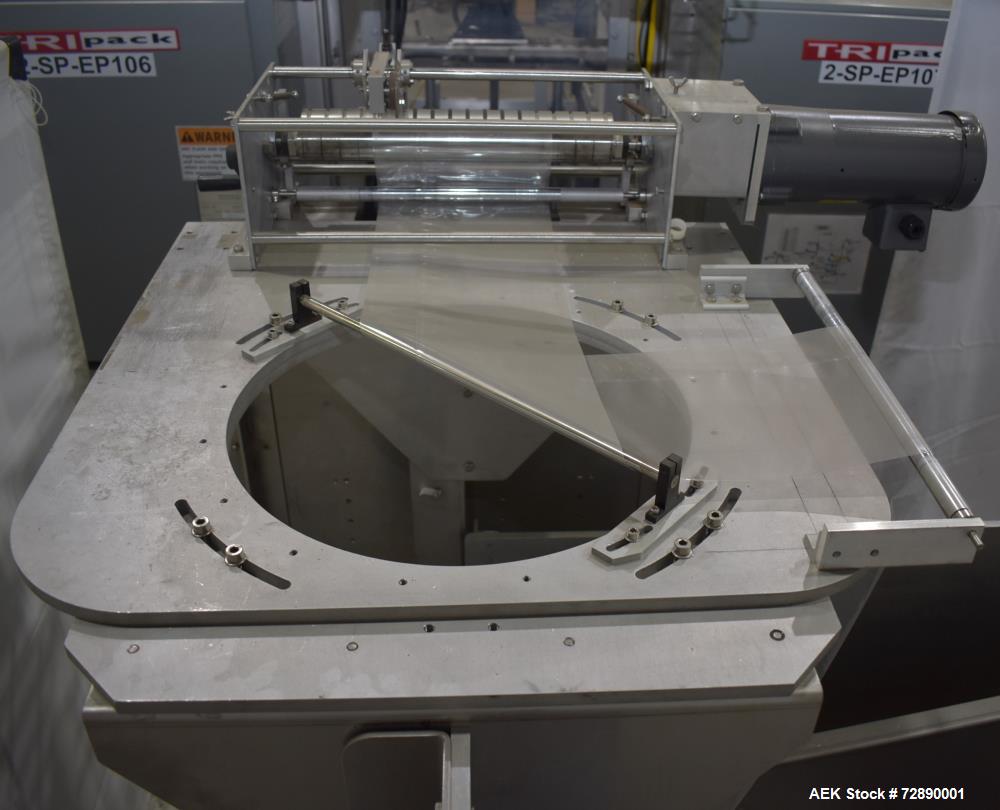

Film Feed Wheel Max Opening: 270mm
-

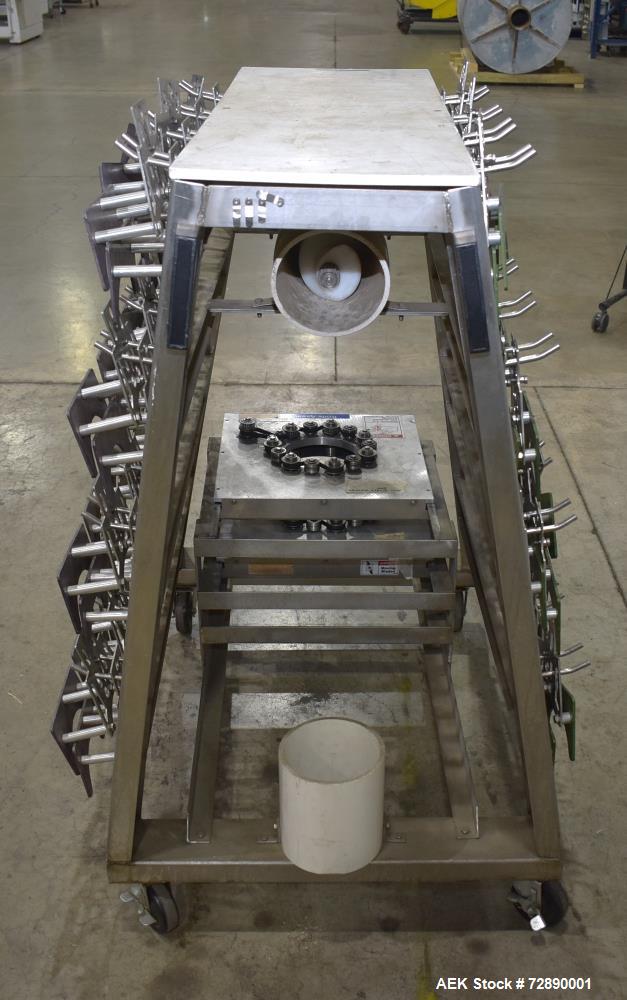

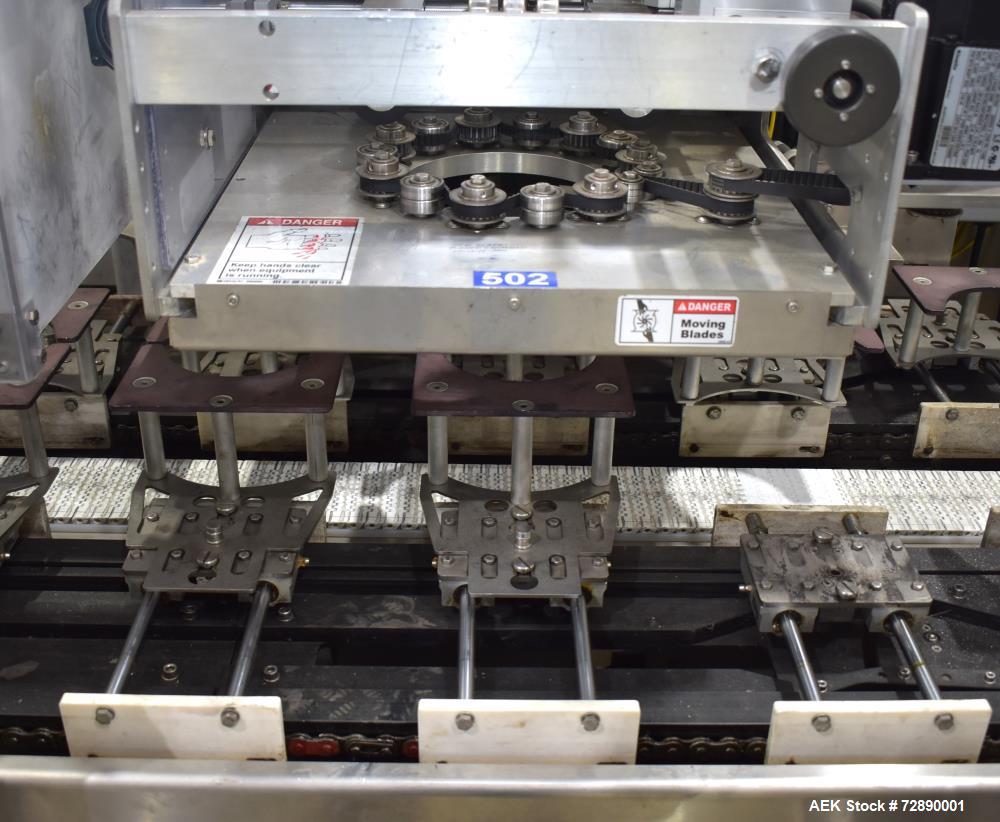

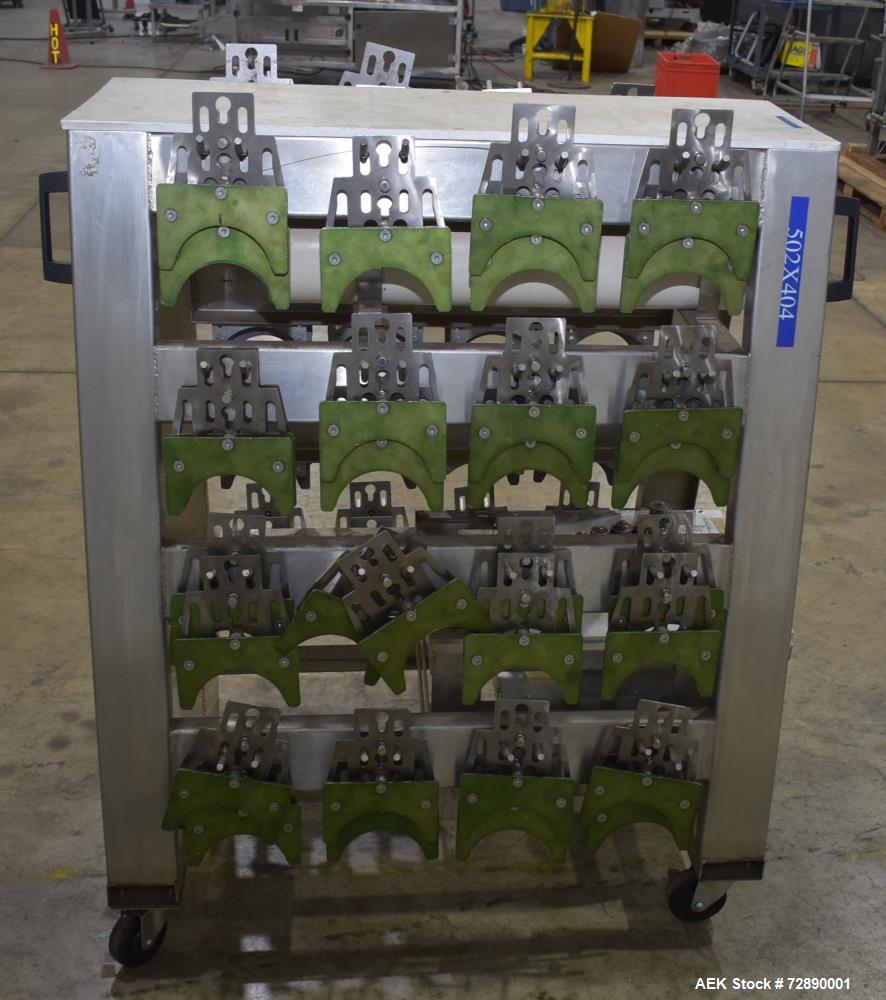

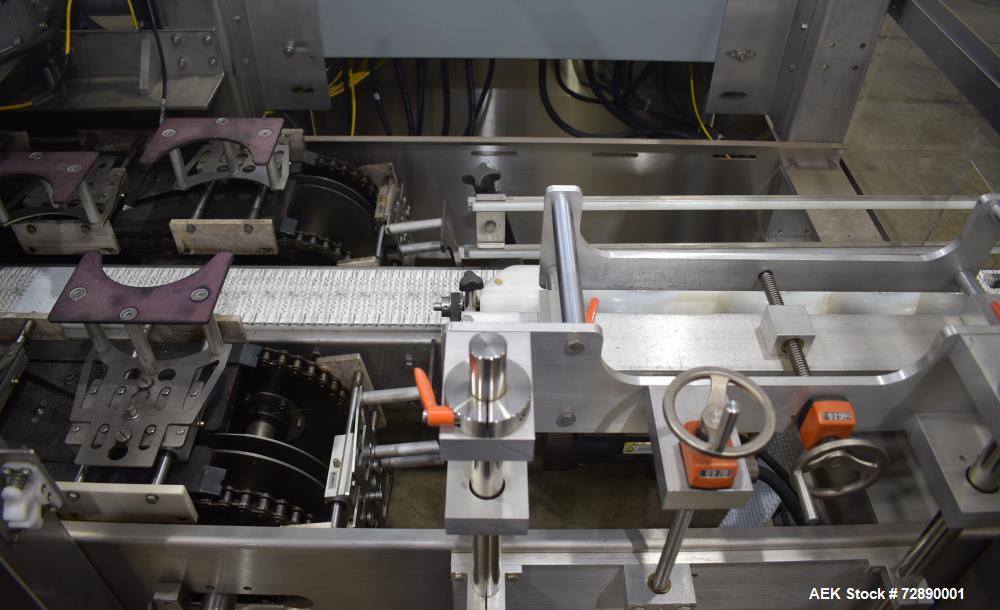

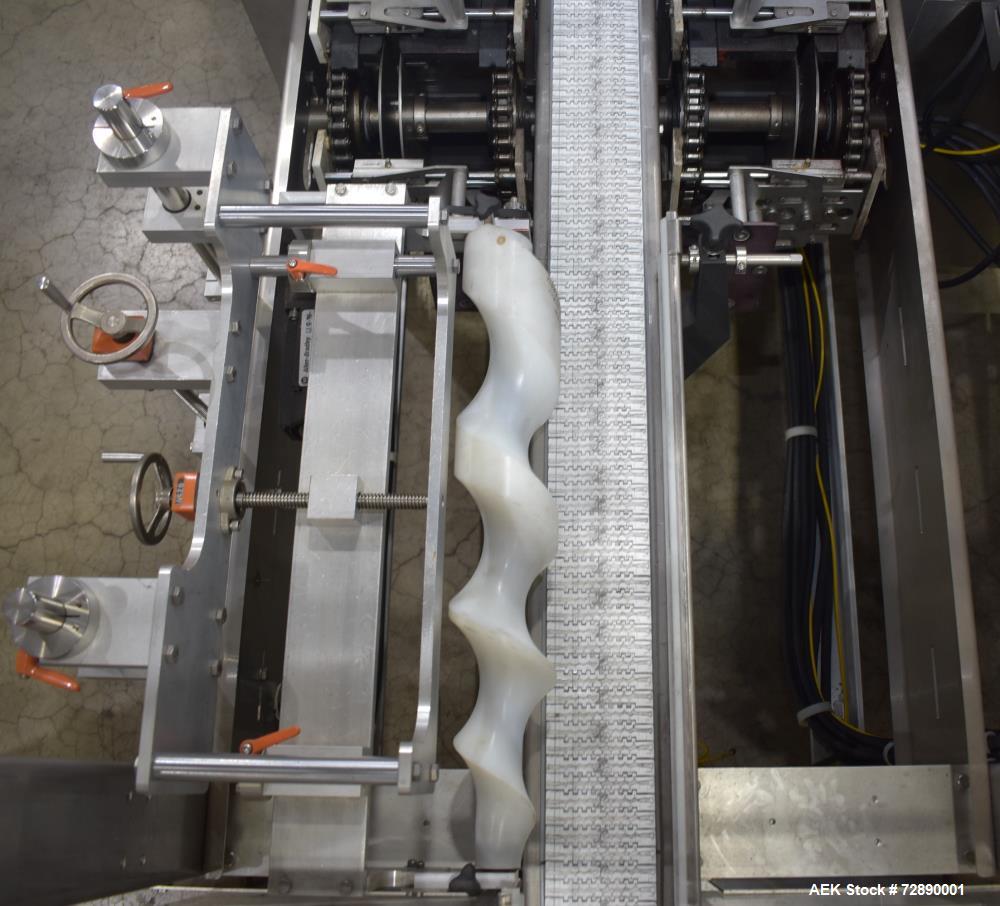

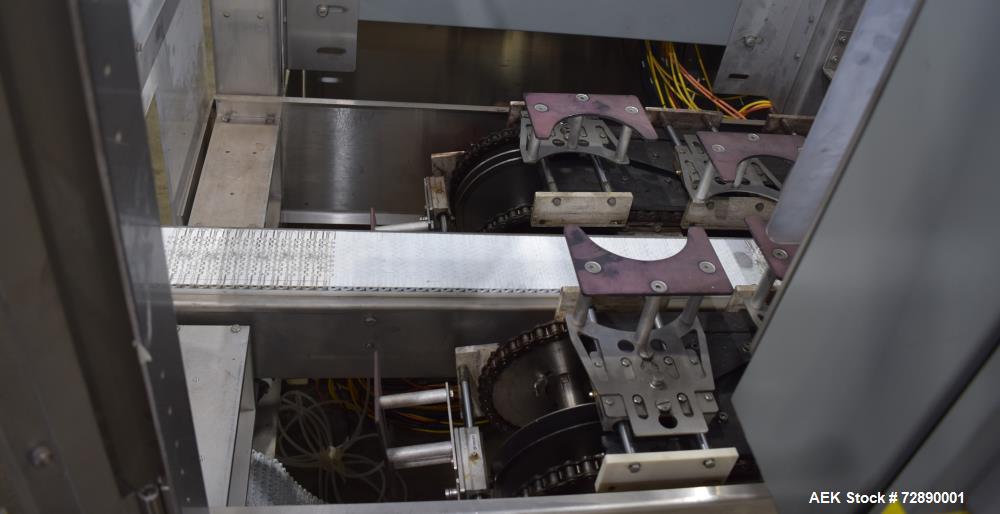

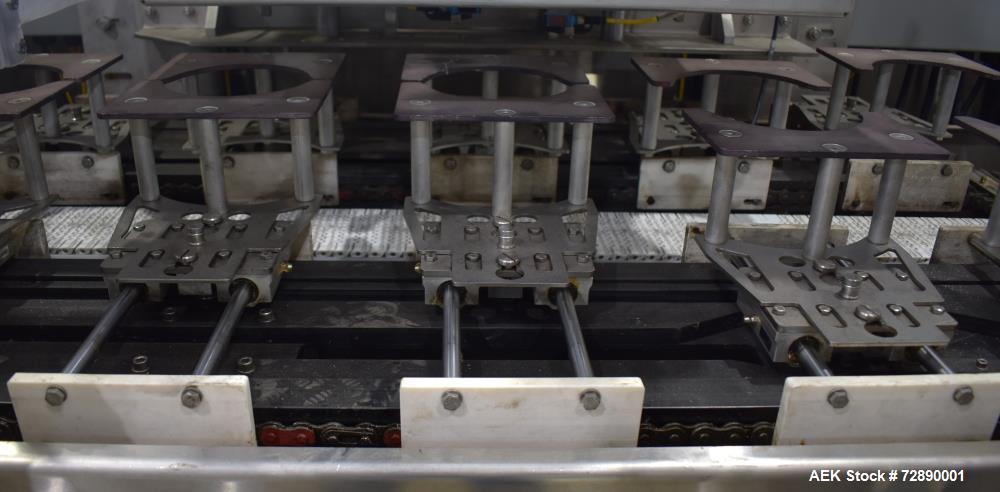

Container Handling: Side gripper system
-

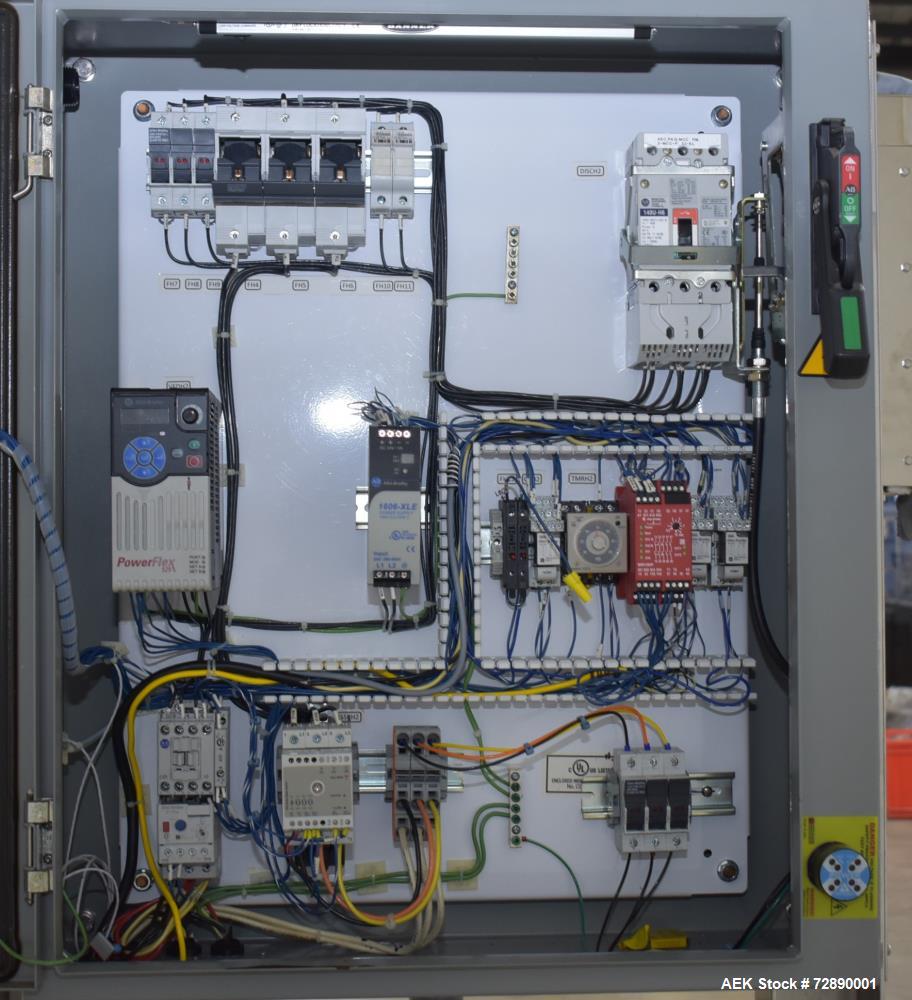

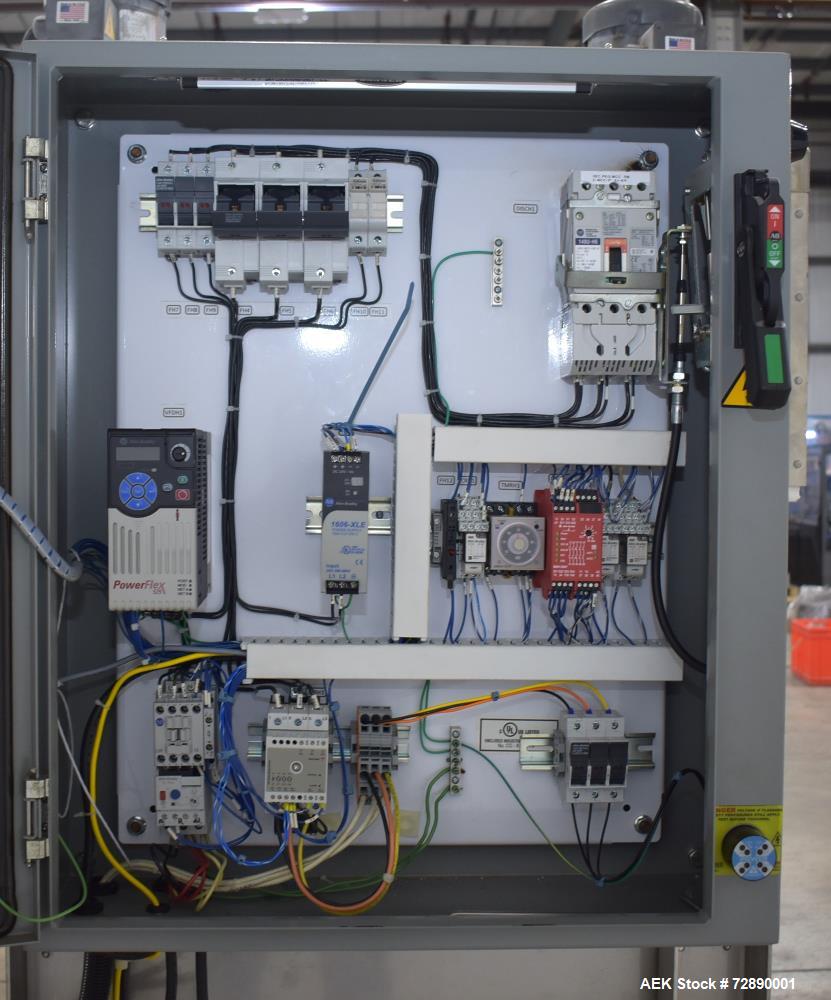

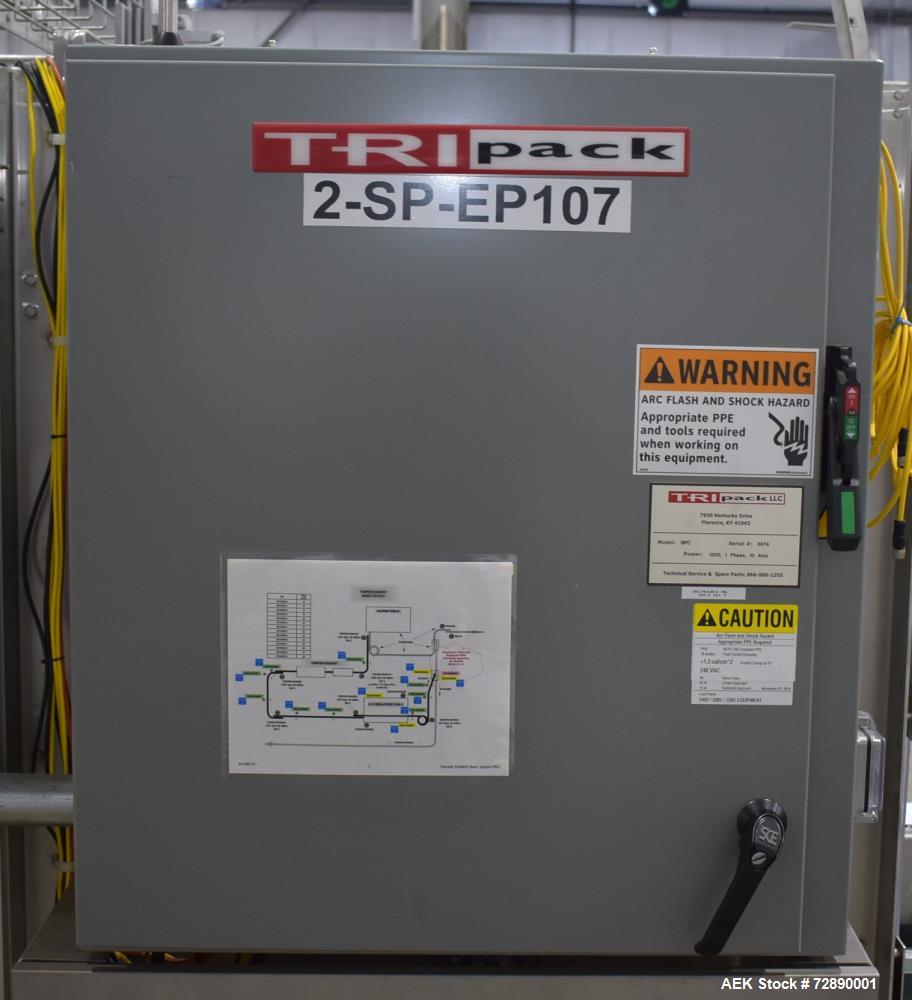

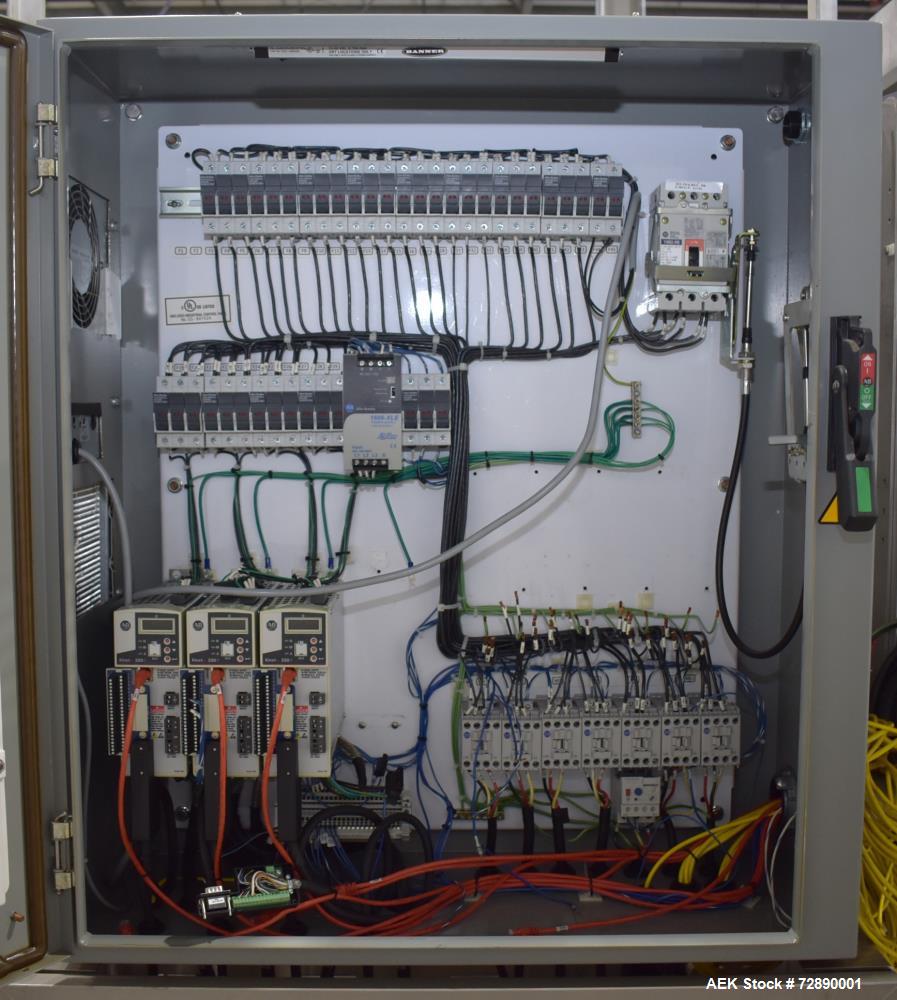

Control System:
-

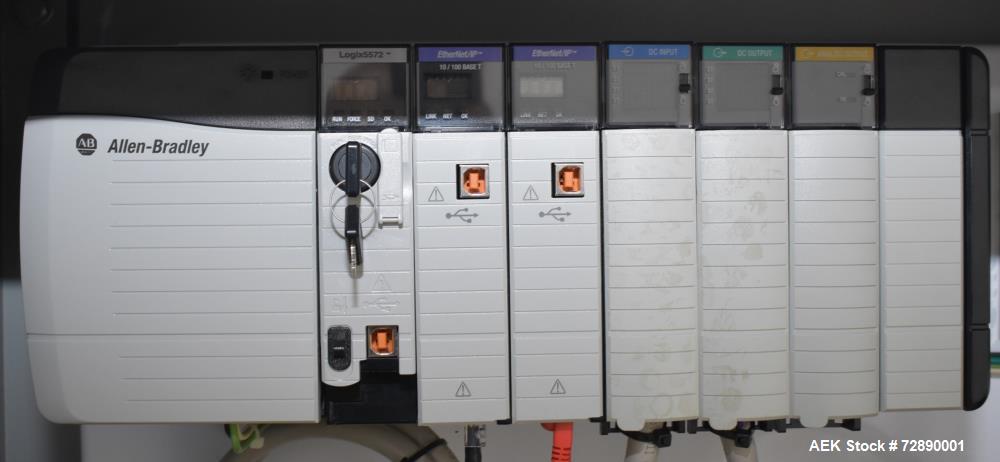

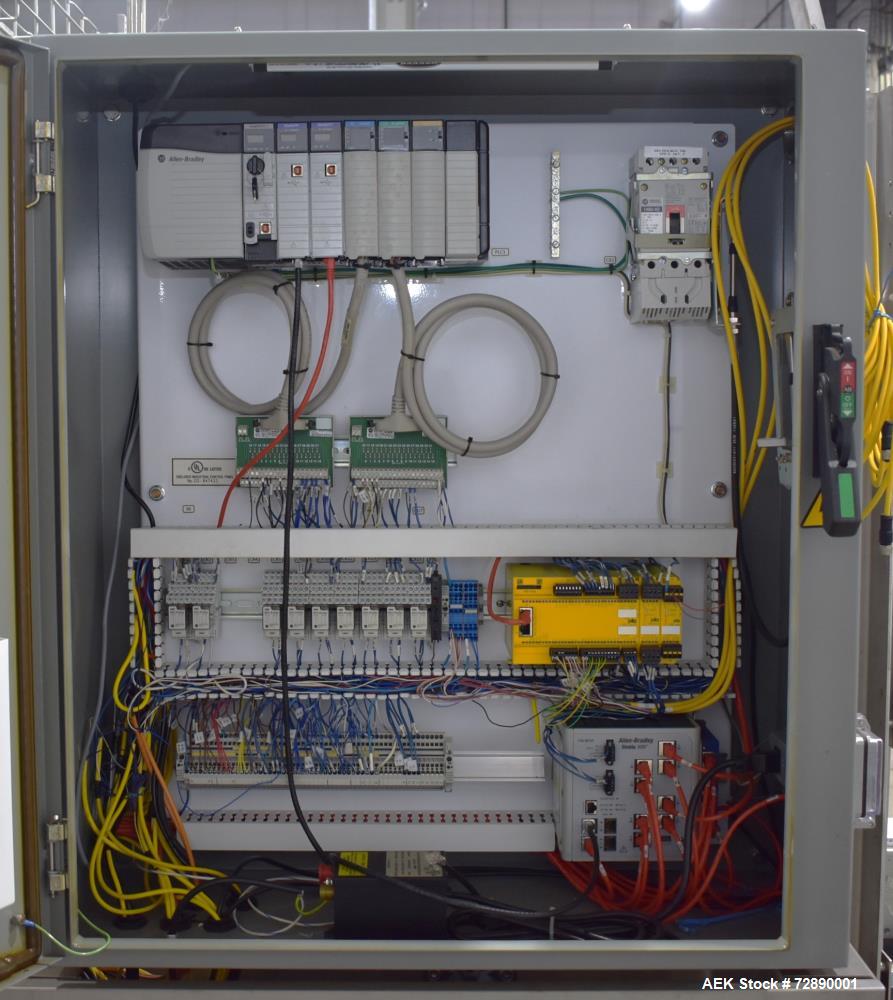

Allen Bradley Logix5572 PLC
-

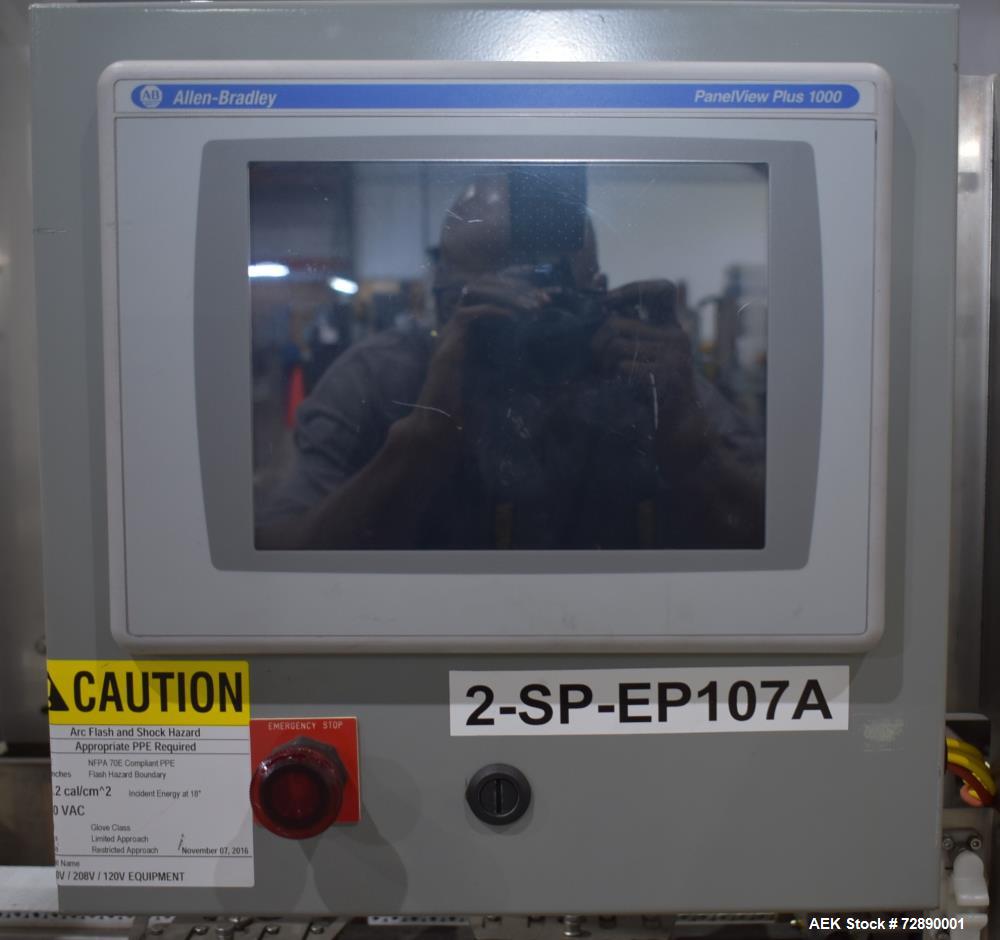

A/B PanelView Plus 1000 HMI
-

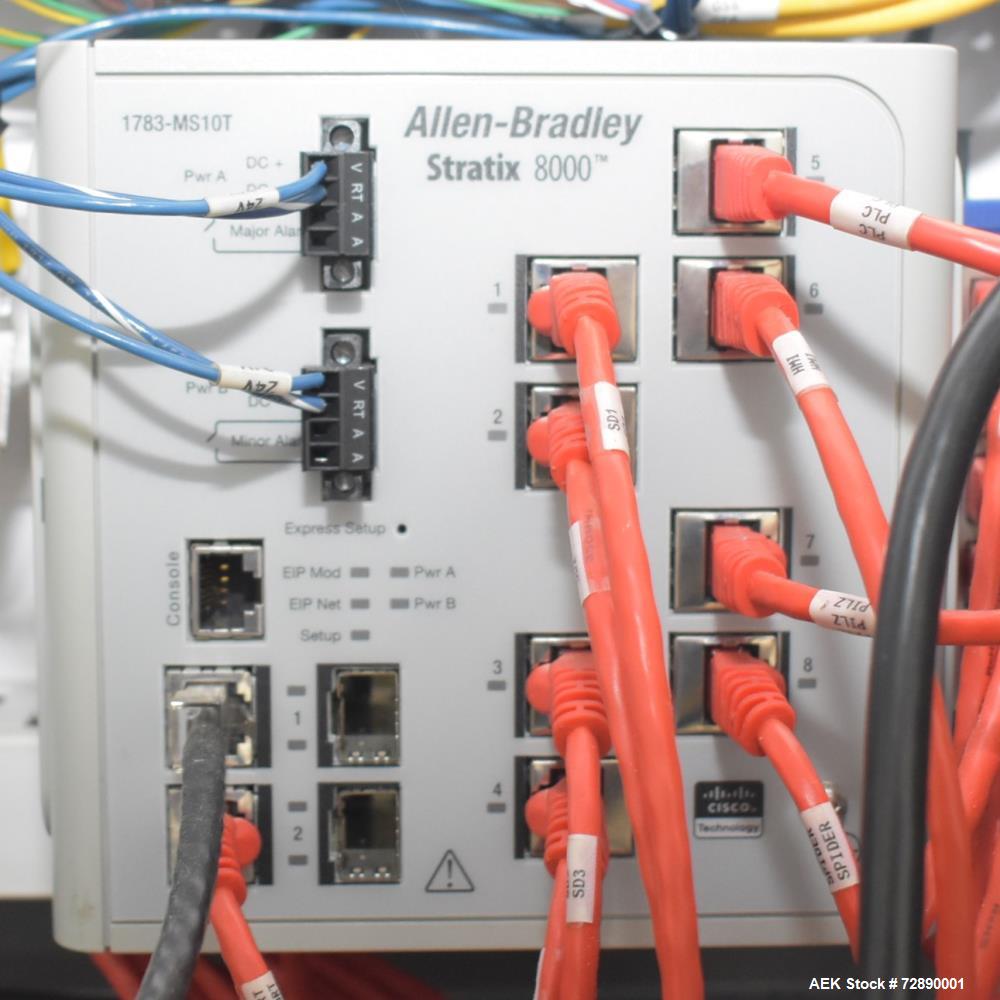

A/B Stratix 8000 Drive
-

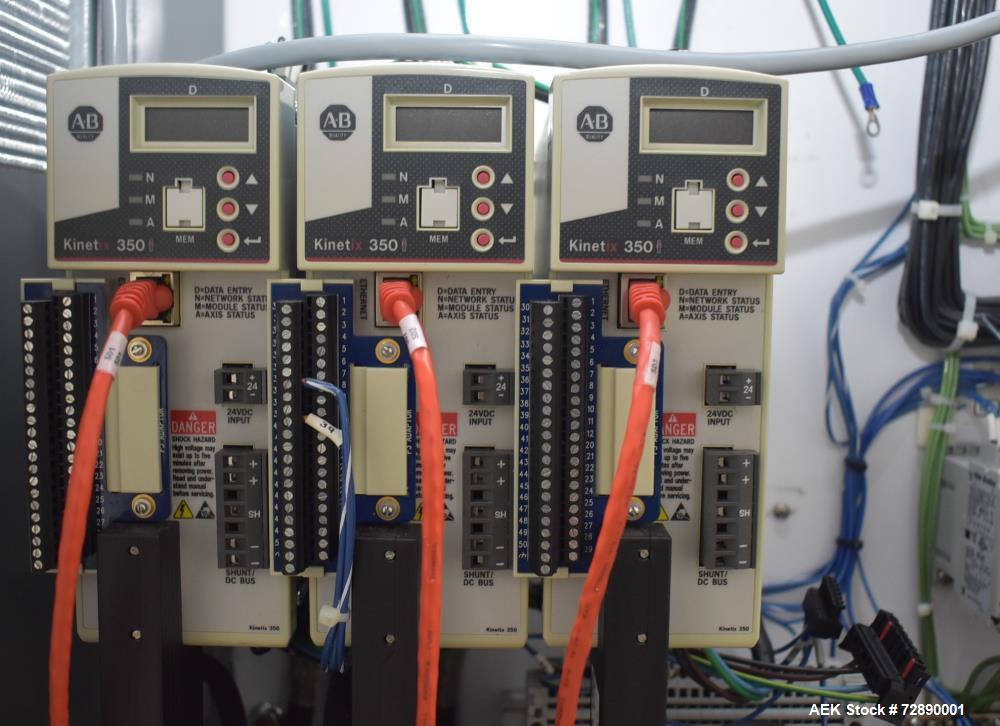

(3) A/B Kinetix 350 Drives
-

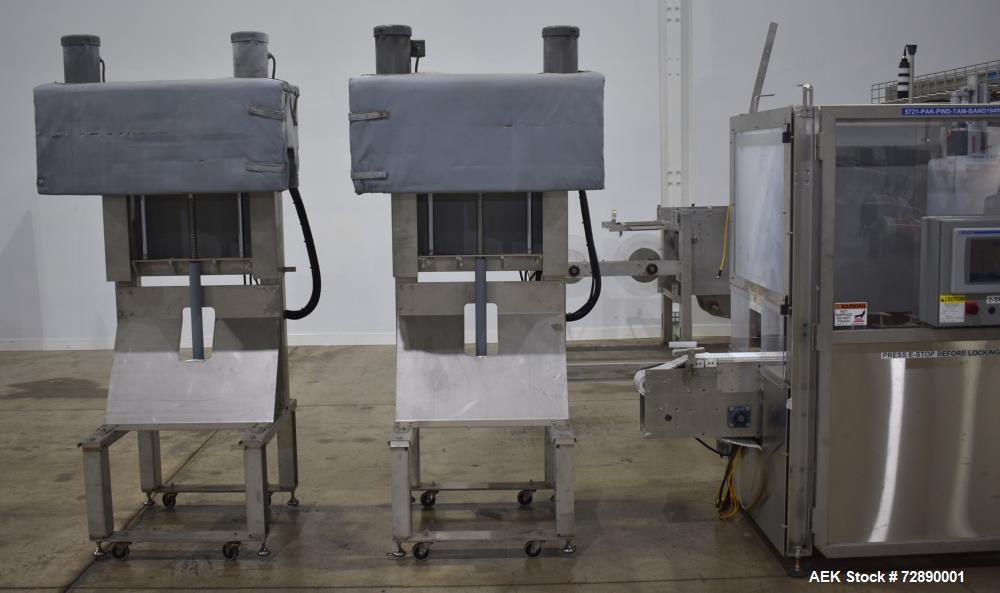

Shrink Tunnels Included:
-

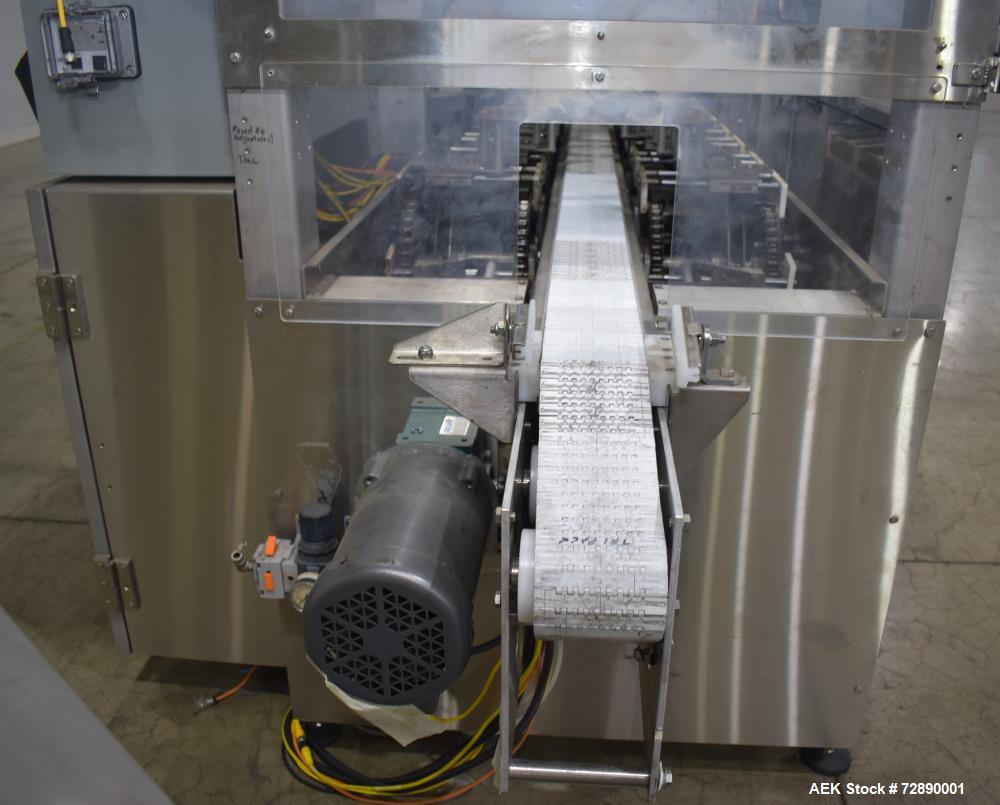

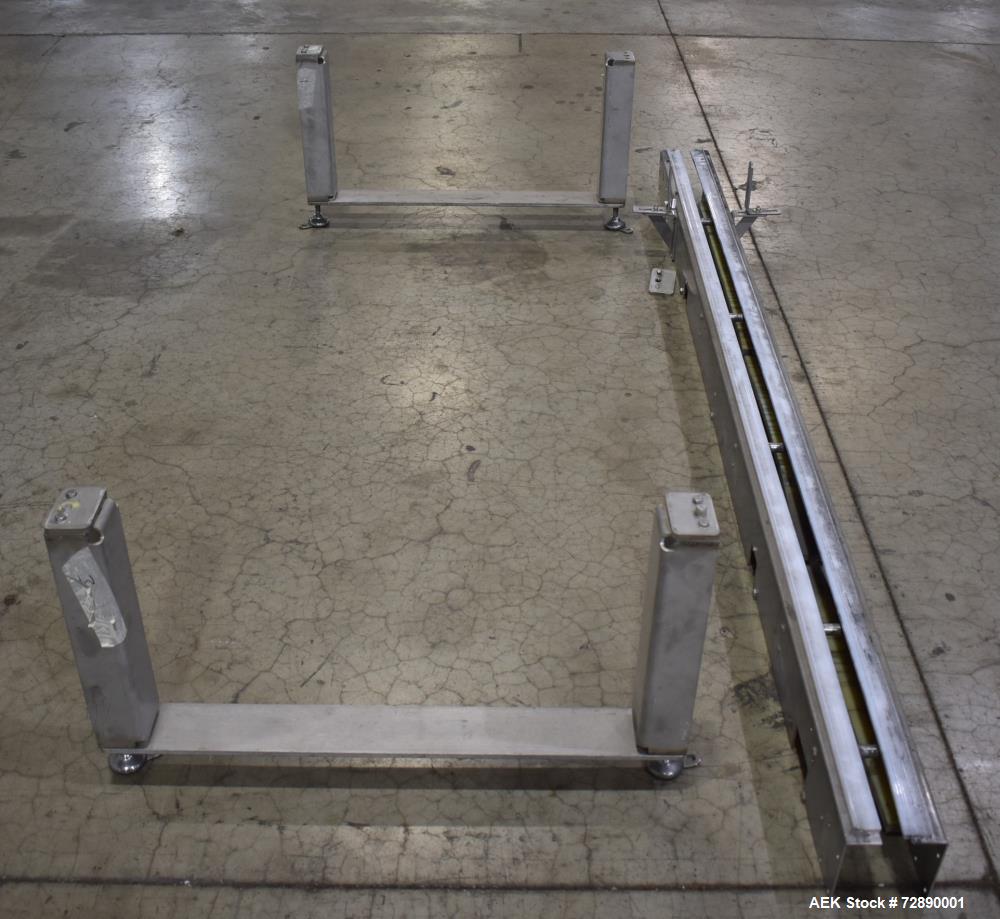

Conveyor: 4” wide x 152” long
-

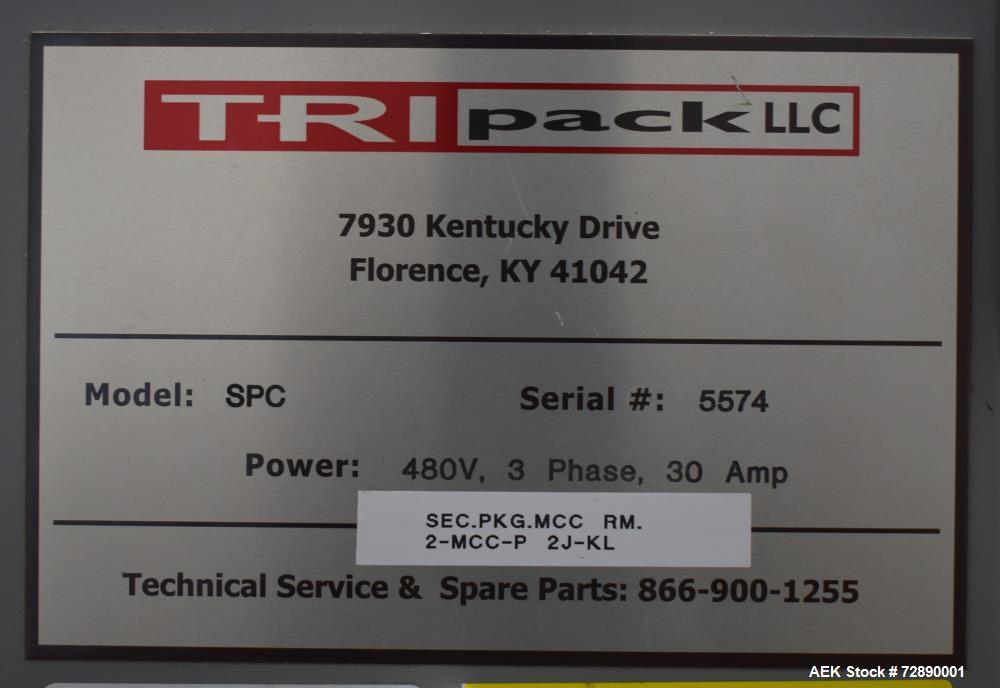

Power Requirements: 3 Phase / 60 Hz / 480 Volt
-
Condition: Used, complete, operational
🛠️ Applications
-
Tamper evident banding
-
Full-body shrink sleeve labeling
-
Neck bands and safety seals
-
Combo labeling/sealing operations
-
Medium to high-speed packaging lines
-
Nutraceutical, beverage, and personal care industries
-
Multipack bundling
-
Industrial and specialty product labeling
📦 Products This Would Be Used For
-
Bottled juices, smoothies, and RTD drinks
-
Nutritional supplements and vitamins
-
Personal care bottles (shampoo, conditioner, lotion)
-
Cleaning product containers
-
Glass or PET bottles with neck bands
-
Cosmetic jars and tubs
-
Canned goods requiring banded closures
-
Food condiments and sauces
-
Health & wellness products
-
High-volume retail products with shrink labeling
