Used Equipment Facts About This Machine
Manufacturer Info
Suehiro is a manufacturer of industrial roller mills and grain processing equipment designed for cracking, grinding, and size reduction applications. Suehiro roller mills are widely used in feed processing, grain milling, cereal production, and industrial material reduction systems.
Description

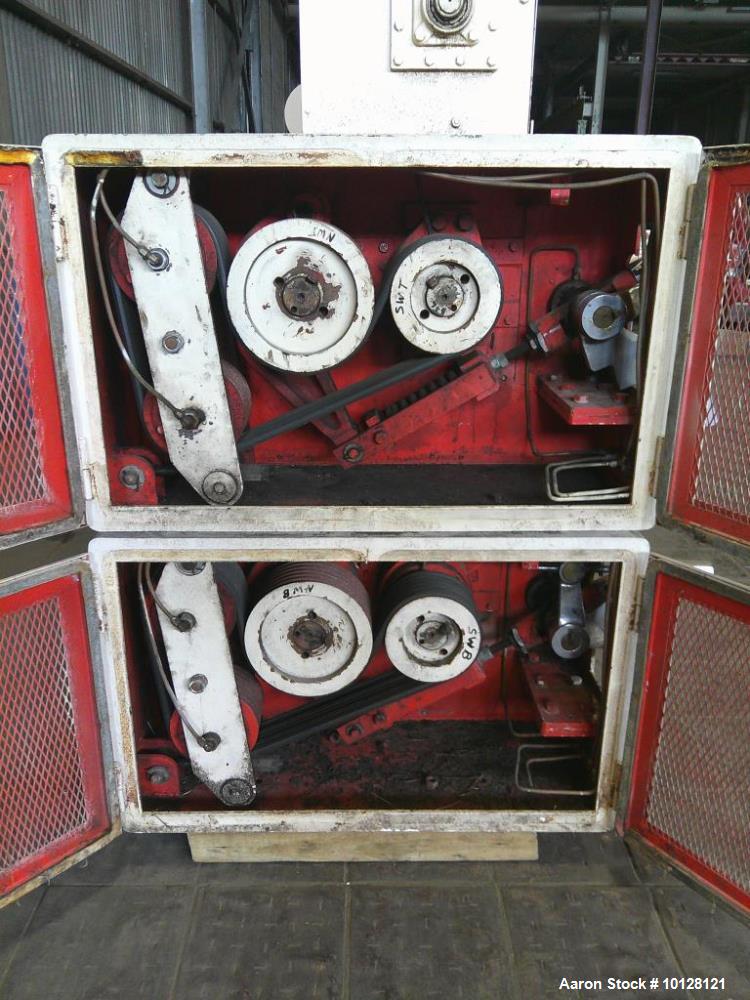

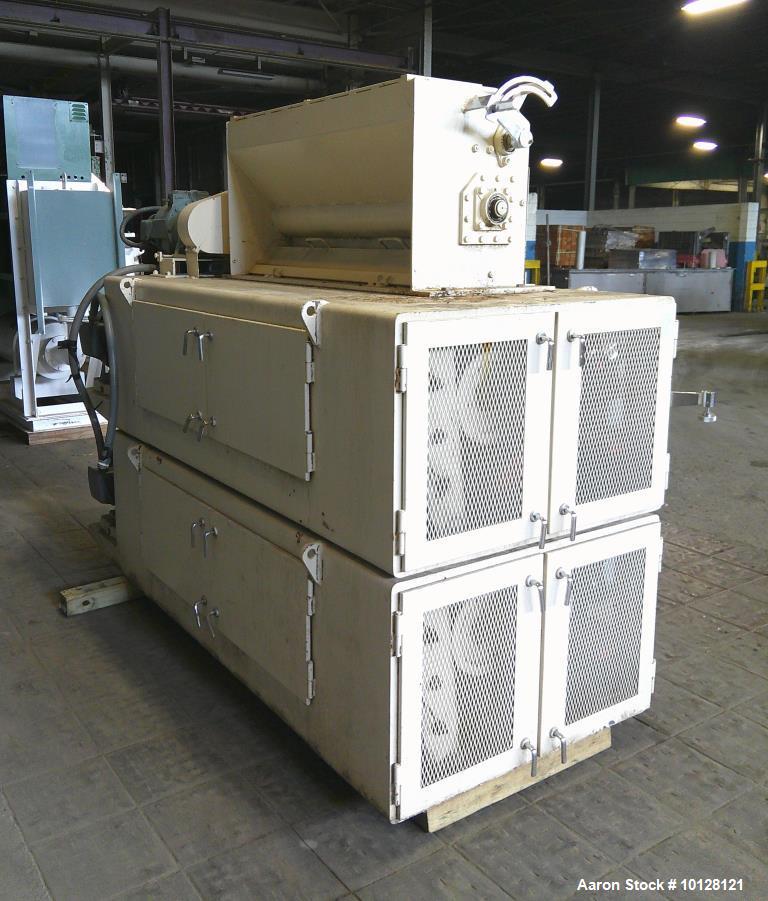

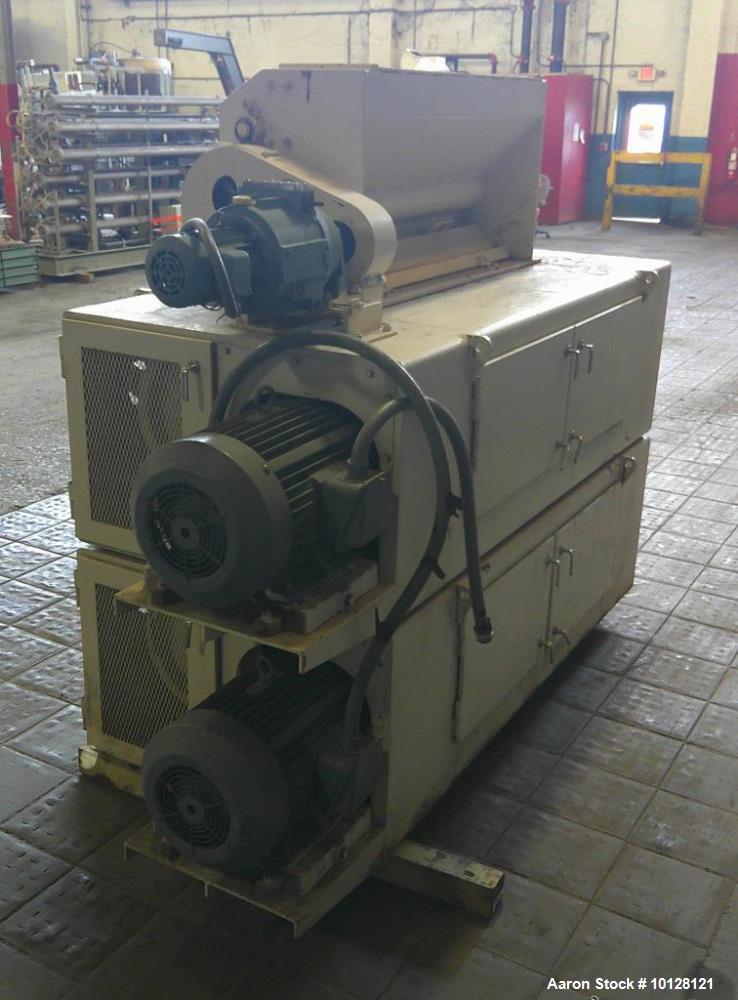

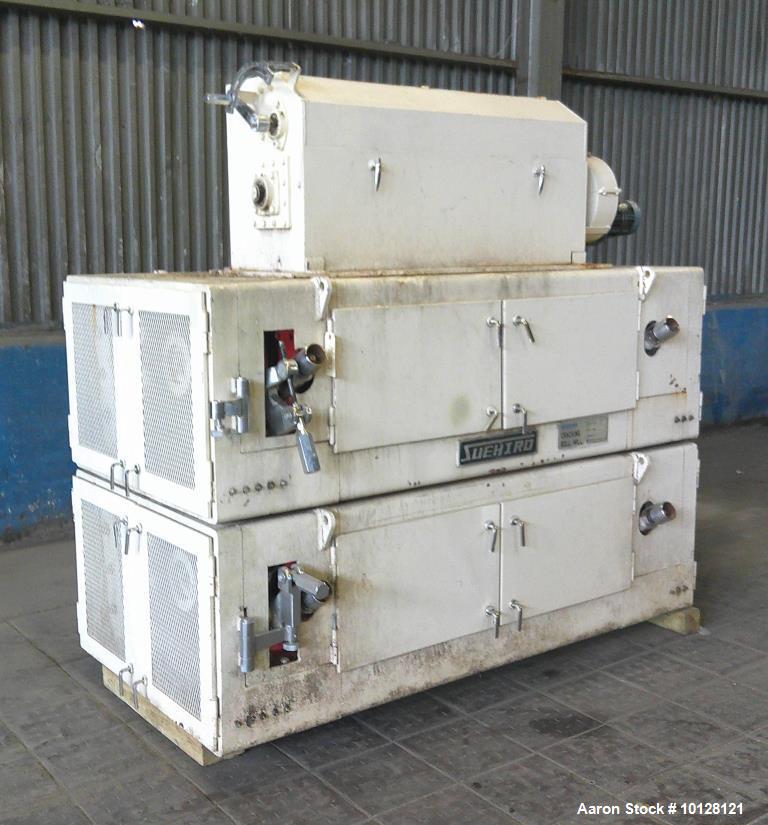

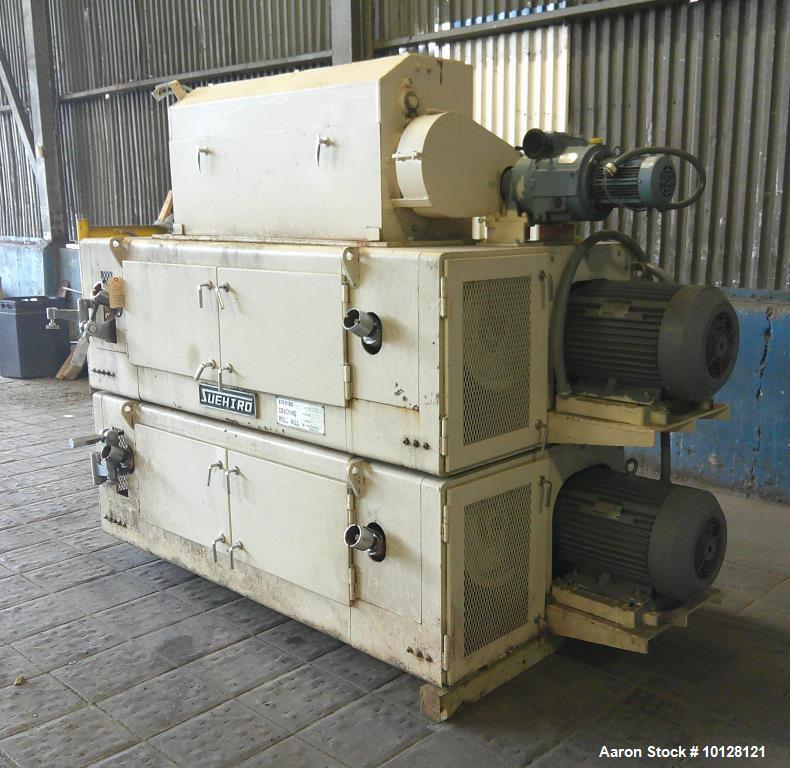

Used Suehiro 2 pair high cracking roller mill, model M-15, equipped with 250 mm x 1240 mm (9.84" diameter x 48.8" long) corrugated rolls. Rolls feature 6 corrugations per inch with an 8-degree spiral twist for efficient cracking and material processing. Unit includes an 8" x 43" powered feed chute with adjustable feed flow and built-in magnetic traps. Feed chute is powered by a 1 HP motor, while each roll pair is driven by a 15 kW (20 HP) motor. Requires 460 VAC, 3 phase electrical supply. Unit is reported to be in good condition.
Specifications

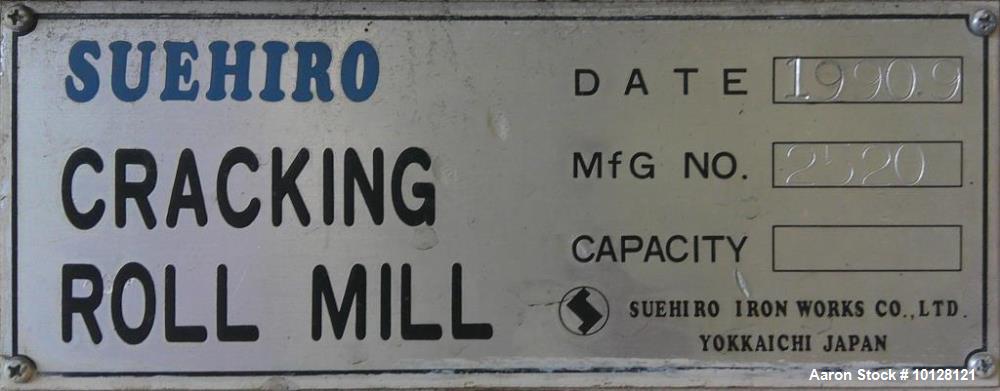

- Manufacturer: Suehiro
- Model: M-15
- Type: 2 Pair High Cracking Roller Mill

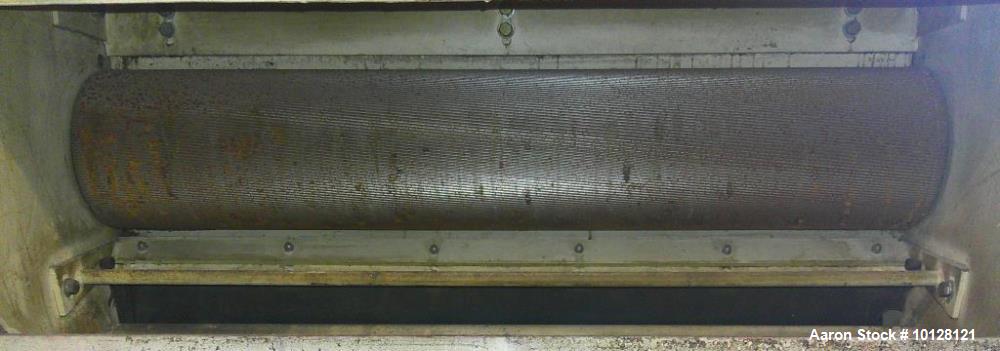

- Roll Size:
- 250 mm Diameter (9.84")
- 1240 mm Length (48.8")

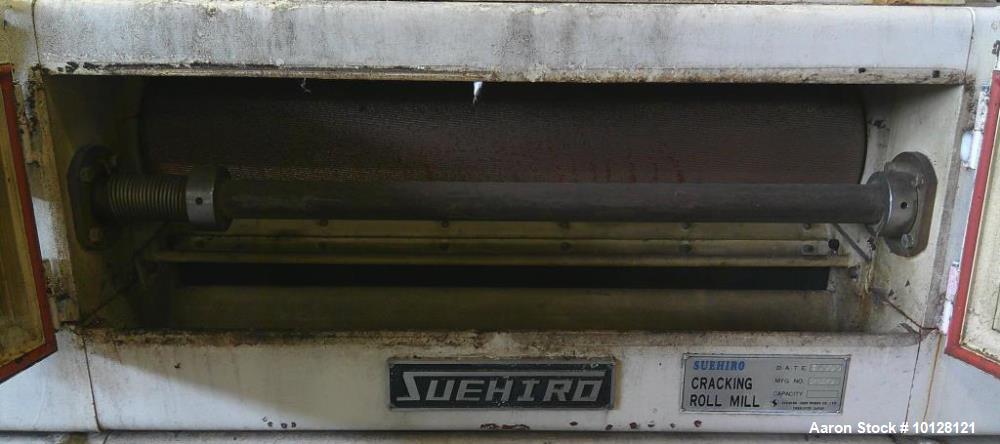

- Roll Surface: Corrugated

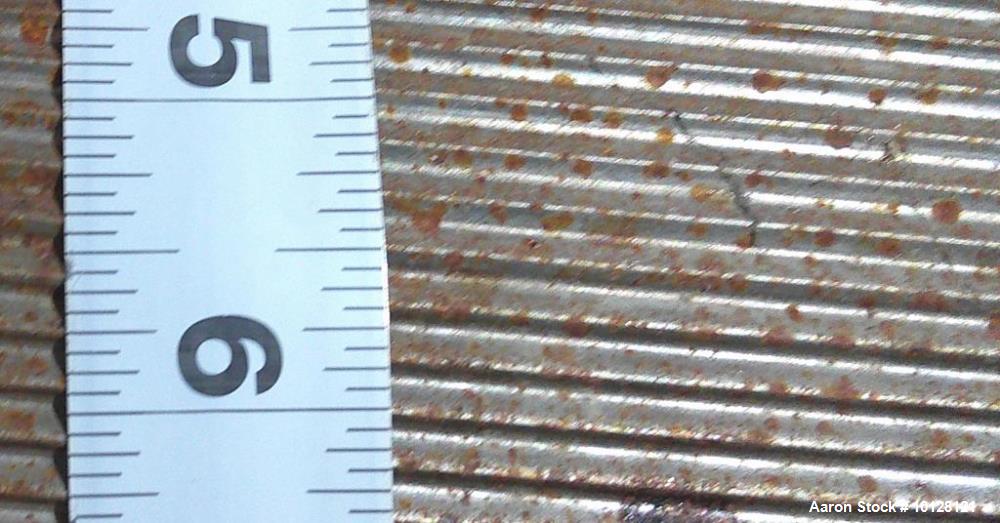

- Corrugations: 6 per inch
- Spiral Twist: 8 Degree
- Feed Chute Size: 8" x 43"
- Feed Chute Features:
- Powered Feed
- Adjustable Flow
- Built-In Magnetic Traps

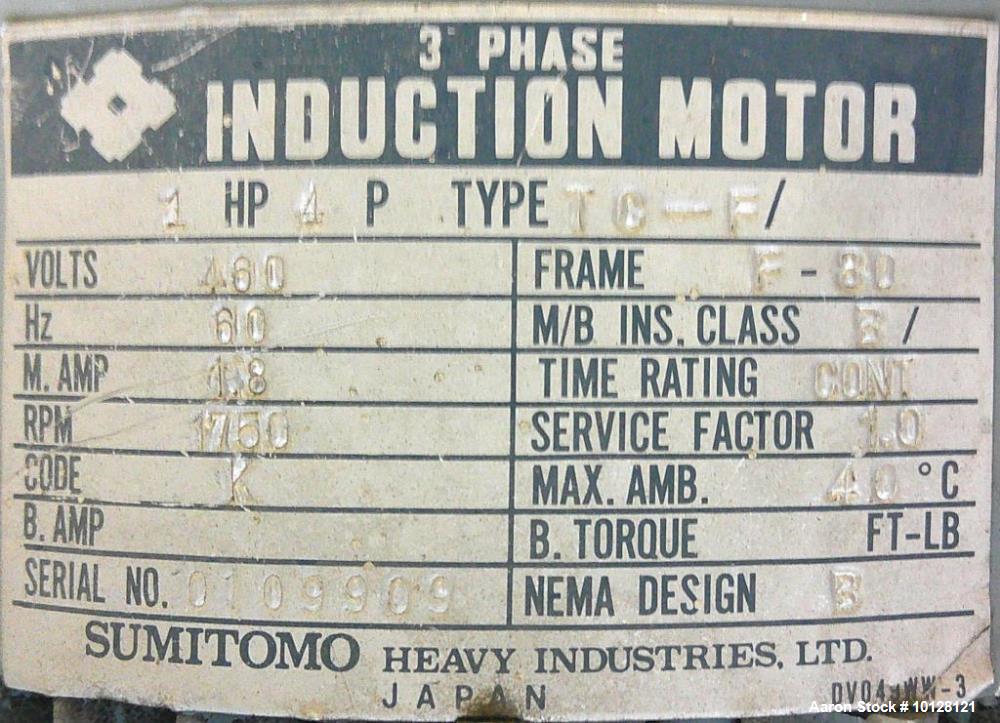

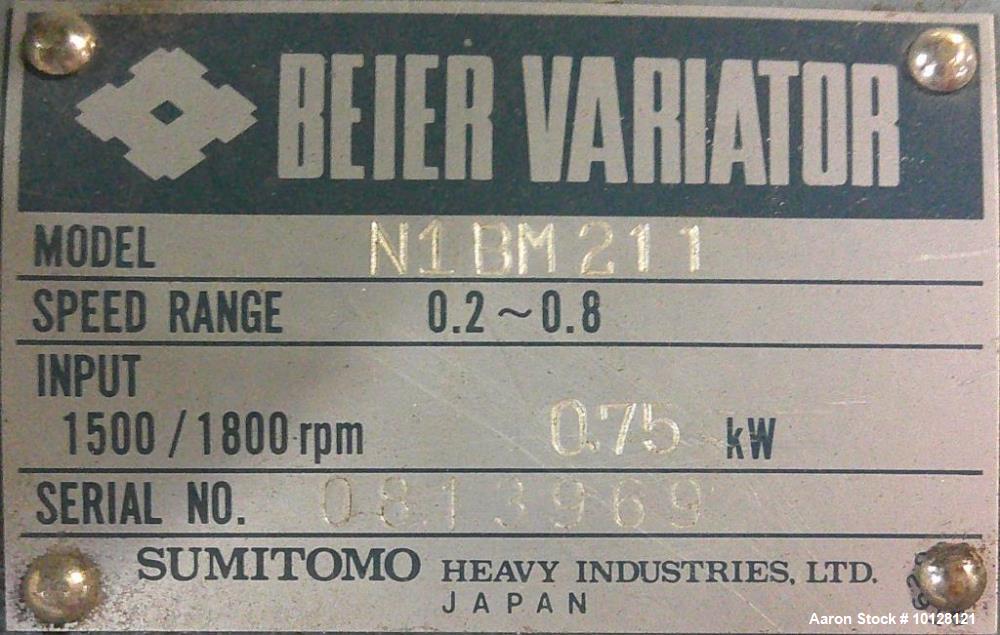

- Feed Motor: 1 HP

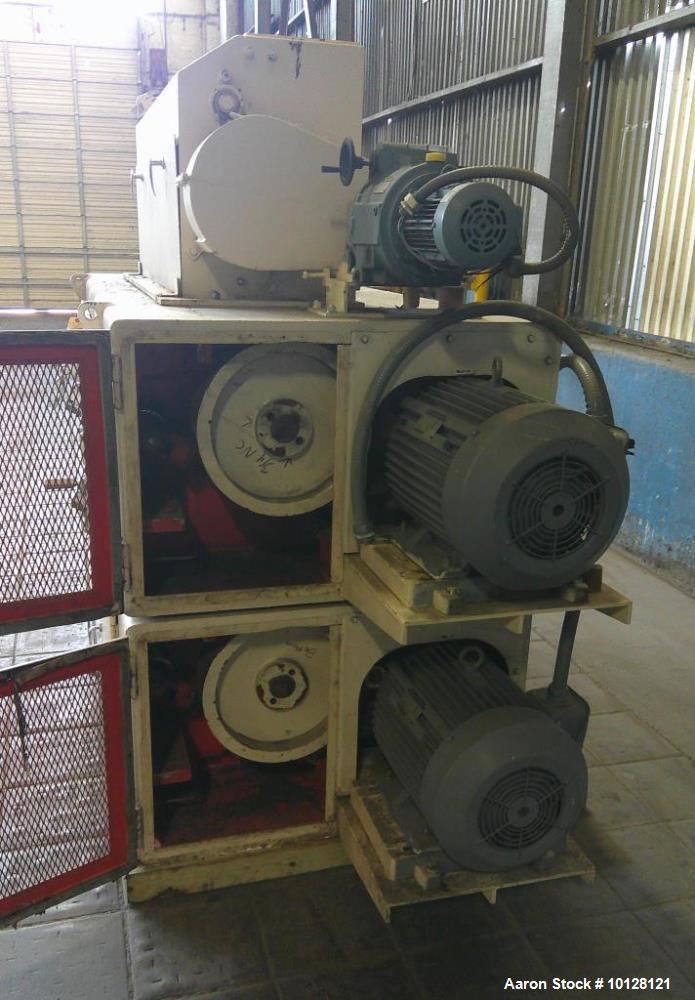

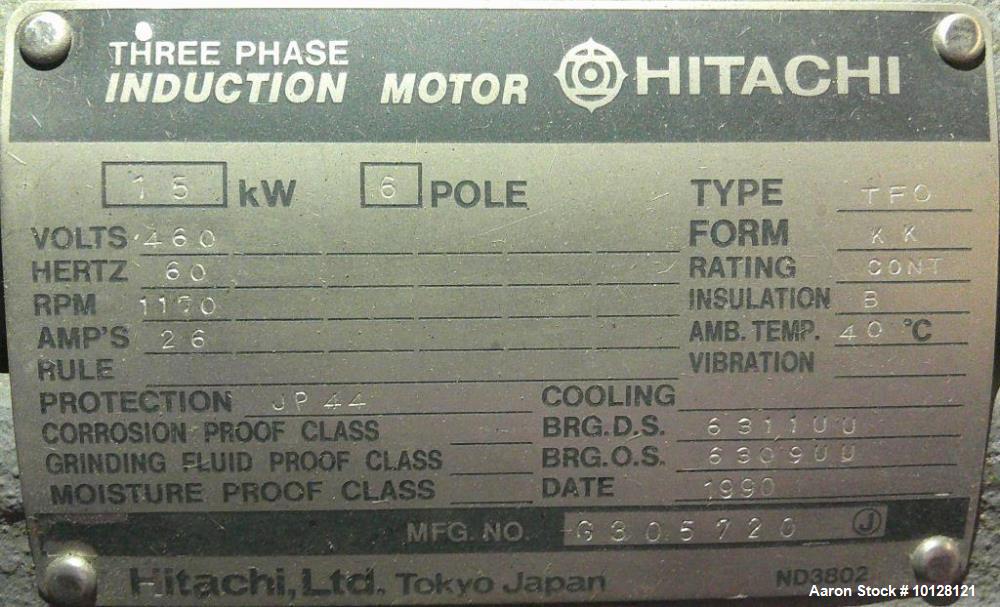

- Roll Drive Motors:

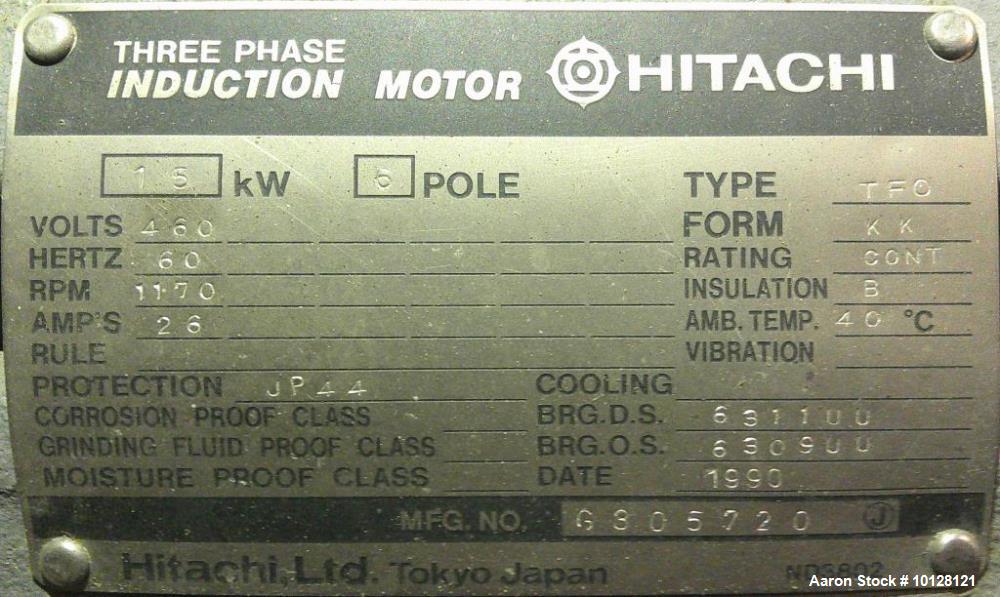

- (2) 15 kW Motors
- Approximately 20 HP Each
- Electrical Requirement: 460 VAC
- Phase: 3 Phase
- Overall Dimensions:
- 51" Wide
- 101" Long
- 76" Tall
- Condition: Good
Applications
- Grain cracking
- Feed milling
- Corn processing
- Cereal grain processing
- Soybean cracking
- Animal feed production
- Seed processing
- Malt processing
- Industrial grinding
- Agricultural material processing
Products This Would Be Used For
- Corn
- Wheat
- Barley
- Soybeans
- Oats
- Milo
- Feed pellets
- Malted grains
- Seed products
- Agricultural feed blends
