Stock No.: 48291015

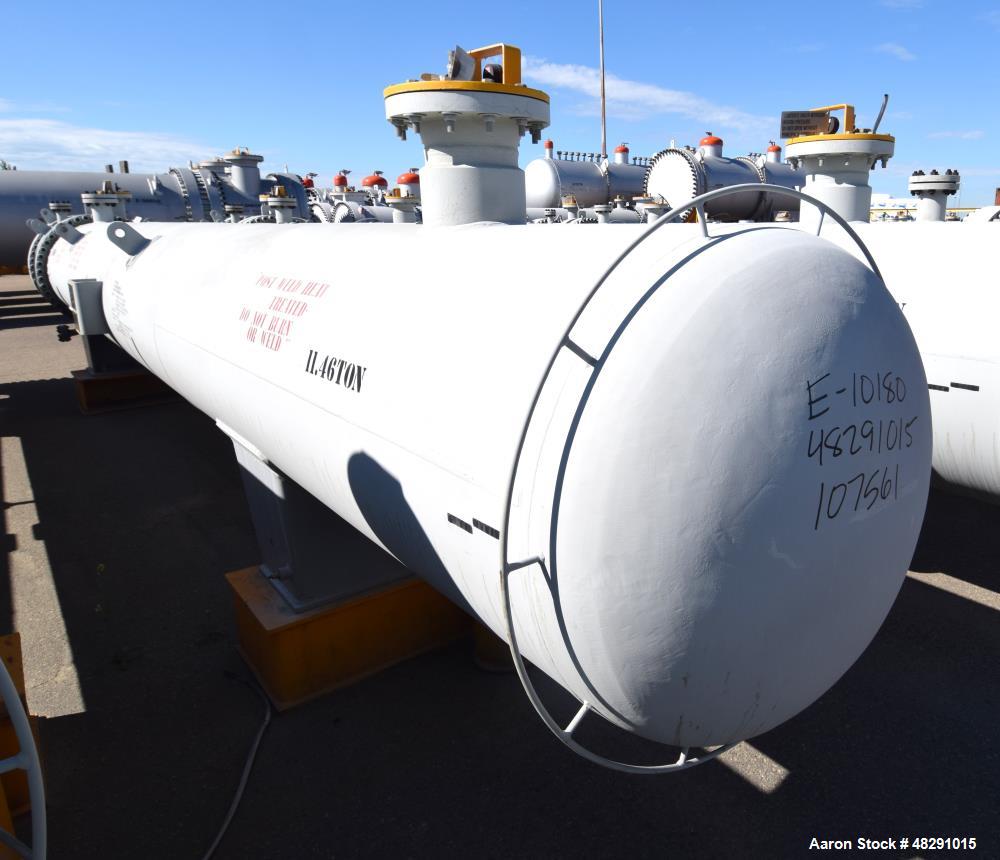

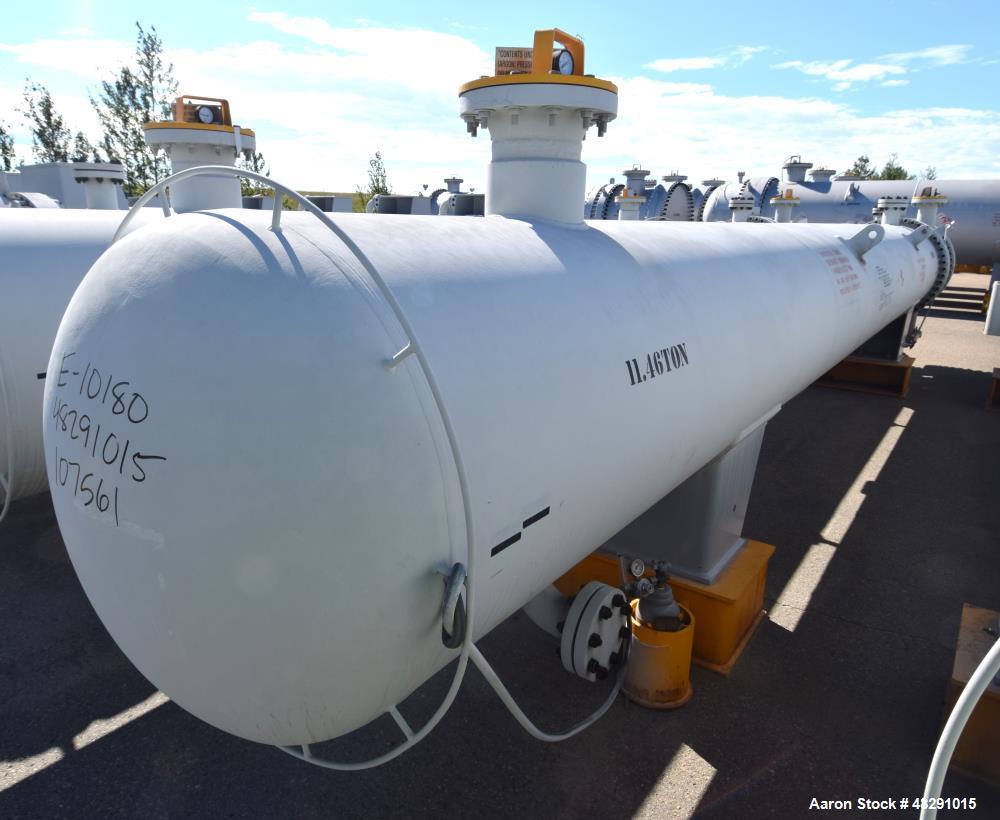

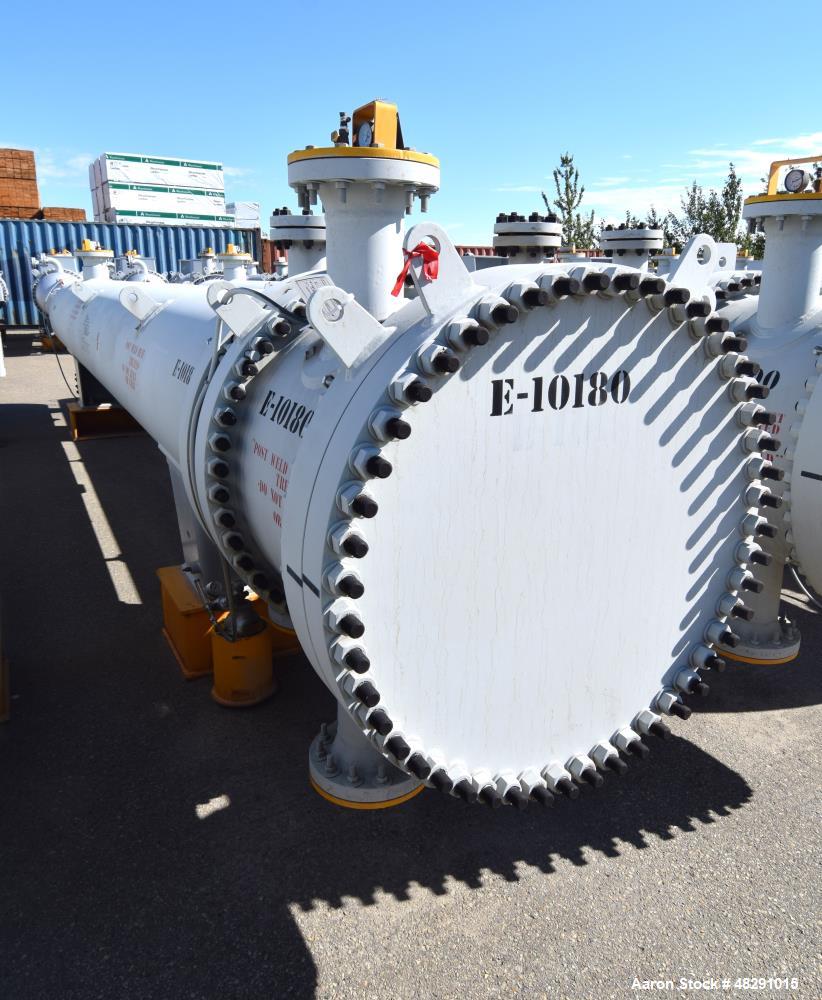

U Tube Shell & Tube 4-Pass Heat Exchanger
Unused- U-Tube Shell & Tube Heat Exchanger, Approximate 3409 Square Feet, Tema Type AEU, Carbon Steel, Horizontal. 4 Pass. Shell rated 369psi/Full Vacuum at 392 degrees F., (368) 3/4" diameter x 288" long tubes rated 364psi/Full Vacuum at 320 degrees F. Openings shell (2) 4", (2) 8", openings for tubes (2) 2", (2) 6". Mfg: Ilsung Corporation. Serial# 14-HE-064, National Board# 2048, built 2014.
-
ManufacturerIlsung Corporation
-
ModelAEU
-

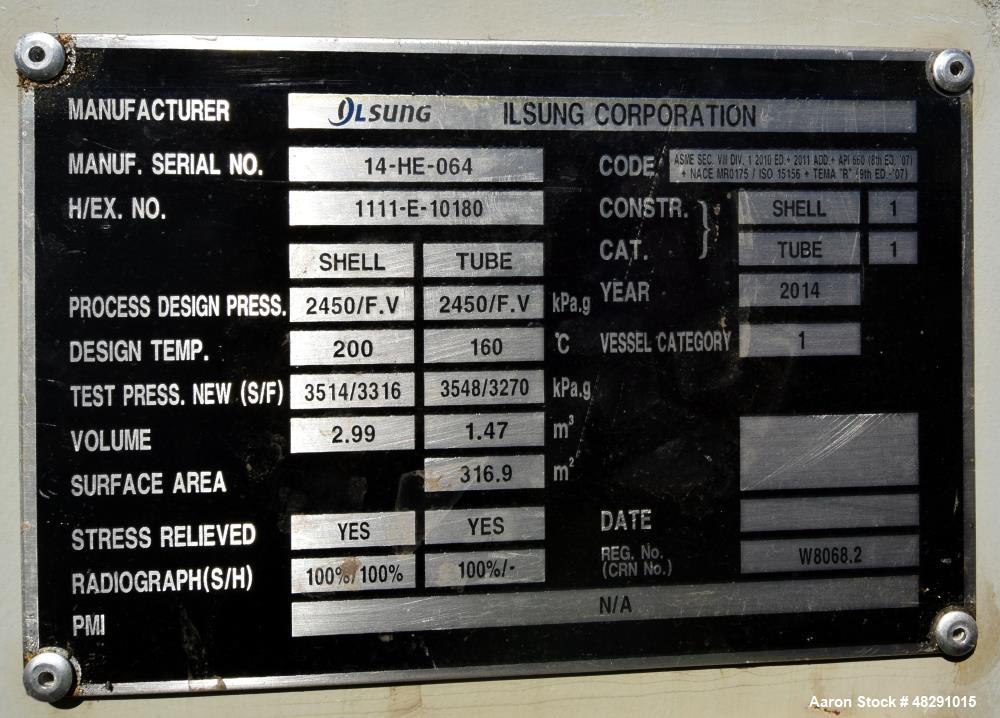

Serial #14-HE-064
-
CategoryHeat Exchangers
-
SubcategoryShell & Tube - Carbon
-
Number Of Passes4
-
Square Footage3409
-
Horizontal Or VerticalHorizontal
-
Shell MaterialCarbon Steel
-
Shell Pressure369psi/Full Vacuum
-
Shell Temperature392 degrees F.
-
Size Of Shell Openings(2) 4", (2) 8”
-
Tube MaterialCarbon Steel
-
Tube Pressure364psi/Full Vacuum
-
Tube Temperature320 degrees F.
-
Size Of Tube Openings(2) 2", (2) 6”
-
Head MaterialCarbon Steel
-
MountedSaddle Mounted
-

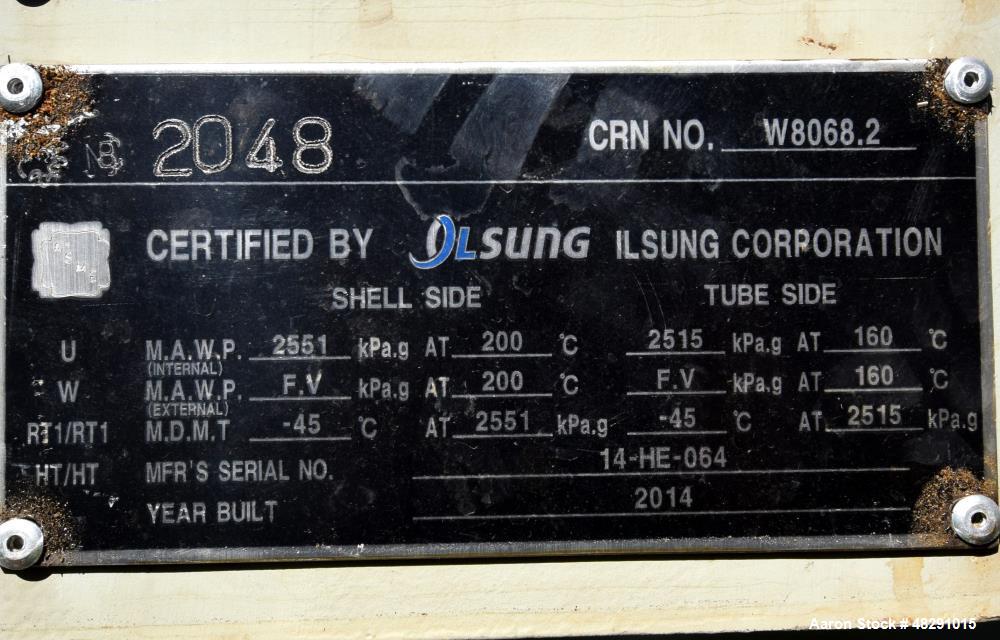

National Board No.2048
-
Overall Dimensions358"L X 44"W X 95"T
-
Year Built2014
-
Tube Length288"
Used equipment facts about this machine
Manufacturer Information
- Manufacturer: Ilsung Corporation
- Model: Unspecified
- Serial Number: 14-HE-064
- National Board Number: 2048
- Year Built: 2014
Description
The Unused U-Tube Shell & Tube Heat Exchanger is a high-capacity heat transfer unit designed for industrial applications. With an approximate surface area of 3409 square feet, this TEMA Type AEU exchanger is constructed from carbon steel for durability and reliability. The horizontal, 4-pass design ensures efficient thermal exchange, making it ideal for high-pressure and vacuum conditions.
This unit features a shell rated at 369 psi/full vacuum at 392°F and (368) ¾" diameter tubes, each 288" long, rated at 364 psi/full vacuum at 320°F. It includes multiple shell and tube side openings, allowing for flexible process integration.
Specifications
- Type: U-Tube Shell & Tube Heat Exchanger
- TEMA Type: AEU
- Material: Carbon Steel
- Orientation: Horizontal
- Surface Area: ~3409 sq. ft.
- Passes: 4-pass
- Shell Rating: 369 psi / Full Vacuum @ 392°F
- Tube Rating: 364 psi / Full Vacuum @ 320°F
- Tubes: (368) tubes, ¾" diameter, 288" length
- Shell Openings: (2) 4", (2) 8"
- Tube Openings: (2) 2", (2) 6"
Applications
The U-Tube Shell & Tube Heat Exchanger is ideal for various industrial processes, including:
- Chemical and petrochemical processing (heat recovery, cooling, and condensation)
- Oil and gas industry (refining, gas cooling, and liquid heating)
- Power plants (steam generation and waste heat recovery)
- Food and beverage processing (pasteurization and temperature control)
- Pharmaceutical industry (controlled heating and cooling applications)
Compatible Products & Systems
- Industrial cooling and heating systems
- Chemical and petrochemical plants
- Power generation facilities
- Steam and process fluid systems
Product Details
