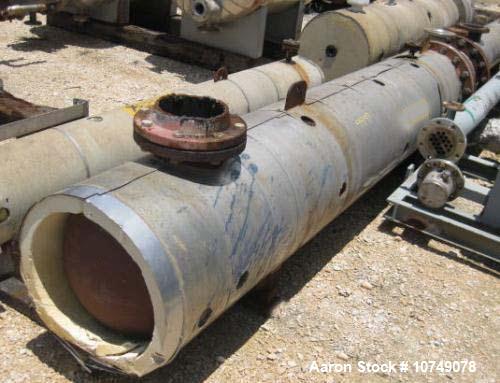

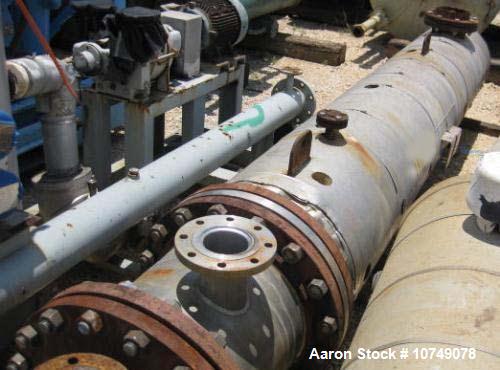

Used-Ledco Heat Exchanger, shell and tube

Stock# 10749078

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 10749078

ITEM SOLD!

View All 10 available items

or

HAVE A SIMILAR MACHINE FOR SALE?

DESCRIPTION

Used-Ledco Heat Exchanger, shell and tube. Cyad reactor secondary cooler, 463 square feet, carbon steel body. (360) .50" Diameter x 9'6" long Hastelloy C tubes. Tube pitch is .6562 TRI. Tube wall is 18 BWG. Single pass shell, 8 pass tubes. Shell rated 285 psi FV, tubes rated 290 psi FV, both 302 deg F. Shell nozzles (2) 4", tube nozzles (2) 8". 7 Baffles. Overall length is 13'0". 1'4" Shell diameter. Built 1996.
