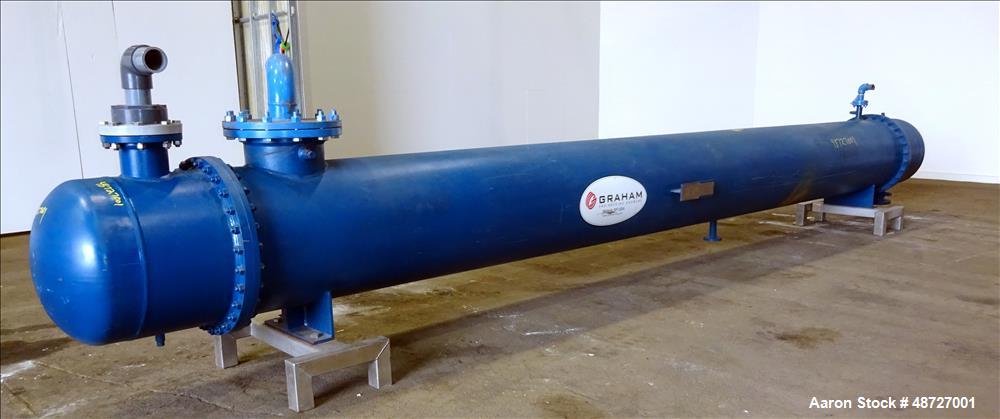

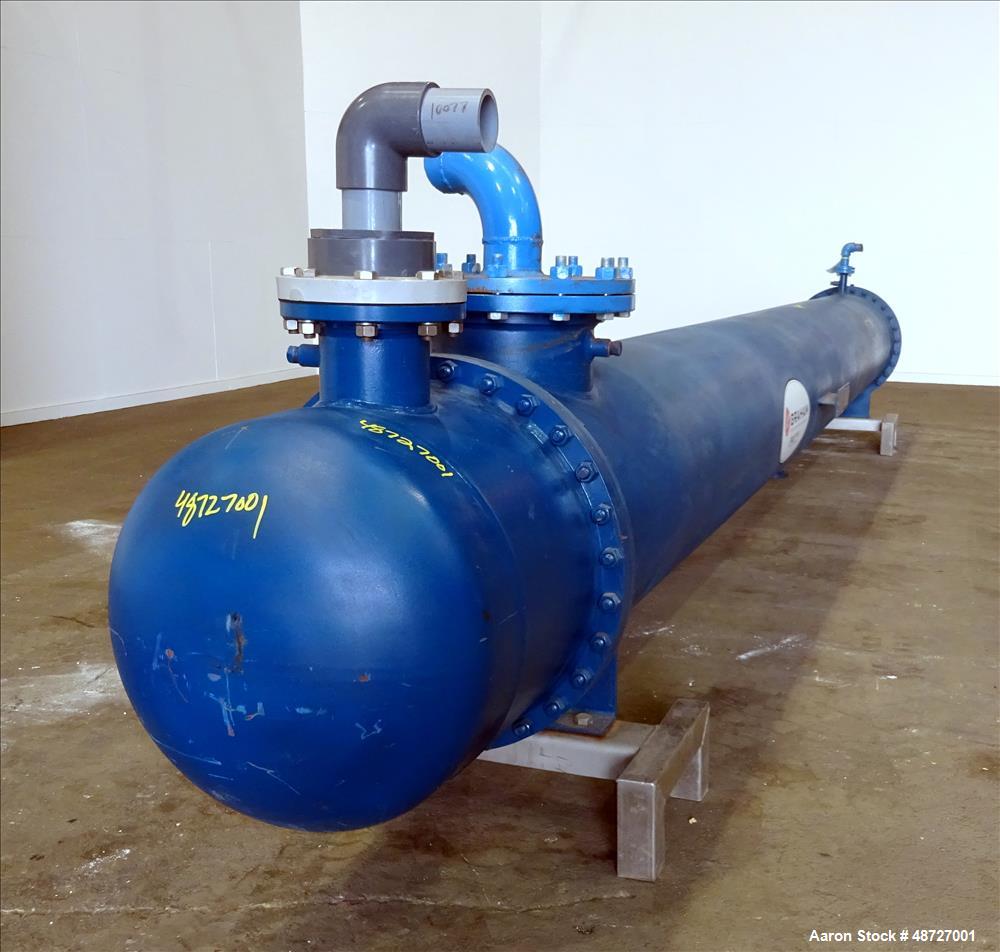

Used- Graham Shell and Tube Heat Exchanger.

Stock# 48727001

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 48727001

HAVE A SIMILAR MACHINE FOR SALE?

Surplus Equipment for Sale?
We make this quick and easy!

Scan QR Code with your phone
Enter Contact Info
Upload Pics and Specs
Submit

More Info

DESCRIPTION

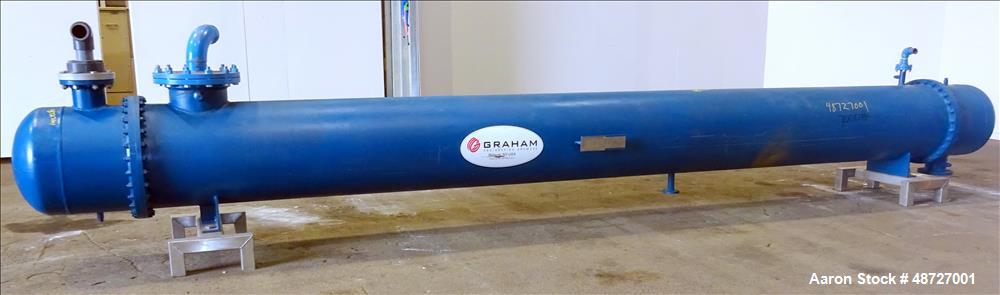

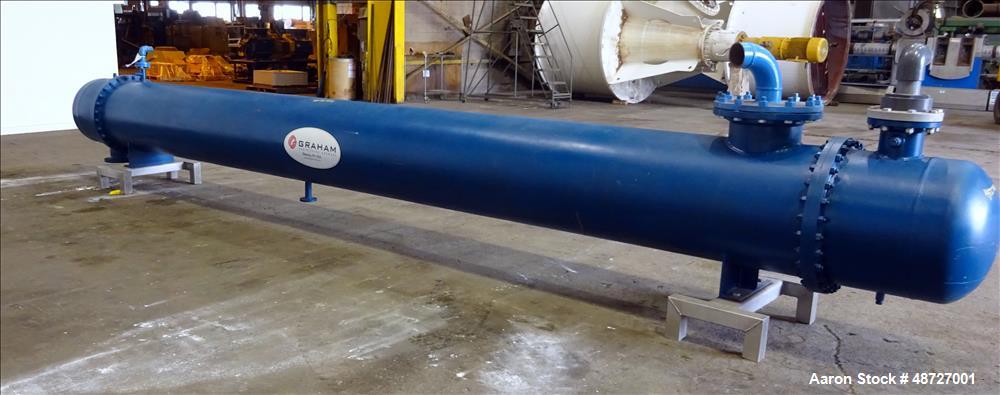

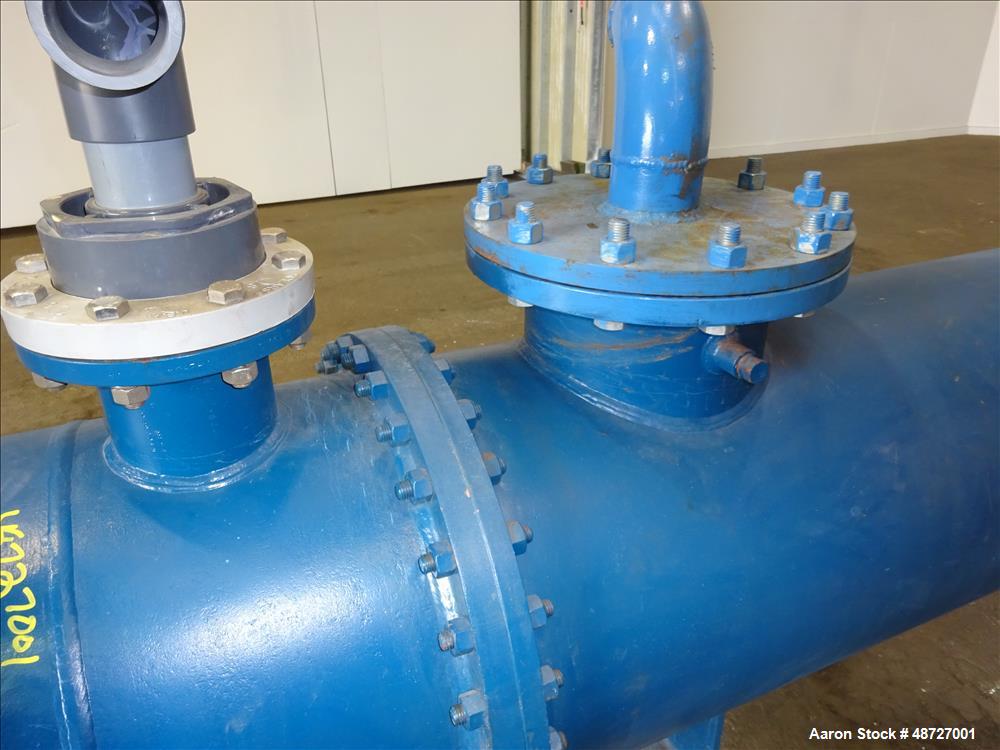

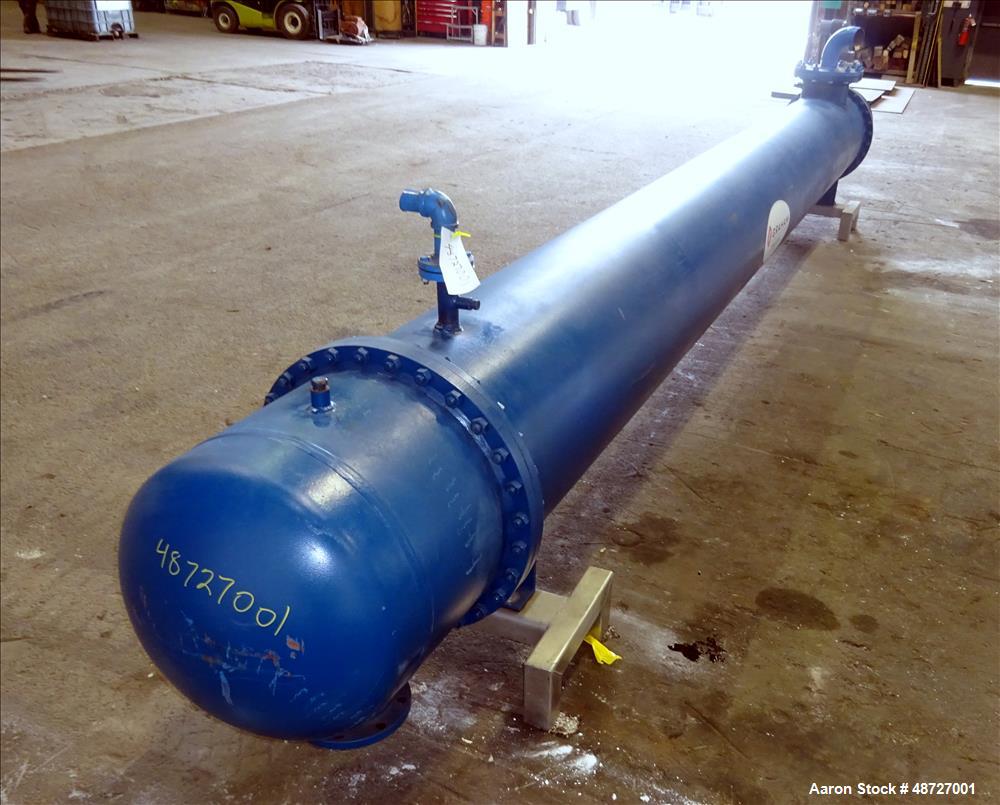

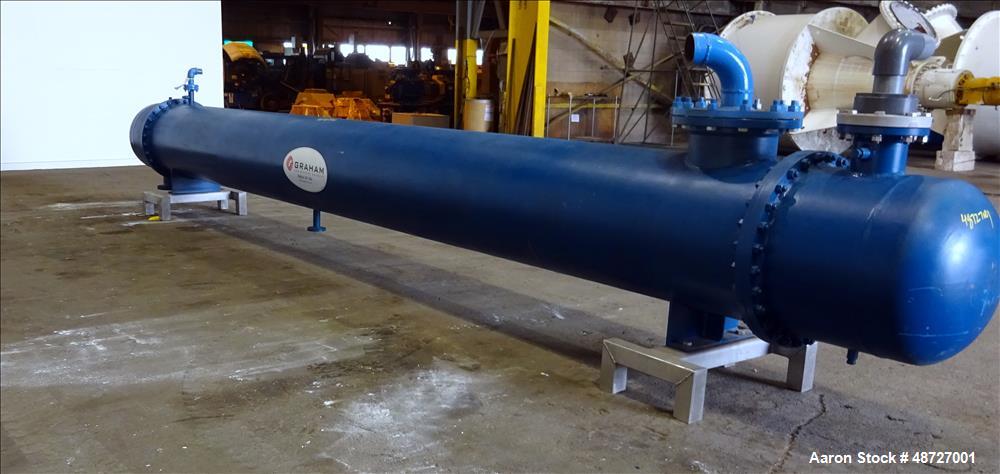

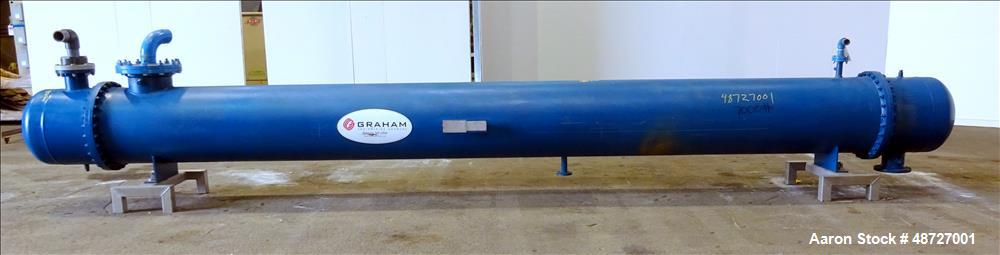

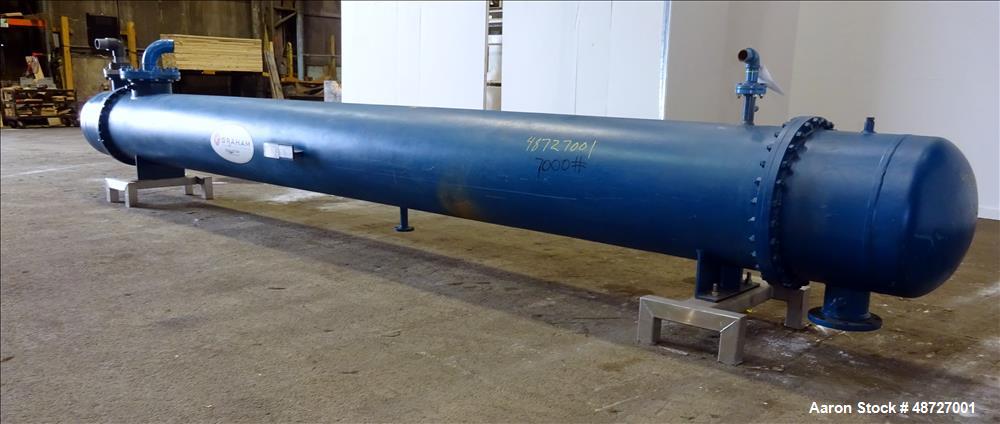

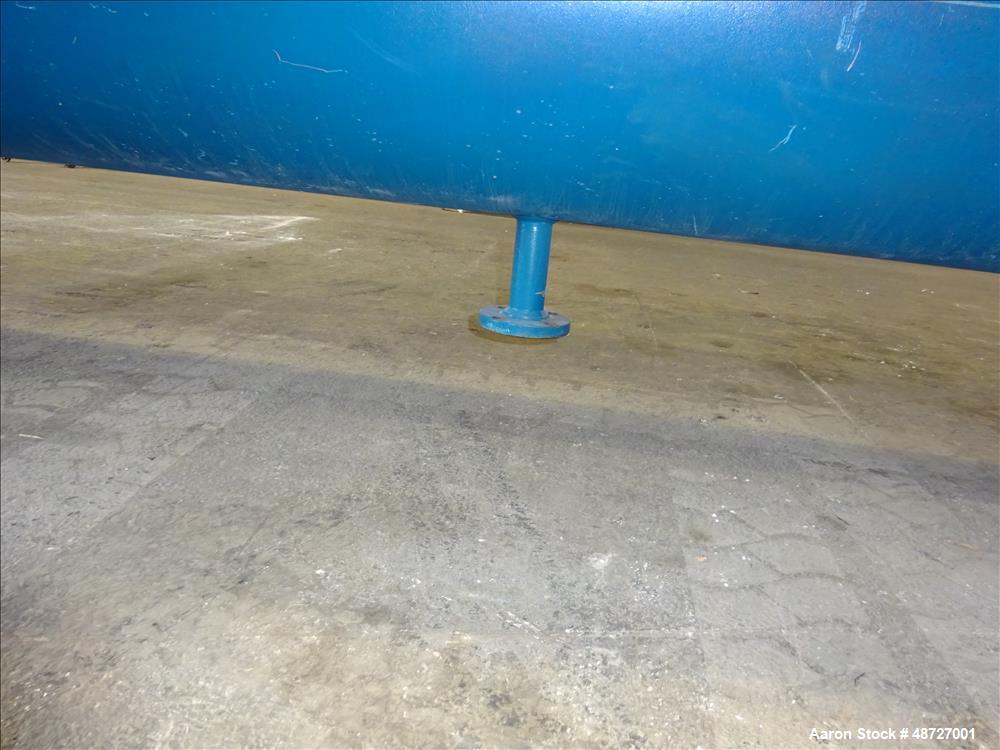

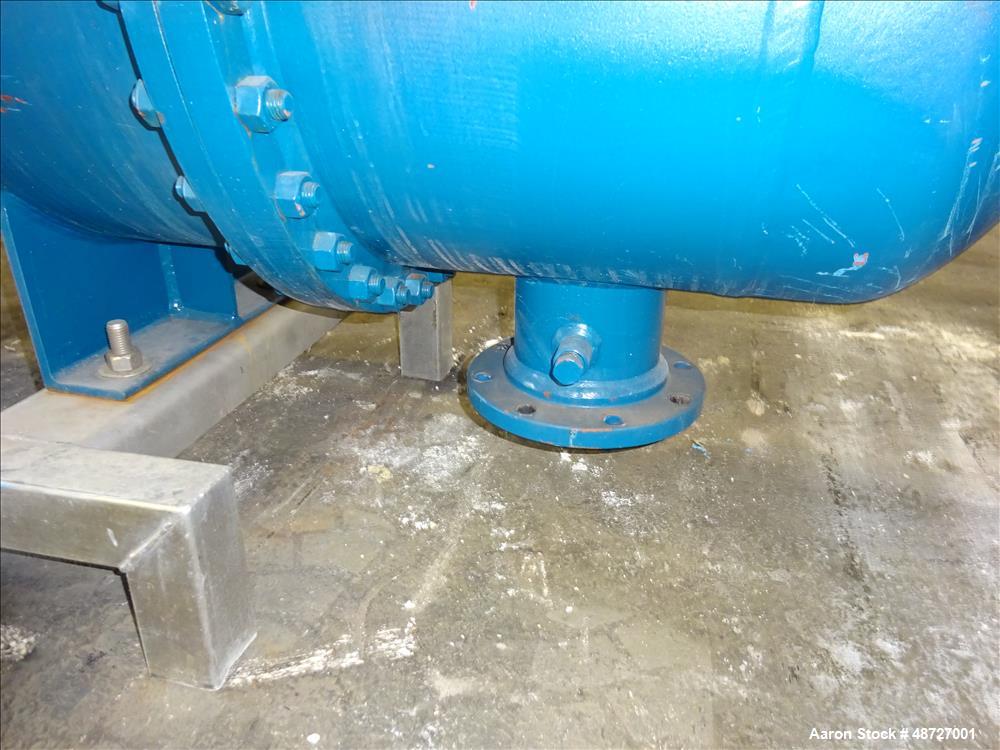

Used- Graham Shell & Tube Heat Exchanger. Approximately 1,250 Square Feet, Horizontal. Carbon steel shell rated 20 psi at 300 degrees F. (321) Brass 3/4" diameter x 20' long tubes rated 75 psi at 200 degrees F. Openings shell: 12", (2) 1-1/2", tube: (2) 6". 3 Pass design. Saddle mounted. National Board # 39567, Serial # 10-77424-T. Built 2010.

We offer a variety of finance programs including no payment for 90 days and a cash loan to any equipment financing. CIT is our trusted partner for your financing needs.

LEARN MORE APPLY NOW

SPECIFICATIONS

Manufacturer	Graham
Model	Condenser

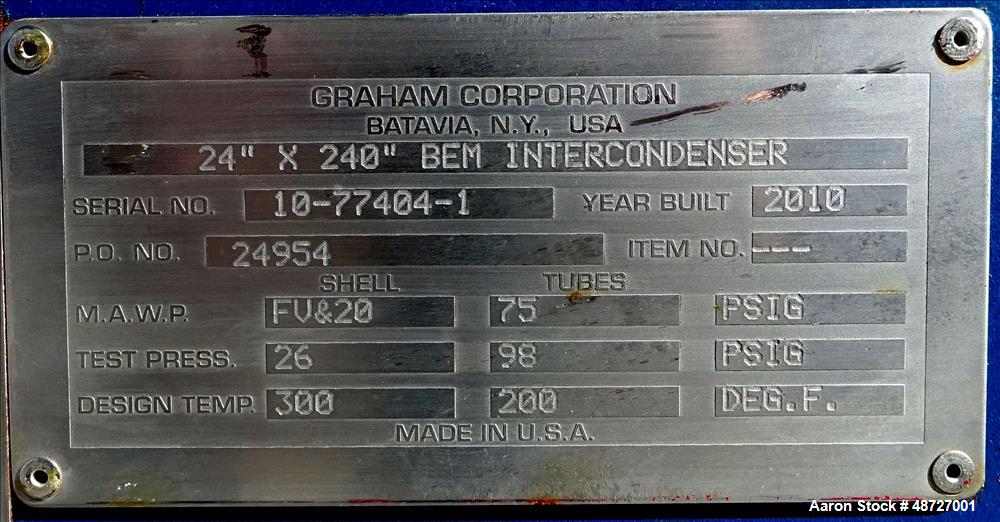

Serial #	10-77424-T
Category	Heat ExchangersHeat Exchangers
Subcategory	Shell & Tube - AlloyShell & Tube - Alloy
Number of Passes	3
Square Footage	1,250
Horizontal or Vertical	Horizontal
Shell Material	Carbon Steel
Shell Pressure	20
Shell Temperature	300 degrees F
Tube Pressure	75 psi
Tube Temperature	200 degrees F
Mounted	Saddle Mounted

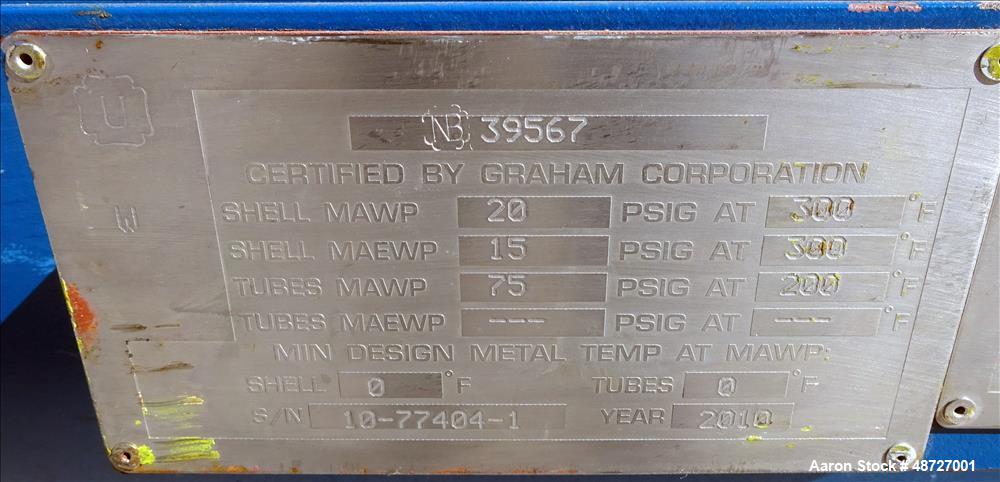

National Board No.	39567
Overal Dimensions	288"L x 40"W x 60"T
Year Built	2010
Tube Length	20'
