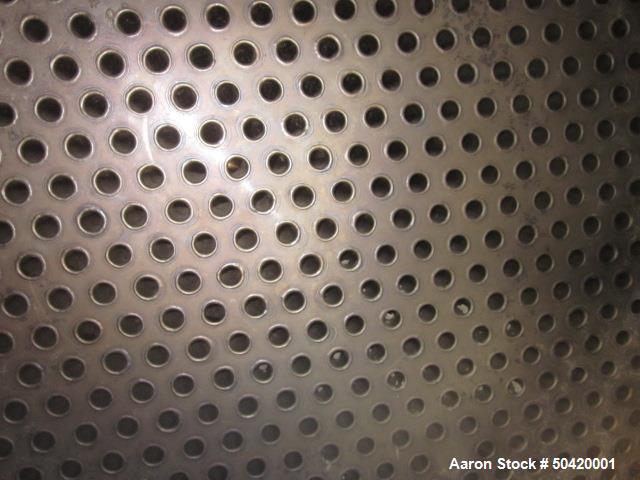

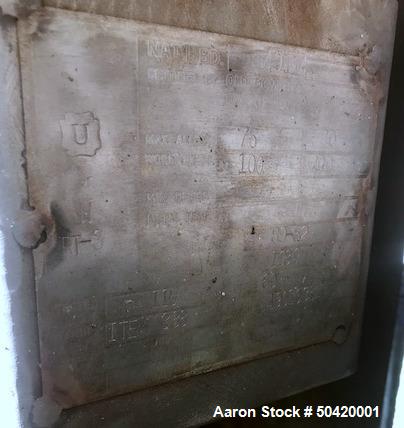

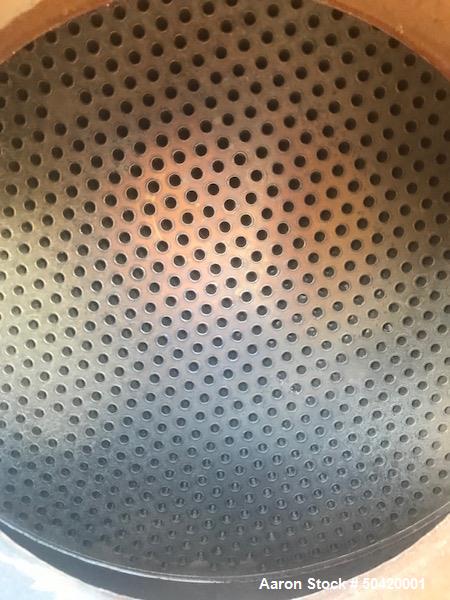

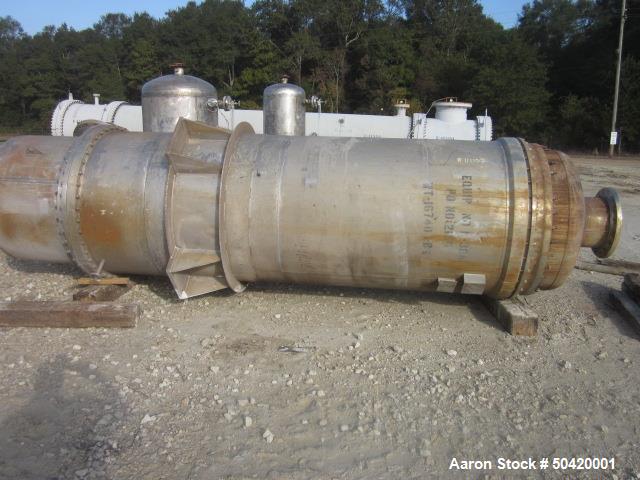

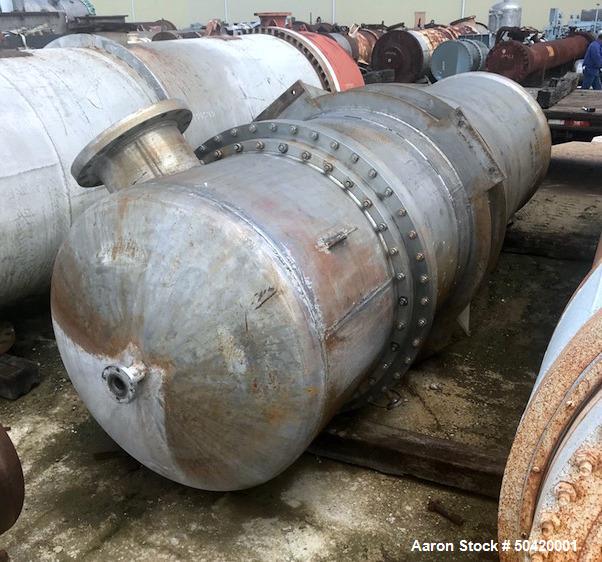

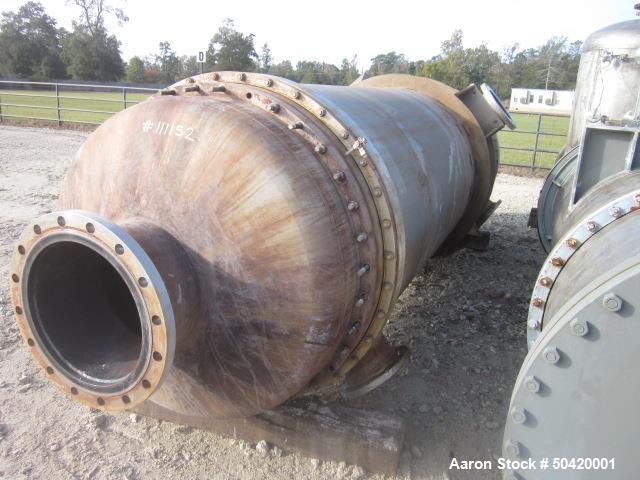

Used Ellett Industries Shell & Tube Heat Exchanger, 2890 Square Foot, Vertical. Single pass. (1125) Zirconium (SB-523) 3/4" diameter x 13' 2" long tubes rated 50 psi at 400 degrees F. 304 Stainless steel shell rated 75 psi at 100 degrees F. Side lug mounted. Buddle: National board # 659. Serial # 43624. Built 2006. Shell & heads: National board # 49114. Serial # 4901035. Built 1989.
Manufacturer | Ellet MfgEllet Mfg |
Category | Heat ExchangersHeat Exchangers |
Subcategory | Shell & Tube - AlloyShell & Tube - Alloy |
Number of Passes | Single |
Square Footage | 2890 |
Horizontal or Vertical | Vertical |
Shell Material | 304 Stainless Steel |
Shell Pressure | 75 psi |
Shell Temperature | 100 degrees F. |
Tube Pressure | 50 psi |
Tube Temperature | 400 degrees F. |
Mounted | Side Lug Mounted |
National Board No. | 659 |
Year Built | 1989 Shell/heads, 2006 tub bundle |
Tube Length | 13' 2" |
This Ellett Industries Vertical Shell & Tube Heat Exchanger is designed for high-efficiency heat transfer in demanding industrial applications. With a 2890 square foot heat transfer surface area, it features (1125) Zirconium (SB-523) tubes measuring ¾" diameter x 13' 2" long, making it highly resistant to corrosion and ideal for handling aggressive chemicals. The 304 stainless steel shell ensures durability and structural integrity.
The unit is a single-pass heat exchanger, rated for 50 psi at 400°F on the tube side and 75 psi at 100°F on the shell side. It is side-lug mounted for vertical installation, optimizing space efficiency.
Used Ellett Industries Shell & Tube Heat Exchanger, 2890 Square Foot, Vertical. Single pass. (1125) Zirconium (SB-523) 3/4" diameter x 13' 2" long tubes rated 50 psi at 400 degrees F. 304 Stainless steel shell rated 75 psi at 100 degrees F. Side lug mounted. Buddle: National board # 659. Serial # 43624. Built 2006. Shell & heads: National board # 49114. Serial # 4901035. Built 1989.
This Ellett Industries Vertical Shell & Tube Heat Exchanger is designed for high-efficiency heat transfer in demanding industrial applications. With a 2890 square foot heat transfer surface area, it features (1125) Zirconium (SB-523) tubes measuring ¾" diameter x 13' 2" long, making it highly resistant to corrosion and ideal for handling aggressive chemicals. The 304 stainless steel shell ensures durability and structural integrity.
The unit is a single-pass heat exchanger, rated for 50 psi at 400°F on the tube side and 75 psi at 100°F on the shell side. It is side-lug mounted for vertical installation, optimizing space efficiency.
Manufacturer | Ellet Mfg |
Category | Heat Exchangers |
Subcategory | Shell & Tube - Alloy |
Number of Passes | Single |
Square Footage | 2890 |
Horizontal or Vertical | Vertical |
Shell Material | 304 Stainless Steel |
Shell Pressure | 75 psi |
Shell Temperature | 100 degrees F. |
Tube Pressure | 50 psi |
Tube Temperature | 400 degrees F. |
Mounted | Side Lug Mounted |
National Board No. | 659 |
Year Built | 1989 Shell/heads, 2006 tub bundle |
Tube Length | 13' 2" |
