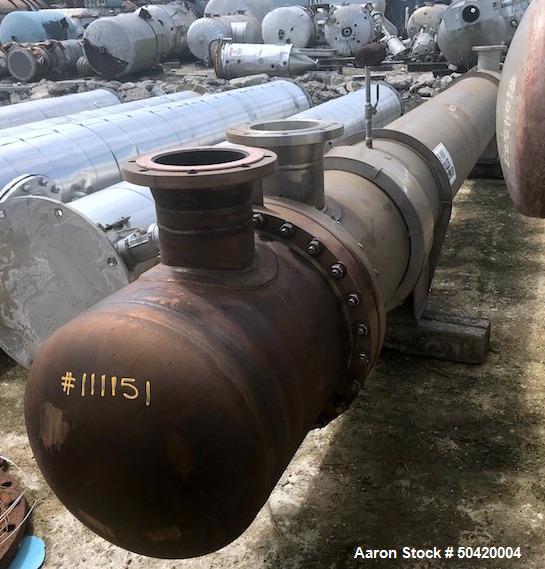

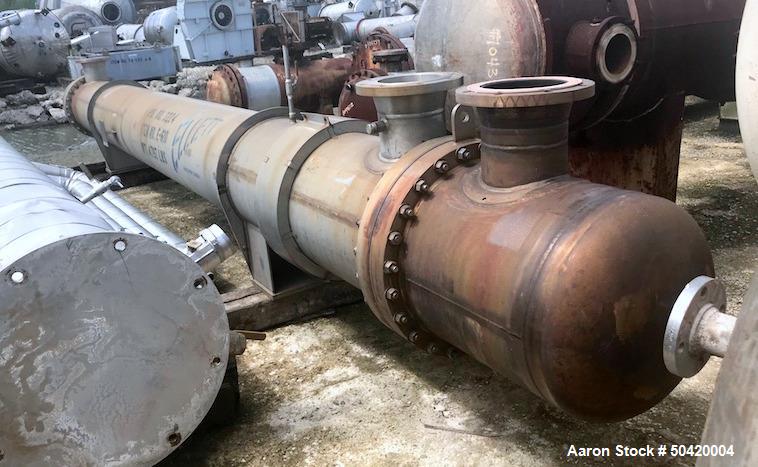

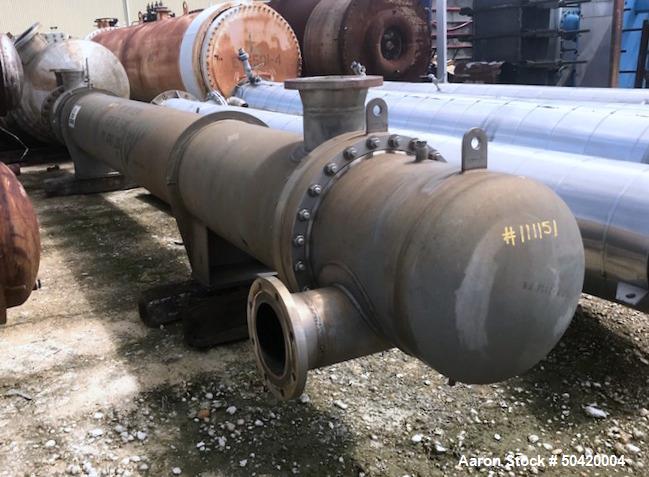

Ellett Industries Shell & Tube Heat Exchanger. Used.
Used Ellett Industries Shell & Tube Heat Exchanger, 930 Square Foot. Horizontal. Single pass. (237) Zirconium (SB-523) 3/4" diameter x 20' long tubes rated 165 psi / FV at -20 to 550 degrees F. 304L Stainless steel shell rated 75 psi at -20 to 200 degrees F. Openings shell: (2) 8", tubes: (2) 8". Saddle mounted. National Board # 719. Serial # 43890. Built 2008. Previous use Nitric Acid cooler condenser.
| Manufacturer | Ellet MfgEllet Mfg |
| Model | 22-8LP-W5 |
| Serial # | 43890 |
| Category | Heat ExchangersHeat Exchangers |
| Subcategory | Shell & Tube - AlloyShell & Tube - Alloy |
| Number of Passes | Single |
| Square Footage | 930 |
| Horizontal or Vertical | Horizontal |
| Shell Material | 304L Stainless Steel |
| Shell Pressure | 75 psi |
| Shell Temperature | -20 to 200 degrees F. |
| Number of Shell Openings | 2 |
| Size of Shell Openings | 8" |
| Tube Pressure | 165 psi/FV |
| Tube Temperature | -20 to 550 degrees F. |
| Number of Tube Openings | 2 |
| Size of Tube Openings | 8" |
| Mounted | Saddle Mounted |

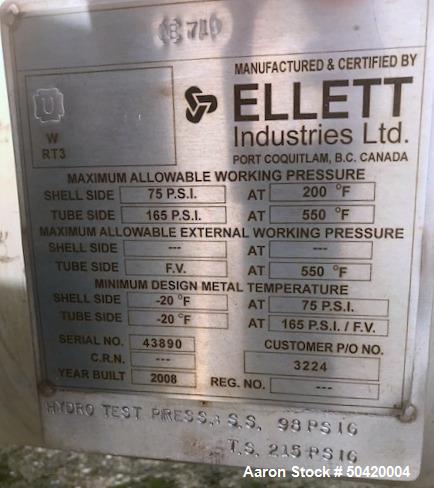

| National Board No. | 719 |
| Year Built | 2008 |
| Tube Length | 20' |
- Brand: Ellett Industries
- Condition: Used
- Year Built: 2008
- Serial Number: 43890
- National Board Number: 719
Description
This Ellett Industries Horizontal Shell & Tube Heat Exchanger is a single-pass unit designed for highly corrosive and high-temperature applications. It features 930 square feet of heat transfer surface area and (237) Zirconium (SB-523) tubes, each measuring ¾" diameter x 20' long, offering exceptional resistance to chemical attack. The 304L stainless steel shell ensures structural integrity while resisting moderate corrosion.
Designed to withstand extreme conditions, the tube side is rated for 165 psi / full vacuum (FV) at -20°F to 550°F, while the shell side is rated for 75 psi at -20°F to 200°F. This unit was previously used as a Nitric Acid cooler condenser, making it ideal for chemical and industrial processes requiring high corrosion resistance.
Specifications
- Heat Transfer Surface Area: 930 ft²
- Design: Horizontal, single-pass
- Tube Bundle:
- Material: Zirconium (SB-523)
- Quantity: 237 tubes
- Dimensions: ¾" diameter x 20' long
- Pressure Rating: 165 psi / Full Vacuum (FV)
- Temperature Rating: -20°F to 550°F
- Shell:
- Material: 304L Stainless Steel
- Pressure Rating: 75 psi
- Temperature Rating: -20°F to 200°F
- Connections:
- Shell Openings: (2) 8"
- Tube Openings: (2) 8"
- Mounting: Saddle mounted
- Previous Use: Nitric Acid cooler condenser
Applications
- Chemical Processing & Acid Cooling – Heat exchange for aggressive chemicals like nitric acid
- Petrochemical Industry – High-temperature and pressure-resistant processing
- Aerospace & Specialty Metals – Zirconium-compatible heat exchange
- Pharmaceutical Industry – Corrosion-resistant fluid heating and cooling
- Power Generation & High-Temperature Processes – Efficient thermal management
Compatible Products
- Corrosive chemical cooling and heating systems
- High-temperature and high-pressure industrial units
- Nitric acid and specialty chemical processing lines
- Heat exchangers for extreme temperature applications
- Ellett heat exchanger, shell & tube heat exchanger, industrial heat exchanger
- Used Ellett horizontal heat exchanger, Zirconium tube heat exchanger, nitric acid cooler condenser
- Ellett Industries horizontal shell & tube heat exchanger 930 ft², used Zirconium SB-523 heat exchanger for chemical processing, stainless steel shell heat exchanger for high-temperature applications
"Dealing with Aaron is an easy and enjoyable process"
"Aaron Equipment is always my first call for used process equipment. Their inventory and customer service has ensured successful project results every time. Thanks y’all!"
"I have purchased all different types of equipment from Aaron Equipment over the last 10 years and have always been 100% happy with not only the equipment but with their customer service!"
"Working with Aaron Equipment Company was as easy as it gets."
"It is a pleasure to work with AEK and I would recommend them as an equipment supplier."
"The partnership we enjoy with Aaron has helped our business to be what it is today – thank you guys!”
"I will definitely use Aaron Equipment in the future."
"Aaron’s customer service indicates that they want long term partnerships and that is something we especially appreciate."
"I really value shopping for used equipment from Aaron Equipment Company because the information they present is accurate, their prices fair and their customer service is the best…Highly recommend."
"This is my first time using Aaron Equipment to purchase equipment. They were easy to work with and things were done quickly and efficiently. I will be a repeat customer when the need arises. This is a trustworthy company that delivers what they advertise."
"I have purchased multiple pieces of equipment through Aaron equipment over the past 15 years. The staff has been very knowledgeable on every request & have spent countless hours ensuring that the equipment I was purchasing met my expectations."
"I have been doing business with Aaron equipment for many years. This year I had the need for some used equipment in a new business Venture. I got in touch with Ryan Davies. I could not be happier with the response and honesty exhibited by him. Dealing with them was a pleasure and everything was as represented. Fair an Honest is how I would describe them."
“Aaron Equipment was very easy to get into contact with and get a price on a un-used chiller they were selling. The process was seamless and very easy on our end and we had the equipment much faster than going out for bid on it to multiple vendors and we able to come in under budget on the project.”
"Aaron Equipment is always my first call for used process equipment. Their inventory and customer service has ensured successful project results every time. Thanks y’all!"
"I have purchased all different types of equipment from Aaron Equipment over the last 10 years and have always been 100% happy with not only the equipment but with their customer service!"
"Working with Aaron Equipment Company was as easy as it gets."
"It is a pleasure to work with AEK and I would recommend them as an equipment supplier."
"The partnership we enjoy with Aaron has helped our business to be what it is today – thank you guys!”
"I will definitely use Aaron Equipment in the future."
"Aaron’s customer service indicates that they want long term partnerships and that is something we especially appreciate."
"I really value shopping for used equipment from Aaron Equipment Company because the information they present is accurate, their prices fair and their customer service is the best…Highly recommend."
Used Ellett Industries Shell & Tube Heat Exchanger, 930 Square Foot. Horizontal. Single pass. (237) Zirconium (SB-523) 3/4" diameter x 20' long tubes rated 165 psi / FV at -20 to 550 degrees F. 304L Stainless steel shell rated 75 psi at -20 to 200 degrees F. Openings shell: (2) 8", tubes: (2) 8". Saddle mounted. National Board # 719. Serial # 43890. Built 2008. Previous use Nitric Acid cooler condenser.
- Brand: Ellett Industries
- Condition: Used
- Year Built: 2008
- Serial Number: 43890
- National Board Number: 719
Description
This Ellett Industries Horizontal Shell & Tube Heat Exchanger is a single-pass unit designed for highly corrosive and high-temperature applications. It features 930 square feet of heat transfer surface area and (237) Zirconium (SB-523) tubes, each measuring ¾" diameter x 20' long, offering exceptional resistance to chemical attack. The 304L stainless steel shell ensures structural integrity while resisting moderate corrosion.
Designed to withstand extreme conditions, the tube side is rated for 165 psi / full vacuum (FV) at -20°F to 550°F, while the shell side is rated for 75 psi at -20°F to 200°F. This unit was previously used as a Nitric Acid cooler condenser, making it ideal for chemical and industrial processes requiring high corrosion resistance.
Specifications
- Heat Transfer Surface Area: 930 ft²
- Design: Horizontal, single-pass
- Tube Bundle:
- Material: Zirconium (SB-523)
- Quantity: 237 tubes
- Dimensions: ¾" diameter x 20' long
- Pressure Rating: 165 psi / Full Vacuum (FV)
- Temperature Rating: -20°F to 550°F
- Shell:
- Material: 304L Stainless Steel
- Pressure Rating: 75 psi
- Temperature Rating: -20°F to 200°F
- Connections:
- Shell Openings: (2) 8"
- Tube Openings: (2) 8"
- Mounting: Saddle mounted
- Previous Use: Nitric Acid cooler condenser
Applications
- Chemical Processing & Acid Cooling – Heat exchange for aggressive chemicals like nitric acid
- Petrochemical Industry – High-temperature and pressure-resistant processing
- Aerospace & Specialty Metals – Zirconium-compatible heat exchange
- Pharmaceutical Industry – Corrosion-resistant fluid heating and cooling
- Power Generation & High-Temperature Processes – Efficient thermal management
Compatible Products
- Corrosive chemical cooling and heating systems
- High-temperature and high-pressure industrial units
- Nitric acid and specialty chemical processing lines
- Heat exchangers for extreme temperature applications
| Manufacturer | Ellet Mfg |
| Model | 22-8LP-W5 |
| Serial # | 43890 |
| Category | Heat Exchangers |
| Subcategory | Shell & Tube - Alloy |
| Number of Passes | Single |
| Square Footage | 930 |
| Horizontal or Vertical | Horizontal |
| Shell Material | 304L Stainless Steel |
| Shell Pressure | 75 psi |
| Shell Temperature | -20 to 200 degrees F. |
| Number of Shell Openings | 2 |
| Size of Shell Openings | 8" |
| Tube Pressure | 165 psi/FV |
| Tube Temperature | -20 to 550 degrees F. |
| Number of Tube Openings | 2 |
| Size of Tube Openings | 8" |
| Mounted | Saddle Mounted |
| National Board No. | 719 |
| Year Built | 2008 |
| Tube Length | 20' |
- Ellett heat exchanger, shell & tube heat exchanger, industrial heat exchanger
- Used Ellett horizontal heat exchanger, Zirconium tube heat exchanger, nitric acid cooler condenser
- Ellett Industries horizontal shell & tube heat exchanger 930 ft², used Zirconium SB-523 heat exchanger for chemical processing, stainless steel shell heat exchanger for high-temperature applications
