Used Cust-O-Fab U Tube Shell & Tube Heat Exchanger. Approximate 3150 Square Feet. Carbon steel shell rated 1715 psi at 25 to 610 Degrees F. (295) 1" diameter x 20' long SA-213-T11 Chromium-molybdenum steel tubes rated 2184 psi at 30 to 750 degrees F. 1-1/4" tube pitch. Two pass. Openings shell: (3) 8", tubes: 14", 12". Saddle mounted. Serial# 97-202. National Board# 4666. All openings are pipe stubs.
Manufacturer | Cust-O-FabCust-O-Fab |
Model | 35-240 |
Serial # | 97-202 |
Category | Heat ExchangersHeat Exchangers |
Subcategory | Shell & Tube - AlloyShell & Tube - Alloy |
Number of Passes | Double |
Square Footage | 3150 |
Horizontal or Vertical | Horizontal |
Shell Material | Carbon Steel |
Shell Pressure | 1715 psi |
Shell Temperature | 610 degrees F. |
Number of Shell Openings | 3 |
Size of Shell Openings | 7" |
Tube Pressure | 2184 psi |
Tube Temperature | 750 degrees F. |
Number of Tube Openings | 295 |
Size of Tube Openings | 1" |

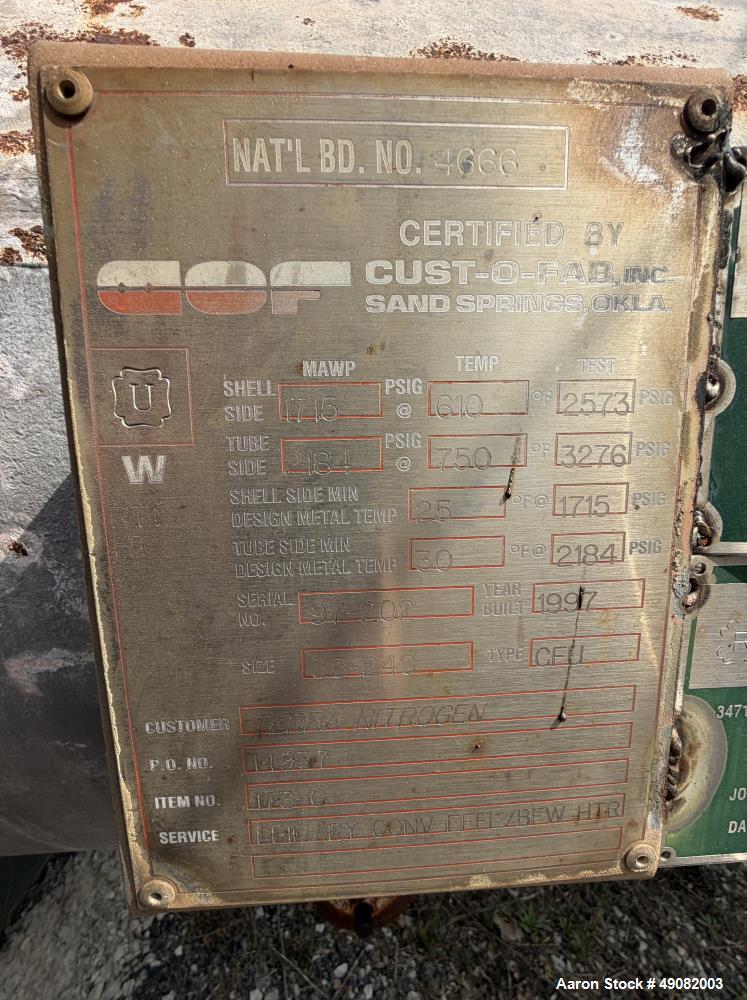

National Board No. | 4666 |
Year Built | 1997 |
Tube Length | 20' |
This Cust-O-Fab U-Tube Shell & Tube Heat Exchanger is designed for high-pressure and high-temperature applications. It features 3150 square feet of heat transfer surface area and a carbon steel shell rated for 1715 psi at 25°F to 610°F, making it ideal for industrial heat transfer processes.
The unit contains (295) SA-213-T11 Chromium-Molybdenum steel tubes, each measuring 1" diameter x 20' long, rated for 2184 psi at 30°F to 750°F. With a 1-1/4" tube pitch and a two-pass design, this exchanger ensures efficient thermal exchange. All openings are pipe stubs for easy integration into existing systems.
