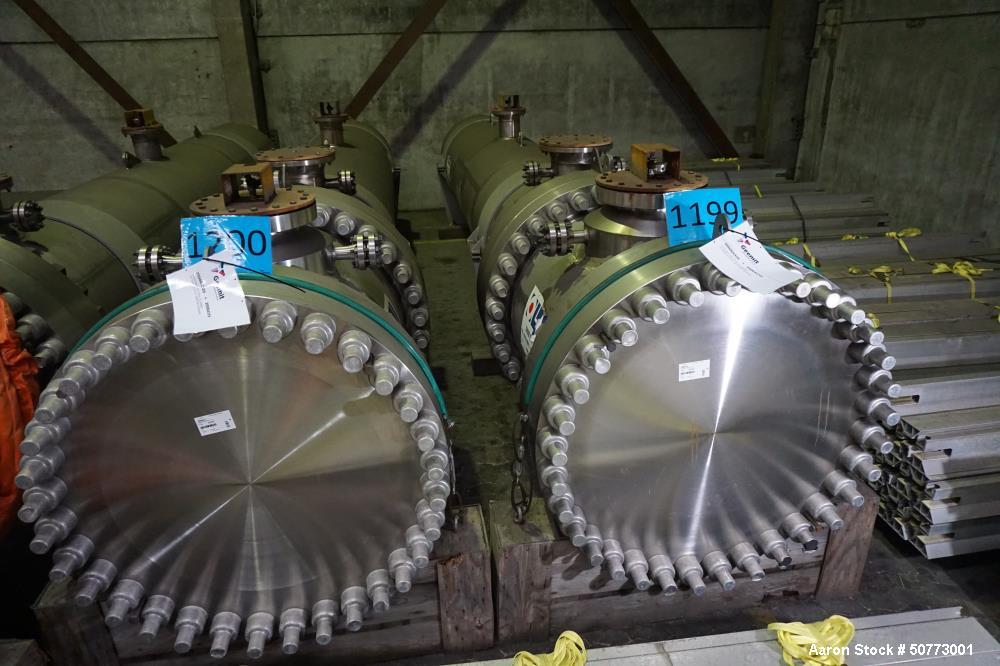

Unused- OLMI S.p.A Shell & Tube Heat Exchanger (Cooler)

Unused- OLMI S.p.A Shell & Tube Heat Exchanger (Cooler), Type Section VIII DIV.I ED 2007/TEMA Class R-RED. Approximate 3161.68 Square Feet (293.73 Square meter). 224 pieces of 0.47" (12 mm) diameter. U-Shape internal tubes. Material of construction is titanium (F12) on product contact parts and Duplex steel on shell. 43.6" (1118 mm) diameter x 216.45" (5550 mm) straight side. Total capacity shell 978.8 gallon (3700 liter), Total capacity tubes 873 gallon (3300 liter). Design pressure shell 155.1 psi (10.34 Bar), Design pressure tubes 1464 PSI (97.6 bar). Test pressure shell 222 psi (14.8 bar), Test pressure tubes 2094 (139.6). Operating pressure shell 57 psi (3.8 bar), Operating pressure tubes 838.5 psi (55.9 bar) at 179.9 degree F (82.2 degree C.). Shell barrel welded with joint permanent to one head and main flange includes relevant nozzles. Mounted on saddles. Overall dimensions: 362" (11137 mm) long x 49" (1500 mm) width x 65" (2000 mm) high. Weight 12.1 tons. Mfg. 2009
