Stock No.: 51996010

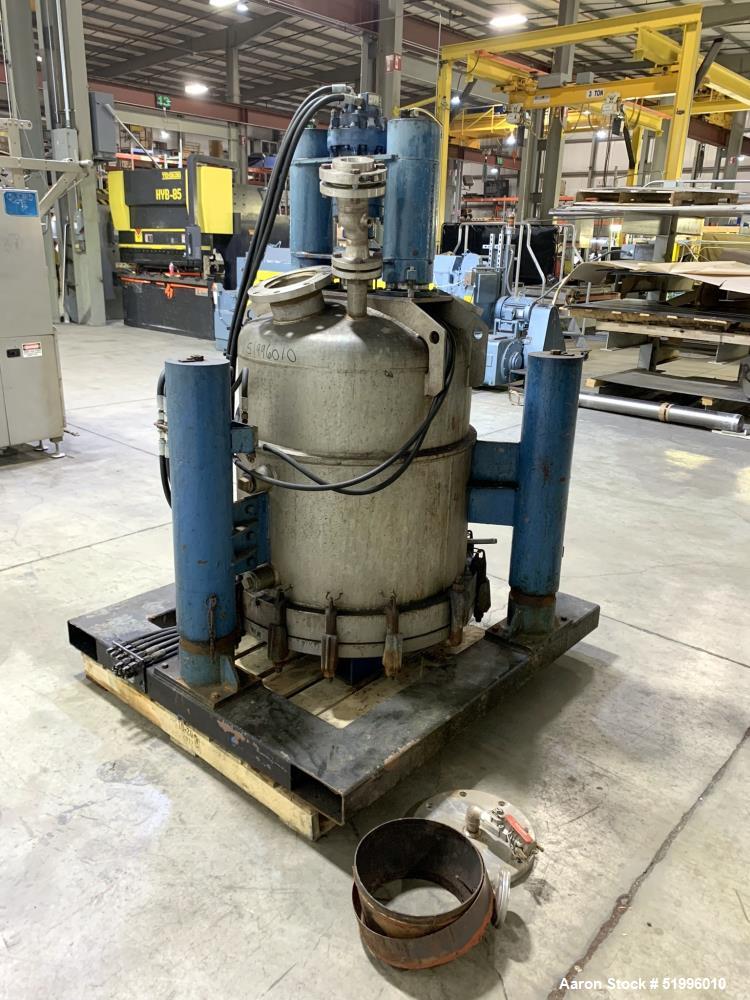

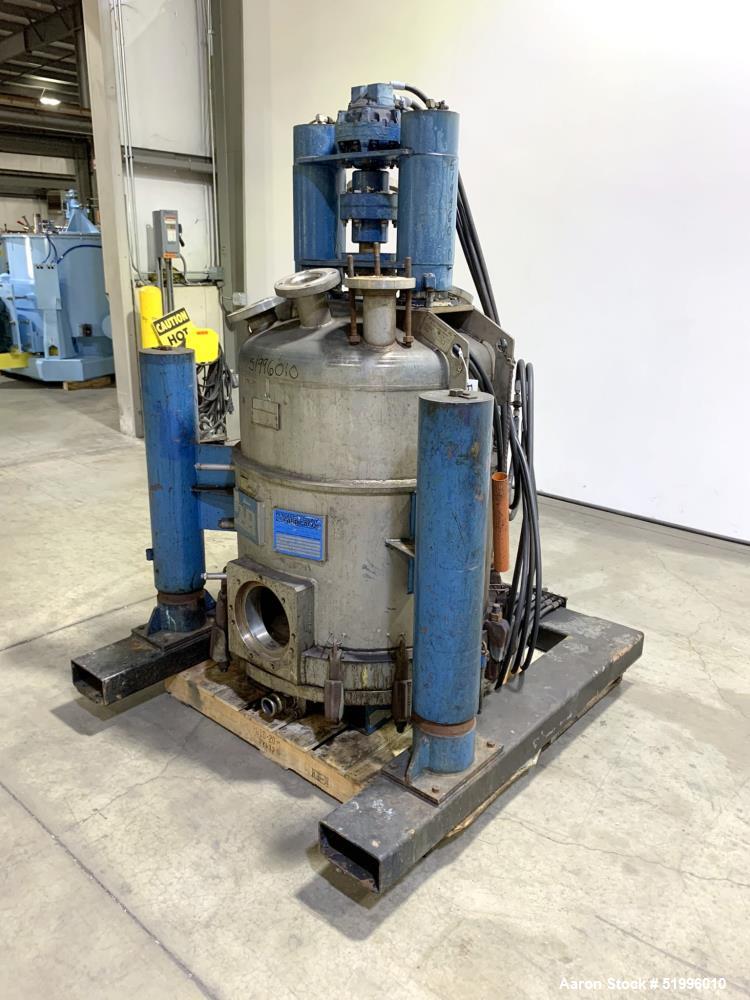

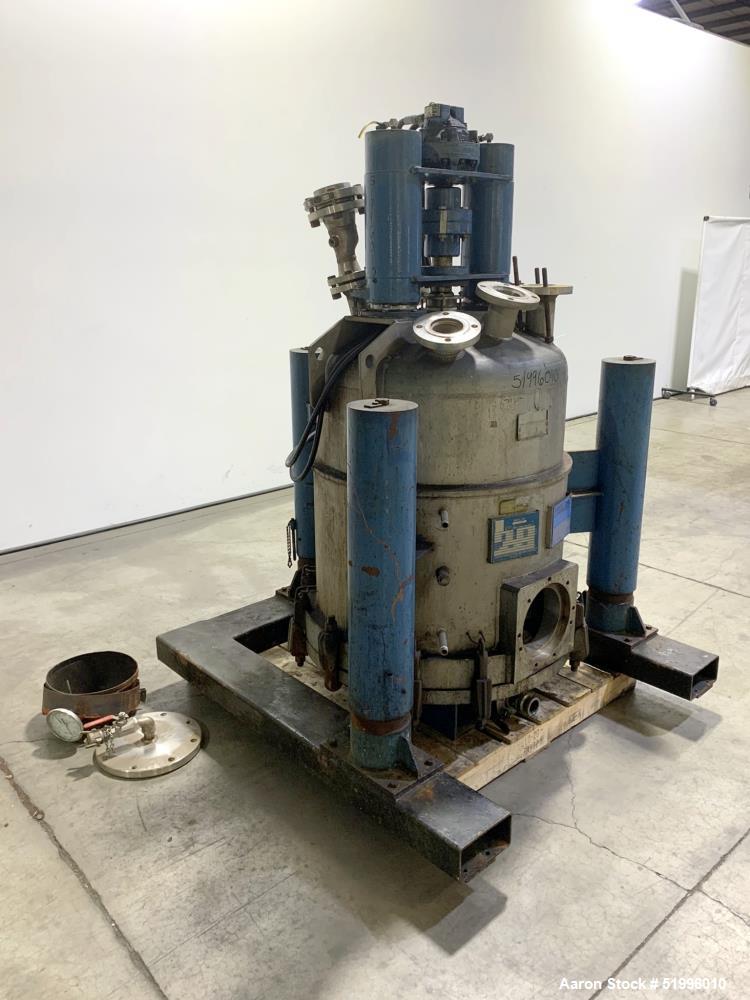

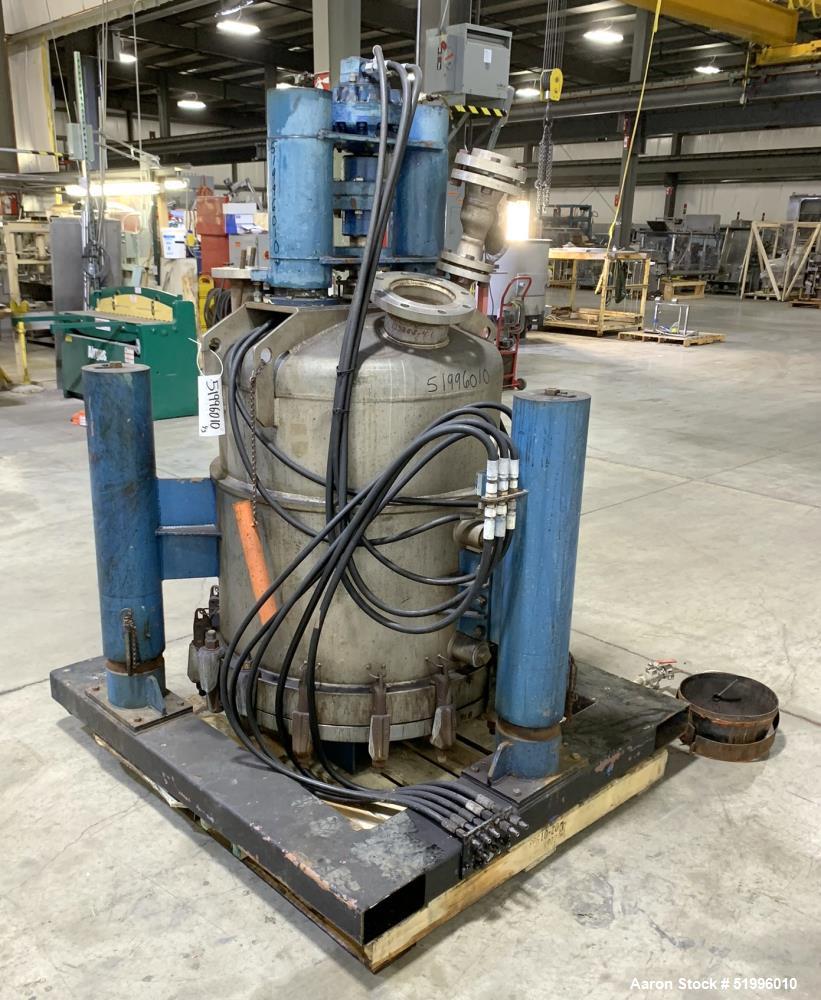

De Dietrich / Rosenmund Nutsche Filter Dryer

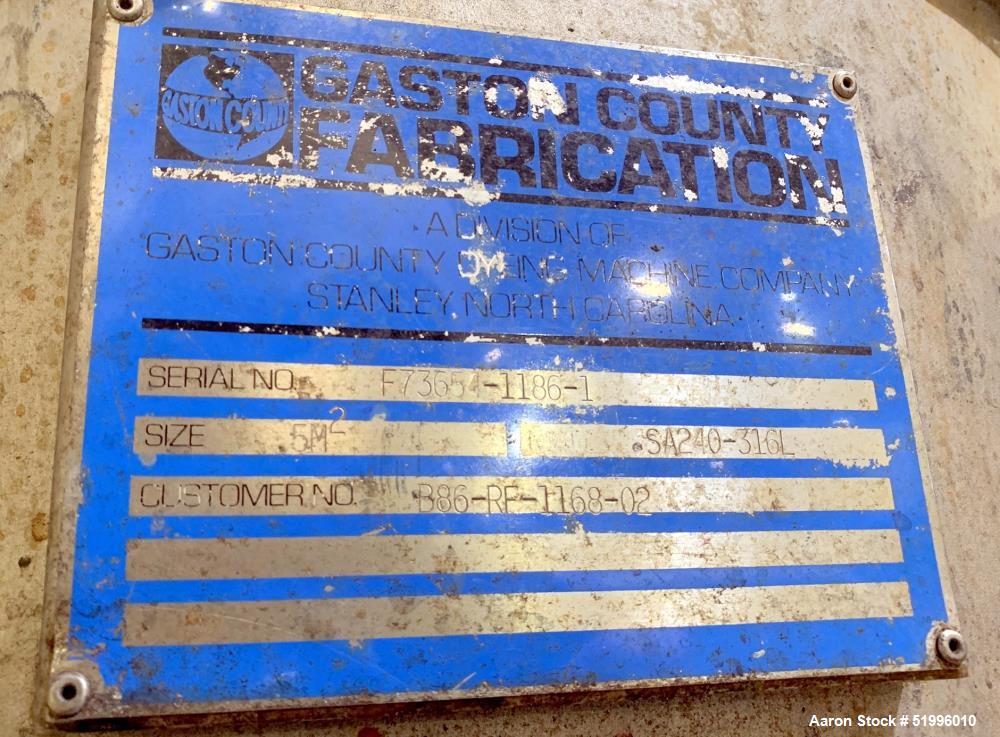

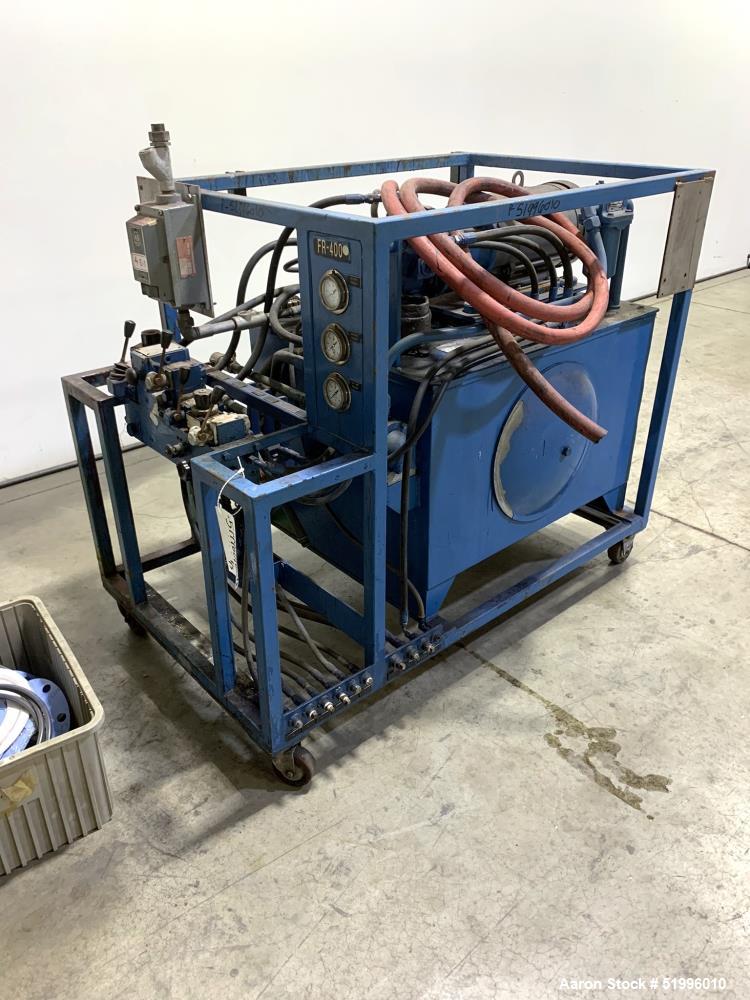

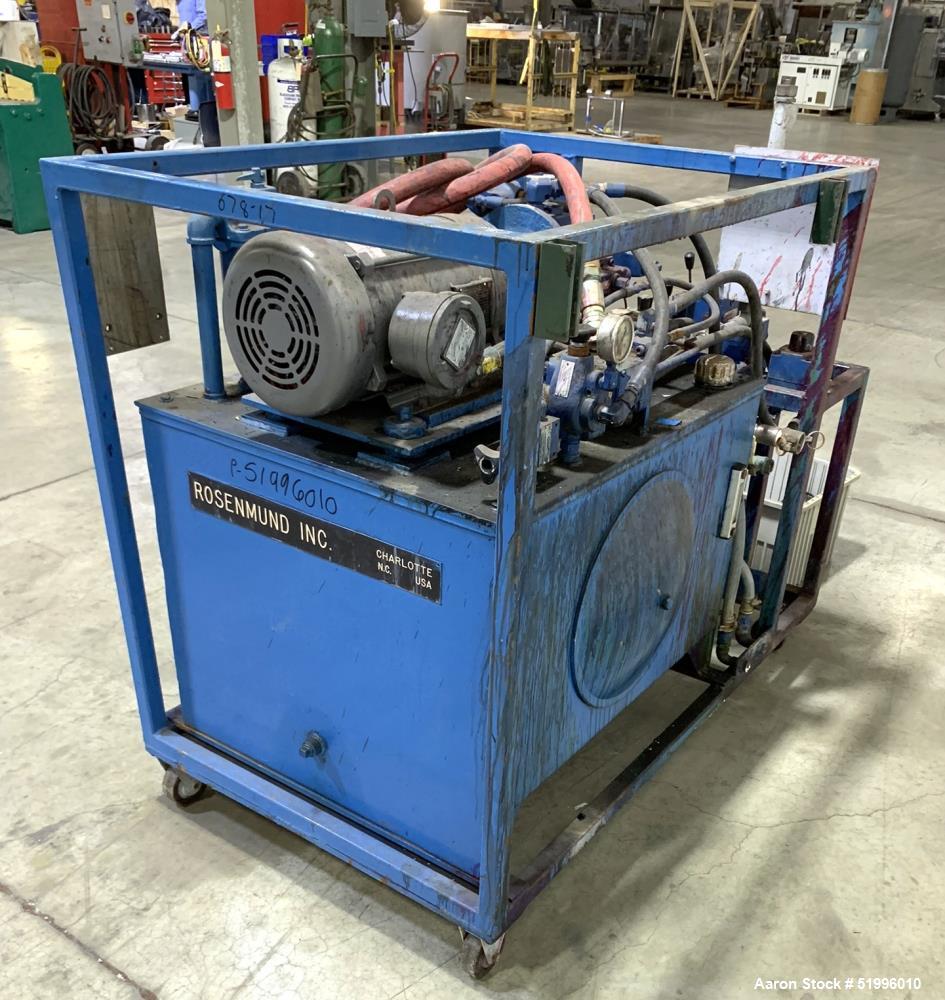

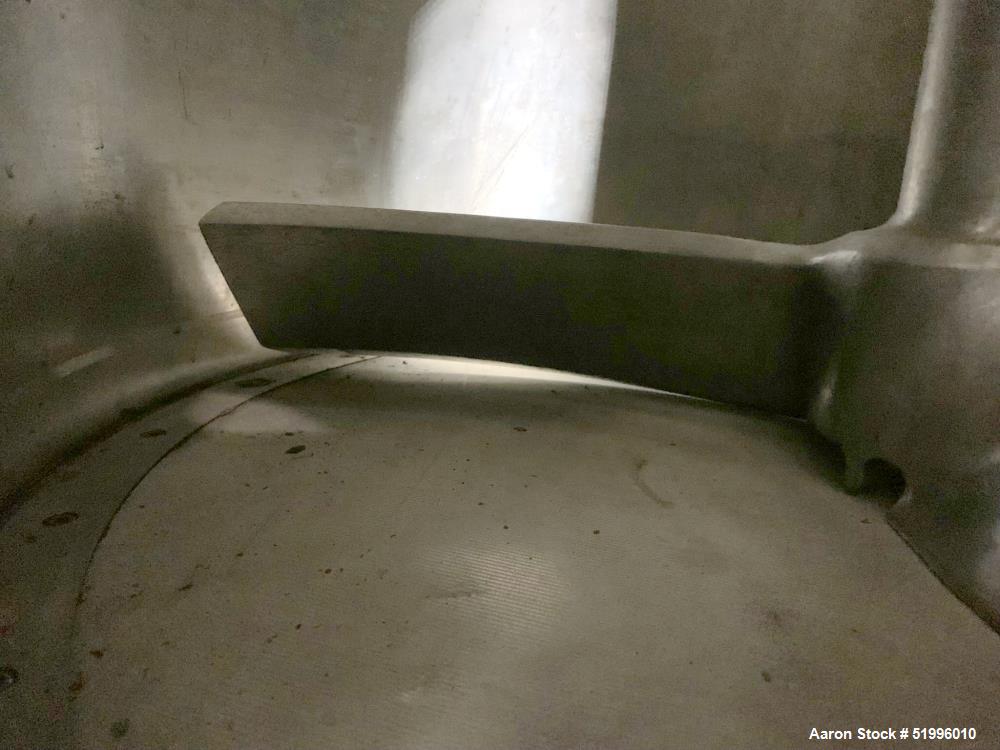

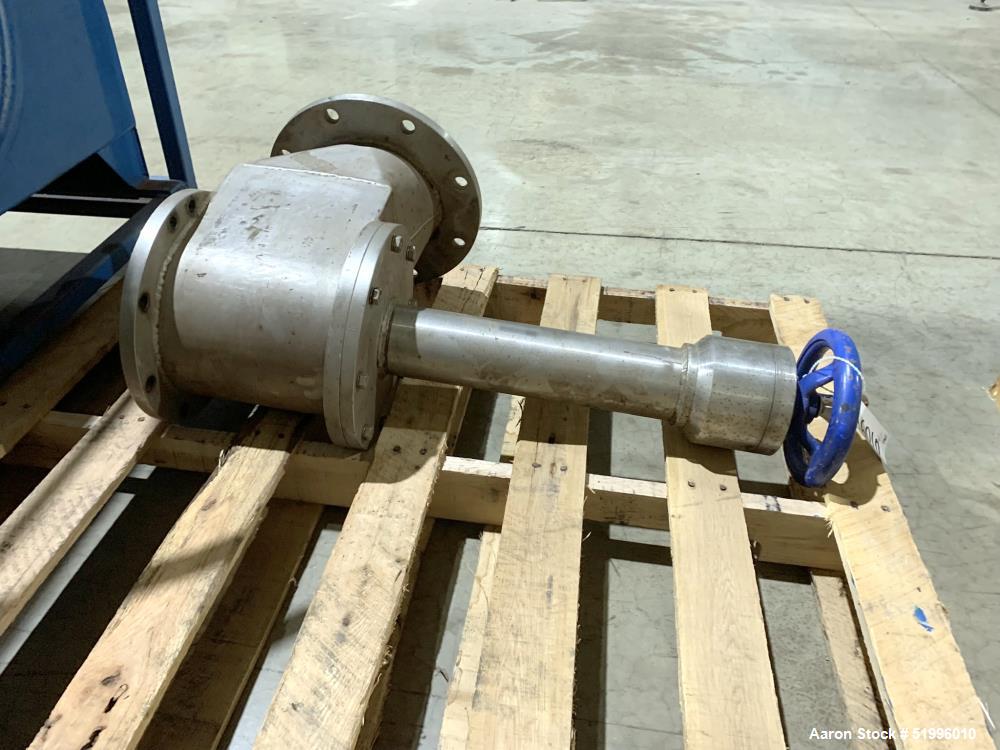

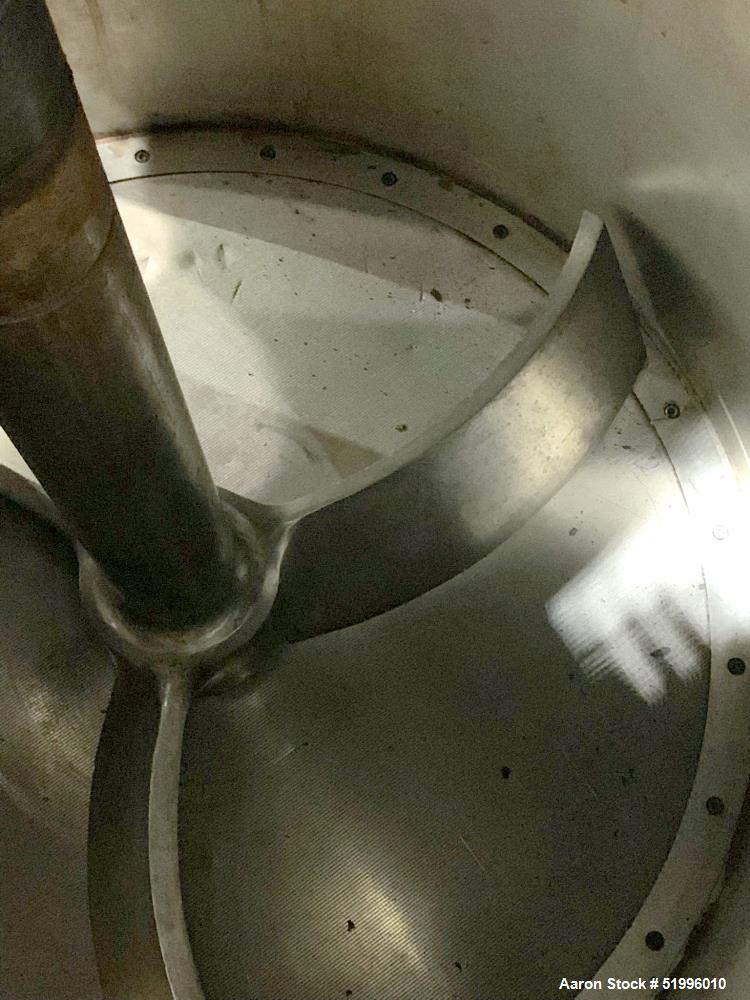

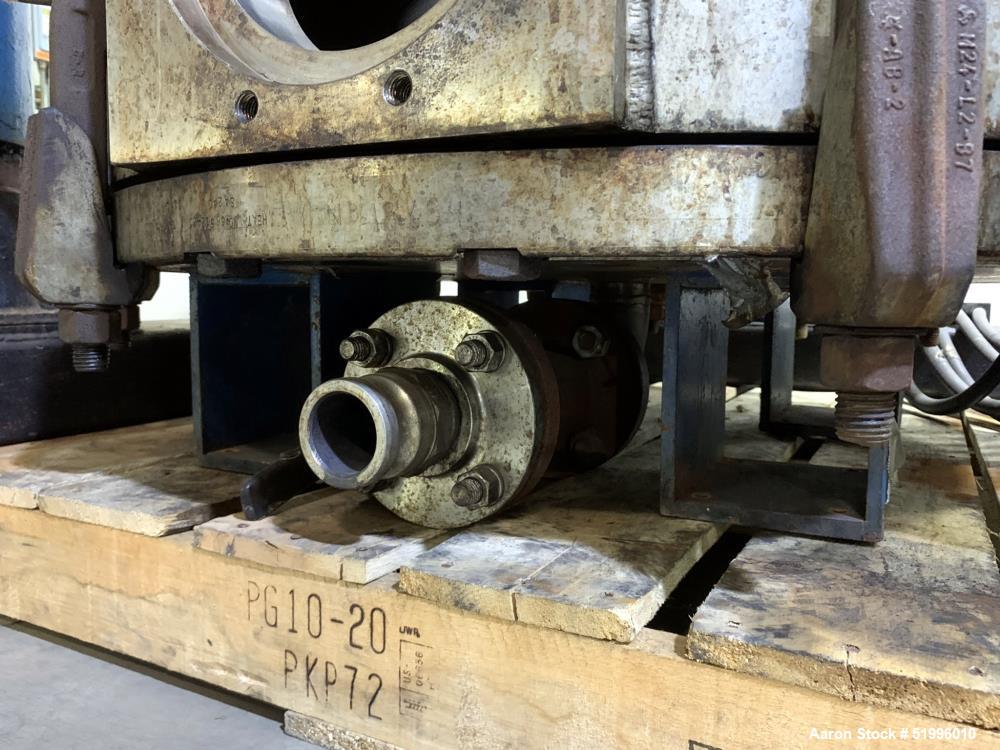

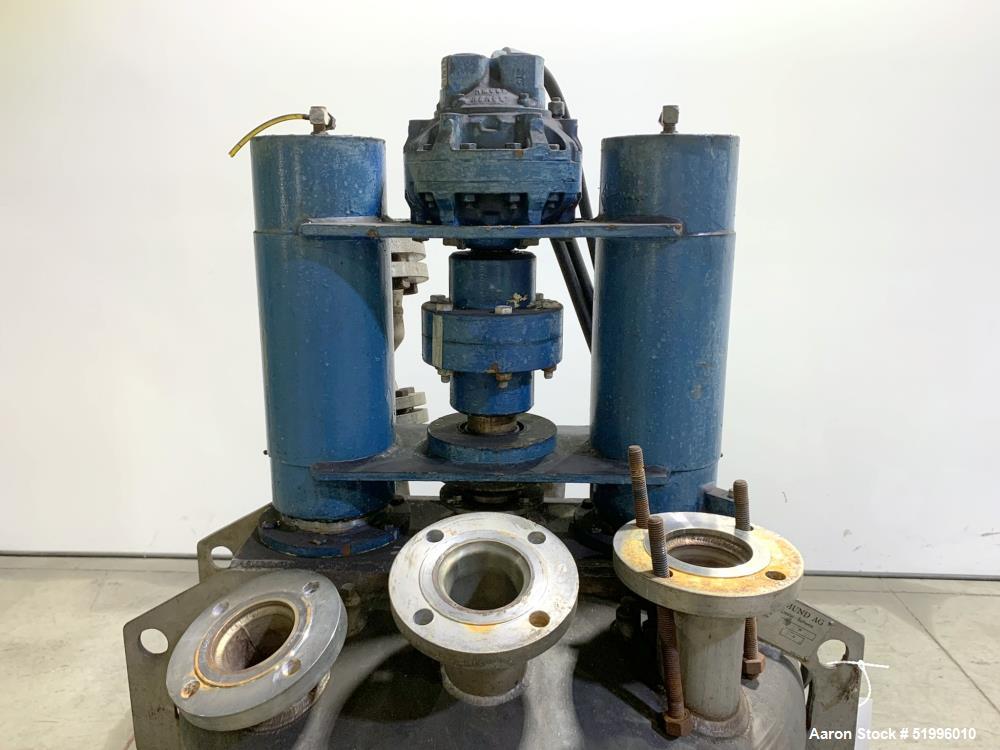

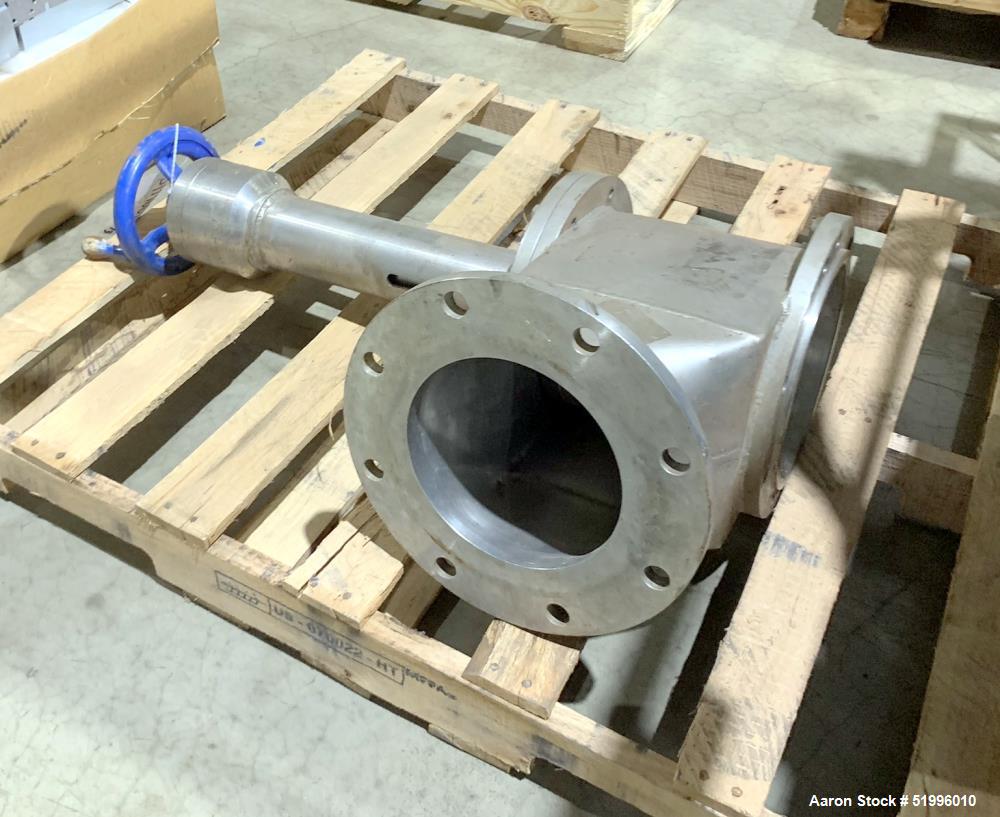

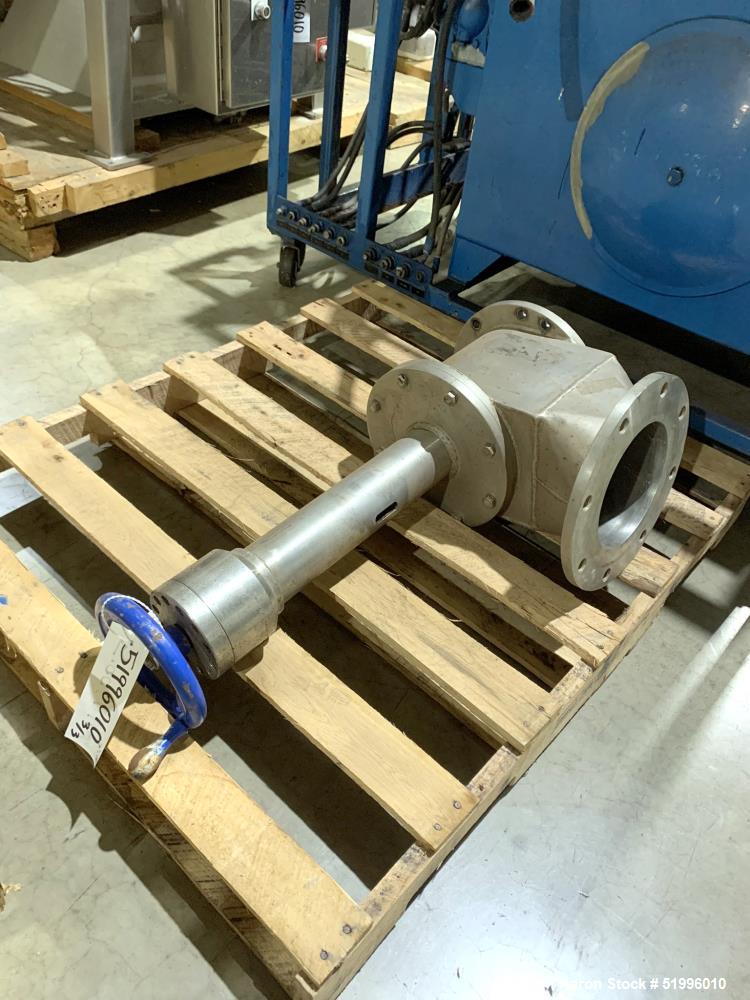

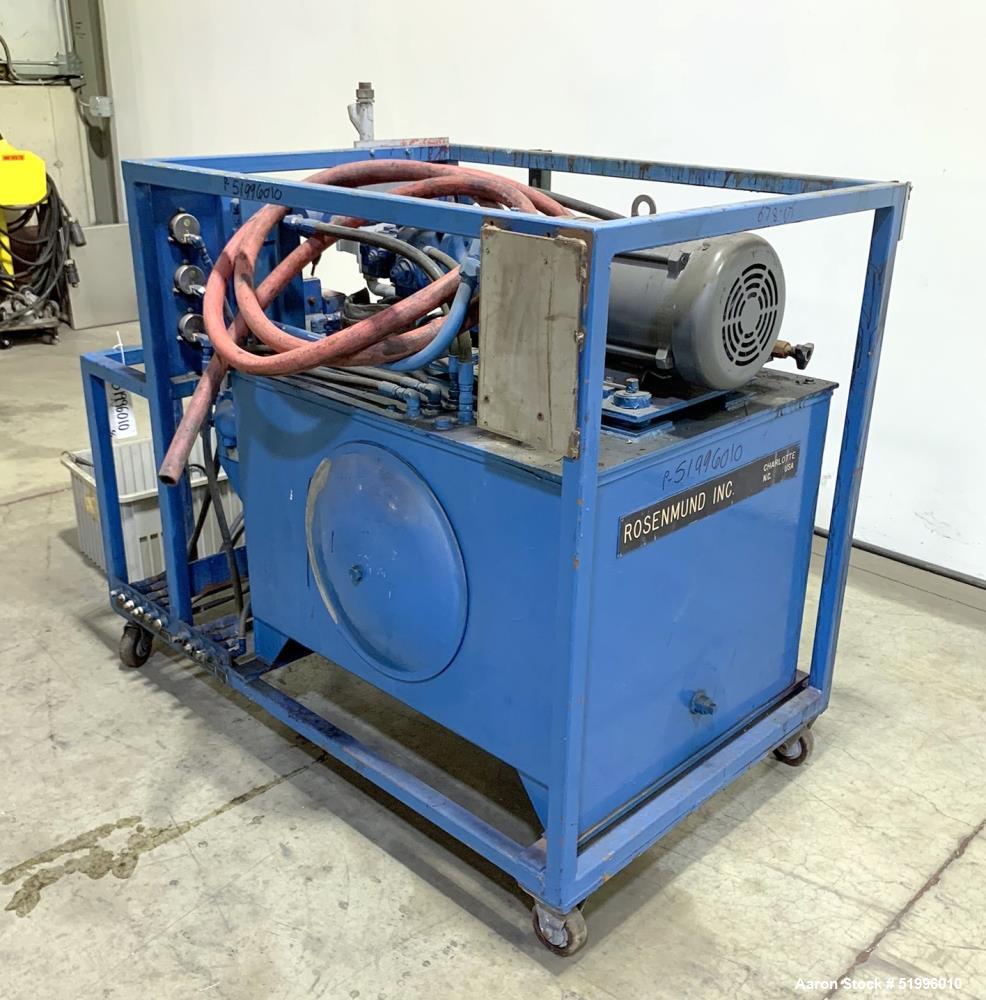

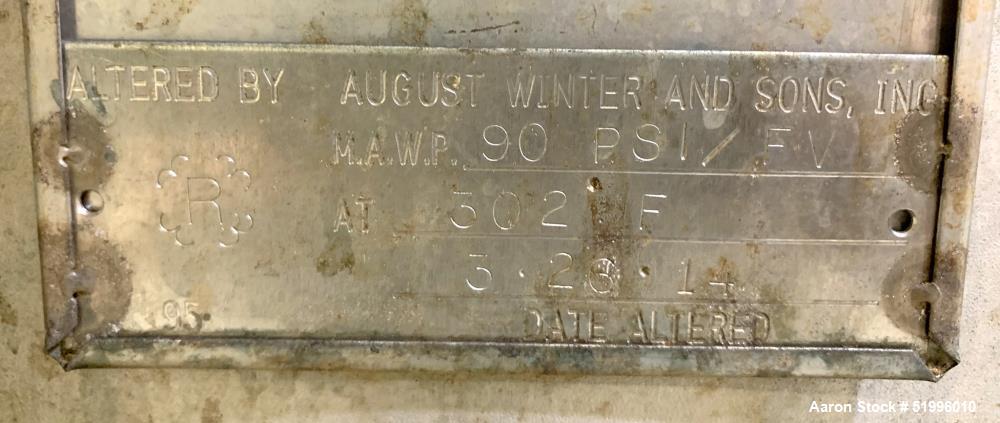

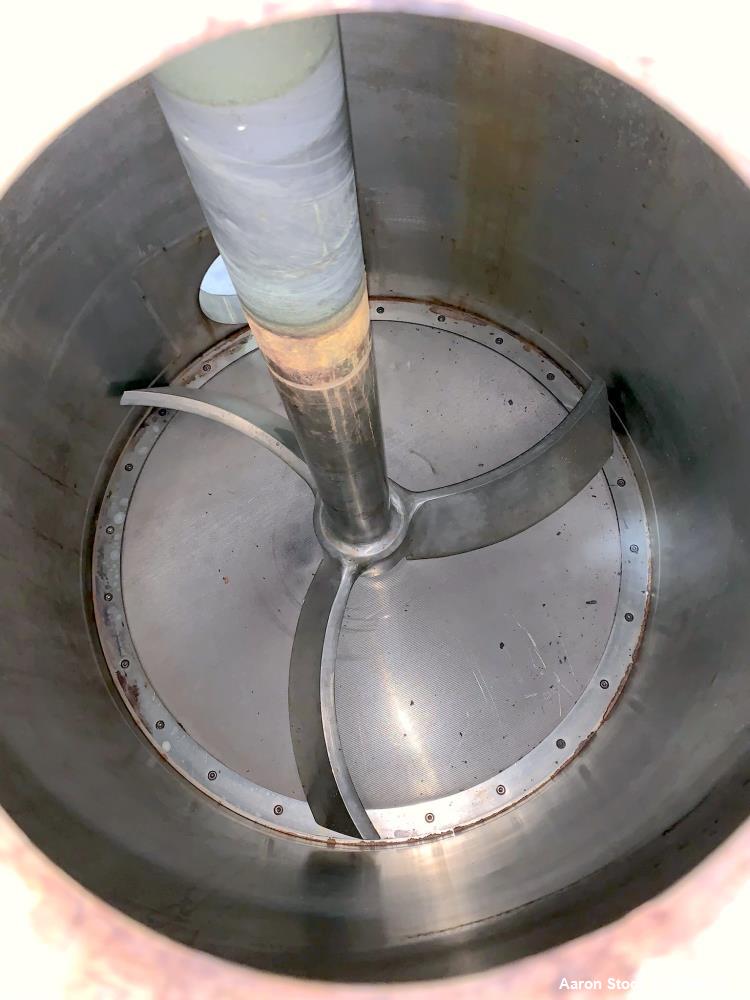

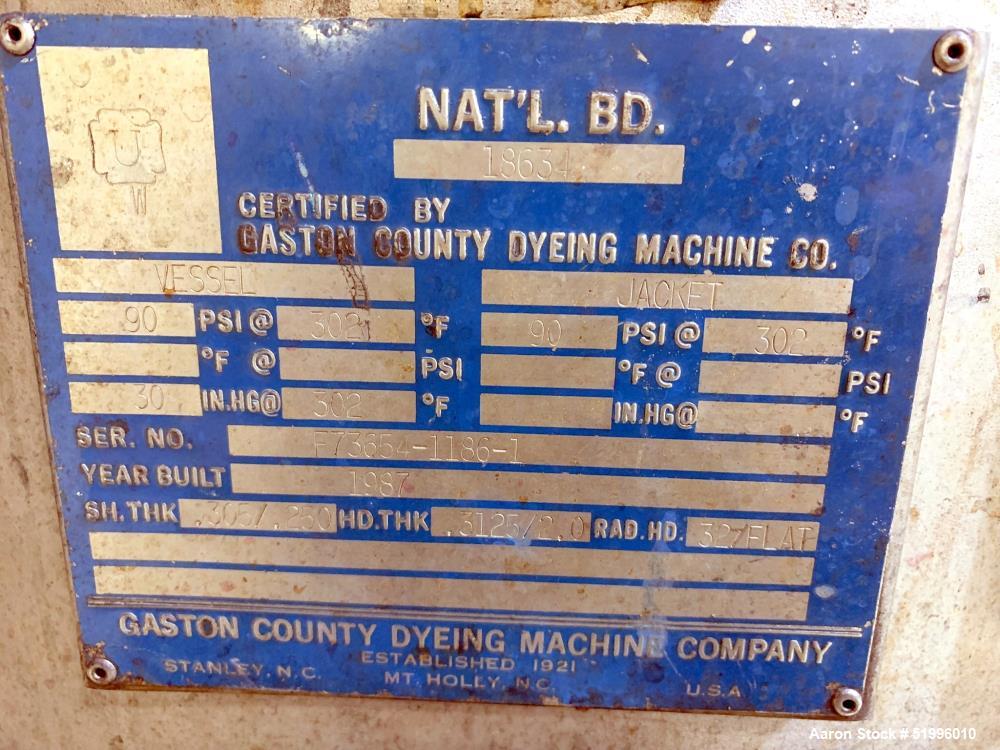

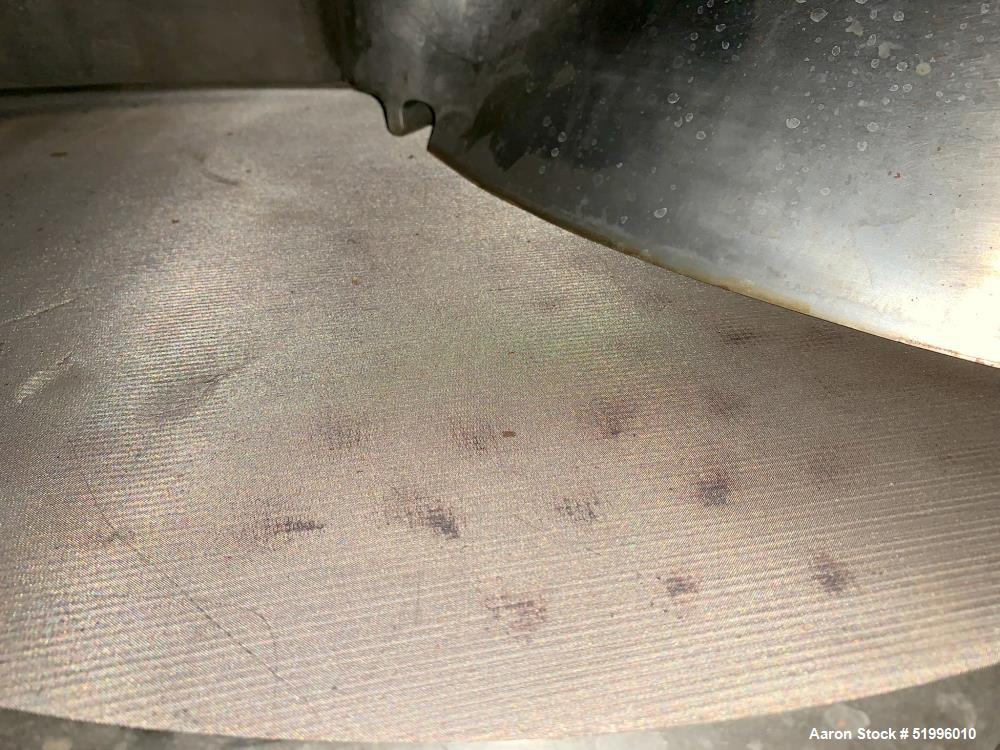

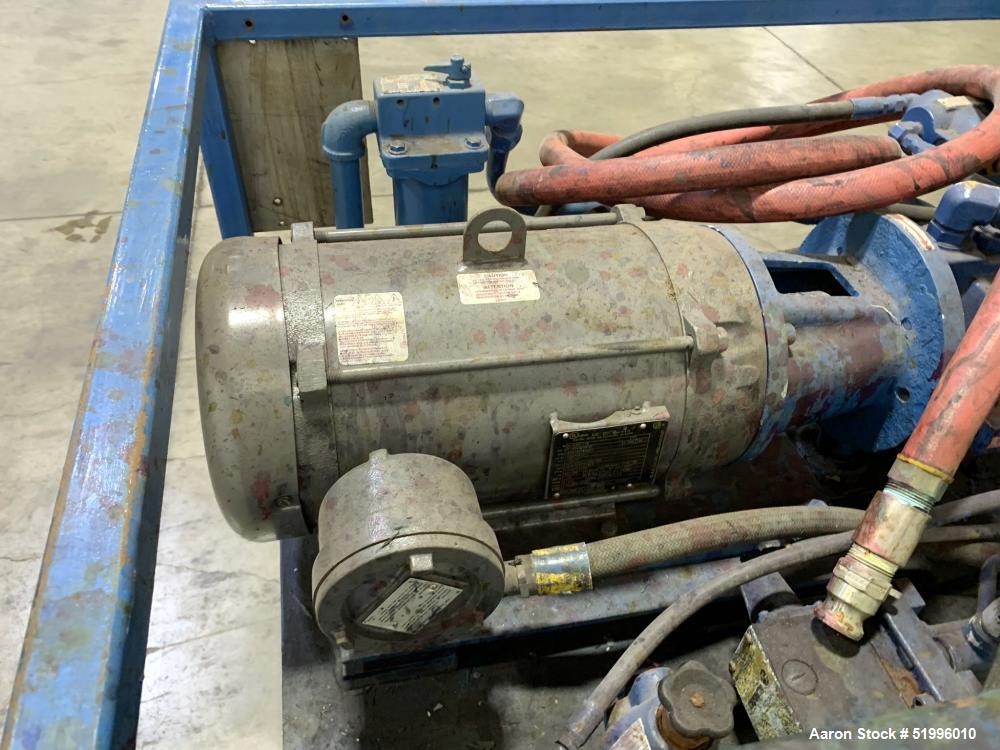

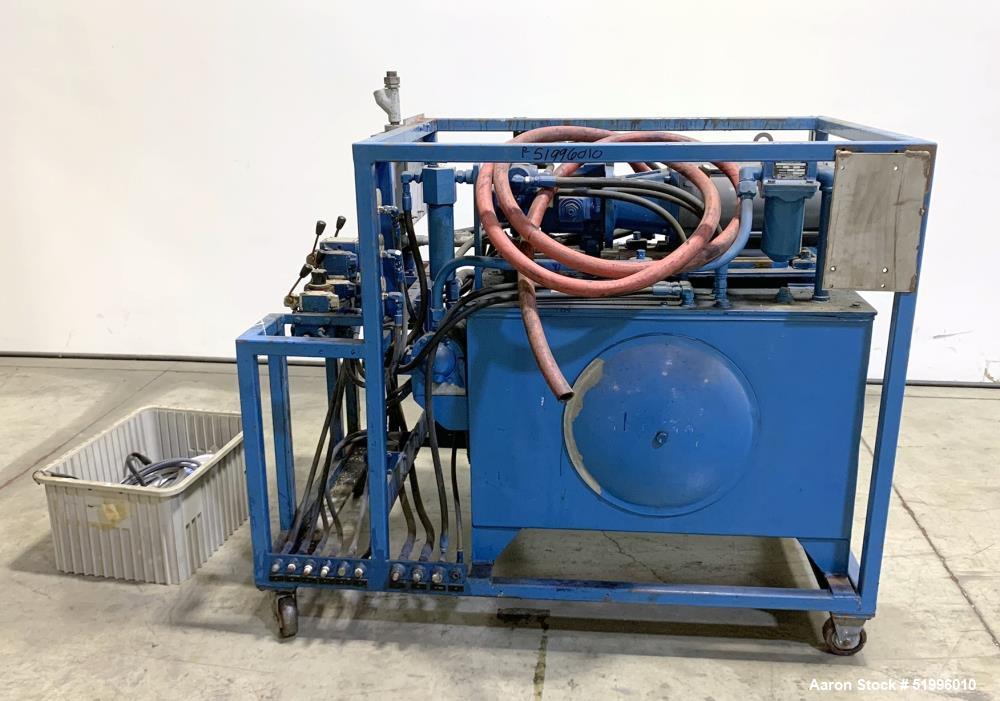

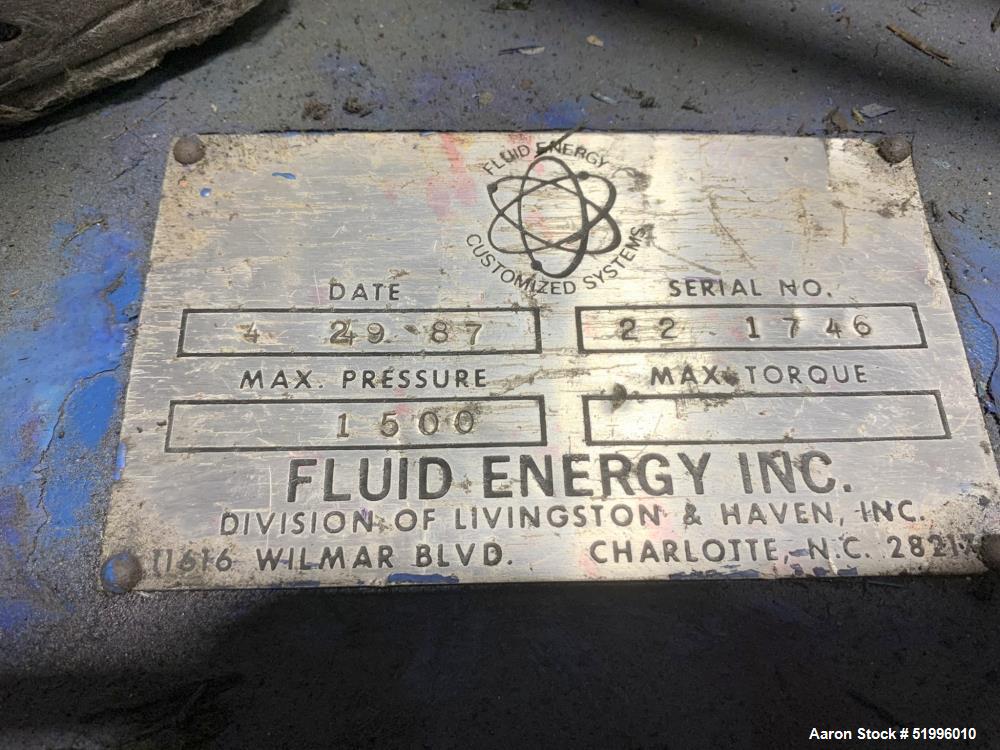

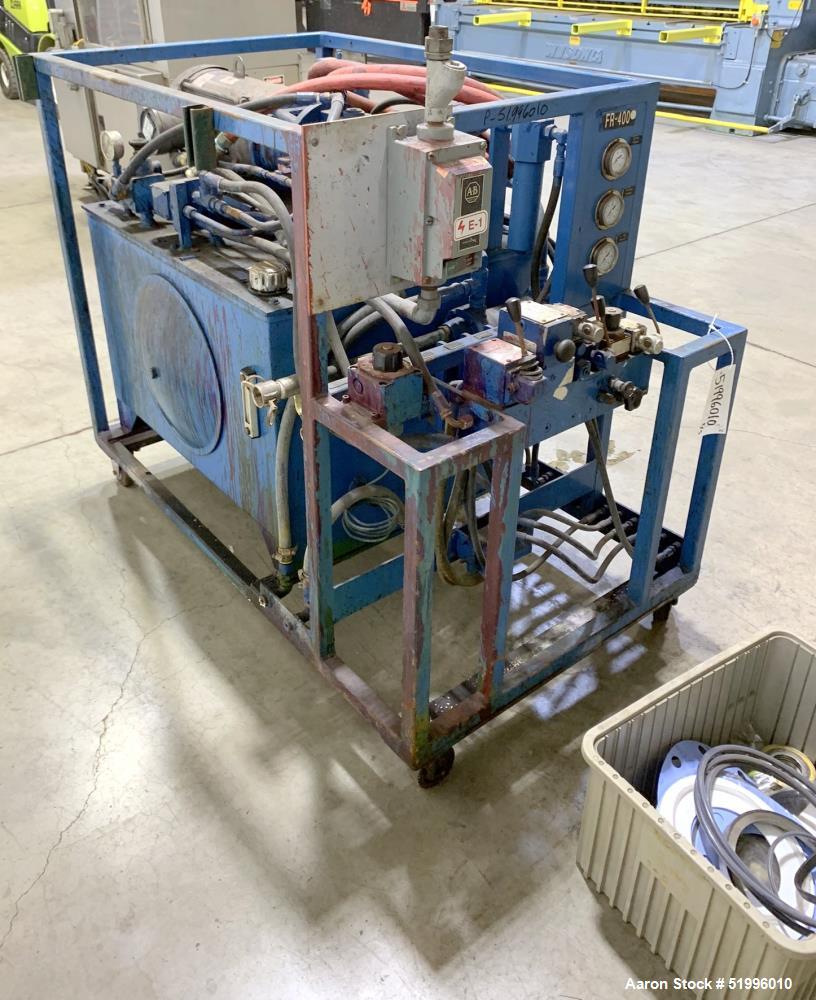

Used- Rosenmund Agitated Nutsche Filter Dryer, 0.5M2 (.50 square meter). 316L Stainless steel product contact surfaces. Approximate 32" diameter x 32" straight side vessel. Vessel rated 90psi at 302 degrees F, 30"HG. Jacket rated 90 psi at 302 degrees F. Approximate 30" diameter bottom screen. Top entering agitator, 3" shaft with 3-wing "s" agitator blade, hydraulically driven. Includes Fluid energy 7.5hp power pack. Openings top: 6", (3) 3", 2-1/2", 4" for drive, 8" side bottom outlet, 2" center bottom outlet. Certified by Gaston County Dyeing Machine Co. National Board# 18634, Serial# F73654-1186-1.
-
ManufacturerRosenmund
-
ModelRLF
-

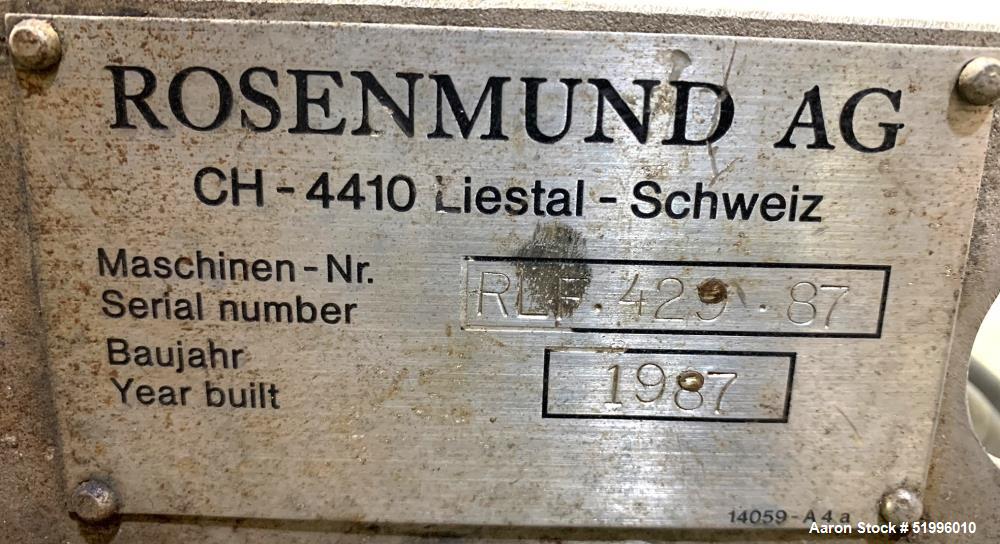

Serial #429.87
-
CategoryFilters
-
SubcategoryNutsche Filter
-
Chamber Diameter32"
-
Chamber Length32"
-
Material Of Construction316L Stainless Steel
-
Maximum Rated Capacity.5 square meters
-
MountedFrame Mounted
-
Opening SizeTop: 6", (3) 3", 2-1/2", 4" for drive, 8" side bottom outlet, 2" center bottom outlet
-
Overall Dimensions60" x 54" x 80"T
-
Pressure Jacket90 F/V
-
Rated Pressure90 F/V
-
Rated Temperature302 F
-
Temperature Jacket302 F
-
Year Built1987
