Used-Rosenmund Guedu Nutsche Filter/Dryer, Model GRF-750 D, Hastelloy C22 (2.4602), polished inside, filter surface 0.75 M2,...
Stock# 10147096

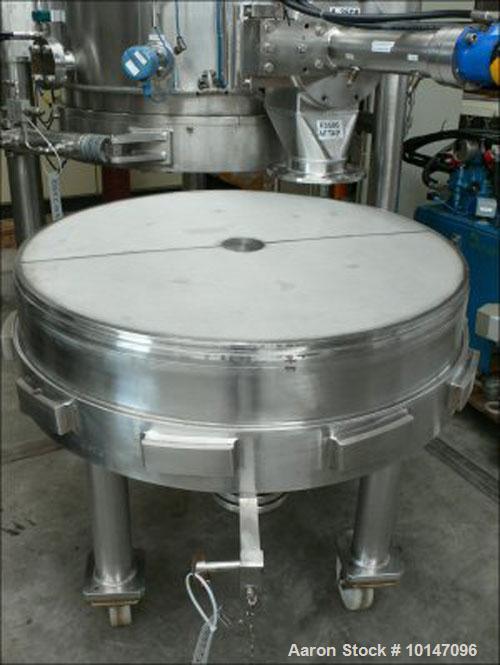

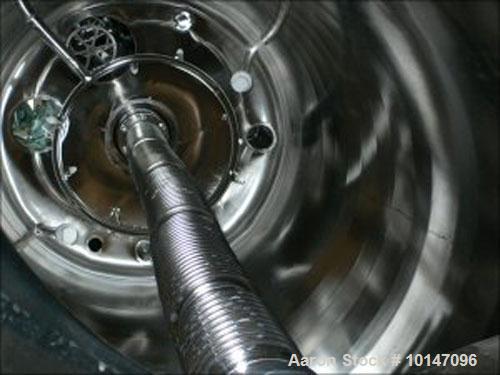

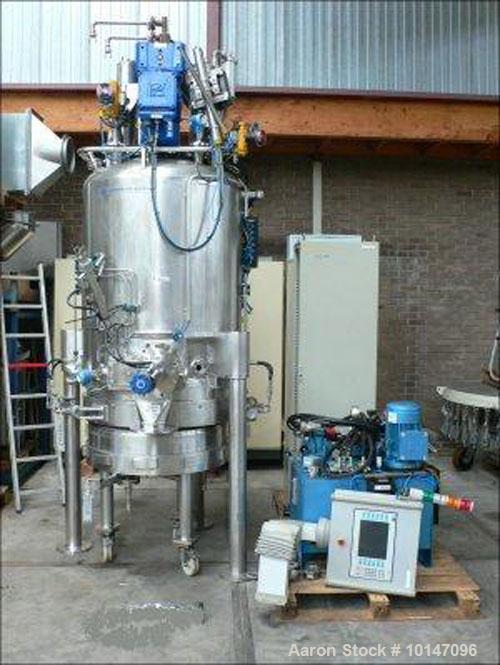

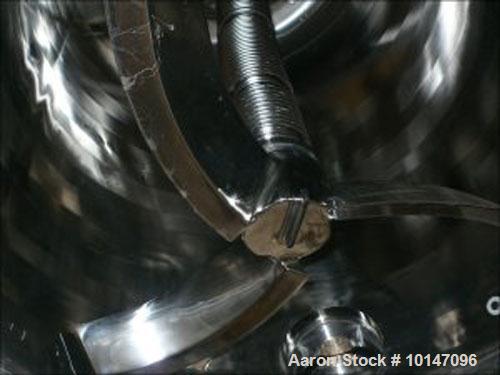

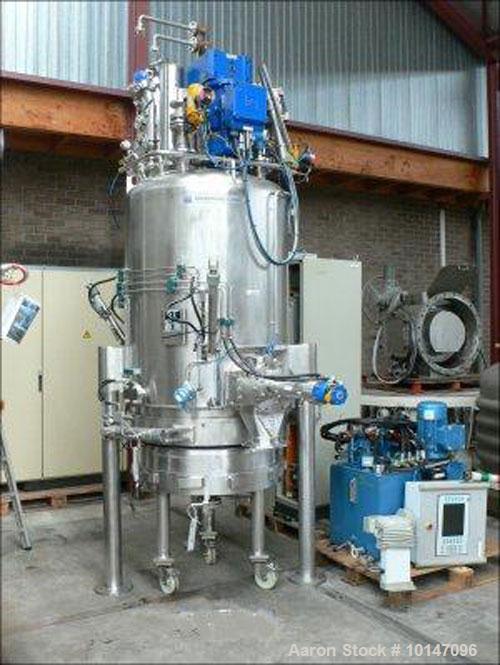

Used-Rosenmund Guedu Nutsche Filter/Dryer, Model GRF-750 D, Hastelloy C22 (2.4602), polished inside, filter surface 0.75 M2, capacity 237.8 gallons (900 litre), working pressure vacuum/43.5 PSI (3 bar), 8 gallon (30 litre) jacket. With heatable stirrer, vessel sizes diameter 37.4" x 59" (950 x 1500 mm). Plate diameter 35.8" (910 mm), solids side outlet diameter 7.87" (200 mm). Test pressure 142 PSI (9.8 bar), working pressure vacuum/72.5 PSI (5 bar), maximum temperature 302 deg F (150 deg C). Motor 10 HP/7.5 kW, 220/380 Volt/50/3 (Ex), with variable speed drive. Stirrer speed +/- 3. 1 - 25 rpm, stirrer can be lifted with a stroke of 15.75" (400 mm), with hydraulic unit, motor 5.3 HP /4.0 kW, 220/380/50/3 Volt. Mounted on legs with (2) control cabinets.
Used-Rosenmund Guedu Nutsche Filter/Dryer, Model GRF-750 D, Hastelloy C22 (2.4602), polished inside, filter surface 0.75 M2, capacity 237.8 gallons (900 litre), working pressure vacuum/43.5 PSI (3 bar), 8 gallon (30 litre) jacket. With heatable stirrer, vessel sizes diameter 37.4" x 59" (950 x 1500 mm). Plate diameter 35.8" (910 mm), solids side outlet diameter 7.87" (200 mm). Test pressure 142 PSI (9.8 bar), working pressure vacuum/72.5 PSI (5 bar), maximum temperature 302 deg F (150 deg C). Motor 10 HP/7.5 kW, 220/380 Volt/50/3 (Ex), with variable speed drive. Stirrer speed +/- 3. 1 - 25 rpm, stirrer can be lifted with a stroke of 15.75" (400 mm), with hydraulic unit, motor 5.3 HP /4.0 kW, 220/380/50/3 Volt. Mounted on legs with (2) control cabinets.
