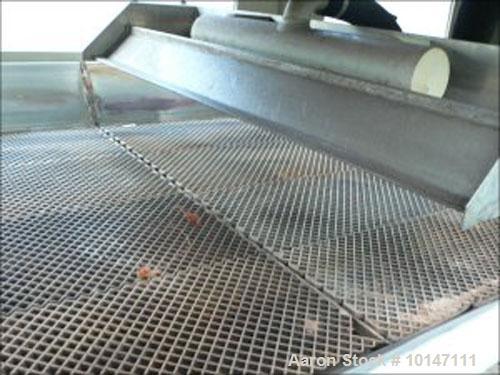

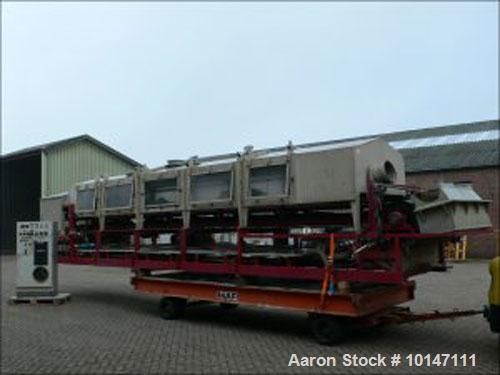

Used- Pannevis Vacuum Belt Filter, RT Type

Used- Pannevis Vacuum Belt Filter, RT Type. 7 Square meters. Titanium and 304 stainless steel (val.4436) construction on product contact parts. 22'8" Long x 3'2" wide PE76W-41 filter cloth (7000 mm long x 960 mm wide) with a capacity of 2645 gallons (10,000 liters) per hour at a working temperature of 140 deg F (60 deg C). Driven by a 1.5 kW / 2.25 hp - 500 volt/50 cycle/3 ph Loher explosion proof motor. Supporting frame is carbon steel (st37) covered with 4 layers of epoxy coating. Overall dimensions are 32'5" long x 7'2" wide x 7'2" high (10,000 mm long x 2200 mm wide x 2200 mm high). 1x Product pre-coating section 960 x 700 mm. 1x Separation section 960 x 2100 mm. 1x Washing section 960 x 2800 mm. 1x Drying section 960 x 1400 mm.
