Anderson Duo Expeller Press. 9”x 5’ variable speed screw feeder

Manufacturer Information

• Brand: Anderson
• Model: Duo Expeller Press
• Condition: Used, Refurbished (Sandblasted, Primed, and Painted)
• Voltage: 3/60/460V
• Motor Starters & Control Panel: Not Included

Description

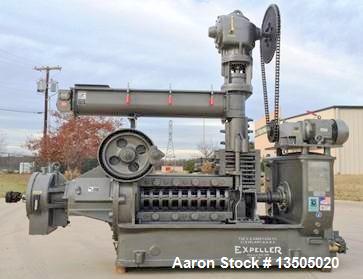

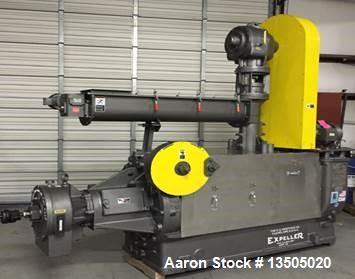

This Used Anderson Duo Expeller Press is a heavy-duty mechanical oil press designed for efficient oil extraction from oilseeds and other materials. The system features a 9" x 5" variable speed screw feeder powered by a 2 HP motor and drive, providing consistent feed rates to optimize pressing efficiency. The main press drive is powered by a 50 HP direct connected motor running at 1200 RPM, with a 15 HP vertical gear head motor delivering reliable torque transmission through a roller chain drive with safety guard.

Key features include a segmented worm shaft with breaker bolts, manually operated choke adjustment, and a water-cooled main worm shaft. The extra heavy-duty thrust bearing (T-53) and new herringbone precision gear within the horizontal main gear case ensure durability and long-lasting performance. The system has been thoroughly refurbished, including new bearings and seals, and comes complete with stainless steel splash guards with inspection doors for easy maintenance.

Also included is a 33" long drainage cage with diamond bars, keeper knife bars, pressure bars, spacers, and shims, along with a 3" special oil conveyor, driven by a 3/4 HP motor, for efficient oil transport post-extraction.

Key Specifications

• Feeder: 9" x 5" Variable Speed Screw Feeder with 2 HP Motor and Drive
• Vertical Gear Head Motor: 15 HP with Roller Chain Drive and Safety Guard
• Main Motor: 50 HP Direct Connected @ 1200 RPM
• Discharge Head: Vertical with Segmented Worm Shaft and Breaker Bolts
• Main Gear Case: Heavy Duty Horizontal with New Herringbone Precision Gear, Integral Pinion, Helical Gear & Pinion
• Choke Adjustment: Manual
• Thrust Bearing: Extra Heavy Duty for T-53 Thrust Unit
• Cooling: Integral Water-Cooled Main Worm Shaft
• Drainage Cage: 33" Long with Diamond Bars, Keeper Knife Bars, Pressure Bars, Spacers, and Shims
• Oil Conveyor: 3" with Drive and 3/4 HP Motor
• Splash Guards: Stainless Steel with Inspection Doors
• Refurbishment: Sandblasted, Primed, Painted, New Bearings, and Seals

Applications

• Oilseed Processing
  • Soybeans
  • Canola/Rapeseed
  • Sunflower Seeds
  • Cottonseed
  • Peanuts
• Vegetable Oil Extraction
• Mechanical Oil Expelling in Feed and Biofuel Industries
• Press Cake Production for Animal Feed
• Pilot or Small-Scale Commercial Oil Extraction Facilities

Industries Served

• Edible Oil Processing Plants
• Biodiesel & Renewable Energy
• Animal Feed Manufacturers
• Agricultural Cooperatives
• Food & Beverage Ingredient Suppliers
