Used-Fenco Evaporator Tomato Paste Evaporator

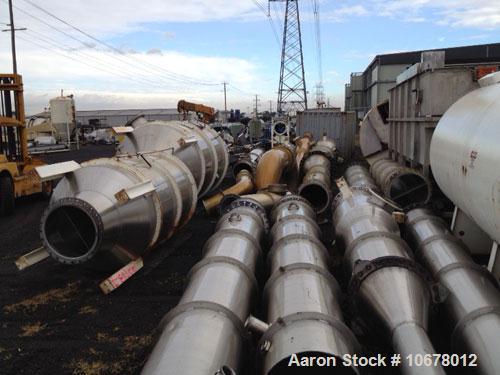

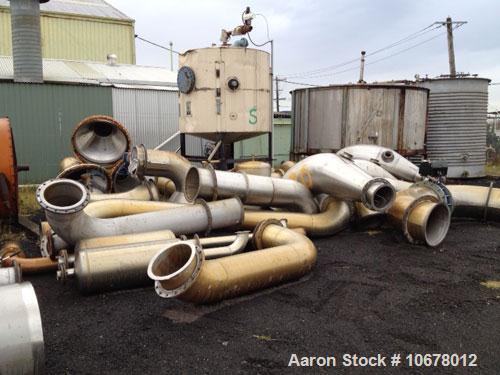

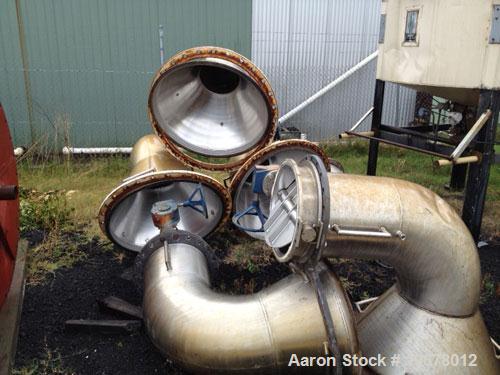

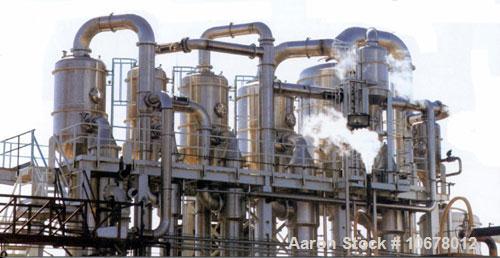

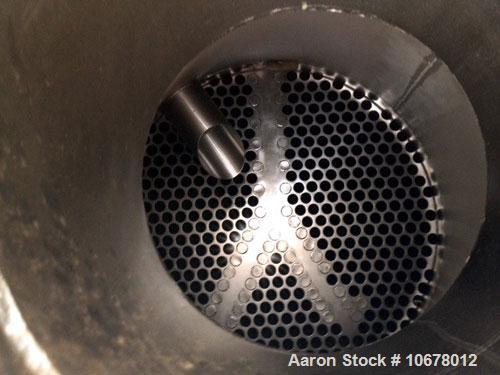

Used-Fenco Evaporator DT 700 E 79 "Tomato Paste Evaporator". Counter-current flow with vapors. Rated 45 tons per hour 6% to 33% solids. This unit can be configured in a few configurations: double effect rated up to 200 tons/day, triple effect rated up from 200 tons/day to 1000 tons/day, and quadruple effect rated from 1000 to 2000 tons/day. 1 or 2 finishing stages. Condensed vapors at 40 to 45 deg C of the last effect barometric or semi-barometric type. (2) Tube bundles each with 488 tubes 1-1/4" ID x 19'8" long. (1) Tube small bundle 217 tubes 1-1/4" ID, 13' long. Operating at low temperatures. Ancillary pumps. Does not include process pipe, controls or PLC/PC command desk.
