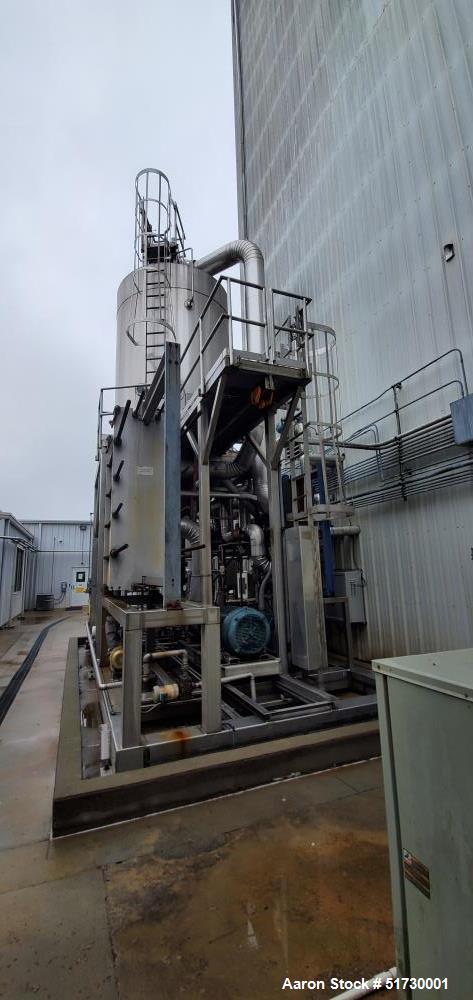

Anhydro / Dedert Meat Extract Flash Evaporator

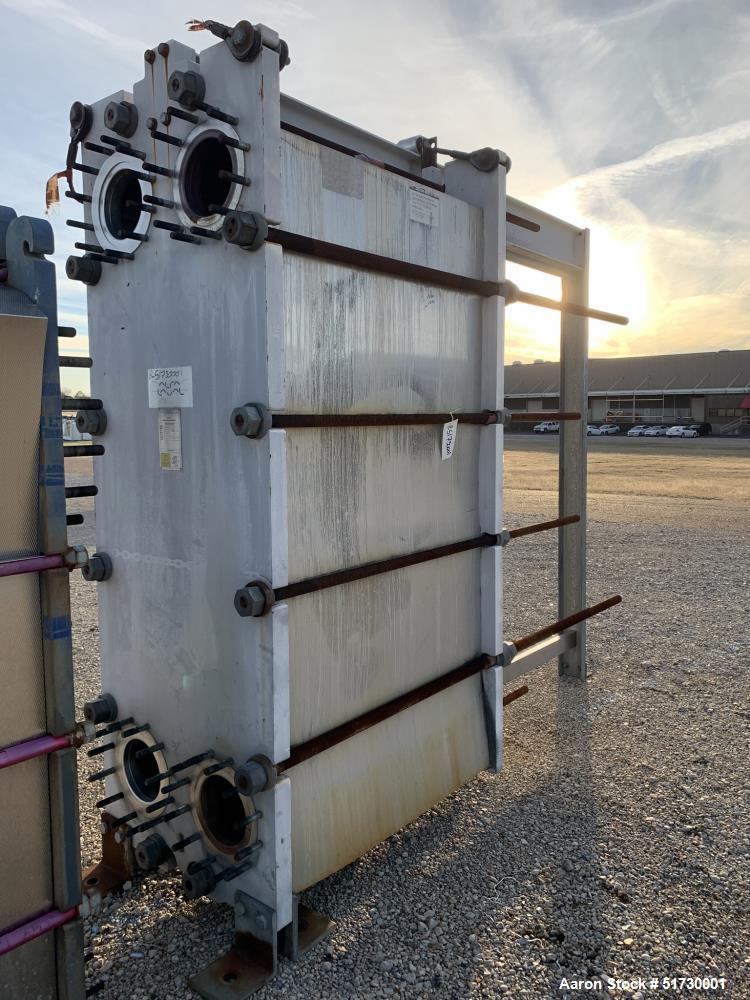

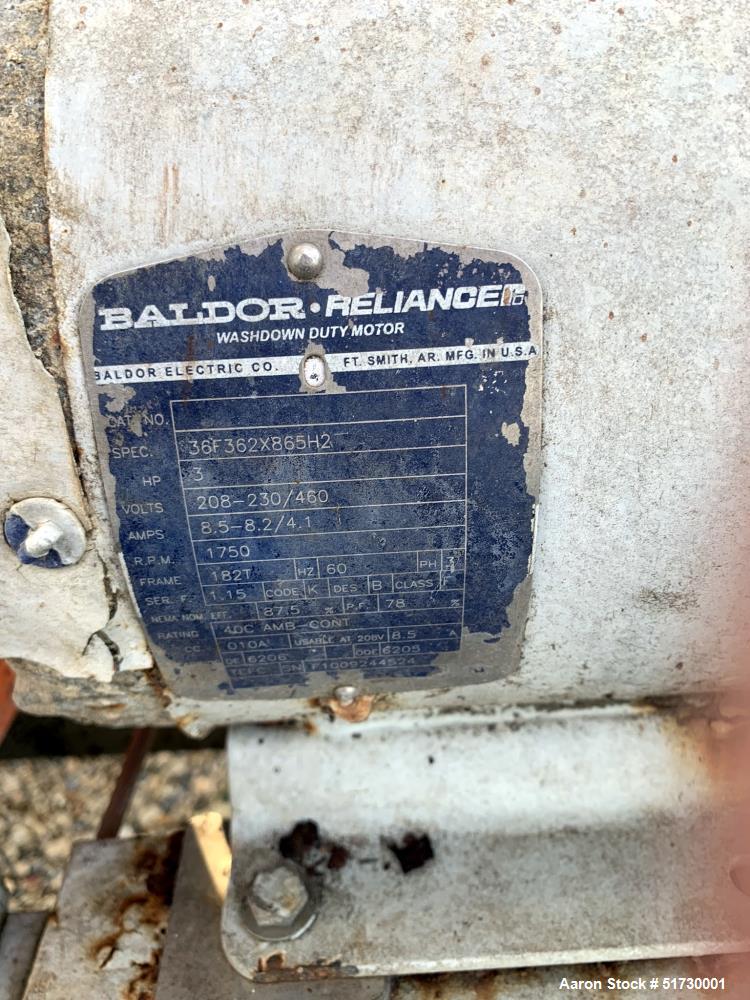

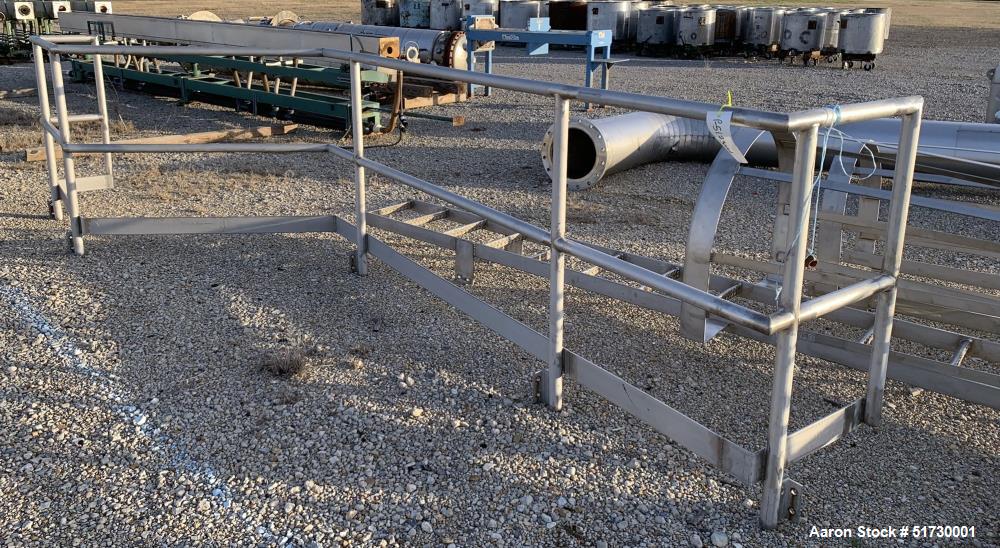

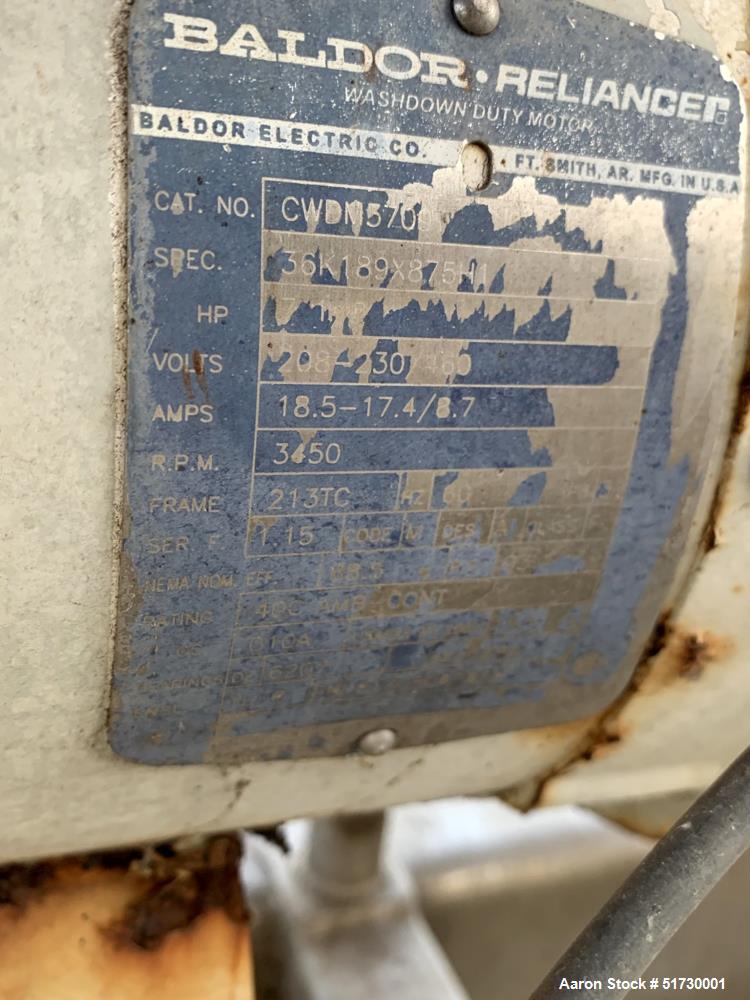

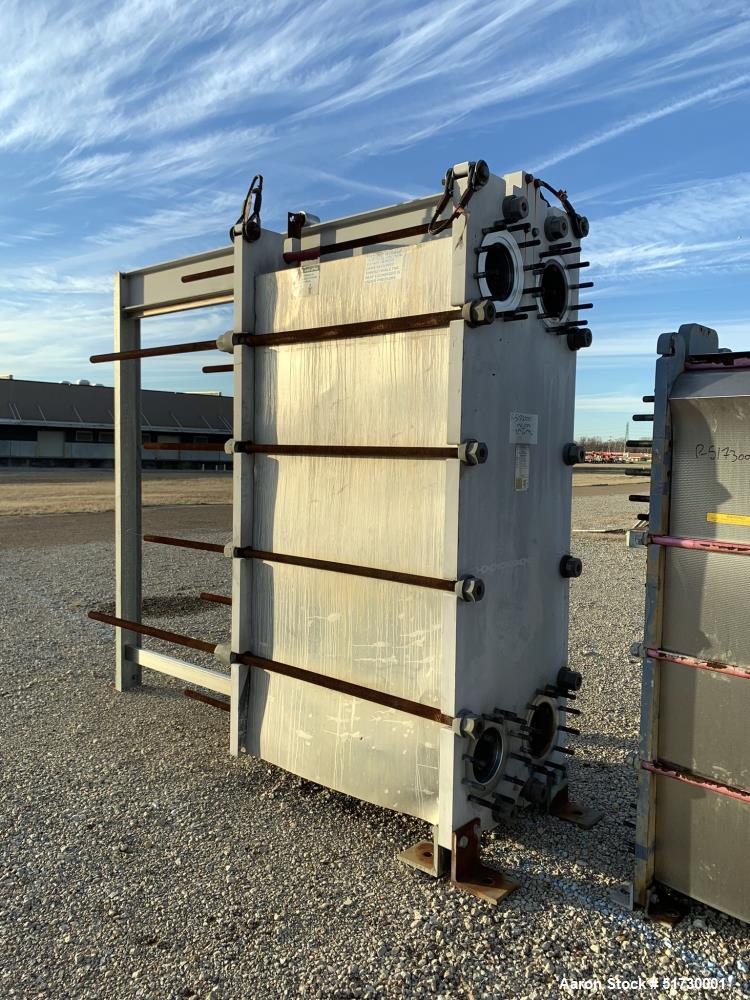

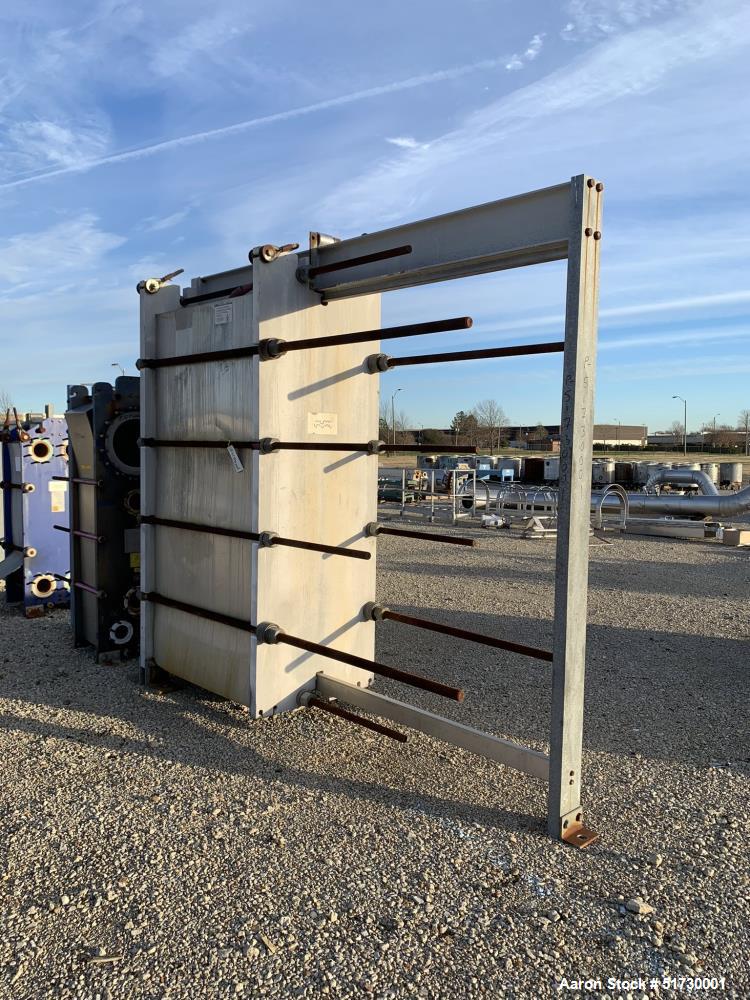

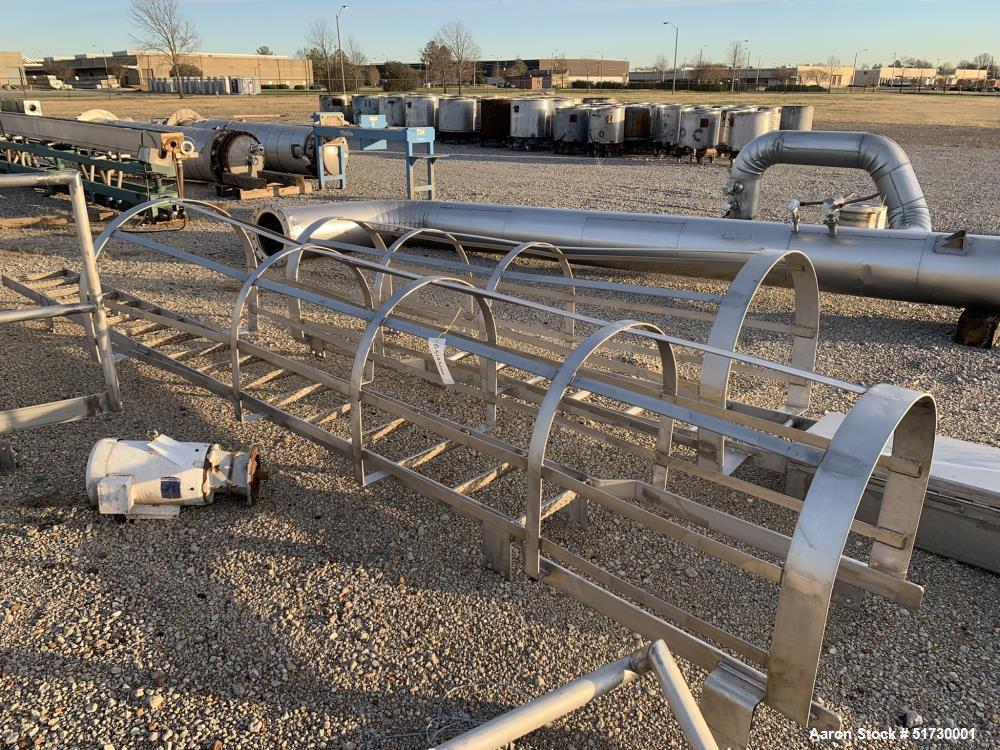

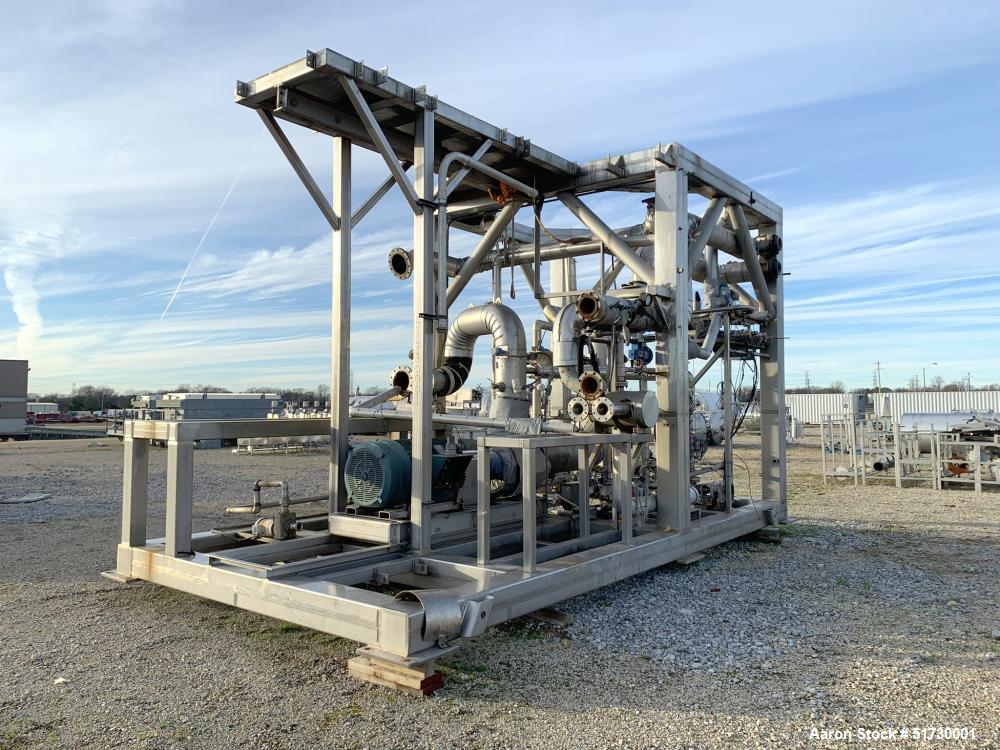

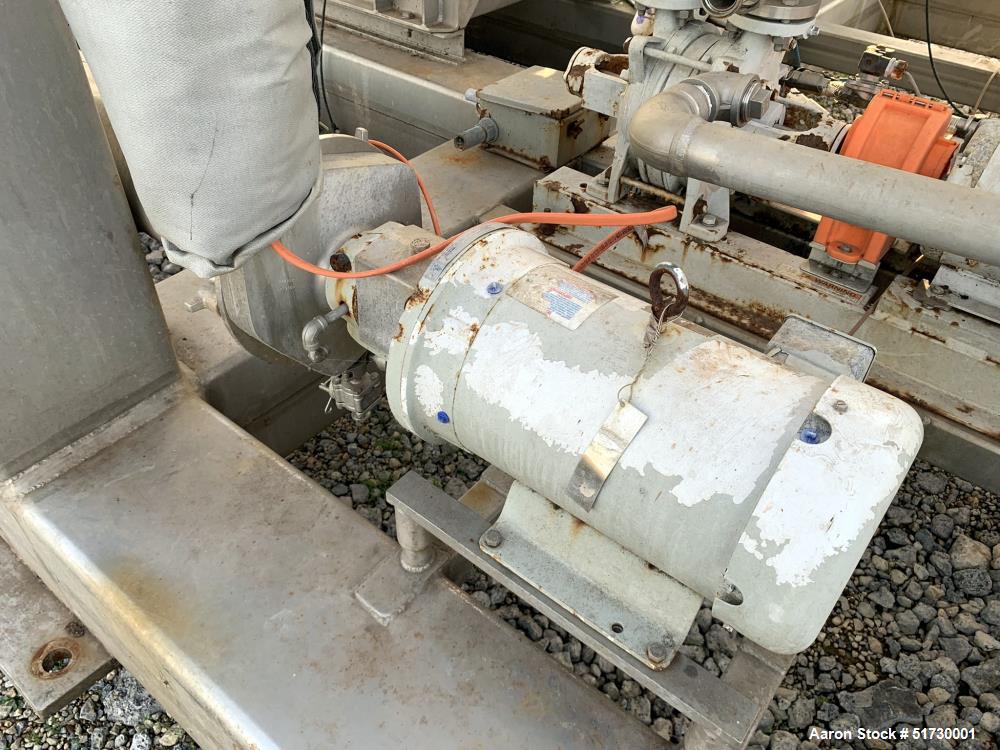

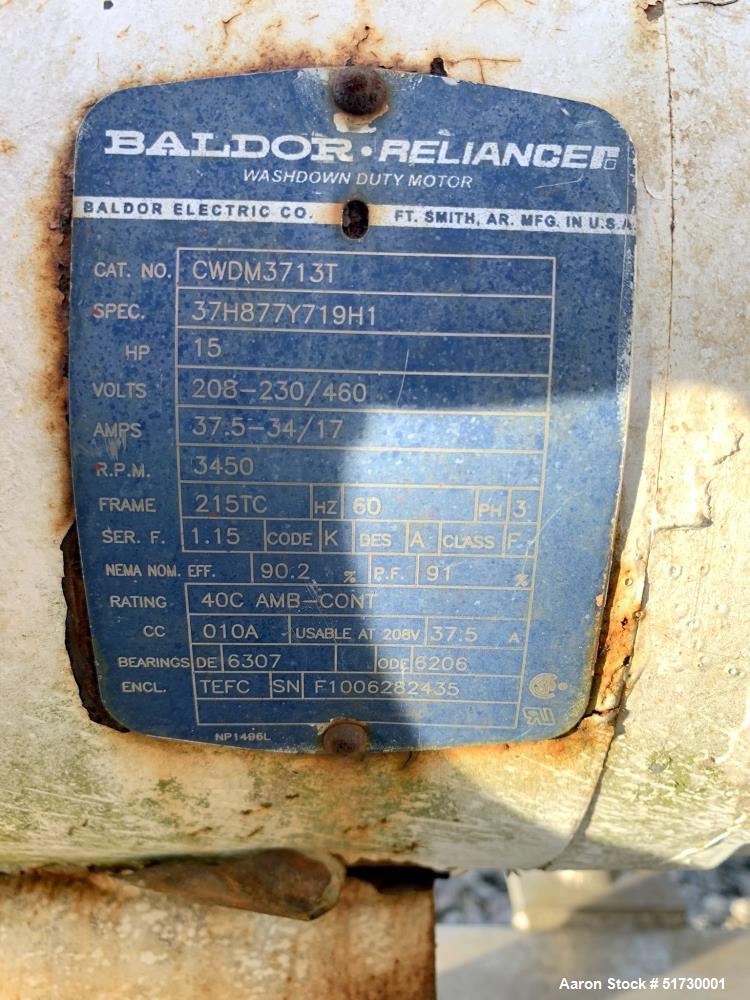

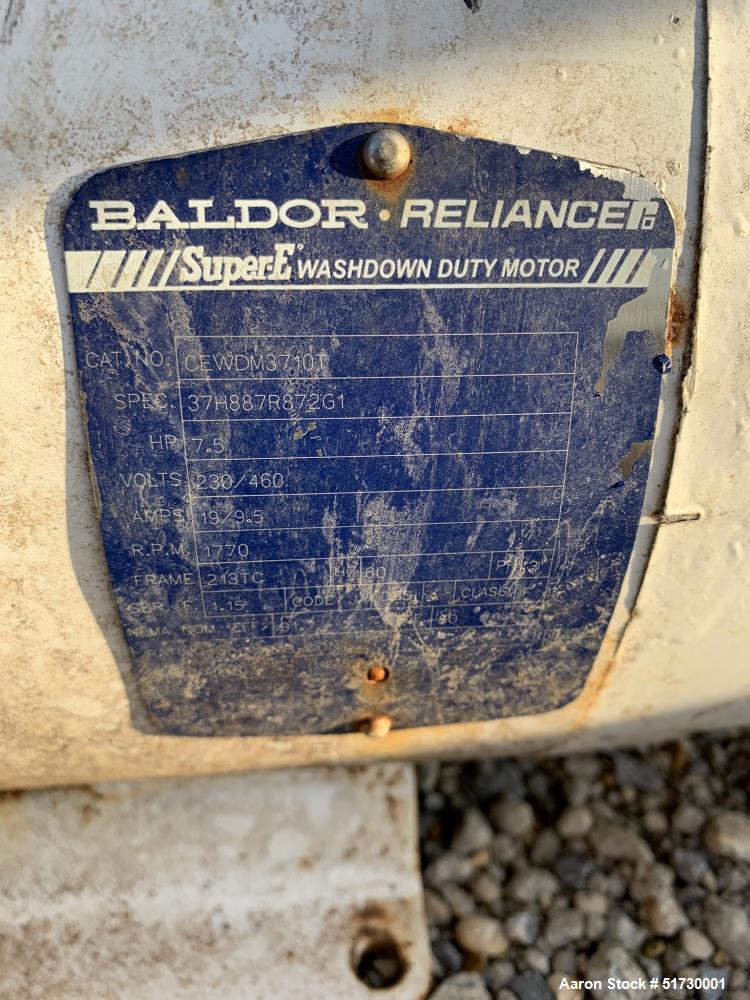

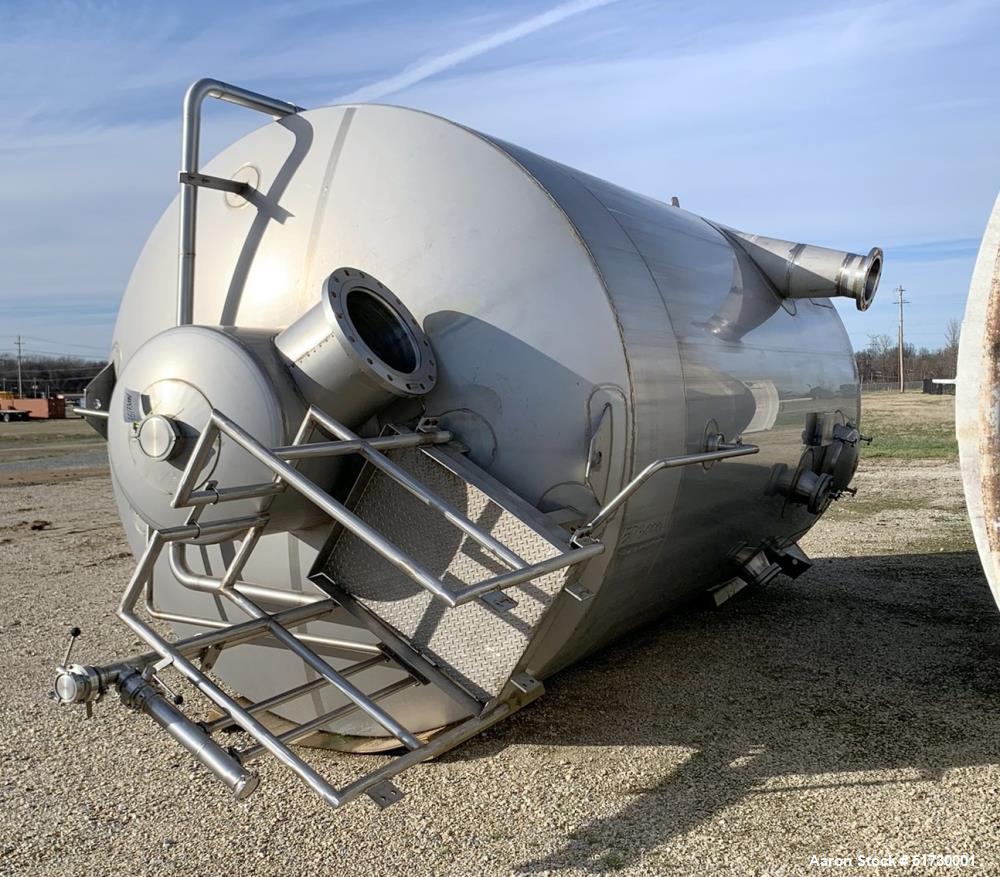

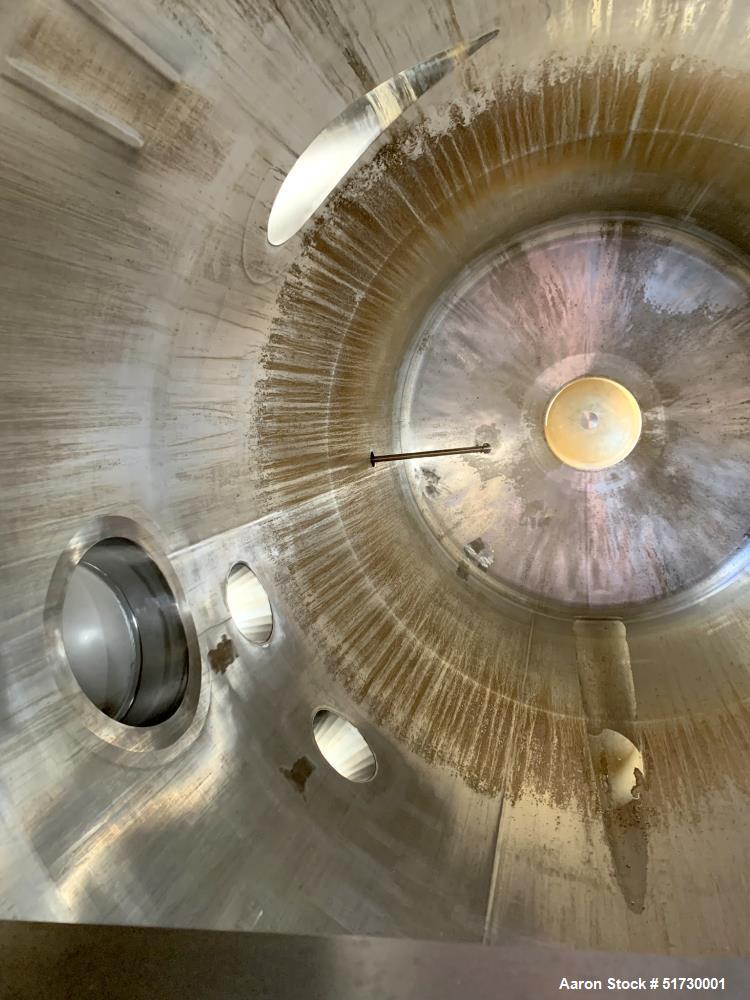

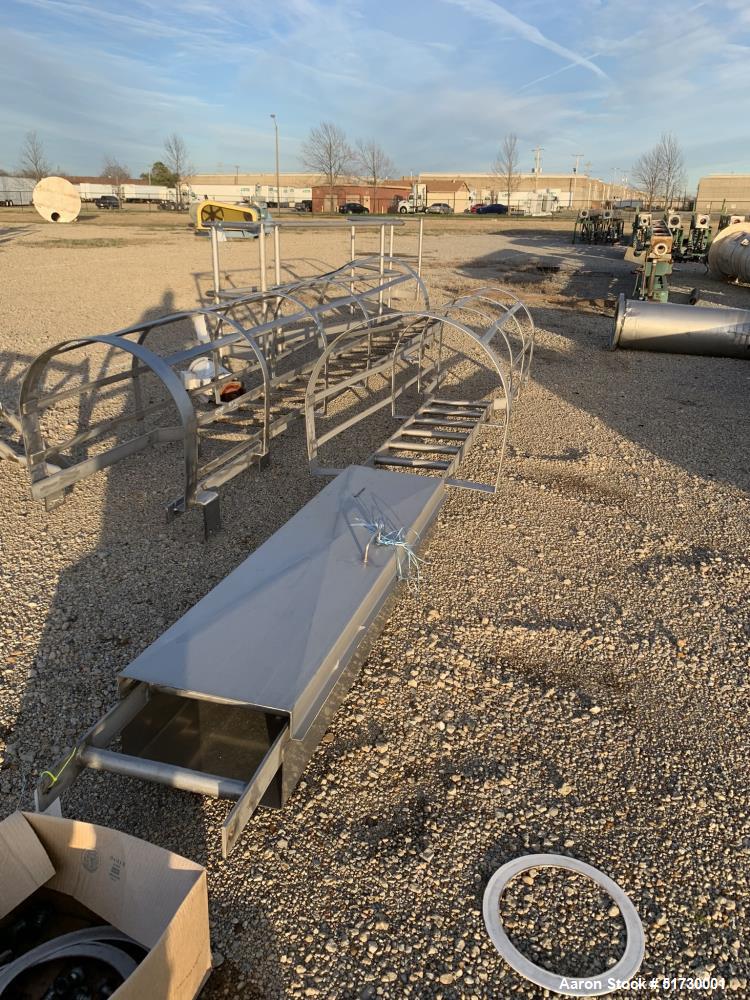

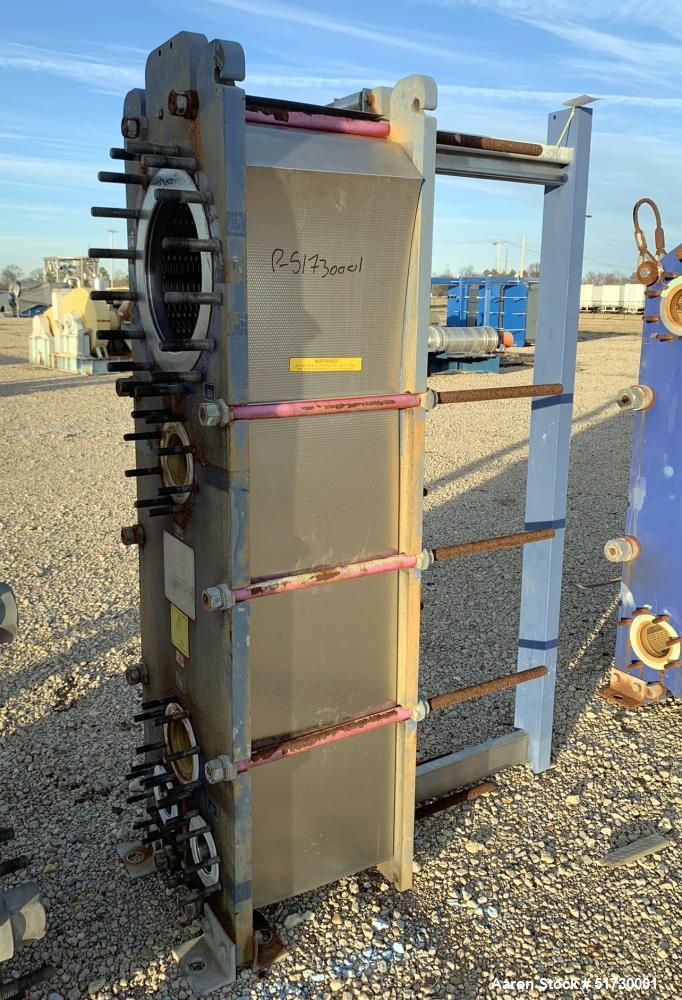

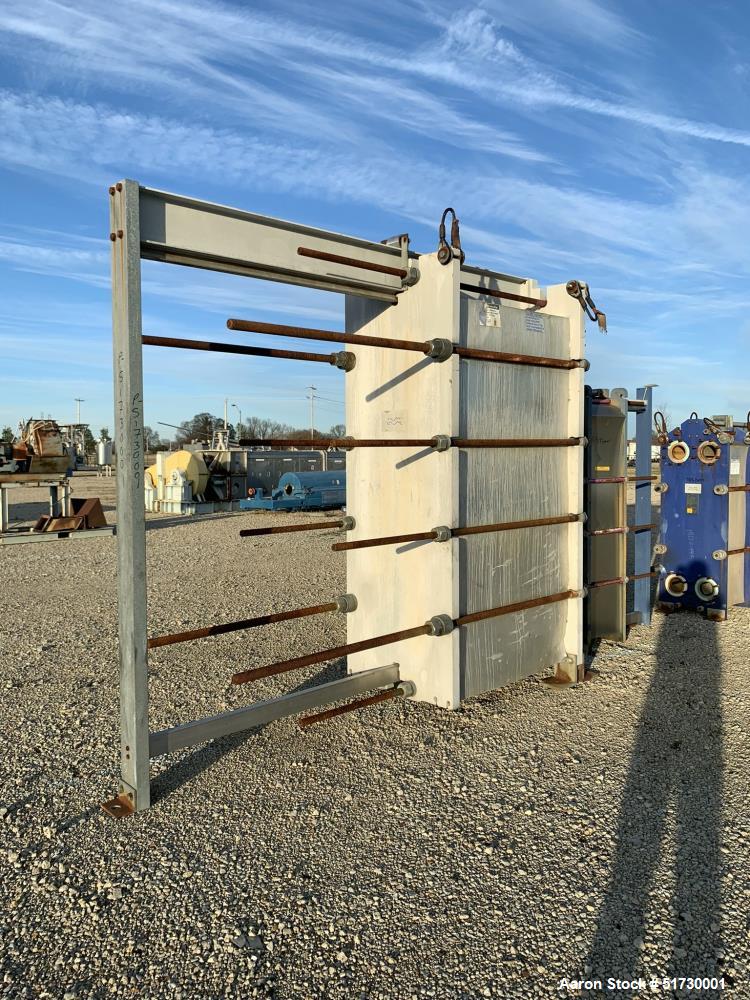

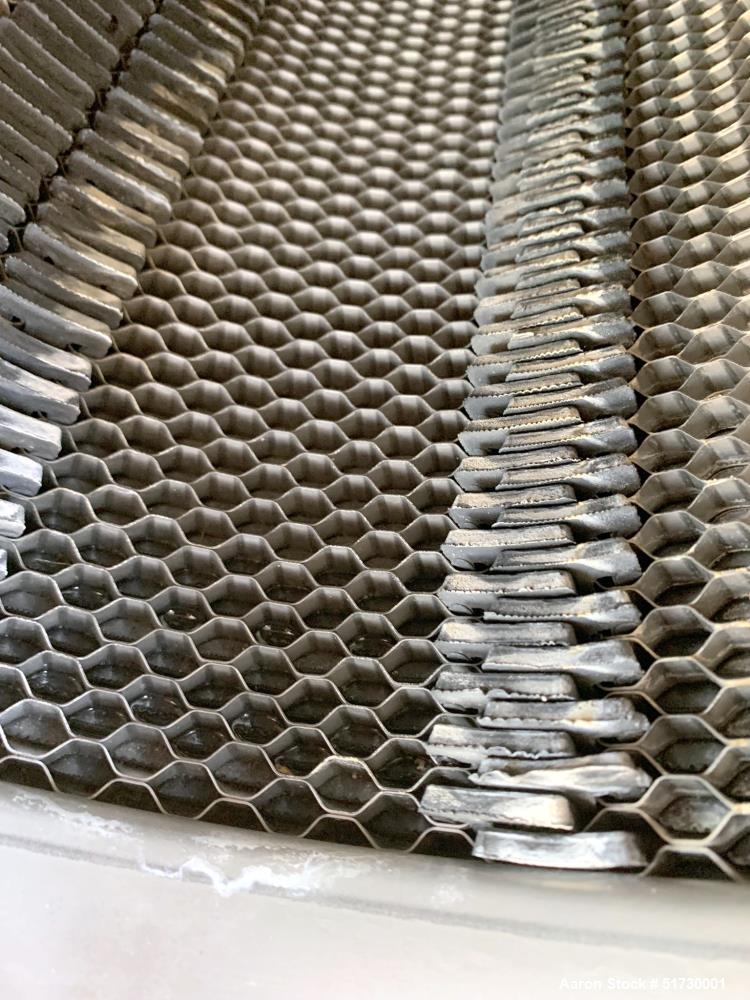

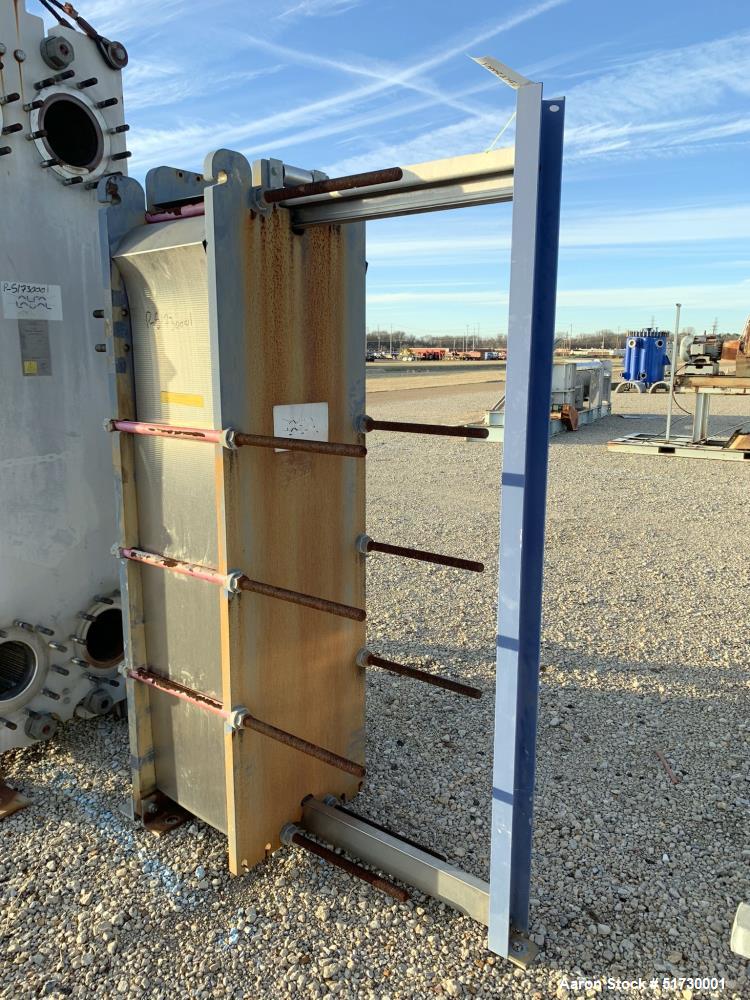

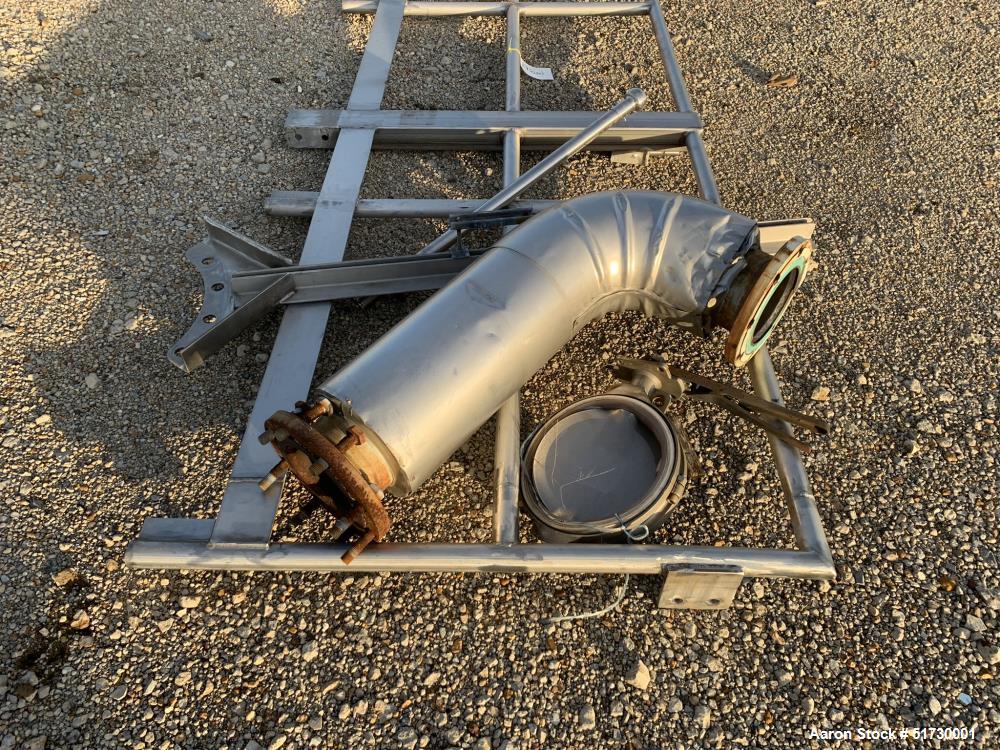

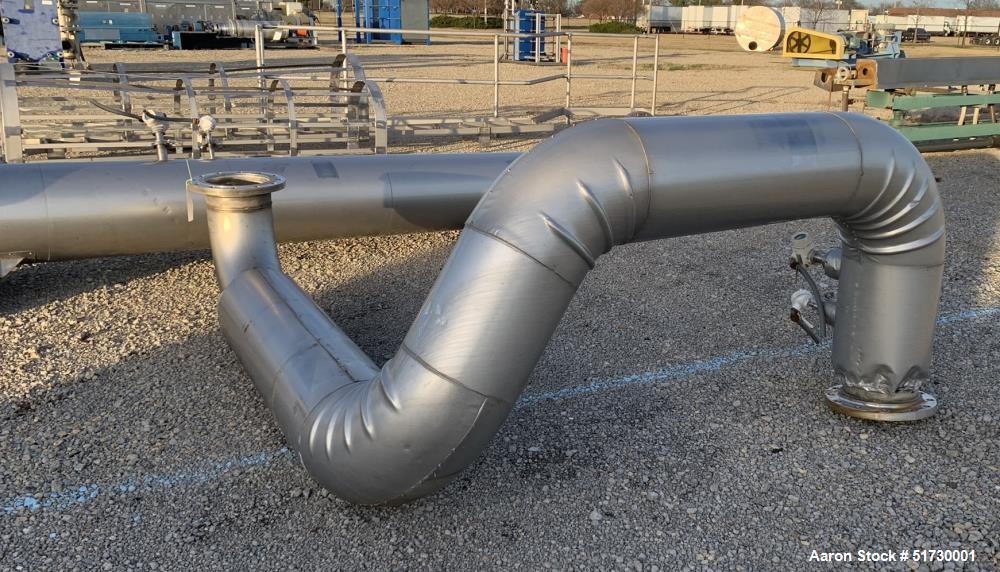

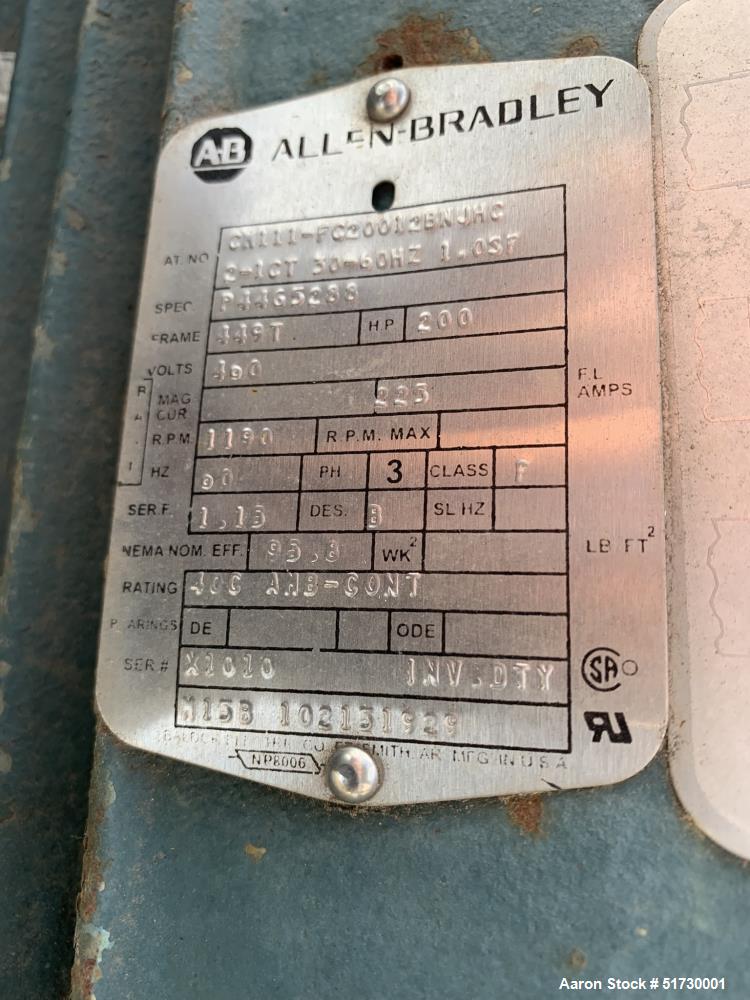

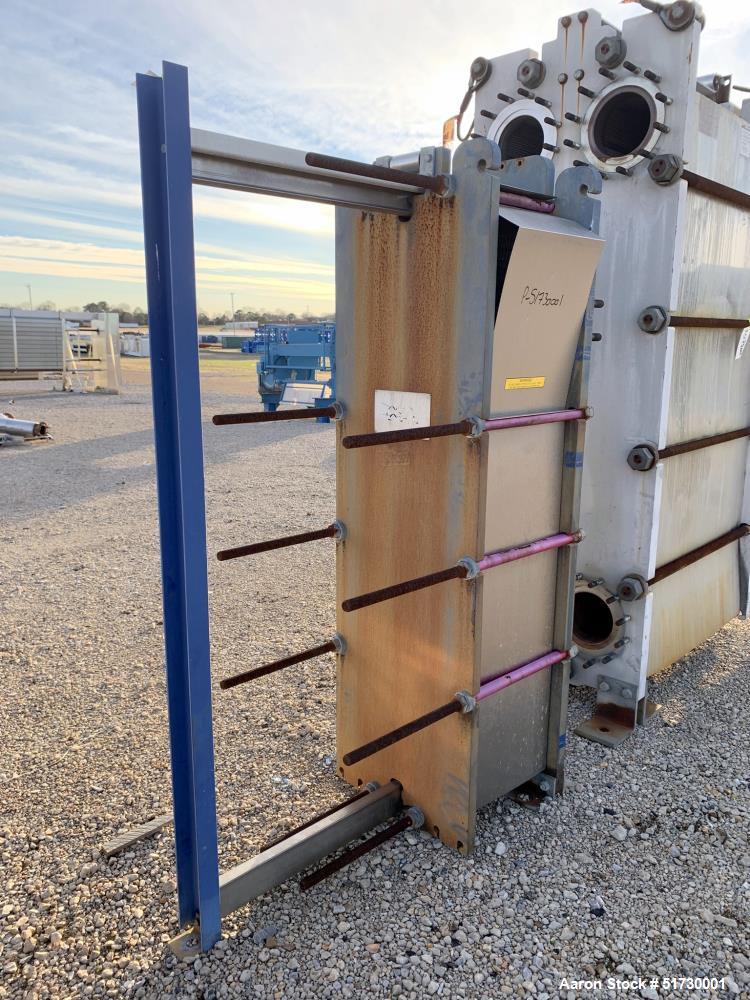

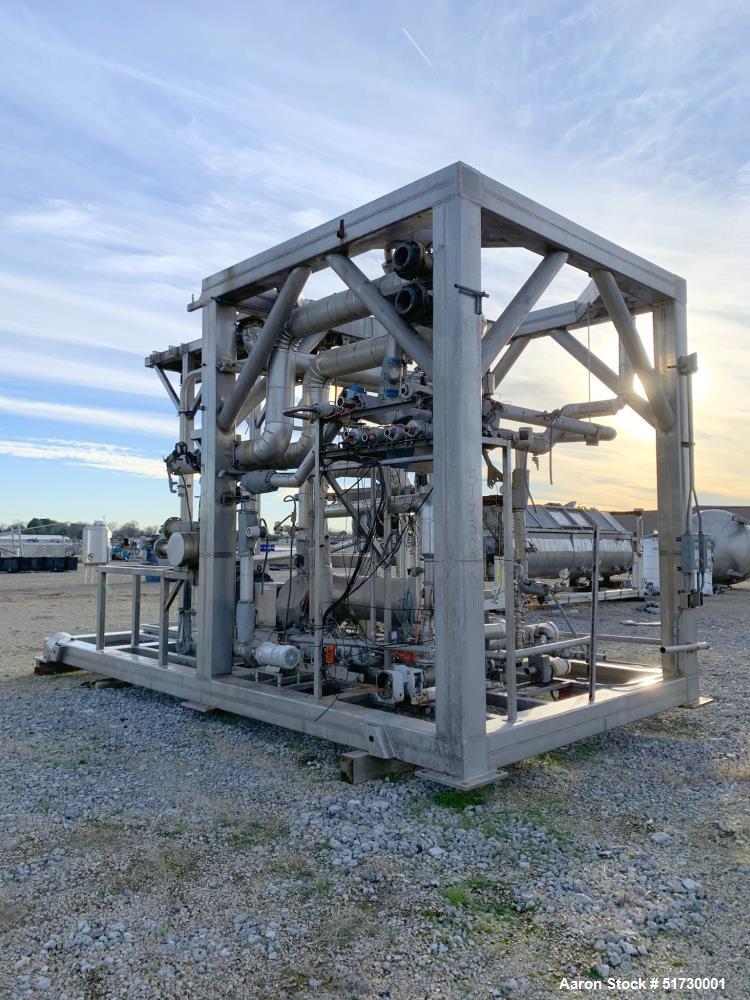

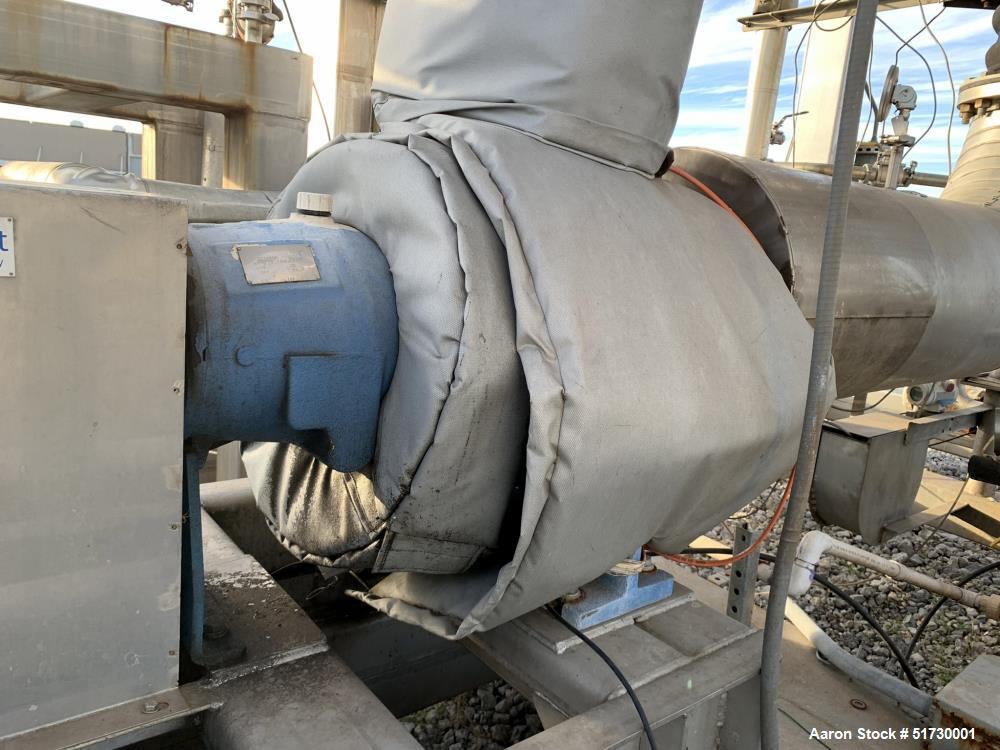

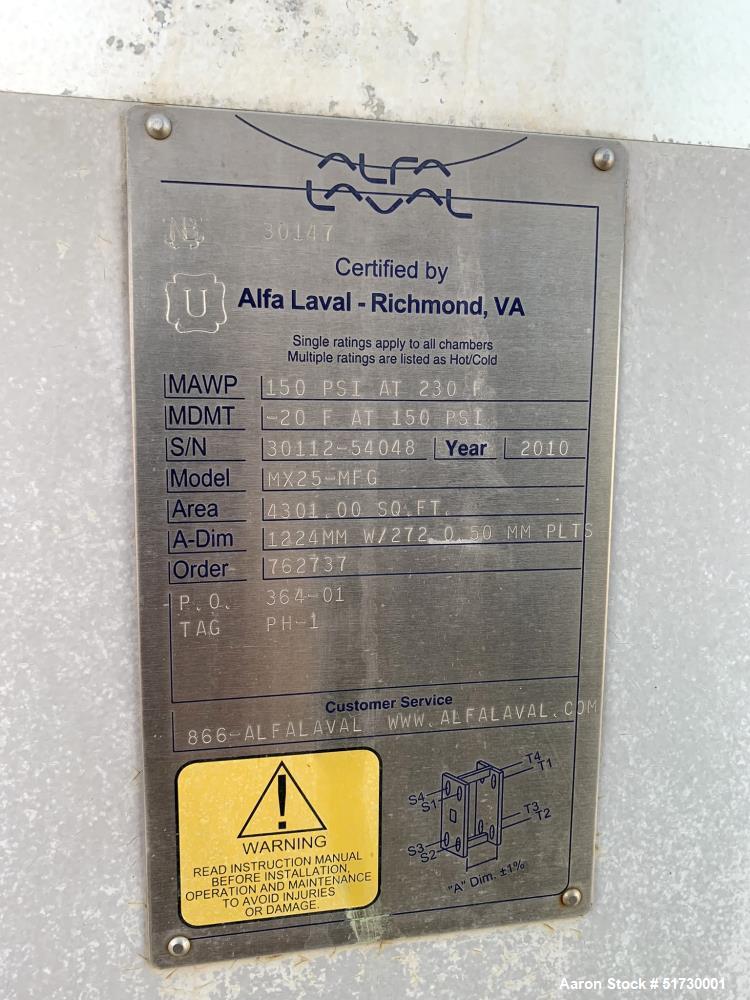

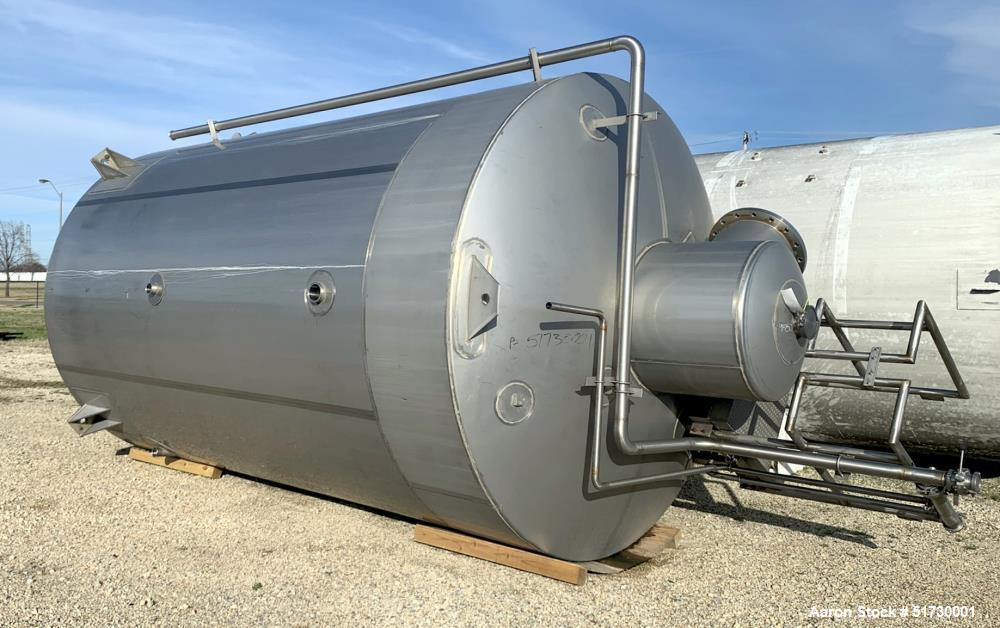

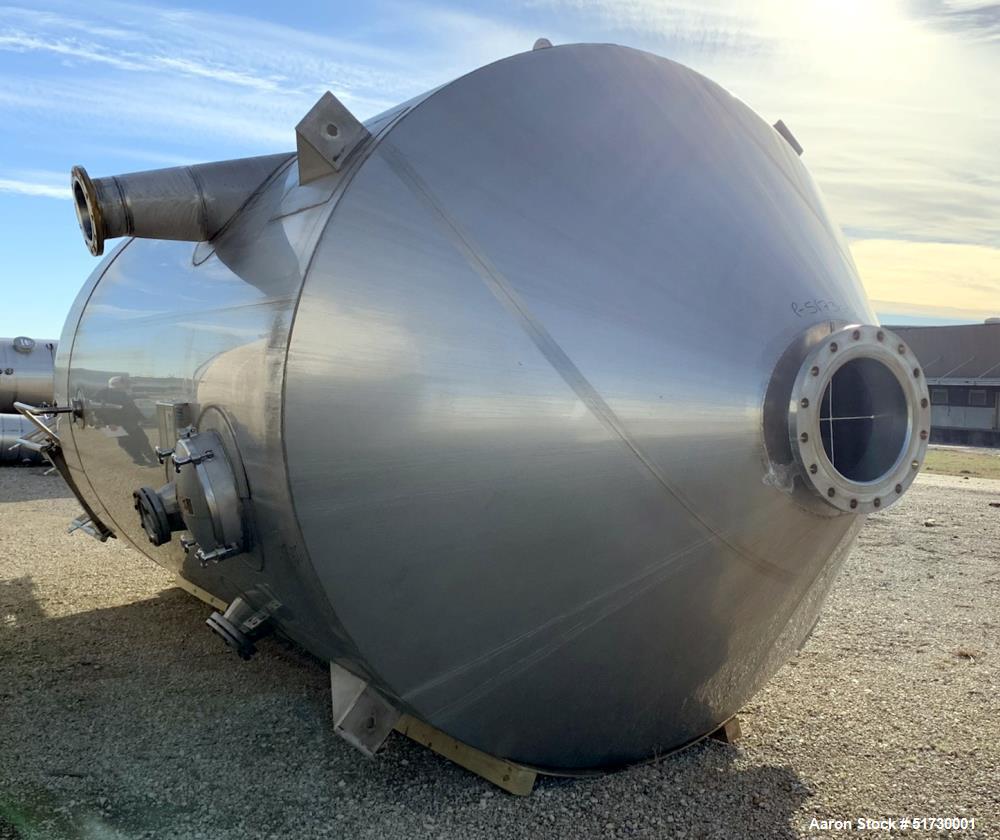

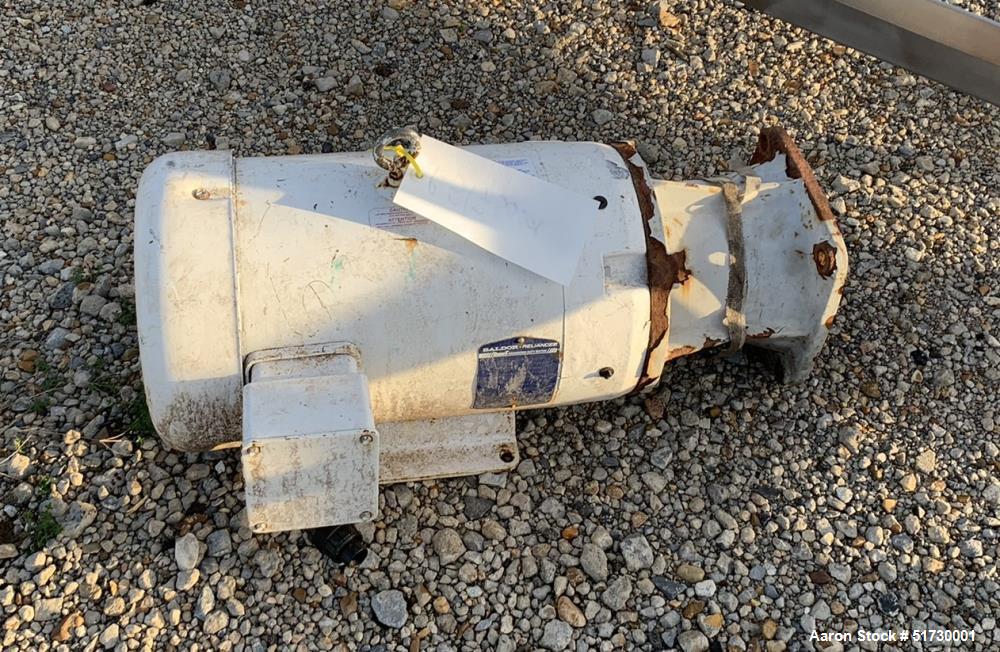

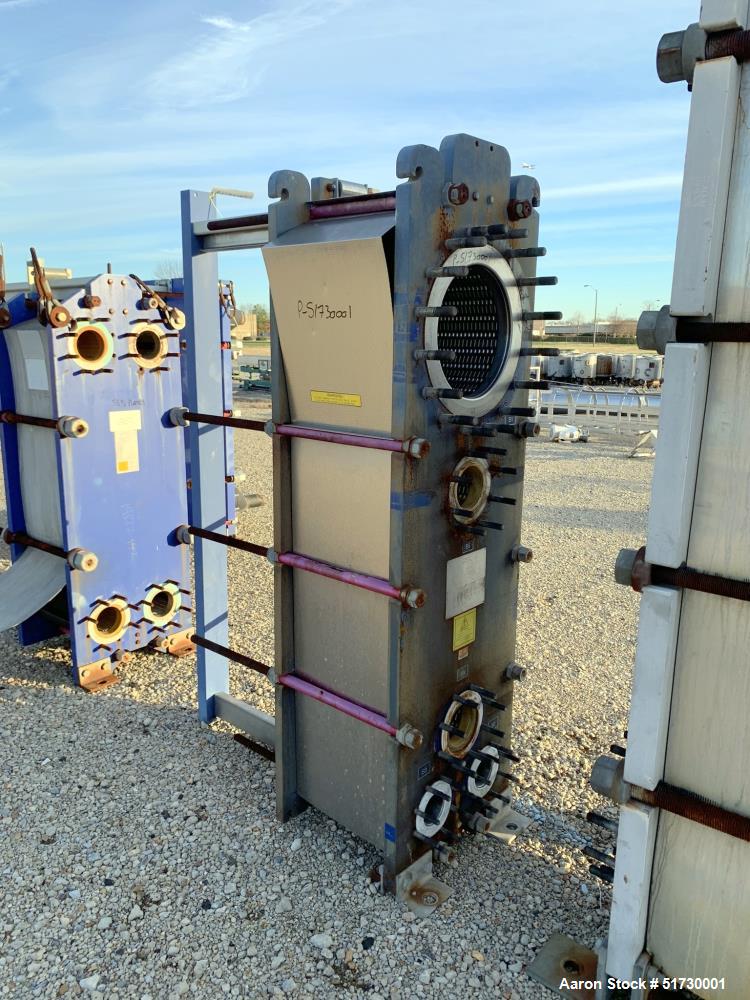

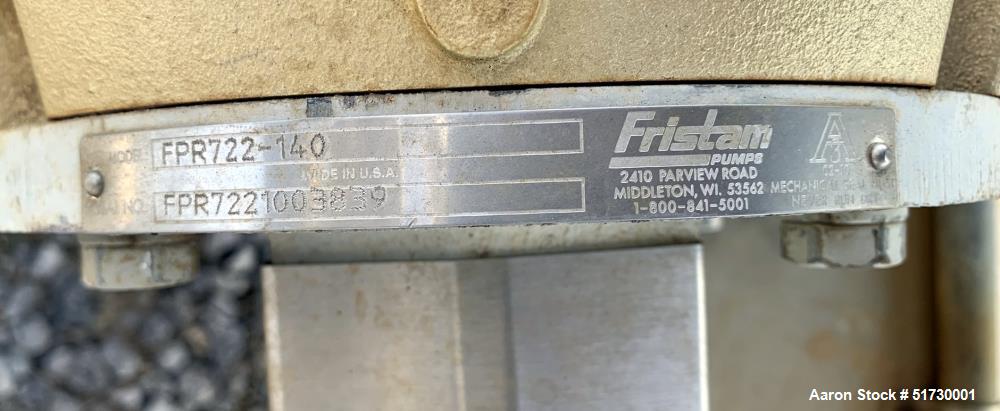

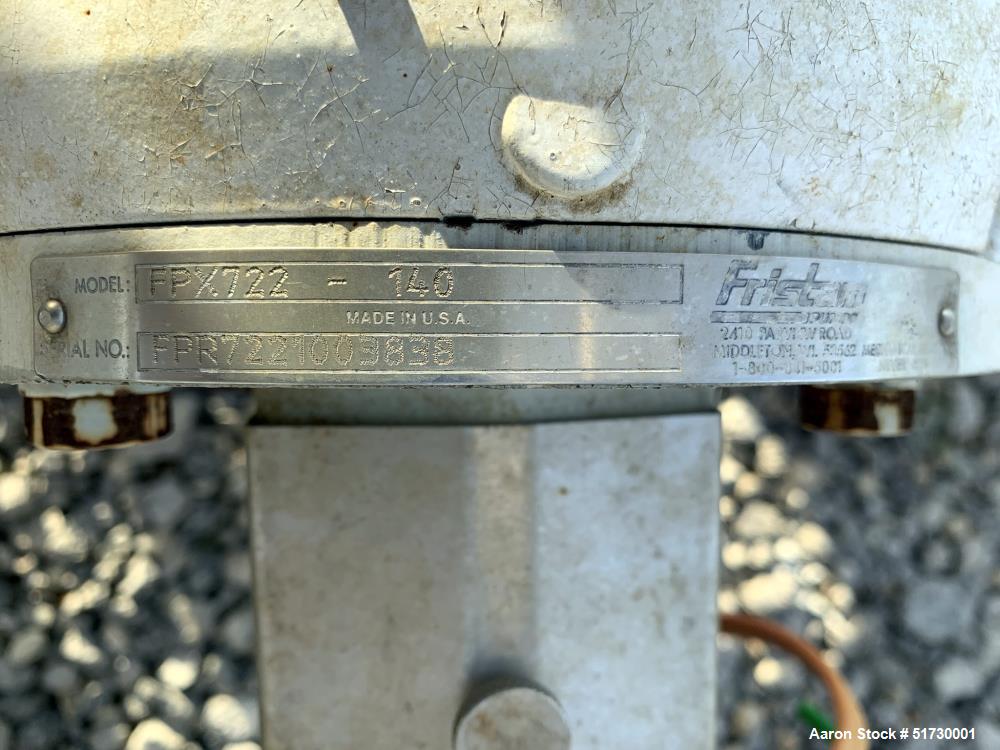

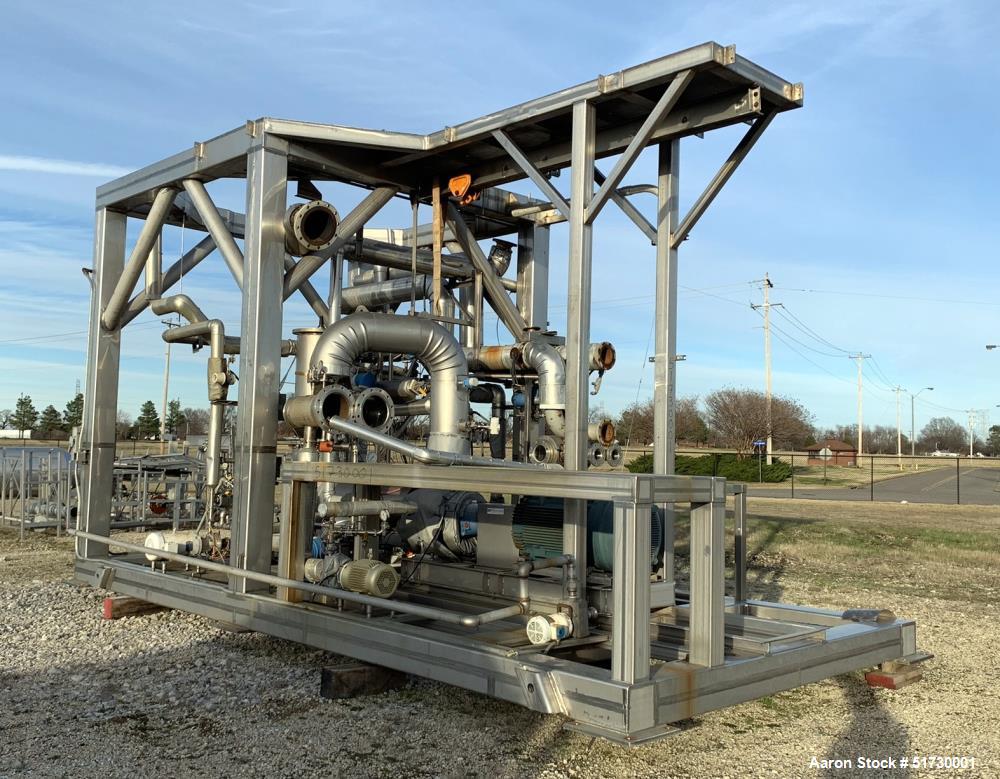

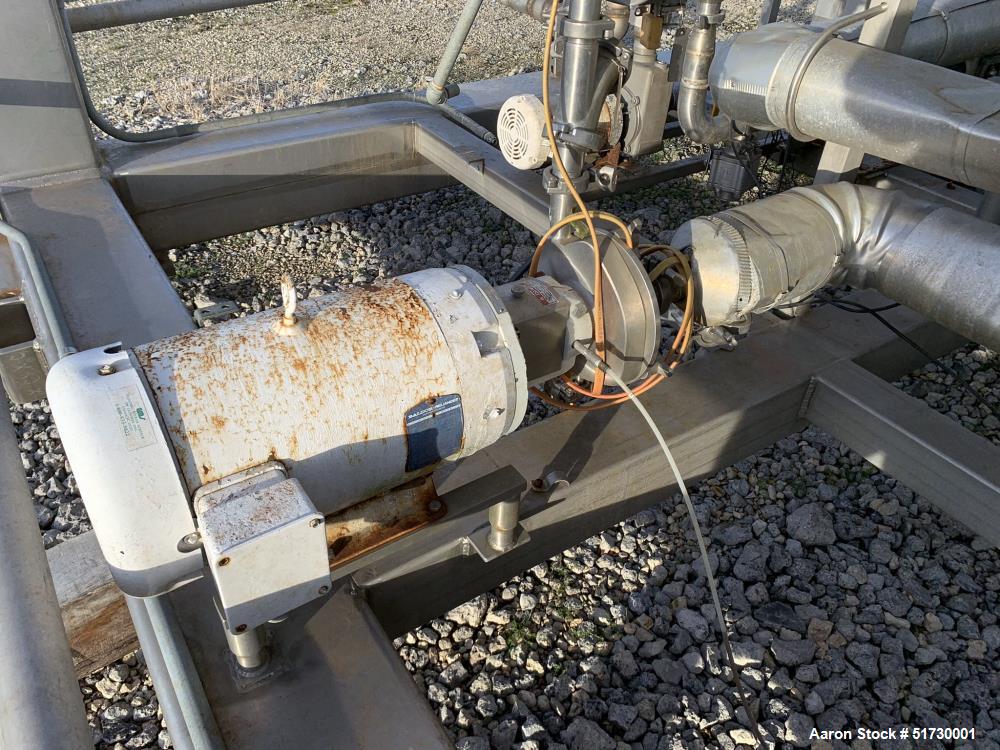

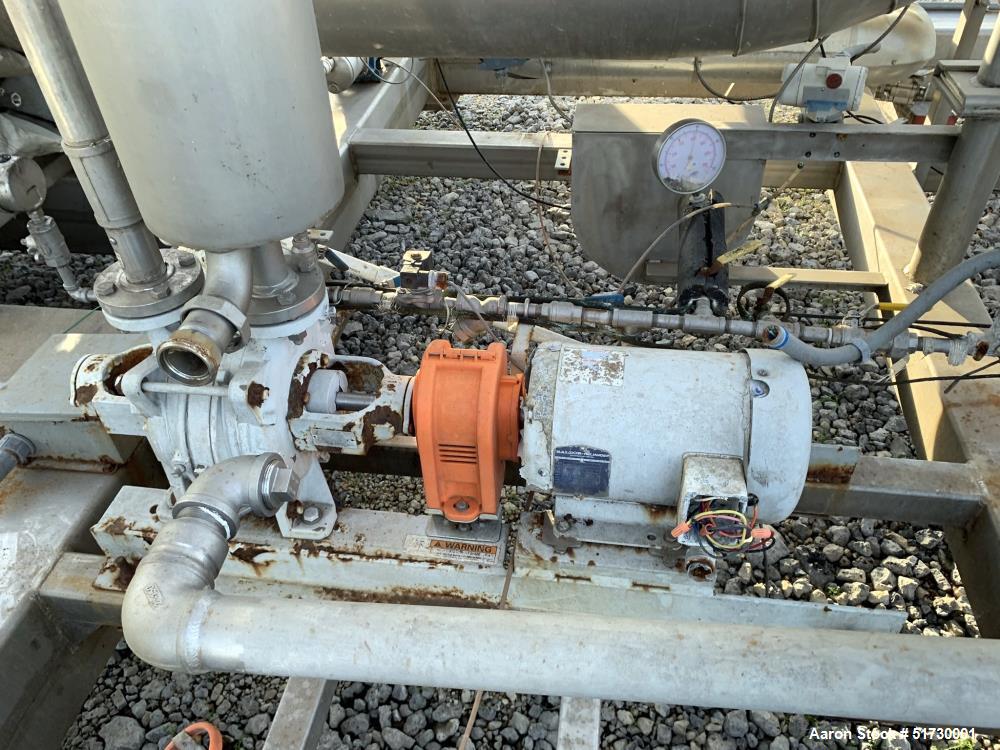

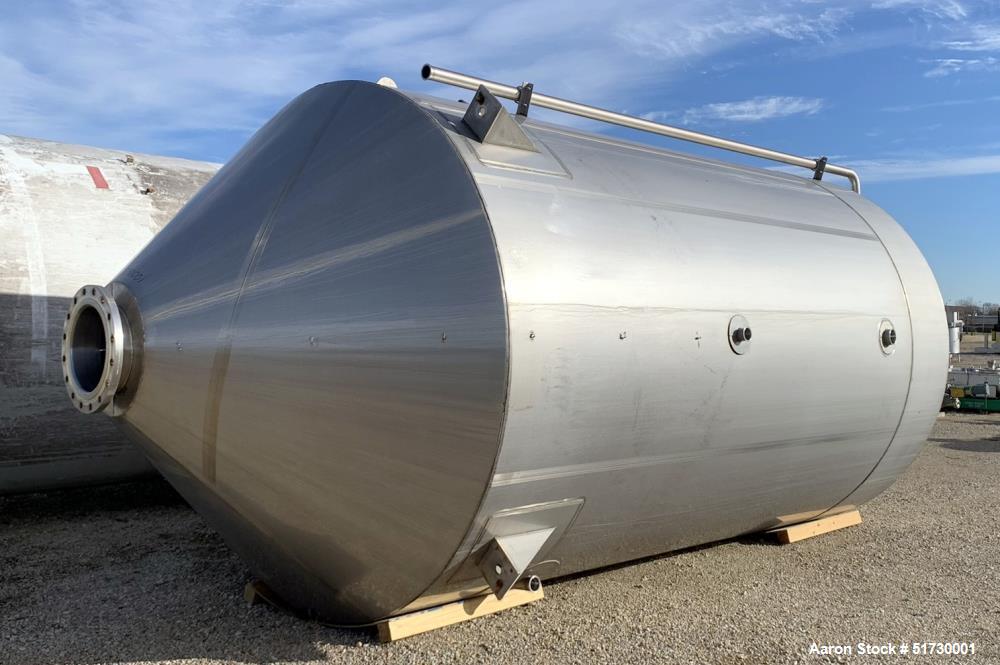

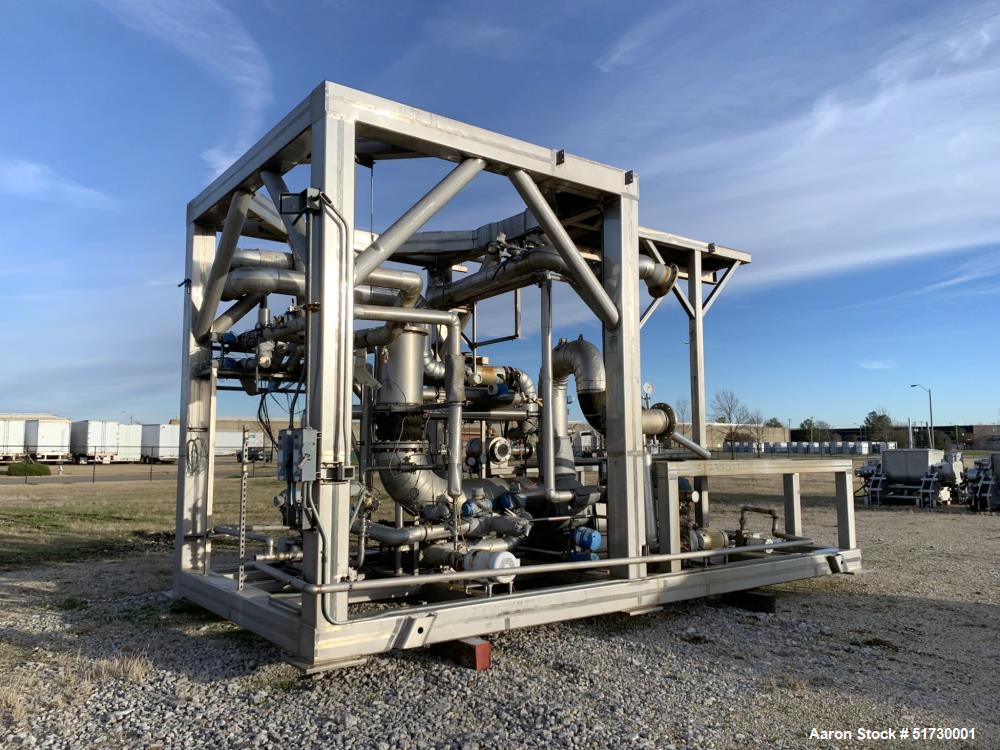

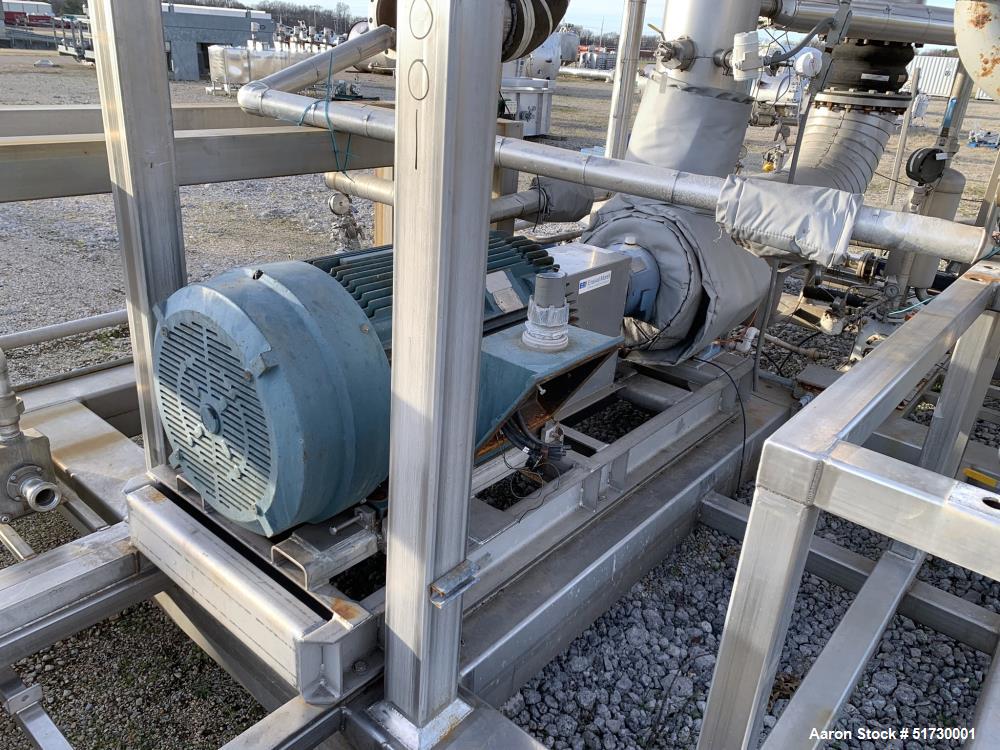

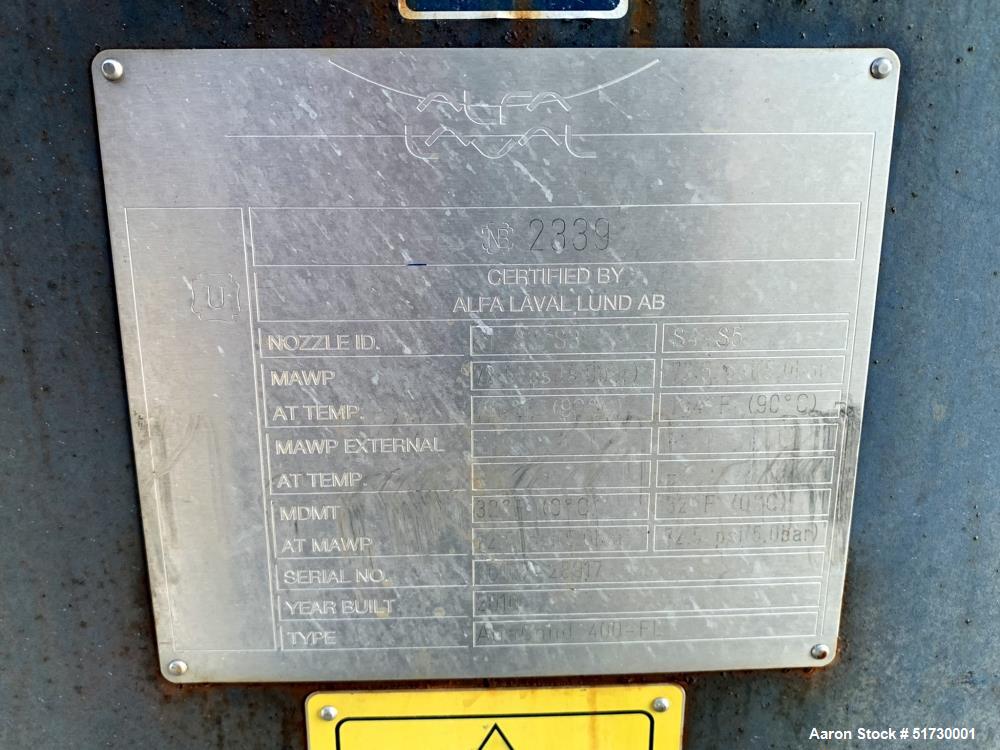

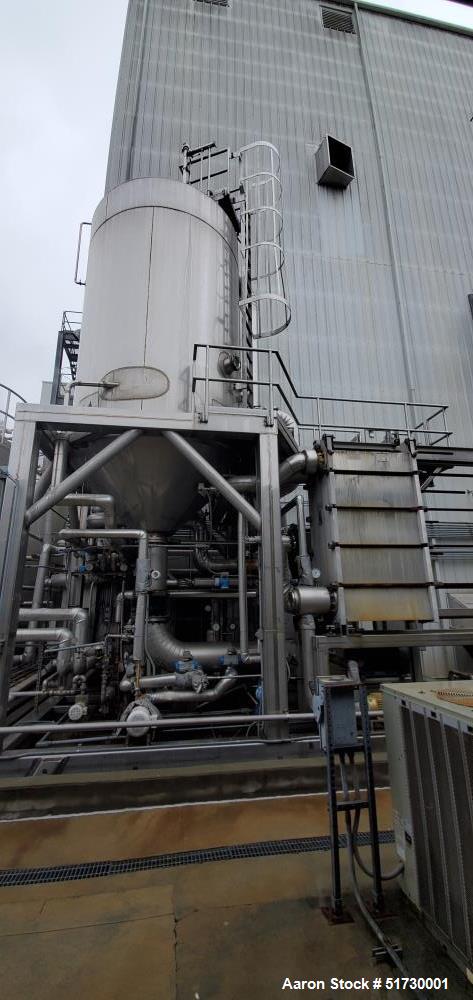

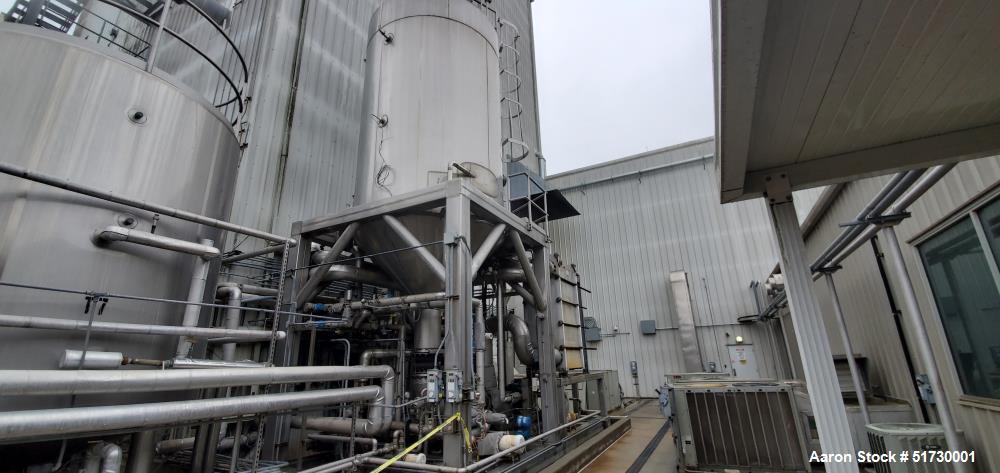

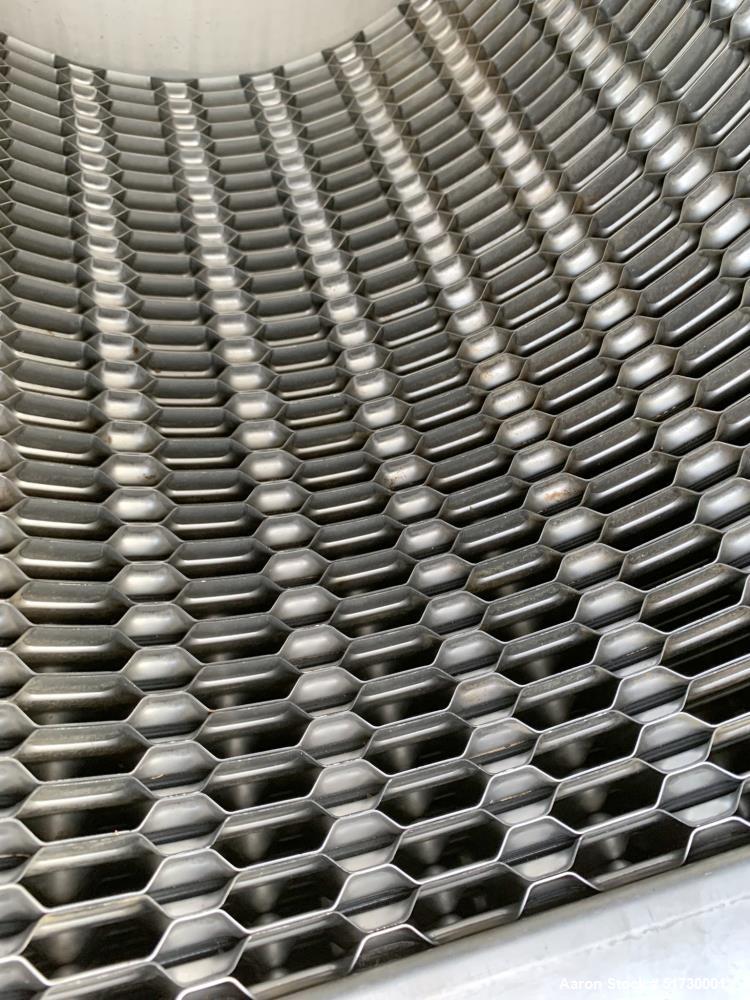

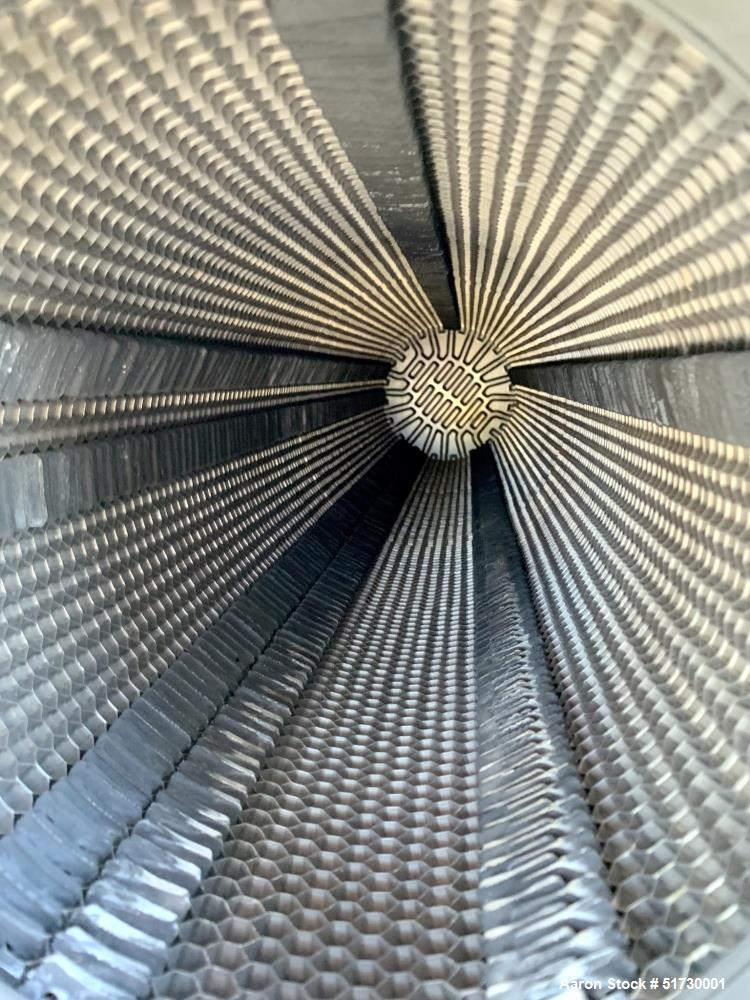

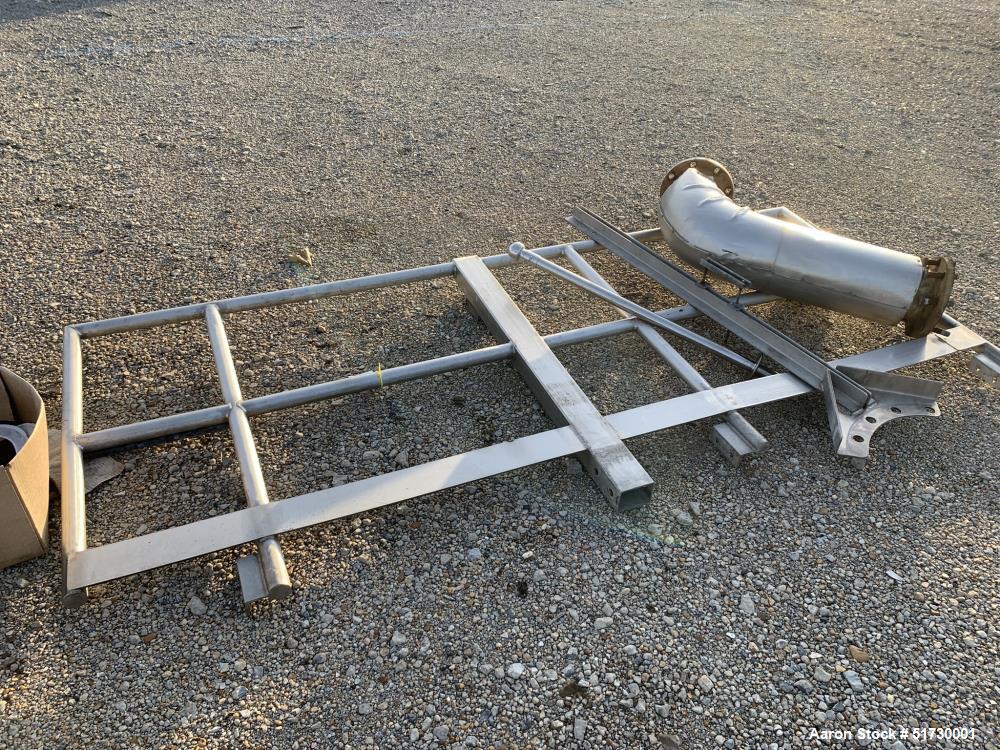

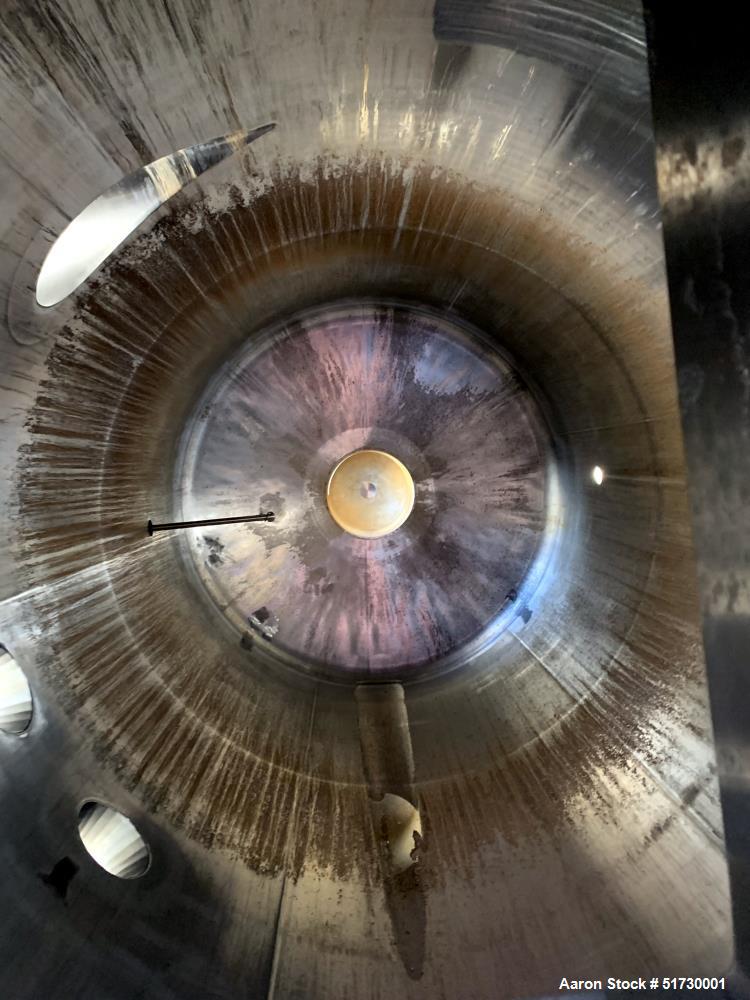

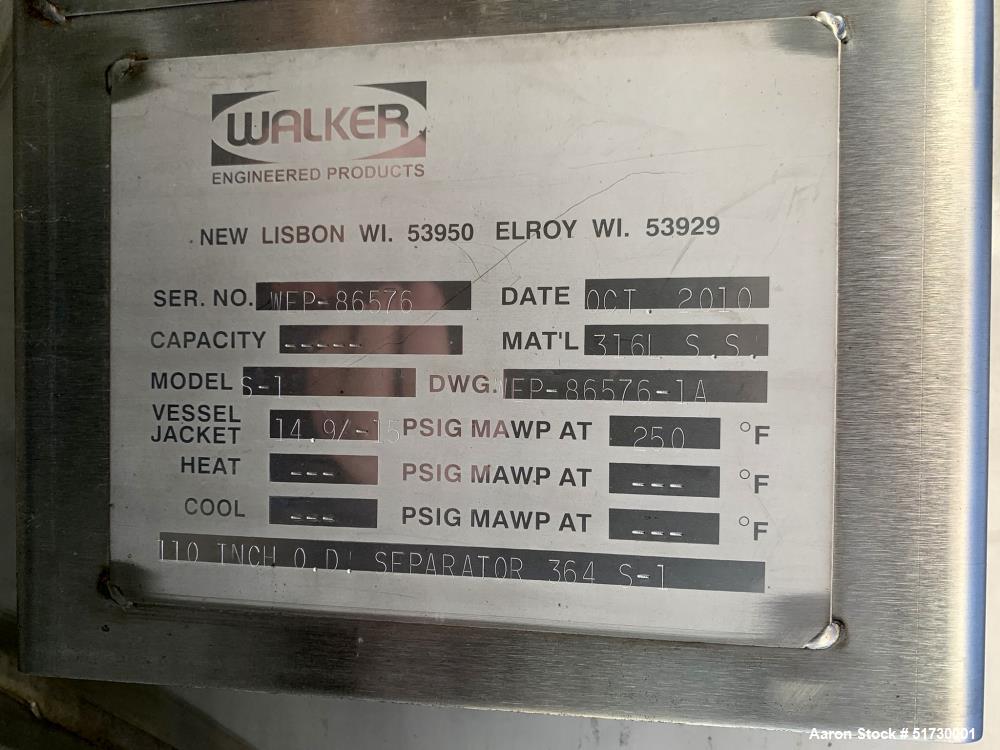

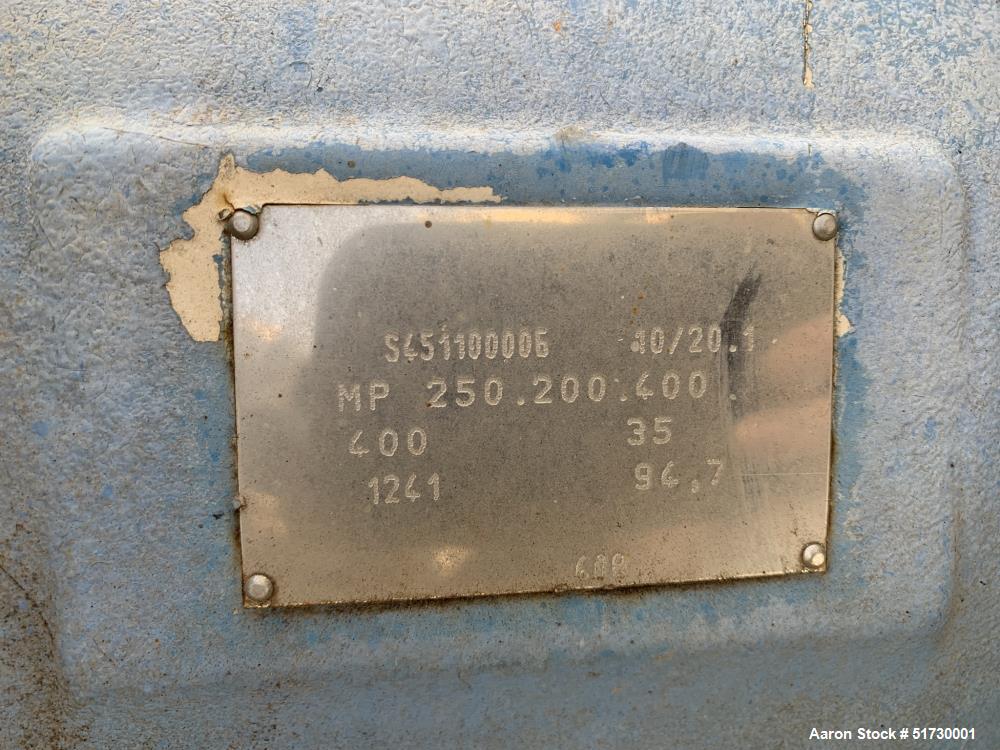

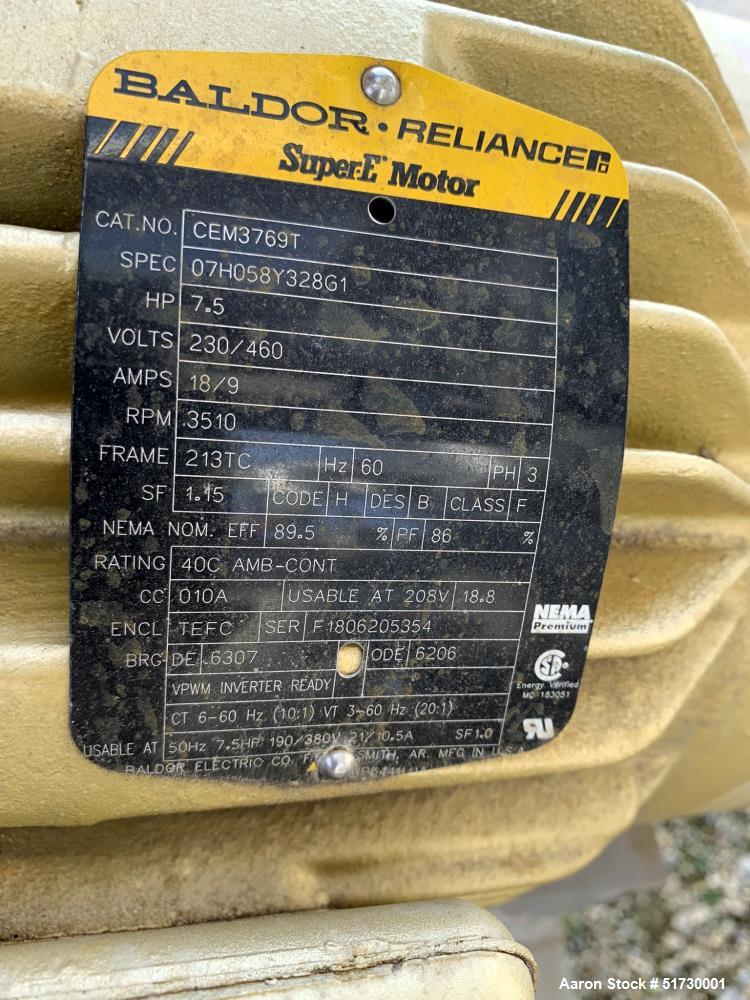

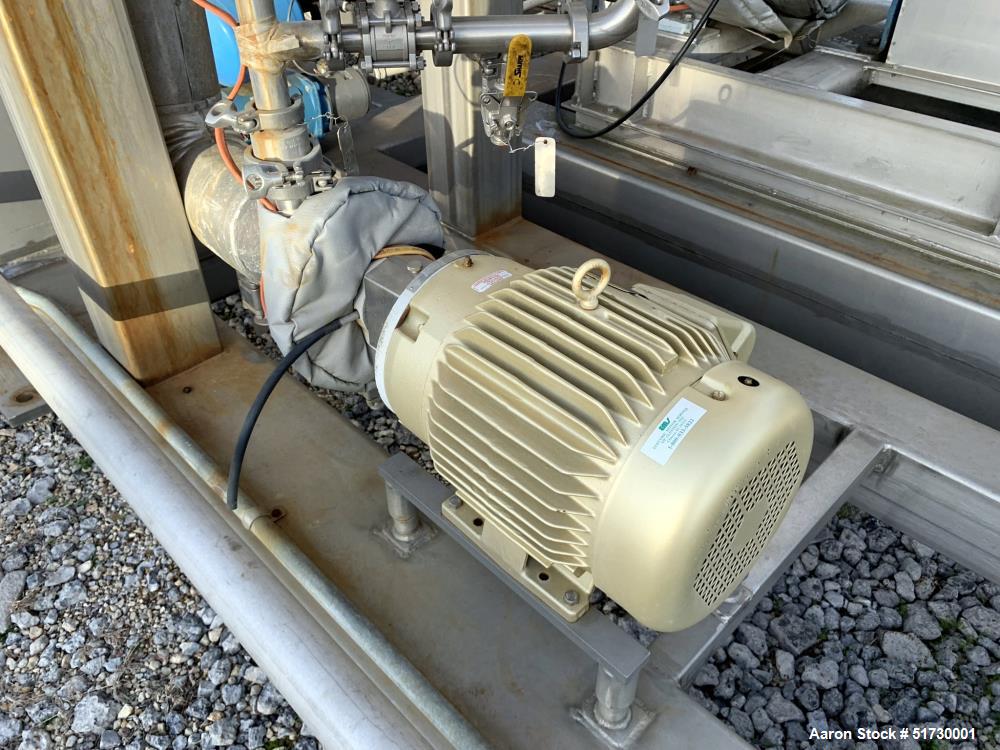

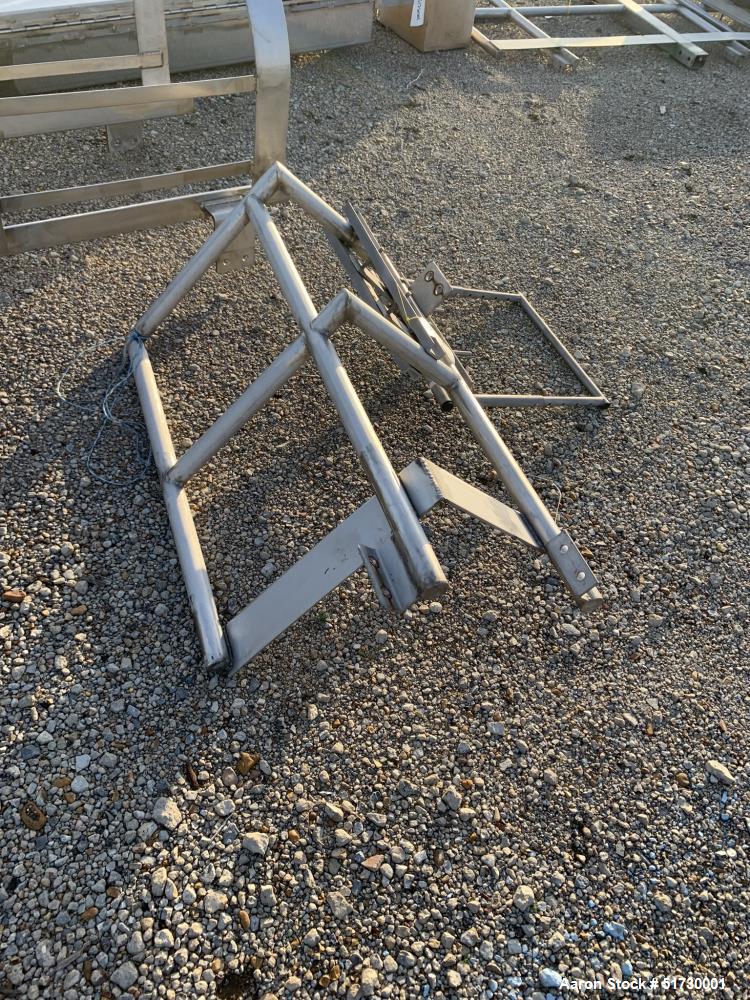

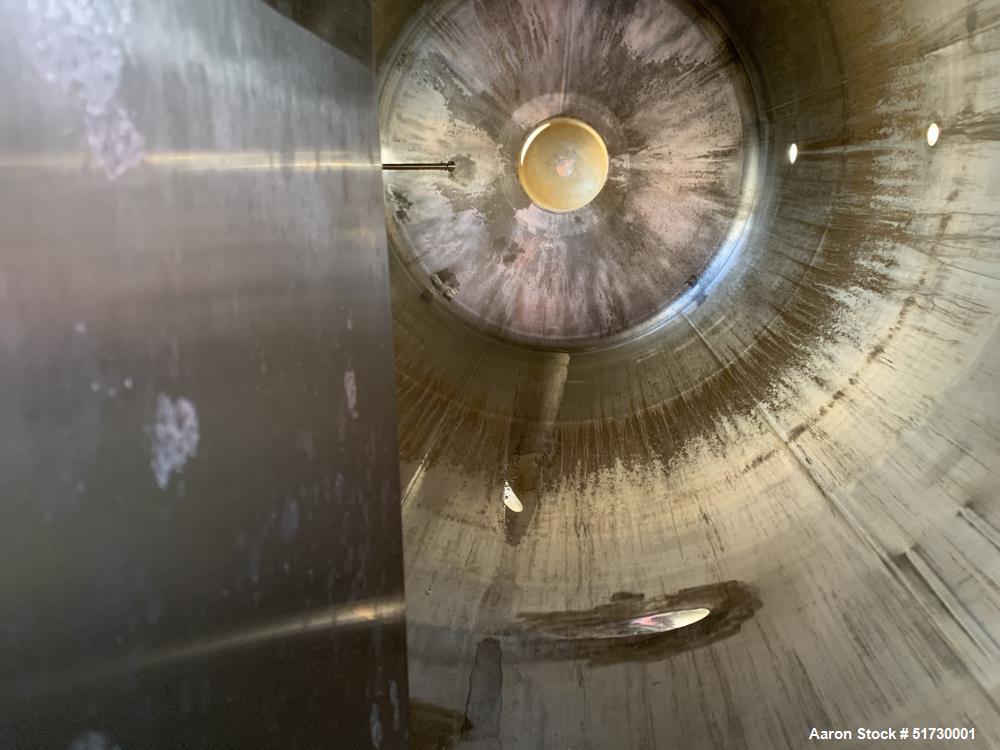

Used- Dedert Flash Evaporator System. Feed rated at 19,192 lb/hr at 20% solids. Flow of concentration rated 10,381 lb/hr at 37% outlet solids. 8,811 lb/hr Water evaporation. System consisting of: (1) Walker vapor separator, 316L stainless steel, 110" diameter x 177" straight side. (1) Alfa Laval plate heat exchanger (PH-1), model MX25-MFG, 4,301 square feet, 316 stainless steel plates. (1) Alfa Laval plate condenser / heat exchanger (SC-1), type AlfaCond 400-FL, 271.3 square feet, 316 stainless steel plates. Pumps: (1) Ensival Moret pump (P-1), model MP250.200.400, driven by a 200hp, 3/60/460 volt, 1190 rpm motor. (1) Fristam pump (P-2A), model FPX-722-140, driven by a 15hp, 3/208-230/460 volt, 3450 rpm motor. (1) Seepex progressive cavity pump (P-2B), model BN 30-6LT, driven by a 7.5hp, 3/60/230/460 volt, 1770 rpm motor. (1) Fristam steam condensate pump (P-3), model FPR722-140, driven by 7.5hp, 3/60/230/460 volt, 3510 rpm motor. (1) Fristam process condensate pump (P-4), driven by 7.5hp, 3/60/208-230/460 volt, 3450 rpm motor. Vacuum system with separator drum and Sihi 3hp vacuum pump. Misc valves, framing and instruments. Year 2010.
