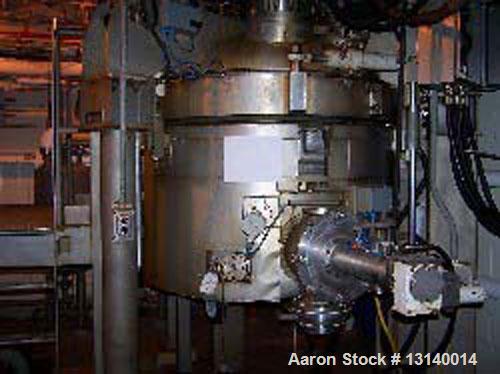

Used- Cogeim Hastelloy Pan Dryer, Model D-571

Used- Cogeim hastelloy pan dryer model D-571. Total Volume 1550 liters/410 gallons capacity. Total surface area 73 Sq. ft./6.78 Sq. m. (Shell surface area 37.13 Sq ft/3.45 Sq. m.). Type EV1500. Contact parts hastelloy SB-575 N06022, High. Rated 22.00 PSI/Full Vacuum at 350 Degrees F. Jacket rated 116 PSI at 350 Degrees F. Half pipe coil jacket movable bottom with bayonet ring. Heated agitator, dry mechanical seal, lumpbreaker. Hydraulic power pack includes hydraulic motor, gearbox for discharge hatch, hydraulic cylinders for movable bottom and bayonet ring, hydraulic motors for agitation and lumpbreaker device. Serial # 812. National Board # 80. Built 1994 with electro-polished interior.
