Used- Tehnologiskas Lekartas Apraksts Horizontal Rotary Hot Air Dryer

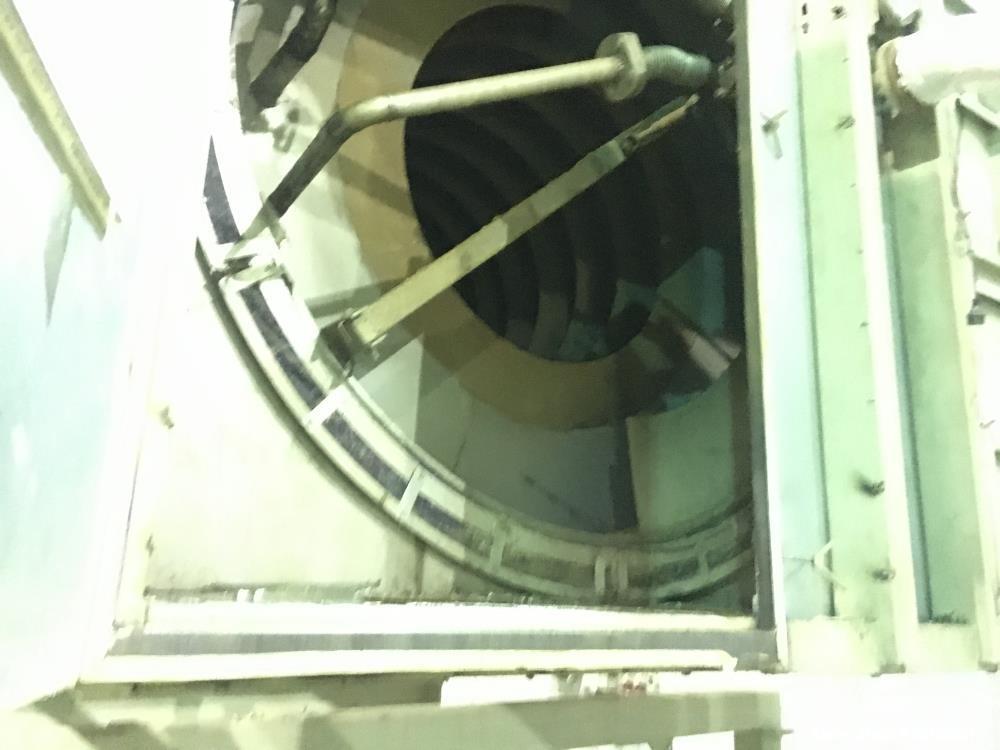

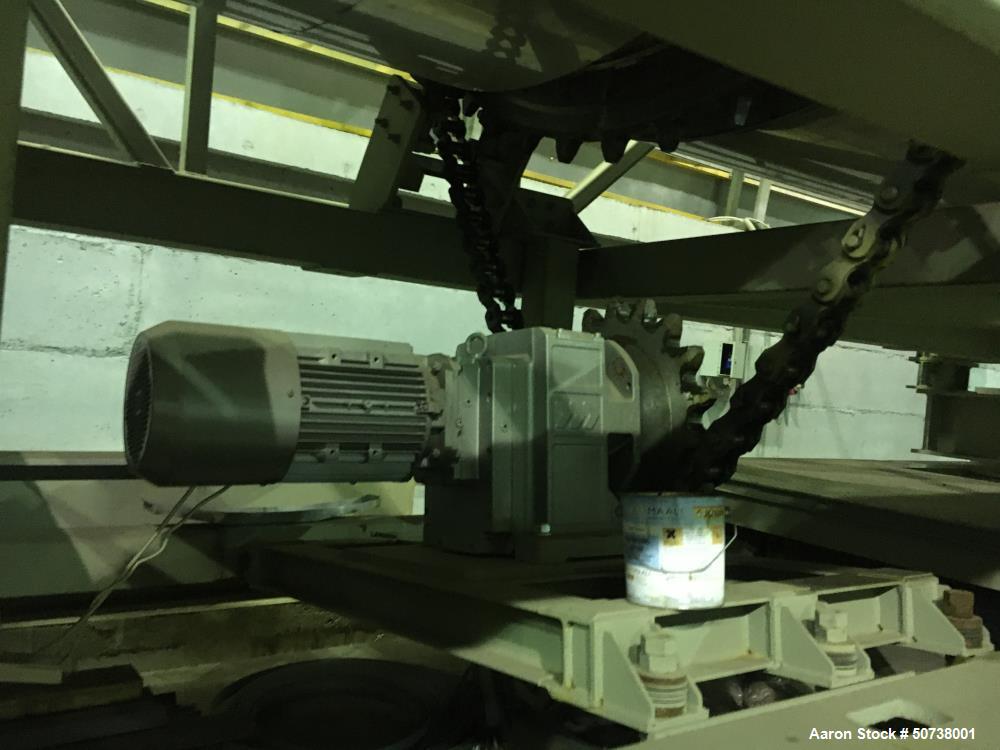

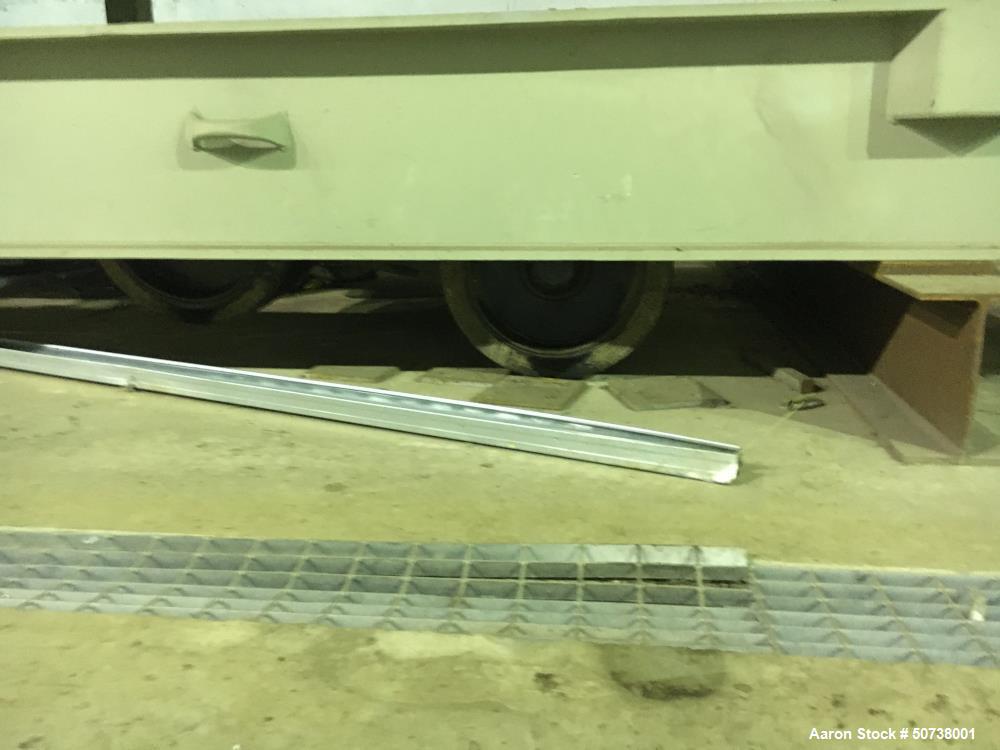

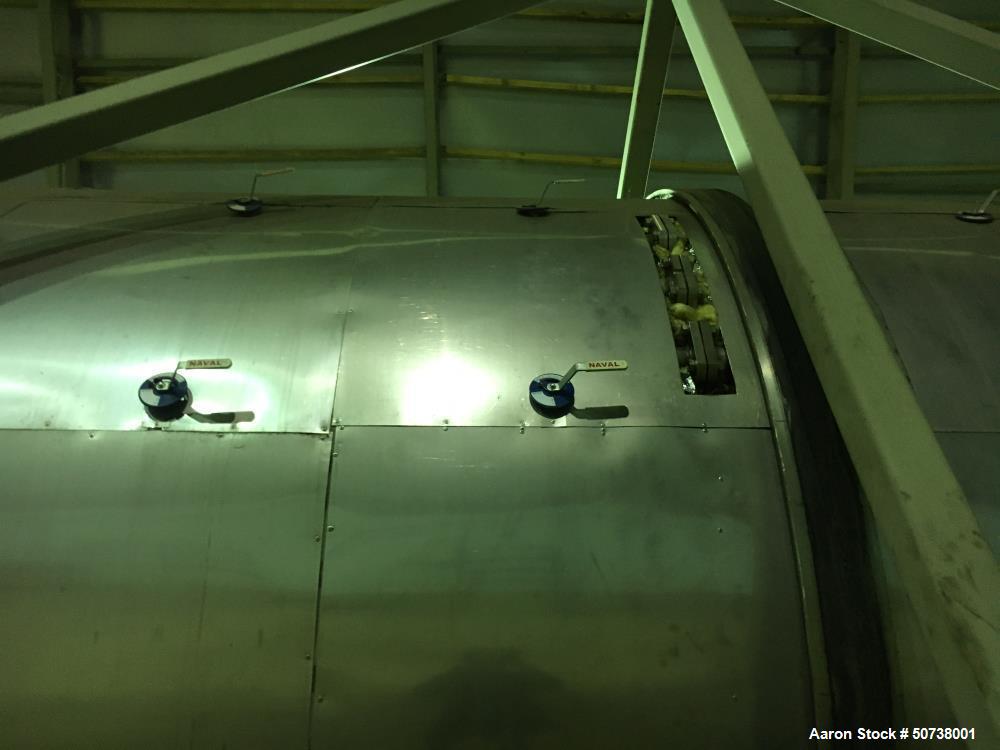

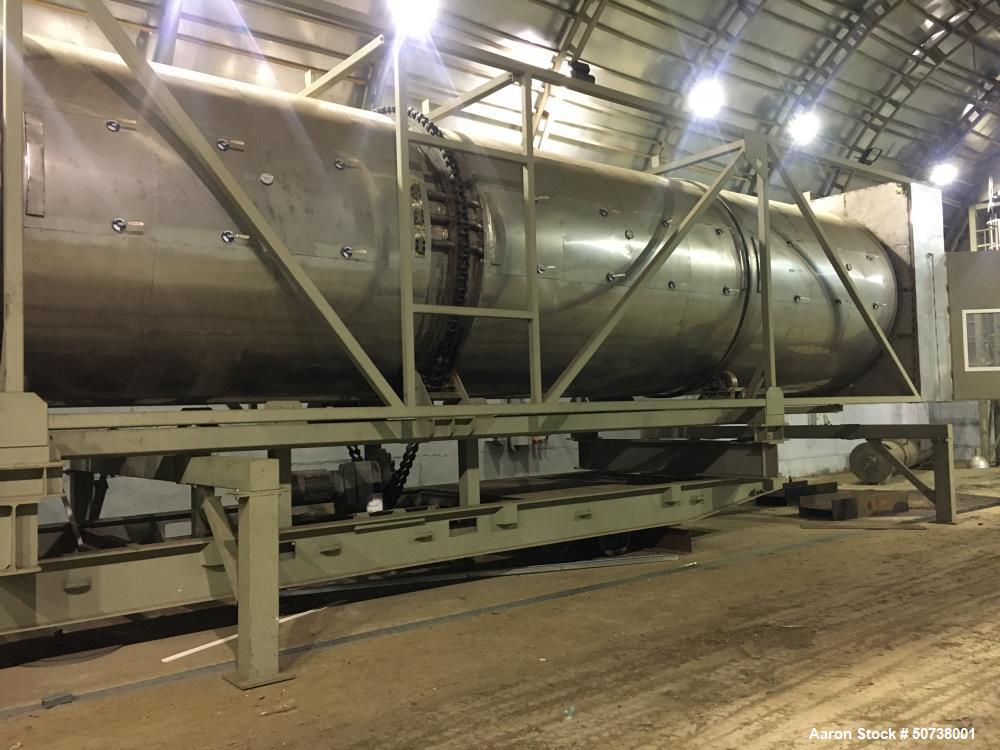

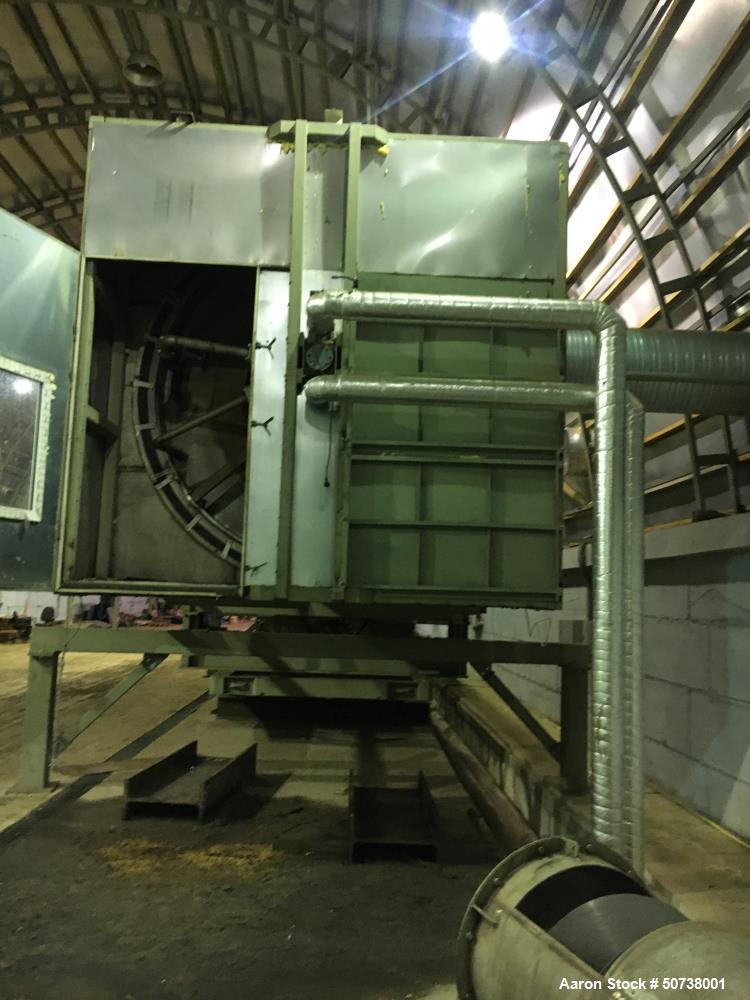

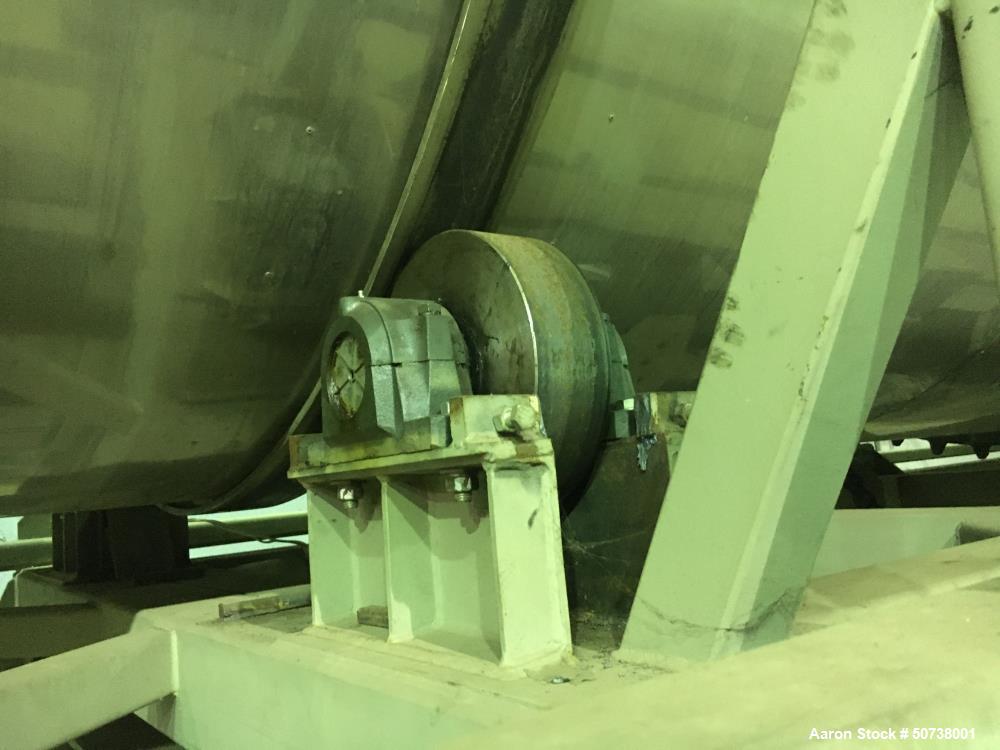

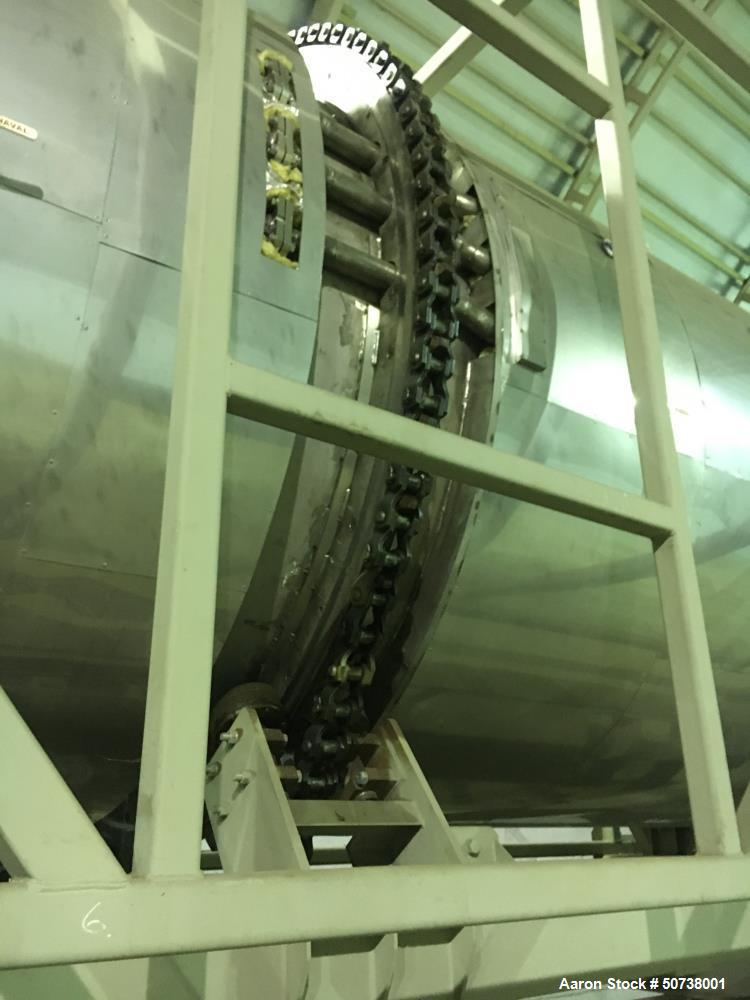

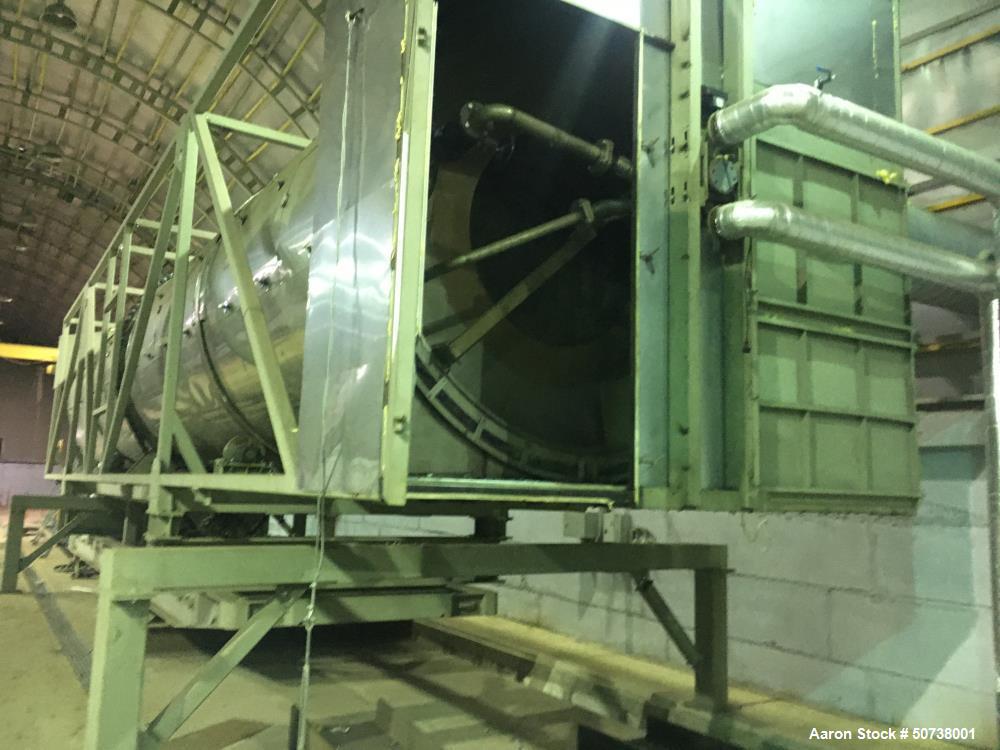

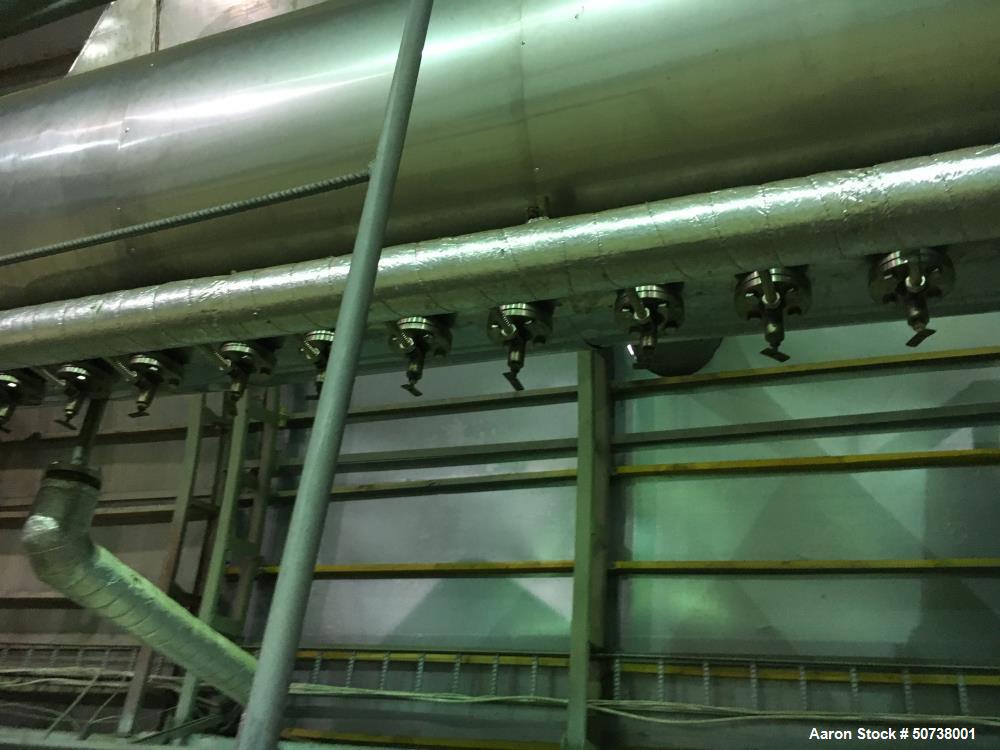

Used- Tehnologiskas Lekartas Apraksts Horizontal Rotary Hot Air Dryer, Type 103/VWP/003-E1 with a capacity of 10 tonnes. 999.41 cubic foot(28.6m3). 88" (2700 mm) diameter x 52 (16000 mm) long rolling drying chamber. Material of construction is 304 Stainless Steel on product contact parts. 1.17" (30 mm) pockets for thermal oil heating. Design temp. 365 degree F (185 degree C), operating temperature 320 degree F (160 degree C). Atmospheric operating pressure. 11.7" diameter (300 mm) product screw inlet. 31.2" (800 mm) diameter open gravity product outlet. 4 drive rolls, Chain driven via a gearbox by a 11 Kw-16.5HP/KW-380volt/50cycle/3Ph motor. Frame mounted on legs. Includes additional piping, valves and infrastructure. Overall dimensions dryer frame only: 112" (3450 mm) x 11 (3390 mm) x 52 (16000 mm) long. Weight 32 tonnes. New year 2012. Previously used on Biomass.
