Used- Stainless Steel Calmic Euro-Vent, Model 100

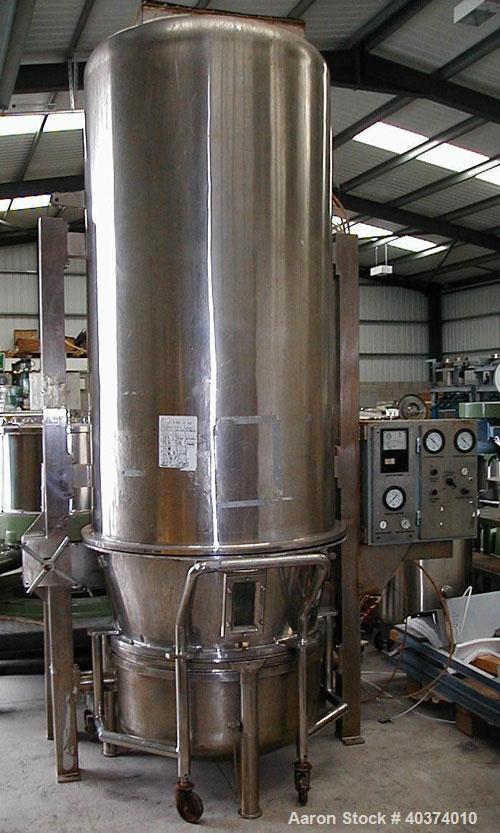

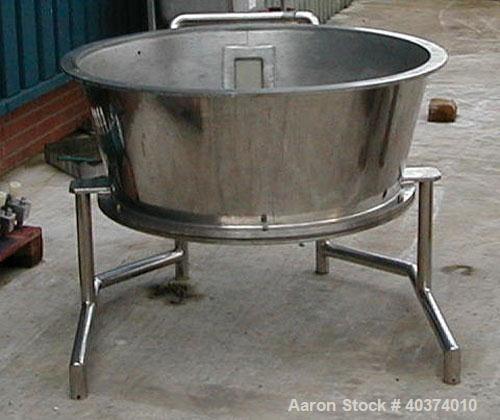

Used-Calmic Euro-Vent Model 100, 316 grade stainless steel batch fluid bed dryer. Nominal batch loading 220 lbs (100 kg). One off all stainless steel mobile batch drying bowl 42.9" (1100 mm) diameter at the top, 35.7" (915 mm) diameter at the base x 17.55" (450 mm) deep. Push/pull handle, side viewing glass and four off castoring wheels. Three off pneumatic rams hold the product bowl in between the bottom diffuser and the filter bag housing. Filter bag top housing is 42.9" (1100 mm) diameter with rectangular explosion relief vent in top. Overall height from floor is 128.7" (3300 mm). Hand wheel operation to raise and lower the filter bag support ring. Integral side mounted control panel. 3/50/415V.
