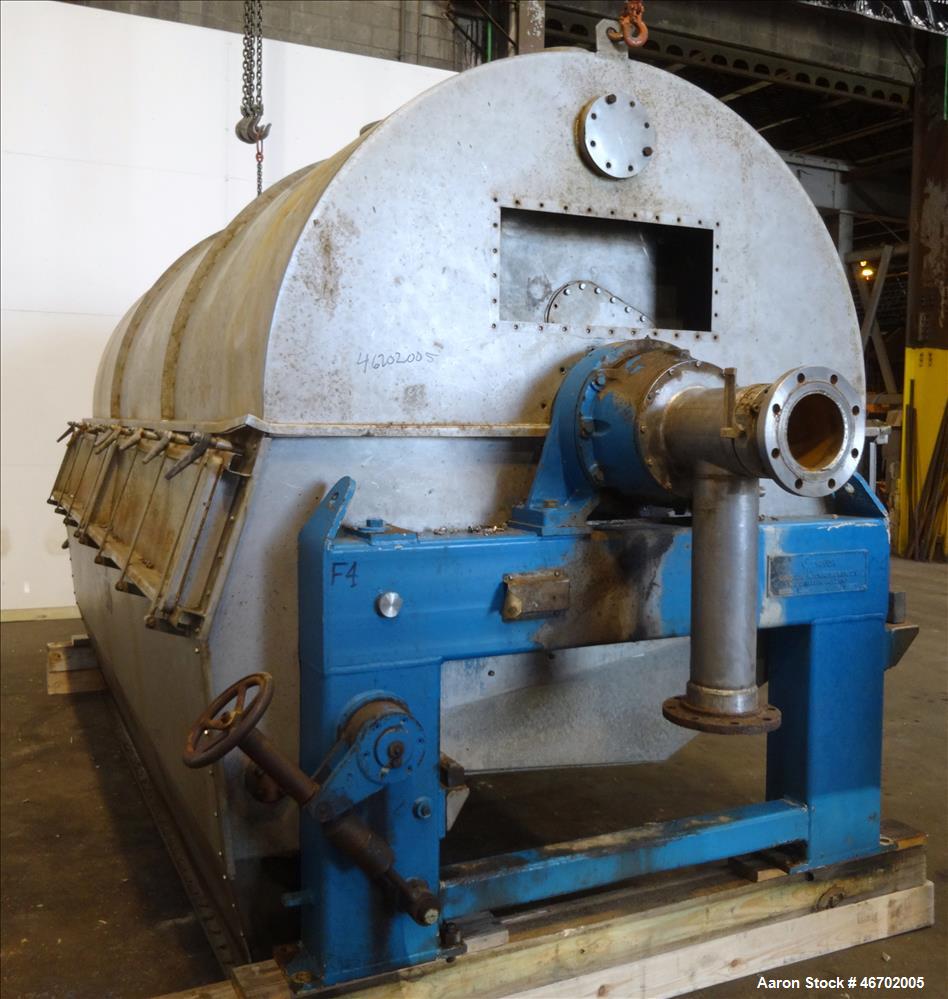

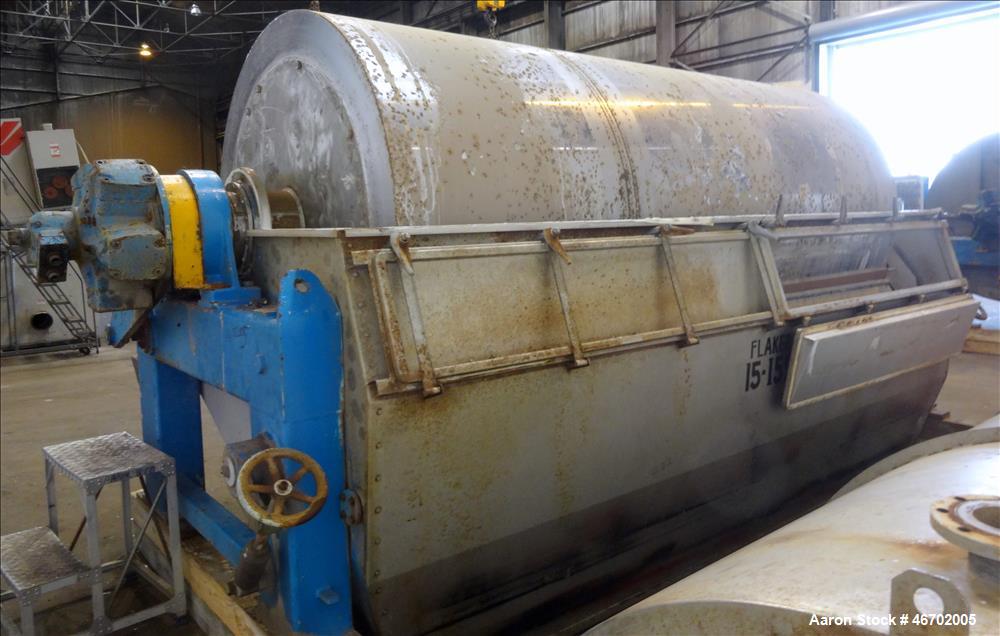

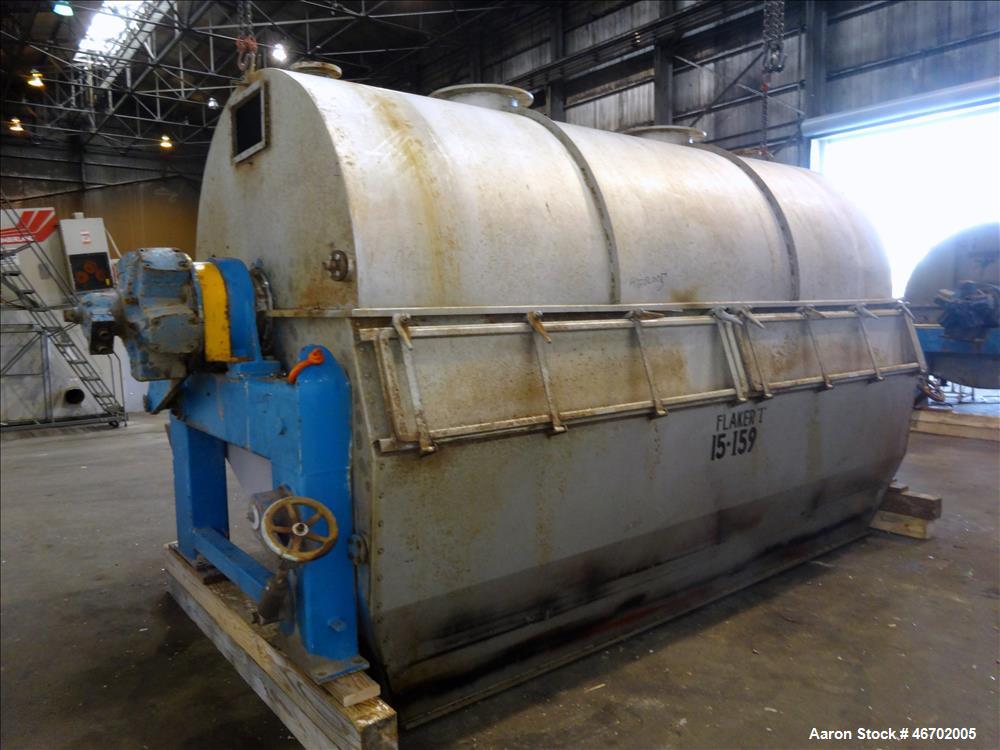

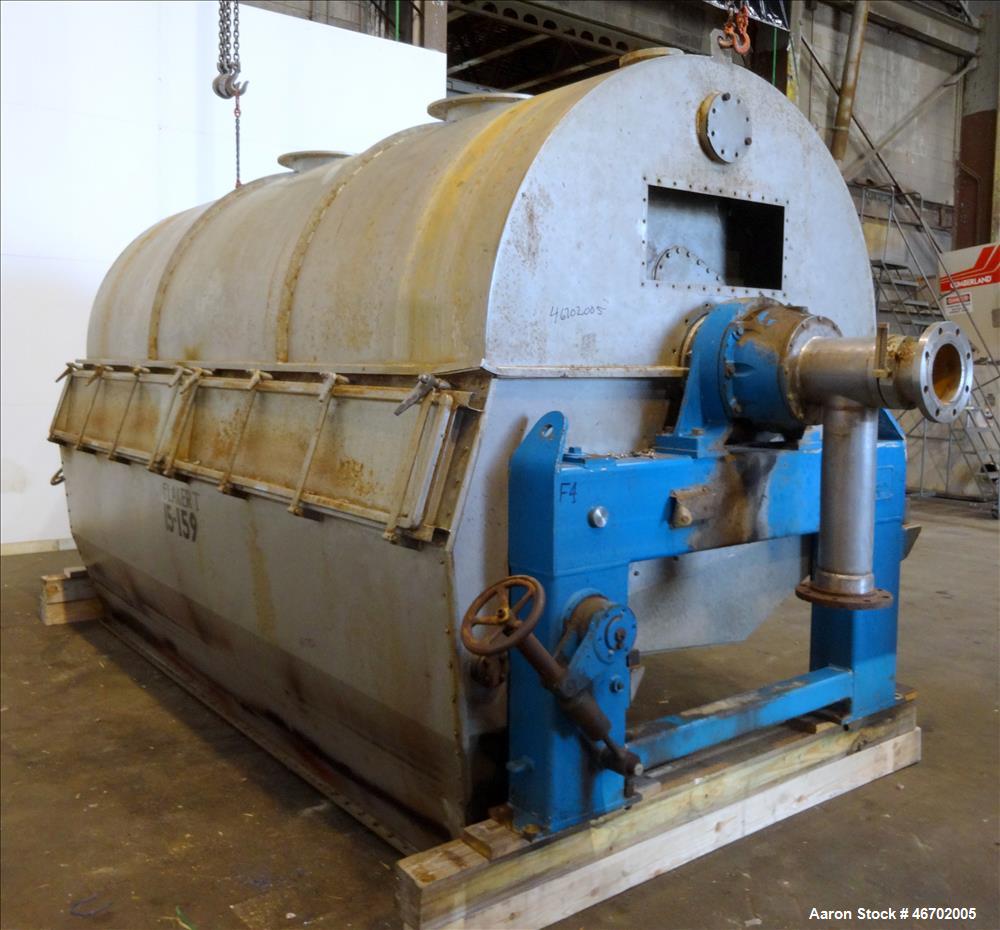

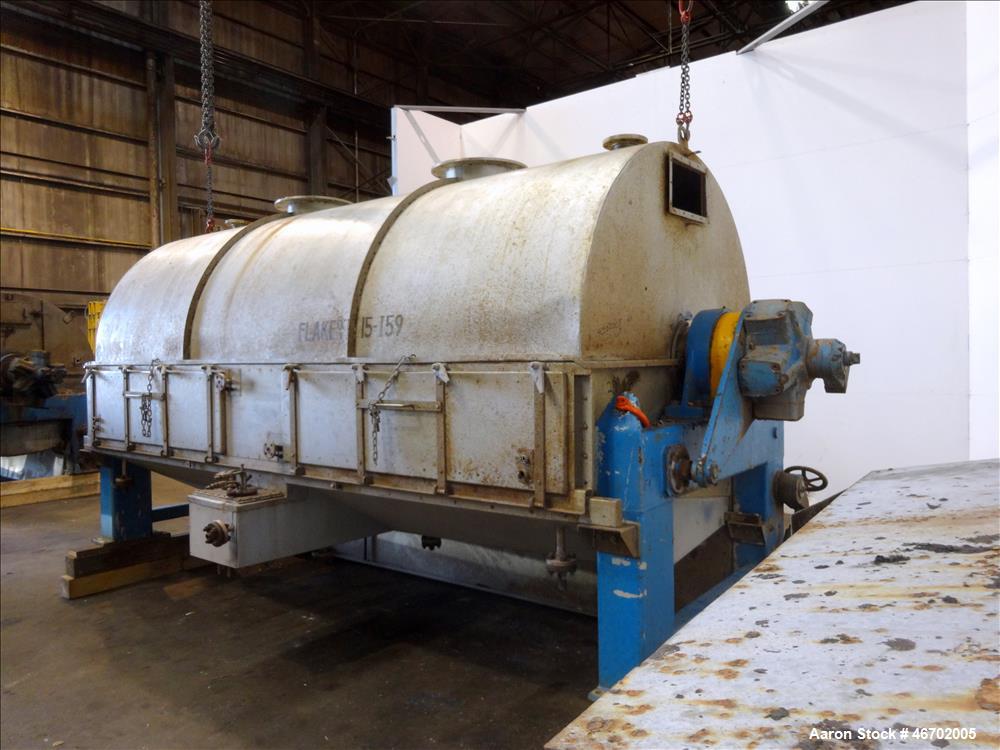

Used- GMF Gouda Single Drum K Flaker, Type K17.5/36, 304 Stainless Steel.

Stock# 46702005

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 46702005

HAVE A SIMILAR MACHINE FOR SALE?

DESCRIPTION

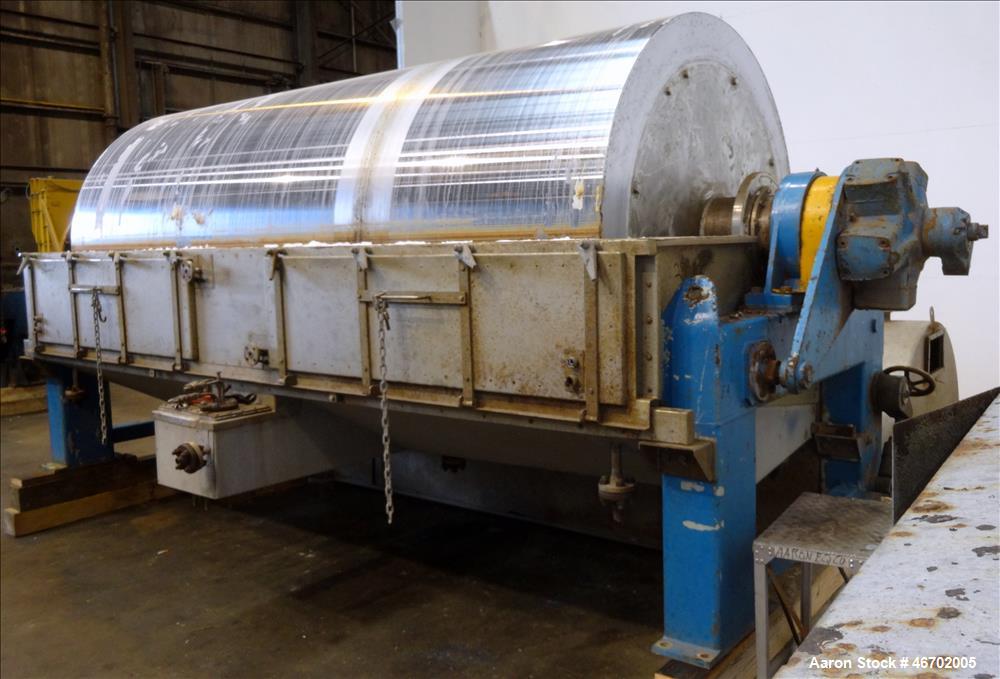

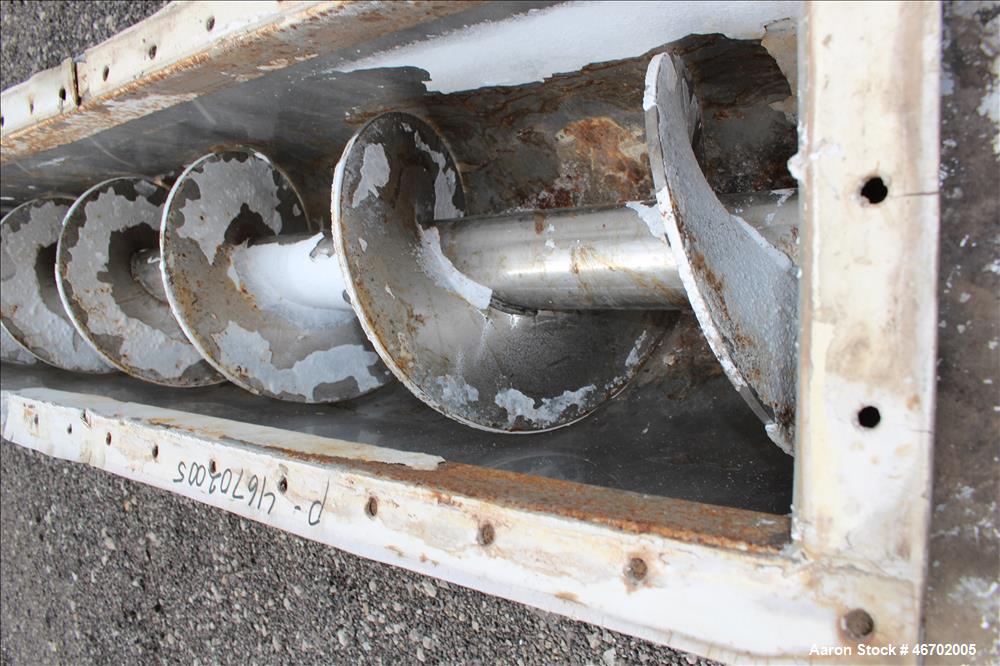

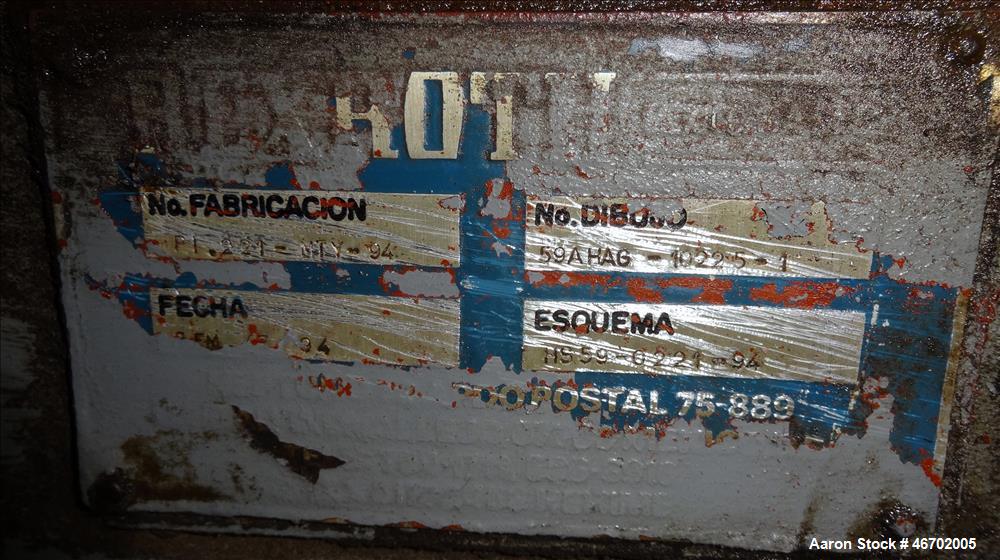

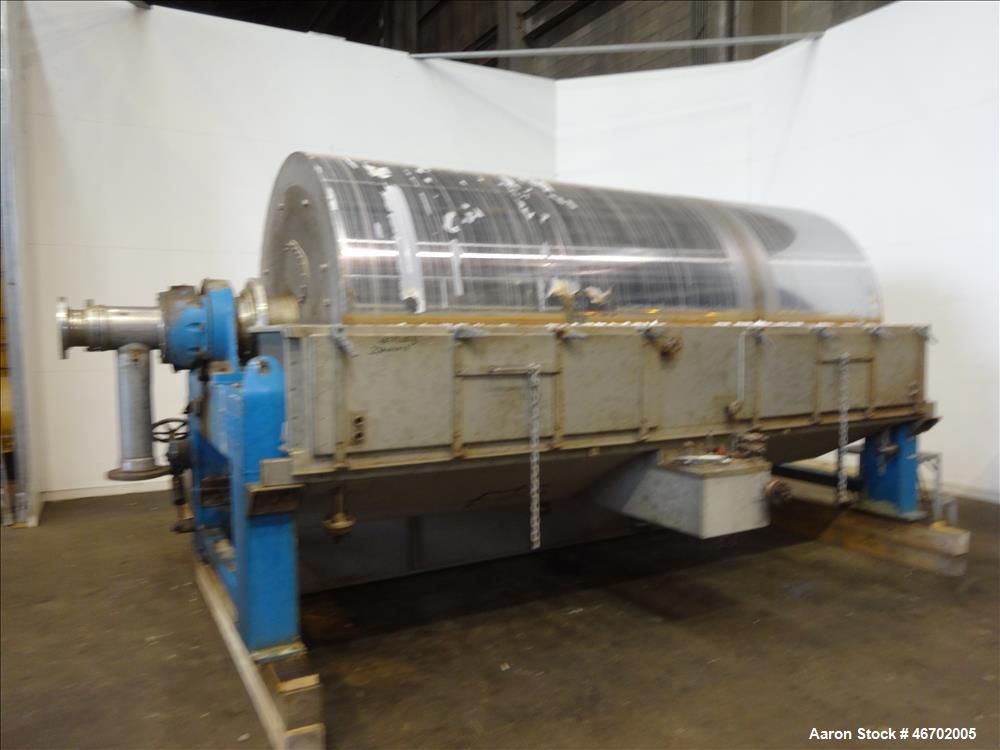

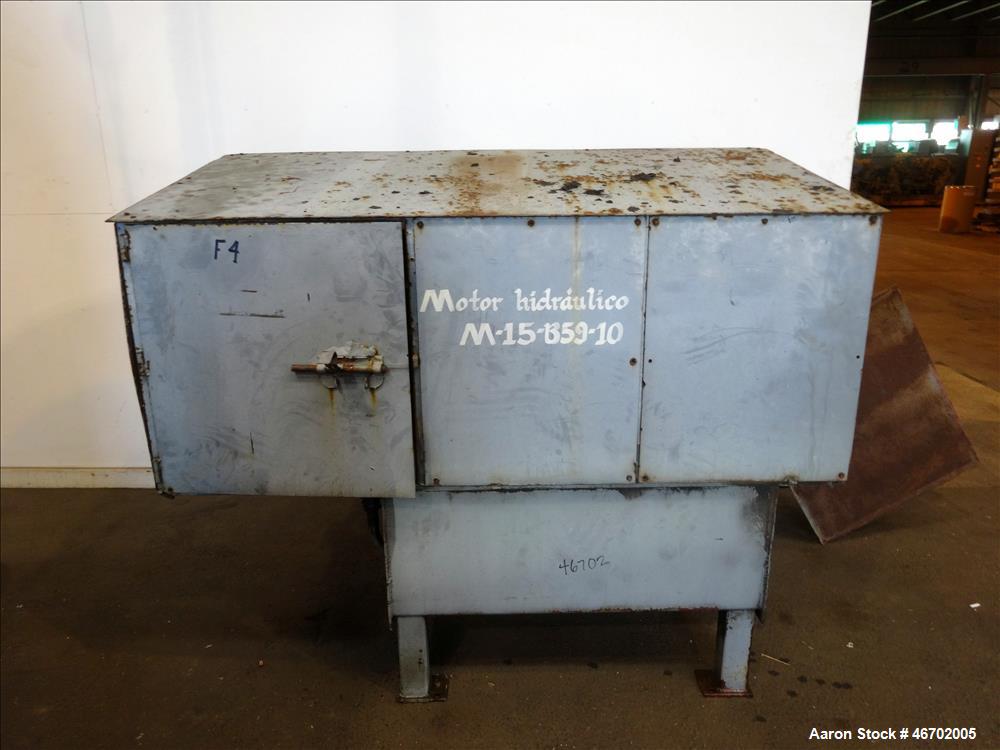

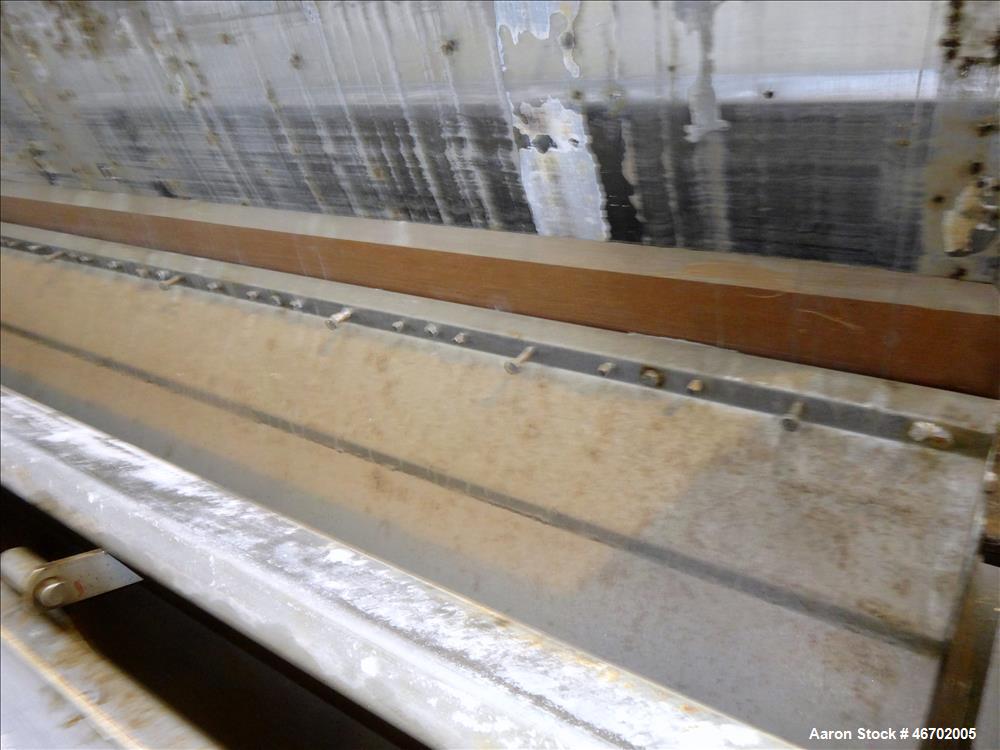

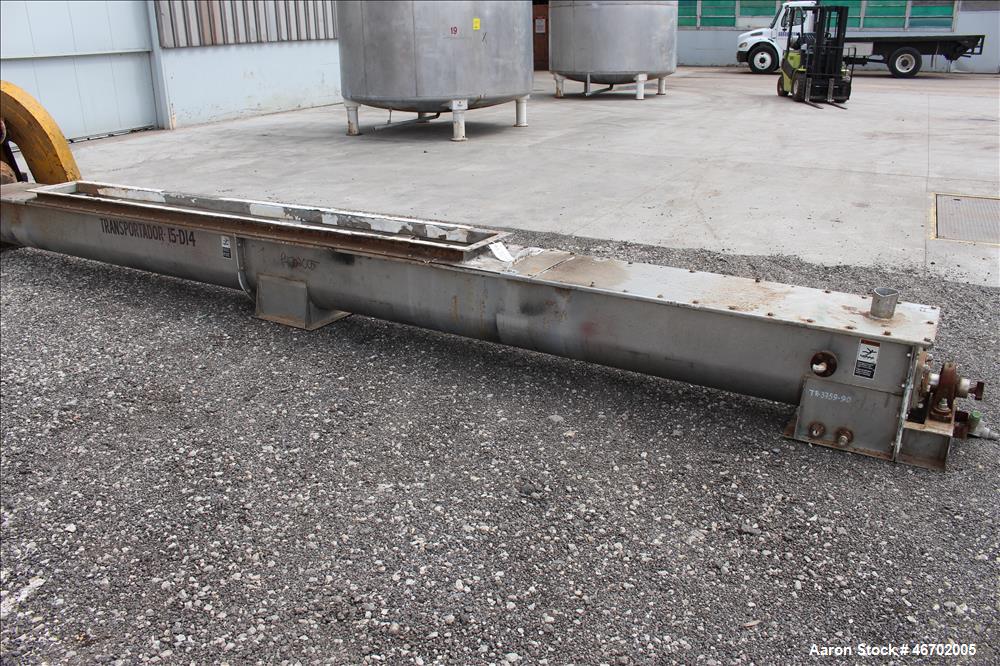

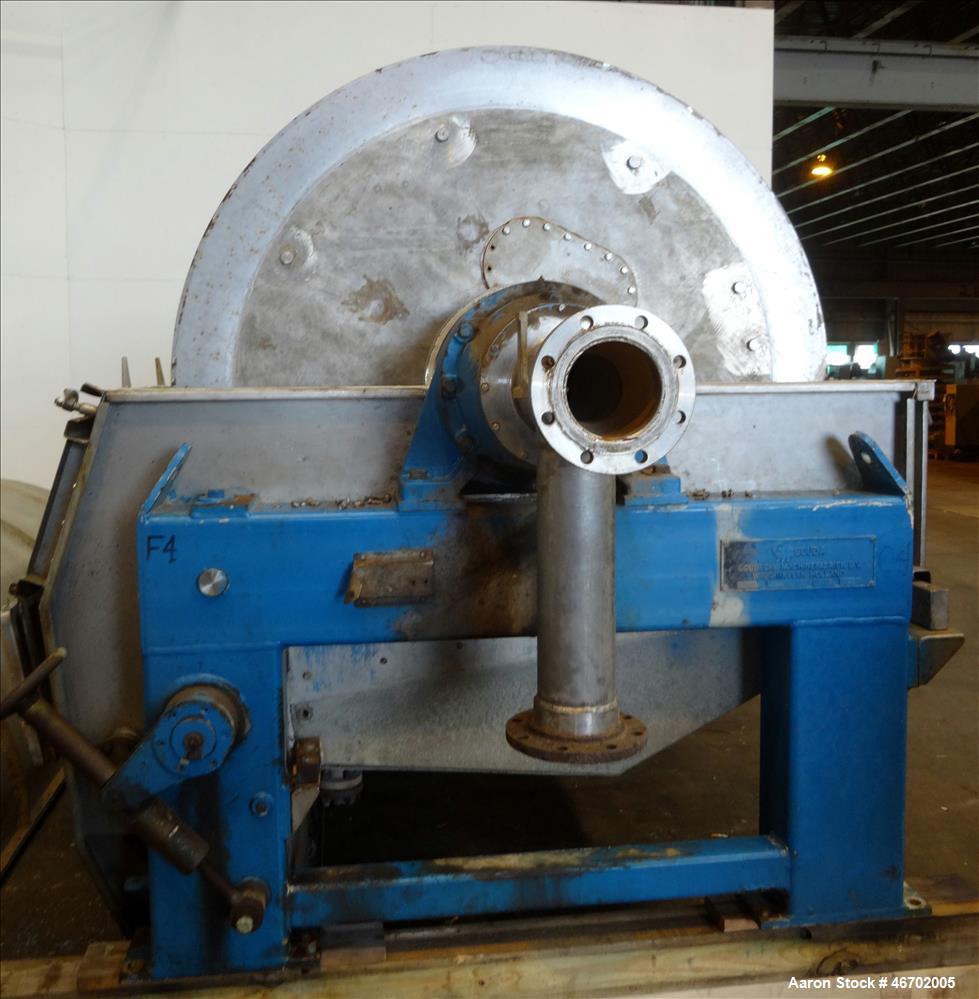

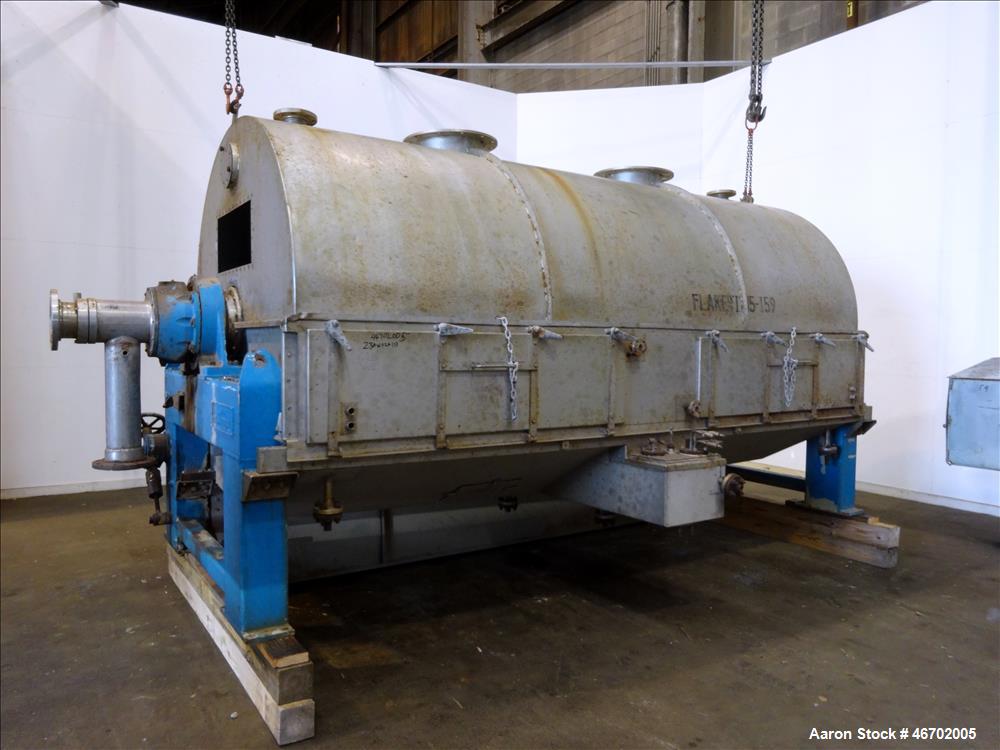

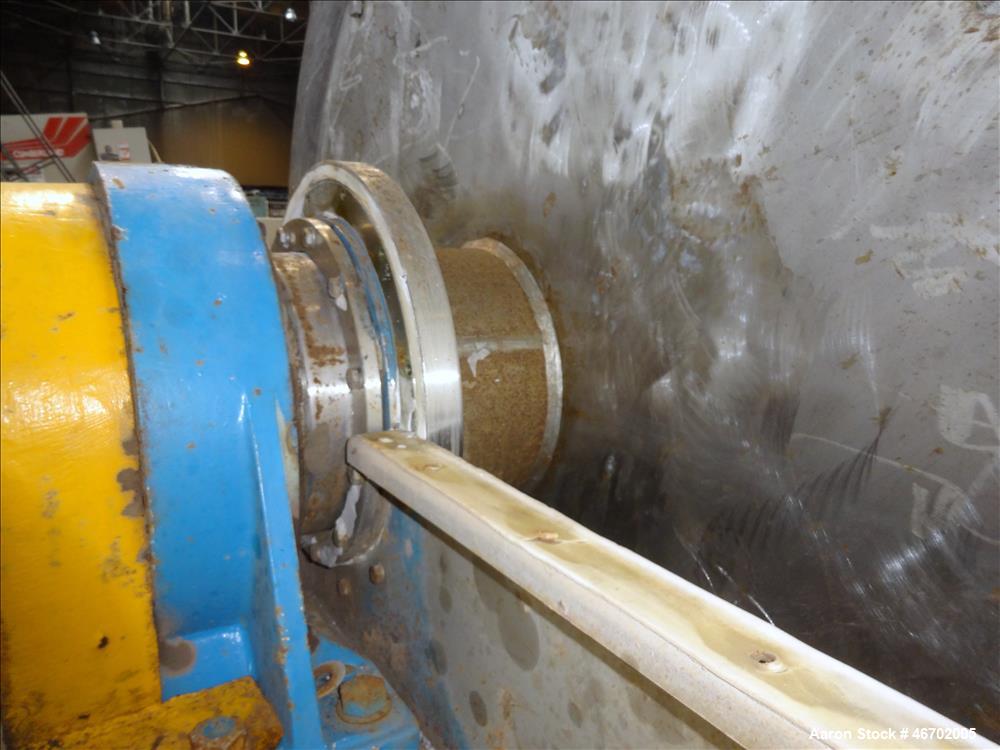

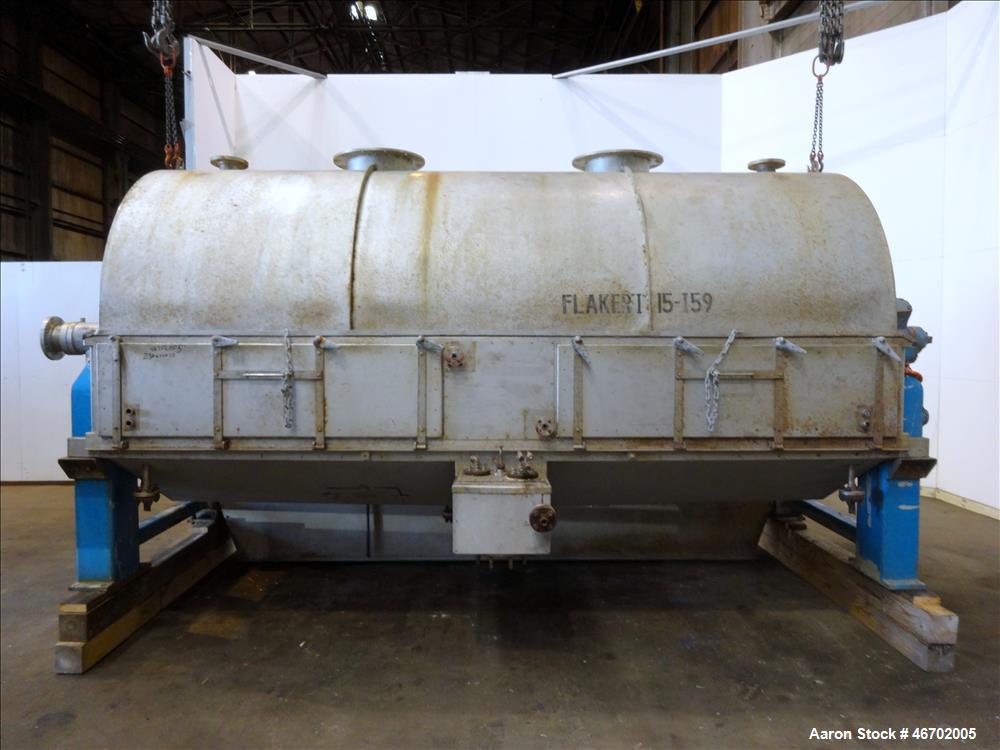

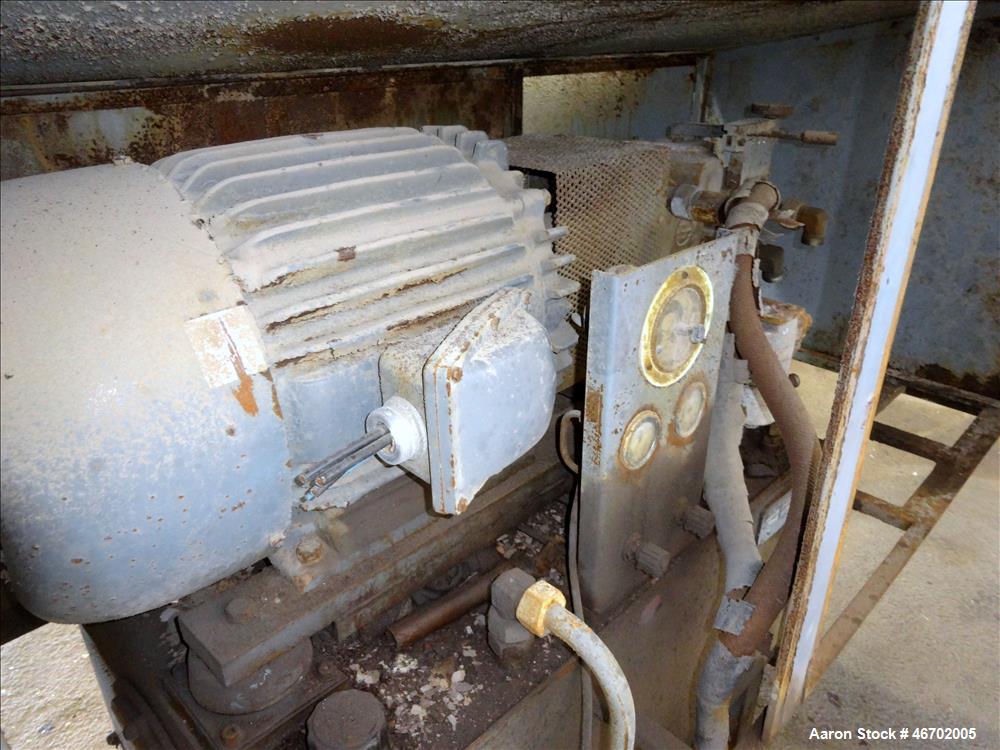

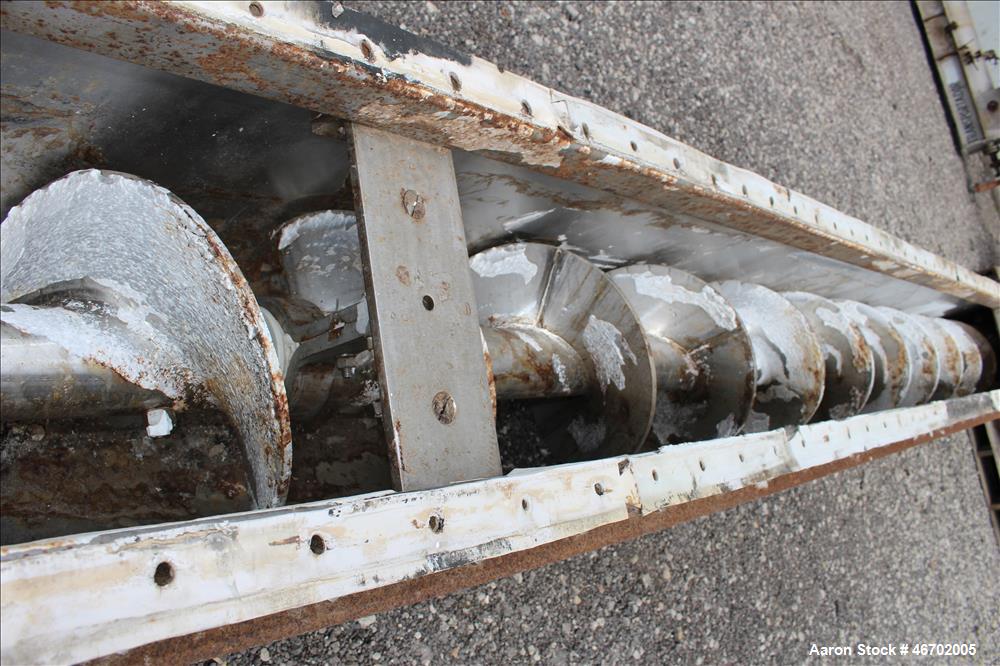

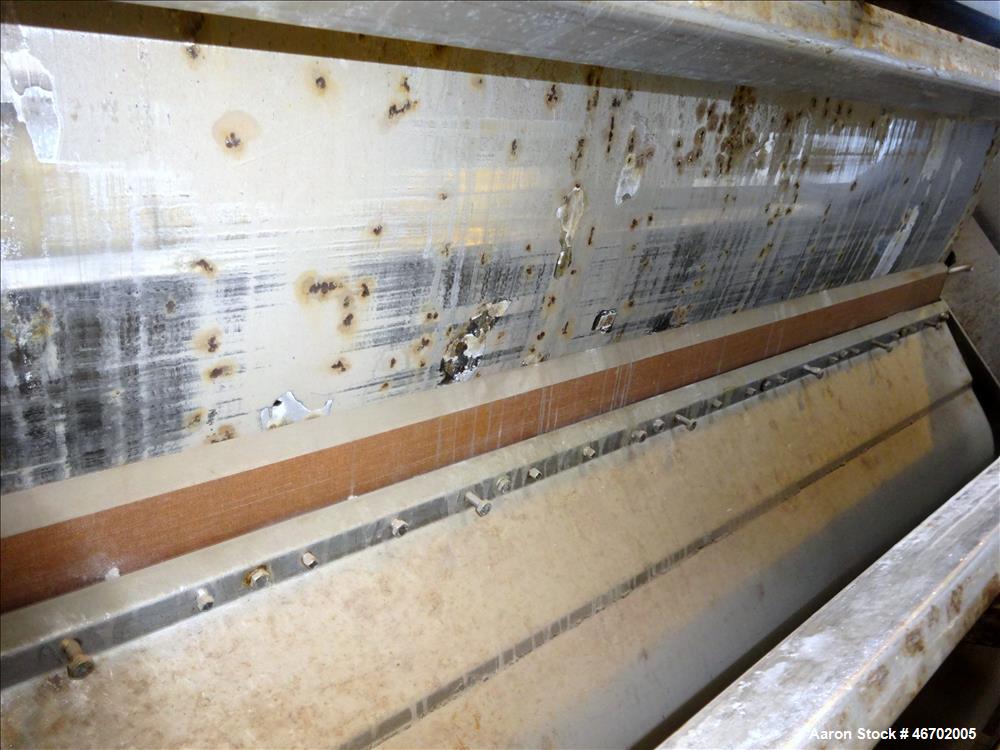

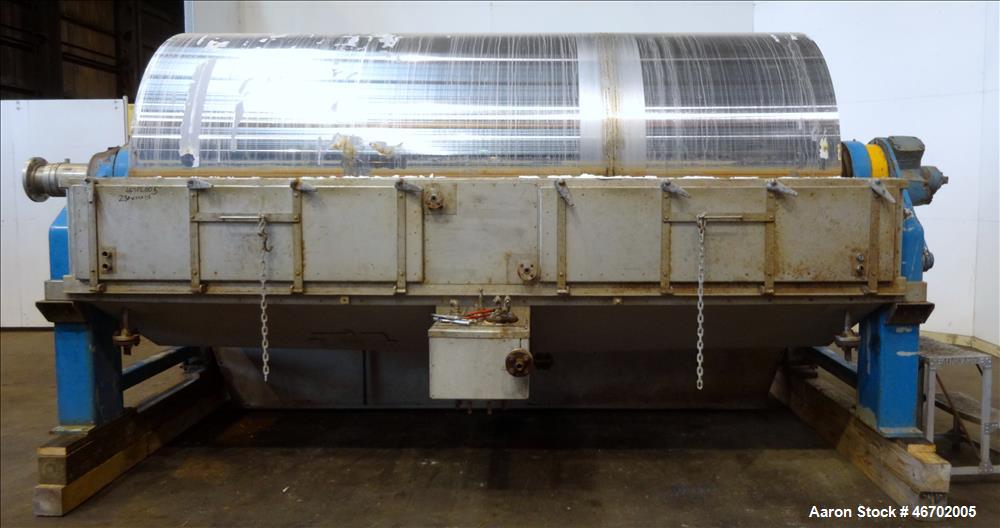

Used- GMF Gouda Single Drum K Flaker, Type K17.5/36, Approximate Cooling Surface 215 Square Feet. Approximately 68.90" (1750mm) Diameter x 141.7323" (3600mm) face cored chrome plated carbon steel drum. Includes (1) knife scraper with blade, end drum scrapers, manually adjustable. Hydraulically driven by a approximate 30 hp, 3/60/230/460 volt, 1160 rpm motor, Rexroth Hydraulic unit. Bolt-on top fume hood with (2) 16", (2) 4" openings. Jacketed 304 stainless steel trough with (4) side access doors. Mounted on a carbon steel frame. Includes discharge conveyor, approximate trough 258" long x 15" wide x 16" deep, 14" diameter x 256" long screw on 4" diameter shaft. Machine # K:186/101R DS 176, Built 1994.

COVID-19 Special Equipment Financing

CIT offers a variety of programs including no payments for 90 days and a cash loan in adding to any equipment financing.

LEARN MORE APPLY NOW

SPECIFICATIONS

Manufacturer	GMF Gouda
Model	K17.5/36

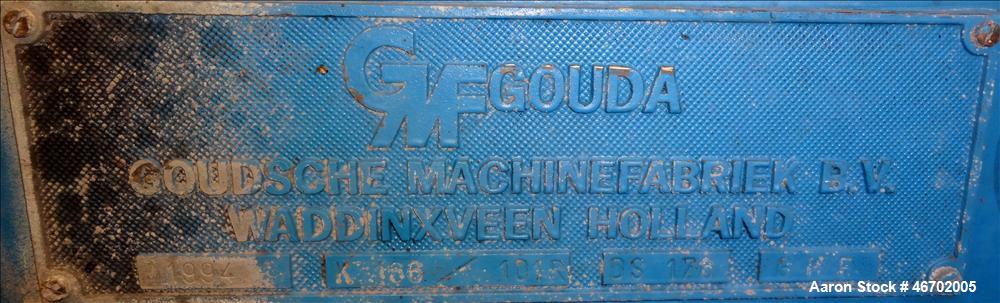

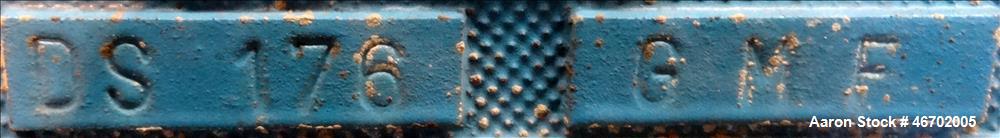

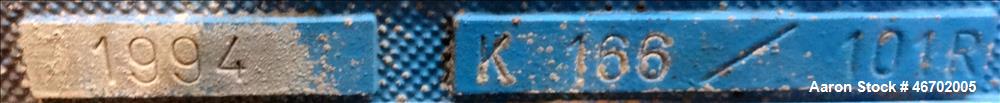

Serial #	K:186/101R DS 176
Category	Dryers - Drying EquipmentDryers - Drying Equipment
Subcategory	Drum DryersDrum Dryers
Diameter	68.9"
Roll Length	141.7323"
Drum Material	Chrome Plated Carbon Steel
Number of Scraper Blades	3
With Fume Hood	Yes
With Screw Conveyor	Yes
Mounted	Carbon Steel Frame
Overal Dimensions	230"L X 112"W X 110"T
Year Built	1994
