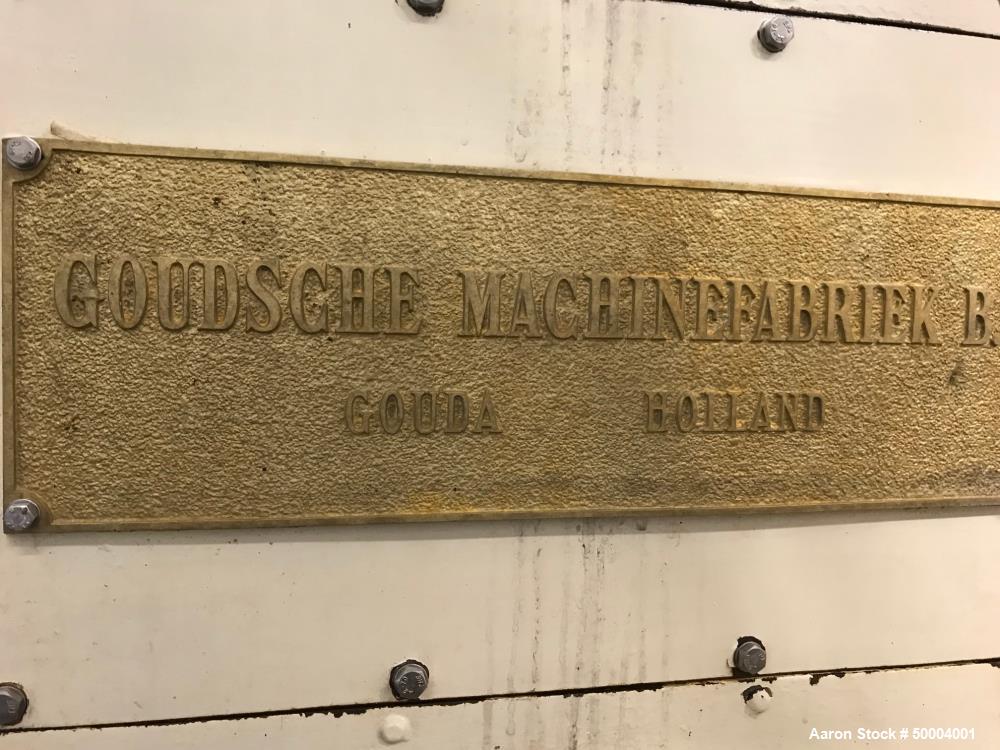

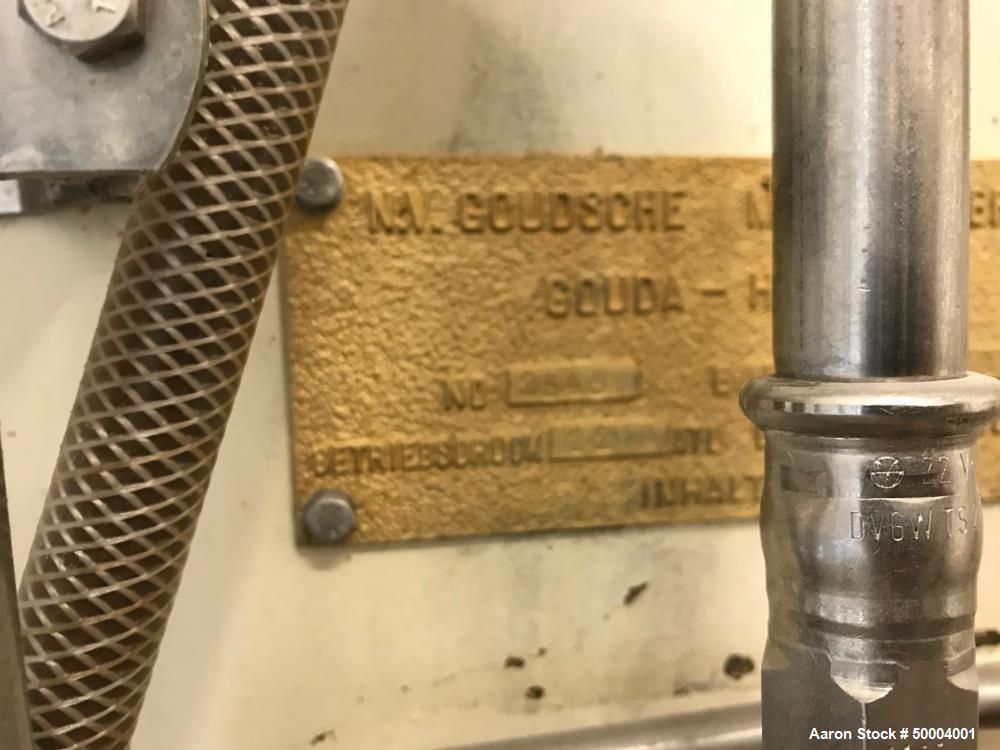

Used GMF-Goudsche Mashinefabriek B.V. single drum dryer

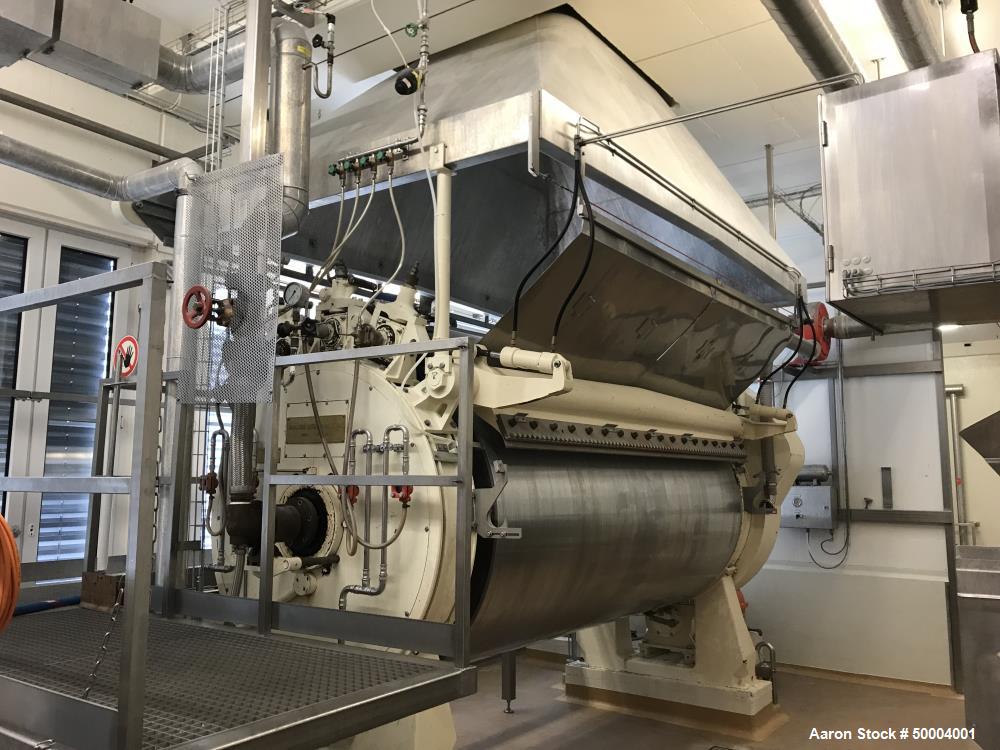

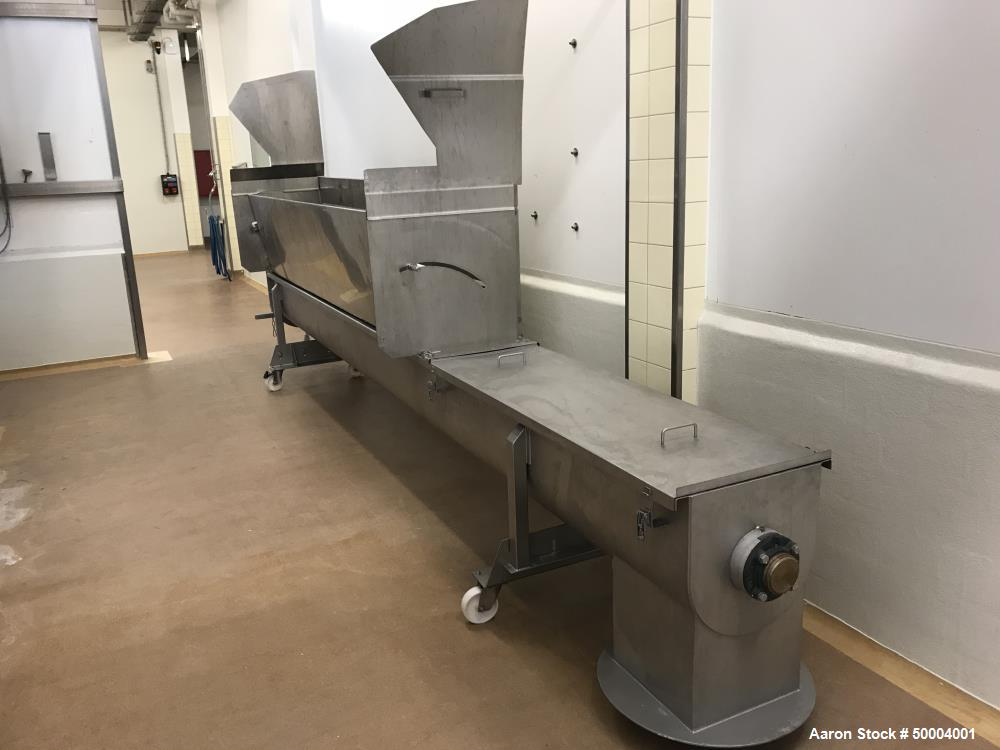

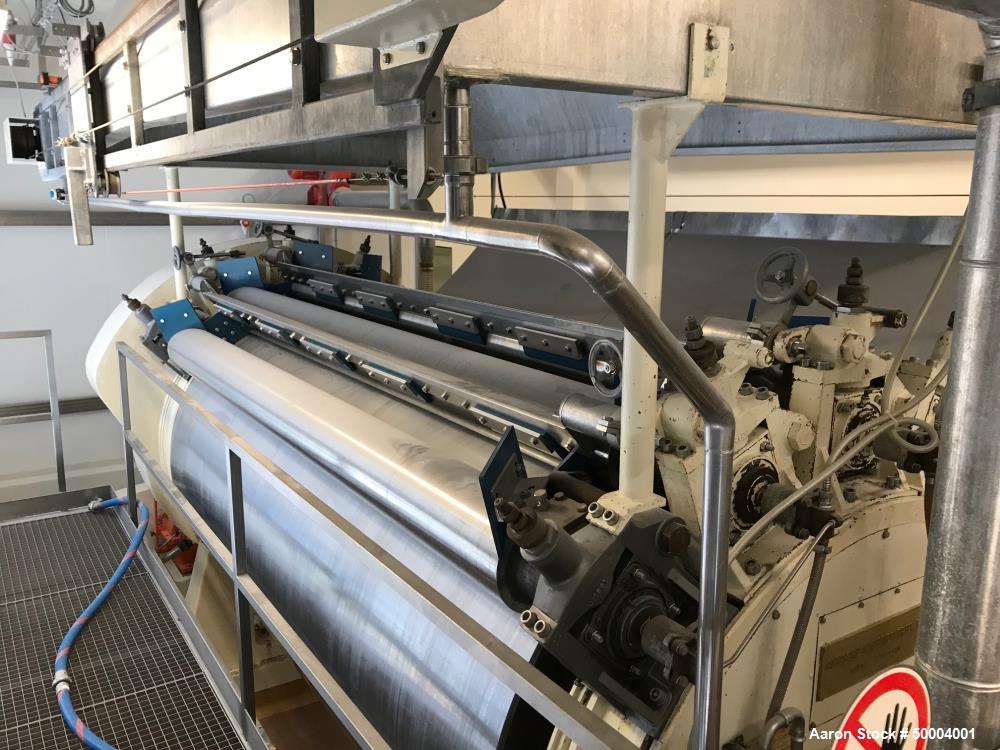

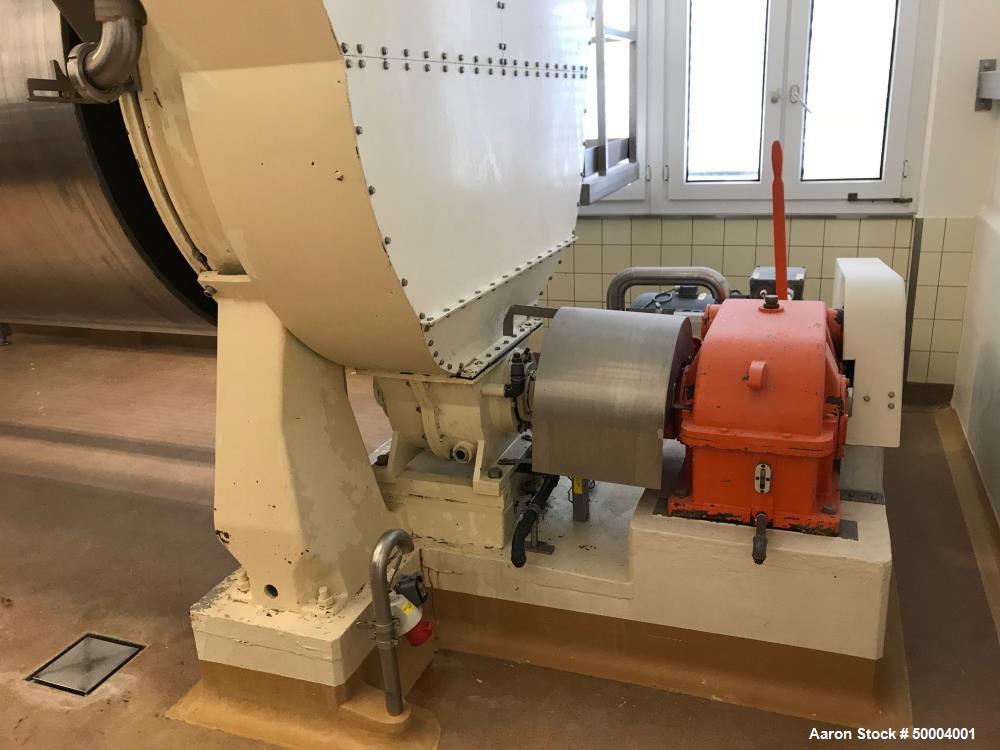

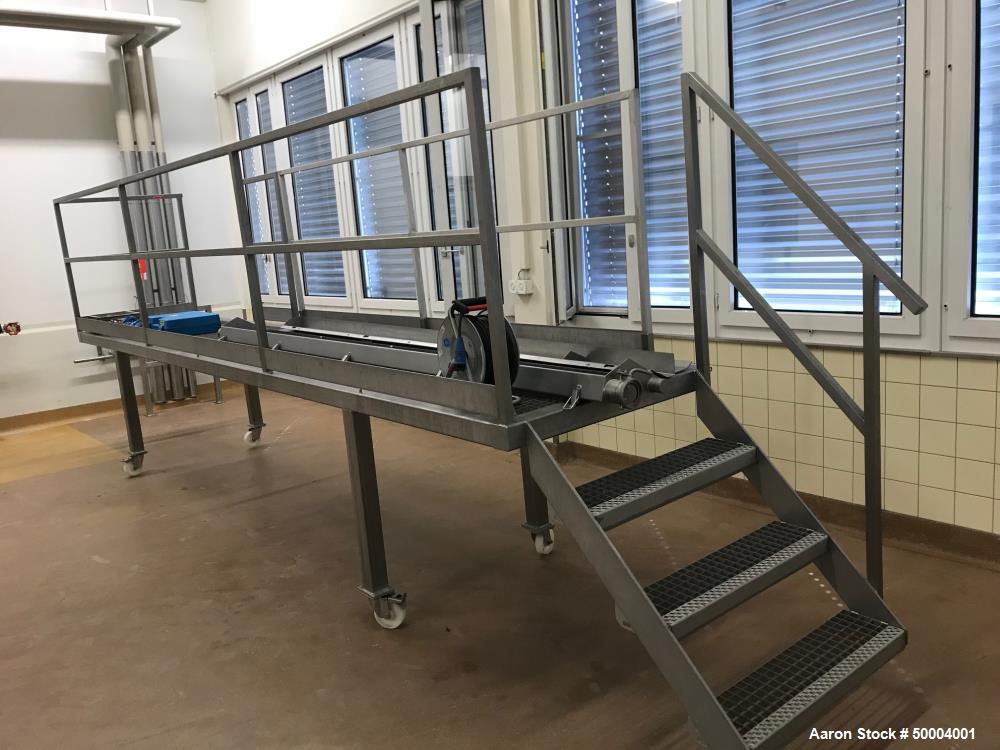

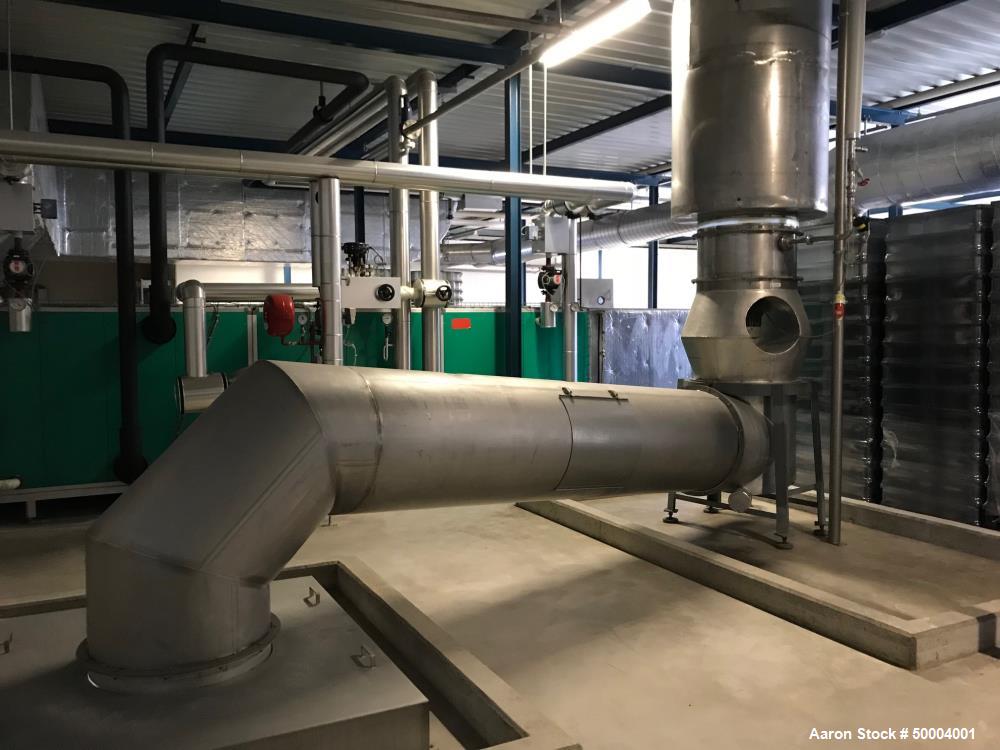

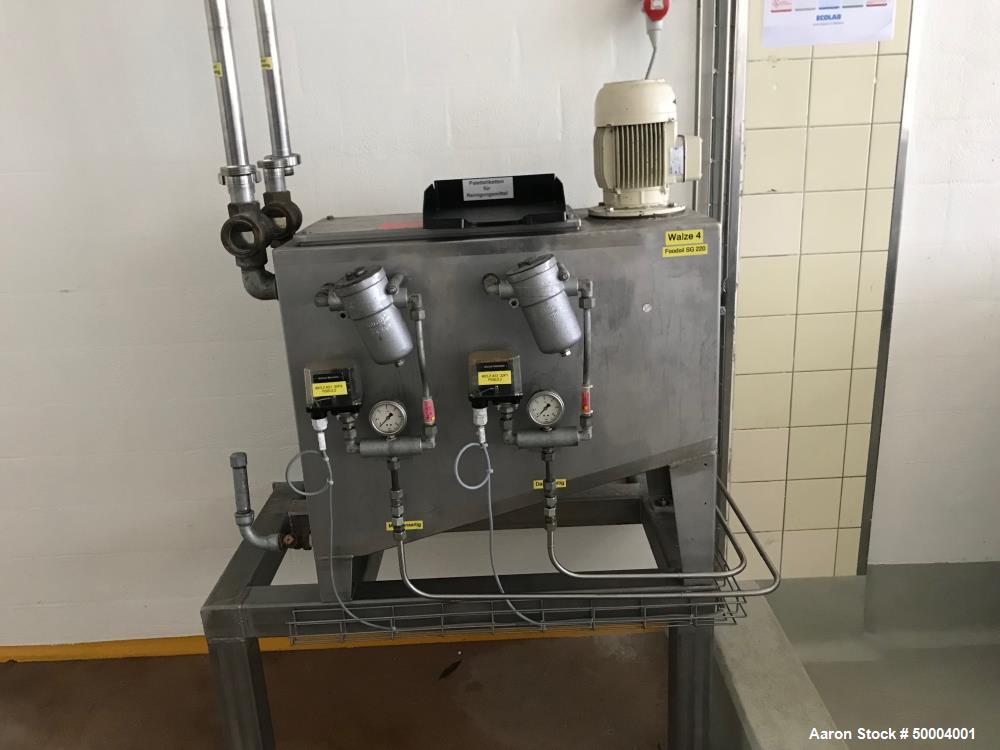

Used GMF-Goudsche Mashinefabriek B.V. single drum dryer, 1508 mm (59.37") diameter x 3000 mm (117") st. side roll. Carbon steel chrome construction on product contact parts. 4350 liters (468 sq. ft). Max drum pressure rated 12 bar (180 psi) at 191 deg. C (375.8 deg F). Drum speed 4-16 rpm via a gearbox by a 12-45 HP/8-30 Kw-220/380volt/50cycle/3Ph-600-2200 rpm. Motor. (4) Left-Right order-rolls 221 mm (8.6") dia. x 3000 mm (117") st. side. (2) 5 section bronze discharge knives 150 mm (5.9") dia. x 2956 mm (115.3") long. Incl. (1) Stainless steel discharge screw conveyer 400 mm (15.6") dia. x 188" (4822 mm) st. side driven by a 1.65 HP/1.1 Kw-220/380volt/50cycle/3Ph motor. (1) Stainless steel inspection platform. Complete with stainless steel hood, air handling system and additional infrastructure. New 1978.
