Used- Simon Pilot Indirect Gas Fired Rotary Calciner

Stock# 13816002

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 13816002

ITEM SOLD!

View All 2 available items

HAVE A SIMILAR MACHINE FOR SALE?

Surplus Equipment for Sale?
We make this quick and easy!

Scan QR Code with your phone
Enter Contact Info
Upload Pics and Specs
Submit

More Info

DESCRIPTION

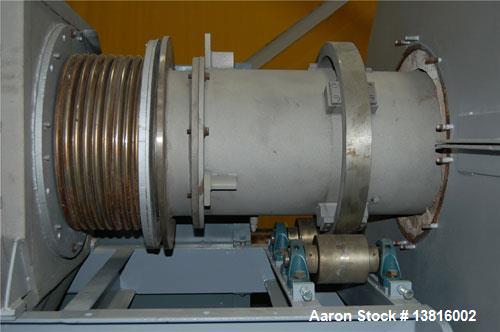

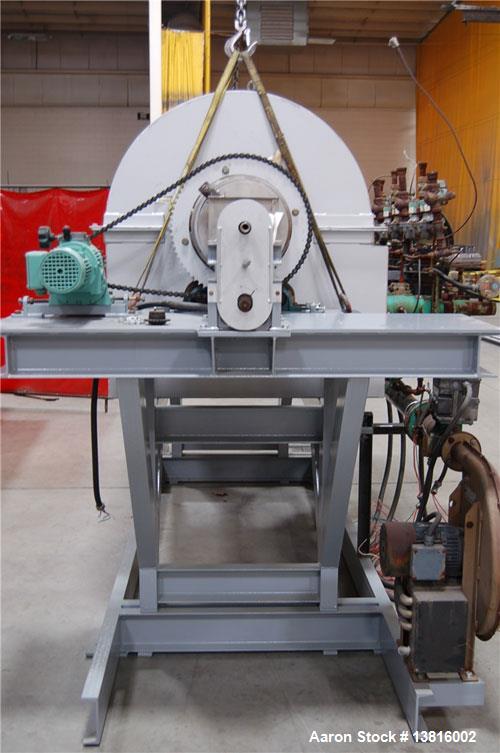

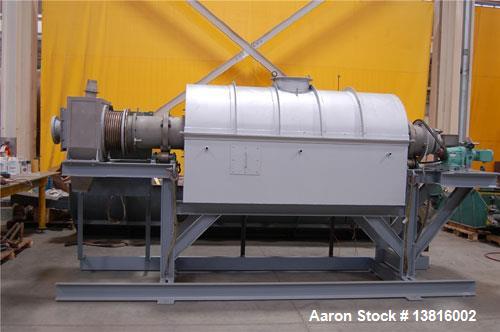

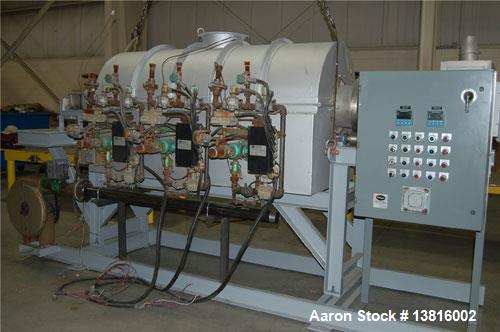

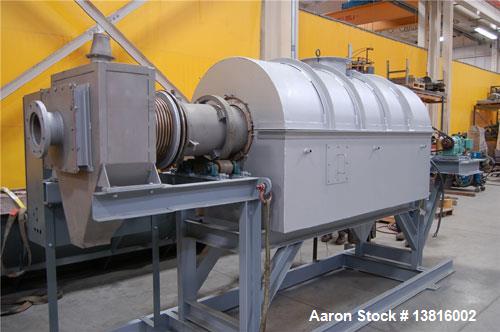

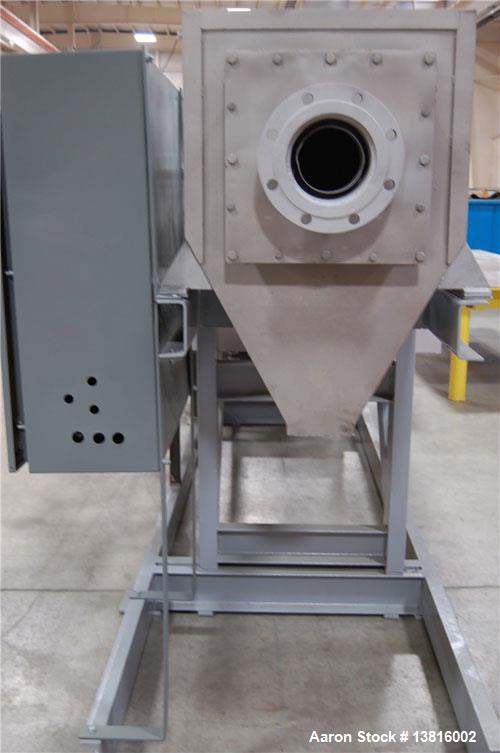

Used- Simon Pilot Indirect Gas Fired Rotary Calciner. 12" Diameter, 310 stainless steel retort, 155" overall length, gas tight seals, maximum temperature 1,600 degree F, packaged pilot unit mounted on frame with base. One zone 7' long furnace with three Eclipse gas burners, maximum output 1.2 million btu with 1.1 kw combustion air blower mounted on unit, Eclipse control system and panel, 0.55 kw variable speed retort drive 1.8 to 10.5 rpm, 3" diameter stainless feed screw with 0.06 kW variable speed drive, insulated stainless steel discharge hood with top vapor outlet, 6" square bottom discharge flange, ceramic wool liner in furnace box. Manufactured 1995.
