Used 17" Rotary Calciner

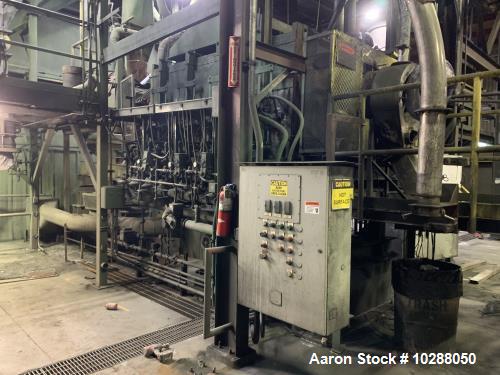

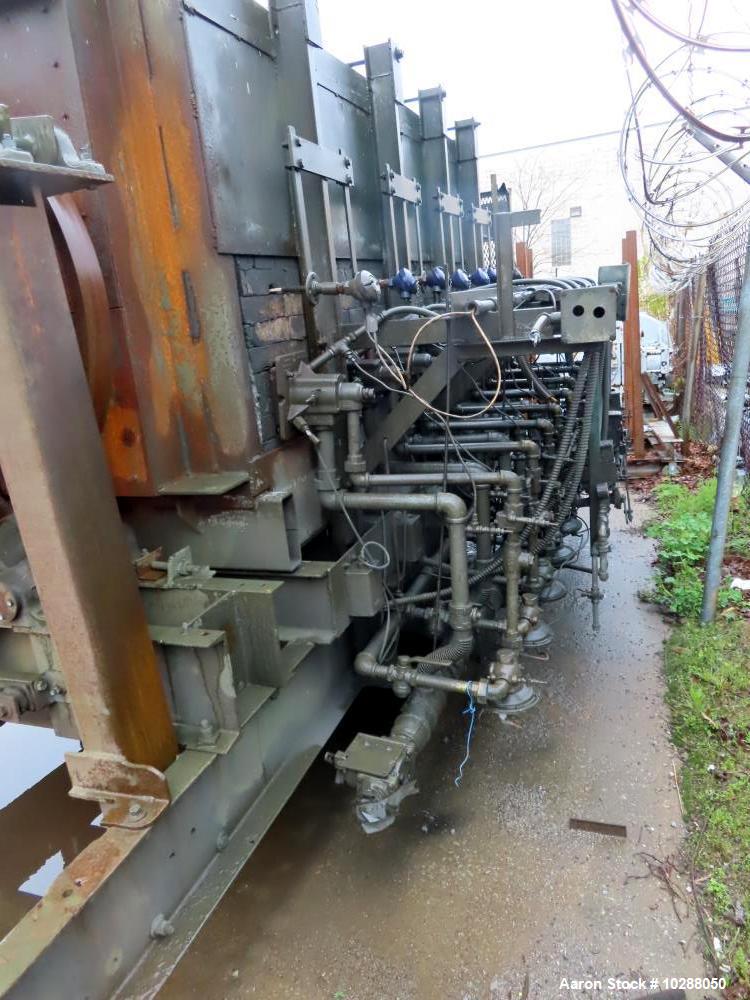

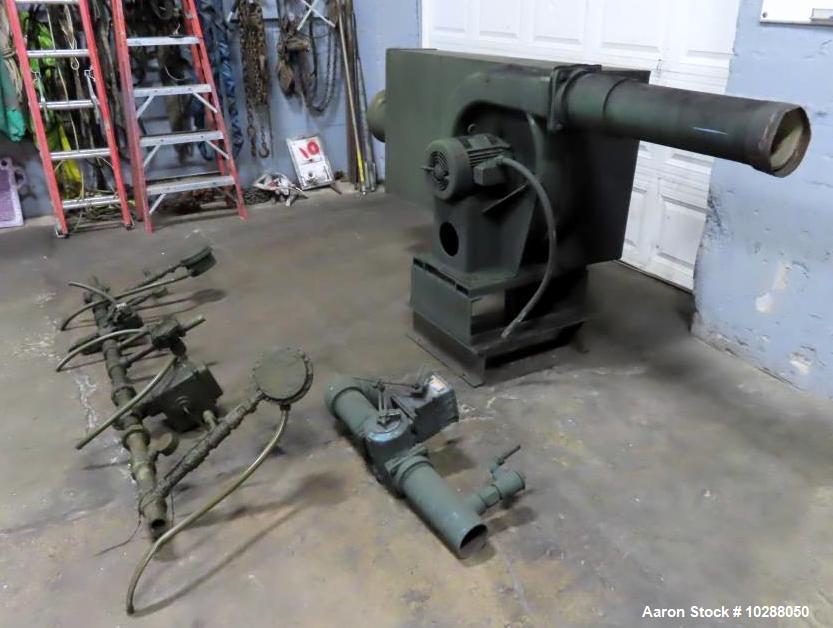

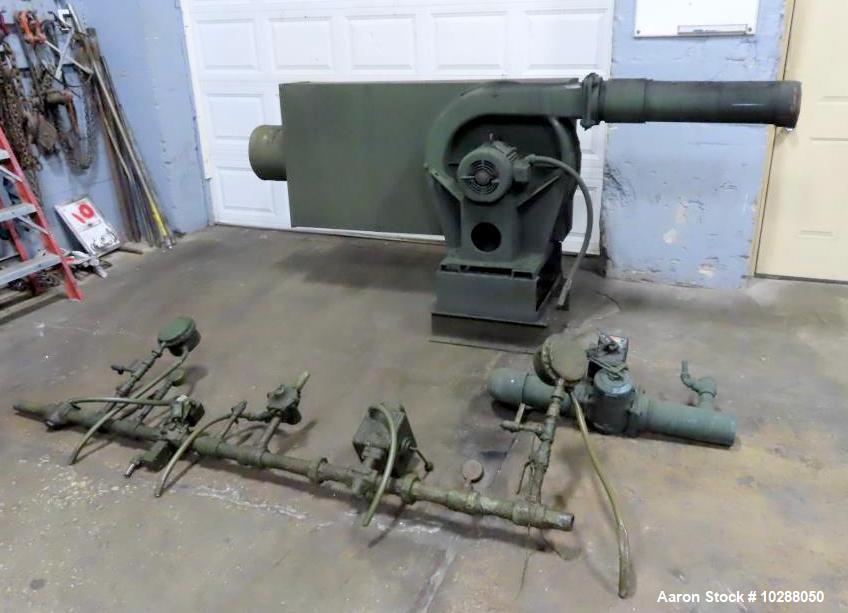

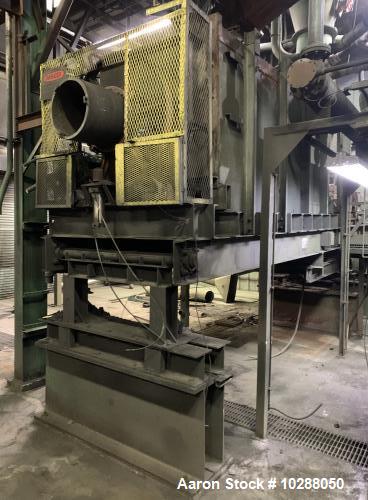

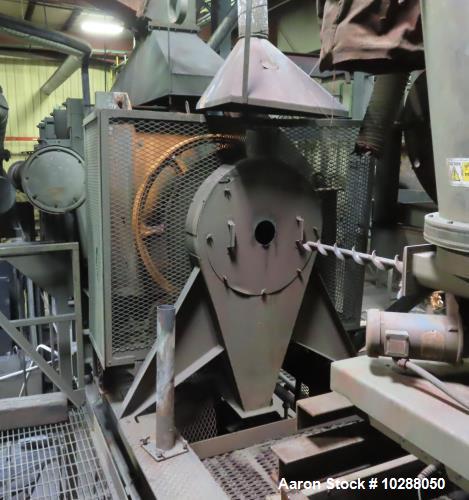

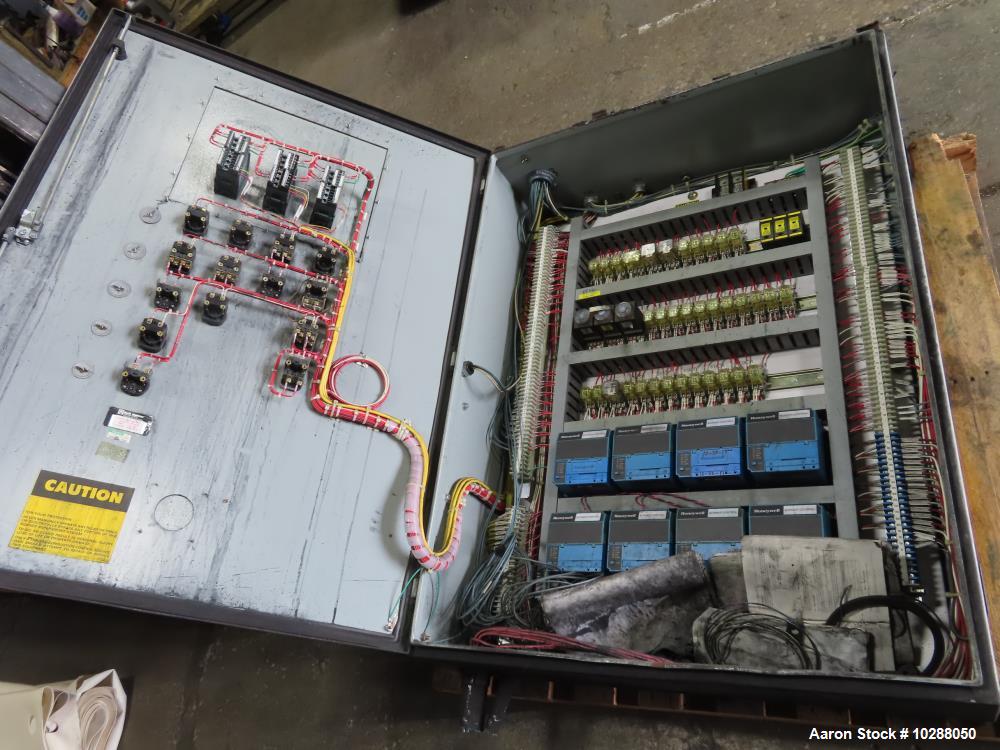

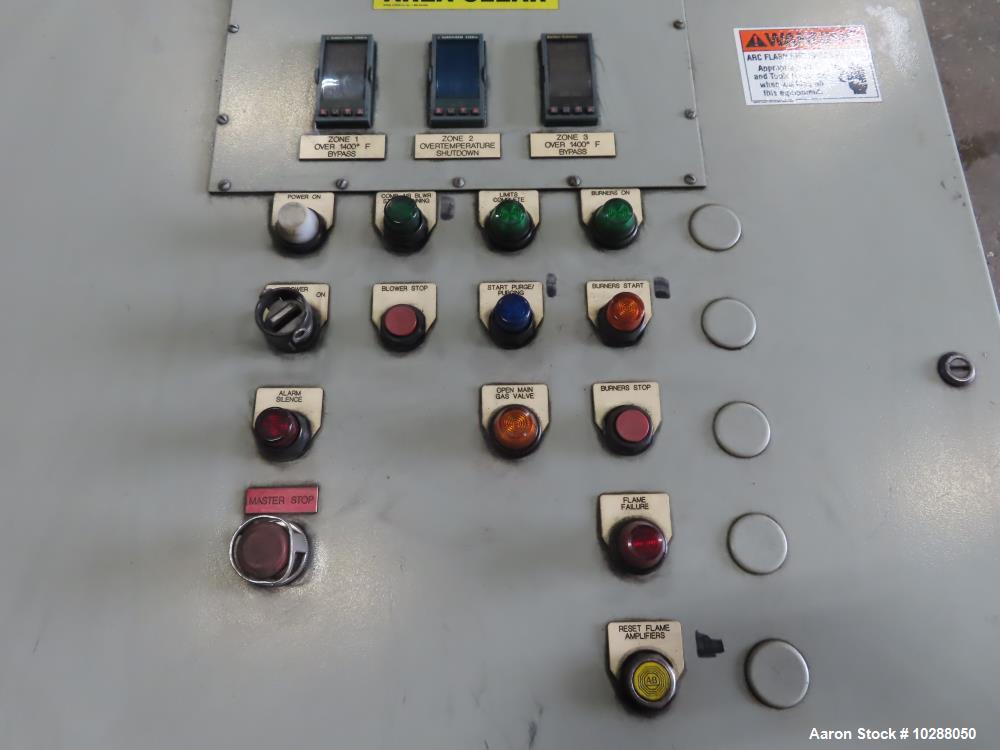

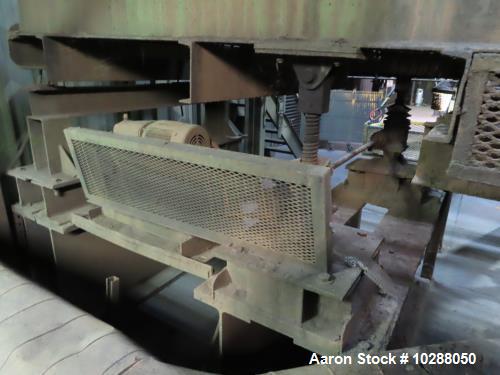

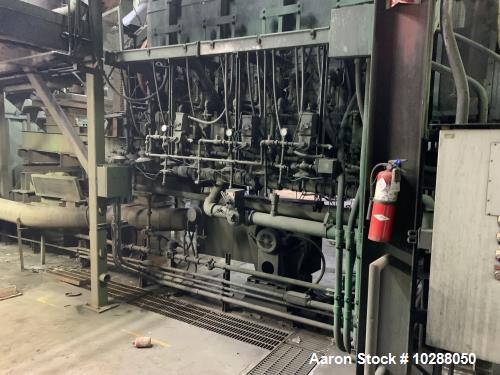

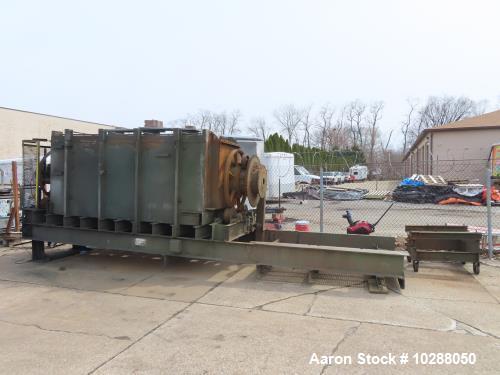

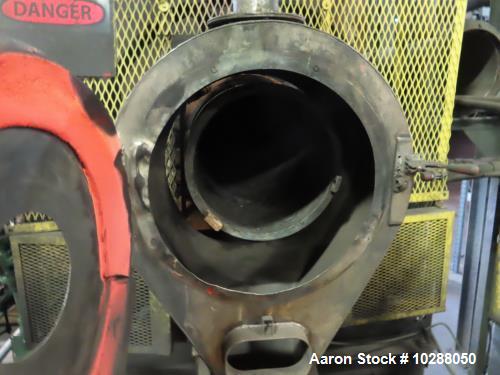

Used- 17" Rotary Calciner, 11'6" Hot Zone, Indirect Natural Gas Fired, Inconel Tube. 17" O.D. Tube, 15" I.D. x 16' long Inconel tube: 1" thick. 11' 6" long hot zone chamber. 8 burners, 3 zones, set point range was 1000 F to 2100 F 2 burners on each end zone, 4 burners on center zone. Includes the fresh air blower, gas train and control panel. Equipped with motorized tilt, adjustable from 0.0 to 2.9 degrees. Gear reduced tube drive with chain and sprocket, with guard. Tube speed was set for 0.5 to 5 RPM, with VFD. Feed: Acrison hopper and auger feed, hopper is approximately 4' deep. Discharge: Enclosed hood/shroud with bottom chute. Equipped with beside the calciner control panel. Spare new trunnion rolls, new bearings, and spare roller, Spare sprocket used, spare unused chain still in box and new thermocouples.
