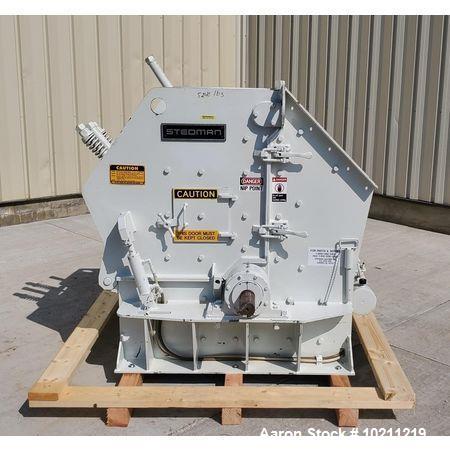

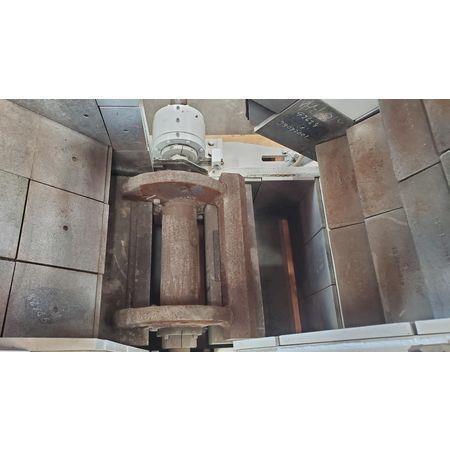

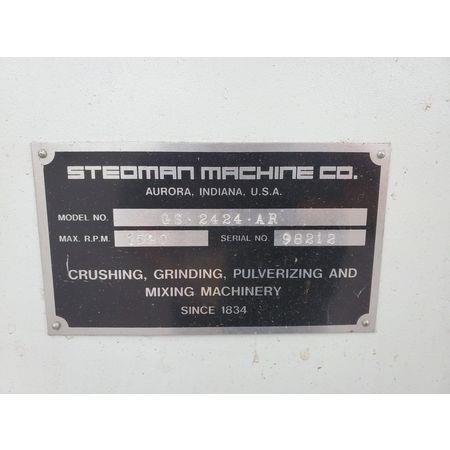

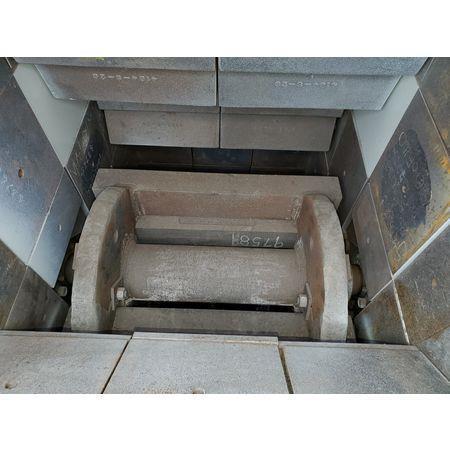

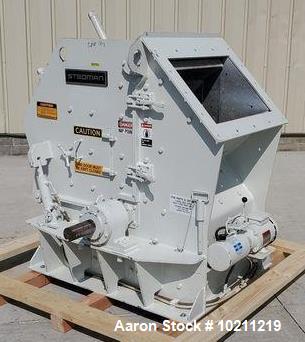

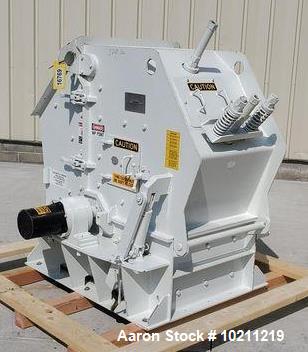

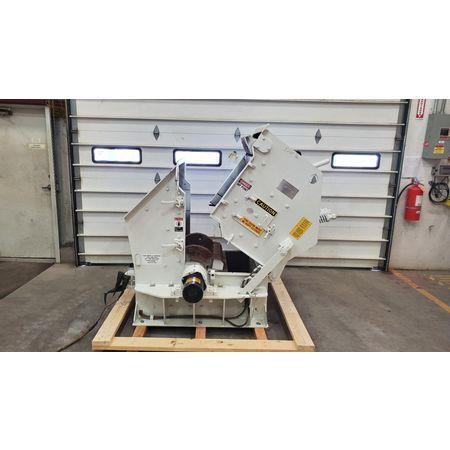

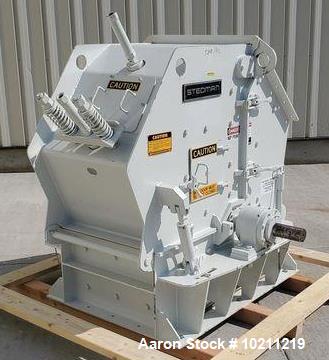

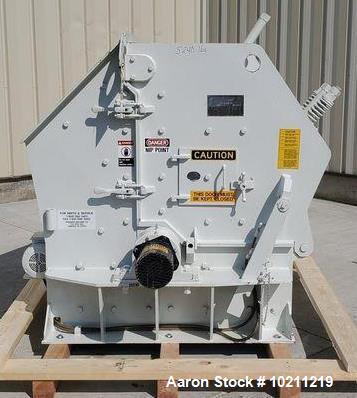

Unused - Stedman Machine Impact Crusher Grand-Slam GS 2424 AR. Maximum RPM: 1590. Originally installed with a 30 hp, 1800 rpm drive 24" diameter by 24" wide. Rotor Breaker Bar Size: 3" x 7-3/4" x 24". Breaker Bar Material: High Chrome Iron. Primary Apron: Fabricated with HC Liners. Secondary Apron: Fabricated with High Chrome Iron Liners. Housing Liners: Abrasion Resistant Steel. Feed Size: 15" x 12" x 12". Blocks Product: (-) 3" Capacity: 2 TPH Gap Settings: Front: 4" Rear: 2 1/2". Maximum feed size if 6" maximum single dimension when measured in any direction. This is based upon a medium hard limestone. Impactor: 5000 Pounds. Rotor Assembly: 775 Pounds. Bearing Assembly: 200 Pounds. Front Breaker Plate Assembly: 600 Pounds. Rear Breaker Plate Assembly: 550 Pounds. Hinged Housing: 650 Pounds. Spring Bridge Weldment: 50 Pounds.
Unused - Stedman Machine Impact Crusher Grand-Slam GS 2424 AR. Maximum RPM: 1590. Originally installed with a 30 hp, 1800 rpm drive 24" diameter by 24" wide. Rotor Breaker Bar Size: 3" x 7-3/4" x 24". Breaker Bar Material: High Chrome Iron. Primary Apron: Fabricated with HC Liners. Secondary Apron: Fabricated with High Chrome Iron Liners. Housing Liners: Abrasion Resistant Steel. Feed Size: 15" x 12" x 12". Blocks Product: (-) 3" Capacity: 2 TPH Gap Settings: Front: 4" Rear: 2 1/2". Maximum feed size if 6" maximum single dimension when measured in any direction. This is based upon a medium hard limestone. Impactor: 5000 Pounds. Rotor Assembly: 775 Pounds. Bearing Assembly: 200 Pounds. Front Breaker Plate Assembly: 600 Pounds. Rear Breaker Plate Assembly: 550 Pounds. Hinged Housing: 650 Pounds. Spring Bridge Weldment: 50 Pounds.
