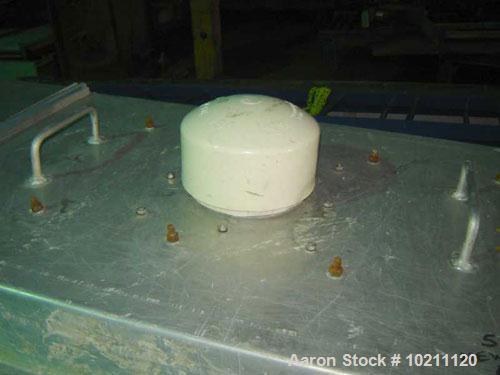

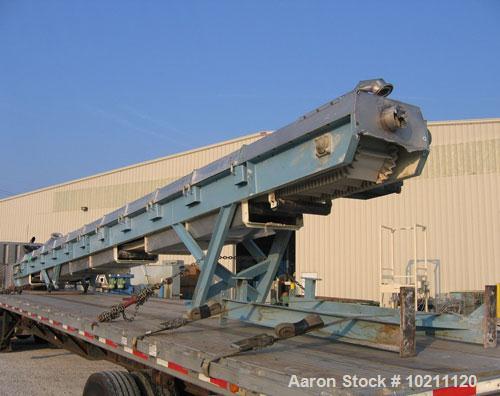

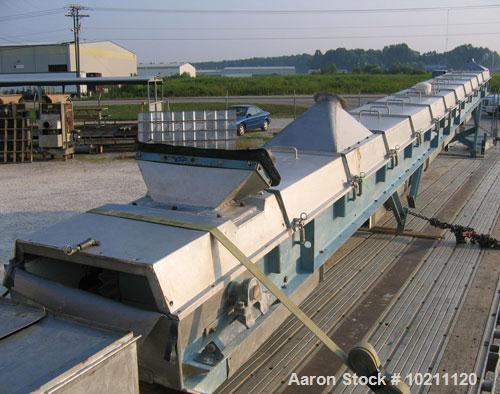

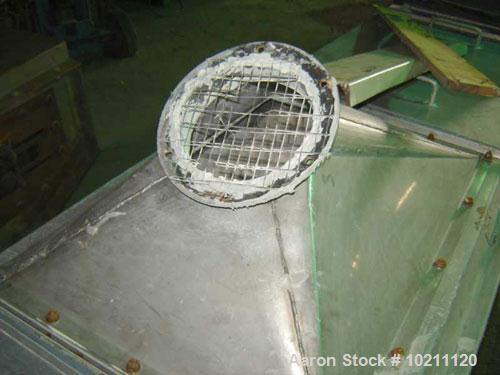

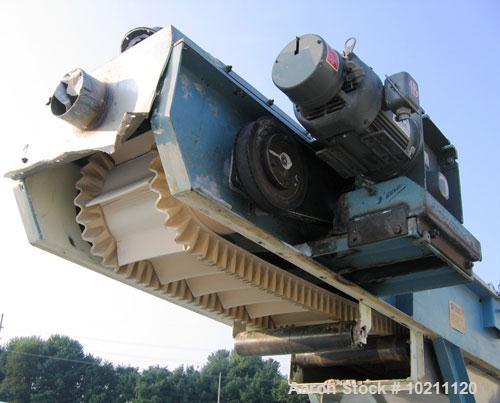

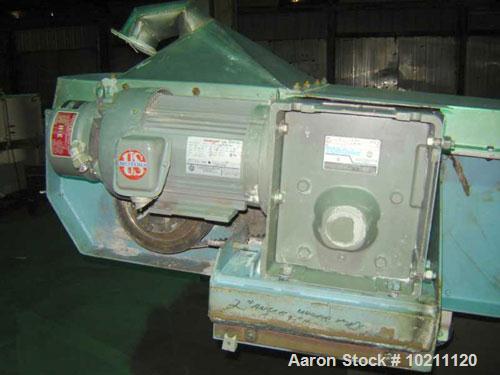

Used 12" Wide X 36' Long Inclined Enclosed Cleated Belt Conveyor, Model BC-12HD-35C-FW. Manufactured by Professional Engineering Associates, Louisville KY. Accordian sidewall and cleat height is 2.5". Cleat centers are 6". Wall to wall inside dimension is 12". There are 10 aluminum removal covers that measure 35" long X 30" wide with handles and spring loaded clamps. Overall width of main conveyor is 34" and width at drive is 48". Inlet is 24" X 5.5". There is a 6" diameter flanged opening approximately 48" up the conveyor from the inlet. There is a capped inlet at the midway point. There is a 4" I.D. flanged vent on top at the discharge end and a 6" I.D. straight vent on the discharge end. Unit comes complete with discharge transition housing. Conveyor is powered by a cogged belt drive with a Unimount 125 enclosed high efficiency model G40115, 3 hp, 1750 rpm motor. 3 phase, 60 hz, voltage is 208-230/460, 182T frame, type UT, enclosure is TE, S.F. is 1.25 and continuous duty. Speed reducer is a Torqube by U.S. Electric Motors Division of Emerson Electric, Milford CT. Frame 37, type QC, max input hp 4.07, input rpm 1750. Gear ratio 20:1, S.F 1.0, max output torque 2510 inch pounds. ID# 5677/R02 P350R032F. Electric brake is Shurstop by U.S. Electrical Motors. Torque 15 ft lbs, kit #958193, 230/460 volts, single phase, 60 hz. Complete with spare unused belt section.
Used 12" Wide X 36' Long Inclined Enclosed Cleated Belt Conveyor, Model BC-12HD-35C-FW. Manufactured by Professional Engineering Associates, Louisville KY. Accordian sidewall and cleat height is 2.5". Cleat centers are 6". Wall to wall inside dimension is 12". There are 10 aluminum removal covers that measure 35" long X 30" wide with handles and spring loaded clamps. Overall width of main conveyor is 34" and width at drive is 48". Inlet is 24" X 5.5". There is a 6" diameter flanged opening approximately 48" up the conveyor from the inlet. There is a capped inlet at the midway point. There is a 4" I.D. flanged vent on top at the discharge end and a 6" I.D. straight vent on the discharge end. Unit comes complete with discharge transition housing. Conveyor is powered by a cogged belt drive with a Unimount 125 enclosed high efficiency model G40115, 3 hp, 1750 rpm motor. 3 phase, 60 hz, voltage is 208-230/460, 182T frame, type UT, enclosure is TE, S.F. is 1.25 and continuous duty. Speed reducer is a Torqube by U.S. Electric Motors Division of Emerson Electric, Milford CT. Frame 37, type QC, max input hp 4.07, input rpm 1750. Gear ratio 20:1, S.F 1.0, max output torque 2510 inch pounds. ID# 5677/R02 P350R032F. Electric brake is Shurstop by U.S. Electrical Motors. Torque 15 ft lbs, kit #958193, 230/460 volts, single phase, 60 hz. Complete with spare unused belt section.
